PONTIAC GRAND-PRIX 1993 Owner's Guide

Seats & Safety 6eIts

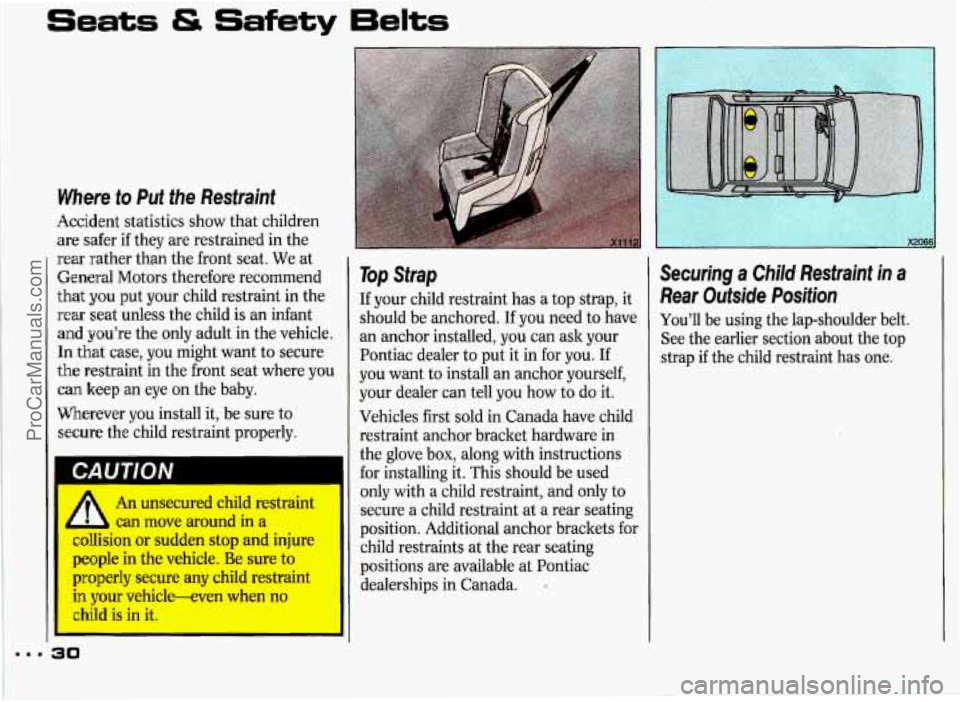

Where to Put the Restraint
Accident statistics show that children
are safer
if .they are restrained in the
rear rather than the front seat. We at
General Motors therefore recommend
that
you put your child restraint in the
rear seat unless the child is an infant
and you’re the only adult in the vehicle.
In that case, you might want to secure
the restraint in the front seat where you
can keep an eye on the baby.
Wherever you install it, be sure to
secure the child restraint properly.
A
An unsecured child restraint
can move around in a
callision or sudden stop and injure
people
in the vehicle. Be sure to
properly secure any child restraint
in your vehicl-ven when no I
child is in it.
30
I
Top Strap
If your child restraint has a top strap, it
should be anchored. If you need to have
an anchor installed, you can ask your
Pontiac dealer to put it in for you. If
you want to install an anchor yourself,
your dealer can tell you how to do it.
Vehicles first sold in Canada have child
restraint anchor bracket hardware in
the glove box, along with instructions
for installing it. This should be used
only with a child restraint, and only to
secure a child restraint at a rear seating
position. Additional anchor brackets for
child restraints at the rear seating
positions are available
at Pontiac
dealerships in Canada.
I
Securing a Child Restraint in a
Rear Outside Position
You’ll be using the lap-shoulder belt.
See the earlier section about the top
strap
if the child restraint has one.
ProCarManuals.com

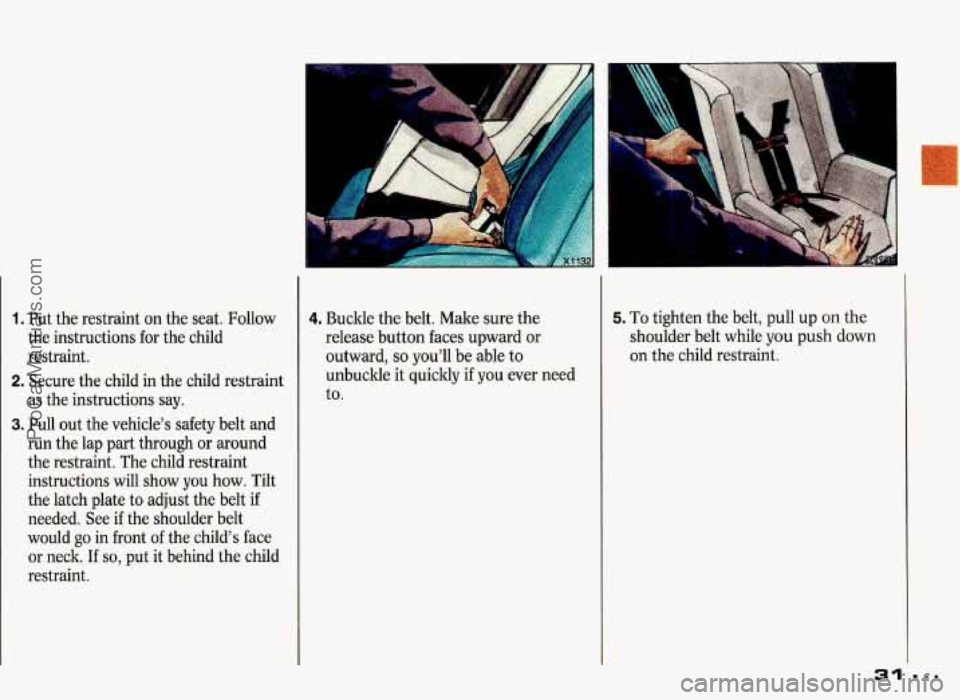

1. Put the restraint on the seat. Follow
the instructions for the child
restraint.
2. Secure the child in the child restraint
as the instructions say.
3. Pull out the vehicle’s safety belt and
run the lap part through or around
the restraint. The child restraint
instructions will show
you how. Tilt
the latch plate to adjust the belt if
needed. See if the shoulder belt
would go in front of the child’s face
or neck.
If so, put it behind the child
restraint.
4. Buckle the belt. Make sure the
release button faces upward or
outward,
so you’ll be able to
unbuckle it quickly if you ever need
to.
5. To tighten the belt, pull up on the
shoulder belt while you push
down
on the child restraint.
31 m..
ProCarManuals.com

Seats & Safety Belts
...

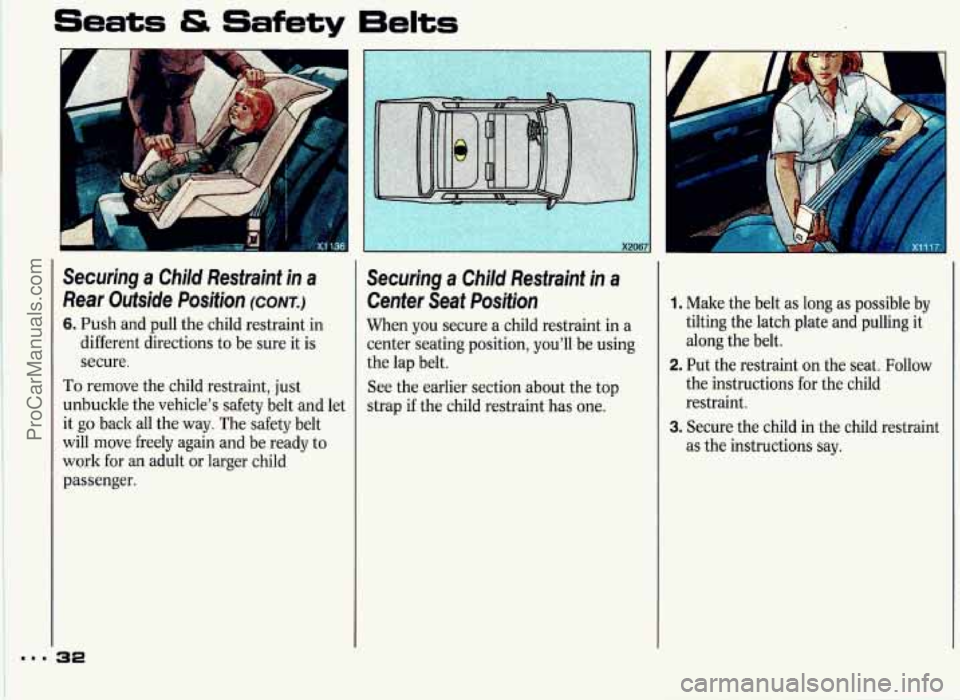

Securing a Child Restraint in a
Rear Outside Position (CONT.)
6. Push and pull the child restraint in
different directions to be sure it is
secure.
To remove the child restraint, just
unbuckle the vehicle’s safety belt and let
it
go back all the way. The safety belt
will move freely again and be ready to
work for an adult or larger child
passenger.
I x2067
Securing a Child Restraint in a Center Seat Position
When you secure a child restraint in a
center seating position, you’ll be using
the lap belt.
See the earlier section about the top
strap if the child restraint has one.
‘I
1. Make the belt as long as possible by
tilting the latch plate and pulling it
along the belt.
2. Put the restraint on the seat. Follow
the instructions for the child
restraint.
as the instructions say.
3. Secure the child in the child restraint
32
ProCarManuals.com

I

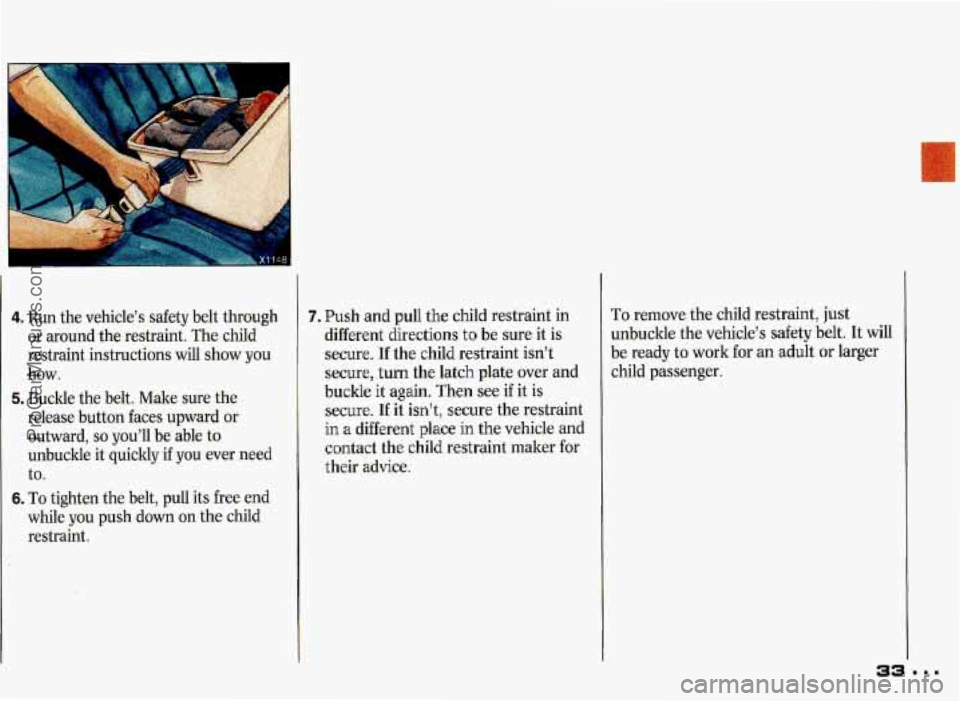

4. Run the vehicle’s safety belt through
or around the restraint. The child
restraint instructions will show you
how.
5. Buckle the belt. Make sure the
release button faces
upward or
outward, so you’ll be able to
unbuckle it quickly if you ever need
6. To tighten the belt, pull its free end
while you push down on the child
restraint.
to.
7. Push and pull the child restraint in
different directions to be sure it is
secure. If the child restraint isn’t
secure, turn the latch plate over and
buckle it again. Then see if it is
secure. If it isn’t, secure the restraint
in a different place in the vehicle and
contact the
child restraint maker for
their advice.
To remove the child restraint, just
unbuckle the vehicle’s safety belt. It will
be ready to work for an adult or larger
child passenger.
ProCarManuals.com

Seats Safety Eelts

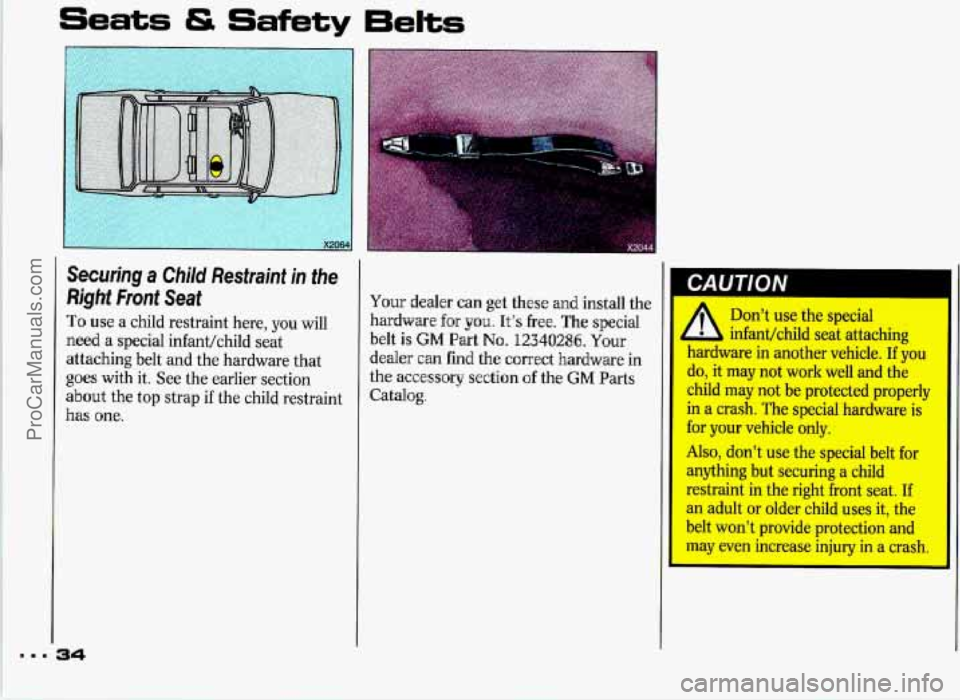

Securing a Child Restraint in the
Righf Front Seat
To use a child restraint here, you will
need a special infant/child seat
attaching belt and the hardware that
goes with it. See the earlier section
about the top strap
if the child restraint
has one.
Your dealer can get these and install the
hardware for
you. It’s free. The special I I
belt is GM Part No. 12340286. Your
dealer can find the correct hardware in
the accessory section
of the GM Parts
Catalog.
A Don’t use the special
infant/child seat attaching
hardware in another vehicle.
If you
do, it may not work well and the
child may not be protected properly
in a crash. The special hardware is
for your vehicle only.
Also, don’t use the special belt for
anything but securing a child
restraint in the right front seat. If
an adult or older child uses it, the
belt won’t provide protection and
may even increase injury in a crash.
L
ProCarManuals.com

Once the special hardware is installed,
please follow the instructions with it
and these steps:
1. Unbuckle the automatic lap-shoulder
belt by pushing the button
on the
buckle. It will stay
on the door, ready
to be rebucltled for use by adults or
older children.
2. Snap one hook of the infantkhild
seat attaching belt near the floor at
the door side
of the seat.
3. Put the belt’s special latch plate into
the vehicle’s safety belt buckle.
ProCarManuals.com

Seats & Safety 6eIts

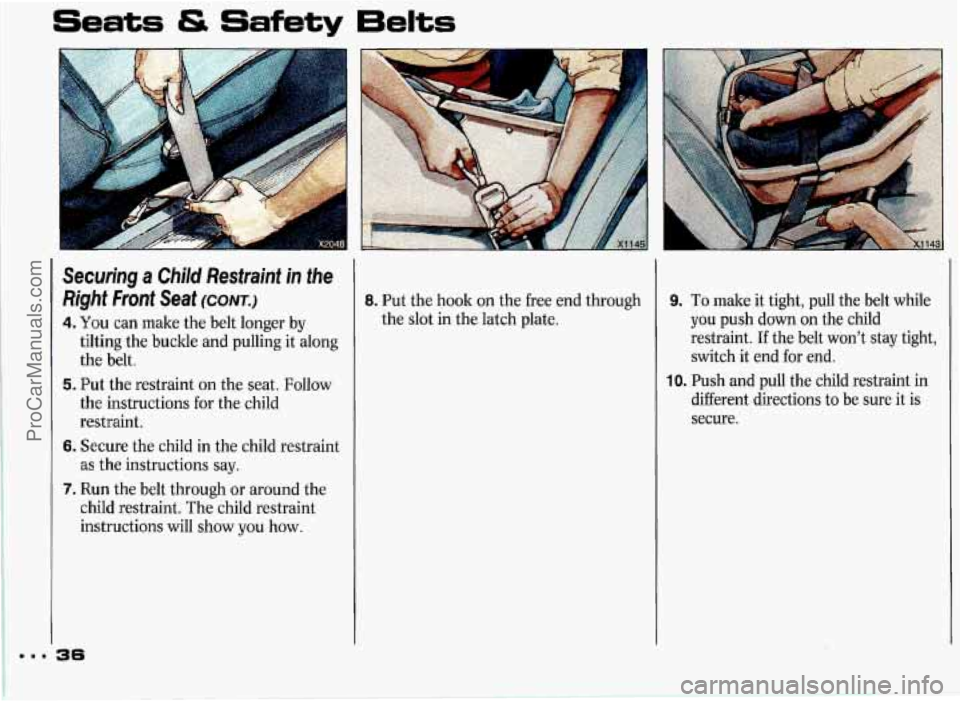

Securing a Child Restraint in the
Right Front Seat (CONT.)
4. You can make the belt longer by
tilting the buckle and pulling it along
the belt.
5. Put the restraint on the seat. Follow
the instructions for the child
restraint.
6. Secure the child in the child restraint
as the instructions say.
7. Run the belt through or around the
child restraint. The child restraint
instructions will show you how.
8. Put the hook on the free end through
the slot in the latch plate.
I'
9. To make it tight, pull the belt while
you push down on the child
restraint. If the belt won't stay tight,
switch it end for end.
different directions to be sure it is
secure.
10. Push and pull the child restraint in
ProCarManuals.com

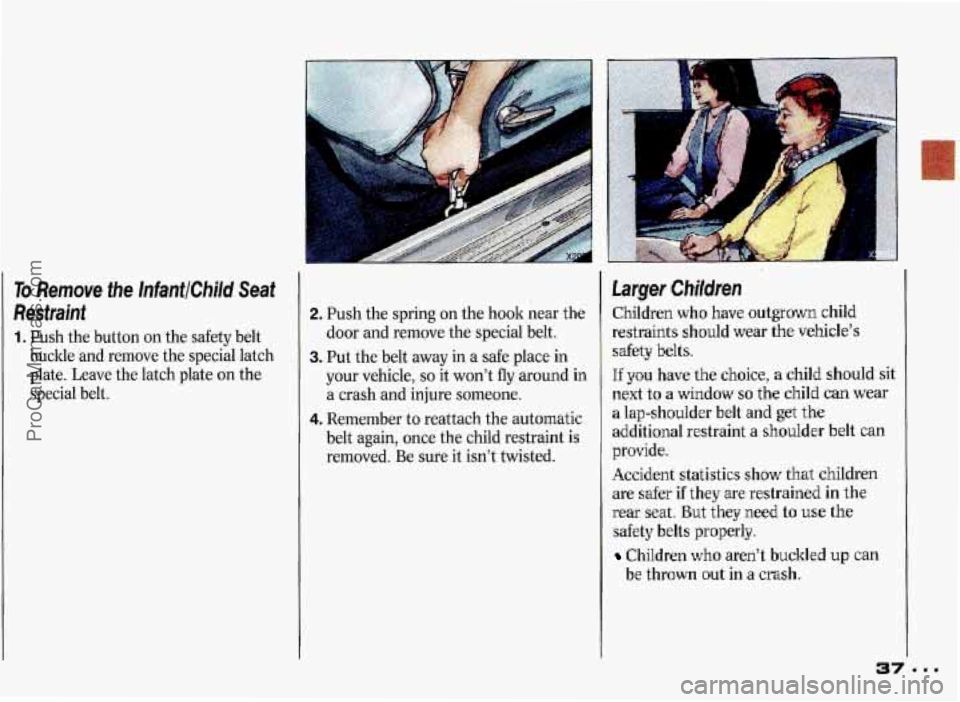

To Remove the InfanflChild Seat
Restraint
1. Push the button on the safety belt
buckle and remove the special latch
plate. Leave the latch plate
on the
special belt.
2. Push the spring on the hook near the
door and remove the special belt.
3. Put the belt away in a safe place in
your vehicle,
so it won’t fly around in
a crash and injure someone.
4. Remember to reattach the automatic
belt again, once the child restraint
is
removed. Be sure it isn’t twisted.
Larger Children
Children who have outgrown child
restraints should wear
the vehicle’s
safety
belts.
If you have the choice, a child should sit
next to a window so the child can wear
a lapshoulder belt and get the
additional restraint a shoulder belt can
provide.
Accident statistics show
that children
are safer if they are restrained in the
rear seat. But they need to use the
safety belts properly.
Children who aren’t buckled up can
be thrown out in a crash.
ProCarManuals.com

Seats #& Safety 6eIts

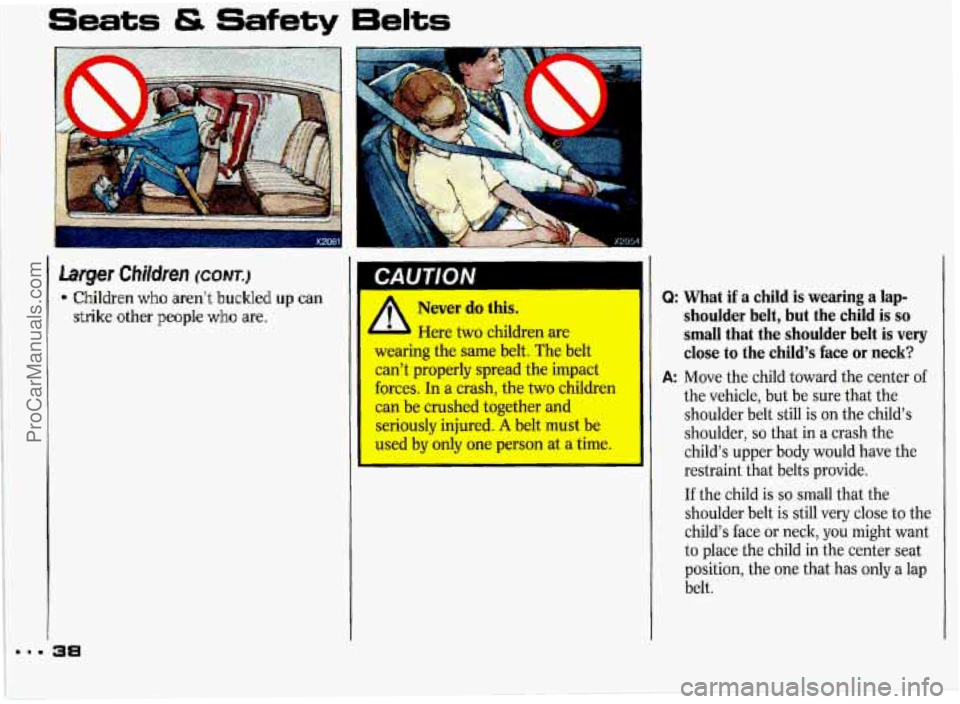

Larger Children (CONK)
I I
9 Chilldren who aren’t buckled up can
strike other people who are.
38
A Never do this.
Here two children are
wearing the same belt. The belt
can’t properly spread the impact
forces. In a crash, the
two children
can be crushed together and
seriously injured.
A belt must be
;ed bv onlv one Derson at a time.
Q: What if a child is wearing a lap-
shoulder belt, but the child is
so
small that the shoulder belt is very
close to the child’s face or neck?
\: Move the child toward the center of
the vehicle, but be sure that the
shoulder belt still is on the child’s
shoulder,
so that in a crash the
child’s upper body would have the
restraint that belts provide.
If the child is so small that the
shoulder belt
is still very close to the
child’s face or neck, you might want
to place the child in the center seat
position, the one that has only
a lap
belt.
ProCarManuals.com

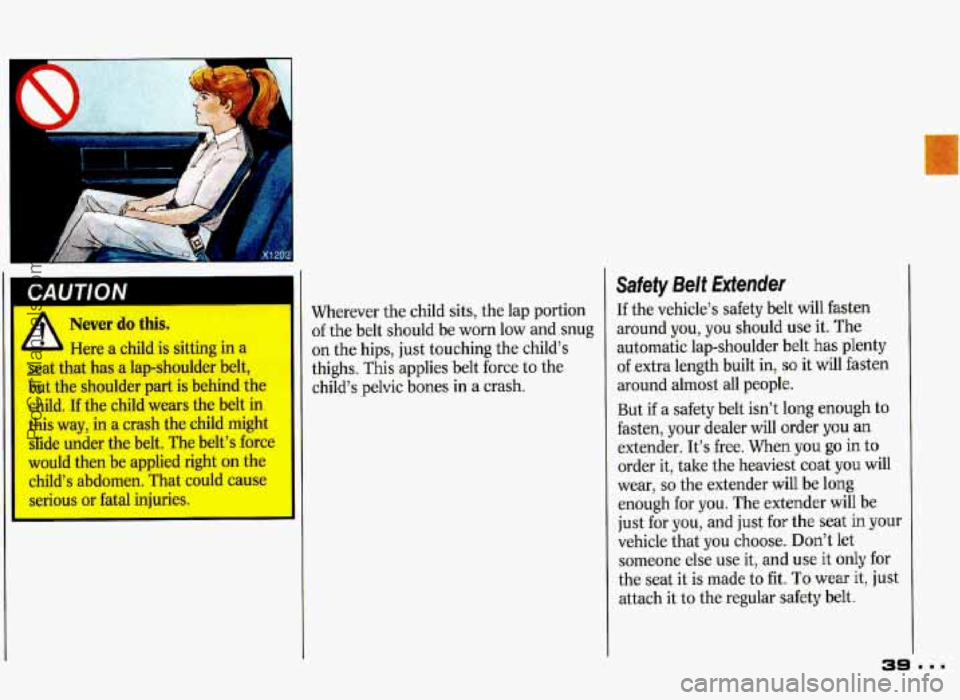

A
Never do this.
Here a child is sitting in a
seat that has a lap-shoulder belt,
but the shoulder part is behind the
child. If the child wears the belt in
this way, in a crash the child might
slide under the belt. The belt’s force
would then be applied right on the
child’s abdomen. That could cause
serious or fatal injuries. Wherever
the child sits, the lap portion
of the belt should be worn low and snug
on the hips, just touching the child’s
thighs. This applies belt force to the
child’s pelvic bones in
a crash.
Safety Belt Extender
If the vehicle’s safety belt will fasten
around you, you should use it. The
automatic lap-shoulder belt has plenty
of extra length built in,
so it will fasten
around almost all people.
But if a safety belt isn’t long enough to
fasten, your dealer will order
you an
extender. It’s free. When
you go in to
order it, take the heaviest coat you will
wear,
so the extender will be long
enough for you. The extender will be
just for you, and just
for the seat in your
vehicle that you choose. Don’t let
someone else use it, and use it only for
the seat it is made to fit.
To wear it, just
attach it to the regular safety belt.
