automatic transmission PONTIAC GTO 2006 Owners Manual

Keys...............................................................2-2
Remote Keyless Entry System.........................2-4
Remote Keyless Entry System Operation...........2-5
Doors and Locks.............................................2-7
Door Locks....................................................2-7
Power Door Locks..........................................2-8
Programmable Automatic Door Locks................2-9
Trunk............................................................2-9
Windows........................................................2-12
Power Windows............................................2-13
Sun Visors...................................................2-13
Theft-Deterrent Systems..................................2-14
Immobilizer..................................................2-14
Immobilizer Operation....................................2-14
Content Theft-Deterrent.................................2-15
Starting and Operating Your Vehicle................2-16
New Vehicle Break-In....................................2-16
Ignition Positions..........................................2-16
Retained Accessory Power (RAP)...................2-17
Starting the Engine.......................................2-18Automatic Transmission Operation...................2-19
Manual Transmission Operation......................2-21
Parking Brake..............................................2-24
Shifting Into Park (P)
(Automatic Transmission)............................2-24
Shifting Out of Park (P)
(Automatic Transmission)............................2-26
Parking Over Things That Burn.......................2-27
Engine Exhaust............................................2-27
Running the Engine While Parked...................2-28
Mirrors...........................................................2-29
Manual Rearview Mirror.................................2-29
Outside Power Mirrors...................................2-29
Outside Convex Mirror...................................2-29
Storage Areas................................................2-30
Glove Box...................................................2-30
Cupholder(s)................................................2-30
Front Storage Area.......................................2-30
Center Console Storage Area.........................2-30
Vehicle Personalization...................................2-31

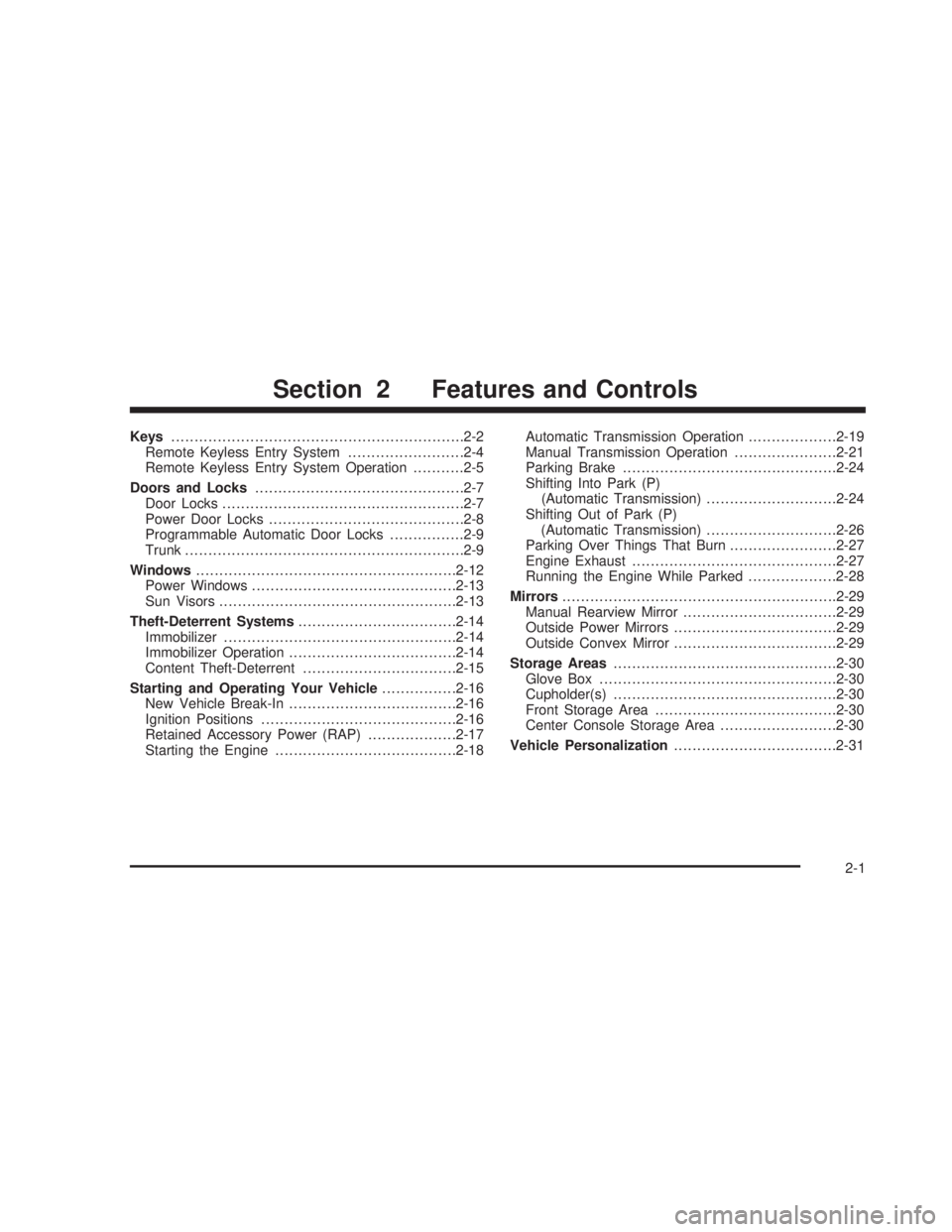

Section 2 Features and Controls
2-1
2006 - Pontiac GTO Owner Manual

If both doors are unlocked, press the button to lock the
doors. If both doors are locked, press the button to
unlock the doors.
If the driver's door is unlocked and the passenger's door
is locked, press the button once to unlock the
passenger's door. Press the button a second time to
lock both doors.
Pressing the LOCK button on the remote key disables
the power door lock switch. See
Remote Keyless
Entry System Operation on page 2-5for more
information on how the remote keyless entry system
works in combination with your power locks.
Programmable Automatic
Door Locks
If your vehicle has an automatic transmission, it is
equipped with an automatic door locking feature which
can be programmed through the trip computer
buttons and instrument panel center display. It can be
programmed to be on or off. See
Vehicle Personalization
on page 2-31for more information.
Your vehicle was programmed from the factory to
automatically lock when the shift lever is moved out
of PARK (P).
Trunk
{CAUTION:
It can be dangerous to drive with the trunk lid
open because carbon monoxide (CO) gas can
come into your vehicle. You cannot see or
smell CO. It can cause unconsciousness and
even death. If you must drive with the trunk lid
open or if electrical wiring or other cable
connections must pass through the seal
between the body and the trunk lid:
·Make sure all other windows are shut.
·Turn the fan on your heating or cooling
system to its highest speed and select the
control setting that will force outside air
into your vehicle. See Climate Control
System.
·If you have air outlets on or under the
instrument panel, open them all the way.
See
Engine Exhaust on page 2-27.
2-9
2006 - Pontiac GTO Owner Manual

The key can only be turned to this position if the
vehicle's automatic transmission is in PARK (P). To help
guard against theft, your vehicle's engine is
automatically disabled shortly after turning the key to
this position. A ¯ashing padlock symbol on the bottom
left corner of the instrument panel indicates this.
The steering column is automatically locked when the
key is removed. To release the steering wheel, insert the
key again and turn it towards the front of the vehicle.
Notice:Using a tool to force the key from the
ignition switch could cause damage or break the
key. Use the correct key and turn the key only with
your hand. Make sure the key is all the way in. If
it is, turn the steering wheel left and right while you
turn the key hard. If none of this works, then
your vehicle needs service.
B (ON):This position is where the key returns to after
you start your engine and release the key. The
ignition switch stays in ON when the engine is running.
But even when the engine is not running, you can
use ON to operate your electrical accessories and to
display some instrument panel warning lights.
C (START):This position starts the engine. When the
engine starts, release the key. The ignition switch
will return to ON for normal driving.
Retained Accessory Power (RAP)
Your vehicle is equipped with a Retained Accessory
Power (RAP) feature that enables the radio, power
windows, windshield wipers, and accessory power outlet
to continue to work after the ignition key has been
turned to LOCK and removed from the ignition.
The radio, wipers and accessory power outlet will turn
off when the ignition key is turned to LOCK and
removed. By turning the radio back on, you will be able
to operate it, the windshield wipers, and the accessory
power outlet for up to one hour or until:
·The radio is turned off
·Either door is opened
The windows will also operate for 15 minutes or until
either door is opened.
2-17
2006 - Pontiac GTO Owner Manual

Starting the Engine
Automatic Transmission
Move your shift lever to PARK (P) or NEUTRAL (N).
Your engine will not start in any other position Ð that is
a safety feature. To restart when you are already
moving, use NEUTRAL (N) only.
Notice:Do not try to shift to PARK (P) if your
vehicle is moving. If you do, you could damage the
transmission. Shift to PARK (P) only when your
vehicle is stopped.
Manual Transmission
The shift lever should be in neutral and the parking
brake engaged. Hold the clutch pedal to the ¯oor and
start the engine. Your vehicle will not start if the
clutch pedal is not all the way down Ð that is a safety
feature.
Starting Your Engine
1. With your foot off the accelerator pedal and the
parking brake ®rmly applied, turn your ignition
key to START. When the engine starts, let go of the
key. The idle speed will go down as your engine
gets warm.
Notice:Holding your key in START for longer than
15 seconds at a time will cause your battery to
be drained much sooner. And the excessive heat
can damage your starter motor. Wait about
15 seconds between each try to help avoid draining
your battery or damaging your starter.
2. If it does not start, wait about 15 seconds and try
again to start the engine by turning the ignition key to
START. Wait about 15 seconds between each try.
When your engine has run about 10 seconds to
warm up, your vehicle is ready to be driven. Do not
run your engine at high speeds when it is cold.
If the weather is below freezing (32ÉF or 0ÉC), let
the engine run for a few minutes to warm up.
Notice:Your engine is designed to work with the
electronics in your vehicle. If you add electrical
parts or accessories, you could change the way the
engine operates. Before adding electrical equipment,
check with your dealer. If you do not, your engine
might not perform properly. Any resulting damage
would not be covered by your vehicle's warranty.
2-18
2006 - Pontiac GTO Owner Manual

Automatic Transmission Operation
There are several different
positions for your shift
lever. Push in the button
on top of the shift lever
when shifting into position.
PARK (P):The engine can be started in this position.
This position prevents the rear wheels from turning
and so should be selected, together with the parking
brake, when leaving the vehicle.
{CAUTION:
It is dangerous to get out of your vehicle if the
shift lever is not fully in PARK (P) with the
parking brake ®rmly set. Your vehicle can roll.
CAUTION: (Continued)
CAUTION: (Continued)
Do not leave your vehicle when the engine is
running unless you have to. If you have left the
engine running, the vehicle can move
suddenly. You or others could be injured. To
be sure your vehicle will not move, even when
you are on fairly level ground, always set your
parking brake and move the shift lever to
PARK (P). See
Shifting Into Park (P) (Automatic
Transmission) on page 2-24
. If you are pulling
a trailer, see
Towing a Trailer on page 4-34.
Ensure the shift lever is fully in PARK (P) before starting
the engine. Your vehicle has an automatic transmission
shift lock control system. You must have your foot
on the regular brakes before you can shift from
PARK (P) when the ignition key is in ON. The vehicle
will not shift from PARK (P) if the button is pressed
before the brake is applied. If you cannot shift out of
PARK (P), ease pressure on the shift lever, push
the shift lever all the way into PARK (P), and release
the shift lever button as you maintain brake application.
Then press the shift lever button and move the shift
lever into the desired gear. See

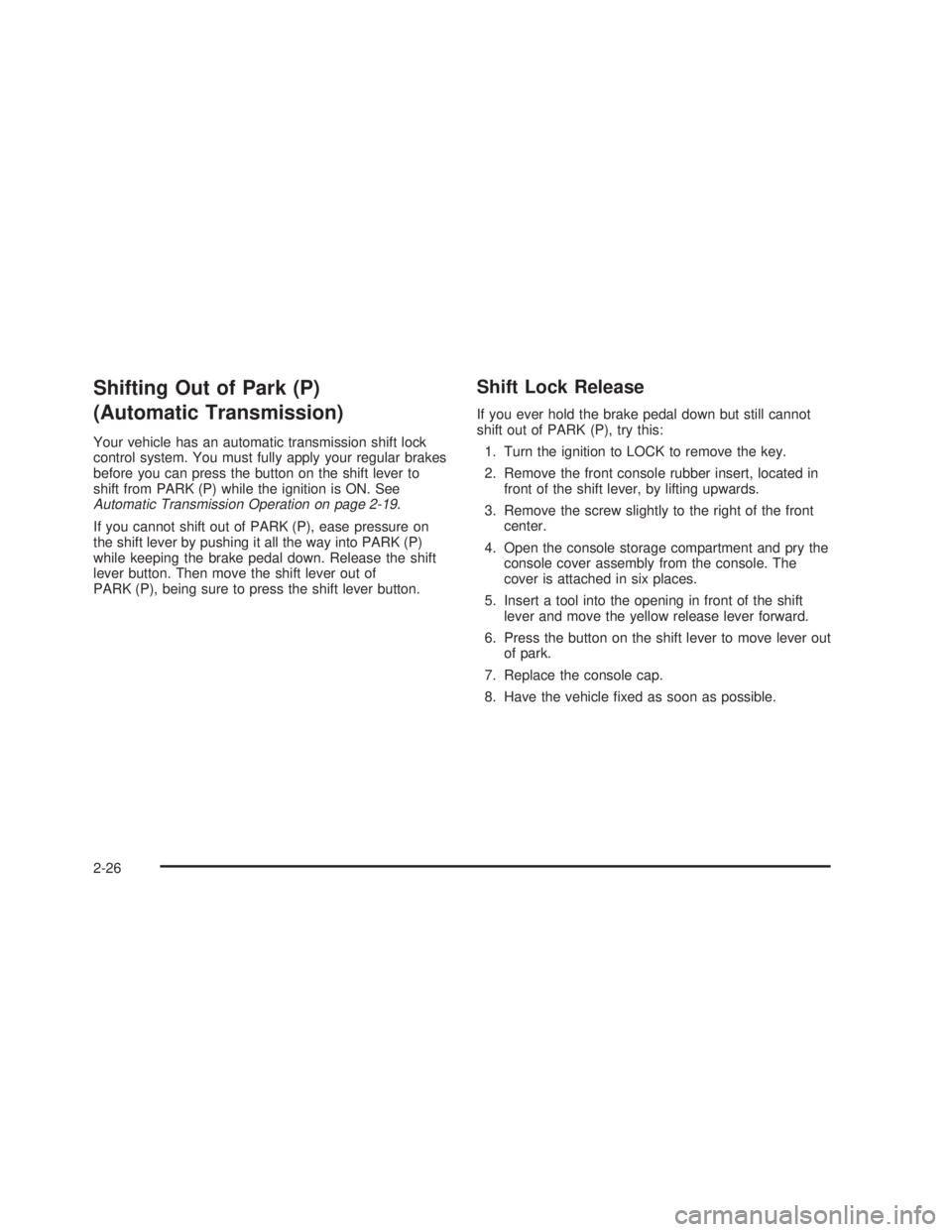

Shifting Out of Park (P)
(Automatic Transmission) on page 2-26.
2-19
2006 - Pontiac GTO Owner Manual

Parking Brake
To set the parking brake, pull up on the parking brake
handle without pressing the release button. If the ignition
is on, the brake system warning light will come on.
See
Brake System Warning Light on page 3-27.
To release the parking brake, hold the regular brake
pedal down. Pull the parking brake handle up until you
can press the release button. Hold the release button
in as you move the brake handle all the way down.
Notice:Driving with the parking brake on can
overheat the brake system and cause premature
wear or damage to brake system parts. Verify that
the parking brake is fully released and the brake
warning light is off before driving.
Shifting Into Park (P)
(Automatic Transmission)
{CAUTION:
It can be dangerous to get out of your vehicle if
the shift lever is not fully in PARK (P) with the
parking brake ®rmly set. Your vehicle can roll. If
you have left the engine running, the vehicle
can move suddenly. You or others could be
injured. To be sure your vehicle will not move,
even when you are on fairly level ground, use
the steps that follow. If you are pulling a trailer,
see
Towing a Trailer on page 4-34.
1. Hold the brake pedal down with your right foot and
set the parking brake.
2. Move the shift lever into PARK (P).
·Press in and hold the shift lever button, located
on the top of the shift lever.
·Push the lever all the way toward the front of the
vehicle.
3. Turn the main key to LOCK.
4. Remove the key and take it with you. If you can
leave your vehicle with the main key in your
hand, your vehicle is in PARK (P).
2-24
2006 - Pontiac GTO Owner Manual

Leaving Your Vehicle With the Engine
Running (Automatic Transmission)
{CAUTION:
It can be dangerous to leave your vehicle with
the engine running. Your vehicle could move
suddenly if the shift lever is not fully in
PARK (P) with the parking brake ®rmly set.
And, if you leave the vehicle with the engine
running, it could overheat and even catch ®re.
You or others could be injured. Do not leave
your vehicle with the engine running.
If you have to leave your vehicle with the engine
running, be sure the vehicle is in PARK (P) and the
parking brake is ®rmly set before you leave it. After you
have moved the shift lever into PARK (P), hold the
regular brake pedal down. Then, see if you can move
the shift lever away from PARK (P), without ®rst pushing
the shift lever button. If you can, it means that the
shift lever was not fully locked into PARK (P).
Torque Lock (Automatic Transmission)
If you are parking on a hill and you do not shift your
transmission into PARK (P) properly, the weight of the
vehicle may put too much force on the parking pawl
in the transmission. You may ®nd it difficult to move the
shift lever out of PARK (P). This is called torque
lock. To prevent torque lock, set the parking brake and
then shift into PARK (P) properly before you leave
the driver's seat. To ®nd out how, see
Shifting Into Park
(P) (Automatic Transmission) on page 2-24.
When you are ready to drive, move the shift lever out of
PARK (P) before you release the parking brake.
If torque lock does occur, you may need to have another
vehicle push your vehicle uphill. This should take
some of the pressure from the parking pawl in the
transmission, so you can move the shift lever out
of PARK (P).
2-25
2006 - Pontiac GTO Owner Manual

Shifting Out of Park (P)
(Automatic Transmission)
Your vehicle has an automatic transmission shift lock
control system. You must fully apply your regular brakes
before you can press the button on the shift lever to
shift from PARK (P) while the ignition is ON. See
Automatic Transmission Operation on page 2-19.
If you cannot shift out of PARK (P), ease pressure on
the shift lever by pushing it all the way into PARK (P)
while keeping the brake pedal down. Release the shift
lever button. Then move the shift lever out of
PARK (P), being sure to press the shift lever button.
Shift Lock Release
If you ever hold the brake pedal down but still cannot
shift out of PARK (P), try this:
1. Turn the ignition to LOCK to remove the key.
2. Remove the front console rubber insert, located in
front of the shift lever, by lifting upwards.
3. Remove the screw slightly to the right of the front
center.
4. Open the console storage compartment and pry the
console cover assembly from the console. The
cover is attached in six places.
5. Insert a tool into the opening in front of the shift
lever and move the yellow release lever forward.
6. Press the button on the shift lever to move lever out
of park.
7. Replace the console cap.
8. Have the vehicle ®xed as soon as possible.
2-26
2006 - Pontiac GTO Owner Manual

Running the Engine While Parked
It is better not to park with the engine running. But if you
ever have to, here are some things to know.
{CAUTION:
Idling the engine with the climate control
system off could allow dangerous exhaust into
your vehicle. See the earlier caution under
Engine Exhaust on page 2-27.
Also, idling in a closed-in place can let deadly
carbon monoxide (CO) into your vehicle even if
the climate control fan is at the highest setting.
One place this can happen is a garage.
Exhaust Ð with CO Ð can come in easily.
NEVER park in a garage with the engine
running.
Another closed-in place can be a blizzard. See
Winter Driving on page 4-24.
{CAUTION:
It can be dangerous to get out of your vehicle
if the shift lever is not fully in PARK (P) with
the parking brake ®rmly set. Your vehicle can
roll. Do not leave your vehicle when the engine
is running unless you have to. If you have left
the engine running, the vehicle can move
suddenly. You or others could be injured. To
be sure your vehicle will not move, even when
you are on fairly level ground, always set your
parking brake and move the shift lever to
PARK (P).
Follow the proper steps to be sure your vehicle will not
move. See
Shifting Into Park (P) (Automatic
Transmission) on page 2-24.
2-28
2006 - Pontiac GTO Owner Manual

Vehicle Personalization
The vehicle personalization mode enables the driver to
customize some of the vehicle features using the
trip computer buttons and instrument panel center
display. Only features that are equipped on the vehicle
will be displayed.
The following list shows features that can be reset or
customized:
·RESTORE TO FACTORY SETTINGS
·UNDERSPEED CHIME
·DIST (Distance) TO ARRIVAL DISPLAY
·DIST (Distance) TO ARRIVAL DEFAULT
·TRIP COMPUTERA&B
·DIGITAL SPEEDO (Speedometer)
·REST REMINDER
·STOP WATCH
·RADIO DISPLAY
·CONFIRMATION BEEPS
·SPEED±DEPENDENT VOLUME
·AUDIO DISTORTION LIMITER
·HEADLIGHTS OFF DELAY TIME
·HEADLIGHTS APPROACH TIME
·AUTO HEADLIGHTS SENSITIVITY
·COURTESY LAMP TIMEOUT
·IGNITION OFF COURTESY LAMP
·TWO STAGE UNLOCK
·AUTO LOCK IN DRIVE
(Automatic Transmission Only)
·DOOR LOCK INDICATION
2-31
2006 - Pontiac GTO Owner Manual
