PONTIAC PONTIAC 1996 Owners Manual

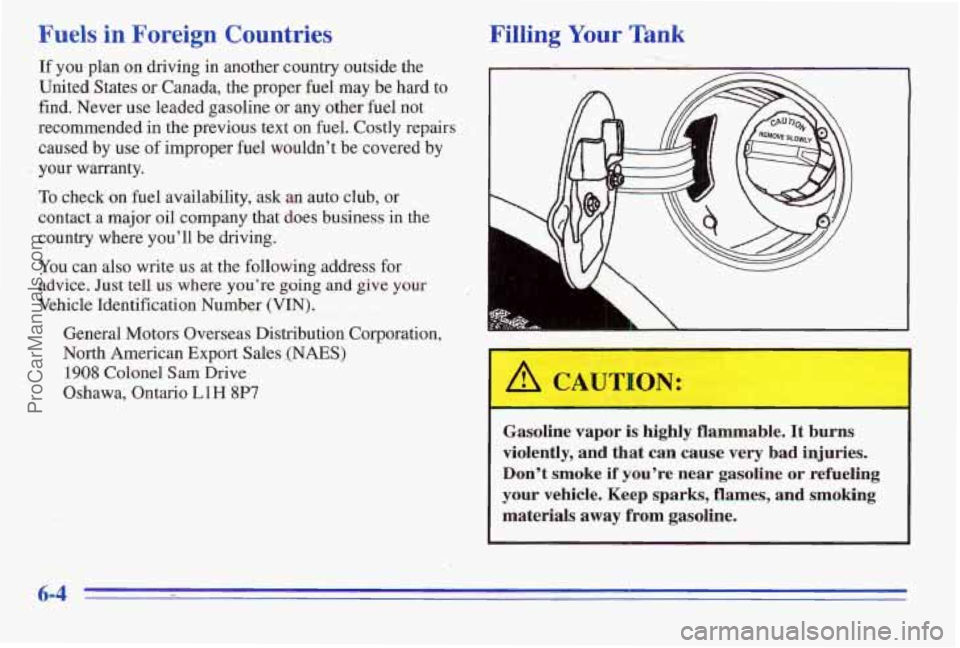

Fuels in Foreign Countries
If you plan on driving in another country outside the
United States or Canada, the proper fuel may be hard to
find. Never use leaded gasoline or
any other fuel not
recommended in
the previous text on fuel. Costly repairs
caused by use
of improper fuel wouldn’t be covered by
your warranty.
To check on fuel availability, ask an auto club, or
contact
a major oil company that does business in the
country where you’ll be driving.
You
can also write us at the following address for
advice. Just
tell us where you’re going and give your
Vehicle Identification Number (VIN).
General Motors Overseas Distribution Corporation,
North American Export Sates ,(NAES)
1908 Colonel Sam Drive
Oshawa, Ontario L1H 8P7
Filling Your Tank
Gasoline vapor is highly flammable. It burns
violently,
and that can cause very bad injuries.
Don’t smoke
if you’re near gasoline or refueling
your vehicle. Keep sparks, flames,
and smoking
materials away from gasoline.
ProCarManuals.com

The cap is behind a hinged door on the left side of
your vehicle.
While refueling, hang
the
cap inside the fuel door.
To take
off the cap, turn it slowly to the left
(counterclockwise).
~~
,!b, CAUTION:
If you get gasoline on yourself and then
something ignites it, you could be badly burned.
Gasoline can spray out
on you-if you open the
fuel filler cap too quickly. This spray can happen
if your tank
is nearly full, and is more likely in
hot weather. Open the fuel filler cap slowly and
wait for any “hiss” noise to stop. Then unscrew
the cap all the way.
Be careful not to spill gasoline. Clean gasoline from
painted surfaces as soon as possible. See “Cleaning the
Outside of Your Pontiac” in the Index.
6-5
ProCarManuals.com

When you put the cap back on, turn it to the right until
you hear at least three clicks. Make sure you €ully install
the cap. The diagnostic system can determine if the fuel
cap has been left off or improperly installed. This would
allow he1 to evaporate into the atmosphere. See
"Malfunction Indicator
Lamp" in the Index.
NOTICE:
I€ you need a new cap, be sue to get the right
type. Your dealer can get one for
you. If you get
the wrong type, it may not fit or have proper
venting, and
your fuel t&-@nd gmissions system
might be damaged. . ...._ ,. . 4.~*,-.:~7F4c:> i,,:;:r'.&:;.., I 5 .v,<. " 52;:. .' , "" $g7!fnt ,,
Checking Things Under the Hood
An electric fan under the hood can start up and
injure
YOU even when the engine is not running.
Keep hands, clothing and tools away from any
underhood electric fan.
Things
that burn can get on hot engine parts and
start a fire. These include liquids like gasoline,
oil, coolant, brake fluid, windshield washer and "
other fluids, and plastic or rubber. You or others
could
be burned. Be careful not to drop or spill
things
that will burn onto a hot engine.
~ ~~~
ProCarManuals.com

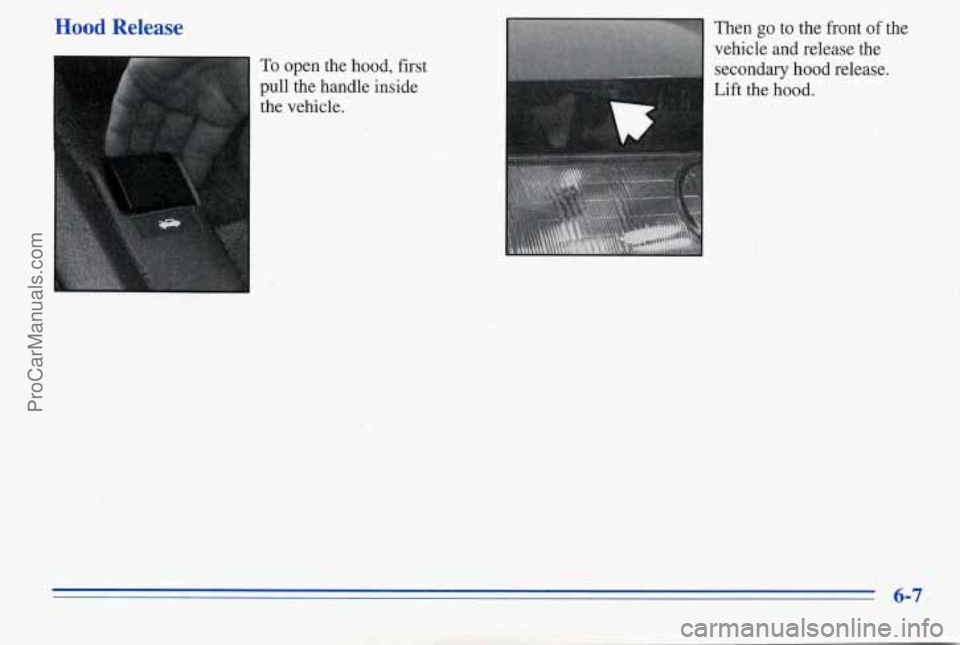

Hood Release
r To open the hood, first
pull the handle inside
the vehicle.
I
1 Lift the hood.
ProCarManuals.com

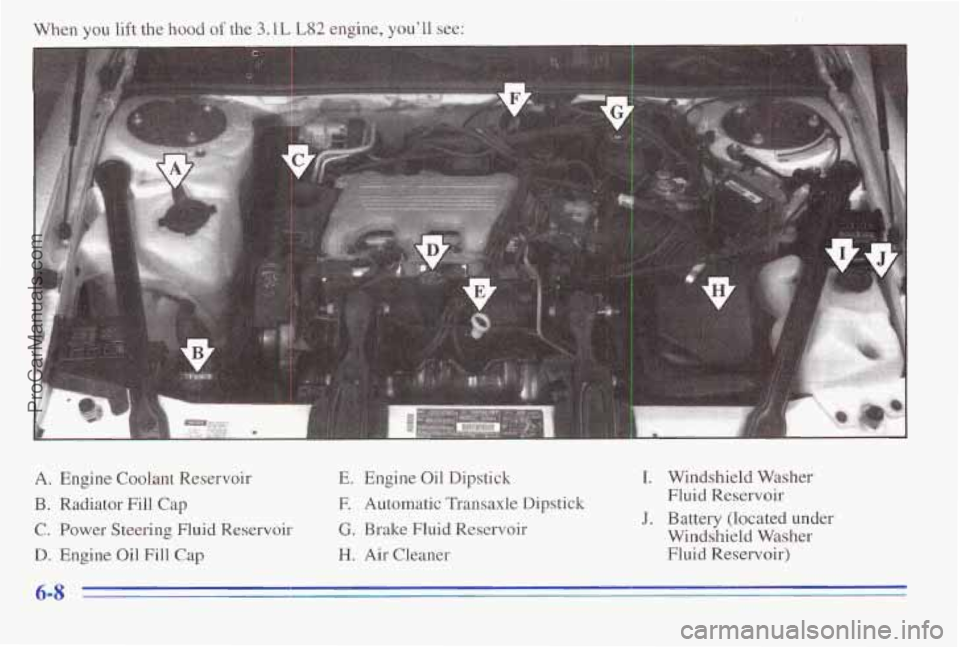

When you lift the hood of the 3.1L L82 engine, you’ll see:
A. Engine Coolant Reservoir
B. Radiator Fill Cap
C. Power Steering Fluid Reservoir
D. Engine Oil Fill Cap
E. Engine Oil Dipstick
E Automatic Transaxle Dipstick
G. Brake Fluid Reservoir
H. Air Cleaner
I. Windshield Washer
Fluid Reservoir
J. Battery (located under
Windshield Washer
Fluid Reservoir)
6-8
ProCarManuals.com

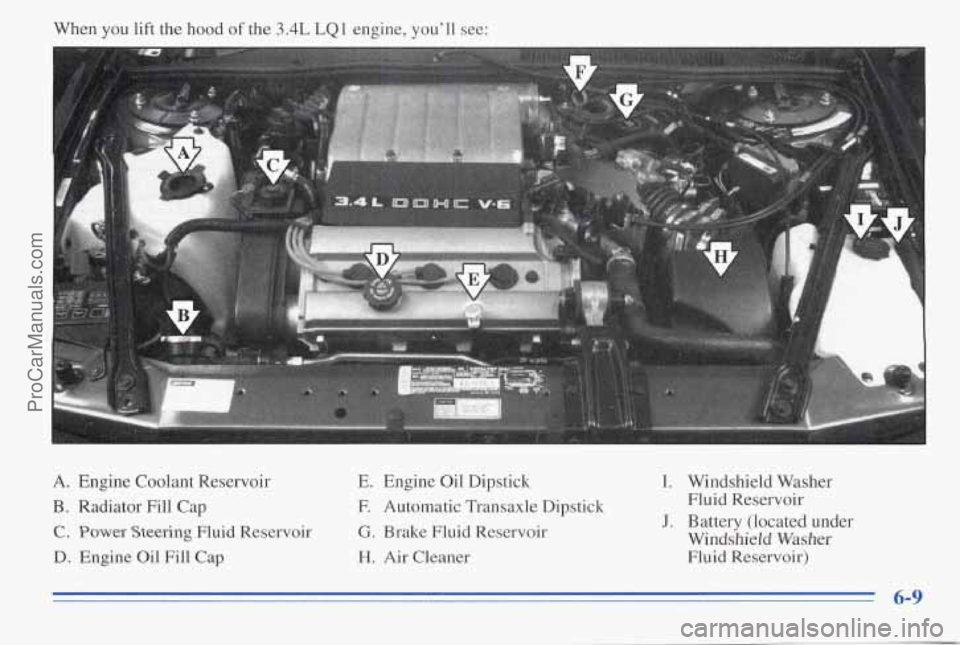

When you lift the hood of the 3.4L LQl engine, you’ll see:
1
A. Engine Coolant Reservoir
B. Radiator Fill Cap
C. Power Steering Fluid Reservoir
D. Engine Oil Fill Cap E.
Engine Oil Dipstick
F. Automatic Transaxle Dipstick
G. Brake Fluid Reservoir
H. Air Cleaner
I. Windshield Washer
Fluid Reservoir
J. Battery (located under
Windshield
Washer
Fluid Reservoir)
6-9
ProCarManuals.com

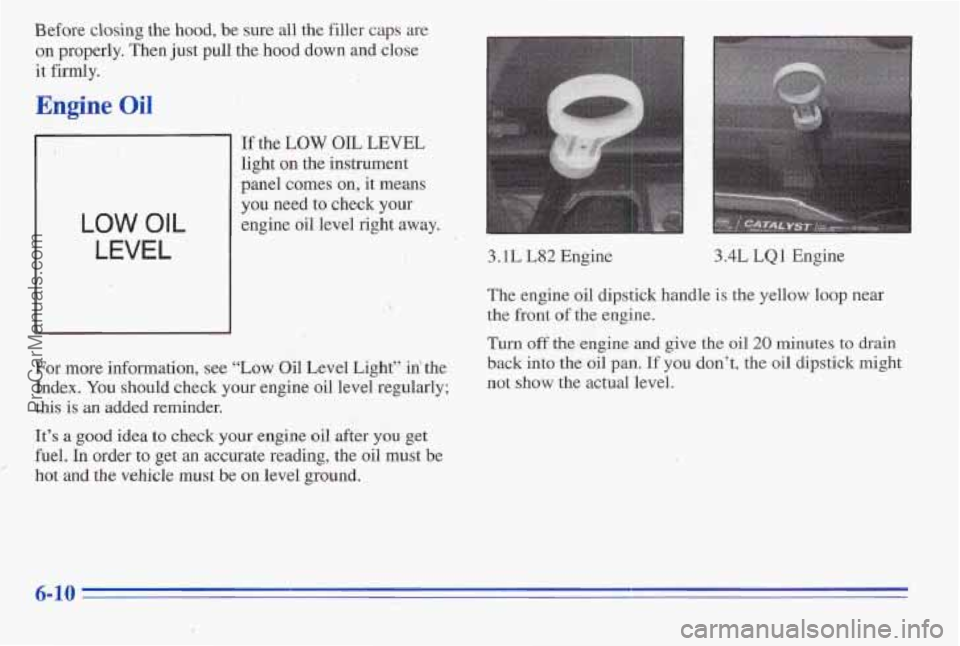

Before closing the hood, be sure all the filler caps are
on properly. Then just pull the hood down and close
it firmly.
Engine Oil
I
LOW OIL
LEVEL
If the LOW OIL LEVEL
light on the instrument
panel comes on, it means
you need to check your
engine oil level right away.
3.1L L82 Engine 3.4L LQl Engine
For .more information, see
“Low Oil Level Light” in‘ the
Index. You should check
your engine oil level regularly;
this is
an added reminder.
It’s
a good idea to check your engine oil after you get
fuel.
In order to get an accurate reading, the oil must be
hot
and the vehicle must be on level ground, I-
The engine oil dipstick handle is the yellow loop near
the front of the engine.
Turn off the engine and give the oil 20 minutes to drain
back into the oil pan. If you don’t, the oil dipstick might
not
show the actual level.
6-10
ProCarManuals.com

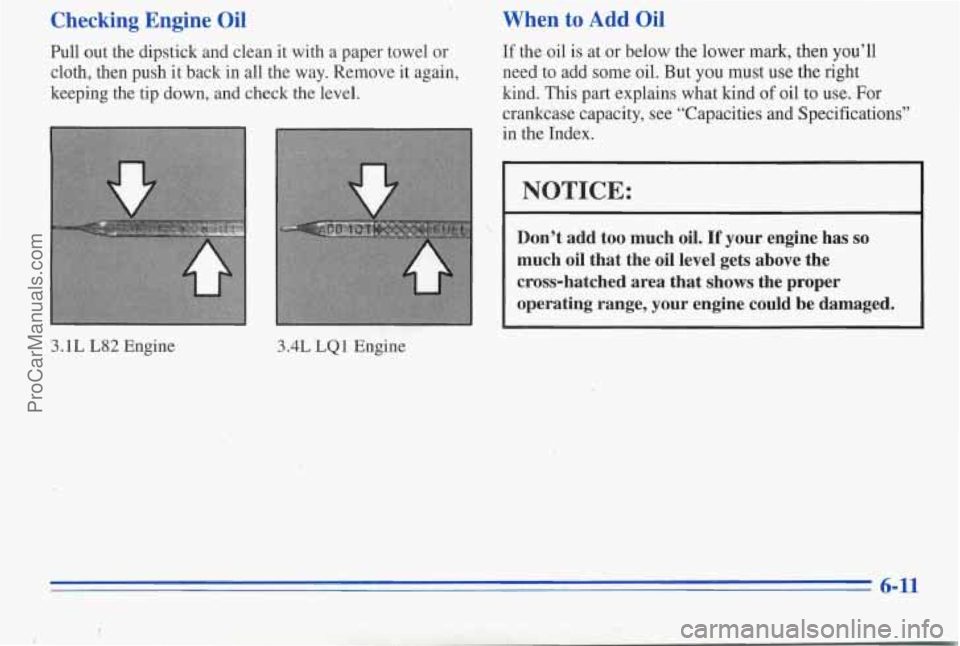

Checking Engine Oil When to Add Oil
Pull out the dipstick and clean it with a paper towel or If the oil is at or below the lower mark, then you’ll
cloth, then push it back in all the way. Remove it again, need to add some oil. But you must use the right
keeping the tip down, and check the level. kind. This part explains what kind
of oil to use.-For
crankcase capacity, see “Capacities and Specifications”
in the Index.
NOTICE:
Don’t, add too much oil. If your engine has so
much oil that the oil level gets above the
cross-hatched area that shows the proper
operating range,
your engine could be damaged.
3.1 L L82 Engine 3.4L LQ1 Engine
6-11
ProCarManuals.com

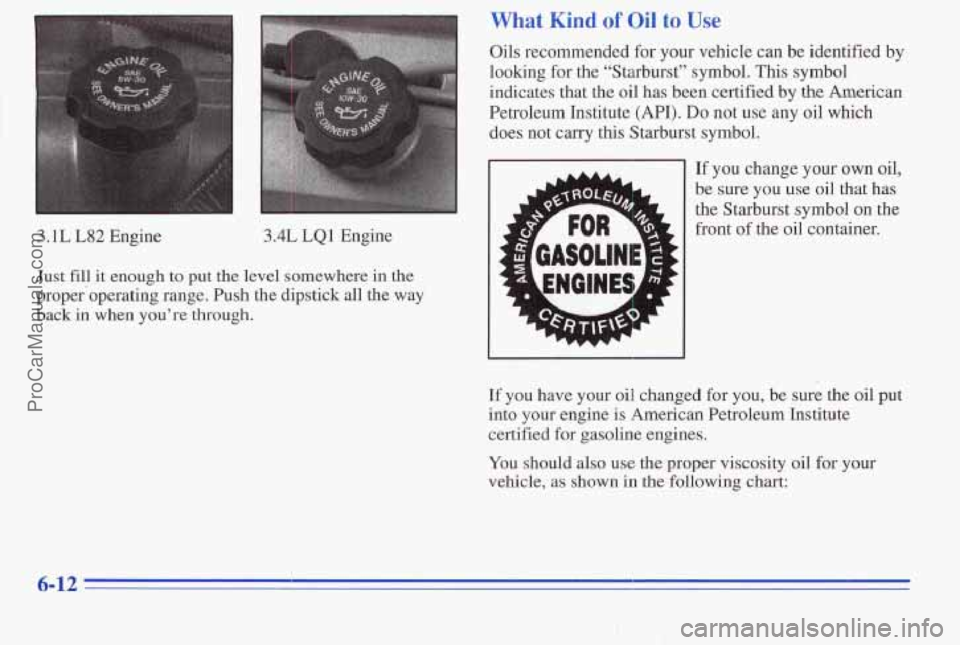

3.1L L82 Engine 3.4L LQl Engine
Just fill it enough to put the level somewhere in the
properoperating range. Push the dipstick all the way
back in when you’re through.
What Kind of Oil to Use
Oils recommended for your vehicle can be identified by
looking for the “Starburst” symbol.
This symbol
indicates that the
oil has been certified by the American
Petroleum Institute (MI). Do not use any oil which
does not
carry this Starburst symbol.
k
If you change your own oil,
be sure
you use oil that has
the Starburst symbol
on the
front of the oil container.
If you
have your oil changed for you, be sure the oil put
into your engine is American Petroleum Institute
certified
for gasoline engines.
You should also use the proper viscosity oil for your
vehicle,
as shown in the following chart:
ProCarManuals.com

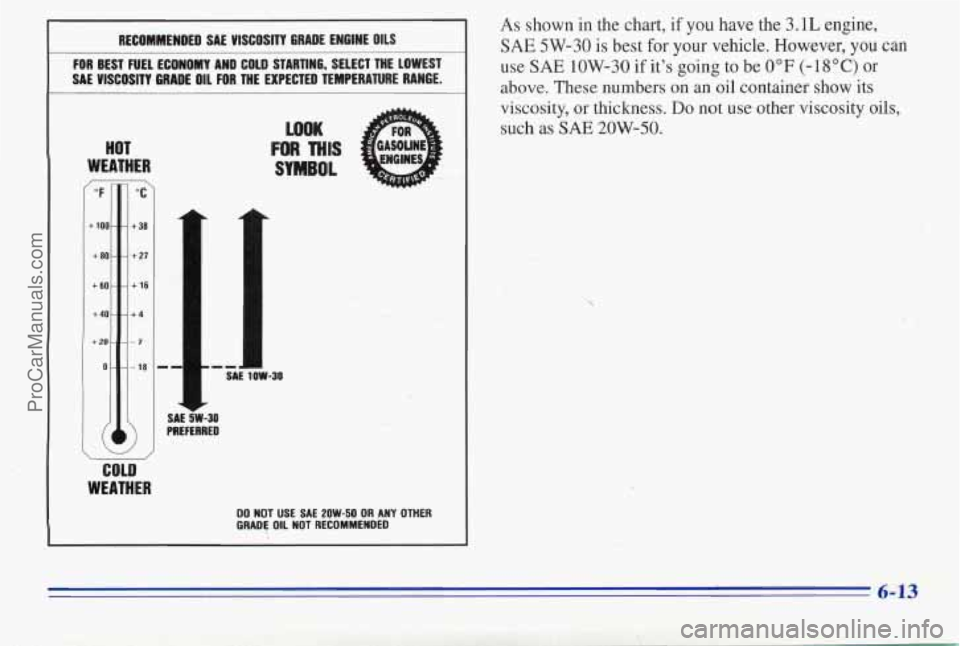

I RECOMMENDED SAE VISCOSITY GRADE ENGINE OILS
FOR BEST FUEL ECONOMY AND COLD STARTING, SELECT THE LOWEST
I SAE VISCOSITY GRADE OIL FOR THE EXPECTED TEMPERATURE RANGE.
HOT
WEATHER
"F
100
+ 80
+ 60
+ 40
0-
7 "C
t 38
+ 27
+ 16
t4
-I
- 18
COLD
4
LOOK
FOR MIS
SYMBOL
L
lllL SAE 1OW-30
SAL 5W-30 PREFERRED
I WEATHER
00 NOT USE SAE 2OW-50 OR ANY OTHER GRADE OIL NOT RECOMMENDED
As shown in the chart, if you have the 3.1L engine,
SAE 5W-30 is best for your vehicle. However, you can
use
SfS 1OW-30 if it's going to be 0°F (-18°C) or
above. These numbers on
an oil container'show its
viscosity,
or thickness. Do not use.other viscosity oils,
such as
SAE 20W-50.
