Page 301 of 432

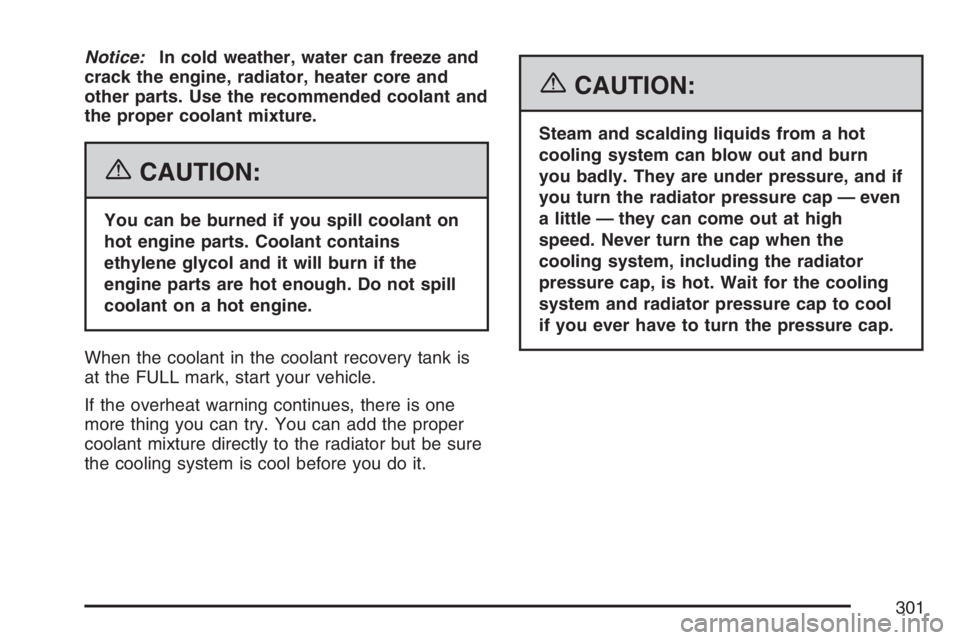

PONTIAC VIBE 2007  Owners Manual Notice:In cold weather, water can freeze and
crack the engine, radiator, heater core and
other parts. Use the recommended coolant and
the proper coolant mixture.
{CAUTION:
You can be burned if you spi

Page 302 of 432

PONTIAC VIBE 2007  Owners Manual How to Add Coolant to the Radiator
1. You can remove the radiator pressure cap
when the cooling system, including the radiator
pressure cap and upper radiator hose, is no
longer hot. Turn the pressure

Page 303 of 432

PONTIAC VIBE 2007  Owners Manual 4. Then �ll the coolant recovery tank to the
FULL mark.
5. Put the cap back on the coolant recovery tank,
but leave the radiator pressure cap off.6. Start the engine and let it run until you can
feel

Page 304 of 432

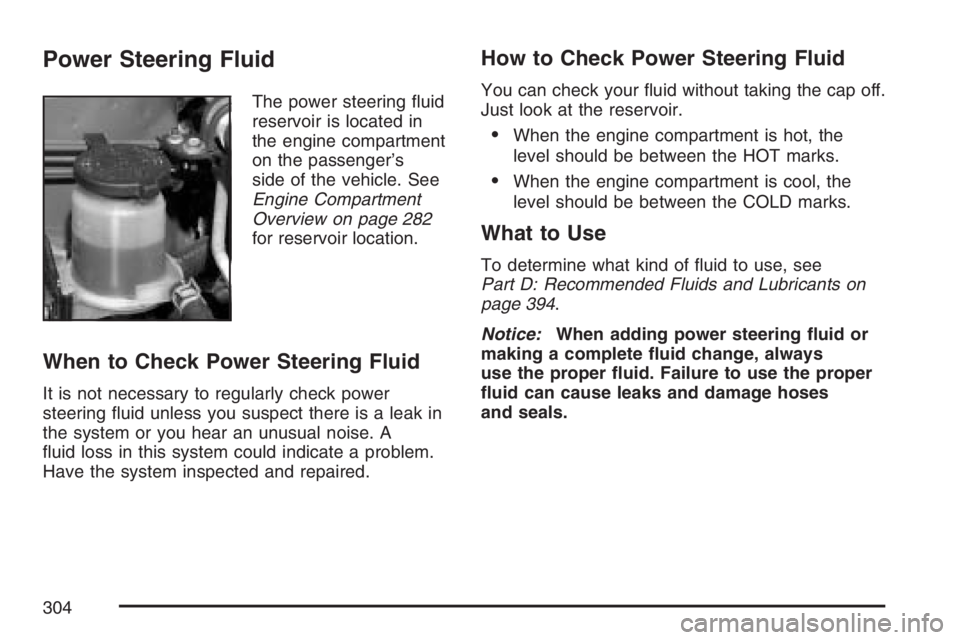

PONTIAC VIBE 2007  Owners Manual Power Steering Fluid
The power steering �uid
reservoir is located in
the engine compartment
on the passenger’s
side of the vehicle. See
Engine Compartment
Overview on page 282
for reservoir location

Page 305 of 432

PONTIAC VIBE 2007  Owners Manual Windshield Washer Fluid
What to Use
When you need windshield washer �uid, be sure
to read the manufacturer’s instructions before
use. If you will be operating your vehicle in an area
where the tempe

Page 306 of 432

PONTIAC VIBE 2007  Owners Manual Brakes
Brake Fluid
The hydraulic clutch and
brake master cylinder
use the same reservoir.
It is �lled with DOT-3
brake �uid. SeeEngine
Compartment
Overview on page 282
for the location of
the reservoi

Page 307 of 432

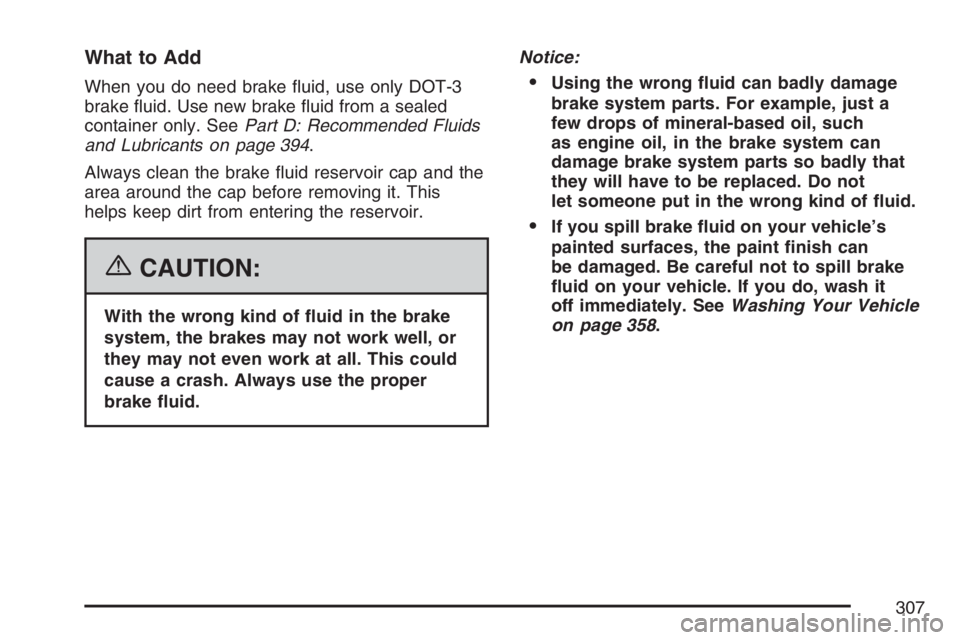

PONTIAC VIBE 2007  Owners Manual What to Add
When you do need brake �uid, use only DOT-3
brake �uid. Use new brake �uid from a sealed
container only. SeePart D: Recommended Fluids
and Lubricants on page 394.
Always clean the brake �u

Page 308 of 432

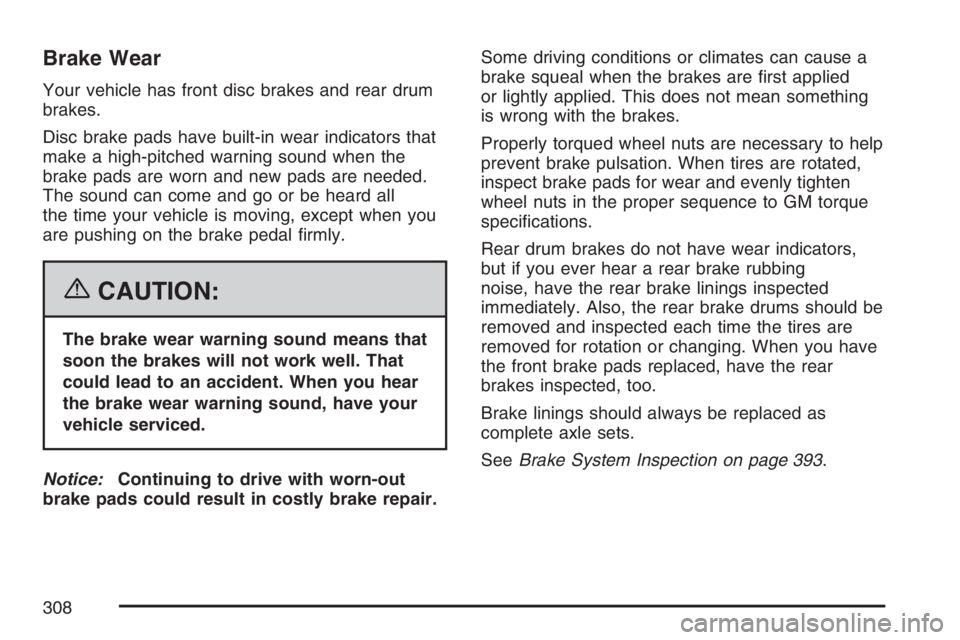

PONTIAC VIBE 2007  Owners Manual Brake Wear
Your vehicle has front disc brakes and rear drum
brakes.
Disc brake pads have built-in wear indicators that
make a high-pitched warning sound when the
brake pads are worn and new pads are n

Page 309 of 432

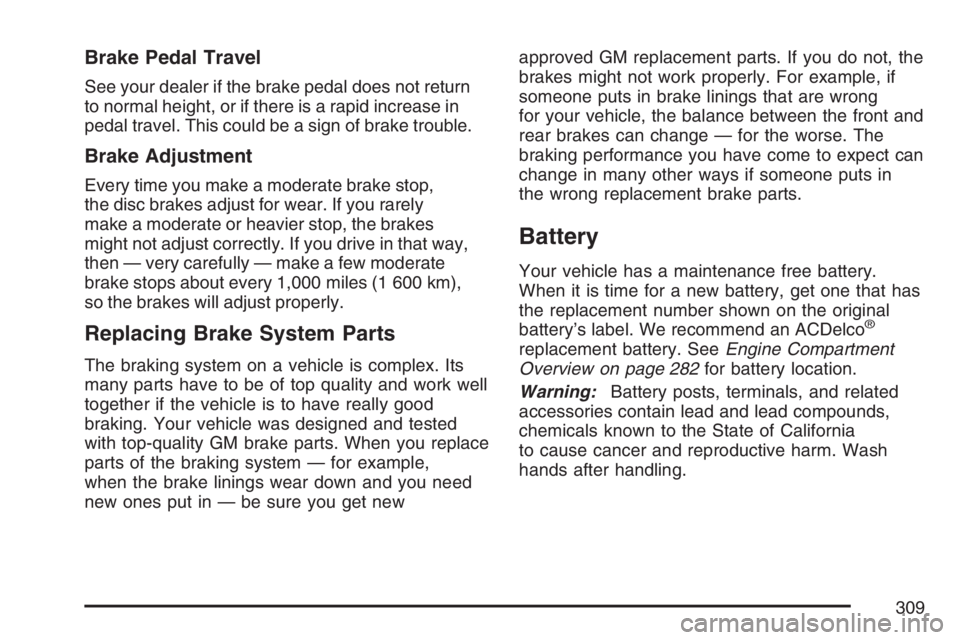

PONTIAC VIBE 2007  Owners Manual Brake Pedal Travel
See your dealer if the brake pedal does not return
to normal height, or if there is a rapid increase in
pedal travel. This could be a sign of brake trouble.
Brake Adjustment
Every t

Page 310 of 432

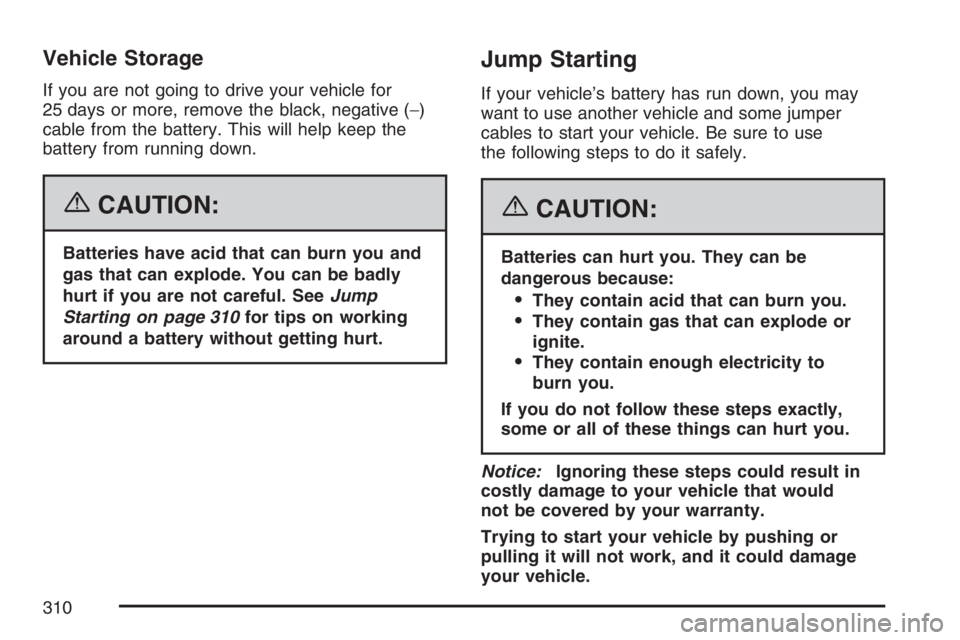

PONTIAC VIBE 2007  Owners Manual Vehicle Storage
If you are not going to drive your vehicle for
25 days or more, remove the black, negative (−)
cable from the battery. This will help keep the
battery from running down.
{CAUTION:
Ba
