PONTIAC VIBE 2007 Owners Manual
Manufacturer: PONTIAC, Model Year: 2007, Model line: VIBE, Model: PONTIAC VIBE 2007Pages: 432, PDF Size: 2.54 MB
Page 281 of 432

2. Then go to the front of the vehicle and pull up
on the secondary hood release. The lever is
located near the middle of the hood.
3. Lift the hood.4. Release the hood prop rod from its retainer
and put it into the slot in the hood. To insert
the hood prop rod into the slot, move it straight
up. If it is moved to the side or toward the
inside of the vehicle, it may become detached.
Before closing the hood, be sure all the ller caps
are on properly. Make sure to return the hood
prop rod carefully back to its retainer to avoid
damaging the vehicle.
281
Page 282 of 432

Engine Compartment Overview
When you open the hood, here is what you will see:
282
Page 283 of 432

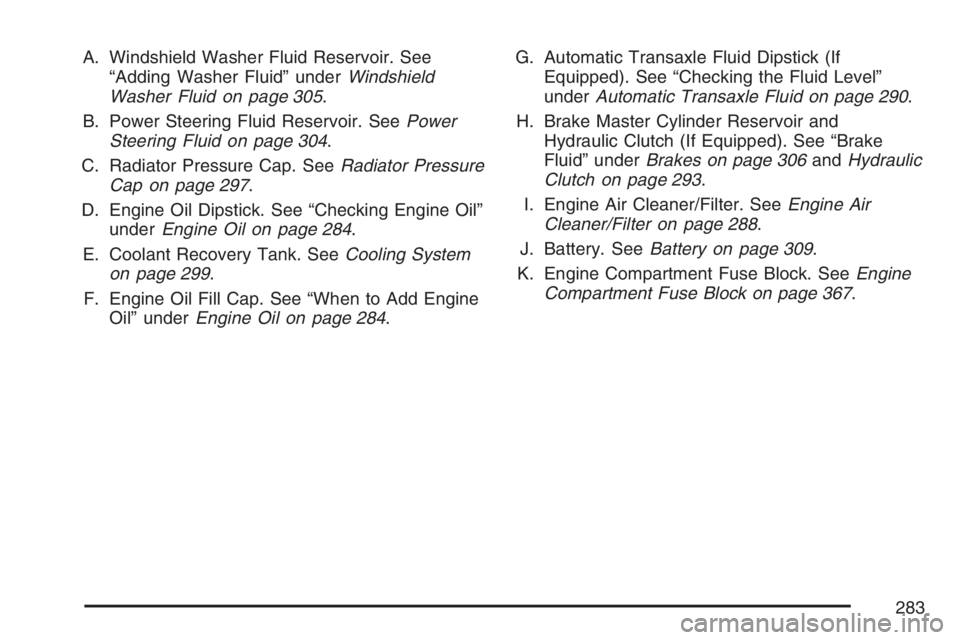

A. Windshield Washer Fluid Reservoir. See
“Adding Washer Fluid” underWindshield
Washer Fluid on page 305.
B. Power Steering Fluid Reservoir. SeePower
Steering Fluid on page 304.
C. Radiator Pressure Cap. SeeRadiator Pressure
Cap on page 297.
D. Engine Oil Dipstick. See “Checking Engine Oil”
underEngine Oil on page 284.
E. Coolant Recovery Tank. SeeCooling System
on page 299.
F. Engine Oil Fill Cap. See “When to Add Engine
Oil” underEngine Oil on page 284.G. Automatic Transaxle Fluid Dipstick (If
Equipped). See “Checking the Fluid Level”
underAutomatic Transaxle Fluid on page 290.
H. Brake Master Cylinder Reservoir and
Hydraulic Clutch (If Equipped). See “Brake
Fluid” underBrakes on page 306andHydraulic
Clutch on page 293.
I. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 288.
J. Battery. SeeBattery on page 309.
K. Engine Compartment Fuse Block. SeeEngine
Compartment Fuse Block on page 367.
283
Page 284 of 432

Engine Oil
If the engine oil
pressure light appears
on the instrument
cluster, check the
engine oil level
right away.
For more information, seeOil Pressure Light on
page 173. You should check the engine oil
level regularly; this is an added reminder.
Checking Engine Oil
It is a good idea to check the engine oil every time
you get fuel. In order to get an accurate reading,
the oil must be warm and the vehicle must be
on level ground.
The engine oil dipstick handle is a yellow loop.
SeeEngine Compartment Overview on page 282
for the location of the engine oil dipstick.
1. Turn off the engine and give the oil several
minutes to drain back into the oil pan. If you
do not do this, the oil dipstick might not
show the actual level.
2. Pull out the dipstick and clean it with a paper
towel or cloth, then push it back in all the
way. Remove it again, keeping the tip down,
and check the level.
284
Page 285 of 432

When to Add Engine Oil
If the oil is below the indent at the tip of the
dipstick, you need to add at least one quart/liter of
oil. But you must use the right kind. This section
explains what kind of oil to use. For engine
oil crankcase capacity, seeCapacities and
Speci cations on page 369.
Notice:Do not add too much oil. If the engine
has so much oil that the oil level gets above
the upper hole, the engine could be damaged.SeeEngine Compartment Overview on page 282
for the location of the engine oil ll cap.
Be sure to add enough oil to put the level
somewhere in the proper operating range. Push
the dipstick all the way back in when you are
through.
285
Page 286 of 432

What Kind of Engine Oil to Use
Look for two things:
GM6094M
Your vehicle’s engine requires oil meeting GM
Standard GM6094M. Look for and use only
an oil that meets GM Standard GM6094M.
SAE 5W-30
As shown in the viscosity chart, SAE 5W-30 is
best for your vehicle.These numbers on an oil container show its
viscosity, or thickness. Do not use other
viscosity oils such as SAE 20W-50.
Oils meeting these
requirements should
also have the starburst
symbol on the
container. This symbol
indicates that the oil
has been certi ed by the
American Petroleum
Institute (API).
Look for this information on the oil container, and
use only those oils that are identi ed as meeting
GM Standard GM6094M and have the starburst
symbol on the front of the oil container.
Notice:Use only engine oil identi ed as
meeting GM Standard GM6094M and showing
the American Petroleum Institute Certi ed
For Gasoline Engines starburst symbol. Failure
to use the recommended oil can result in
engine damage not covered by your warranty.
GM Goodwrench
®oil meets all the requirements
for your vehicle.
286
Page 287 of 432

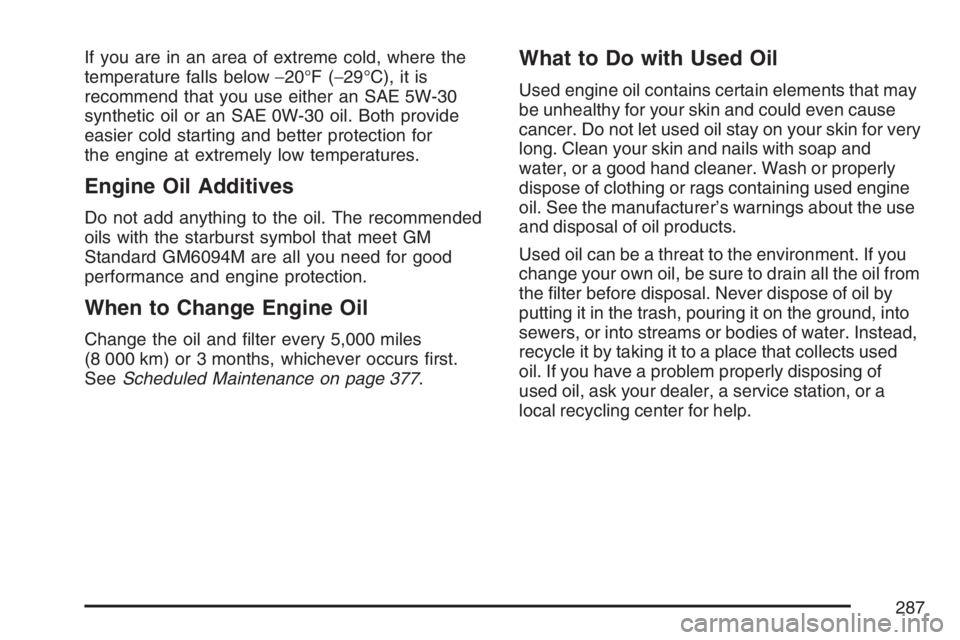

If you are in an area of extreme cold, where the
temperature falls below−20°F (−29°C), it is
recommend that you use either an SAE 5W-30
synthetic oil or an SAE 0W-30 oil. Both provide
easier cold starting and better protection for
the engine at extremely low temperatures.
Engine Oil Additives
Do not add anything to the oil. The recommended
oils with the starburst symbol that meet GM
Standard GM6094M are all you need for good
performance and engine protection.
When to Change Engine Oil
Change the oil and lter every 5,000 miles
(8 000 km) or 3 months, whichever occurs rst.
SeeScheduled Maintenance on page 377.
What to Do with Used Oil
Used engine oil contains certain elements that may
be unhealthy for your skin and could even cause
cancer. Do not let used oil stay on your skin for very
long. Clean your skin and nails with soap and
water, or a good hand cleaner. Wash or properly
dispose of clothing or rags containing used engine
oil. See the manufacturer’s warnings about the use
and disposal of oil products.
Used oil can be a threat to the environment. If you
change your own oil, be sure to drain all the oil from
the lter before disposal. Never dispose of oil by
putting it in the trash, pouring it on the ground, into
sewers, or into streams or bodies of water. Instead,
recycle it by taking it to a place that collects used
oil. If you have a problem properly disposing of
used oil, ask your dealer, a service station, or a
local recycling center for help.
287
