PONTIAC VIBE 2007 Owners Manual

Dolly Towing
To tow your vehicle using a dolly, follow
these steps:
1. Put the front wheels on a dolly.
2. Put the vehicle in PARK (P) for an automatic
transaxle and in NEUTRAL for a manual
transaxle.
3. Clamp the steering wheel in a straight-ahead
position with a clamping device designed for
towing.
4. Release the parking brake.
Towing a Trailer
{CAUTION:
If you do not use the correct equipment
and drive properly, you can lose control
when you pull a trailer. For example, if the
trailer is too heavy, the brakes may not
work well — or even at all. You and your
passengers could be seriously injured.
You may also damage your vehicle; the
resulting repairs would not be covered by
your warranty. Pull a trailer only if you
have followed all the steps in this section.
Ask your dealer for advice and
information about towing a trailer with
your vehicle.
Your vehicle can tow a trailer if it is equipped with
the proper trailer towing equipment. To identify
the vehicle trailering capacity of your vehicle, you
should read the information in “Weight of the
Trailer” that appears later in this section.
261

Trailering is different than just driving your vehicle
by itself. Trailering means changes in handling,
acceleration, braking, durability and fuel economy.
Successful, safe trailering takes correct
equipment, and it has to be used properly.
That’s the reason for this part. In it are many
time-tested, important trailering tips and safety
rules. Many of these are important for your safety
and that of your passengers. So please read
this section carefully before you pull a trailer.
Load-pulling components such as the engine,
transaxle, wheel assemblies and tires are forced
to work harder against the drag of the added
weight. The engine is required to operate
at relatively higher speeds and under greater
loads, generating extra heat. What’s more,
the trailer adds considerably to wind resistance,
increasing the pulling requirements.If You Do Decide To Pull A Trailer
If you do, here are some important points:
There are many different laws, including speed
limit restrictions, having to do with trailering.
Make sure your rig will be legal, not only where
you live but also where you’ll be driving. A
good source for this information can be state
or provincial police.
Consider using a sway control. You can ask a
hitch dealer about sway controls.
Don’t tow a trailer at all during the rst
1,000 miles (1 600 km) your new vehicle is
driven. Your engine, axle or other parts could
be damaged.
Then, during the rst 500 miles (800 km) that
you tow a trailer, don’t drive over 50 mph
(80 km/h) and don’t make starts at full throttle.
This helps your engine and other parts of
your vehicle wear in at the heavier loads.
Obey speed limit restrictions when towing a
trailer. Don’t drive faster than the maximum
posted speed for trailers, or no more than
55 mph (90 km/h), to save wear on your
vehicle’s parts.
262

Three important considerations have to do with
weight:
the weight of the trailer
the weight of the trailer tongue
and the total weight on your vehicle’s tires
Weight of the Trailer
How heavy can a trailer safely be?
It should never weigh more than 1,500 lbs
(680 kg). But even that can be too heavy.
It depends on how you plan to use your rig. For
example, speed, altitude, road grades, outside
temperature and how much your vehicle is used to
pull a trailer are all important. It can also depend
on any special equipment that you have on
your vehicle, and the amount of tongue weight the
vehicle can carry. See “Weight of the Trailer
Tongue” later in this section for more information.Maximum trailer weight is calculated assuming
only the driver is in the tow vehicle and it has all
the required trailering equipment. The weight
of additional optional equipment, passengers and
cargo in the tow vehicle must be subtracted
from the maximum trailer weight.
You can ask your dealer for our trailering
information or advice, or you can write us at our
Customer Assistance Offices. SeeCustomer
Assistance Offices on page 404for more
information.
Weight of the Trailer Tongue
The tongue load (A) of any trailer is an important
weight to measure because it affects the total
or gross weight of your vehicle. The Gross Vehicle
Weight (GVW) includes the curb weight of the
vehicle, any cargo you may carry in it, and
the people who will be riding in the vehicle. And if
you tow a trailer, you must add the tongue load
to the GVW because your vehicle will be carrying
that weight, too. SeeLoading Your Vehicle on
page 253for more information about your vehicle’s
maximum load capacity.
263

If you’re using a weight-carrying hitch or a
weight-distributing hitch, the trailer tongue (A)
should weigh 10 to 15 percent of the total loaded
trailer weight (B).
After you have loaded your trailer, weigh the trailer
and then the tongue, separately, to see if the
weights are proper. If they are not, you may be
able to get them right simply by moving some
items around in the trailer.
Total Weight on Your Vehicle’s Tires
Be sure your vehicle’s tires are inated to the
upper limit for cold tires. You’ll nd these numbers
on the Tire and Loading Information label
located on the vehicle’s center pillar (B-pillar).SeeLoading Your Vehicle on page 253. Then be
sure you do not go over the GVW limit for
your vehicle, including the weight of the trailer
tongue.
Hitches
It’s important to have the correct hitch equipment.
Crosswinds, large trucks going by and rough
roads are a few reasons why you’ll need the right
hitch. Here are some rules to follow:
Don’t let the steel in a hitch contact the
aluminum on your bumper. If you do, the
two will corrode. You can use something like
paint or plastic tape to separate the steel
and aluminum. The same steel to aluminum
problem can happen with fasteners too.
Will you have to make any holes in the body
of your vehicle when you install a trailer
hitch? If you do, then be sure to seal the holes
later when you remove the hitch. If you
don’t seal them, deadly carbon monoxide (CO)
from your exhaust can get into your vehicle.
SeeEngine Exhaust on page 119. Dirt
and water can too.
264

Safety Chains
You should always attach chains between your
vehicle and your trailer. Cross the safety
chains under the tongue of the trailer so that the
tongue will not drop to the road if it becomes
separated from the hitch. Instructions about safety
chains may be provided by the hitch manufacturer
or by the trailer manufacturer. Follow the
manufacturer’s recommendation for attaching
safety chains and do not attach them to the
bumper. Always leave just enough slack so you
can turn with your rig. And, never allow safety
chains to drag on the ground.
Trailer Brakes
Does your trailer have its own brakes?
Be sure to read and follow the instructions for the
trailer brakes so you’ll be able to install, adjust
and maintain them properly. And, if you have
anti-lock brakes, do not try to tap into your
vehicle’s brake system. If you do, both systems
won’t work well, or at all.
Driving with a Trailer
Towing a trailer requires a certain amount of
experience. Before setting out for the open road,
you’ll want to get to know your rig. Acquaint
yourself with the feel of handling and braking with
the added weight of the trailer. And always
keep in mind that the vehicle you are driving is
now a good deal longer and not nearly as
responsive as your vehicle is by itself.
Before you start, check the trailer hitch, platform
and attachments, safety chains, electrical
connector, lamps, tires and mirror adjustment. If
the trailer has electric brakes, start your vehicle
and trailer moving and then apply the trailer brake
controller by hand to be sure the brakes are
working. This lets you check your electrical
connection at the same time.
During your trip, check occasionally to be sure
that the load is secure, and that the lamps and any
trailer brakes are still working.
265

Following Distance
Stay at least twice as far behind the vehicle ahead
as you would when driving your vehicle without
a trailer. This can help you avoid situations
that require heavy braking and sudden turns.
Passing
You’ll need more passing distance up ahead when
you’re towing a trailer. And, because you’re a
good deal longer, you’ll need to go much farther
beyond the passed vehicle before you can
return to your lane.
Backing Up
Hold the bottom of the steering wheel with
one hand. Then, to move the trailer to the left, just
move that hand to the left. To move the trailer
to the right, move your hand to the right. Always
back up slowly and, if possible, have someone
guide you.
Making Turns
Notice:Making very sharp turns while
trailering could cause the trailer to come in
contact with the vehicle. Your vehicle could be
damaged. Avoid making very sharp turns
while trailering.
When you’re turning with a trailer, make wider
turns than normal. Do this so your trailer
won’t strike soft shoulders, curbs, road signs,
trees or other objects. Avoid jerky or sudden
maneuvers. Signal well in advance.
Turn Signals When Towing a Trailer
When you tow a trailer, your vehicle may need a
different turn signal asher and/or extra wiring.
Check with your dealer. The arrows on your
instrument panel will ash whenever you signal a
turn or lane change. Properly hooked up, the trailer
lamps will also ash, telling other drivers you’re
about to turn, change lanes or stop.
When towing a trailer, the arrows on your
instrument panel will ash for turns even if the bulbs
on the trailer are burned out. Thus, you may think
drivers behind you are seeing your signal when
they are not. It’s important to check occasionally to
be sure the trailer bulbs are still working.
266

Driving On Grades
Reduce speed and shift to a lower gearbefore
you start down a long or steep downgrade. If you
don’t shift down, you might have to use your
brakes so much that they would get hot and no
longer work well.
On a long uphill grade, shift down and reduce
your speed to around 45 mph (70 km/h) to reduce
the possibility of the engine and the transaxle
overheating.
Parking on Hills
{CAUTION:
You really should not park your vehicle,
with a trailer attached, on a hill. If
something goes wrong, your rig could
start to move. People can be injured, and
both your vehicle and the trailer can be
damaged.But if you ever have to park your rig on a hill,
here’s how to do it:
1. Apply your regular brakes, but don’t shift into
PARK (P) for an automatic transaxle or into
gear for a manual transaxle, yet. When
parking uphill, turn your wheels away from the
curb. When parking downhill, turn your
wheels into the curb.
2. Have someone place chocks under the trailer
wheels.
3. When the chocks are in place, release the
regular brakes until the chocks absorb the load.
4. Reapply the regular brakes. Then apply your
parking brake and shift into PARK (P) for an
automatic transaxle or REVERSE (R) for
a manual transaxle.
5. Release the regular brakes.
267

When You Are Ready to Leave After
Parking on a Hill
1. Apply your regular brakes and hold the pedal
down while you:
start your engine
shift into a gear, and
release the parking brake
2. Let up on the brake pedal.
3. Drive slowly until the trailer is clear of the
chocks.
4. Stop and have someone pick up and store the
chocks.
Maintenance When Trailer Towing
Your vehicle will need service more often when
you’re pulling a trailer. See the Maintenance
Schedule for more on this. Things that are
especially important in trailer operation are
automatic transaxle uid (don’t overll), engine oil,
drive belt, cooling system and brake system.
Each of these is covered in this manual, and the
Index will help you nd them quickly. If you’re
trailering, it’s a good idea to review this information
before you start your trip.
Check periodically to see that all hitch nuts and
bolts are tight.
Engine Cooling When Trailer Towing
Your cooling system may temporarily overheat
during severe operating conditions. SeeEngine
Overheating on page 297.
268

Service........................................................ 272
Accessories and Modications................... 272
California Proposition 65 Warning.............. 273
Doing Your Own Service Work.................. 273
Adding Equipment to the Outside of
Your Vehicle.......................................... 274
Fuel............................................................. 274
Gasoline Octane........................................ 274
Gasoline Specications.............................. 274
California Fuel........................................... 275
Additives................................................... 275
Fuels in Foreign Countries........................ 276
Filling the Tank......................................... 277
Filling a Portable Fuel Container............... 279
Checking Things Under the Hood.............. 280
Hood Release........................................... 280
Engine Compartment Overview.................. 282
Engine Oil................................................. 284
Engine Air Cleaner/Filter............................ 288
Automatic Transaxle Fluid......................... 290Manual Transaxle Fluid............................. 292
Hydraulic Clutch........................................ 293
Engine Coolant.......................................... 294
Radiator Pressure Cap.............................. 297
Engine Overheating................................... 297
Cooling System......................................... 299
Power Steering Fluid ................................. 304
Windshield Washer Fluid........................... 305
Brakes...................................................... 306
Battery...................................................... 309
Jump Starting............................................ 310
Bulb Replacement....................................... 315
Halogen Bulbs........................................... 315
Headlamps, Front Turn Signal, and
Parking Lamps....................................... 316
Center High-Mounted
Stoplamp (CHMSL)................................ 317
Taillamps, Turn Signal, and Stoplamps...... 318
Back-Up Lamps......................................... 320
Replacement Bulbs................................... 320
Section 5 Service and Appearance Care
269

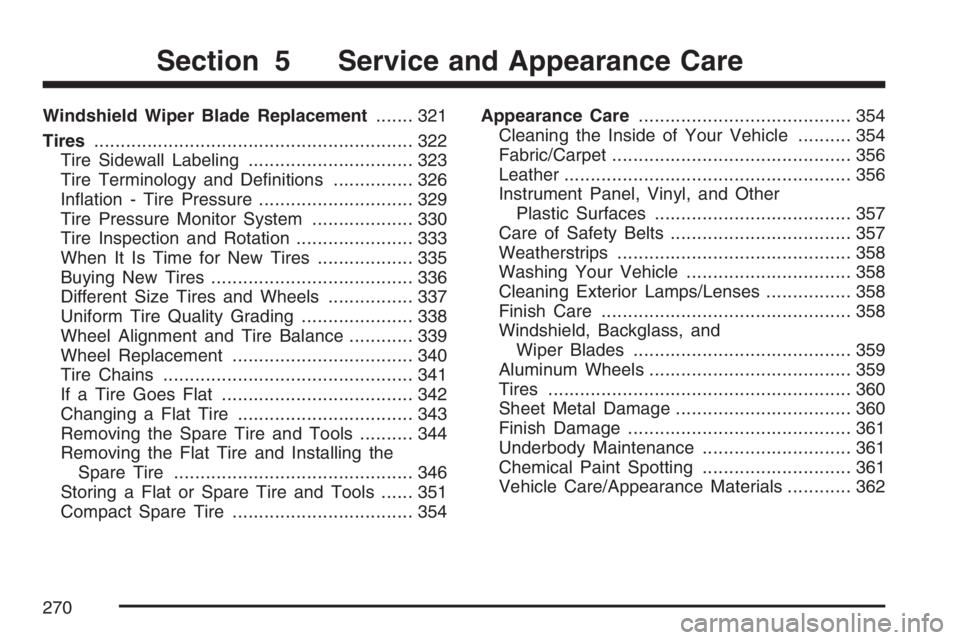

Windshield Wiper Blade Replacement....... 321
Tires............................................................ 322
Tire Sidewall Labeling............................... 323
Tire Terminology and Denitions............... 326
Ination - Tire Pressure............................. 329
Tire Pressure Monitor System................... 330
Tire Inspection and Rotation...................... 333
When It Is Time for New Tires.................. 335
Buying New Tires...................................... 336
Different Size Tires and Wheels................ 337
Uniform Tire Quality Grading..................... 338
Wheel Alignment and Tire Balance............ 339
Wheel Replacement.................................. 340
Tire Chains............................................... 341
If a Tire Goes Flat.................................... 342
Changing a Flat Tire................................. 343
Removing the Spare Tire and Tools.......... 344
Removing the Flat Tire and Installing the
Spare Tire............................................. 346
Storing a Flat or Spare Tire and Tools...... 351
Compact Spare Tire.................................. 354Appearance Care........................................ 354
Cleaning the Inside of Your Vehicle.......... 354
Fabric/Carpet............................................. 356
Leather...................................................... 356
Instrument Panel, Vinyl, and Other
Plastic Surfaces..................................... 357
Care of Safety Belts.................................. 357
Weatherstrips............................................ 358
Washing Your Vehicle............................... 358
Cleaning Exterior Lamps/Lenses................ 358
Finish Care............................................... 358
Windshield, Backglass, and
Wiper Blades......................................... 359
Aluminum Wheels...................................... 359
Tires......................................................... 360
Sheet Metal Damage................................. 360
Finish Damage.......................................... 361
Underbody Maintenance............................ 361
Chemical Paint Spotting............................ 361
Vehicle Care/Appearance Materials............ 362
Section 5 Service and Appearance Care
270
