Page 71 of 432
It is possible that, in a crash involving the front of
your vehicle, only one of the two frontal airbags
in your vehicle will deploy. This is rare, but it can
happen in a crash just severe enough to make
a frontal airbag in ate.
Side impact airbags are intended to in ate in
moderate to severe side crashes. A side impact
airbag will in ate if the crash severity is above the
system’s designed “threshold level.” The
threshold level can vary with speci c vehicle
design. Side impact airbags are not intended to
in ate in frontal or near-frontal impacts, rollovers or
in many rear impacts. Your vehicle has sensors
which detect side impacts. These sensors
signal the appropriate side airbag to in ate. Both
side impact airbags (seat-mounted and
roof-mounted) are intended to deploy on the side
of the vehicle that is struck. It is possible that,
in a crash involving the rear side of your vehicle,
that only the roof-mounted airbag will deploy.
In any particular crash, no one can say whether
an airbag should have in ated simply because
of the damage to a vehicle or because of what the
repair costs were.For frontal airbags, in ation is determined by what
the vehicle hits, the angle of the impact, vehicle
speed, and how quickly the vehicle slows down in
frontal and near-frontal impacts. For side impact
airbags, in ation is determined by the location and
severity of the impact.
What Makes an Airbag In ate?
In an impact of sufficient severity, the airbag
sensing system detects that the vehicle is
in a crash. The sensing system triggers a release
of gas from the in ator, which in ates the
airbag. The in ator, airbag and related hardware
are all part of the airbag modules. Frontal
airbag modules are located inside the steering
wheel and the instrument panel. For vehicles with
seat-mounted side impact airbags, there are
also airbag modules in the side of the front
seatbacks closest to the door. For vehicles with
roof-mounted side impact airbags, there are
also airbag modules in the ceiling of the vehicle,
near the side window.
71
Page 72 of 432
How Does an Airbag Restrain?
In moderate to severe frontal or near frontal
collisions, even belted occupants can contact the
steering wheel or the instrument panel. In
moderate to severe side collisions, even belted
occupants can contact the inside of the vehicle.
Airbags supplement the protection provided
by safety belts. Airbags distribute the force of the
impact more evenly over the occupant’s upper
body, stopping the occupant more gradually. But
the frontal airbags would not help you in many
types of collisions, including rollovers, rear
impacts, and many side impacts, primarily because
an occupant’s motion is not toward the airbag.
Side impact airbags would not help you in many
types of collisions, including many frontal or
near frontal collisions, rollovers, and rear impacts.
Airbags should never be regarded as anything
more than a supplement to safety belts, and then
only in moderate to severe frontal or near-frontal
collisions for the driver’s and right front
passenger’s frontal airbags, and only in moderate
to severe side collisions for vehicles with side
impact airbags.
What Will You See After an Airbag
In ates?
After the frontal and seat-mounted side impact
airbags in ate, they quickly de ate, so quickly that
some people may not even realize an airbag
in ated. Roof-mounted side impact airbags may still
be at least partially in ated minutes after the vehicle
comes to rest. Some components of the airbag
module — the steering wheel hub for the driver’s
airbag, the instrument panel for the right front
passenger’s bag, the side of the seatback closest to
the door for the seat-mounted side impact airbags
(if equipped), and the garnish trim and the area
along the ceiling of your vehicle near the side
windows for the roof–mounted side impact airbags
(if equipped) — may be hot for a short time. The
parts of the airbag that come into contact with you
may be warm, but not too hot to touch.
72
Page 73 of 432
There may be some smoke and dust coming from
the vents in the de ated airbags. Airbag in ation
does not prevent the driver from seeing out of the
windshield or being able to steer the vehicle, nor
does it prevent people from leaving the vehicle.
{CAUTION:
When an airbag in ates, there may be
dust in the air. This dust could cause
breathing problems for people with a
history of asthma or other breathing
trouble. To avoid this, everyone in the
vehicle should get out as soon as it is
safe to do so. If you have breathing
problems but cannot get out of the vehicle
after an airbag in ates, then get fresh air
by opening a window or a door. If you
experience breathing problems following
an airbag deployment, you should seek
medical attention.Your vehicle has a feature that may automatically
unlock the doors, turn the interior lamps on,
and turn the hazard warning ashers on when the
airbags in ate. You can lock the doors, turn the
interior lamps off, and turn the hazard warning
ashers off again by using the controls for those
features.
In many crashes severe enough to in ate the
airbag, windshields are broken by vehicle
deformation. Additional windshield breakage may
also occur from the right front passenger airbag.
Airbags are designed to in ate only once. After
an airbag in ates, you will need some new
parts for the airbag system. If you do not get
them, the airbag system will not be there to help
protect you in another crash. A new system will
include airbag modules and possibly other
parts. The service manual for your vehicle
covers the need to replace other parts.
73
Page 74 of 432
Your vehicle has a crash sensing and
diagnostic module which records information
after a crash. SeeVehicle Data Collection and
Event Data Recorders on page 411.
Let only quali ed technicians work on the
airbag system. Improper service can mean that
the airbag system will not work properly. See
your dealer for service.
Passenger Sensing System
Your vehicle has a passenger sensing system. A
passenger airbag status indicator on the
instrument panel will be visible when you turn your
ignition key to ON.
The words ON and OFF
will be visible in the
passenger airbag status
indicator during the
system check.When the system check is complete, either the
word ON or the word OFF will be visible depending
on whether the seat is occupied and/or the
weight of the occupant. SeePassenger Airbag
Status Indicator on page 163. The passenger
sensing system will turn off the right front
passenger’s frontal airbag, seat-mounted side
impact airbag (if equipped), and the safety
belt pretensioner under certain conditions. The
driver’s airbags are not part of the passenger
sensing system.
The passenger sensing system works with sensors
that are part of the right front passenger’s seat
assembly and safety belt assembly. The sensors
are designed to detect the presence of a
properly-seated occupant and determine if the right
front passenger’s frontal airbag, seat-mounted side
impact airbag (if equipped), and the safety belt
pretensioner should be enabled (may in ate) or not.
74
Page 75 of 432
Accident statistics show that children are safer if
they are restrained in the rear rather than the front
seat. We recommend that child restraints be
secured in a rear seat, including an infant riding in
a rear-facing infant seat, a child riding in a
forward-facing child seat and an older child riding
in a booster seat.
Your vehicle has a rear seat that will accommodate
a rear-facing child restraint. A label on your sun
visor says, “Never put a rear-facing child seat
in the front.” This is because the risk to the
rear-facing child is so great, if the airbag deploys.
{CAUTION:
A child in a rear-facing child restraint can
be seriously injured or killed if the right
front passenger’s airbag in ates. This is
because the back of the rear-facing child
restraint would be very close to the
in ating airbag.
CAUTION: (Continued)
CAUTION: (Continued)
Even though the passenger sensing
system is designed to turn off the
passenger’s frontal airbag and
seat-mounted side impact airbag (if
equipped) under certain conditions, no
system is fail-safe, and no one can
guarantee that an airbag will not deploy
under some unusual circumstance, even
though it is turned off. We recommend
that rear-facing child restraints be secured
in the rear seat, even if the airbag is off.
If you need to secure a forward-facing
child restraint in the right front seat,
always move the front passenger seat as
far back as it will go. It is better to secure
the child restraint in a rear seat.
75
Page 76 of 432

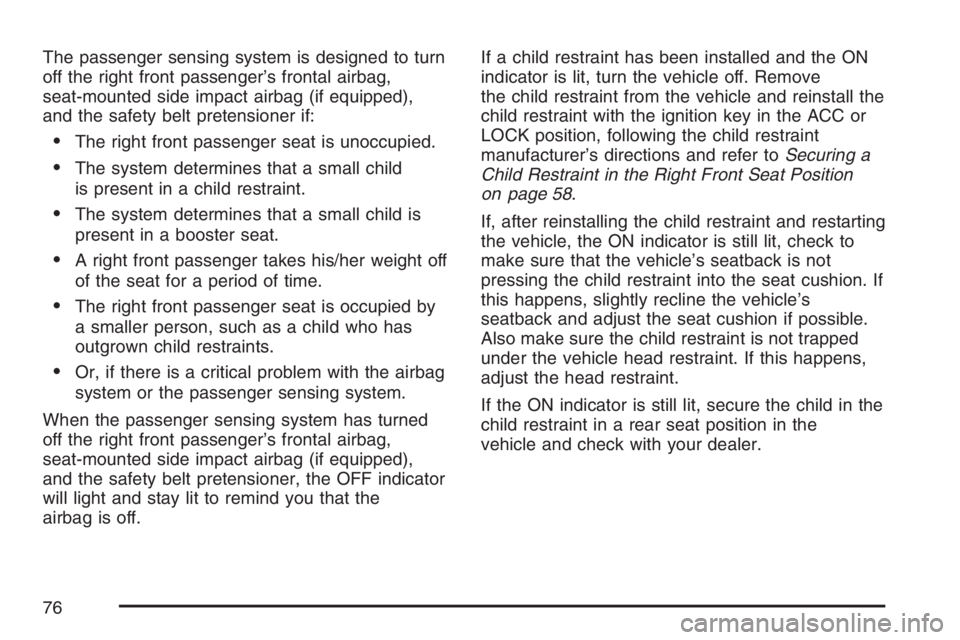

The passenger sensing system is designed to turn
off the right front passenger’s frontal airbag,
seat-mounted side impact airbag (if equipped),
and the safety belt pretensioner if:
The right front passenger seat is unoccupied.
The system determines that a small child
is present in a child restraint.
The system determines that a small child is
present in a booster seat.
A right front passenger takes his/her weight off
of the seat for a period of time.
The right front passenger seat is occupied by
a smaller person, such as a child who has
outgrown child restraints.
Or, if there is a critical problem with the airbag
system or the passenger sensing system.
When the passenger sensing system has turned
off the right front passenger’s frontal airbag,
seat-mounted side impact airbag (if equipped),
and the safety belt pretensioner, the OFF indicator
will light and stay lit to remind you that the
airbag is off.If a child restraint has been installed and the ON
indicator is lit, turn the vehicle off. Remove
the child restraint from the vehicle and reinstall the
child restraint with the ignition key in the ACC or
LOCK position, following the child restraint
manufacturer’s directions and refer toSecuring a
Child Restraint in the Right Front Seat Position
on page 58.
If, after reinstalling the child restraint and restarting
the vehicle, the ON indicator is still lit, check to
make sure that the vehicle’s seatback is not
pressing the child restraint into the seat cushion. If
this happens, slightly recline the vehicle’s
seatback and adjust the seat cushion if possible.
Also make sure the child restraint is not trapped
under the vehicle head restraint. If this happens,
adjust the head restraint.
If the ON indicator is still lit, secure the child in the
child restraint in a rear seat position in the
vehicle and check with your dealer.
76
Page 77 of 432
An object, person or child in the rear seat
contacting or pressing the right front passenger’s
seatback, or objects stowed under the right
front passenger’s seat, may affect the proper
functioning of the passenger sensing system.
When you use a safety belt extender in the right
front passenger’s seat, make sure the passenger
airbag status indicator shows the word ON. If
the indicator shows OFF, disconnect the
extender’s latch from the buckle then reconnect
the safety belt. Make sure the indicator light shows
ON, then reconnect the safety belt extender. If
you use the safety belt extender while the indicator
light shows OFF, the right front passenger’s
frontal airbag, seat-mounted side impact airbag
(if equipped), and the safety belt pretensioner may
not activate correctly. SeeAirbag System on
page 63for important safety information about your
airbags.The passenger sensing system is designed to
enable (may in ate) the right front passenger’s
frontal airbag, seat-mounted side impact airbag
(if equipped), and the safety belt pretensioner
anytime the system senses that a person of
adult size is sitting properly in the right front
passenger’s seat. When the passenger sensing
system has allowed the airbags and pretensioner
to be enabled, the ON indicator will light and
stay lit to remind you that the airbags and
pretensioner are active.
For some children who have outgrown child
restraints and for very small adults, the passenger
sensing system may or may not turn off the
airbags and pretensioner, depending upon the
person’s seating posture and body build. Everyone
in your vehicle who has outgrown child restraints
should wear a safety belt properly — whether
or not there is an airbag for that person.
77
Page 78 of 432

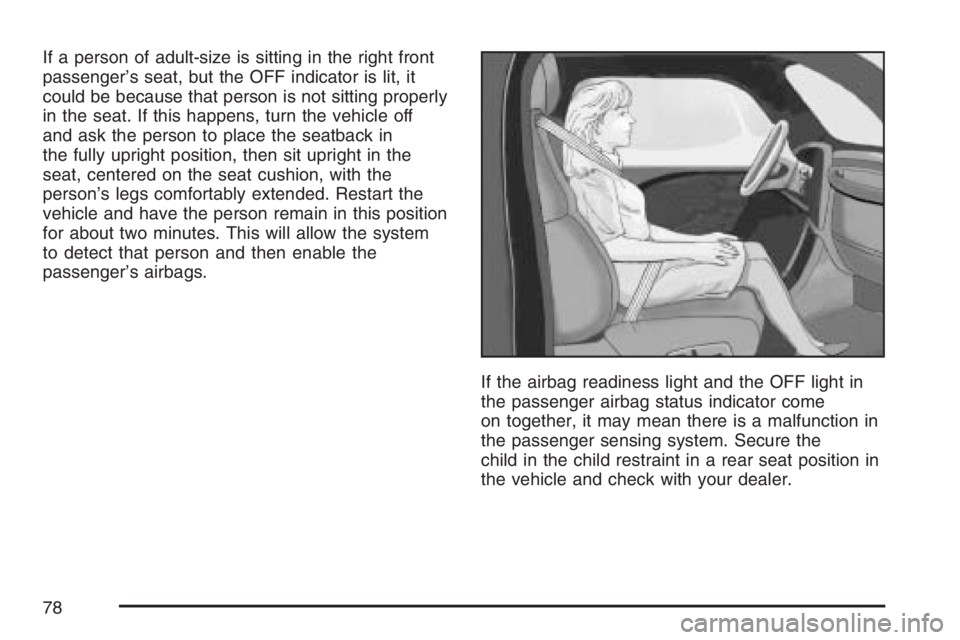

If a person of adult-size is sitting in the right front
passenger’s seat, but the OFF indicator is lit, it
could be because that person is not sitting properly
in the seat. If this happens, turn the vehicle off
and ask the person to place the seatback in
the fully upright position, then sit upright in the
seat, centered on the seat cushion, with the
person’s legs comfortably extended. Restart the
vehicle and have the person remain in this position
for about two minutes. This will allow the system
to detect that person and then enable the
passenger’s airbags.
If the airbag readiness light and the OFF light in
the passenger airbag status indicator come
on together, it may mean there is a malfunction in
the passenger sensing system. Secure the
child in the child restraint in a rear seat position in
the vehicle and check with your dealer.
78
Page 79 of 432
{CAUTION:
If the airbag readiness light in the
instrument panel cluster ever comes on
and stays on, it means that something
may be wrong with the airbag system. If
this ever happens, have the vehicle
serviced promptly, because an adult-size
person sitting in the right front
passenger’s seat may not have the
protection of the frontal airbag. See
Airbag Readiness Light on page 162for
more on this, including important safety
information.Aftermarket equipment, such as seat covers or
seat backpacks, can affect how well the passenger
sensing system operates. You may want to
consider not using seat covers, seat backpacks, or
other aftermarket equipment if your vehicle has
the passenger sensing system. SeeAdding
Equipment to Your Airbag-Equipped Vehicle on
page 81for more information about modi cations
that can affect how the system operates.
{CAUTION:
Stowing of articles under the passenger’s
seat or between the passenger’s seat
cushion and seatback may interfere with
the proper operation of the passenger
sensing system.
79
Page 80 of 432
Servicing Your Airbag-Equipped
Vehicle
Airbags affect how your vehicle should be
serviced. There are parts of the airbag system in
several places around your vehicle. You do
not want the system to in ate while someone is
working on your vehicle. Your dealer and the
service manual have information about servicing
your vehicle and the airbag system. To purchase a
service manual, seeService Publications
Ordering Information on page 417.
{CAUTION:
For up to 10 seconds, after the ignition is
turned off and the battery is disconnected,
an airbag can still in ate during improper
service. You can be injured if you are
close to an airbag when it in ates. Avoid
yellow connectors. They are probably part
of the airbag system. Be sure to follow
proper service procedures, and make sure
the person performing work for you is
quali ed to do so.
The airbag system does not need regular
maintenance.
80
