PONTIAC VIBE 2007 Owners Manual

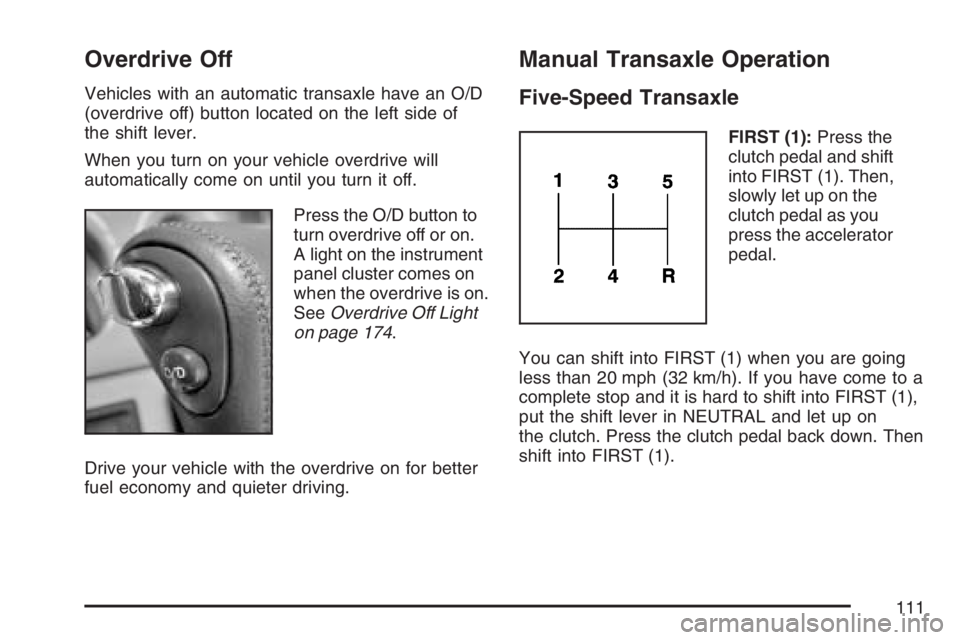

Overdrive Off
Vehicles with an automatic transaxle have an O/D
(overdrive off) button located on the left side of
the shift lever.
When you turn on your vehicle overdrive will
automatically come on until you turn it off.
Press the O/D button to
turn overdrive off or on.
A light on the instrument
panel cluster comes on
when the overdrive is on.
SeeOverdrive Off Light
on page 174.
Drive your vehicle with the overdrive on for better
fuel economy and quieter driving.
Manual Transaxle Operation
Five-Speed Transaxle
FIRST (1):Press the
clutch pedal and shift
into FIRST (1). Then,
slowly let up on the
clutch pedal as you
press the accelerator
pedal.
You can shift into FIRST (1) when you are going
less than 20 mph (32 km/h). If you have come to a
complete stop and it is hard to shift into FIRST (1),
put the shift lever in NEUTRAL and let up on
the clutch. Press the clutch pedal back down. Then
shift into FIRST (1).
111

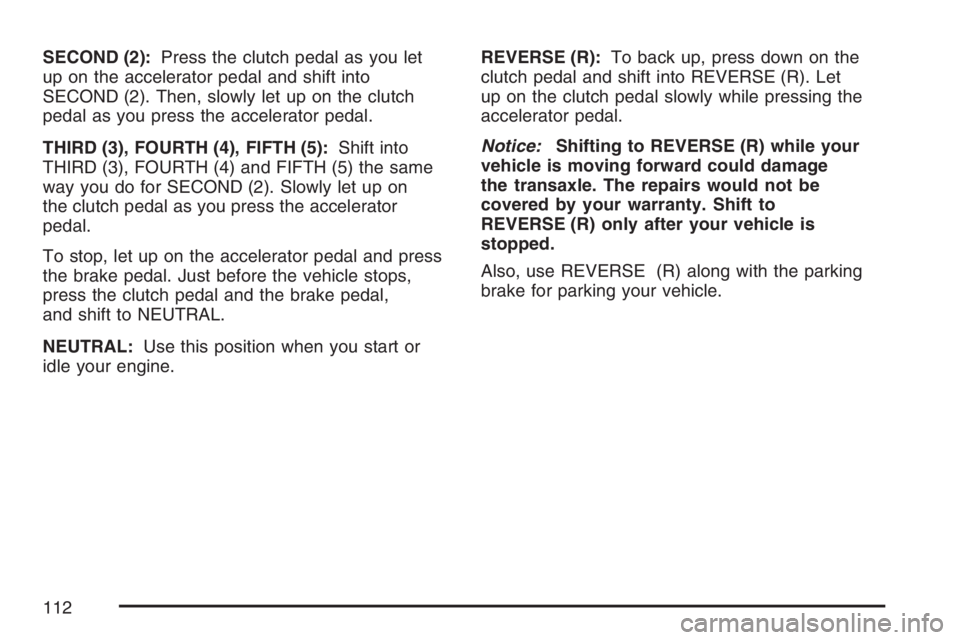

SECOND (2):Press the clutch pedal as you let
up on the accelerator pedal and shift into
SECOND (2). Then, slowly let up on the clutch
pedal as you press the accelerator pedal.
THIRD (3), FOURTH (4), FIFTH (5):Shift into
THIRD (3), FOURTH (4) and FIFTH (5) the same
way you do for SECOND (2). Slowly let up on
the clutch pedal as you press the accelerator
pedal.
To stop, let up on the accelerator pedal and press
the brake pedal. Just before the vehicle stops,
press the clutch pedal and the brake pedal,
and shift to NEUTRAL.
NEUTRAL:Use this position when you start or
idle your engine.REVERSE (R):To back up, press down on the
clutch pedal and shift into REVERSE (R). Let
up on the clutch pedal slowly while pressing the
accelerator pedal.
Notice:Shifting to REVERSE (R) while your
vehicle is moving forward could damage
the transaxle. The repairs would not be
covered by your warranty. Shift to
REVERSE (R) only after your vehicle is
stopped.
Also, use REVERSE (R) along with the parking
brake for parking your vehicle.
112

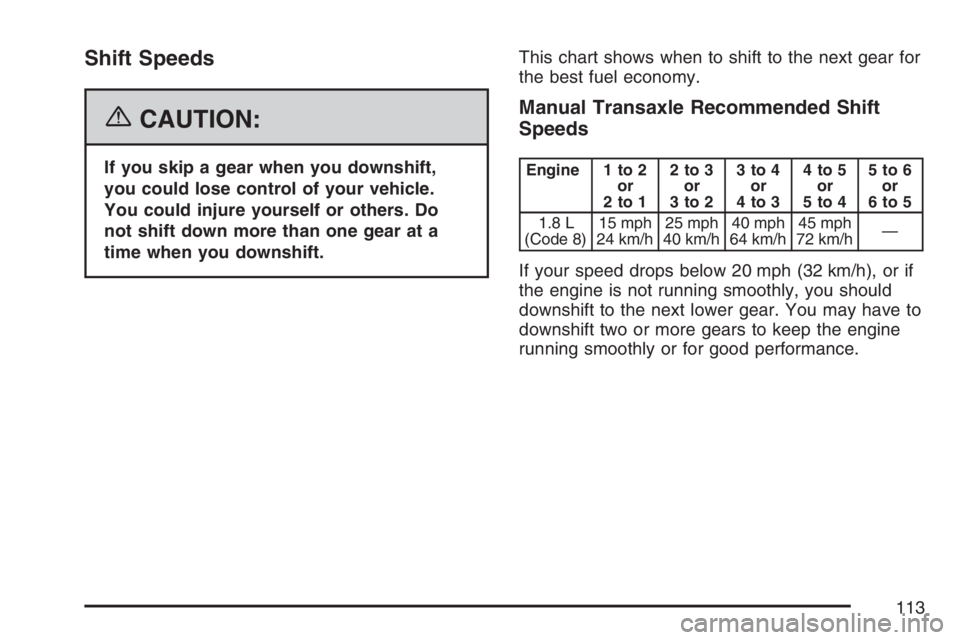

Shift Speeds
{CAUTION:
If you skip a gear when you downshift,
you could lose control of your vehicle.
You could injure yourself or others. Do
not shift down more than one gear at a
time when you downshift.This chart shows when to shift to the next gear for
the best fuel economy.
Manual Transaxle Recommended Shift
Speeds
Engine 1 to 2
or
2to12to3
or
3to23to4
or
4to34to5
or
5to45to6
or
6to5
1.8 L
(Code 8)15 mph
24 km/h25 mph
40 km/h40 mph
64 km/h45 mph
72 km/h—
If your speed drops below 20 mph (32 km/h), or if
the engine is not running smoothly, you should
downshift to the next lower gear. You may have to
downshift two or more gears to keep the engine
running smoothly or for good performance.
113

Parking Brake
To set the parking brake, hold the brake pedal
down and pull up on the parking brake lever. If the
ignition is on, the brake system warning light will
come on.
To release the parking brake, hold the brake
pedal down.Pull the parking brake lever up until you can press
the release button. Hold the release button in
as you move the lever all the way down.
Notice:Driving with the parking brake on
can overheat the brake system and cause
premature wear or damage to brake system
parts. Verify that the parking brake is fully
released and the brake warning light is
off before driving.
If you are towing a trailer, seeTowing a Trailer on
page 261.
114

Shifting Into Park (P)
(Automatic Transaxle)
{CAUTION:
It can be dangerous to get out of your
vehicle if the shift lever is not fully in
PARK (P) with the parking brake rmly
set. Your vehicle can roll. If you have left
the engine running, the vehicle can move
suddenly. You or others could be injured.
To be sure your vehicle will not move,
even when you are on fairly level ground,
use the steps that follow. If you are
pulling a trailer, seeTowing a Trailer on
page 261.To shift into PARK (P), do the following:
1. Hold the brake pedal down with your right foot
and set the parking brake by pulling up on the
parking brake lever.
2. Move the shift lever into PARK (P) by holding
in the button on the shift lever and pushing
the lever all the way toward the front of
the vehicle.
3. Turn the ignition key to LOCK.
4. Remove the key and take it with you. If you
can leave your vehicle with the key in your
hand, your vehicle is in PARK (P).
115

Leaving Your Vehicle With the Engine
Running (Automatic Transaxle)
{CAUTION:
It can be dangerous to leave your vehicle
with the engine running. Your vehicle
could move suddenly if the shift lever is
not fully in PARK (P) with the parking
brake rmly set. And, if you leave the
vehicle with the engine running, it could
overheat and even catch re. You or
others could be injured. Do not leave your
vehicle with the engine running.
If you have to leave your automatic transaxle
vehicle with the engine running, be sure your
vehicle is in PARK (P) and your parking brake is
rmly set before you leave it. After you have moved
the shift lever into PARK (P), hold the regular brake
pedal down. Then, see if you can move the shift
lever away from PARK (P) without rst pulling it
toward you. If you can, it means that the shift lever
was not fully locked into PARK (P).
Torque Lock (Automatic Transaxle)
If you are parking on a hill and you do not shift into
PARK (P) properly, the weight of the vehicle
may put too much force on the parking pawl in the
transaxle. You may nd it difficult to pull the
shift lever out of PARK (P). This is called “torque
lock.” To prevent torque lock, set the parking
brake and then shift into PARK (P) properly before
you leave the driver’s seat. To nd out how, see
Shifting Into Park (P) (Automatic Transaxle)
on page 115.
When you are ready to drive, move the shift lever
out of PARK (P) before you release the parking
brake.
If torque lock does occur, you may need to have
another vehicle push yours a little uphill to
take some of the pressure from the parking pawl
in the transaxle, so you can pull the shift lever
out of PARK (P).
116

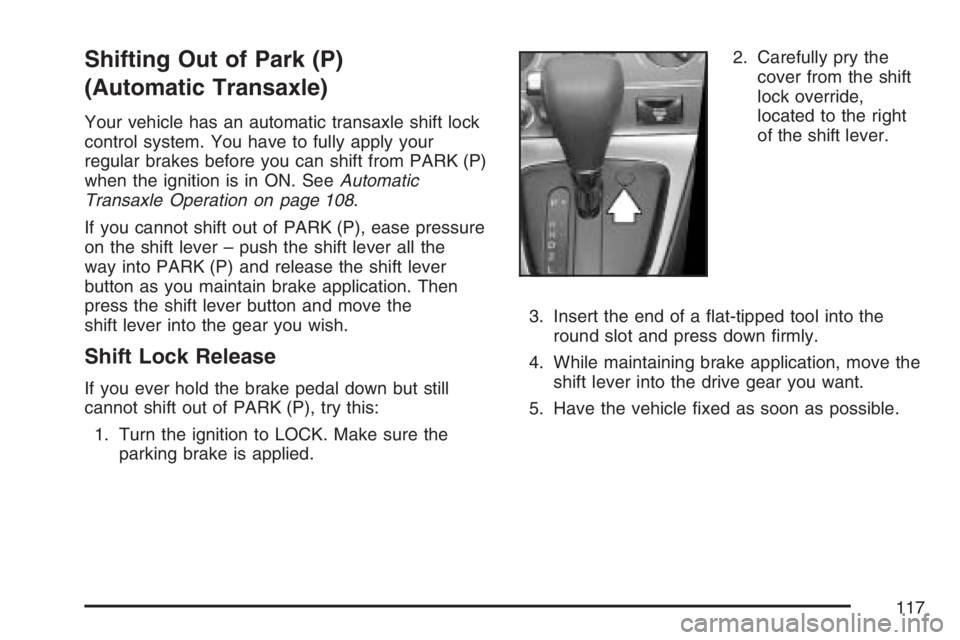

Shifting Out of Park (P)
(Automatic Transaxle)
Your vehicle has an automatic transaxle shift lock
control system. You have to fully apply your
regular brakes before you can shift from PARK (P)
when the ignition is in ON. SeeAutomatic
Transaxle Operation on page 108.
If you cannot shift out of PARK (P), ease pressure
on the shift lever – push the shift lever all the
way into PARK (P) and release the shift lever
button as you maintain brake application. Then
press the shift lever button and move the
shift lever into the gear you wish.
Shift Lock Release
If you ever hold the brake pedal down but still
cannot shift out of PARK (P), try this:
1. Turn the ignition to LOCK. Make sure the
parking brake is applied.2. Carefully pry the
cover from the shift
lock override,
located to the right
of the shift lever.
3. Insert the end of a at-tipped tool into the
round slot and press down rmly.
4. While maintaining brake application, move the
shift lever into the drive gear you want.
5. Have the vehicle xed as soon as possible.
117

Parking Your Vehicle
(Manual Transaxle)
Before you get out of your vehicle, move the shift
lever into REVERSE (R), and rmly apply the
parking brake. Once the shift lever has been
placed into REVERSE (R) with the clutch pedal
pressed in, you can turn the ignition key to LOCK,
remove the key and release the clutch.
If you are parking on a hill, or if your vehicle is
pulling a trailer, seeTowing a Trailer on page 261.
Evaporation Pump
Your vehicle is equipped with a vacuum pump for
the vehicle’s fuel evaporation system. This
pump performs a fuel evaporation leakage test
approximately ve hours after the engine is turned
off. You may hear a sound coming from
underneath the rear cargo compartment for
several minutes.
The noise is normal and does not signify a
malfunction. See your dealer with any questions.
Parking Over Things That Burn
{CAUTION:
Things that can burn could touch hot
exhaust parts under your vehicle and
ignite. Do not park over papers, leaves,
dry grass, or other things that can burn.
118

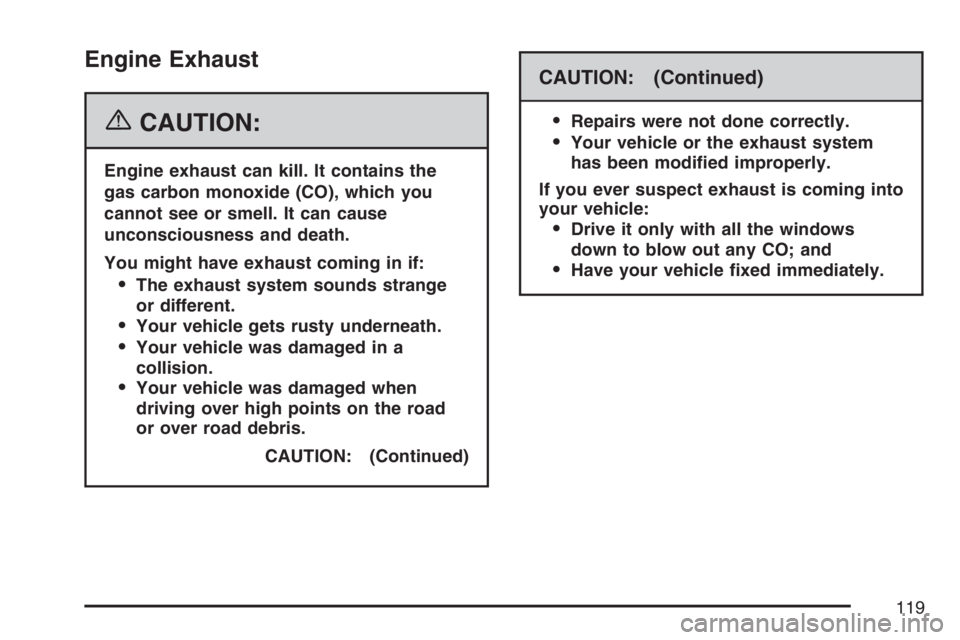

Engine Exhaust
{CAUTION:
Engine exhaust can kill. It contains the
gas carbon monoxide (CO), which you
cannot see or smell. It can cause
unconsciousness and death.
You might have exhaust coming in if:
The exhaust system sounds strange
or different.
Your vehicle gets rusty underneath.
Your vehicle was damaged in a
collision.
Your vehicle was damaged when
driving over high points on the road
or over road debris.
CAUTION: (Continued)
CAUTION: (Continued)

Repairs were not done correctly.
Your vehicle or the exhaust system
has been modied improperly.
If you ever suspect exhaust is coming into
your vehicle:
Drive it only with all the windows
down to blow out any CO; and
Have your vehicle xed immediately.
119

Running the Engine While Parked
It is better not to park with the engine running. But if
you ever have to, here are some things to know.
{CAUTION:
Idling the engine with the climate control
system off could allow dangerous exhaust
into your vehicle. See the earlier caution
underEngine Exhaust on page 119.
Also, idling in a closed-in place can let
deadly carbon monoxide (CO) into your
vehicle even if the climate control fan is at
the highest setting. One place this can
happen is a garage. Exhaust — with
CO — can come in easily. NEVER park in
a garage with the engine running.
Another closed-in place can be a blizzard.
SeeWinter Driving on page 248.
{CAUTION:
It can be dangerous to get out of your
vehicle if the shift lever is not fully in
PARK (P) with the parking brake rmly
set. Your vehicle can roll. Do not leave
your vehicle when the engine is running
unless you have to. If you have left the
engine running, the vehicle can move
suddenly. You or others could be injured.
To be sure your vehicle will not move,
even when you are on fairly level ground,
always set your parking brake and move
the shift lever to PARK (P).
Follow the proper steps to be sure your vehicle
will not move. SeeShifting Into Park (P)
(Automatic Transaxle) on page 115.
If you are parking on a hill and if you are pulling a
trailer, also seeTowing a Trailer on page 261.
120
