PONTIAC VIBE 2009 Workshop Manual

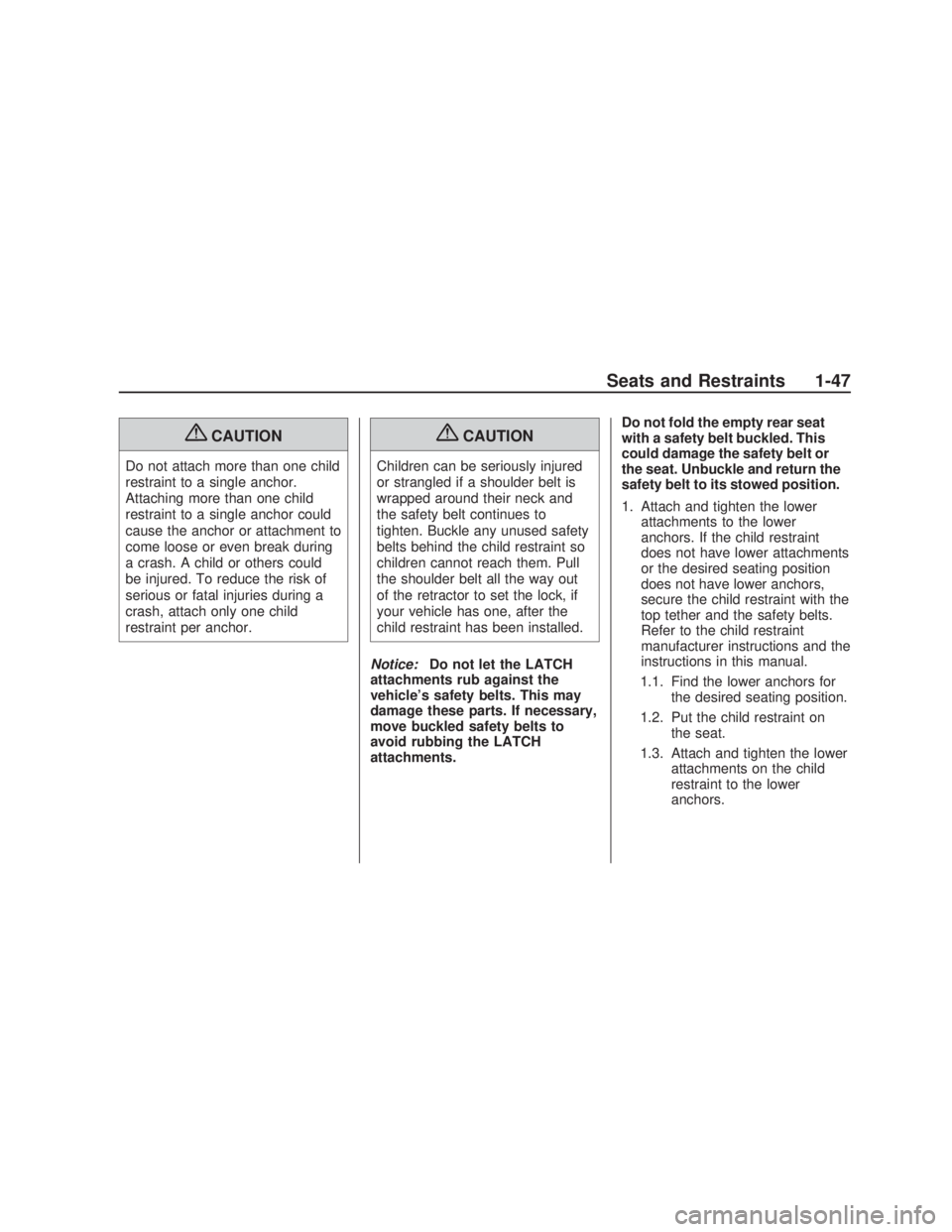

{CAUTION
Do not attach more than one child
restraint to a single anchor.
Attaching more than one child
restraint to a single anchor could
cause the anchor or attachment to
come loose or even break during
a crash. A child or others could
be injured. To reduce the risk of
serious or fatal injuries during a
crash, attach only one child
restraint per anchor.
{CAUTION
Children can be seriously injured
or strangled if a shoulder belt is
wrapped around their neck and
the safety belt continues to
tighten. Buckle any unused safety
belts behind the child restraint so
children cannot reach them. Pull
the shoulder belt all the way out
of the retractor to set the lock, if
your vehicle has one, after the
child restraint has been installed.
Notice:Do not let the LATCH
attachments rub against the
vehicle’s safety belts. This may
damage these parts. If necessary,
move buckled safety belts to
avoid rubbing the LATCH
attachments.Do not fold the empty rear seat
with a safety belt buckled. This
could damage the safety belt or
the seat. Unbuckle and return the
safety belt to its stowed position.
1. Attach and tighten the lower
attachments to the lower
anchors. If the child restraint
does not have lower attachments
or the desired seating position
does not have lower anchors,
secure the child restraint with the
top tether and the safety belts.
Refer to the child restraint
manufacturer instructions and the
instructions in this manual.
1.1. Find the lower anchors for
the desired seating position.
1.2. Put the child restraint on
the seat.
1.3. Attach and tighten the lower
attachments on the child
restraint to the lower
anchors.
Seats and Restraints 1-47
2009 - Pontiac Vibe Owner Manual

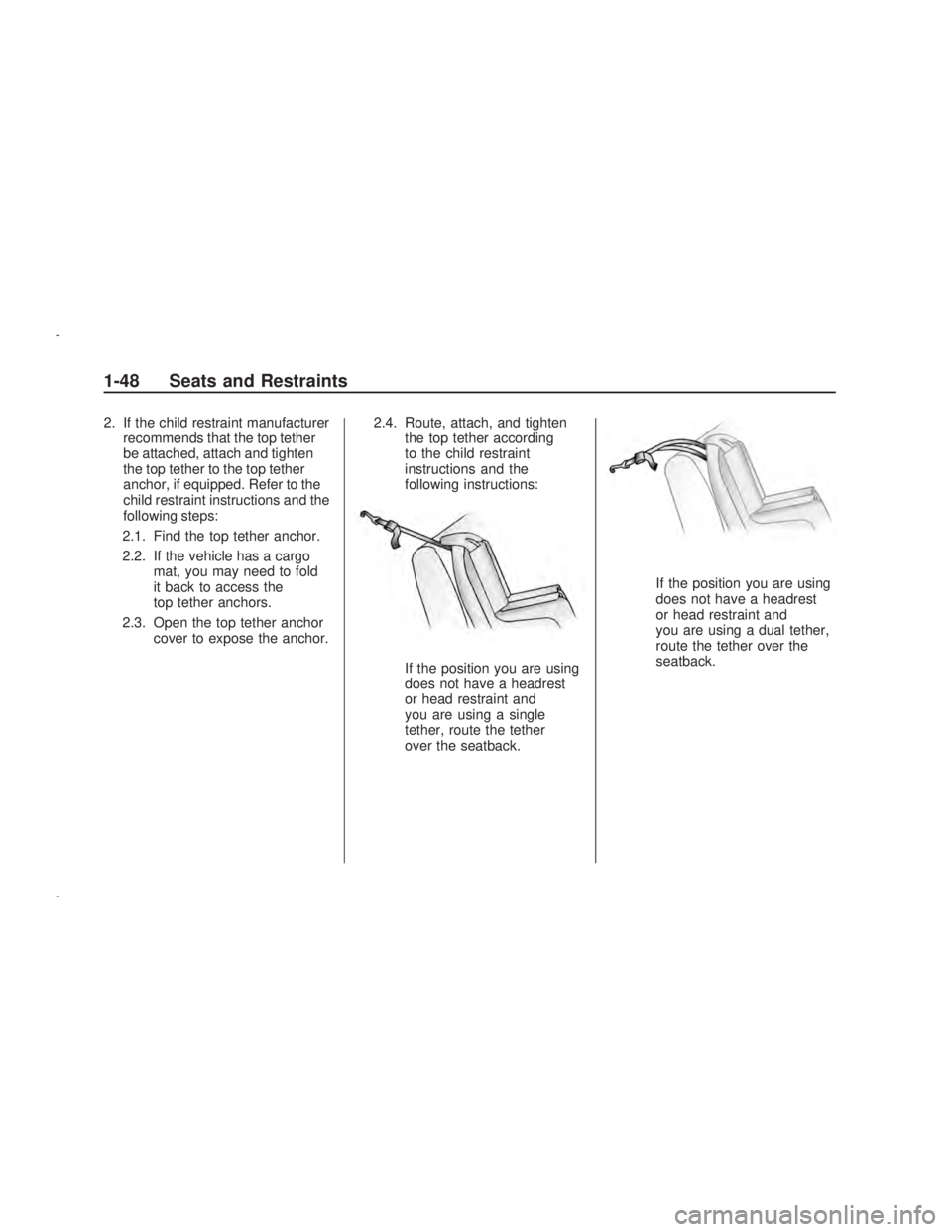

2. If the child restraint manufacturer
recommends that the top tether
be attached, attach and tighten
the top tether to the top tether
anchor, if equipped. Refer to the
child restraint instructions and the
following steps:
2.1. Find the top tether anchor.
2.2. If the vehicle has a cargo
mat, you may need to fold
it back to access the
top tether anchors.
2.3. Open the top tether anchor
cover to expose the anchor.2.4. Route, attach, and tighten
the top tether according
to the child restraint
instructions and the
following instructions:
If the position you are using
does not have a headrest
or head restraint and
you are using a single
tether, route the tether
over the seatback.If the position you are using
does not have a headrest
or head restraint and
you are using a dual tether,
route the tether over the
seatback.
1-48 Seats and Restraints
2009 - Pontiac Vibe Owner Manual

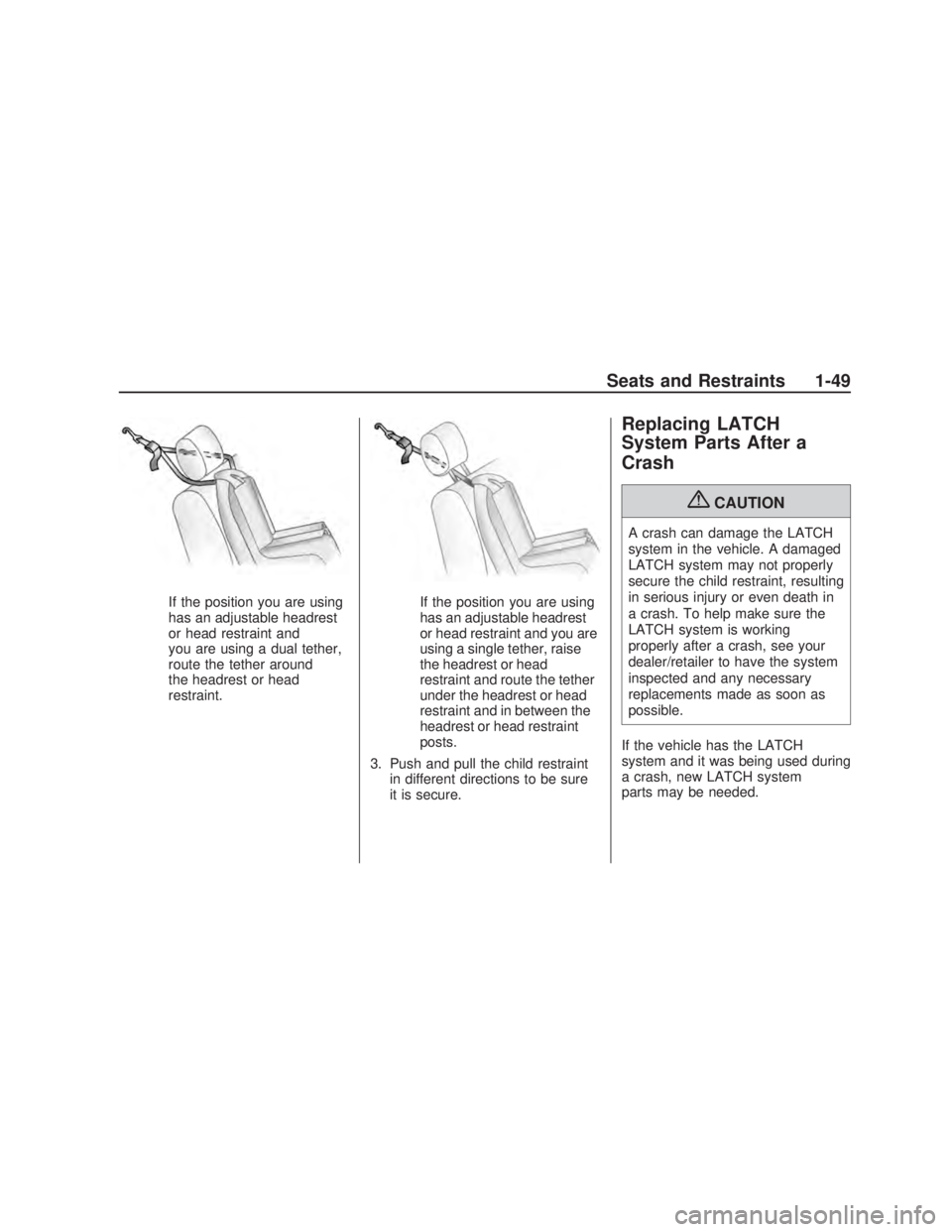

If the position you are using
has an adjustable headrest
or head restraint and
you are using a dual tether,
route the tether around
the headrest or head
restraint.If the position you are using
has an adjustable headrest
or head restraint and you are
using a single tether, raise
the headrest or head
restraint and route the tether
under the headrest or head
restraint and in between the
headrest or head restraint
posts.
3. Push and pull the child restraint
in different directions to be sure
it is secure.
Replacing LATCH
System Parts After a
Crash
{CAUTION
A crash can damage the LATCH
system in the vehicle. A damaged
LATCH system may not properly
secure the child restraint, resulting
in serious injury or even death in
a crash. To help make sure the
LATCH system is working
properly after a crash, see your
dealer/retailer to have the system
inspected and any necessary
replacements made as soon as
possible.
If the vehicle has the LATCH
system and it was being used during
a crash, new LATCH system
parts may be needed.
Seats and Restraints 1-49
2009 - Pontiac Vibe Owner Manual

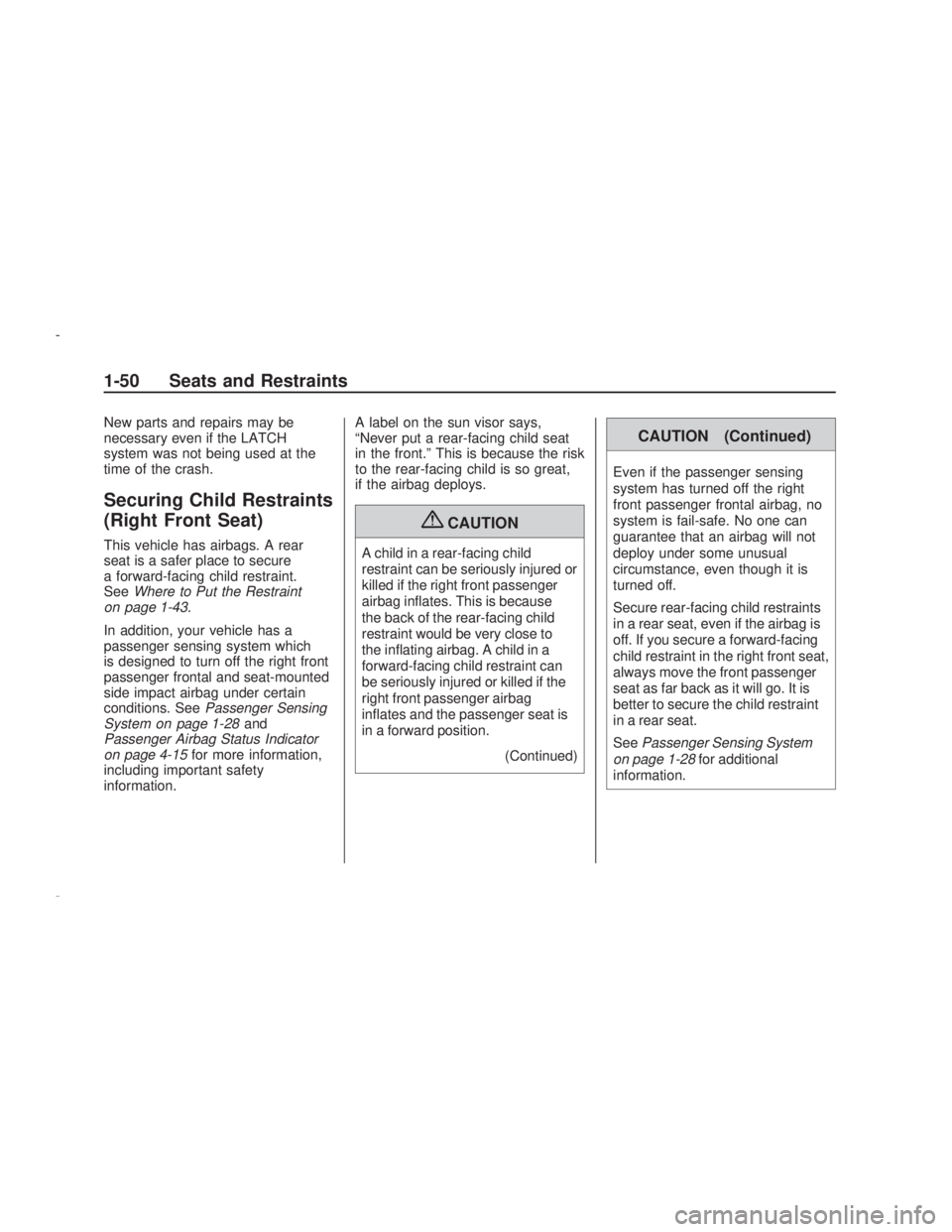

New parts and repairs may be
necessary even if the LATCH
system was not being used at the
time of the crash.
Securing Child Restraints
(Right Front Seat)
This vehicle has airbags. A rear
seat is a safer place to secure
a forward-facing child restraint.
SeeWhere to Put the Restraint
on page 1-43.
In addition, your vehicle has a
passenger sensing system which
is designed to turn off the right front
passenger frontal and seat-mounted
side impact airbag under certain
conditions. SeePassenger Sensing
System on page 1-28and
Passenger Airbag Status Indicator
on page 4-15for more information,
including important safety
information.A label on the sun visor says,
“Never put a rear-facing child seat
in the front.” This is because the risk
to the rear-facing child is so great,
if the airbag deploys.
{CAUTION
A child in a rear-facing child
restraint can be seriously injured or
killed if the right front passenger
airbag inates. This is because
the back of the rear-facing child
restraint would be very close to
the inating airbag. A child in a
forward-facing child restraint can
be seriously injured or killed if the
right front passenger airbag
inates and the passenger seat is
in a forward position.
(Continued)
CAUTION (Continued)
Even if the passenger sensing
system has turned off the right
front passenger frontal airbag, no
system is fail-safe. No one can
guarantee that an airbag will not
deploy under some unusual
circumstance, even though it is
turned off.
Secure rear-facing child restraints
in a rear seat, even if the airbag is
off. If you secure a forward-facing
child restraint in the right front seat,
always move the front passenger
seat as far back as it will go. It is
better to secure the child restraint
in a rear seat.
SeePassenger Sensing System
on page 1-28for additional
information.
1-50 Seats and Restraints
2009 - Pontiac Vibe Owner Manual

If the child restraint has the LATCH
system, seeLower Anchors and
Tethers for Children (LATCH) on
page 1-44for how to install the child
restraint using LATCH. If a child
restraint is secured in the seating
position using a safety belt and it
uses a top tether, seeLower Anchors
and Tethers for Children (LATCH)
on page 1-44for top tether anchor
locations.
Do not secure a child seat in a
position without a top tether anchor
if a national or local law requires
that the top tether be anchored,
or if the instructions that come with
the child restraint say that the
top strap must be anchored.
In Canada, the law requires that
forward-facing child restraints have
a top tether, and that the tether
be attached.You will be using the lap-shoulder
belt to secure the child restraint in
this position. Follow the instructions
that came with the child restraint.
1. Move the seat as far back as it
will go before securing the
forward-facing child restraint.
When the passenger sensing
system has turned off the
right front passenger frontal
and seat-mounted side impact
airbag, the off indicator on
the passenger airbag status
indicator should light and stay lit
when you start the vehicle.
SeePassenger Airbag Status
Indicator on page 4-15.
2. Put the child restraint on the seat.
3. Pick up the latch plate, and run
the lap and shoulder portions
of the vehicle’s safety belt
through or around the restraint.
The child restraint instructions
will show you how.4. Push the latch plate into the
buckle until it clicks.
Position the release button on
the buckle so that the safety belt
could be quickly unbuckled if
necessary.
Seats and Restraints 1-51
2009 - Pontiac Vibe Owner Manual

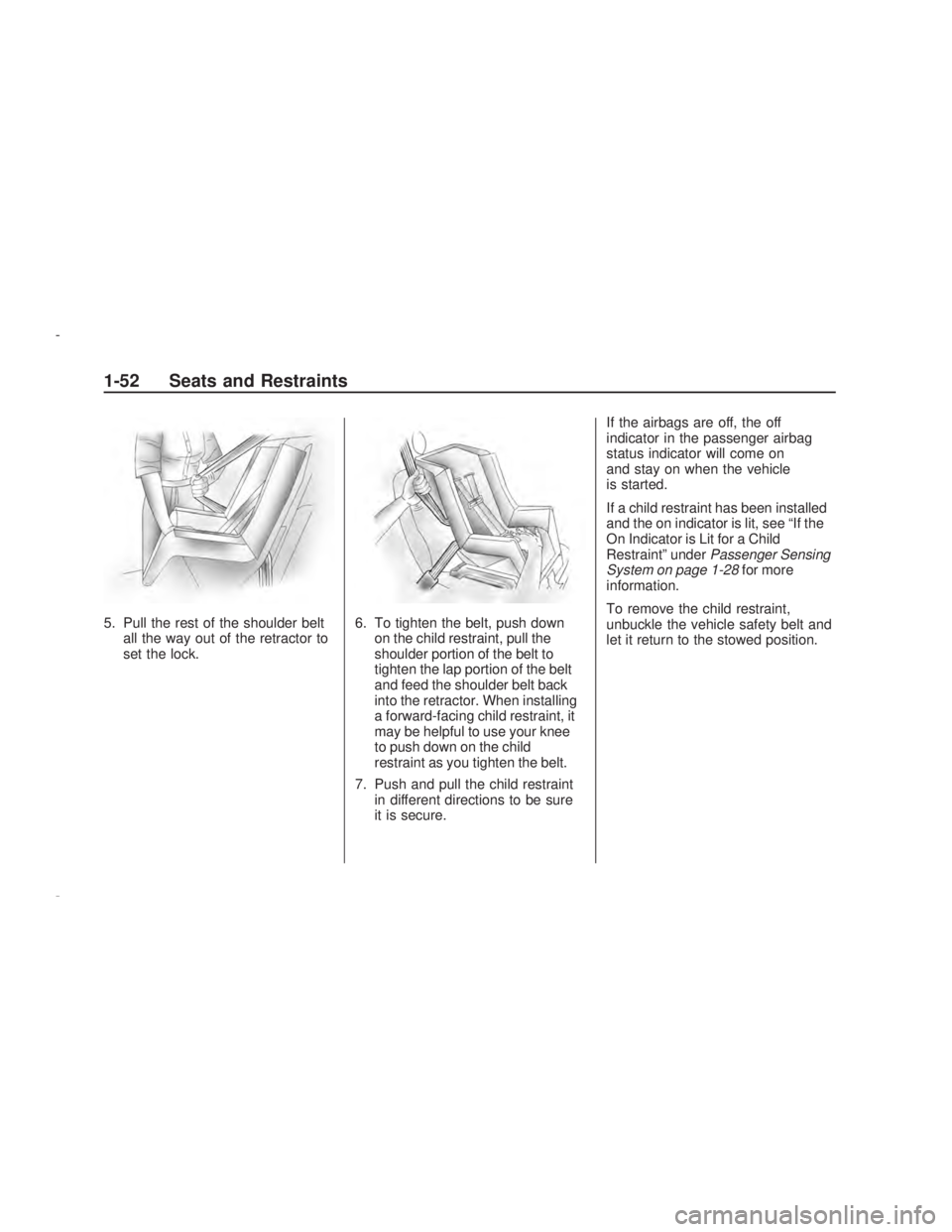

5. Pull the rest of the shoulder belt
all the way out of the retractor to
set the lock.6. To tighten the belt, push down
on the child restraint, pull the
shoulder portion of the belt to
tighten the lap portion of the belt
and feed the shoulder belt back
into the retractor. When installing
a forward-facing child restraint, it
may be helpful to use your knee
to push down on the child
restraint as you tighten the belt.
7. Push and pull the child restraint
in different directions to be sure
it is secure.If the airbags are off, the off
indicator in the passenger airbag
status indicator will come on
and stay on when the vehicle
is started.
If a child restraint has been installed
and the on indicator is lit, see “If the
On Indicator is Lit for a Child
Restraint” underPassenger Sensing
System on page 1-28for more
information.
To remove the child restraint,
unbuckle the vehicle safety belt and
let it return to the stowed position.
1-52 Seats and Restraints
2009 - Pontiac Vibe Owner Manual

Securing Child Restraints
(Rear Seats)
When securing a child restraint in a
rear seating position, study the
instructions that came with the child
restraint to make sure it is compatible
with this vehicle.
If the child restraint has the LATCH
system, seeLower Anchors and
Tethers for Children (LATCH)
on page 1-44for how to install the
child restraint using LATCH. If a
child restraint is secured in a seating
position using a safety belt and it
uses a top tether, seeLower
Anchors and Tethers for Children
(LATCH) on page 1-44for top tether
anchor locations.
Do not secure a child restraint
in a position without a top tether
anchor if a national or local
law requires that the top tether be
anchored, or if the instructions
that come with the child restraint
say that the top strap must be
anchored.In Canada, the law requires that
forward-facing child restraints have
a top tether, and that the tether
be attached.
If the child restraint does not have
the LATCH system, you will be using
the safety belt to secure the child
restraint in this position. Be sure to
follow the instructions that came
with the child restraint. Secure the
child in the child restraint when
and as the instructions say.
If more than one child restraint
needs to be installed in the
rear seat, be sure to readWhere to
Put the Restraint on page 1-43.
1. Put the child restraint on the seat.
2. Pick up the latch plate, and
run the lap and shoulder portions
of the vehicle’s safety belt
through or around the restraint.
The child restraint instructions
will show you how.3. Push the latch plate into the
buckle until it clicks.
If the latch plate will not go fully
into the buckle, check if the
correct buckle is being used.
Position the release button
on the buckle so that the safety
belt could be quickly unbuckled
if necessary.
Seats and Restraints 1-53
2009 - Pontiac Vibe Owner Manual

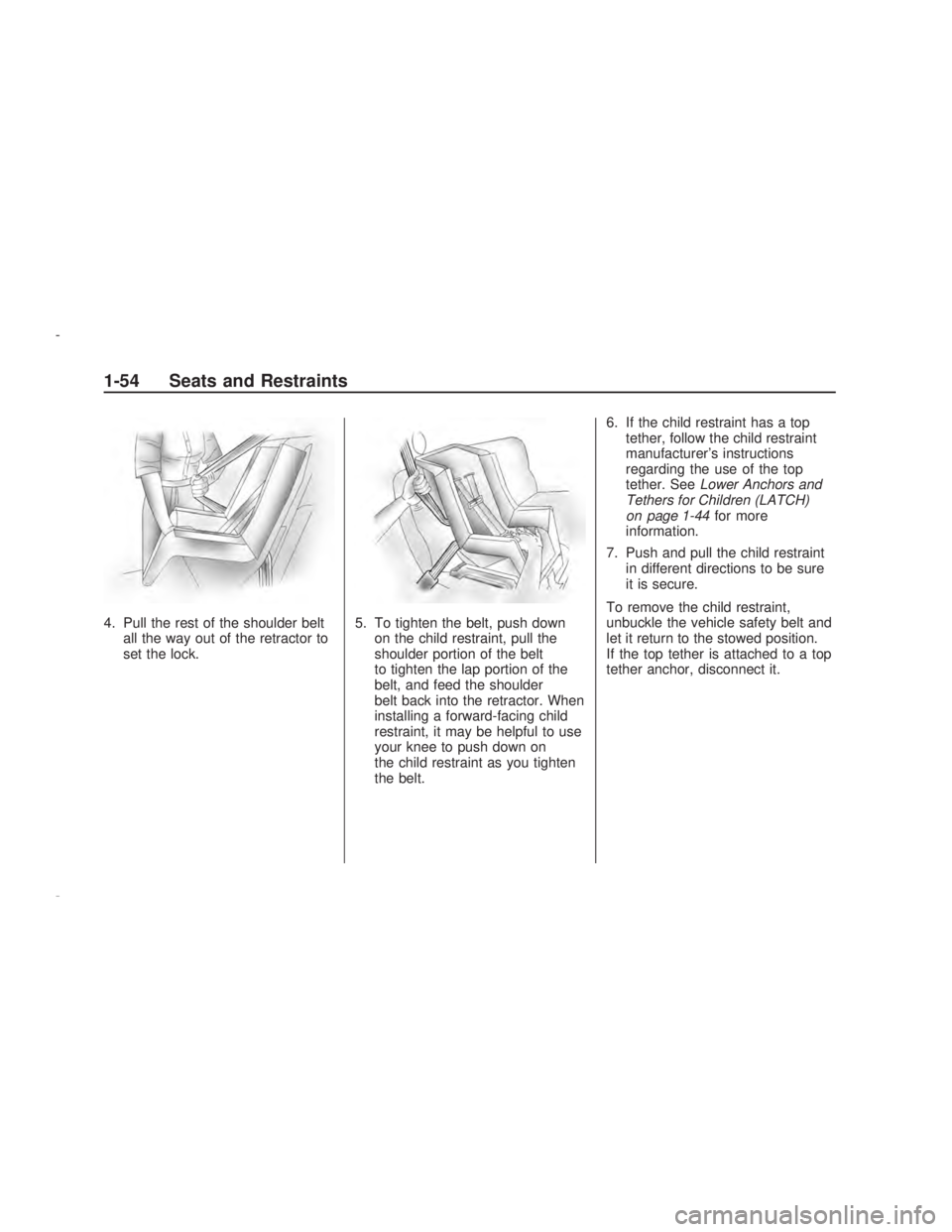

4. Pull the rest of the shoulder belt
all the way out of the retractor to
set the lock.5. To tighten the belt, push down
on the child restraint, pull the
shoulder portion of the belt
to tighten the lap portion of the
belt, and feed the shoulder
belt back into the retractor. When
installing a forward-facing child
restraint, it may be helpful to use
your knee to push down on
the child restraint as you tighten
the belt.6. If the child restraint has a top
tether, follow the child restraint
manufacturer’s instructions
regarding the use of the top
tether. SeeLower Anchors and
Tethers for Children (LATCH)
on page 1-44for more
information.
7. Push and pull the child restraint
in different directions to be sure
it is secure.
To remove the child restraint,
unbuckle the vehicle safety belt and
let it return to the stowed position.
If the top tether is attached to a top
tether anchor, disconnect it.
1-54 Seats and Restraints
2009 - Pontiac Vibe Owner Manual

Keys, Doors and
Windows
Keys
Keys...................................2-2
Remote Keyless Entry
(RKE) System...................2-3
Remote Keyless Entry
(RKE) System Operation. . . .2-4
Doors and Locks
Door Locks.........................2-6
Power Door Locks..............2-7
Rear Door Security Locks. . . .2-7
Liftgate...............................2-8
Theft-Deterrent Systems
Theft-Deterrent Systems.....2-9
Immobilizer.........................2-9
Immobilizer Operation.........2-9
Content Theft-Deterrent.....2-10
Windows
Windows...........................2-12
Power Windows................2-12
Sun Visors........................2-13
Mirrors
Manual Rearview Mirror. . . .2-13
Outside Power Mirror(s). . . .2-14
Sunroof
Sunroof.............................2-14
Keys, Doors and Windows 2-1
2009 - Pontiac Vibe Owner Manual

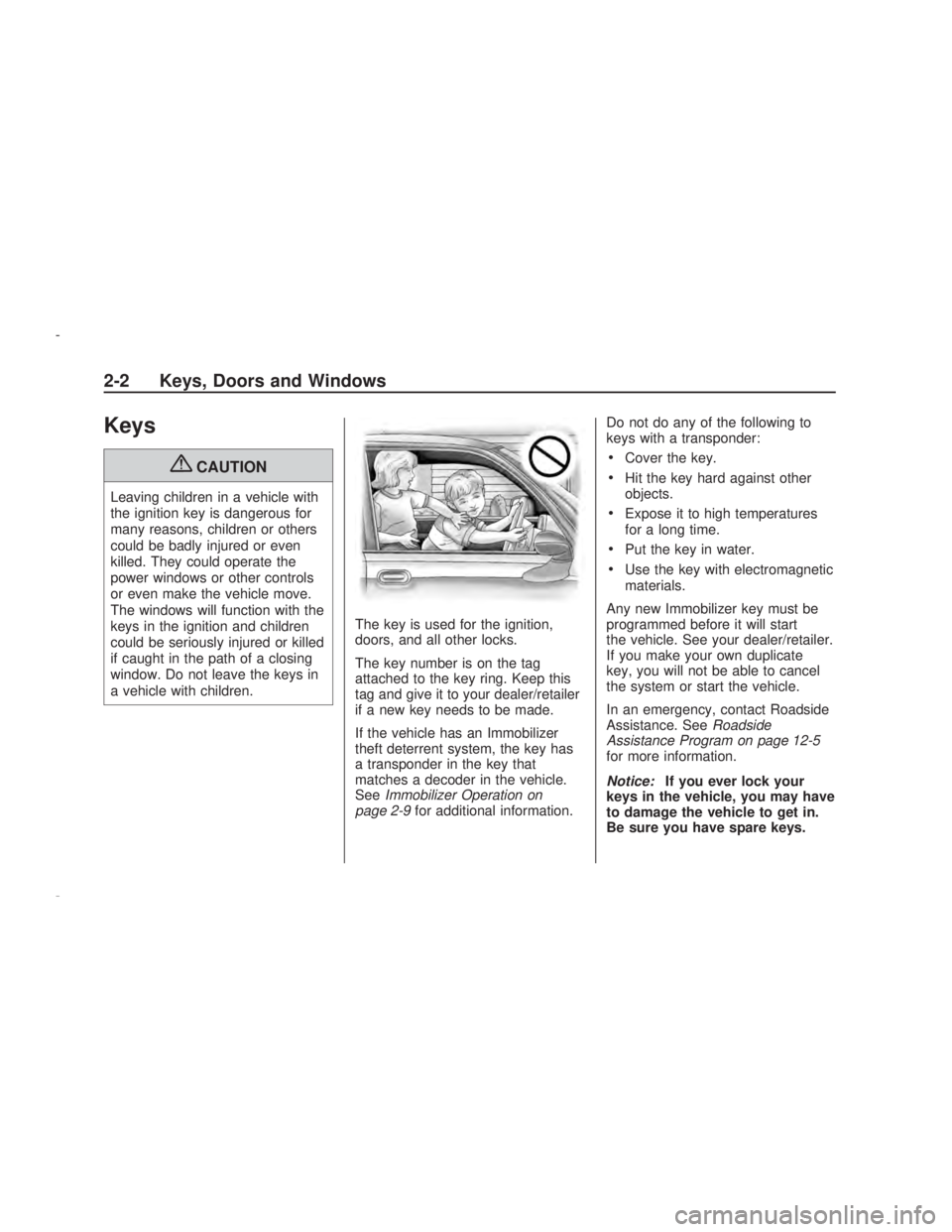

Keys
{CAUTION
Leaving children in a vehicle with
the ignition key is dangerous for
many reasons, children or others
could be badly injured or even
killed. They could operate the
power windows or other controls
or even make the vehicle move.
The windows will function with the
keys in the ignition and children
could be seriously injured or killed
if caught in the path of a closing
window. Do not leave the keys in
a vehicle with children.The key is used for the ignition,
doors, and all other locks.
The key number is on the tag
attached to the key ring. Keep this
tag and give it to your dealer/retailer
if a new key needs to be made.
If the vehicle has an Immobilizer
theft deterrent system, the key has
a transponder in the key that
matches a decoder in the vehicle.
SeeImmobilizer Operation on
page 2-9for additional information.Do not do any of the following to
keys with a transponder:
Cover the key.
Hit the key hard against other
objects.
Expose it to high temperatures
for a long time.
Put the key in water.
Use the key with electromagnetic
materials.
Any new Immobilizer key must be
programmed before it will start
the vehicle. See your dealer/retailer.
If you make your own duplicate
key, you will not be able to cancel
the system or start the vehicle.
In an emergency, contact Roadside
Assistance. SeeRoadside
Assistance Program on page 12-5
for more information.
Notice:If you ever lock your
keys in the vehicle, you may have
to damage the vehicle to get in.
Be sure you have spare keys.
2-2 Keys, Doors and Windows
2009 - Pontiac Vibe Owner Manual
