Page 31 of 318
The parts of the airbag that come
into contact with you may be warm,
but not too hot to touch. There
may be some smoke and dust
coming from the vents in the
de ated airbags. Airbag in ation
does not prevent the driver
from seeing out of the windshield
or being able to steer the vehicle,
nor does it prevent people from
leaving the vehicle.
{CAUTION
When an airbag in ates, there
may be dust in the air. This dust
could cause breathing problems
for people with a history of
asthma or other breathing trouble.
To avoid this, everyone in the
vehicle should get out as soon as
it is safe to do so. If you have
(Continued)
CAUTION (Continued)
breathing problems but cannot get
out of the vehicle after an airbag
in ates, then get fresh air by
opening a window or a door.
If you experience breathing
problems following an airbag
deployment, you should seek
medical attention.
The vehicle has a feature that may
automatically unlock the doors,
turn the interior lamps on, and turn
the hazard warning ashers on
when the airbags in ate. You can
lock the doors, turn the interior
lamps off, and turn the hazard
warning ashers off by using the
controls for those features.
In many crashes severe enough to
in ate the airbag, windshields
are broken by vehicle deformation.Additional windshield breakage may
also occur from the right front
passenger airbag.Airbags are designed to in ate
only once. After an airbag in ates,
you will need some new parts for
the airbag system. If you do not
get them, the airbag system will
not be there to help protect you in
another crash. A new system will
include airbag modules and
possibly other parts. The service
manual for your vehicle covers
the need to replace other parts.
The vehicle has a crash sensing
and diagnostic module which
records information after a crash.
SeeVehicle Data Recording and
Privacy on page 12-17andEvent
Data Recorders on page 12-17.
Let only quali ed technicians work
on the airbag systems. Improper
service can mean that an airbag
system will not work properly. See
your dealer/retailer for service.
Seats and Restraints 1-27
2009 - Pontiac Vibe Owner Manual
Page 32 of 318
Passenger Sensing
System
The vehicle has a passenger
sensing system for the right front
passenger position. The passenger
airbag status indicator will be
visible in the instrument panel when
the vehicle is started.
The words ON and OFF will be
visible during the system check.
When the system check is complete,
either the word ON or the word
OFF will be visible depending onwhether the seat is occupied and/or
the weight of the occupant. If the
seat is unoccupied, the light will not
be visible after the system check.
SeePassenger Airbag Status
Indicator on page 4-15.
The passenger sensing system will
turn off the right front passenger
frontal airbag and seat-mounted
side impact airbag under certain
conditions. The driver airbags
and the roof-rail airbags are not
affected by the passenger sensing
system.
The passenger sensing system will
also turn off the right front passenger
frontal airbag, seat-mounted side
impact airbag (if equipped), and
safety belt pretensioner if it detects
that there is no occupant in that
position.
The passenger sensing system
works with sensors that are part of
the right front passenger seat.
The sensors are designed to detectthe presence of a properly-seated
occupant and determine if the
right front passenger frontal airbag
and seat-mounted side impact
airbag (if equipped) should
be enabled (may in ate) or not.
According to accident statistics,
children and infants are safer when
properly restrained in a child
restraint system or infant restraint
system secured in a rear seating
position.
We recommend that children be
secured in a rear seat, including: an
infant or a child riding in a
rear-facing child restraint; a child
riding in a forward-facing child seat;
an older child riding in a booster
seat; and children, who are
large enough, using safety belts.
A label on the sun visor says,
“Never put a rear-facing child seat
in the front.” This is because the risk
to the rear-facing child is so great,
if the airbag deploys.
1-28 Seats and Restraints
2009 - Pontiac Vibe Owner Manual
Page 33 of 318

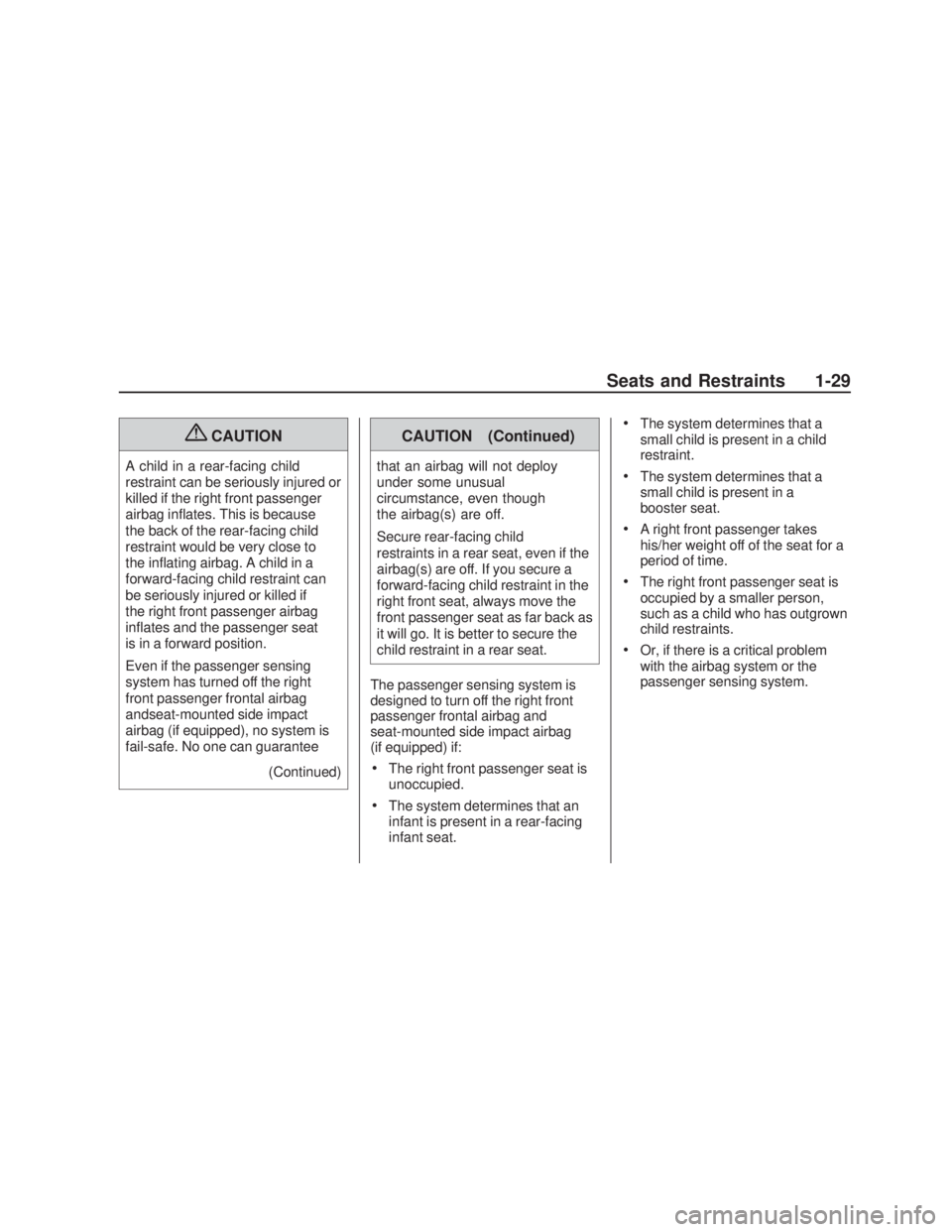

{CAUTION
A child in a rear-facing child
restraint can be seriously injured or
killed if the right front passenger
airbag in ates. This is because
the back of the rear-facing child
restraint would be very close to
the in ating airbag. A child in a
forward-facing child restraint can
be seriously injured or killed if
the right front passenger airbag
in ates and the passenger seat
is in a forward position.
Even if the passenger sensing
system has turned off the right
front passenger frontal airbag
andseat-mounted side impact
airbag (if equipped), no system is
fail-safe. No one can guarantee
(Continued)
CAUTION (Continued)
that an airbag will not deploy
under some unusual
circumstance, even though
the airbag(s) are off.
Secure rear-facing child
restraints in a rear seat, even if the
airbag(s) are off. If you secure a
forward-facing child restraint in the
right front seat, always move the
front passenger seat as far back as
it will go. It is better to secure the
child restraint in a rear seat.
The passenger sensing system is
designed to turn off the right front
passenger frontal airbag and
seat-mounted side impact airbag
(if equipped) if:
The right front passenger seat is
unoccupied.
The system determines that an
infant is present in a rear-facing
infant seat.
The system determines that a
small child is present in a child
restraint.
The system determines that a
small child is present in a
booster seat.
A right front passenger takes
his/her weight off of the seat for a
period of time.
The right front passenger seat is
occupied by a smaller person,
such as a child who has outgrown
child restraints.
Or, if there is a critical problem
with the airbag system or the
passenger sensing system.
Seats and Restraints 1-29
2009 - Pontiac Vibe Owner Manual
Page 34 of 318
When the passenger sensing
system has turned off the right
front passenger frontal airbag and
seat-mounted side impact airbag
(if equipped), the off indicator will
light and stay lit to remind you that
the airbags are off. SeePassenger
Airbag Status Indicator on
page 4-15.
The passenger sensing system is
designed to turn on (may in ate) the
right front passenger frontal airbag
and seat-mounted side impact
airbag (if equipped) anytime
the system senses that a person
of adult size is sitting properly in
the right front passenger seat.
When the passenger sensing
system has allowed the airbags and
pretensioner to be enabled, the
on indicator will light and stay lit to
remind you that the airbags and
pretensioner are active.For some children who have
outgrown child restraints and for
very small adults, the passenger
sensing system may or may not turn
off the right front passenger frontal
airbag and seat-mounted side impact
airbag (if equipped), depending
upon the person’s seating posture
and body build. Everyone in the
vehicle who has outgrown child
restraints should wear a safety belt
properly — whether or not there is an
airbag for that person.
If the airbag readiness light and the
OFF light in the passenger airbag
status indicator come on together, it
may mean there is a malfunction in
the passenger sensing system.
Secure the child in the child restraint
in a rear seat position in the vehicle
and check with your dealer/retailer.{CAUTION
If the airbag readiness light in the
instrument panel cluster ever
comes on and stays on, it means
that something may be wrong with
the airbag system. If this ever
happens, have the vehicle
serviced promptly, because an
adult-size person sitting in the
right front passenger’s seat may
not have the protection of the
airbag(s). SeeAirbag Readiness
Light on page 4-14for more on
this, including important safety
information.
1-30 Seats and Restraints
2009 - Pontiac Vibe Owner Manual
Page 35 of 318

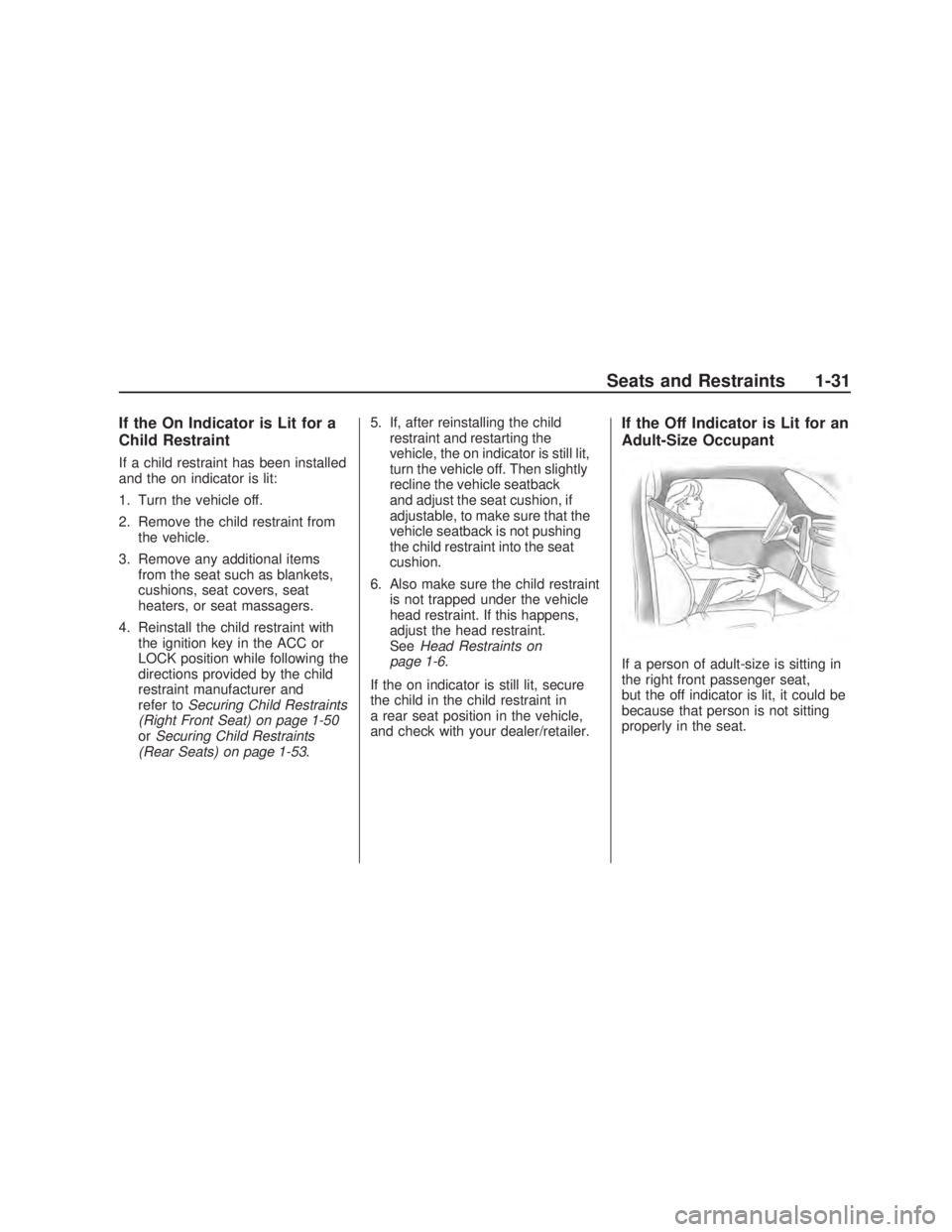

If the On Indicator is Lit for a
Child Restraint
If a child restraint has been installed
and the on indicator is lit:
1. Turn the vehicle off.
2. Remove the child restraint from
the vehicle.
3. Remove any additional items
from the seat such as blankets,
cushions, seat covers, seat
heaters, or seat massagers.
4. Reinstall the child restraint with
the ignition key in the ACC or
LOCK position while following the
directions provided by the child
restraint manufacturer and
refer toSecuring Child Restraints
(Right Front Seat) on page 1-50
orSecuring Child Restraints
(Rear Seats) on page 1-53.5. If, after reinstalling the child
restraint and restarting the
vehicle, the on indicator is still lit,
turn the vehicle off. Then slightly
recline the vehicle seatback
and adjust the seat cushion, if
adjustable, to make sure that the
vehicle seatback is not pushing
the child restraint into the seat
cushion.
6. Also make sure the child restraint
is not trapped under the vehicle
head restraint. If this happens,
adjust the head restraint.
SeeHead Restraints on
page 1-6.
If the on indicator is still lit, secure
the child in the child restraint in
a rear seat position in the vehicle,
and check with your dealer/retailer.
If the Off Indicator is Lit for an
Adult-Size Occupant
If a person of adult-size is sitting in
the right front passenger seat,
but the off indicator is lit, it could be
because that person is not sitting
properly in the seat.
Seats and Restraints 1-31
2009 - Pontiac Vibe Owner Manual
Page 36 of 318

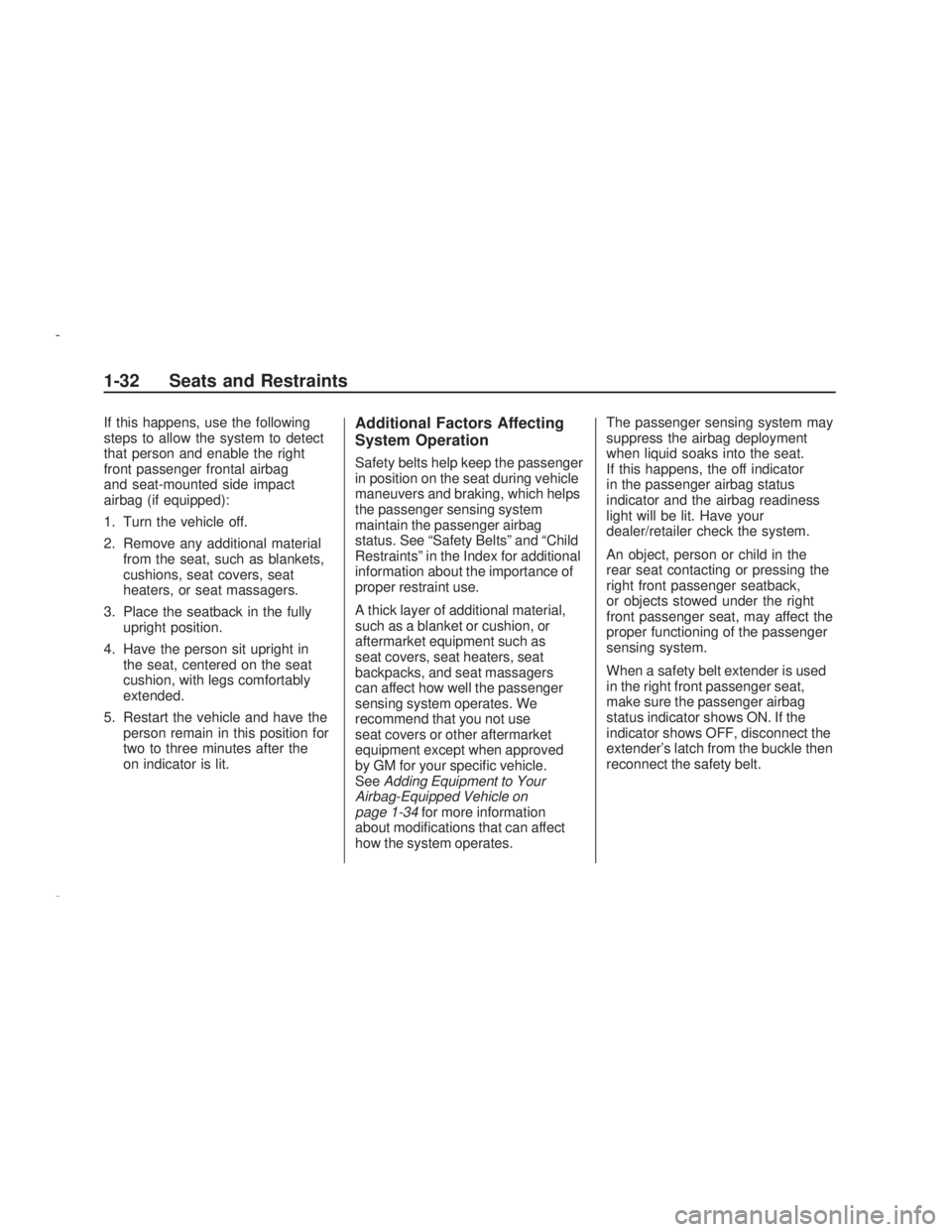

If this happens, use the following
steps to allow the system to detect
that person and enable the right
front passenger frontal airbag
and seat-mounted side impact
airbag (if equipped):
1. Turn the vehicle off.
2. Remove any additional material
from the seat, such as blankets,
cushions, seat covers, seat
heaters, or seat massagers.
3. Place the seatback in the fully
upright position.
4. Have the person sit upright in
the seat, centered on the seat
cushion, with legs comfortably
extended.
5. Restart the vehicle and have the
person remain in this position for
two to three minutes after the
on indicator is lit.Additional Factors Affecting
System Operation
Safety belts help keep the passenger
in position on the seat during vehicle
maneuvers and braking, which helps
the passenger sensing system
maintain the passenger airbag
status. See “Safety Belts” and “Child
Restraints” in the Index for additional
information about the importance of
proper restraint use.
A thick layer of additional material,
such as a blanket or cushion, or
aftermarket equipment such as
seat covers, seat heaters, seat
backpacks, and seat massagers
can affect how well the passenger
sensing system operates. We
recommend that you not use
seat covers or other aftermarket
equipment except when approved
by GM for your speci c vehicle.
SeeAdding Equipment to Your
Airbag-Equipped Vehicle on
page 1-34for more information
about modi cations that can affect
how the system operates.The passenger sensing system may
suppress the airbag deployment
when liquid soaks into the seat.
If this happens, the off indicator
in the passenger airbag status
indicator and the airbag readiness
light will be lit. Have your
dealer/retailer check the system.
An object, person or child in the
rear seat contacting or pressing the
right front passenger seatback,
or objects stowed under the right
front passenger seat, may affect the
proper functioning of the passenger
sensing system.
When a safety belt extender is used
in the right front passenger seat,
make sure the passenger airbag
status indicator shows ON. If the
indicator shows OFF, disconnect the
extender’s latch from the buckle then
reconnect the safety belt.
1-32 Seats and Restraints
2009 - Pontiac Vibe Owner Manual
Page 37 of 318
The passenger airbag status
indicator light should be ON and then
the safety belt extender can be
reconnected. If the safety belt
extender is used while the passenger
airbag status indicator light is OFF,
the right front passenger frontal and
seat-mounted side impact airbags (if
equipped) may not activate correctly.
{CAUTION
Stowing of articles under the
passenger seat or between the
passenger seat cushion and
seatback may interfere with the
proper operation of the passenger
sensing system.
Servicing Your
Airbag-Equipped Vehicle
Airbags affect how the vehicle should
be serviced. There are parts of the
airbag system in several places
around the vehicle. Your dealer/
retailer and the service manual have
information about servicing the
vehicle and the airbag system.
To purchase a service manual,
seeService Publications Ordering
Information on page 12-16.
{CAUTION
For up to 10 seconds after the
ignition is turned off and the battery
is disconnected, an airbag can still
in ate during improper service.
You can be injured if you are close
to an airbag when it in ates. Avoid
yellow connectors. They are
probably part of the airbag system.
Be sure to follow proper service
procedures, and make sure the
person performing work for you is
quali ed to do so.
Seats and Restraints 1-33
2009 - Pontiac Vibe Owner Manual
Page 38 of 318
Adding Equipment to
Your Airbag-Equipped
Vehicle
Q:Is there anything I might add to
or change about the vehicle
that could keep the airbags
from working properly?
A:Yes. If you add things that
change the vehicle’s frame,
bumper system, height, front end
or side sheet metal, they may
keep the airbag system from
working properly. Changing or
moving any parts of the front
seats, safety belts, the airbag
sensing and diagnostic module,
steering wheel, instrument
panel, roof-rail airbag modules,
ceiling headliner or pillar
garnish trim, front sensors, or
airbag wiring can affect the
operation of the airbag system.In addition, the vehicle has a
passenger sensing system for the
right front passenger position,
which includes sensors that are
part of the passenger’s seat.
The passenger sensing system
may not operate properly if the
original seat trim is replaced with
non-GM covers, upholstery or
trim, or with GM covers,
upholstery or trim designed for a
different vehicle. Any object, such
as an aftermarket seat heater or a
comfort enhancing pad or device,
installed under or on top of the
seat fabric, could also interfere
with the operation of the
passenger sensing system.
This could either prevent proper
deployment of the passenger
airbag(s) or prevent the
passenger sensing system from
properly turning off the passenger
airbag(s). SeePassenger
Sensing System on page 1-28.If you have any questions, call
Customer Assistance. The phone
numbers and addresses for
Customer Assistance are in
Step Two of the Customer
Satisfaction Procedure in
this manual. SeeCustomer
Satisfaction Procedure on
page 12-1.Q:Because I have a disability,
I have to get my vehicle
modi ed. How can I nd out
whether this will affect my
airbag system?
A:If you have questions, call
Customer Assistance. The phone
numbers and addresses for
Customer Assistance are in
Step Two of the Customer
Satisfaction Procedure in this
manual. SeeCustomer
Satisfaction Procedure on
page 12-1.
In addition, your dealer/retailer and
the service manual have information
about the location of the airbag
sensors, sensing and diagnostic
module and airbag wiring.
1-34 Seats and Restraints
2009 - Pontiac Vibe Owner Manual
Page 39 of 318

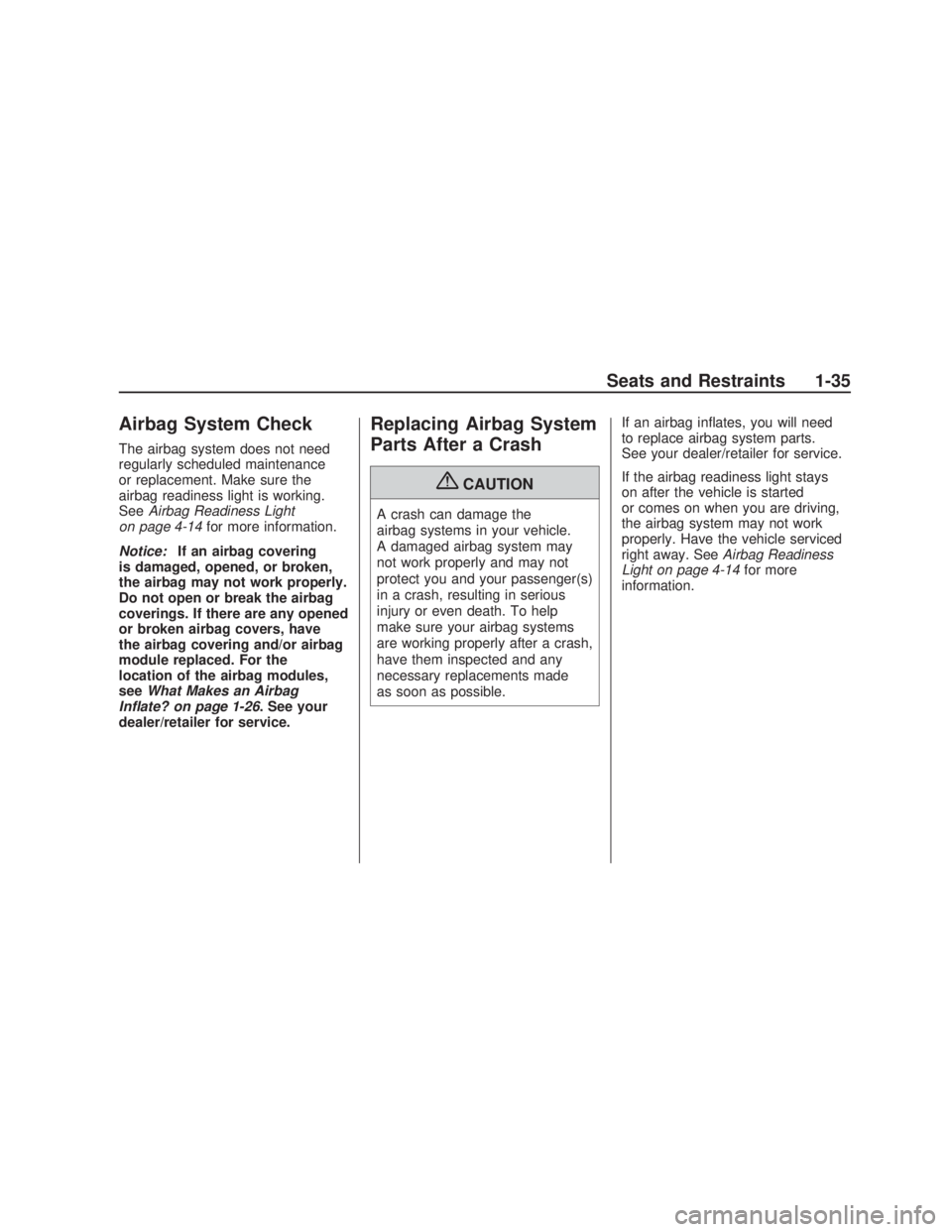

Airbag System Check
The airbag system does not need
regularly scheduled maintenance
or replacement. Make sure the
airbag readiness light is working.
SeeAirbag Readiness Light
on page 4-14for more information.
Notice:If an airbag covering
is damaged, opened, or broken,
the airbag may not work properly.
Do not open or break the airbag
coverings. If there are any opened
or broken airbag covers, have
the airbag covering and/or airbag
module replaced. For the
location of the airbag modules,
seeWhat Makes an Airbag
Inflate? on page 1-26. See your
dealer/retailer for service.
Replacing Airbag System
Parts After a Crash
{CAUTION
A crash can damage the
airbag systems in your vehicle.
A damaged airbag system may
not work properly and may not
protect you and your passenger(s)
in a crash, resulting in serious
injury or even death. To help
make sure your airbag systems
are working properly after a crash,
have them inspected and any
necessary replacements made
as soon as possible.If an airbag in ates, you will need
to replace airbag system parts.
See your dealer/retailer for service.
If the airbag readiness light stays
on after the vehicle is started
or comes on when you are driving,
the airbag system may not work
properly. Have the vehicle serviced
right away. SeeAirbag Readiness
Light on page 4-14for more
information.
Seats and Restraints 1-35
2009 - Pontiac Vibe Owner Manual
Page 40 of 318

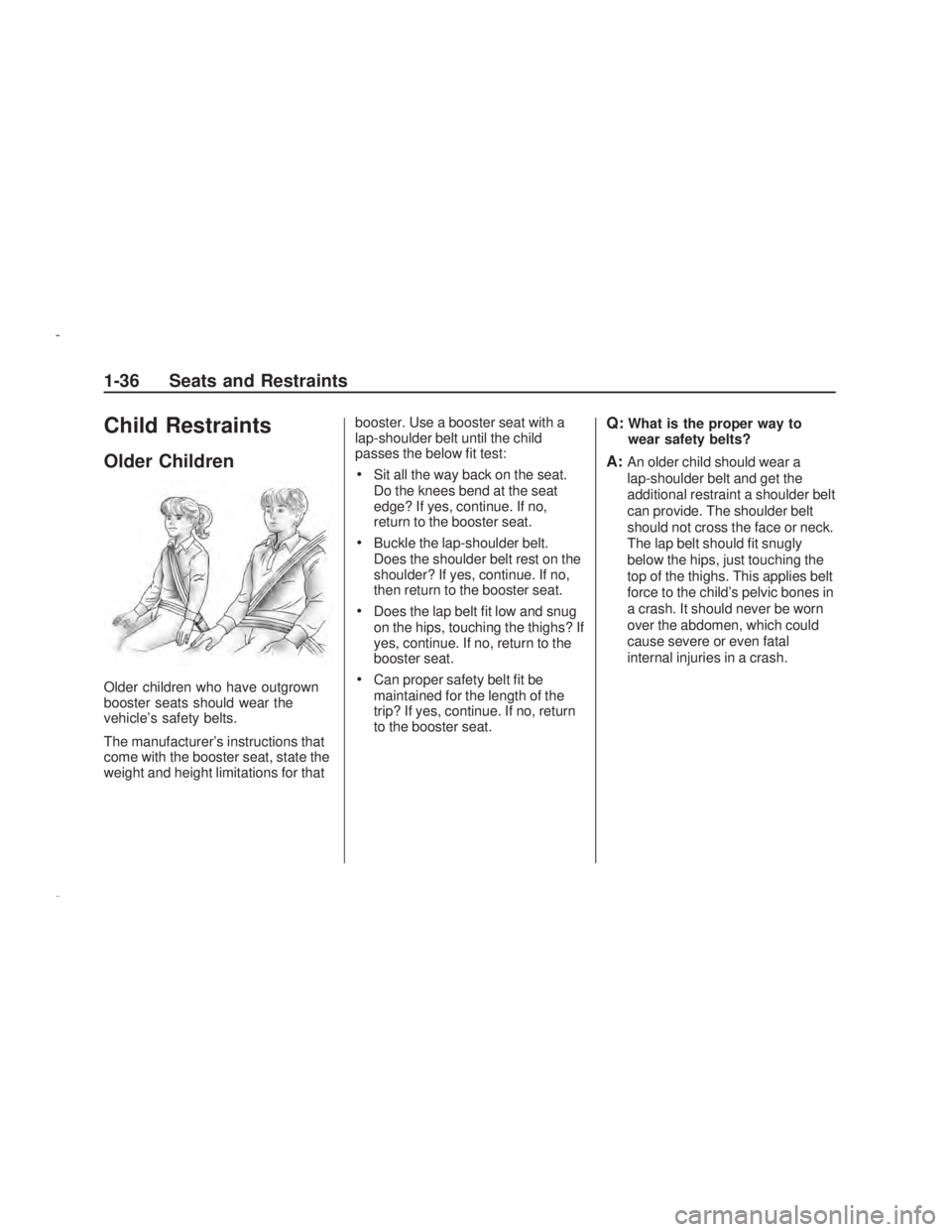

Child Restraints
Older Children
Older children who have outgrown
booster seats should wear the
vehicle’s safety belts.
The manufacturer’s instructions that
come with the booster seat, state the
weight and height limitations for thatbooster. Use a booster seat with a
lap-shoulder belt until the child
passes the below t test:
Sit all the way back on the seat.
Do the knees bend at the seat
edge? If yes, continue. If no,
return to the booster seat.
Buckle the lap-shoulder belt.
Does the shoulder belt rest on the
shoulder? If yes, continue. If no,
then return to the booster seat.
Does the lap belt t low and snug
on the hips, touching the thighs? If
yes, continue. If no, return to the
booster seat.
Can proper safety belt t be
maintained for the length of the
trip? If yes, continue. If no, return
to the booster seat.
Q:What is the proper way to
wear safety belts?
A:An older child should wear a
lap-shoulder belt and get the
additional restraint a shoulder belt
can provide. The shoulder belt
should not cross the face or neck.
The lap belt should t snugly
below the hips, just touching the
top of the thighs. This applies belt
force to the child’s pelvic bones in
a crash. It should never be worn
over the abdomen, which could
cause severe or even fatal
internal injuries in a crash.
1-36 Seats and Restraints
2009 - Pontiac Vibe Owner Manual
