PORSCHE 911 CARRERA 2007 5.G Owners Manual

StartingandStoppingEngine
StartingProcedures
Pleaseobservethechapter”IMMOBILIZER”onpage22.
Pleaseobservethechapter”EMISSIONCONTROLSYSTEM”onpage247.
Danger!
Seriouspersonalinjuryordeathmayresultifyouareinvolvedinacollisionwithouthavingfastenedthesafetybelts.
Fastensafetybeltsbeforedrivingaway.
Beforestartingtheengine
Applythefootbrake.
Manualtransmission:Movethegearshiftleverintoneutral.Theclutchpedalmustbedepressedfullybeforethestarterwillengage.
Tiptronic:MovetheselectorlevertoPorN.
Temperaturesensorsontheengineautomaticallyprovidethecorrectfuel/airmixturerequiredforstarting.Therefore,itisnotnecessarytodepresstheacceleratorpedalwhilestartingacoldorawarmengine.
Startingtheengine
Turnignitionkeytoignitionlockposition2.
Assoonastheenginestarts,releasetheignitionkey.
Thefirstoperationofthestarterisendedautomat-icallywhentheenginestarts.Iftheenginedoesnotstart,subsequentstarteroperationswillnotbeendedautomatically.
Iftheenginefailstostartafter10secondsor15secondsofcranking:
Waitabout10secondsbeforeengagingthestarteragain.
Whenstartingtheengine,bereadytodriveimmediately.Drivevehicleatmoderatespeedsandavoidenginespeedsabove4,200rpmduringthefirst5minutes.
Donotlettheengineidletowarmup.
Danger!
Engineexhaustfumeshavemanycompo-nentswhichyoucansmell.Theyalsocontaincarbonmonoxide(CO),whichisacolorlessandodorlessgas.Carbonmonoxidecancauseunconsciousnessandevendeathifinhaled.
Neverstartorlettheengineruninanenclosed,unventilatedarea.Itisnotrec-ommendedtositinyourcarforprolongedperiodswiththeengineonandthecarnotmoving.
Danger!
Anunattendedvehiclewitharunningengineispotentiallyhazardous.Ifwarninglightsshouldcomeontoindicateimproperopera-tion,theywouldgounnoticed.
Neverleavetheengineidlingunattended.
Danger!
Dangerofre.
Donotparkoroperatethevehicleinareaswherethehotexhaustsystemmaycomeincontactwithdrygrass,brush,fuelspillorotherflammablematerial.
Controls,Instruments89

Ifyourcarcatchesonfireforanyreason,callthefiredepartment.Donotendangeryourlifebyattemptingtoputoutthefire.
Stoppingengine
Turnkeybacktoposition3.
Donotstopengineimmediatelyafterhardorextendeddriving.Keepenginerunningatincreasedidleforabouttwominutestopreventexcessiveheatbuild-upbeforeturningoffengine.
Toavoidbatteryrun-down,alwaysremovetheignitionkeyfromtheignitionlock.
Makesurethatwhenyouleavethecar,evenbriefly,youhavewithdrawntheignitionkey.
Engagethesteeringlockbymovingthesteeringwheeltotheleftorright.Turnthesteeringwheeltothelockingpositionbeforeyouswitchofftheenginesothatyoudon’thavetoexertyourselfwhenlockingorunlockingthesteering.
Warning!
Dangerofinjury.Hotenginecompartmentcomponentscanburnskinoncontact.
Beforeworkingonanypartintheenginecompartment,turntheengineoffandletitcooldownsufficiently.
Engine-compartmentblower,radiatorfan
Theradiatorandradiatorfansareinthefrontofthecar.Theengine-compartmentblowerismountedontheenginecompartmentlid.
Warning!
Riskofinjury.Aftertheengineisswitchedoff,theengine-compartmenttemperatureismonitoredforapprox.30minutes.Duringthisperiod,anddependingontemperature,theengine-compartmentblowermaycontin-uetorunorstarttorun.
Carryoutworkintheseareasonlywiththeengineoff,theignitionoff,andexerciseextremecaution.
Warning!
Riskofinjury.Theradiatorfansinthefrontendofthecarmaybeoperatingorunex-pectedlystartoperatingwhentheengineisswitchedon.
Carryoutworkintheseareasonlywiththeengineswitchedoff.
Automaticgaragedoor
TheignitionsysteminyourPorschemayinterferewithyourelectronicallyoperatedgaragedoor.
Tocheckthis,driveyourPorscheclosetothegaragedoor.Makesurenottointerferewiththeoperatingrangeofthedoor.
Runtheengineatdifferentspeeds.
Ifthegaragedooropensorcloseswithoutyouoperatingthegaragedoorunitinyourcar,contactthedealerwhoinstalledtheautomaticgaragedoortohavethefrequencyand/orcodingofthegaragedoorsignalchangedormodified.
90Controls,Instruments

InstrumentPanelUSAModels
Overview
AlsorefertothecorrespondingchaptersintheOwner’sManual.
1.Engineoiltemperaturegauge
2.Speedometerwithanaloguedisplay
3.Tirepressurewarninglight
4.Turnsignalindicatorlight,left
5.Tachometer
6.Highbeamindicatorlight
7.Turnsignalindicatorlight,right
8.ABSwarninglight
9.Coolingsystem:Temperaturegauge,warninglight
10.Fuel:Levelgauge,warninglight
11.Engineoilpressuregauge
12.Adjustmentbuttonforinstrumentilluminationandtripcounter
13.Odometeranddailytripmileagedisplay
14.Automaticspeedcontrolindicatorlight
15.Lightsensorforinstrumentillumination
16.Airbagwarninglight
17.Emissioncontrolwarninglight(CheckEngine)
18.Centralwarninglight
19.On-boardcomputerdisplay
20.PorscheStabilityManagement:MultifunctionalPSMlight
21.Brakewarninglight
22.Safetybeltwarninglight
23.Tiptronicindicator
24.Clockandoutsidetemperaturedisplay
25.Adjustmentbuttonforclock
Whentheignitionisswitchedon,thewarninglightslightupforalampcheck.
Note
WarningsthathavebeengivenarestoredintheappropriatecontrolunitmemoryandcanbereadoutatanauthorizedPorschedealer.
Thisinformationcanhelptowarnyouaboutsituationswhichmaybehazardoustoyouoryourcar.
Note
WarningsthathavebeengivenarestoredintheappropriatecontrolunitmemoryandcanbereadoutatanauthorizedPorschedealer.
Thisinformationcanhelptowarnyouaboutsituationswhichmaybehazardoustoyouoryourcar.
Controls,Instruments91

92Controls,Instruments

InstrumentPanelCanadaModels
Overview
AlsorefertothecorrespondingchaptersintheOwner’sManual.
1.Engineoiltemperaturegauge
2.Speedometerwithanaloguedisplay
3.Tirepressurewarninglight
4.Turnsignalindicatorlight,left
5.Tachometer
6.Highbeamindicatorlight
7.Turnsignalindicatorlight,right
8.ABSwarninglight
9.Coolingsystem:Temperaturegauge,warninglight
10.Fuel:Levelgauge,warninglight
11.Engineoilpressuregauge
12.Adjustmentbuttonforinstrumentilluminationandtripcounter
13.Odometeranddailytripmileagedisplay
14.Automaticspeedcontrolindicatorlight
15.Lightsensorforinstrumentillumination
16.Airbagwarninglight
17.Emissioncontrolwarninglight(CheckEngine)
18.Centralwarninglight
19.On-boardcomputerdisplay
20.PorscheStabilityManagement:MultifunctionalPSMlight
21.Brakewarninglight
22.Safetybeltwarninglight
23.Tiptronicindicator
24.Clockandoutsidetemperaturedisplay
25.Adjustmentbuttonforclock
Whentheignitionisswitchedon,thewarninglightslightupforalampcheck.
Note
WarningsthathavebeengivenarestoredintheappropriatecontrolunitmemoryandcanbereadoutatanauthorizedPorschedealer.
Thisinformationcanhelptowarnyouaboutsituationswhichmaybehazardoustoyouoryourcar.
Note
WarningsthathavebeengivenarestoredintheappropriatecontrolunitmemoryandcanbereadoutatanauthorizedPorschedealer.
Thisinformationcanhelptowarnyouaboutsituationswhichmaybehazardoustoyouoryourcar.
Controls,Instruments93

94Controls,Instruments

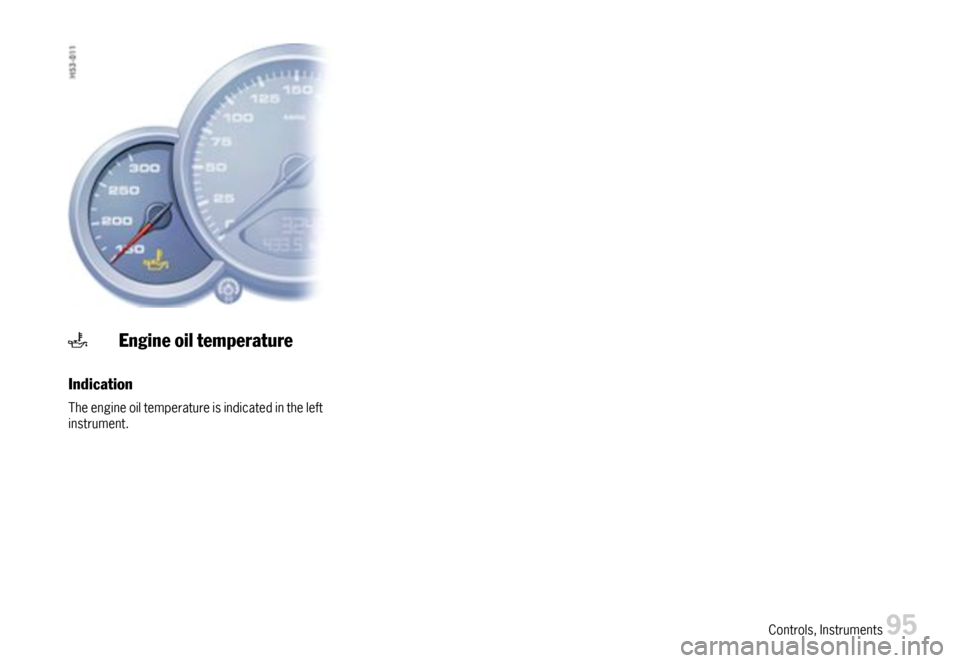

Engineoiltemperature
Indication
Theengineoiltemperatureisindicatedintheleftinstrument.
Controls,Instruments95

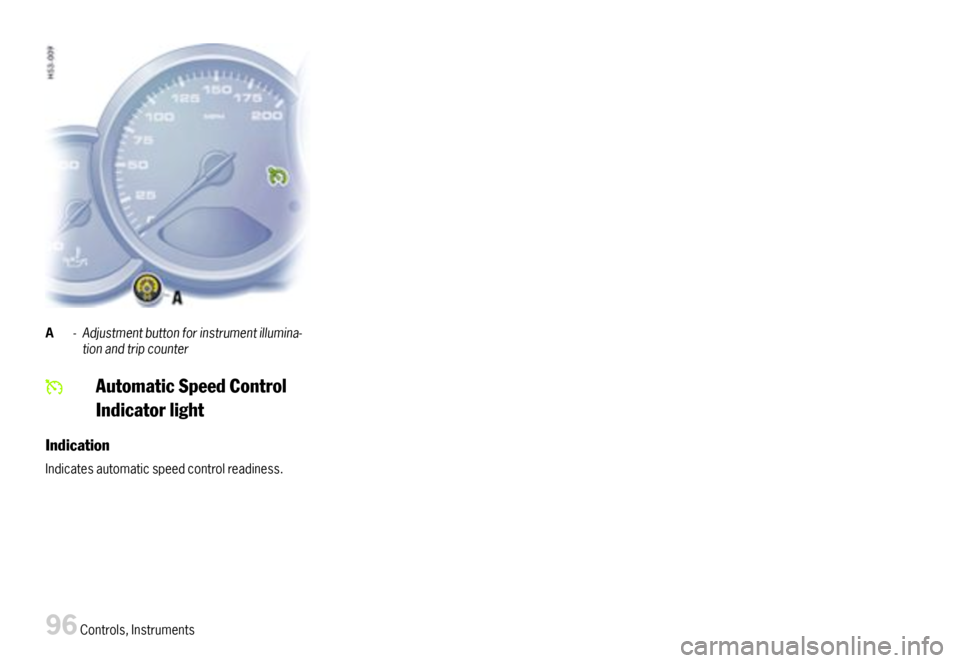

A-Adjustmentbuttonforinstrumentillumina-tionandtripcounter
AutomaticSpeedControl
Indicatorlight
Indication
Indicatesautomaticspeedcontrolreadiness.
96Controls,Instruments

InstrumentIllumination
Function
Theilluminationisautomaticallyadjustedtotheambientbrightnessbythelightsensorinthetachometer.
Inaddition,whenthecarlightsareswitchedon,theinstrumentandswitchsymbolbrightnesscanbemanuallyadjusted.
Warning!
Riskoflossofcontroloranaccident,resultinginseriouspersonalinjuryordeath.
Donotreachthroughthesteering-wheelspokeswhiledriving.
Note
Whenthecarlightsareswitchedon,theinstrumentlightingforlightdialsswitchesonandoffautomati-callydependingontheambientbrightness.

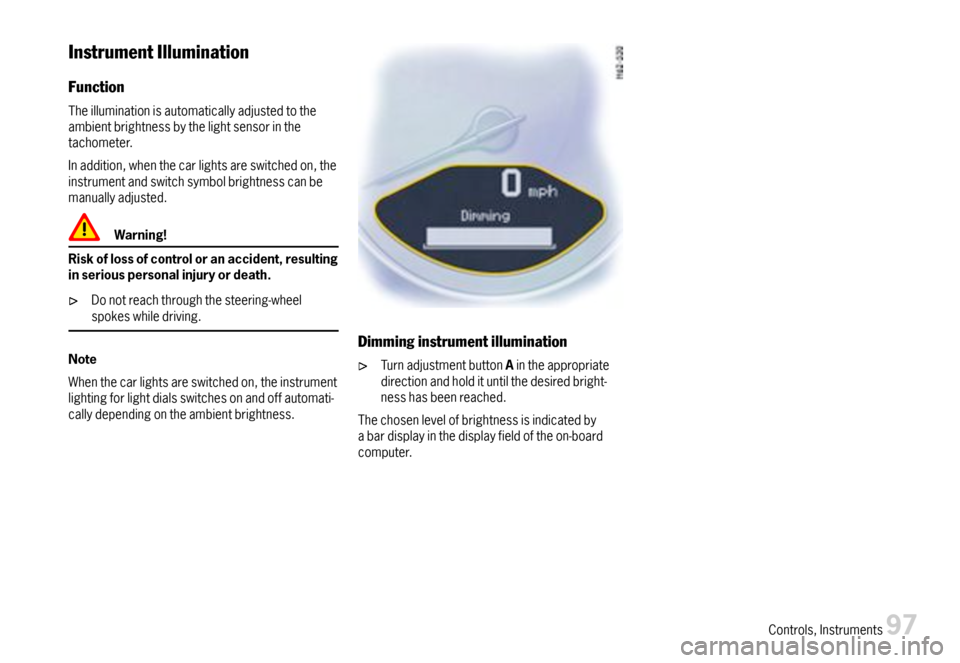

Dimminginstrumentillumination
TurnadjustmentbuttonAintheappropriatedirectionandholdituntilthedesiredbright-nesshasbeenreached.
Thechosenlevelofbrightnessisindicatedbyabardisplayinthedisplayfieldoftheon-boardcomputer.
Controls,Instruments97

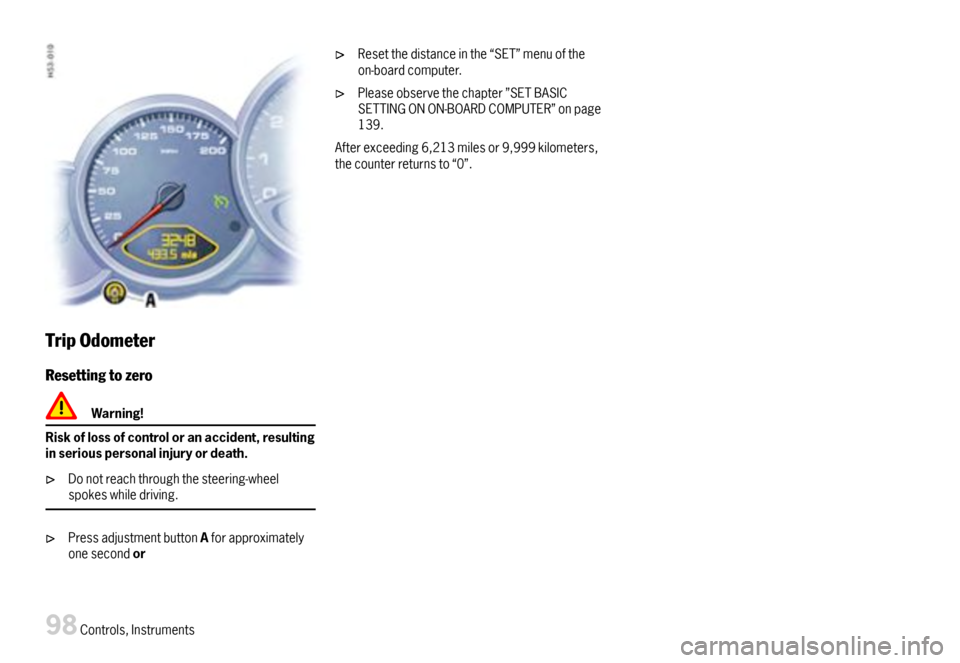

TripOdometer
Resettingtozero
Warning!
Riskoflossofcontroloranaccident,resultinginseriouspersonalinjuryordeath.
Donotreachthroughthesteering-wheelspokeswhiledriving.
PressadjustmentbuttonAforapproximatelyonesecondor
Resetthedistanceinthe“SET”menuoftheon-boardcomputer.
Pleaseobservethechapter”SETBASICSETTINGONON-BOARDCOMPUTER”onpage139.
Afterexceeding6,213milesor9,999kilometers,thecounterreturnsto“0”.
