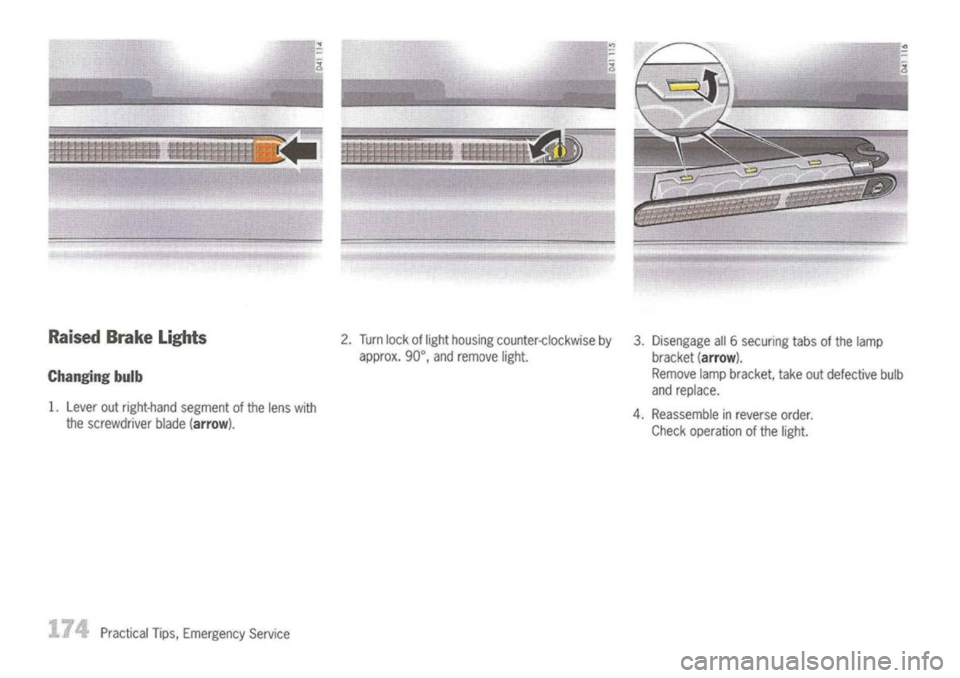

Raised BrakeLights
Changing bulb
1. Lever outright-hand segmentofthe lens with
the screwdriver blade
(arrow).
Practical Tips,Emergency Service 2.
Turn lockoflight housing counter-clockwise by
approx. 90°,andremove light. 3.
Disengage all6securing tabsofthe lamp
bracket
(arrow).
Remove lampbracket, takeoutdefective bulb
and replace.
4. Reassemble inreverse order.
Check operation ofthe light.
Floor
The surface uponwhich thevehicle restsisflat
and approximately level.
Screen
The screen uponwhich headlamp beams arepro-
jected isperpendicular tothe floor andthevehi-
cle's longitudinal axis,flat,uniformly lightincolor,
unobstructed, andwide andhigh enough toac-
commodate thevehicle beampatterns tobe
aimed.
The screen shouldbewide enough toprovide at
least 1m of space outboard ofthe vehicle's head-
lamp spacing.
176
PracticalTips,Emergency Service
Adjustment
screws
t>
Detach sidecarpeting inluggage compart-
ment.
Therefore unscrewplasticnut
A.
Open thecover ofthe appropriate adjustment
screw.
The setting isadjusted byturning thehexagon
socket screws rightorleft, asappropriate.
B
-Headlight verticaladjustment
C -
Fog light height adjustment
Vertical adjustment (screwB)
t>
turn clockwise
=
beam moves down
turn counter-clockwise
=
beam moves up
Note
t>
Donot alter thelateral adjustment.
Fog light adjustment
The foglight adjustment Cshould onlybedone at
a specialist workshop withanoptical adjustment
unit.
