Instruments, On-Board Computer

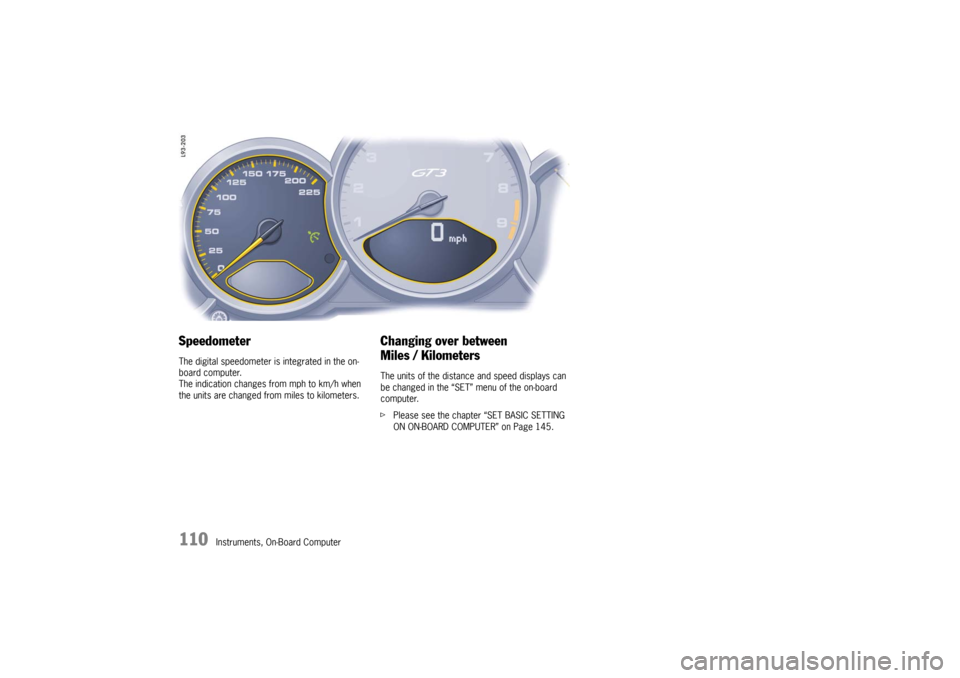

Speedometer The digital speedometer is integrated in the on-
board computer.
The indication changes from mph to km/h when
the units are changed from miles to kilometers.
Changing over between
Miles / Kilometers The units of the distance and speed displays can
be changed in the “SET” menu of the on-board
computer.
fPlease see the chapter “SET BASIC SETTING
ON ON-BOARD COMPUTER” on Page 145.
10_GT3_21.book Seite 110 Donnerstag, 4. Juni 2009 12:48 12

Instruments, On-Board Computer
111

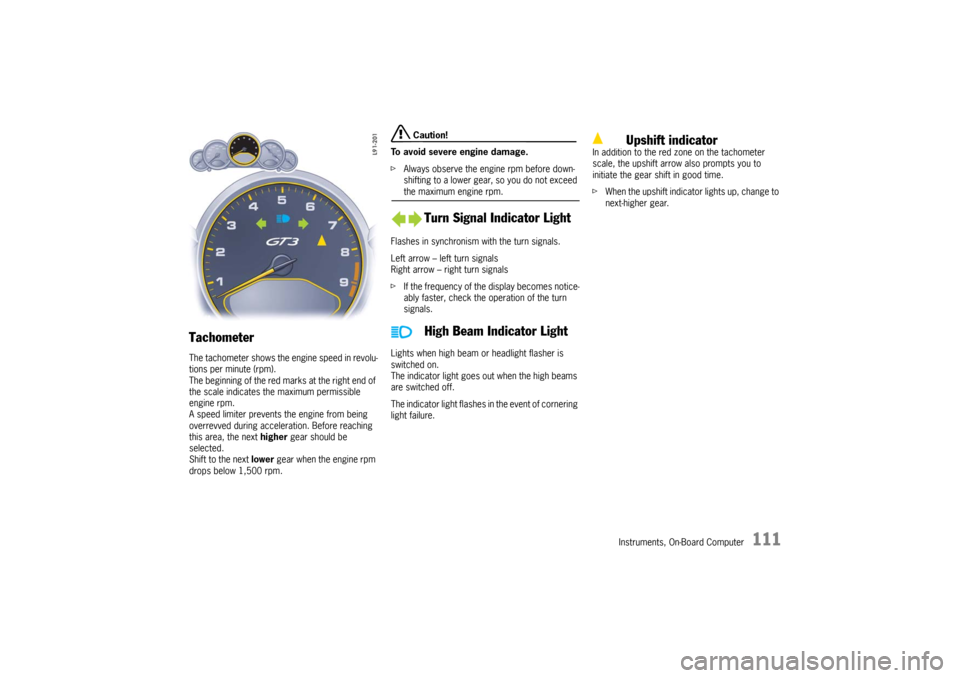

Tachometer The tachometer shows the engine speed in revolu-
tions per minute (rpm).
The beginning of the red marks at the right end of
the scale indicates the maximum permissible
engine rpm.
A speed limiter prevents the engine from being
overrevved during acceleration. Before reaching
this area, the next higher gear should be
selected.
Shift to the next lower gear when the engine rpm
drops below 1,500 rpm.
Caution!
To avoid severe engine damage.
fAlways observe the engine rpm before down-
shifting to a lower gear, so you do not exceed the maximum engine rpm.
Flashes in synchronism with the turn signals.
Left arrow – left turn signals
Right arrow – right turn signals
fIf the frequency of the display becomes notice-
ably faster, check the operation of the turn
signals.
Lights when high beam or headlight flasher is
switched on.
The indicator light goes out when the high beams
are switched off.
The indicator light flashes in the event of cornering
light failure.In addition to the red zone on the tachometer
scale, the upshift arrow also prompts you to
initiate the gear shift in good time.
fWhen the upshift indicator lights up, change to
next-higher gear.
Turn Signal Indicator Light
High Beam Indicator Light
Upshift indicator
10_GT3_21.book Seite 111 Donnerstag, 4. Juni 2009 12:48 12

112
Instruments, On-Board Computer
Temperature gauge (ignition on) USA: Display in °F
Canada: Display in °C
Pointer to the left – engine cold
fAvoid high engine speeds and heavy engine
loading. Pointer in the middle – normal operating tempe-
rature
The pointer may move up to the red area when
engine is heavily loaded and outside temperature
is high, but should return to “normal” when engine
load is reduced.
Warning light “A” If the coolant temperature is too high, the
warning light comes on.
Additionally, a warning is displayed in the on-board
computer.
fPull off the road, turn off the engine and allow
to cool.
fCheck radiator and air passages in front end of
car for obstructions.
fCheck coolant level.
If necessary, add coolant and have fault
remedied at an authorized Porsche dealer.
Please see the chapter “COOLANT LEVEL” on
Page 158.
Note
To prevent excessive temperatures, the cooling-
air passages must not be restricted by coverings
(e.g. films, “stone guards”). If the coolant level is too low, the warning light
flashes.
Additionally, a warning is displayed in the on-board
computer.
fSwitch engine off and allow to cool.
fAdd coolant after the engine has cooled to the
touch.
fHave the cause of the fault remedied at an
authorized Porsche dealer.
Please see the chapter “COOLANT LEVEL” on
Page 158.
Caution!
Risk of engine damage.
fIf the warning lights come on even though
coolant level is correct, do not continue
driving.
fHave the fault remedied at the nearest authorized Porsche dealer.
Engine compartment blower fan In addition, this warning light flashes to indicate a
fault in the engine compartment blower fan.
fHave the cause of the fault remedied at an
authorized Porsche dealer.
Cooling System
10_GT3_21.book Seite 112 Donnerstag, 4. Juni 2009 12:48 12

Instruments, On-Board Computer
113

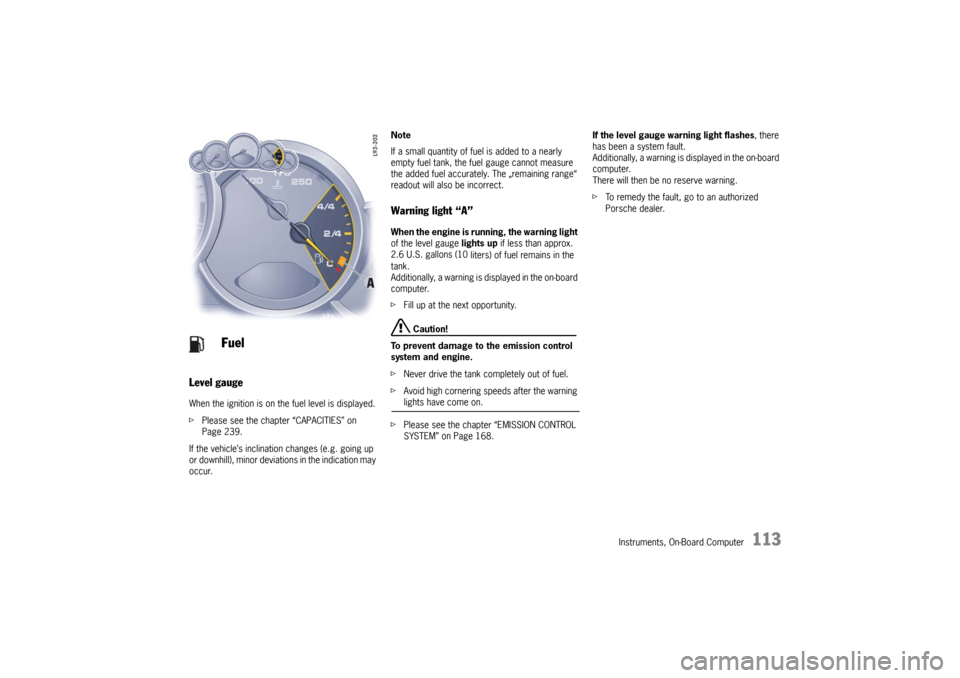

Level gauge

When the ignition is on the fuel level is displayed.
fPlease see the chapter “CAPACITIES” on
Page 239.
If the vehicle’s inclination changes (e.g. going up
or downhill), minor deviations in the indication may
occur. Note
If a small quantity of fuel is added to a nearly
empty fuel tank, the fuel gauge cannot measure
the added fuel accurately. The „remaining range“
readout will also be incorrect.
Warning light “A” When the engine is running, the warning light
of the level gauge lights up if less than approx.
2.6 U.S. gallons (10
liters) of fuel remains in the
tank.
Additionally, a warning is displayed in the on-board
computer.
fFill up at the next opportunity.
Caution!
To prevent damage to the emission control
system and engine.
fNever drive the tank completely out of fuel.
fAvoid high cornering speeds after the warning lights have come on.
fPlease see the chapter “EMISSION CONTROL
SYSTEM” on Page 168.If the level gauge warning light flashes, there
has been a system fault.
Additionally, a warning is displayed in the on-board
computer.
There will then be no reserve warning.
fTo remedy the fault, go to an authorized
Porsche dealer.
Fuel
10_GT3_21.book Seite 113 Donnerstag, 4. Juni 2009 12:48 12

114
Instruments, On-Board Computer
A- Adjustment button for clock
B-Clock
C- Outside temperature displayClock The clock is blanked out approximately four
minutes after the ignition is switched off or when
the car is locked.
Setting the time
Warning!
Risk of loss of control or accident, resulting
in serious personal injury or death.
fDo not reach through the steering-wheel spokes while driving.
fSwitch ignition on.
Setting hours
fPress adjustment button A for about one
second.
Hour display flashes.
fTurn button in the appropriate direction:
to right – increase hours figure
to left – decrease hours figure.
Adjustment in hours – turn button briefly
Fast adjustment (display cycles) –
turn and hold button.
Setting minutes
fPress adjustment button again.
Minutes display flashes.
fSet by rotating as in hours mode. Leaving adjustment mode
Automatically after one minute or:
fPress adjustment button again.
When adjustment mode is deliberately left by
pressing the button, the time begins precisely to
the second.
Note
The time mode can be changed between 12h and
24h in the on-board computer.
Outside Temperature The outside temperature display C does not
indicate, if ice is on the road.
Even if a temperature above 32 °F (0 °C) is
displayed, ice may still form on the road, for
instance on bridges or when the road passes
through a heavily shaded area.
10_GT3_21.book Seite 114 Donnerstag, 4. Juni 2009 12:48 12

Instruments, On-Board Computer
115
With the engine warmed up and running at a speed
of 3000 rpm, the engine oil pressure should be
approx. 3.5 bar or higher.If oil pressure drops abruptly and a message
is displayed on the on-board computer when
the engine is running on or when driving:
fStop immediately in a suitable place.
fSwitch off the engine.
fCheck whether there is an obvious oil leak on
or under the car.
fIf no oil leak can be detected:
Measure the oil level using the on-board
computer with the engine idling.
Please see the chapter “OIL DISPLAY AND
MEASUREMENT OF THE ENGINE OIL LEVEL”
on Page 143.
fAdd engine oil if necessary.
Please see the chapter “ENGINE OIL LEVEL”
on Page 160.
Caution!
Risk of engine damage.
fDo not continue driving if there is an obvious oil
leak.
fDo not continue driving if the warning lights
come on even though oil level is correct.
fHave the fault remedied at the nearest authorized Porsche dealer.If the battery voltage drops abruptly, a warning
message will be displayed by the on-board
computer.
If the warning is displayed by the on-board
computer while the engine is running or while
driving:
fStop the car in a safe place and stop the
engine.
Possible causes
– Defect in the battery charging system.
– Broken drive belt.
Warning!
Risk of engine damage with resultant loss of
control and accident, leading to serious
personal injury or death.
A broken drive belt means there is no power
assistance to the steering (more effort is
required to steer) and coolant pump function
will stop.
fDo not continue driving.
fHave the fault remedied at the nearest autho-rized Porsche dealer.
Engine Oil Pressure
Battery
10_GT3_21.book Seite 115 Donnerstag, 4. Juni 2009 12:48 12

116
Instruments, On-Board Computer
Check Engine
(Emission Control)The emission control system detects malfunctions
early that could, for example, cause increased
pollutant emissions or consequential damage.
Faults are indicated by a continuously lit or
flashing instrument panel warning light.
The faults are recorded in the control unit's fault
memory.
The warning light in the instrument panel lights up
when the ignition is switched on as a bulb check
and goes out approx. 4 seconds after the engine
starts. If the warning light does not light up, have
the bulb replaced promptly.
The warning light in the instrument panel flashes to
indicate operating states (e.g. engine misfiring)
which might cause damage to certain parts of the
emission control system.
fIn this case, immediately reduce the engine
load by easing off the accelerator.
fIn order to avoid consequential damage to the
engine or emission control system (e.g.
catalytic converter), have the fault diagnosed
and rectified immediately at the nearest autho-
rized Porsche dealer.If the warning light in the instrument panel lights up
permanently without flashing before and remains
on while driving, it suggests:
– a potential engine control problem and the
need for system service or
– an improperly fastened tank cap or
– the vehicle was refueled while the engine was
running.
fStop immediately at a suitable and secure
place and check tank cap for proper fastening.
If tank cap was fastened correctly, see your
authorized Porsche dealer for service as soon
as possible.
Caution!
If the check engine warning light in the
instrument panel is flashing, serious
catalytic converter damage and power loss
will soon occur.
Prolonged driving with the check engine
warning light on could cause damage to the
emission control system. It also could affect
fuel economy and driveability.
fHave the fault remedied at the nearest authorized Porsche dealer immediately.The central warning light on the instrument panel
lights up if there are warning messages in the
INFO menu.
The messages can be called in the on-board
computer INFO menu:
fPlease see the chapter “INFO WARNING
MESSAGES” on Page 123.
The warning light on the instrument panel lights
up:
– if the handbrake is on,
– if the brake fluid level is low,
– if the brake pads have reached the wear limit,
– if the brake circuit division is defective.
Additionally, a warning is displayed by the on-
board computer.
fPlease see the chapter “WARNINGS ON THE
INSTRUMENT PANEL AND THE ON-BOARD
COMPUTER” on Page 148.
Warning Light
Central Warning Light
Brake Warning Light USA
Brake Warning Light Canada
10_GT3_21.book Seite 116 Donnerstag, 4. Juni 2009 12:48 12

Instruments, On-Board Computer
117

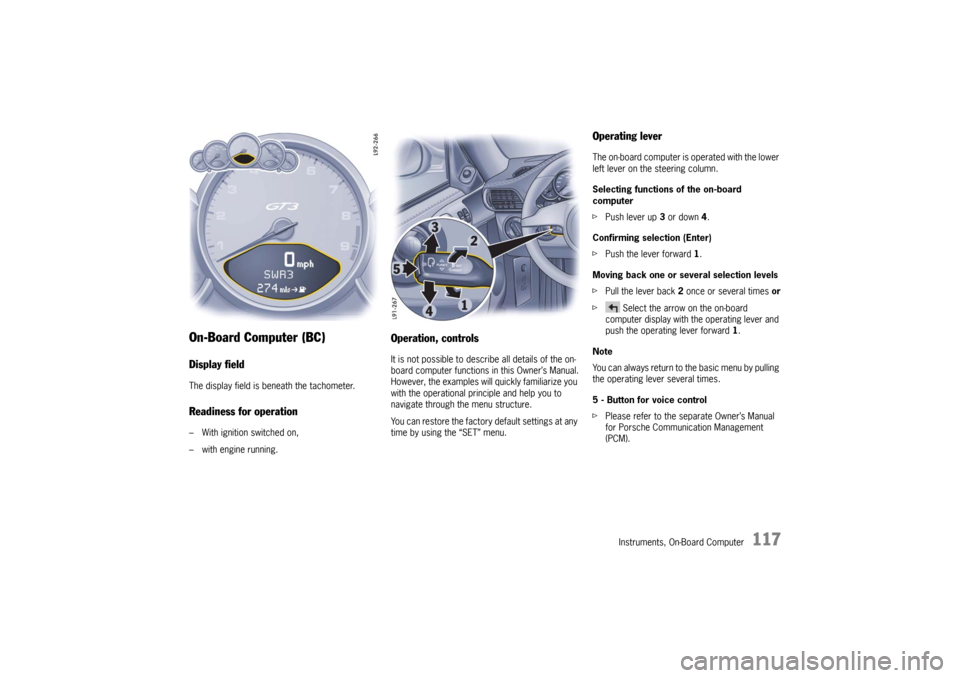

On-Board Computer (BC)Display fieldThe display field is beneath the tachometer.Readiness for operation– With ignition switched on,
– with engine running.

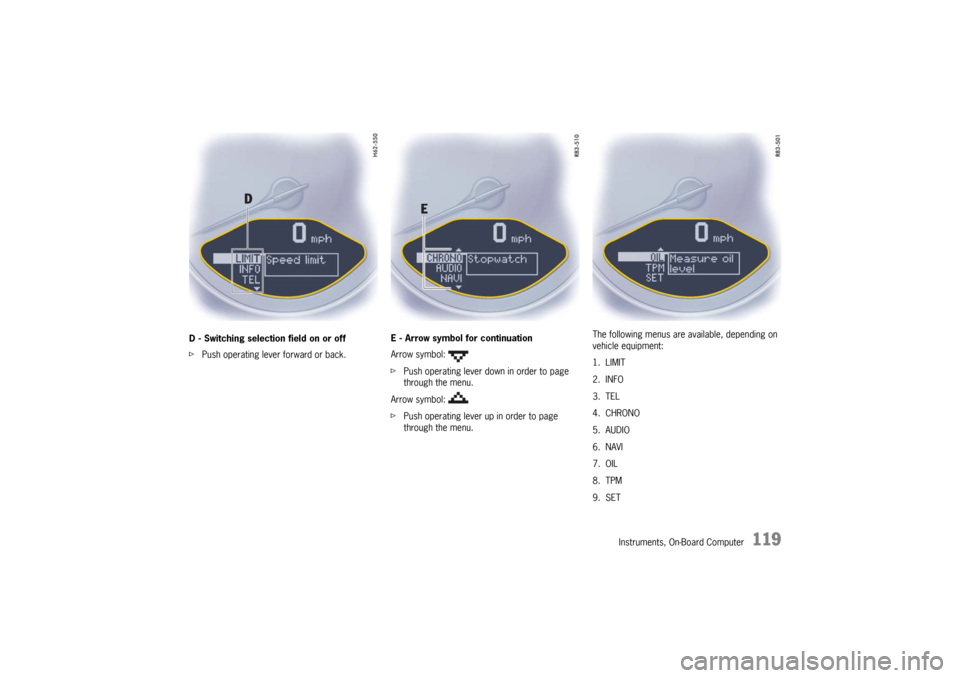

Operation, controlsIt is not possible to describe all details of the on-
board computer functions in this Owner’s Manual.
However, the examples will quickly familiarize you
with the operational principle and help you to
navigate through the menu structure.
You can restore the factory default settings at any
time by using the “SET” menu.
Operating leverThe on-board computer is operated with the lower
left lever on the steering column.
Selecting functions of the on-board
computer
fPush lever up 3 or down 4.
Confirming selection (Enter)
fPush the lever forward 1.
Moving back one or several selection levels
fPull the lever back 2 once or several times or
f Select the arrow on the on-board
computer display with the operating lever and
push the operating lever forward 1.
Note
You can always return to the basic menu by pulling
the operating lever several times.
5 - Button for voice control
fPlease refer to the separate Owner’s Manual
for Porsche Communication Management
(PCM).
10_GT3_21.book Seite 117 Donnerstag, 4. Juni 2009 12:48 12

118
Instruments, On-Board Computer
A- Digital speedometer
B-Central display
C- Bottom displayFunctions and display possibilitiesNote
The available items and displays in the on-board
computer depend on the equipment of your
vehicle. For this reason it is possible that some
of the items and displays shown here are not
available in your on-board computer.Basic setting
– Central display: .... Radio station
The central line B of the on-board computer can
be selected in the SET menu.
Calling on-board computer functions in
display “C”
fPush operating lever up or down
(selection field D must be switched off).
The following displays can be called step by step:
– Average speed (ø mph),
– Average consumption (ø mpg),
– Range on remaining fuel (mls ),
– Tire pressure
– Navigation information
(if activated in the SET menu).
Note
The values “Average speed”, “Average consump-
tion” and “Daily trip mileage” can be reset to zero
in the SET menu.10_GT3_21.book Seite 118 Donnerstag, 4. Juni 2009 12:48 12

Instruments, On-Board Computer
119
D - Switching selection field on or off
fPush operating lever forward or back.E - Arrow symbol for continuation
Arrow symbol:
fPush operating lever down in order to page
through the menu.
Arrow symbol:
fPush operating lever up in order to page
through the menu.The following menus are available, depending on
vehicle equipment:
1. LIMIT
2. INFO
3. TEL
4. CHRONO
5. AUDIO
6. NAVI
7. OIL
8. TPM
9. SET
10_GT3_21.book Seite 119 Donnerstag, 4. Juni 2009 12:48 12
