PORSCHE 911 GT3 2010 5.G Owners Manual

100
Automatic air conditioning system, Heated rear window/Door mirror heating Switching recirculating-air setting on or off
fPress button E.
The outside-air supply is interrupted and only
the inside air is circulated.
The light-emitting diode in the button lights up.
Over approx. 37 °F/3 °C
If the air-conditioning compressor was off, it
switches on automatically. The duration of recircu-
lating-air setting is not limited.
Below approx. 37 °F/3 °C
The air-conditioning compressor is switched off.
Recirculating-air setting is automatically ended
after approx. 3 minutes.
Air distributionThe individual air distributions can be combined as
desired.
Recommended setting in Summer:
Air distribution to central and side vents.
Recommended setting in Winter:
Air distribution to footwell and windshield.fPress button H.
The air flows to the footwell.
The selection appears on the display panel.
fPress button I.
The air flows from the central and side vents.
Vents must be open.
The selection appears on the display panel.
fPress button J.
The air flows to the windshield.
The selection appears on the display panel.
Note on operation
fOn vehicles with the Sport Chrono Package
Plus, individual air conditioning settings can be
stored on your vehicle key.
Please see the chapter “Individual Memory” in
the separate PCM Owner’s Manual.
General instructions for air-conditioning
compressor– Can switch off briefly if engine is under an
extreme load to ensure sufficient engine
cooling.
– Switches off automatically at temperatures
below approx. 37 °F/3 °C and cannot be
switched on, even manually.
– Operates most effectively with windows
closed.
If the car has been in the sun for a long time, it
is a good idea to ventilate the interior briefly
with the windows open.
– Depending on the outside temperature and
humidity, condensation can drip from the
evaporator and form a pool under the vehicle.
This is normal and not a sign of leakage.
– If uncooled air flows out when the lowest
temperature has been set, switch off the air-
conditioning compressor and have the fault
repaired at an authorized Porsche dealer. Air distribution to footwell
Air distribution to central and side
vents
Air distribution to windshield
10_GT3_21.book Seite 100 Donnerstag, 4. Juni 2009 12:48 12

Automatic air conditioning system, Heated rear window/Door mirror heating
101
A- Continuous opening and closing
B- Setting vent direction Central and Side Vents fRotate knurled wheel upward.
fRotate knurled wheel downward.
Changing air flow direction fMove the vanes to make the air flow in the
desired direction.
Outside air or conditioned air can be delivered
from all vents, depending on the air-distribution
setting on the operating panel.
Opening vents
Closing vents
Fresh-air Intake To ensure proper air intake:
fKeep the fresh-air inlet between the luggage
compartment lid and the windshield free from
snow, ice and leaves.
10_GT3_21.book Seite 101 Donnerstag, 4. Juni 2009 12:48 12

102
Automatic air conditioning system, Heated rear window/Door mirror heating The heated rear window/door mirror heating is
ready for operation when the ignition is on.
Switching onfPress button.
The light-emitting diode in the button lights up.
After approx. 15 minutes, the heating switches off
automatically.
The heater can be switched back on by pressing
the button again.Switching offfPress button.
The light-emitting diode in the button goes out.
Heated Rear Window/Door
Mirror Heating
10_GT3_21.book Seite 102 Donnerstag, 4. Juni 2009 12:48 12

Instruments, On-Board Computer, Warnings
103 Instruments, On-Board Computer, Warnings
Instrument Panel USA Models...................... 104
Instrument Panel Canada Models ................. 106
Engine Oil Temperature .............................. 108
Automatic Speed Control Indicator light ....... 108
Instrument Illumination................................ 108
Trip Odometer ........................................... 109
Speedometer ............................................. 110
Changing over between Miles / Kilometers ... 110
Tachometer ............................................... 111
Turn Signal Indicator Light .......................... 111
High Beam Indicator Light ........................... 111
Upshift indicator ......................................... 111
Cooling System.......................................... 112
Fuel........................................................... 113
Clock ........................................................ 114
Outside Temperature.................................. 114
Engine Oil Pressure .................................... 115
Check Engine (Emission Control) ................. 116
On-Board Computer (BC)............................. 117
Warnings on the instrument panel and the
on-board computer ..................................... 148
10_GT3_21.book Seite 103 Donnerstag, 4. Juni 2009 12:48 12

104
Instruments, On-Board Computer

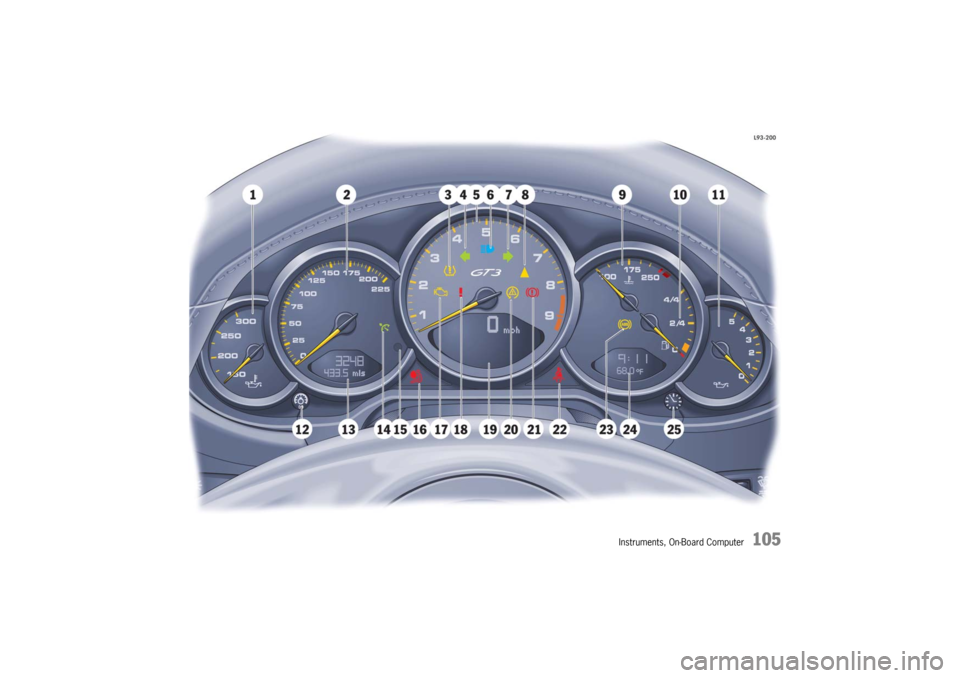

Instrument Panel USA Models Also refer to the corresponding chapters in
the Owner’s Manual.
1.Engine oil temperature gauge
2.Speedometer with analogue display
3.Tire pressure warning light
4.Turn signal indicator light, left
5.Tachometer
6.High beam indicator light
7.Turn signal indicator light, right
8.Upshift indicator
9.Cooling system
Temperature gauge, warning light
10.Fuel
Level gauge, warning light
11.Engine oil pressure gauge
12.Adjustment button for instrument illumination
and trip counter
13.Odometer and daily trip mileage display
14.Automatic speed control indicator light15.Light sensor for instrument illumination
16.Airbag warning light
17.Check Engine warning light
(Emission control warning light)
18.Central warning light
19.On-board computer display
20.Porsche Stability Management
PSM Multifunctional light
21.Brake warning light
22.Safety belt warning light
23.ABS warning light
24.Clock and outside temperature display
25.Adjustment button for clockWhen the ignition is switched on, the warning
lights light up for a lamp check.
Note
Warnings that have been given are stored in the
appropriate control unit memory and can be read
out at an authorized Porsche dealer.
This information can help to warn you about situa-
tions which may be hazardous to you or your car. 10_GT3_21.book Seite 104 Donnerstag, 4. Juni 2009 12:48 12

Instruments, On-Board Computer
105
10_GT3_21.book Seite 105 Donnerstag, 4. Juni 2009 12:48 12

106
Instruments, On-Board Computer

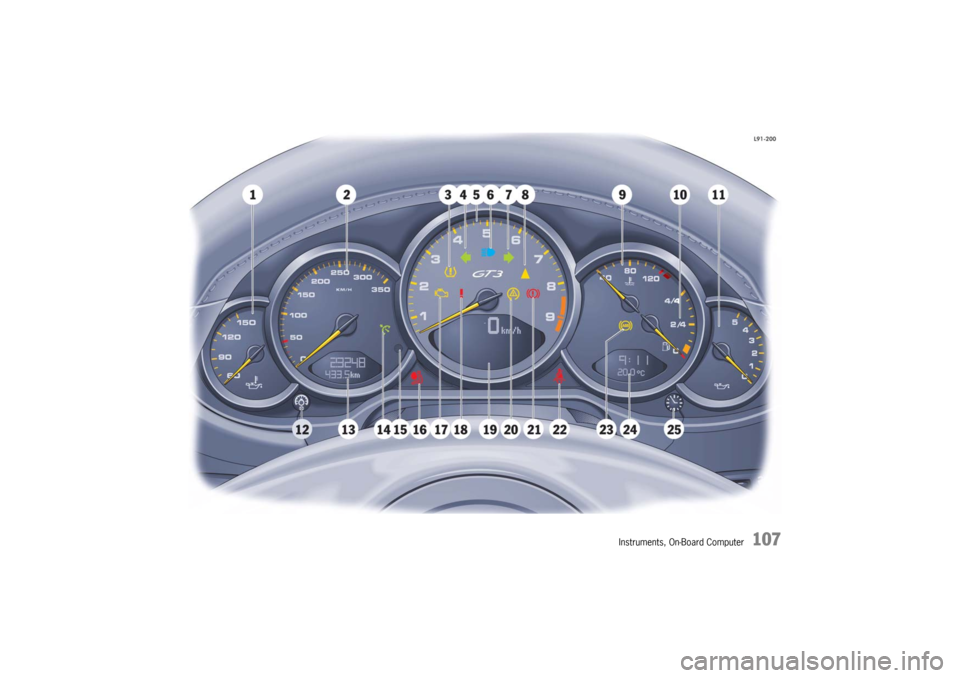

Instrument Panel Canada Models Also refer to the corresponding chapters in
the Owner’s Manual.
1.Engine oil temperature gauge
2.Speedometer with analogue display
3.Tire pressure warning light
4.Turn signal indicator light, left
5.Tachometer
6.High beam indicator light
7.Turn signal indicator light, right
8.Upshift indicator
9.Cooling system
Temperature gauge, warning light
10.Fuel
Level gauge, warning light
11.Engine oil pressure gauge
12.Adjustment button for instrument illumination
and trip counter
13.Odometer and daily trip mileage display
14.Automatic speed control indicator light15.Light sensor for instrument illumination
16.Airbag warning light
17.Check Engine warning light
(Emission control warning light)
18.Central warning light
19.On-board computer display
20.Porsche Stability Management
PSM Multifunctional light
21.Brake warning light
22.Safety belt warning light
23.ABS warning light
24.Clock and outside temperature display
25.Adjustment button for clockWhen the ignition is switched on, the warning
lights light up for a lamp check.
Note
Warnings that have been given are stored in the
appropriate control unit memory and can be read
out at an authorized Porsche dealer.
This information can help to warn you about situa-
tions which may be hazardous to you or your car. 10_GT3_21.book Seite 106 Donnerstag, 4. Juni 2009 12:48 12

Instruments, On-Board Computer
107
10_GT3_21.book Seite 107 Donnerstag, 4. Juni 2009 12:48 12

108
Instruments, On-Board Computer The engine oil temperature is indicated in the left
instrument.
A- Adjustment button for instrument illumination and
trip counter Indicates automatic speed control readiness.
Instrument Illumination The illumination is automatically adjusted to the
ambient brightness by the light sensor in the
tachometer.
In addition, when the car lights are switched on,
the instrument and switch symbol brightness can
be manually adjusted.
Warning!
Risk of loss of control or accident, resulting
in serious personal injury or death.
fDo not reach through the steering-wheel spokes while driving.
Note
When the car lights are switched on, the instru-
ment lighting for light dials switches on and off
automatically depending on the ambient bright-
ness.
Engine Oil Temperature
Automatic Speed Control
Indicator light
10_GT3_21.book Seite 108 Donnerstag, 4. Juni 2009 12:48 12

Instruments, On-Board Computer
109
Dimming instrument illumination
fTurn adjustment button A in the appropriate
direction and hold it until the desired bright-
ness has been reached.
The chosen level of brightness is indicated by a
bar display in the display field of the on-board
computer.
Trip Odometer
Warning!
Risk of loss of control or accident, resulting
in serious personal injury or death.
fDo not reach through the steering-wheel spokes while driving.
Resetting to zero fPress adjustment button A for approximately
one second or
fReset the distance in the “SET” menu of the on-
board computer.
Please see the chapter “SET BASIC SETTING
ON ON-BOARD COMPUTER” on Page 145.
After exceeding 6,213 miles or 9,999 kilometers,
the counter returns to “0”.
10_GT3_21.book Seite 109 Donnerstag, 4. Juni 2009 12:48 12
