40
Operation, Safety
Safety belt height adjustmentThe height of the belt deflectors for the driver’s
seat and passenger’s seat can be adjusted.
Adjust the height of the safety belt so that it runs
across the middle of the shoulder, not against the
neck. Adjusting belt height
fUpward – push belt deflector up.
fDownward – press button (arrow) and move
belt deflector.
Cleaning the safety beltsfPlease see the chapter “SAFETY BELTS” on
Page 180.
10_GT3_21.book Seite 40 Donnerstag, 4. Juni 2009 12:48 12
Page 42 of 251
Operation, Safety
41
Airbag SystemsThe airbags in combination with the safety belts
make up a safety system which offers the driver
and the passenger the greatest known protection
from injuries in case of accident.
Your vehicle is equipped with a weight sensing
system for the passenger's seat in accordance
with U.S. Federal Motor Vehicle Safety Standard
208.
Even if your vehicle is equipped with airbags, the
safety belts must be worn at all times,
because the front airbag system is only deployed
by frontal collisions with an impact of sufficient
severity.
Below the deployment threshold of the airbag
system, and during types of collisions which do
not cause the actuation of the system, the safety
belts provide the primary protection to the occup-
ants when correctly worn.
Therefore, all persons within the vehicle
must wear safety belts at all times (in many
states, state law requires the use of safety belts).
fPlease see the chapter “SAFETY BELTS” on
Page 38.
The front airbags are located under the padded
steering wheel panel on the driver’s side and, on
the passenger's side, in the dashboard.
The side airbags for the front seats are installed
on the side in the seat backrests.
The head airbags are installed in the door linings.
Danger!
To provide optimal occupant protection,
airbags must inflate at very high speed. If
you are not wearing your safety belt or are
too close to the airbag when it is deployed,
inflating airbags can result in serious
personal injury or death.
fMake sure there are no people, animals or
objects between the driver or passenger and
the area into which the airbag inflates.
fSit back as far from the dashboard or steering
wheel as is practical, while still maintaining full
vehicle control.
fAlways hold the steering wheel by the outer
rim. Never rest your hands on the airbag panel.
fAlways fasten seat belts because triggering
of the airbag system depends on the force and
angle of impact.
fDo not transport heavy objects on or in front of
the passenger’s seat. These could impair the
function of the airbag, the seat belts, and
weight sensing.
fDo not hang objects (e.g. jackets, coats, coat
hangers) over the backrest.fAlways keep the lid of the door storage
compartment closed. Objects must not
protrude out of the door storage compart-
ment.
fDo not add any additional coverings or stickers
to the steering wheel or in the area of the
passenger’s airbag, side airbags and head
airbags. Doing so may adversely affect the
functioning of the airbag system or cause
harm to the occupants if the airbag system
should deploy.
Do not use protective seat covers.
fDo not modify the seat coverings. Do not
attach additional cushions, protective cover-
ings, or pillows to the passenger's seat. Do not
affix things to the passenger's seat or cover it
with other materials. Do not cover the back of
the backrest. Do not make changes to the
passenger's seat and to the seat base frame.
fNo changes may be made to the wiring or
components of the airbag system.
fDo not install any wiring for electrical acces-
sory equipment in the vicinity of the airbag
wiring harnesses. Doing so may disable the
airbag system or cause inadvertent inflation.
fIf the warning light comes on, the airbag
system should be repaired immediately by
your authorized Porsche dealer.
10_GT3_21.book Seite 41 Donnerstag, 4. Juni 2009 12:48 12
Page 43 of 251
42
Operation, Safety fAlways keep feet in the footwell while driving.
Do not put feet on the dashboard or the seat
area. Do not lean against the inside of the door
or outside the window while the vehicle is
moving.
fUsing accessories not approved by Porsche
can cause the weight sensing system to be
impaired.
fDo not squeeze objects, such as the fire extin-
guisher, or first aid kit under the seat.
fOnly have seats removed and installed by an
authorized Porsche dealer so that weight
sensing components will not be damaged.
fGive your passenger all of the information in
this chapter.
Note
Airbag components (e.g. steering wheel, door
lining, seats) may be disassembled only by an
authorized Porsche dealer.
When disposing of a used airbag unit, our safety
instructions must be followed. These instructions
can be obtained at any authorized Porsche dealer.
Function of the airbag systemAirbags are a supplemental safety system. Your
primary protection comes from your safety belts.
The front airbags are triggered during a frontal
collision of sufficient force and direction.
In the event of a side impact of corresponding force, the side airbag on the impact side is
triggered.
The inflation process generates the amount of gas
required to fill the airbags at the necessary
pressure in fractions of a second.
Airbags help to protect the head and upper body,
while simultaneously damping the motion of the
driver and passenger in the impact direction in the
event of a frontal impact or side impact.
In order to help provide protection in severe colli-
sions which can cause death and serious injury,
airbags must inflate extremely rapidly. Such high
speed inflation has a negative but unavoidable
side effect, which is that it can and does cause
injuries, including facial and arm abrasions,
bruising and broken bones. You can help minimize
such injuries by always wearing your safety belts.
There are many types of accidents in which
airbags are not expected to deploy. These include
accidents where the airbags whould provide no
benefit, such as a rear impact against your
vehicle. Other accidents where the airbags are
designed not to deploy are those where the risk of
injury from the airbag deployment could exeed any
protective benefits, such as in low speed
accidents or higher speed accidents where the
vehicle decelerates over a longer time. Since
airbag deployment does not occur in all accidents,
this further emphasizes the need for you and your
passenger to always wear safety belts.Your vehicle is equipped with a crash sensing and
diagnostic module. This module will record the
use of the seat belt restraint system by the driver
and passenger when the airbags and/or belt tensi-
oner work.
Advanced AirbagYour vehicle is equipped with a weight sensing
system for the passenger's seat in accordance
with U.S. Federal Motor Vehicle Safety Standard
208.
Depending on the weight acting on the
passenger's seat, the passenger's airbag will
automatically be switched on and off.
Depending on the angle and force of impact, the
passenger's airbag which is activated will be
triggered during a collision.
Precondition for switching the passenger's airbag
on and off, depending on weight:
– Vehicles equipped with key-operated airbag
deactivation device:
Switch position AUTO.
– Ignition key is inserted.
Improper handling of the weight sensing
system can unintentionally impair switching
the passenger’s airbag off and on.
10_GT3_21.book Seite 42 Donnerstag, 4. Juni 2009 12:48 12
Page 44 of 251
Operation, Safety
43
Seat adjustment for the passenger's seat
Danger!
Safety belts only offer protection when the
backrest is upright and the belts are properly
positioned on the body. Improperly positi-
oned safety belts can cause serious personal
injury or death in an accident.
fDo not operate the car with the driver or
passenger backrests excessively reclined.
fPorsche recommends the use of L.A.T.C.H.
(Lower Anchorage and Tether for Children)
equipped Porsche child seat.
Do not install a child restraint system in
the Sports bucket seat.
The Sports bucket seat cannot be equipped with the LATCH system.
If the seat is in an extreme position (e.g., the
backrest is in contact with the engine compart-
ment wall), the backrest can warp. Warping of the
backrest can lead to malfunctions.
fCorrect the seat adjustment.
Ensure that the seat is not jammed and is self-
supporting.
Ensure that the backrest is in the upright
position.fDo not transport a load and objects behind and
under the passenger's seat.
If the load or objects are under the seat, it can
cause malfunctions.
If the weight on the passenger's seat is reduced
significantly, e.g., by supporting weight on the
armrest, the passenger's airbag can be switched
off.
fSelect an upright seat position, and do not
support weight on the armrests or lean out of
the window.
Always keep feet in the footwell while driving.
Do not put feet on the dashboard or the seat
area. Do not lean against the inside of the door
or outside the window while the vehicle is
moving.
If the passenger's seat is warped significantly, a
message is displayed on the on-board computer:
fCorrect the seat adjustment.
fPlease see the chapter “WARNINGS ON THE
INSTRUMENT PANEL AND THE ON-BOARD
COMPUTER” on Page 148.
Vehicle modifications to accommodate
persons with disabilities
Because modifications to your vehicle could
compromise your advanced airbag system,
please call 1-800-PORSCHE prior to having your
vehicle modified.Automatic deactivation of the front
passenger’s airbags
Danger!
The use of a child restraint system in the
passenger’s seat can result in serious
personal injury or death to the child from an
airbag deployment.
fPlease see the chapter “PASSENGER AIRBAG
OFF INDICATOR LAMP DOES NOT LIGHT UP”
on Page 44.
fBefore transporting a child on the passenger’s
seat:
Please see the chapter “CHILD RESTRAINT
SYSTEMS” on Page 47.
fDo not install a child restraint system in the Sports bucket seat.
– When an up to one-year old child is seated
in the child restraint system, the front airbag is
automatically deactivated on the passenger’s
side.
– When an adult is seated in the front seat, the
front airbag remains active on the passenger‘s
side.
10_GT3_21.book Seite 43 Donnerstag, 4. Juni 2009 12:48 12
Page 45 of 251
44
Operation, Safety
PASSENGER AIRBAG OFF indicator lampNote on operation
Although not desired, it can occur in the case of
heavier children that the passenger airbag remain
active or, in the case of very light adults or young
persons, that the passenger airbag is
deactivated.
The condition of the passenger airbag is shown by
the indicator lamp.
If in doubt:
fPlease see the chapter “PASSENGER AIRBAG
OFF INDICATOR LAMP DOES NOT LIGHT UP”
on Page 44.fPlease see the chapter “KEY-OPERATED
AIRBAG DEACTIVATION DEVICE” on Page 46.
fPlease see the chapter “CHILD RESTRAINT
SYSTEMS” on Page 47.
fPlease see the chapter “LATCH SYSTEM
CHILD SEAT BRACKET ON THE PASSENGER’S
SEAT” on Page 51.
Note
fAfter inserting the ignition key, the
PASSENGER AIRBAG OFF warning light lights
up for a few seconds as a bulb check.
PASSENGER AIRBAG OFF indicator lamp
lights up
– The passenger's airbag is switched off.
PASSENGER AIRBAG OFF indicator lamp
does not light up
– The passenger's airbag is active and ready for
operation.
– If the passenger's seat is not occupied, the
PASSENGER AIRBAG OFF indicator lamp will
also not light up, even though the passenger's
airbag is switched off.
Danger!
Risk of serious personal injury or death due
to the passenger airbag triggering unintenti-
onally.
When the ignition key is inserted and an up
to one-year old child is seated in the child
restraint system on the passenger’s seat, the
indicator lamp “PASSENGER AIRBAG OFF”
must be on.
If the “PASSENGER AIRBAG OFF” indicator
lamp does not light up, it could indicate a
fault in the system.
In this case:
fOn vehicles with key-operated airbag deactiva-
tion device: Switch to position OFF.
fOn vehicles without key-operated airbag
deactivation device: Do not drive.
fHave the fault remedied at your nearest autho-rized Porsche dealer.
10_GT3_21.book Seite 44 Donnerstag, 4. Juni 2009 12:48 12
Page 46 of 251
Operation, Safety
45
Note
The key switch for switching off the passenger’s
airbag in combination with the LATCH attachment
bracket are not installed at the factory. They can
be retrofitted.
fPlease see your authorized Porsche dealer.
Faults are indicated by a warning light in the instru-
ment panel and a message on the on-board
computer.
fPlease see the chapter “WARNINGS ON THE
INSTRUMENT PANEL AND THE ON-BOARD
COMPUTER” on Page 148.
fIn the following cases you should immedi-
ately consult an authorized Porsche
dealer in order to assure the airbag
system is functioning properly:
– If the warning light does not light up when the
ignition key is inserted or
– If the warning light does not go out once the
engine is running or
– If the warning light appears while driving.
Airbag maintenanceIn order to ensure long-term functioning, the
airbag system must be inspected by an authorized
Porsche dealer at the intervals recommended in
your Maintenance Booklet.
Important information
If you sell your Porsche, notify the purchaser that
the vehicle is equipped with airbags, and refer
them to the chapter, “Airbag Systems“, in the
Owner's Manual (safety and disposal rules).
Further information on the airbag system can be
found on stickers attached to the sun visors.
For special recommendations on the use of child
restraints:
fPlease see the chapter “CHILD RESTRAINT
SYSTEMS” on Page 47.
Warning light and warning
message
10_GT3_21.book Seite 45 Donnerstag, 4. Juni 2009 12:48 12
Page 47 of 251
46
Operation, Safety

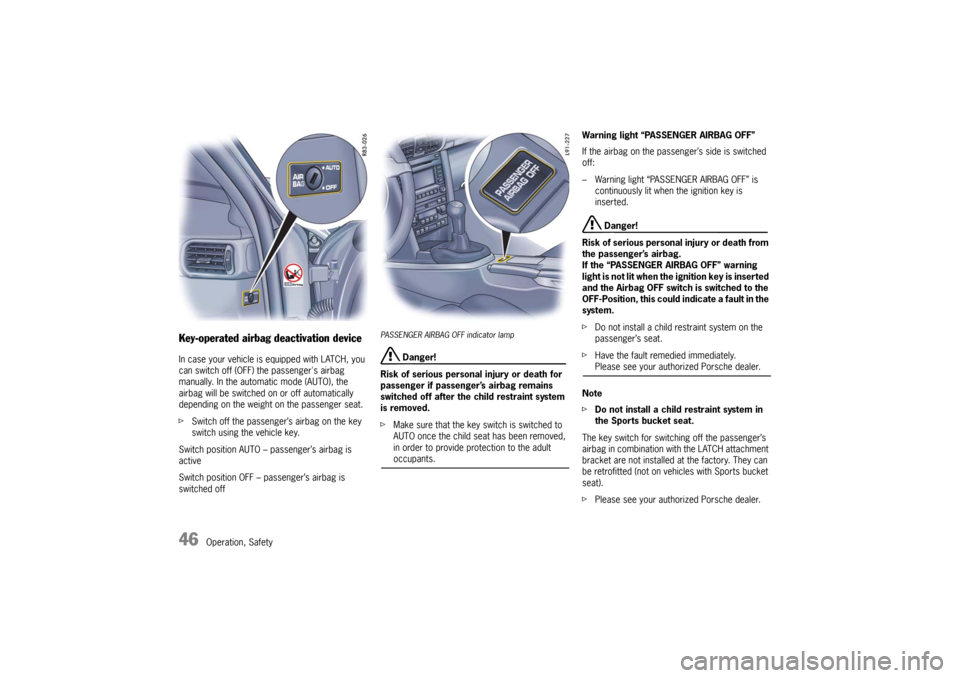

Key-operated airbag deactivation deviceIn case your vehicle is equipped with LATCH, you
can switch off (OFF) the passenger's airbag
manually. In the automatic mode (AUTO), the
airbag will be switched on or off automatically
depending on the weight on the passenger seat.
fSwitch off the passenger’s airbag on the key
switch using the vehicle key.
Switch position AUTO – passenger’s airbag is
active
Switch position OFF – passenger’s airbag is
switched off
PASSENGER AIRBAG OFF indicator lamp
Danger!
Risk of serious personal injury or death for
passenger if passenger’s airbag remains
switched off after the child restraint system
is removed.
fMake sure that the key switch is switched to
AUTO once the child seat has been removed,
in order to provide protection to the adult occupants.Warning light “PASSENGER AIRBAG OFF”
If the airbag on the passenger’s side is switched
off:
– Warning light “PASSENGER AIRBAG OFF” is
continuously lit when the ignition key is
inserted.
Danger!
Risk of serious personal injury or death from
the passenger’s airbag.
If the “PASSENGER AIRBAG OFF” warning
light is not lit when the ignition key is inserted
and the Airbag OFF switch is switched to the
OFF-Position, this could indicate a fault in the
system.
fDo not install a child restraint system on the
passenger’s seat.
fHave the fault remedied immediately. Please see your authorized Porsche dealer.
Note
fDo not install a child restraint system in
the Sports bucket seat.
The key switch for switching off the passenger’s
airbag in combination with the LATCH attachment
bracket are not installed at the factory. They can
be retrofitted (not on vehicles with Sports bucket
seat).
fPlease see your authorized Porsche dealer.
10_GT3_21.book Seite 46 Donnerstag, 4. Juni 2009 12:48 12
Page 48 of 251
Operation, Safety
47
Child Restraint SystemsfDo not install a child restraint system in
the Sports bucket seat.
The Sports bucket seat cannot be
equipped with the LATCH system.
Porsche recommends that all infants and children
be restrained in child restraint systems at all times
while the vehicle is in motion in accordance with
applicable laws.
Use only child restraint systems with the LATCH-
system recommended by Porsche. These sys-
tems have been tested and adjusted to the interior
of your Porsche and the appropriate child weight
groups. Other systems have not been tested and
could entail an increased risk of injury or death.
You can obtain child seats that are LATCH compa-
tible at your authorized Porsche dealer.
fAlways observe the separate installation
instructions for your child seat.
The use of infant or child restraints is required by
law in all 50 states of the U.S. and all Canadian
provinces. The child restraint system should be
one that complies with U.S. Federal Motor Vehicle
Safety Standards and should be secured by a lap
belt or lap belt portion of a lap-shoulder belt or for
child seats equipped with the LATCH sytem
(Lower Anchorage and Tether for Children, also
known as ISOFIX) to the LATCH anchorages.
A statement by the seat manufacturer of compli-
ance with this standard can be found on the instruction label on the restraint and in the instruc-
tion manual provided with the restraint.
Danger!
The use of a child restraint system in the
passenger’s seat can result in serious
personal injury or death to the child from an
airbag deployment.
To reduce risk of injury from an inflating
airbag in an accident, Porsche strongly
recommends:
fPlease see the chapter “PASSENGER AIRBAG
OFF INDICATOR LAMP DOES NOT LIGHT UP”
on Page 44.
fPlease see the chapter “CHILD RESTRAINT
SYSTEMS” on Page 47.
fDo not install a child restraint system in
the Sports bucket seat.
The Sports bucket seat cannot be equipped with the LATCH system.
Note
The key switch for switching off the passenger’s
airbag and the LATCH attachment bracket are not
installed at the factory. They can be retrofitted (not
on vehicles with Sports bucket seat).
fPlease see your authorized Porsche dealer.
Danger!
Risk of serious personal injury or death to the
child.
fFollow all child restraint instructions and warnings in this manual.
– When using an infant or child restraint system,
be sure to follow all manufacturer's instruc-
tions on installation and use.
– Infants and small children should never be held
on the lap, nor should they share a safety belt
with another occupant while the vehicle is in
motion.
– Children too big for child restraint systems
must use regular safety belts. A shoulder belt
can be used providing it does not cross the
face or the neck of the child.
– Choose a child restraint system according to
the weight of the child.
– Child restraint systems that are damaged or
have been heavily stressed in an accident must
be replaced immediately.
– Children could be endangered in a crash if their
child restraints are not properly secured in the
vehicle.
– Do not affix things to child restraint systems or
cover it with other materials.
10_GT3_21.book Seite 47 Donnerstag, 4. Juni 2009 12:48 12
Page 49 of 251
48
Operation, Safety – Your authorized Porsche dealer will be glad to
advise you about the installation possibility for
a Porsche child restraint system which allows
a key-operated airbag deactivation of the
passenger’s airbag.
– The key-operated airbag deactivation device
installation requires special programming
available only from your authorized Porsche
dealer.
fPlease see the chapter “KEY-OPERATED
AIRBAG DEACTIVATION DEVICE” on Page 46.
Direction of installation for child restraint
systemsGroup 0 and 0+: Children up to 29 lbs
(13 kg)
Children of this weight must be transported in a
restraint system which is installed facing rear-
ward.
Group I: Children in between 20 lbs (9 kg)
and 40 lbs (18 kg)
Children of this weight are held in child restraint
systems facing forward.
Group II: Children in between 33 lbs (15 kg)
and 55 lbs (25 kg)
Children of this weight are held in child restraint
systems facing forward.
Group III: Children in between 49 lbs (22 kg)
and 80 lbs (36 kg)
Children of this weight are held in child restraint
systems facing forward.
fThe vehicle seat must be adjusted so that it is
in its lower rear position.Note
If a child seat with top tether is adapted for use on
the front seat, the anchor point must be used for
anchoring the top tether.
fPlease see the chapter “CHILD RESTRAINT
ANCHORAGES” on Page 52.
10_GT3_21.book Seite 48 Donnerstag, 4. Juni 2009 12:48 12
Page 50 of 251
Operation, Safety
49
Using child restraint systems in the
passenger seatfDo not install a child restraint system in
the Sports bucket seat.
Danger!
The use of a child restraint system in the
passenger seat can result in serious
personal injury or death to the child from an
airbag deployment.
To reduce risk of injury from an inflating
airbag in an accident, Porsche strongly
recommends:
fPlease see the chapter “PASSENGER AIRBAG
OFF INDICATOR LAMP DOES NOT LIGHT UP”
on Page 44.
fPlease see the chapter “CHILD RESTRAINT
SYSTEMS” on Page 47.
fDo not install a child restraint system in
the Sports bucket seat.
The Sports bucket seat cannot be equipped with the LATCH system. Child restraint system for up to one-year old
children
– Make sure that the PASSENGER AIRBAG OFF
indicator lamp lights up.
– Adjust the passenger's seat as far away from
the airbag as possible.
Danger!
Risk of serious personal injury or death due
to the passenger’s airbag triggering uninten-
tionally.
When the ignition is on and an up to one-year
old child is seated in the child restraint
system on the passenger’s seat the indicator
lamp „PASSENGER AIRBAG OFF“ must be on.
If the “PASSENGER AIRBAG OFF” indicator
lamp does not light up, it could indicate a
fault in the system.
In this case:
fOn vehicles with key-operated airbag deactiva-
tion device: Switch to position OFF.
fOn vehicles without key-operated airbag
deactivation device: Do not use a child
restraint system in the passenger’s seat.
fHave the fault remedied at your nearest autho-rized Porsche dealer.Child restraint system for children older than
one year
Your vehicle is equipped with a weight sensing
system for the passenger's seat in accordance
with U.S. Federal Motor Vehicle Safety Standard
208. Depending on the weight acting on the
passenger's seat, the passenger's airbag will
automatically be switched on or off.
Small adult passengers
Make sure that the PASSENGER AIRBAG OFF
indicator lamp does not light up.
Danger!
Risk of serious personal injury or death due
to the passenger’s airbag not triggering.
When the ignition key is inserted and the
small adult passenger is seated on the
passenger’s seat, the indicator lamp
“PASSENGER AIRBAG OFF” must be off.
If the “PASSENGER AIRBAG OFF” indicator
lamp lights up, it could indicate a fault in the
system.
In this case:
fDo not carry a passenger in the passenger’s
seat.
fHave the fault remedied at the nearest autho-rized Porsche dealer.
10_GT3_21.book Seite 49 Donnerstag, 4. Juni 2009 12:48 12
