PORSCHE 911 GTS 2010 5.G Information Manual
Manufacturer: PORSCHE, Model Year: 2010, Model line: 911 GTS, Model: PORSCHE 911 GTS 2010 5.GPages: 33, PDF Size: 7.34 MB
Page 1 of 33
Clar i t y.
The new 911 Carrera GTS
Page 2 of 33
\204
Page 3 of 33
The new 911 Carrera GTS 6
Drive 12
Chassis 22
Safety 28
Comfort 34
Model range 44
Personalisation 46
Summary 58
Technical data 60
4
„
Page 4 of 33
‘
As wide as a Turbo and as sharp as a GT – the 911 Carrera GTS
has all the racing genes of Porsche and is 100 percent 911.’
The 911 Carrera is renowned for
being an unadulterated sports
car. The engine is positioned
low down in the rear. The car’s
silhouette is distinctive, the
design is unmistakable.
Since 1963, the 911 concept
has been the source of much
inspiration. Some ideas made
it only as far as the drawing
board, before being shelved.
Since 1963, the sportscar world has talked about three numbers: 911.
Today, we’re talking about three letters: GTS.
Now, the time has come to
reaffirm the definition of the
911. In other words, to speak in
plain language with a strong
argument and three let ters that
cannot be misunderstood: GTS.
They combine t wo strengths:
the emphatic sportiness of a
911 Carrera S model and
per formance that you would
expect to find only on the
racetrack, with the abilit y for day
to day driving. The
result is
tangible, visible, and immediate
ly accessible.
The new 911 Carrera GTS
models. Whether in Coupé or
Cabriolet form, the fact
remains the same. They are
the sportiest 911 Carrera
models that we’ve ever built.
Walter Röhrl, two times world rally champion
7
„
The new 911 Carrera GTS
Page 5 of 33

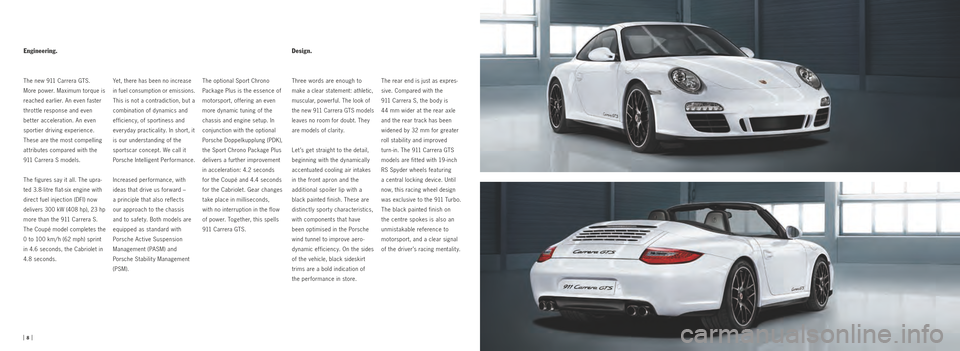

Engineering.
The new 911 Carrera GTS.
More power. Maximum torque is
reached earlier. An even faster
throt tle response and even
better acceleration. An even
sportier driving experience.
These are the most compelling
at tributes compared with the
911 Carrera S models.
The figures say it all. The upra
ted 3.8litre flat six engine with
direct fuel injection (DFI) now
delivers 300 kW (408 hp), 23 hp
more than the 911 Carrera S.
The Coupé model completes the
0 to 100 km/ h (62 mph) sprint
in 4.6 seconds, the Cabriolet in
4.8 seconds.
Yet, there has been no increase
in fuel consumption or emissions.
This is not a contradiction, but a
combination of dynamics and
efficiency, of sportiness and
ever yday practicalit y. In short, it
is our understanding of the
sportscar concept. We call it
Porsche Intelligent Per formance.
Increased per formance, with
ideas that drive us for ward –
a principle that also reflects
our approach to the chassis
and to safet y. Both models are
equipped as standard with
Porsche Active Suspension
Management (PASM) and
Porsche Stabilit y Management
(PSM). The optional Sport Chrono
Package Plus is the essence of
motorsport, of fering an even
more dynamic tuning of the
chassis and engine setup. In
conjunction with the optional
Porsche Doppelkupplung (PDK),
the Sport Chrono Package Plus
delivers a further improvement
in acceleration: 4.2 seconds
for the Coupé and 4.4 seconds
for the Cabriolet. Gear changes
take place in milliseconds,
with no interruption in the flow
of power. Together, this spells
911 Carrera GTS.
Design.
Three words are enough to
make a clear statement: athletic,
muscular, powerful. The look of
the new 911 Carrera GTS models
leaves no room for doubt. They
are models of clarit y.
Let ’s get straight to the detail,
beginning with the dynamically
accentuated cooling air intakes
in the front apron and the
additional spoiler lip with a
black painted finish. These are
distinctly sport y characteristics,
with components that have
been optimised in the Porsche
wind tunnel to improve aero
dynamic ef ficiency. On the sides
of the vehicle, black sideskirt
trims are a bold indication of
the performance in store. The rear end is just as expres
sive. Compared with the
911 Carrera S, the body is
44 mm wider at the rear axle
and the rear track has been
widened by 32 mm for greater
roll stabilit y and improved
turn in. The 911 Carrera GTS
models are fit ted with 19 inch
RS Spyder wheels featuring
a central locking device. Until
now, this racing wheel design
was exclusive to the 911 Turbo.
The black painted finish on
the centre spokes is also an
unmistakable reference to
motorsport, and a clear signal
of the driver’s racing mentalit y.
8
Page 6 of 33

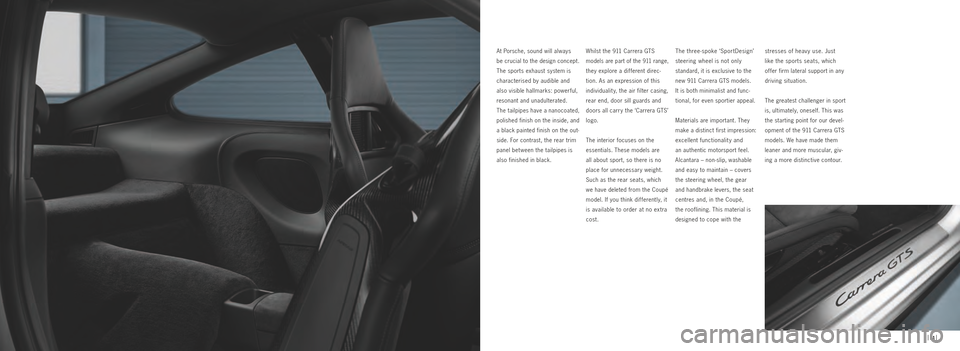

At Porsche, sound will always
be crucial to the design concept.
The sports exhaust system is
characterised by audible and
also visible hallmarks: power ful,
resonant and unadulterated.
The tailpipes have a nanocoated,
polished finish on the inside, and
a black painted finish on the out
side. For contrast, the rear trim
panel between the tailpipes is
also finished in black. Whilst the 911 Carrera GTS
models are part of the 911 range,
they explore a dif ferent direc
tion. As an expression of this
individualit y, the air filter casing,
rear end, door sill guards and
doors all carry the ‘Carrera GTS’
logo.
The interior focuses on the
essentials. These models are
all about sport, so there is no
place for unnecessar y weight.
Such as the rear seats, which
we have deleted from the Coupé
model. If you think
differently, it
is available to order at no extra
cost. The three
spoke ‘SportDesign’
steering wheel is not only
standard, it is exclusive to the
new 911 Carrera GTS models.
It is both minimalist and func
tional, for even sportier appeal.
Materials are important. They
make a distinct first impression:
excellent functionality and
an authentic motorsport feel.
Alcantara – nonslip, washable
and easy to maintain – covers
the steering wheel, the gear
and handbrake levers, the seat
centres and, in the Coupé,
the rooflining. This material is
designed to cope with the
stresses of heav y use. Just
like the sports seats, which
of fer firm lateral support in any
driving situation.
The greatest challenger in sport
is, ultimately, oneself. This was
the starting point for our devel
opment of the 911 Carrera GTS
models. We have made them
leaner and more muscular, giv
ing a more distinctive contour.
11
Page 7 of 33

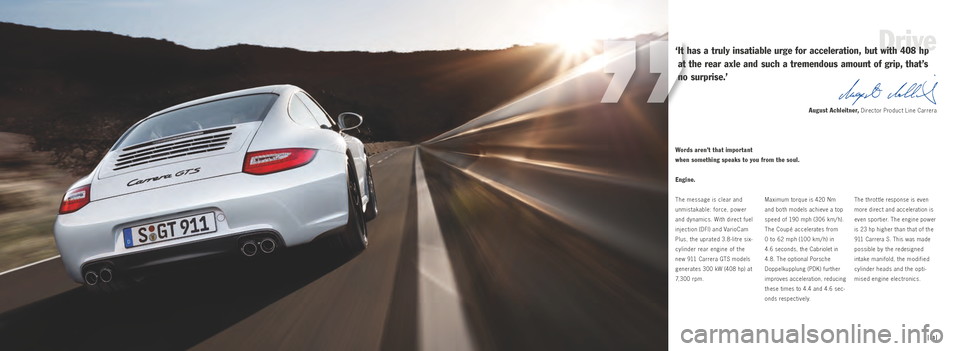

Engine.
The message is clear and
un mistakable: force, power
and dynamics. With direct fuel
injection (DFI) and VarioCam
Plus, the uprated 3.8litre six
cylinder rear engine of the
new 911 Carrera GTS models
generates 300 kW (408 hp) at
7,300 rpm.
Words aren’t that important
when something speaks to you from the soul.
Maximum torque is 420 Nm
and both models achieve a top
speed of 190 mph (306 km/ h).
The Coupé accelerates from
0 to 62 mph (100 km/ h) in
4.6 seconds, the Cabriolet in
4.8. The optional Porsche
Doppelkupplung (PDK) further
improves acceleration, reducing
these times to 4.4 and 4.6 sec
onds respectively. The throttle response is even
more direct and acceleration is
even sportier. The engine power
is 23 hp higher than that of the
911 Carrera S. This was made possible by the redesigned
intake manifold, the modified
cylinder heads and the opti
mised engine electronics.
‘ It has a truly insatiable urge for acceleration, but with 408 hp
at the rear axle and such a tremendous amount of grip, that’s
no surprise.’
August Achleitner, Director Product Line Carrera
13
„
Drive
Page 8 of 33

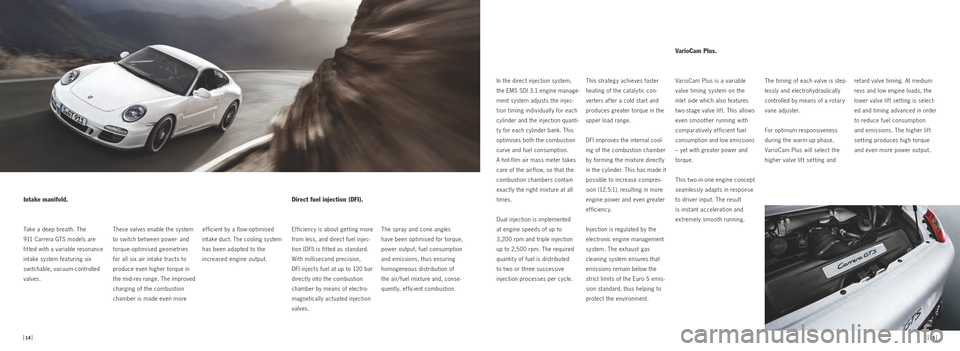

Intake manifold.
Take a deep breath. The
911 Carrera GTS models are
fit ted with a variable resonance
intake system featuring six
switchable, vacuumcontrolled
valves. In the direct injection system,
the EMS SDI 3.1 engine manage
ment system adjusts the
injec
tion timing individually for
each
cylinder and the injection quanti
t y for each cylinder bank. This
optimises both the combustion
curve and fuel consumption.
A hot film air mass meter takes
care of the airflow, so that the
combustion chambers contain
exactly the right mixture at all
times.
Dual injection is implemented
at engine speeds of up to
3,200 rpm and triple injection
up to 2,500 rpm. The required
quantit y of fuel is distributed
to t wo or three successive
injection processes per cycle.
These valves enable the system
to switch bet ween power
and
torque optimised geometries
for all six air intake tracts to
produce even higher torque in
the mid rev range. The improved
charging of the combustion
chamber is made even more
This strateg y achieves faster
heating of the catalytic con
verters af ter a cold start and
produces greater torque in the
upper load range.
DFI improves the internal cool
ing of the combustion chamber
by forming the mixture directly
in the cylinder. This has made it
possible to increase compres
sion (12.5:1), resulting in more
engine power and even greater
e f f ici e n cy.
Injection is regulated by the
electronic engine management
system. The exhaust gas
cleaning system ensures that
emissions remain below the
strict limits of the Euro 5 emis
sion standard, thus helping to
protect the environment.
ef ficient by a flow
optimised
intake duct. The cooling system
has been adapted to the
increased engine output.
VarioCam Plus.
VarioCam Plus is a variable
valve timing system on the
inlet side which also features
t wo stage valve lif t. This allows
even smoother running with
comparatively efficient fuel
consumption and low emissions
– yet with greater power and
torque.
This t woin one engine concept
seamlessly adapts in response
to driver input. The result
is instant acceleration and
extremely smooth running
.
Direct fuel injection (DFI).
Ef ficiency is about get ting more
from less, and direct fuel injec
tion (DFI) is fit ted as standard.
With millisecond precision,
DFI injects fuel at up to 120 bar
directly into the combustion
chamber by means of electro
magnetically actuated injection
valves. The timing of each valve is step
lessly and electrohydraulically
controlled by means of a rotar y
vane adjuster.
For optimum responsiveness
during the warm up phase,
VarioCam Plus will select the
higher valve lif t set ting and
The spray and cone angles
have been optimised for torque,
power output, fuel consumption
and emissions, thus ensuring
homogeneous distribution of
the air/fuel mixture and, conse
quently, ef ficient combustion. retard valve timing. At medium
revs and low engine loads, the
lower valve lif t set ting is select
ed and timing advanced in order
to reduce fuel consumption
and emissions. The higher lif t
set ting produces high torque
and even more power output.
1415
Page 9 of 33

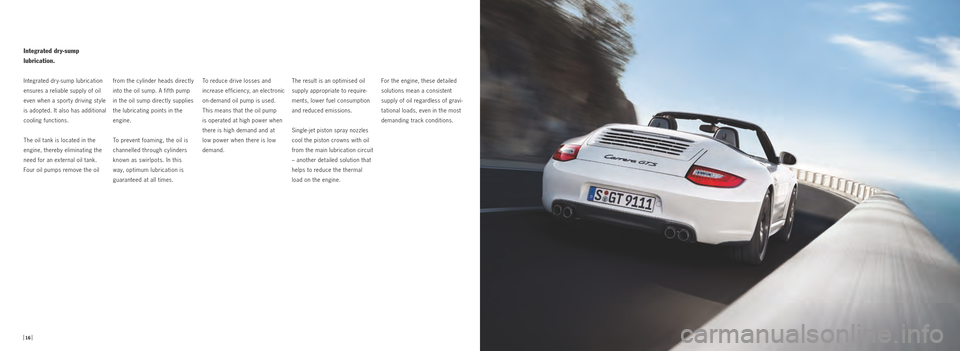

Integrated dry-sump
lubrication.
Integrated dry sump lubrication
ensures a reliable supply of oil
even when a sport y driving st yle
is adopted. It also has additional
cooling functions.
The oil tank is located in the
engine, thereby eliminating the
need for an external oil tank.
Four oil pumps remove the oil from the cylinder heads directly
into the oil sump. A fif th pump
in the oil sump directly supplies
the lubricating points in the
engine.
To prevent foaming, the oil is
channelled through cylinders
known as swirlpots. In this
way, optimum lubrication is
guaranteed at
all times. To reduce drive losses and
increase efficiency, an electronic
on
demand oil pump is used.
This means that the oil pump
is operated at high power when
there is high demand and at
low power when there is low
demand.
The result is an optimised oil
supply appropriate to require
ments, lower fuel consumption
and reduced emissions.
Single jet piston spray nozzles
cool the piston crowns with oil
from the main lubrication circuit
– another detailed solution that
helps to reduce the thermal
load on the engine. For the engine, these detailed
solutions mean a consistent
supply of oil regardless of gravi
tational loads, even in the most
demanding track conditions.
16
Page 10 of 33
Ignition system.
The ignition system is a static
highvoltage system. Each
individual spark plug has a
separate ignition coil, ensuring
excellent combustion every
time.

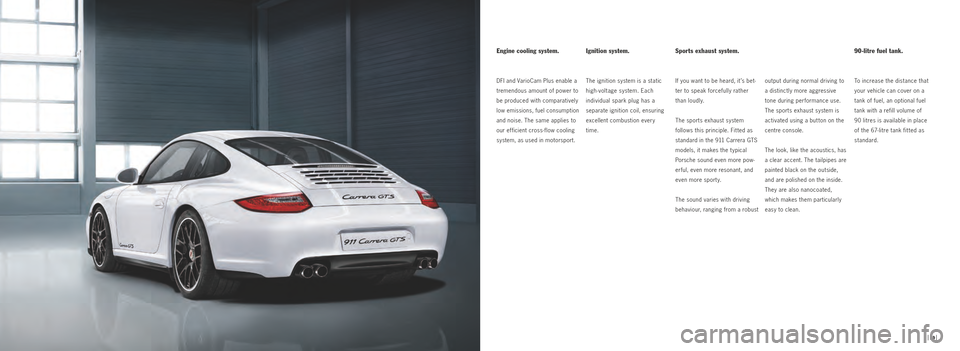

Engine cooling system.
DFI and VarioCam Plus enable a
tremendous amount of power to
be produced with comparatively
low emissions, fuel consumption
and noise. The same applies to
our ef ficient cross flow cooling
system, as used in motorsport.
Sports exhaust system.
If you want to be heard, it’s bet
ter to speak forcefully rather
than loudly.
The sports exhaust system
follows this principle. Fit ted as
standard in the 911 Carrera GTS
models, it makes the t ypical
Porsche sound even more pow
erful, even more resonant, and
even more sport y.
The sound varies with driving
behaviour, ranging from a robust output during normal driving to
a distinctly more aggressive
tone during per formance use.
The sports exhaust system is
activated using a but ton on the
centre console.
The look, like the acoustics, has
a clear accent. The tailpipes are
painted black on the outside,
and are polished on the inside.
They are also nanocoated,
which makes them particularly
easy to clean.
90-litre fuel tank.
To increase the distance that
your vehicle can cover on a
tank of fuel, an optional fuel
tank with a refill volume of
90 litres is available in place
of the 67 litre tank fit ted as
standard.
19
