PORSCHE 911 GTS 2010 5.G Information Manual

Navigation module.
The optional GPS navigation
system has a hard drive contain­
ing map data for most European
countries, allowing for rapid
route calculations with a choice
of three alternative routes.
When viewing a map, it is pos­
sible to select bet ween a 3D
perspective and a 2D display,
enhanced by the addition of
altitude profiles. In splitscreen
mode, you can choose to dis ­
play not only the current map
overview, but also a list of icons
that represent the next driving
manoeuvre.
Telephone module.
The optional quadband GSM
telephone module offers con­
venience and excellent recep ­
tion. By inserting a SIM card
directly into the PCM’s integral
SIM card reader, calls can be
made using the hands ­free
facilit y. For even more
convenience, the Bluetooth
®
capabilit y of a mobile phone
can be used to make calls via
the SIM Access Profile (SAP).
1)
Once automatic pairing is com ­
plete, the mobile phone’s aerial
is switched of f to conserve
battery charge and the phone
operates via the car aerial.
Depending on the mobile phone
model, this gives access not
only to the numbers on the SIM
card, but also to the phone’s
internal memor y. Depending on
the phone, it can also be con ­
trolled using PCM, the optional multifunction steering wheel

or the optional voice control
system, without it ever leaving
your pocket.
In conjunction with the optional
navigation module, the tele ­
phone module also enables you
to establish a Bluetooth® link
with those mobile phones that
only support the Handsfree
Profile (HFP). In this case, the
GSM connection is always
established through the aerial
of the mobile phone.
2) PCM acts
as a hands ­free system and
you can leave the mobile phone
tucked away.
On request, a cordless handset
for the telephone module is also
available. However, the handset
cannot be used for Bluetooth
®
links established using the
Handsfree Profile (HFP).
Mobile phone preparation.
To enable a Bluetooth® connec­
tion for those mobile phones
that only support the Handsfree
Profile (HFP), an optional mobile
phone preparation is available
(with or without a bracket).
1)
With HFP, PCM acts merely
as a hands ­free system and the
mobile phone can remain tucked
away. Only the basic phone
functions can be operated using
PCM. The GSM connection is
established through the aerial
of the mobile phone.
3)
Voice control system.
Almost all of the functions of
PCM can be controlled via the
optional voice control system,
which recognises commands or
number sequences, irrespective
of the speaker, and there is
no need to ‘ train’ the system.
Universal audio interface.
Also available as an option is
the universal audio inter face.
This enables you to connect
you r i Pod
®, a USB stick/MP3
player or any other compatible
audio source of your choice.
The iPod® or USB stick can
be operated conveniently and
safely via PCM.
1), 2), 3) Please refer to the notes
on page 56.
41

23
3
1
5
5
4
6 7
2
During audio playback from
audio or video DVDs, the system
is able to make full use of the
impressive sound spectrum of
5.1 digital recordings.
Five dedicated audio channels
plus an ef fects channel for low
frequencies deliver a sound that
is as authentic as it is natural.
The discrete 5.1 surround sound
is balanced, lifelike and cr ystal clear. It ’s a sound that ’s as
true to a live performance or
cinematic experience as you
can get.
Of course, you can still play tra
­
ditional music sources such as
CDs, either in stereo or in one of
the surround modes generated
by the patented BOSE
® Center ­
point® technology. The algorithm
of Centerpoint® II extracts an even more precise and realistic
sound from the stereo signal.
The SurroundStage
® signal pro­
cessing circuitr y developed by
BOSE
® assigns each individual
audio channel to a selected
combination of loudspeakers
and is therefore able to deliver
an optimally balanced surround
sound experience to all seat
positions. The result is an out ­standing level of audio quality,
and a customised sound all
made possible by the compre
­
hensive selection of equaliser
presets of fered by the BOSE
®
Surround Sound System with
dynamic loudness function and
AudioPilot
® Noise Compensa ­
tion Technology.
In short, clarit y deserves a
clear voice.

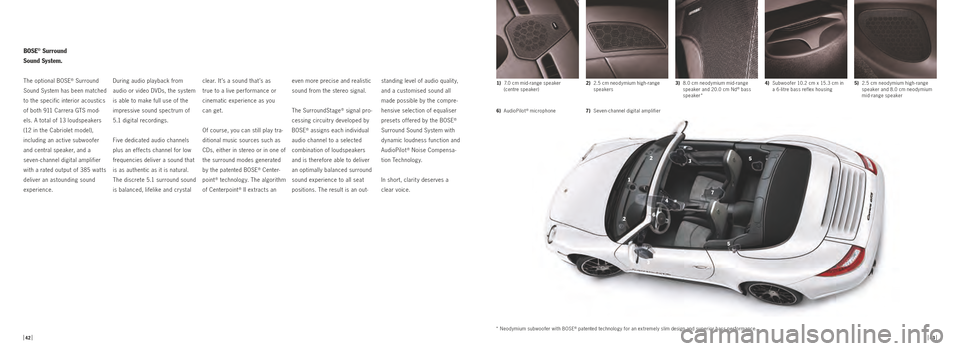

BOSE® Surround
Sound System.
The optional BOSE® Surround
Sound System has been matched
to the specific interior acoustics
of both 911 Carrera GTS mod ­
els. A total of 13 loudspeakers
(12 in the Cabriolet model),
including an active subwoofer
and central speaker, and a
seven ­channel digital amplifier
with a rated output of 385 wat ts
deliver an astounding sound
experience.
1) 7.0 cm mid ­range speaker
(centre speaker) 2) 2.5 cm neodymium high ­range
speakers4) Subwoofer 10.2 cm x 15.3 cm in
a 6 ­litre bass reflex housing
6) AudioPilot® microphone7) Seven ­channel digital amplifier
3) 8.0 cm neodymium mid ­range
speaker and 20.0 cm Nd® bass
speaker*5) 2.5 cm neodymium high ­range
speaker and 8.0 cm neodymium
mid ­range speaker
* Neodymium subwoofer with BOSE
® patented technology for an extremely slim design and superior bass per formance.
42
43

The 911 Carrera GTS is distinc­
tive, which is why it fits in so
well with the rest of the 911
range. Indeed, the 911 concept
exists in many captivating
forms. Whether you want a 3.6 ­
or 3.8 ­litre engine, the pure
sportscar experience with rear ­
wheel drive or an all ­wheel
drive, a Cabriolet for ef ficient
driving pleasure with the hood
down or a distinctive glass ­top
It’s a rare occurrence in large families:
everyone having their own mind, but all speaking with one voice.

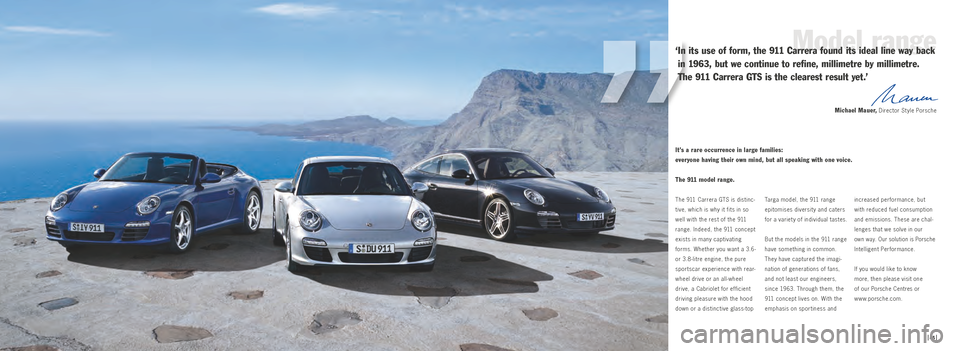

The 911 model range.
Targa model, the 911 range
epitomises diversity and caters
for a variety of individual tastes.
But the models in the 911 range
have something in common.
They have captured the imagi ­
nation of generations of fans,
and not least our engineers,
since 1963. Through them, the
911 concept lives on. With the
emphasis on spor tiness and increased per formance, but
with reduced fuel consumption
and emissions. These are chal
­
lenges that we solve in our
own way. Our solution is Porsche
Intelligent Performance.
If you would like to know
more, then please visit one
of our Porsche Centres or
w w w.porsche.com.
‘ In its use of form, the 911 Carrera found its ideal line way back
in 1963, but we continue to refine, millimetre by millimetre.
The 911 Carrera GTS is the clearest result yet.’
Michael Mauer, Director Style Porsche
45

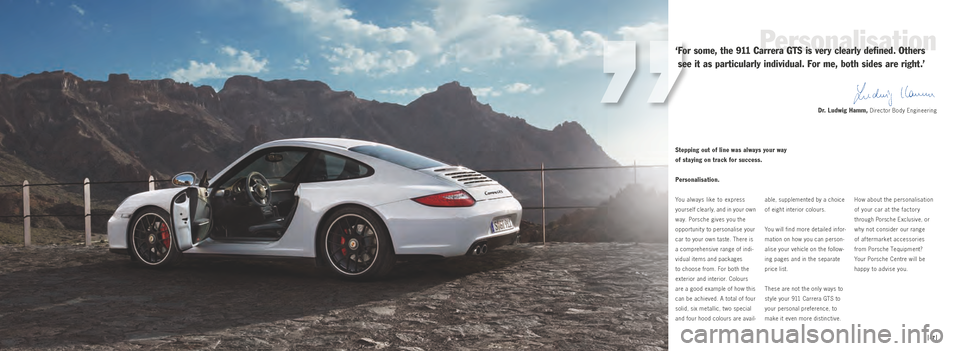

Personalisation.
You always like to express

yourself clearly, and in your own
way. Porsche gives you the
opportunit y to personalise your
car to your own taste. There is
a comprehensive range of indi ­
vidual items and packages
to choose from. For both the
exterior and interior. Colours
are a good example of how this
can be achieved. A total of four
solid, six metallic, two special
and four hood colours are avail ­
Stepping out of line was always your way
of staying on track for success.
able, supplemented by a choice
of eight interior colours.
You will find more detailed infor ­
mation on how you can person ­
alise your vehicle on the follow ­
ing pages and in the separate
price list.
These are not the only ways to
style your 911 Carrera GTS to
your personal preference, to
make it even more distinctive. How about the personalisation
of your car at the factory
through Porsche Exclusive, or
why not consider our range
of af ter market accessories
from Porsche Tequipment?
Your Porsche Centre will be
happy to advise you.
‘ For some, the 911 Carrera GTS is very clearly defined. Others
see it as particularly individual. For me, both sides are right.’
Dr. Ludwig Hamm, Director Body Engineering
47
„
Personalisation

Black
Stone GreyMetropole Blue
Cocoa
GT Silver Metallic1)Amethyst Metallic2)Basalt Black Metallic2)
Platinum Silver Metallic1)
Dark Blue Metallic2)
Macadamia Metallic2)
Meteor Grey Metallic1)
Aqua Blue Metallic2)
Black2)
Guards Red1)
Carrara White1)
Speed Yellow1)

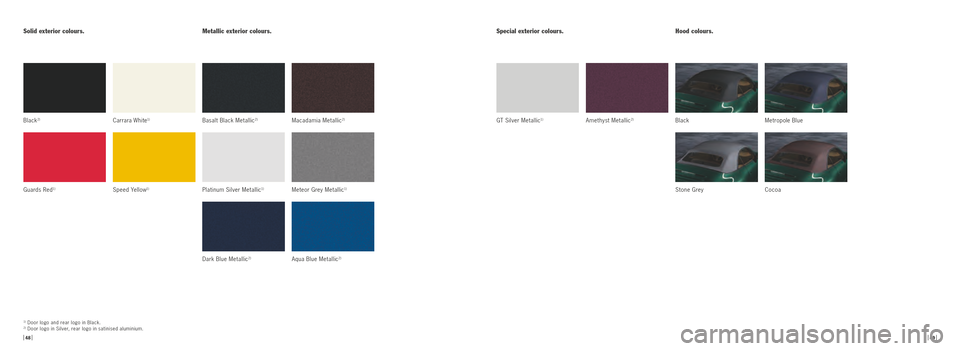

Solid exterior colours.
Metallic exterior colours. Special exterior colours.Hood colours.
1) Door logo and rear logo in Black. 2) Door logo in Silver, rear logo in satinised aluminium.
48
49

Terracotta4)
Cocoa4)
Terracotta
CocoaBlack
Black

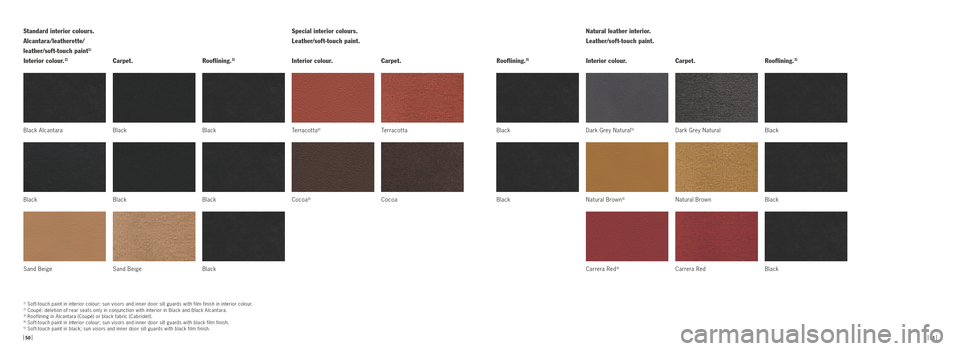

Special interior colours.
Leather/soft-touch paint.
Interior colour.
Carpet. Rooflining.
3)
Natural leather interior.
Leather/soft-touch paint.
Interior colour.Carpet.Rooflining.
3)
Standard interior colours.
Alcantara/leatherette/
leather/soft-touch paint
1)
Interior colour.2)Carpet. Rooflining.3)
Dark Grey Natural5)
Natural Brown4)
Carrera Red4)
Dark Grey Natural
Natural Brown
Carrera Red Black
Black
Black
Black Alcantara
Black
Sand Beige Black
Black
Sand BeigeBlack
Black
Black
1) Soft
­touch paint in interior colour; sun visors and inner door sill guards with film finish in interior colour.2) Coupé: deletion of rear seats only in conjunction with interior in Black and Black Alcantara.3) Rooflining in Alcantara (Coupé) or black fabric (Cabriolet).4) Soft ­touch paint in interior colour; sun visors and inner door sill guards with black film finish.5) Soft ­touch paint in black; sun visors and inner door sill guards with black film finish.
50
51

OptionCoupé
CabrioletI no.

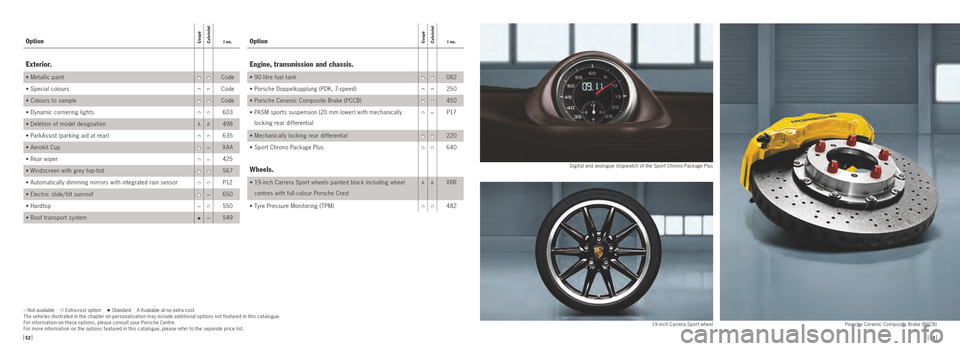

Exterior.
• Metallic paint••Code
• Special colours
••Code
• Colours to sample
••Code
• Dynamic cornering lights
••603
• Deletion of model designation
A A498
• Park Assist (parking aid at rear)
••635
• Aerokit Cup
•–XAA
• Rear wiper
•–425
• Windscreen with grey top -tint
••567
• Automatically dimming mirrors with integrated rain sensor
••P12
• Electric slide/tilt sunroof
•–650
• Hardtop
–•550
• Roof transport system
•–549
OptionCoupé
CabrioletI no.
Engine, transmission and chassis.
• 90 -litre fuel tank••082
• Porsche Doppelkupplung (PDK, 7-speed)
••250
• Porsche Ceramic Composite Brake (PCCB)
••450
•
PASM sports suspension (20 mm lower) with mechanically
locking rear differential
•–P17
• Mechanically locking rear differential
••220
• Sport Chrono Package Plus
••640
Wheels.
• 19 - inch Carrera Sport wheels painted black including wheel
centres with full ­colour Porsche CrestA AXRR
• Tyre Pressure Monitoring (TPM)
••482
– Not available Extra­cost option• Standard A Available at no extra cost
The vehicles illustrated in the chapter on personalisation may include additional options not featured in this catalogue.
For information on these options, please consult your Porsche Centre.
For more information on the options featured in this catalogue, please refer to the separate price list.
Porsche Ceramic Composite Brake (PCCB)
Digital and analogue stopwatch of the Sport Chrono Package Plus
19­inch Carrera Sport wheel
52
53

OptionCoupé
CabrioletI no.

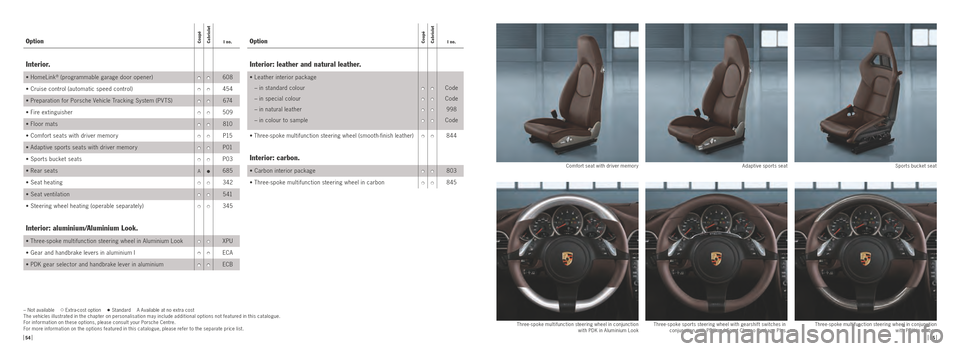

Interior: leather and natural leather.
• Leather interior package
– in standard colour
– in special colour
– in natural leather
– in colour to sample
•
•
•
•
•
•
•
•
Code
Code 998
Code
• Three-spoke multifunction steering wheel (smooth-finish leather)••844
Interior: carbon.
• Carbon interior package••803
• Three-spoke multifunction steering wheel in carbon
••845
– Not available Extra­cost option• Standard A Available at no extra cost
The vehicles illustrated in the chapter on personalisation may include additional options not featured in this catalogue.
For information on these options, please consult your Porsche Centre.
For more information on the options featured in this catalogue, please refer to the separate price list.
OptionCoupé
CabrioletI no.
Interior.
• HomeLink® (programmable garage door opener)••608
• Cruise control (automatic speed control)
••454
• Preparation for Porsche Vehicle Tracking System (PV TS)
••674
• Fire extinguisher
••509
• Floor mats
••810
• Comfort seats with driver memory
••P15
• Adaptive sports seats with driver memory
••P 01
• Sports bucket seats
••P03
• Rear seats
A•685
• Seat heating
••342
• Seat ventilation
••5 41
• Steering wheel heating (operable separately)
••345
Interior: aluminium/Aluminium Look.
• Three-spoke multifunction steering wheel in Aluminium Look••XPU
• Gear and handbrake levers in aluminium I
••ECA
• PDK gear selector and handbrake lever in aluminium
••ECB
Three ­spoke sports steering wheel with gearshif t switches in
conjunction with PDK and Sport Chrono Package Plus
Three
­spoke multifunction steering wheel in conjunction
with PDK in Aluminium Look Three
­spoke multifunction steering wheel in conjunction
with PDK in carbon
Adaptive sports seat
Comfort seat with driver memor y Sports bucket seat
54
55

OptionCoupé
CabrioletI no.
Audio and communication.
• Navigation module••672
• Electronic logbook
••6 41
• Telephone module
1), 2)••666
• Cordless handset for telephone module
1), 2)••669
• Mobile phone preparation with bracket
1), 3)••618
• Mobile phone preparation
1), 3)••619
OptionCoupé
CabrioletI no.
Audio and communication.
• Voice control system••671
• T V tuner
••676
• BOSE
® Surround Sound System••680
• Six- disc CD/ DVD autochanger
4)••693
• Universal audio interface (iPod
®, USB, AUX) 5)••870
• External aerial
A A461
Cordless handset for telephone module
PCM with navigation module
BOSE
® Surround Sound System
Universal audio inter face
– Not available
Extra­cost option• Standard A Available at no extra cost
The vehicles illustrated in the chapter on personalisation may include additional options not featured in this catalogue.
For information on these options, please consult your Porsche Centre.
For more information on the options featured in this catalogue, please refer to the separate price list.
1) For information on compatible mobile phones, please visit w w w.porsche.com or contact your Porsche Centre.2) Telephone module in HFP mode (only in conjunction with optional navigation module): The use of a mobile phone inside a car may cause an increase in the interior electromagnetic
field strength and, accordingly, in the electromagnetic radiation to which passengers are exposed. The use of the telephone module for PCM via Bluetooth® SAP connection or with
inserted SIM card prevents exposure to electromagnetic radiation as only the car‘s external aerial is ever used.
3) Mobile phone preparation: The use of a mobile phone inside a car may cause an increase in the interior electromagnetic field strength and, accordingly, in the electromagnetic radiation to which
passengers are exposed. If a cradle is used to mount the mobile phone, the field strength in the passenger compartment can be reduced because the phone can be connected up to the external
aerial (feature depends on how specific mobile phones connect to the cradle). For information about the availabilit y of a cradle for your mobile phone, please contact your Porsche Centre.
The use of the telephone module for PCM via Bluetooth
® SAP connection or with inserted SIM card prevents exposure to electromagnetic radiation as only the car‘s external aerial is ever used.4) May be incompatible with some copy ­protected audio CDs/ DVDs.5) For information on compatibilit y with iPod® and iPhone® models, please contact your Porsche Centre.
56
57

Sometimes, you have to make things plain and simple. This ensures
clarity, certainty, and freedom to act.
We don’t need many words for a clear expression. Just three
let ters and three numbers are enough for this unmistakable
message: increased sports per formance. The result is the sportiest
911 Carrera that we’ve ever created.
The message is distinct. It is communicated by a decisive front,
a forceful rear, and by contrasts that are clearly defined.
And, above all, by increased performance, even excelling the
capabilities of the S models. Yet there has been no increase in fuel
consumption and emission values. The message is convincing –
thanks to Porsche Intelligent Performance.
One could say, it’s clarity.
The new 911 Carrera GTS.
Sum mar y.
58
