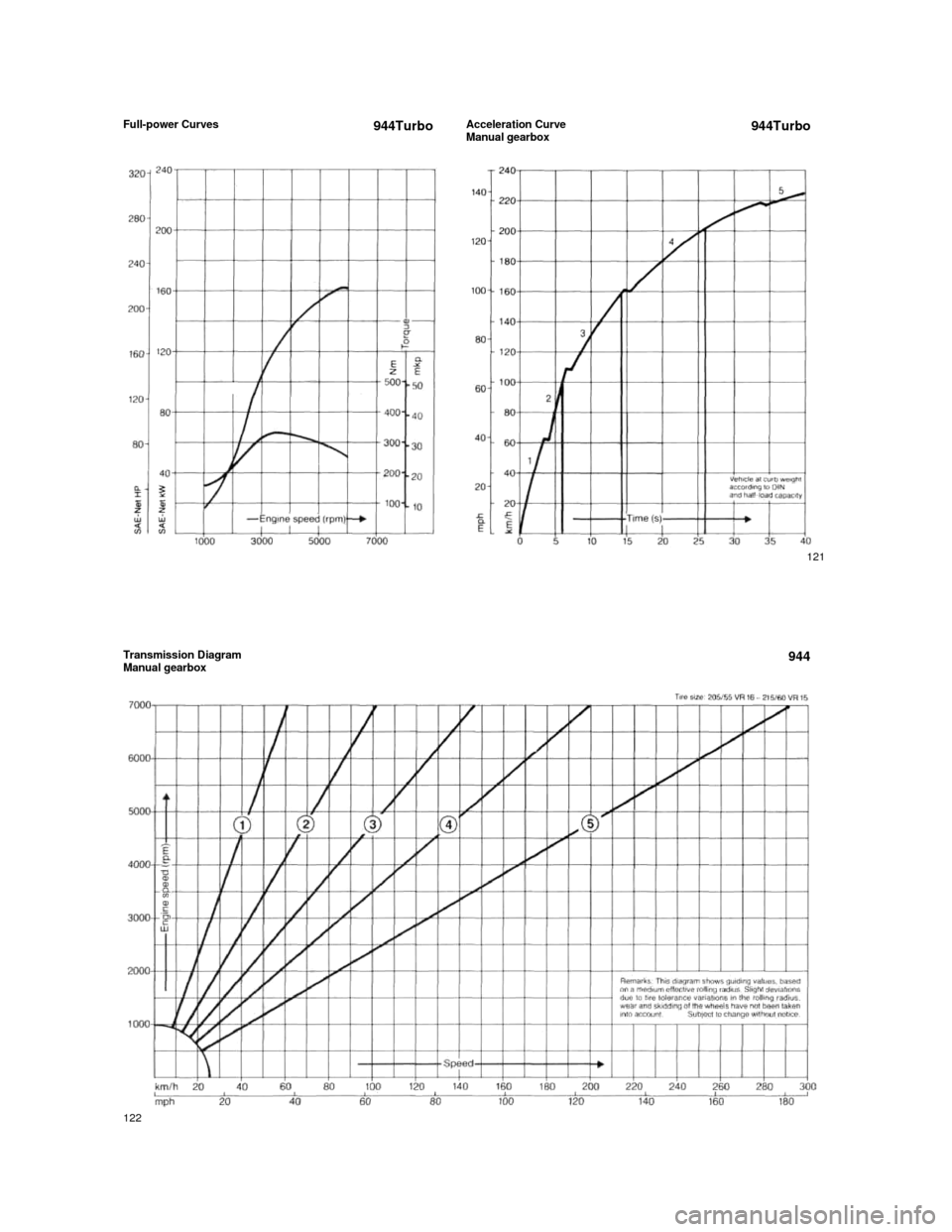

Acceleration Curve Automatic 944


119

Full-power Curves

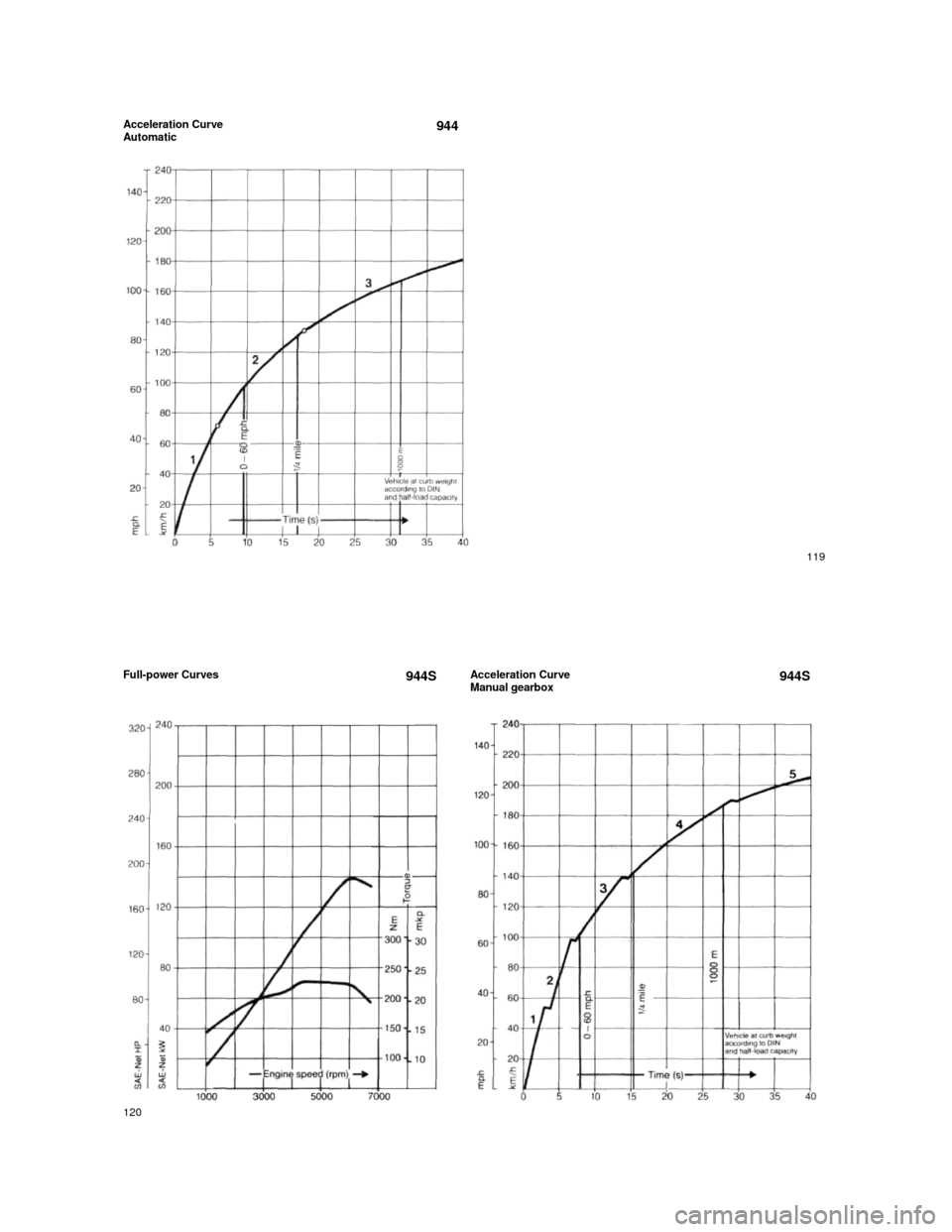

944S Acceleration Curve Manual gearbox 944S


120

Full-power Curves 944Turbo Acceleration Curve Manual gearbox
944Turbo


121

Transmission Diagram Manual gearbox
944
122

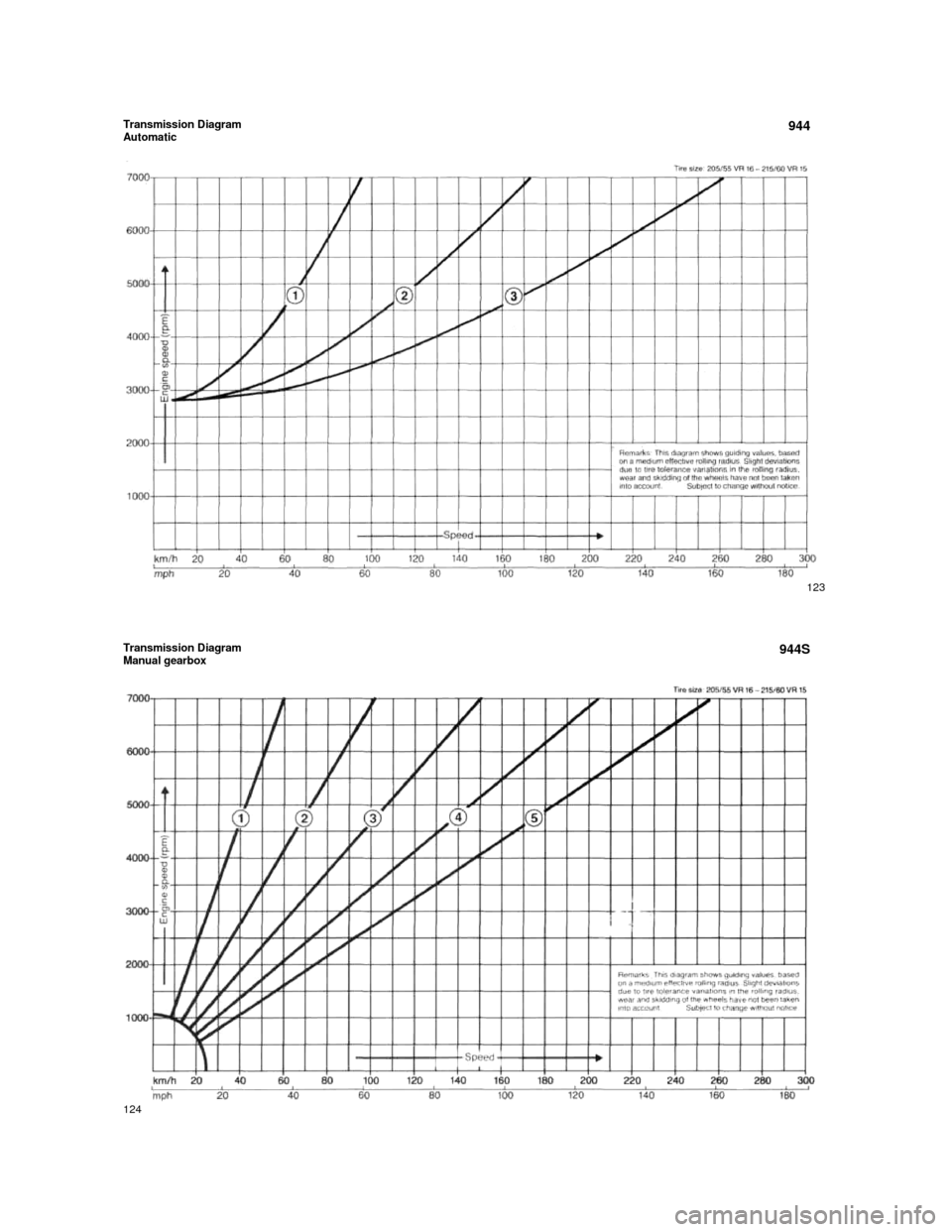

Transmission Diagram Automatic 944
123

Transmission Diagram Manual gearbox
944S
124

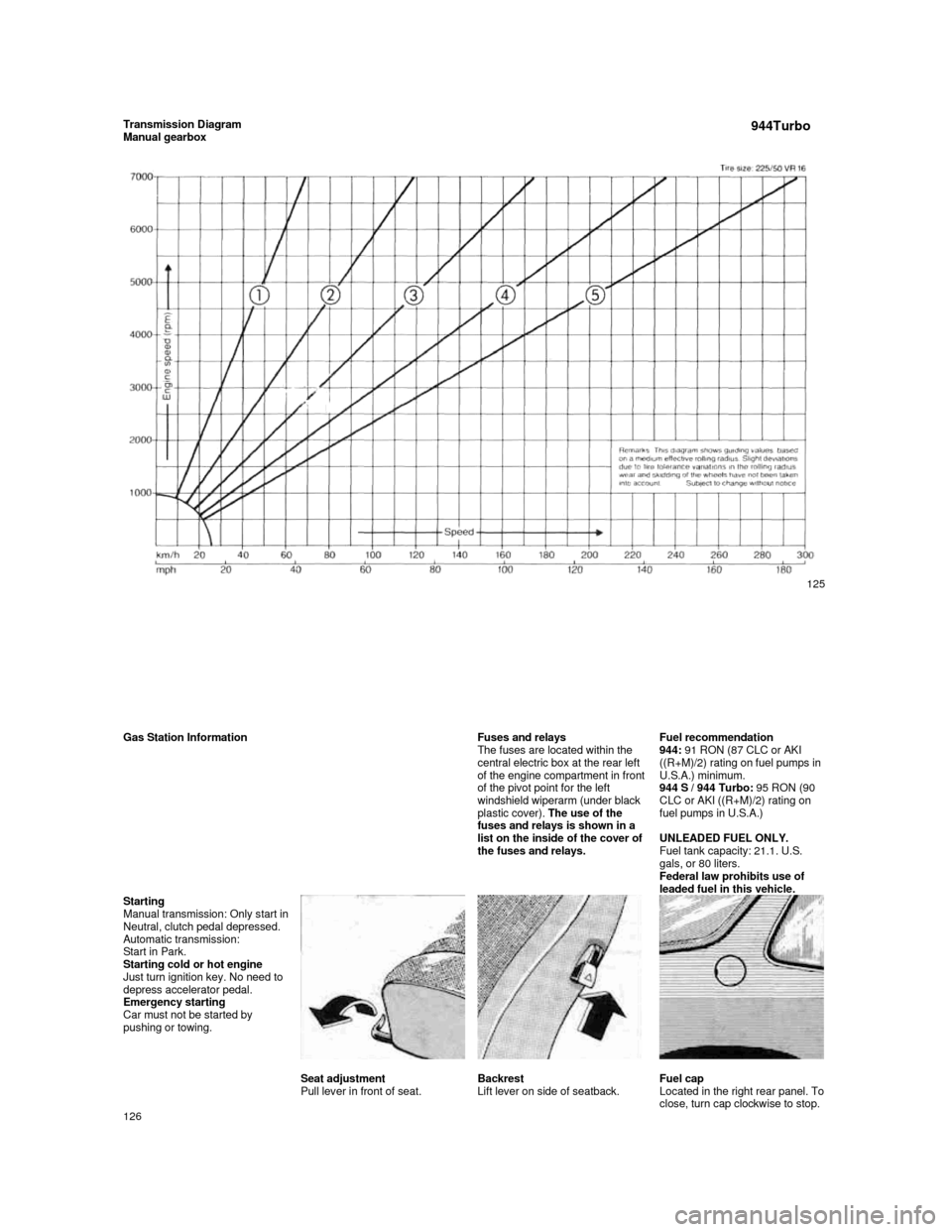

Transmission Diagram Manual gearbox 944Turbo
125

Gas Station Information Fuses and relays
The fuses are located within the
central electric box at the rear left
of the e
ngine compartment in front of the pivot point for the left windshield wiperarm (under black plastic cover). The use of the
fuses and relays is shown in a
list on the inside of the cover of
the fuses and relays.
Fuel recommendation
944: 91 RON (87 CLC or AKI
((R+M)/2) rating on fuel pumps in
U.S.A.) minimum.
944 S / 944 Turbo: 95 RON (90
CLC or AKI ((R+M)/2) rating on
fuel pumps in U.S.A.)
UNLEADED FUEL ONLY.
Fuel tank capacity: 21.1. U.S.
gals, or 80 liters.
Federal law prohibits use of
leaded fuel in this vehicle. Starting Manual transmission: Only start in Neutral, clutch pedal depressed. Automatic transmission:
Start in Park.
Starting cold or hot engine
Just turn ignition key. No need to
depress accelerator pedal.
Emergency starting
Car must not be started by
pushing or towing.

Seat adjustment

Pull lever in front of seat.
Backrest

Lift lever on side of seatback.
Fuel cap

Located in the right rear panel. To close, turn cap clockwise to stop. 126

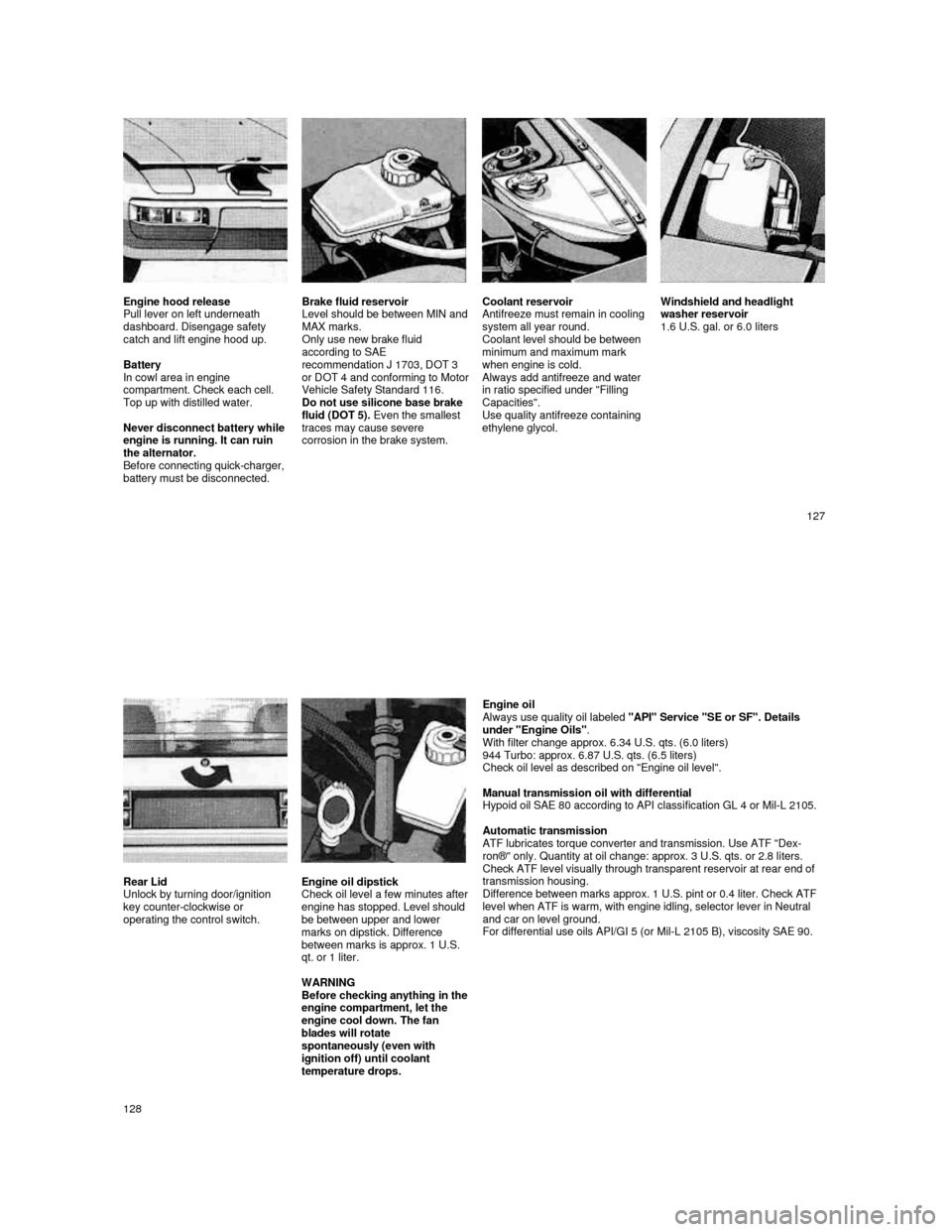

Engine hood release
Pull lever on left underneath
dashboard. Disengage safety
catch and lift engine hood up.
Battery
In cowl area in engine
compartment. Check each cell.
Top up with distilled water.
Never disconnect battery while
engine is running. It can ruin
the alternator.
Before connecting quick-charger,
battery must be disconnected. Brake fluid reservoir
Level should be between MIN and MAX marks.
Only use new brake fluid
according to SAE
recommendation J 1703, DOT 3
or DOT 4 and conforming to Motor Vehicle Safety Standard 116.
Do not use silicone base brake
fluid (DOT 5). Even the smallest
traces may cause severe
corrosion in the brake system.
Coolant reservoir
Antifreeze must remain in cooling
system all year round.
Coolant level should be between
minimum and maximum mark
when engine is cold. Always add antifreeze and water in ratio specified under "Filling
Capacities".
Use quality antifreeze containing
ethylene glycol.
Windshield and headlight
washer reservoir

1.6 U.S. gal. or 6.0 liters
127


Rear Lid
Unlock by turning door/ignition
key counter-clockwise or
operating the control switch.


Engine oil dipstick

Check oil level a few minutes after engine has stopped. Level should
be between upper and lower
marks on dipstick. Difference
between marks is approx. 1 U.S.
qt. or 1 liter.
WARNING
Before checking anything in
the engine compartment, let the
engine cool down. The fan
blades will rotate
spontaneously (even with
ignition off) until coolant
temperature drops.
Engine oil Always use quality oil labeled "API" Service "SE or SF". Details
under "Engine Oils" .
With filter change approx. 6.34 U.S. qts. (6.0 lite rs)
944 Turbo: approx. 6.87 U.S. qts. (6.5 liters)
Check oil level as described on "Engine oil level".

Manual transmission oil with differential
Hypoid oil SAE 80 according to API classification G L 4 or Mil-L 2105.

Automatic transmission
ATF lubricates torque converter and transmission. U se ATF "Dex-
ron®" only. Quantity at oil change: approx. 3 U.S. qts. or 2.8 liters.
Check ATF level visually through transparent reserv oir at rear end of
transmission housing.
Difference between marks approx. 1 U.S. pint or 0.4 liter. Check ATF
level when ATF is warm, with engine idling, selecto r lever in Neutral
and car on level ground.
For differential use oils API/GI 5 (or Mil-L 2105 B ), viscosity SAE 90.


128

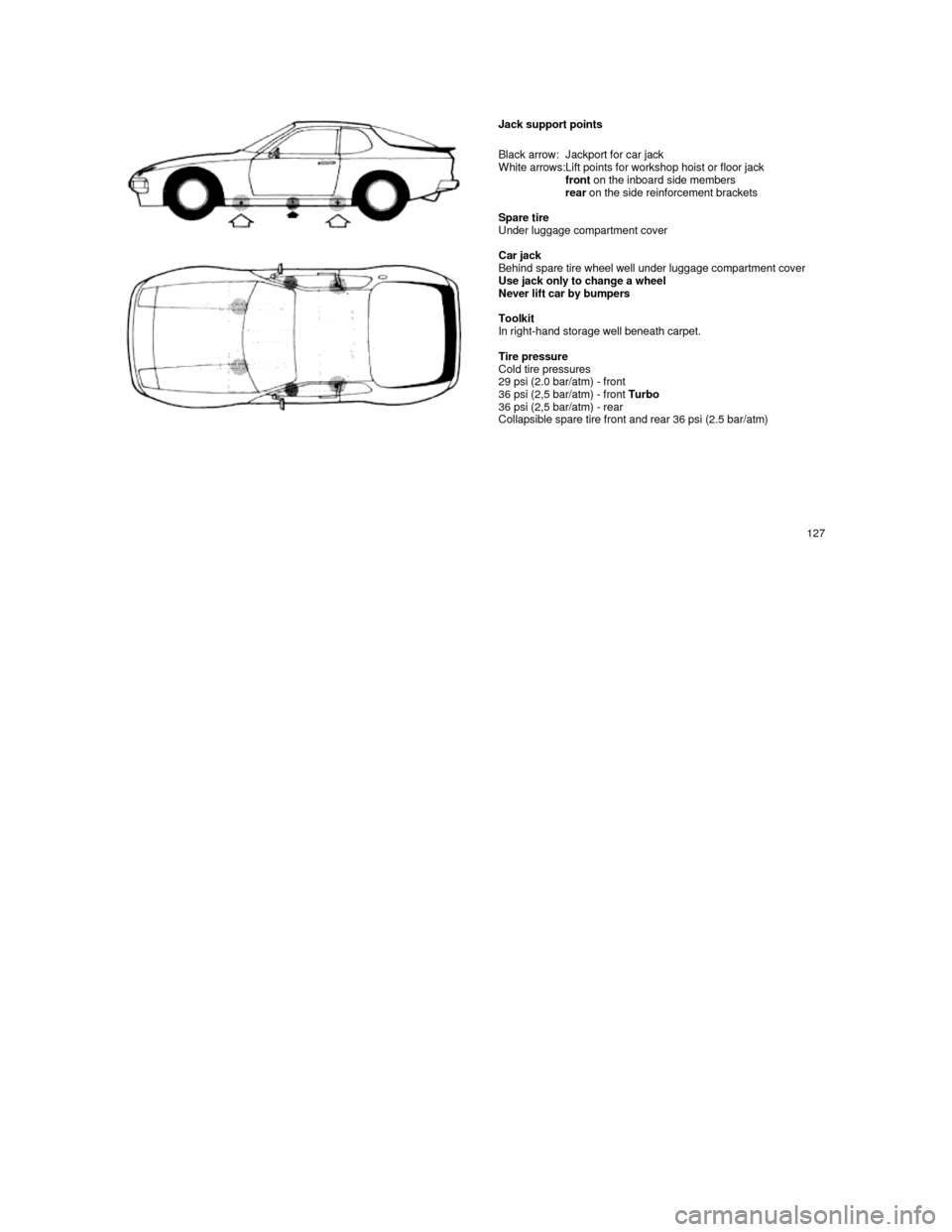

Jack support points
Black arrow:
White arrows:Jackport for car jack Lift points for workshop hoist or floor jackfront on the inboard side members rear on the side reinforcement brackets
Spare tire
Under luggage compartment cover
Car jack
Behind spare tire wheel well under luggage compartm ent cover
Use jack only to change a wheel
Never lift car by bumpers
Toolkit
In right-hand storage well beneath carpet.
Tire pressure
Cold tire pressures
29 psi (2.0 bar/atm) - front
36 psi (2,5 bar/atm) - front Turbo
36 psi (2,5 bar/atm) - rear
Collapsible spare tire front and rear 36 psi (2.5 b ar/atm)
127
