A-Automaticspeedcontrolreadinessoff/on1-+SPEED/SET(accelerate/store)2--SPEED(decelerate)3-OFF(interrupt)4-RESUME
AutomaticSpeedControl
Function
Theautomaticspeedcontrolmaintainsanyselectedspeedbetween15mphand145mph(30km/hand240km/h)withoutyouhavingtousetheacceleratorpedal.Theautomaticspeedcontrolisoperatedwiththeleveronthesteeringwheel.
Warning!
Riskofanaccident,resultinginseriouspersonalinjuryordeath.Aconstantspeedmaynotbesafeinheavytrafc,oronwindingorslipperyroads.Withthespeedcontrolsystemengaged,theenginespeedwillnotreturntoidlewhenremovingthefootfromtheacceleratorpedal.
Donotusethespeedcontrolwhenitmaybeunsafetokeepthecarataconstantspeed.
Observealllocalandnationalspeedlimits.
VehicleswithTiptronicS
Additionaldownshiftsarecarriedouttohelpmaintainthepre-selectedspeed(especiallywhendrivingdownhill).
Switchautomaticspeedcontrolreadiness
on
PressbuttonAontheautomaticspeedcontrollever.
Thisgreenindicatorlightinthespeedom-eternowindicatesreadiness.
Holdandstorespeed
Bringthecartothedesiredspeedwiththeaccelerator.
Thenbrieflypushtheoperatingleverforward(position1).
Controls,Instruments149

Accelerating(e.g.toovertake)
Option1
Increasethespeedasusualwiththeacceler-ator.Whenyoueaseofftheaccelerator,thepreviouslysavedvalueissetagain.
Option2
Pushoperatingleverforward(position1)untilthedesiredspeedisreached.Thespeedreachedismaintainedandstoredwhentheleverisreleased.
Option3
Pushleverslightlyforwards(position1)(amaximumof10times).Thespeedisincreasedby1mph(1.6km/h)eachtime.
Noteonoperation
Speedcontroloperationisautomaticallyinterrupt-edifthespeedisincreasedbymorethanapprox.16mph(25km/h)forlongerthan20seconds.
Decelerating
Option1
Pulloperatinglevertowardsthesteeringwheel(position2)untilthedesiredspeedisreached.Thespeedreachedismaintainedandstoredwhentheleverisreleased.
Option2
Brieflymovelevertowardsthesteeringwheel(position2)(amaximumof10times).Thespeedisreducedby1mph(1.6km/h)eachtime.
VehicleswithTiptronicS
Additionaldownshiftsarecarriedouttoimprovedeceleration(especiallywhendrivingdownhill).
Interruptingautomaticspeedcontrol
operation
Manualinterruption
Pulloperatingleverdownwardsbriefly(position3)or
Operatebrakeorclutchpedalor
SwitchTiptronictransmissiontoselectorleverpositionN.
Pleaseobservethechapter”TIPTRONICS”onpage187.
Thespeeddrivenbeforetheinterruptionremainsstoredinthememory.
Automaticspeedcontroloperationis
interruptedautomatically:
–Ifthesetvehiclespeedisexceededbymorethanapprox.16mph(25km/h)forlongerthan20seconds.
–Iftheactualvehiclespeedfallstoapprox.6mph(10km/h)belowthesetvehiclespeedforlongerthan5seconds(upwardslopes).
–ForPSMcontroloperations.
Resumingthestoredspeed
Brieflypushoperatingleverupwards(position4).Thespeedcontrolaccelerates/deceler-atesthevehicletothestoredspeed.
150Controls,Instruments

Thestoredspeedshouldonlyberecalledwhentrafficconditionsandtheroadsurfacesopermit.
Switchingautomaticspeedcontrol
readinessoff
PressbuttonAontheautomaticspeedcontrollever.Thegreenreadinesslightinthespeedometergoesoff.
Whenthevehicleisparkedandtheignitionswitchedoff,thememoryiscleared.
Note
Onupwardordownwardslopes,thesetspeedcannotalwaysbemaintainedbytheautomaticspeedcontrol.
Toobtainsufficientenginebrakingorabetterengine-speedrange,therefore,youhavetoselectalowergear.
Controls,Instruments151

A-SeatheatingB-DefrostingthewindshieldC-Recirculating-airbuttonD-TemperaturesensorE-ECObutton(air-conditioningcompressoroff/on)F-HeatedrearwindowG-TemperaturebuttonH-ACmaxI-AirdistributiontofootwellJ-AirdistributiontocentralandsideventsK-AirdistributiontowindshieldL-Blowerspeedbutton
Airconditioning
Thedisplaypanelshowsthefollowing
Airquantity,airdistribution,andtemperaturecanbesetonthecontrolpanel.
–Temperature
–Air-conditioningcompressoron/off
–Blowerspeed
–ACmax
–Airdistribution
Settingtemperature
PressbuttonGupwardsordownwardsrespectively.
Theselectedtemperatureisshownonthedisplaybyabardisplay.
Ifabarcannotbeseen,thetemperatureissettomaximumcold.
Ifallbarscanbeseen,thetemperatureissettomaximumwarm.
Note
Formaximumcooling,activateACmaxbuttonH.
Adjustingblowerspeed
PressbuttonLupwardsordownwardsrespectively.
Theblowerspeedisshownonthedisplaybyabardisplay.
Thecompressorisswitchedoffatlowblowerspeeds.
152Controls,Instruments

Defrostingthewindshield
PressbuttonB(switchonoroff).Thelight-emittingdiodeinthebuttonlightsup.Thewindshieldisdemistedordefrostedasquicklyaspossible.Airflowstothewindshieldonly.
Recirculating-airsetting
Function
Theoutside-airsupplyisinterruptedandonlytheinsideairiscirculated.
Warning!
Riskofaccidentduetoimpairedvision,resultinginseriouspersonalinjuryordeath.Inrecirculating-airsetting,thewindowsmayfogup.
Onlyselectrecirculating-airsettingforshortperiods.
Ifthewindowsfogup,switchrecirculating-airsettingoffimmediatelybypressingtherecirculating-airbuttonagainandselectthe“Defrostwindshield”function.
Switchingcirculating-airmodeonoroff
Presscirculating-airbuttonC.Thelight-emittingdiodeinthebuttonlightsup.
ECO-switchingtheair-conditioning
compressoronandoff
Theairconditioningcompressorswitchesoffautomaticallyattemperaturesbelowapprox.37°F/3°Candcannotbeswitchedon,evenmanually.
Wheneveroutsidetemperaturesexceedapprox.37°F/3°C,theair-conditioningcompressorcanbeswitchedonoroffmanually.
Thecompressorcanbeswitchedoffmanualtosavefuel.
PressECObuttonE.Thelight-emittingdiodeinthebuttonlightsup.Thecompressorisswitchedoff.
Iftheinteriortemperatureistoohigh,switchonthecompressoragain.
Todryincomingairindampweather,donotswitchofftheair-conditioningcompressor.Thispreventsmistingofwindows.
ACmaxoperation
InACmaxoperation,theinteriorofyourvehicleiscooledasquicklyaspossible.
PressACmaxbuttonH.Thelight-emittingdiodeinthebuttonlightsup.
Controls,Instruments153

Airdistribution
Settings
Theindividualairdistributionscanbecombinedasdesired.Ifanairdistributionisnotselected,nosymbolappearsinthedisplaypanel.Airflowsthenfromallventsaswellastothewindshield.
RecommendedsettinginSummer-Airdistributiontocentralandsidevents
RecommendedsettinginWinter-Airdistributiontofootwellandwindshield
Airdistributiontofootwell
PressbuttonI.Theselectionappearsonthedisplaypanel.Theairflowstothefootwell.
Airdistributiontocenterandside
vents
PressbuttonJ.Theselectionappearsonthedisplaypanel.Theairflowsfromthecentralandsidevents.Ventsmustbeopen.
Airdistributiontowindshield
PressbuttonK.Theselectionappearsonthedisplaypanel.Theairflowstothewindshield.
Informationonair-conditioning
compressor
–Mayswitchoffbrieflytoensuresufficientenginecoolingiftheengineisoperatingunderextremeload.
–Theairconditioningcompressorswitchesoffautomaticallyattemperaturesbelowapprox.37°F/3°Candcannotbeswitchedon,evenmanually.
–Operatesmosteffectivelywiththewindowsclosed.Ifthevehiclehasbeeninthesunforalongtime,itisagoodideatoventilatetheinteriorbrieflywiththewindowsopen.
–Dependingontheoutsidetemperatureandhumidity,condensationcandripfromtheevaporatorandformapoolunderthecar.Thisisnormalandnotasignofleakage.
Ifuncooledairflowsoutwhenthelowesttemperaturehasbeenset,switchofftheairconditioningcompressorandhavethefaultremedied.PleasecontactyourauthorizedPorschedealerforfurtherinformation.
154Controls,Instruments

A-Seatheating,leftB-DefrostingthewindshieldC-Recirculating-airbuttonD-TemperaturesensorE-ECObutton(air-conditioningcompressoroff/on)F-Heatedrearwindow/doormirrorheatingG-Seatheater,rightH-TemperaturebuttonI-AUTObutton(automaticmode)J-AirdistributiontofootwellK-AirdistributiontocentralandsideventsL-AirdistributiontowindshieldM-Blowerspeedbutton
Automaticairconditioningsystem
Automaticmode
Theautomaticair-conditioningsystemcontrolsthepreselectedinteriortemperaturecompletelyautomatically.Ifnecessary,theautomaticsystemcanbemanuallyinfluenced.
PressAUTObuttonI.AUTOwillappearonthedisplaypanel.Airquantityanddistributionareautomaticallycontrolledandvariationsarecompensated.
Allautomaticsettingfunctionscanbeindividuallychanged.Thissettingisretaineduntiltheappropri-atefunctionbuttonispressedagainortheAUTObuttonispressed.
Settingtemperature
PressbuttonHupwardsordownwardsrespectively.
Tosuitpersonalcomfort,theinteriortem-peraturecanbeadjustedbetween61°Fand85°F/16°Cand29.5°C.
Recommendation:72F/22C.
If“LO”or“HI”appearsonthedisplay,thesystemisoperatingatmaximumcoolingorheatingpower.Automaticcontrolisnolongeractive.
Controls,Instruments155

Note
Ifthepreselectedtemperatureischanged,theblowerspeedcanincreaseautomaticallyinautomaticmode.Thedesiredtemperatureisreachedmorequicklythisway.
Sensors
Toavoidaffectingtheperformanceoftheair-condi-tioningsystem:
DonotcoverthesunsensorontheinstrumentpanelorthetemperaturesensorD.
Defrostingthewindshield
PressbuttonB(switchonoroff).Thewind-shieldisdemistedordefrostedasquicklyaspossible.Airflowstothewindshieldonly.Thelight-emittingdiodeinthebuttonlightsup.
ECO-switchingcompressorfor
air-conditioningsystemonandoff
Theairconditioningcompressorswitchesoffautomaticallyattemperaturesbelowapprox.37°F/3°Candcannotbeswitchedon,evenmanually.
Wheneveroutsidetemperaturesexceedapprox.37°F/3°C,theair-conditioningcompressorisalwaysswitchedoninautomaticmode.
Thecompressorcanbeswitchedoffmanuallytosavefuel,butcontrolcomfortisthenlimited:
PressECObuttonE.Thecompressorisswitchedoff.Thelight-emittingdiodeinthebuttonlightsup.
Iftheinteriortemperatureistoohigh,switchcompressorbackonorpressAUTObutton.
Todryincomingairindampweather,donotswitchofftheair-conditioningcompressor.Thispreventsmistingofwindows.
Adjustingblowerspeed
PressbuttonMupwardsordownwardsrespectively.Thepresetblowerspeedisincreasedordecreased.
Thespeedstagesareindicatedbyabardisplay.
Thecompressorisswitchedoffatlowblowerspeeds.
Ifthebuttonispresseddownwardsatthelowestblowerstage,theblowerandautomaticcontrolareswitchedoff.“OFF”willappearonthedisplayfield.
PressingthebuttonupwardsorpressingtheAUTObuttonswitchestheblowerandautomaticcontrolbackonagain.
Recirculating-airsetting
Function
Theoutside-airsupplyisinterruptedandonlytheinsideairiscirculated.
Warning!
Riskofaccidentduetoimpairedvision,resultinginseriouspersonalinjuryordeath.Inrecirculating-airsetting,thewindowsmayfogup.
Onlyselectrecirculating-airsettingforshortperiods.
Ifthewindowsfogup,switchrecirculating-airsettingoffimmediatelybypressingtherecirculating-airbuttonagainandselectthe“Defrostwindshield”function.
Switchingrecirculating-airsettingonoroff
PressbuttonC.Thelight-emittingdiodeinthebuttonlightsup.
Overapprox.37°F/3°C
Iftheair-conditioningcompressorwasoff,itswitchesonautomatically.Thedurationofrecirculating-airsettingisnotlimited.
156Controls,Instruments

Belowapprox.37°F/3°C
Theair-conditioningcompressorisswitchedoff.Recirculating-airsettingisautomaticallyendedafterapprox.3minutes.
Airdistribution
Settings
Theindividualairdistributionscanbecombinedasdesired.
RecommendedsettinginSummer-Airdistributiontocentralandsidevents
RecommendedsettinginWinter-Airdistributiontofootwellandwindshield
Airdistributiontofootwell
PressbuttonJ.Theairflowstothefootwell.Theselectionappearsonthedisplaypanel.
Airdistributiontocenterandside
vents
PressbuttonK.Theairflowsfromthecentralandsidevents.Ventsmustbeopen.Theselectionappearsonthedisplaypanel.
Airdistributiontowindshield
PressbuttonL.Theairflowstothewindshield.Theselectionappearsonthedisplaypanel.
Noteonoperation
OnvehicleswiththeSportChronoPackagePlus,individualairconditioningsettingscanbestoredonyourcarkey.Pleaseobservethe
chapter“IndividualMemory”intheseparatePCMoperatinginstructions.
Informationonair-conditioning
compressor
–Mayswitchoffbrieflytoensuresufficientenginecoolingiftheengineisoperatingunderextremeload.
–Theairconditioningcompressorswitchesoffautomaticallyattemperaturesbelowapprox.37°F/3°Candcannotbeswitchedon,evenmanually.
–Operatesmosteffectivelywiththewindowsclosed.Ifthevehiclehasbeeninthesunforalongtime,itisagoodideatoventilatetheinteriorbrieflywiththewindowsopen.
–Dependingontheoutsidetemperatureandhumidity,condensationcandripfromtheevaporatorandformapoolunderthecar.Thisisnormalandnotasignofleakage.
Ifuncooledairflowsoutwhenthelowesttemperaturehasbeenset,switchofftheairconditioningcompressorandhavethefaultremedied.PleasecontactyourauthorizedPorschedealerforfurtherinformation.
Controls,Instruments157

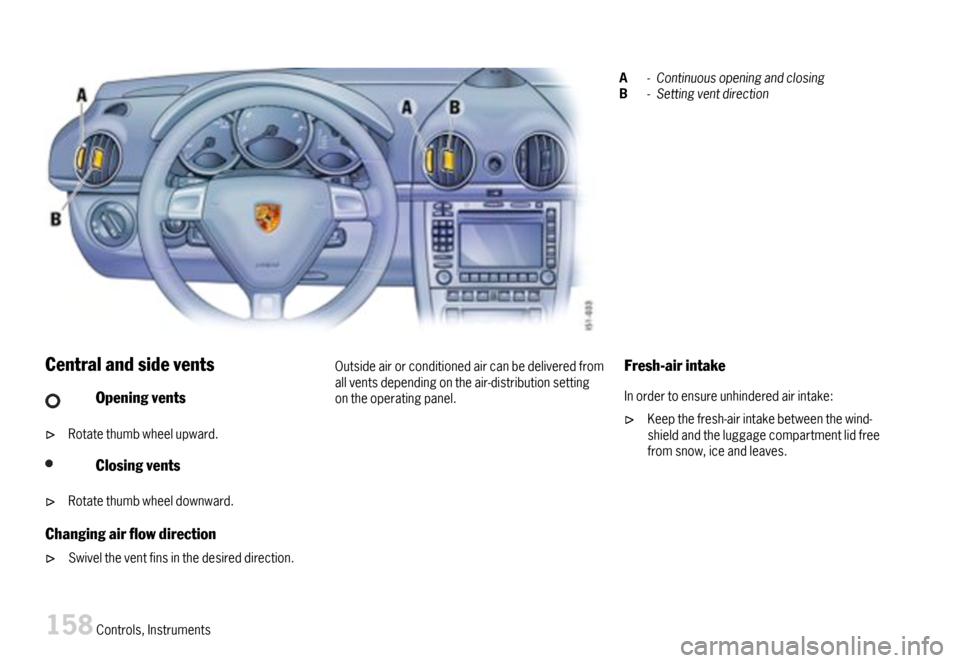

A-ContinuousopeningandclosingB-Settingventdirection
Centralandsidevents
Openingvents
Rotatethumbwheelupward.
Closingvents
Rotatethumbwheeldownward.
Changingairowdirection
Swiveltheventfinsinthedesireddirection.
Outsideairorconditionedaircanbedeliveredfromallventsdependingontheair-distributionsettingontheoperatingpanel.
Fresh-airintake
Inordertoensureunhinderedairintake:
Keepthefresh-airintakebetweenthewind-shieldandtheluggagecompartmentlidfreefromsnow,iceandleaves.
158Controls,Instruments
