Rearjackingpoint
Danger!
Seriouspersonalinjuryordeathand/orseriousdamagetotheengineorthevehiclemayoccur,ifyouliftthevehicleimproperly.
Neverliftthevehicleatanyotherplacethanthejackingpoints.
Neverliftthevehiclebytheengine,transmis-sionoraxles.
Donotdamageanysensitivecomponentsinthevicinityofthejackingpoints.
Platformlift
Beforethecarisdrivenontoaliftingplatform,itmustbeensuredthatthereisenoughspacebetweentheliftingplatformandthevehicle.
Garagelift
Agarageliftmaybeusedonlyattheillustratedjackingpoints.
PracticalTips,EmergencyService259

WheelBolts
Danger!
Riskofwheelboltbreakageandwheelseparation,resultinginseriouspersonalinjuryordeath.
Followallinstructionsconcerningwheelbolts.
Alwayscleanthewheelboltsbeforefitting.
ApplyathincoatofOptimolyTA(aluminumpaste)onthethreadandbetweentheboltheadandmovablesphericalcapring(arrows).Thebearingsurfaceofthesphericalcapfacingthewheelmustnotbegreased.
Replacedamagedwheelbolts.OnlyusetheOriginalPorschewheelboltsspeciallydesignedforthisvehicletype.
Tighteningtorque
Tighteningtorqueofwheelbolts:130Nm/96ftlb.
WheelSecuringBolts
Ifthewheelshavetoberemovedattheworkshop,pleasedonotforgettohandoverthewrenchsocketforthewheelsecuringboltsalongwiththecarkey.
Thewrenchsocketforthewheelsecuringboltsisinthetoolbox.
Toloosenortightenthewheelboltwithanti-theftprotection,awrenchsocketwiththeappropriatecodingmustbeusedbetweenthewheelboltandthewheel-boltspanner.
Whenpositioningthewrenchsocket,ensurethatitengagesfullyintheteethofthewheelbolt.
260PracticalTips,EmergencyService

Changingawheel
Danger!
Riskofseriouspersonalinjuryordeath.Thecarmayslipoffthejack.
Makesurethatnooneisinthevehiclewhenjackingupandchangingawheel.
Alwaysplacethecaronstablesupportsifworkhastobecarriedoutunderthecar.
Warning!
RiskofdamagetothebrakediscsofthePorscheCeramicCompositeBrake(PCCB).
Alwaysscrewinbothassemblyaidswhenchangingawheel.
Note
Thetoolsrequiredforchangingawheel(e.g.jack,wheelboltwrench,assemblyaids)arenotsuppliedwiththecar.TheyareavailableatyourauthorizedPorschedealer.
1.Fullyapplythehandbrake,engage1stgearorselectpositionPandwithdrawtheignitionkey.
2.Securethecaragainstrollingaway,e.g.bymeansofwedgesunderthewheelsontheoppositeside.Thisisparticularlyimportantonslopes.
ScrewinassemblyaidforvehicleswithoutPorscheCeramicCompositeBrake
3.Slightlyslackenthewheelboltsofthewheeltobechanged.
4.Raisethecaruntilthewheelliftsofftheground.
Pleaseobservethechapter”LIFTINGTHEVEHICLEWITHALIFTINGPLATFORMORGARAGELIFT”onpage258.
ScrewintwoassemblyaidsforvehicleswithPorscheCeramicCompositeBrake
Noteonoperation
Toremoveormountthespacers:
Pleaseobservethechapter”SPACERS”onpage263.
5.Remove1or2wheelbolts(seerespectiveillustration).Screwinassemblyaidsinsteadofthewheelbolts.Removetheremainingwheelbolts.
6.Takethewheeloffandputanewwheelon.
PracticalTips,EmergencyService261

7.Screwinwheelbolts;removeassemblyaidsandscrewintheremainingwheelbolts.Initiallytightenboltsindiagonallyoppositesequencesothatthewheeliscentered.
Pleaseobservethechapter”WHEELBOLTS”onpage260.
8.Lowerthecarcompletely.
9.Tightenwheelboltsindiagonallyoppositesequence.
Immediatelyafterchangingawheel,useatorquewrenchtochecktheprescribedtighteningtorque(130Nm/96ftlb.).
Checkingtirepressurewithapressure
gauge
Pleaseobservethechapter”TPCTIREPRESSUREMONITORING”onpage119.
1.Removethevalvestemcapfromthetire.
2.Pressthepressuregaugeontothevalvestem.
Noteonoperation
Donotpresstoohardorforcethevalvestemsideways,orairwillescape.Ifthesoundofairescapingfromthetireisheard,repositionthepressuregauge.
3.Readthetirepressureonthegaugestemandcompareittothepermissibletirepressure.ThisinformationcanbefoundonthetirepressureplateintheleftdoorapertureorinthechapterTechnicalData.
Pleaseobservethechapter”TIREPRESSUREFORCOLDTIRES”onpage304.
4.Removethepressuregauge.
262PracticalTips,EmergencyService

Spacers
Generalinformationtotheuseofspacers
UsethespacersonlytogetherwithwheelsandfasteningpartsapprovedbyPorsche.Beforehavingspacersfitted,findoutaboutthecurrentauthorizationstatus.
Mountinganemergencysparewheel
If5mmspacersarefitted,thesemustnotberemovedtomountanemergencysparewheel.
Fittingsnowchains
Theuseofsnowchainsisnotpermittedwhen5mmspacersaremounted.
Caution!
Riskofdamagetowheelhousingsifthe5mmspacersarenotremovedbeforettingsnowchains.
Inordertoenablethefittingofsnowchains,havethe5mmspacersremovedonall4wheels.
Noteonoperation
Tofit/removethespacers:PleaseconsultanauthorizedPorschedealer.
Removing/mountingthespacers
Requiredscopeofpartsifthespacersare
removed
Shortcountersunkscrews(M6x12)PartNo:900.269.047.09
1setofshortwheelboltsPartNo:996.361.203.02
Shortanti-theftprotectiondevicesPartNo:996.361.057.01
PracticalTips,EmergencyService263

Removingthespacers
Pleaseobservethechapter”CHANGINGAWHEEL”onpage261.
1.Unscrewbothcountersunkscrews(M6x16)onthewheelhub.
2.Removethespacer.
3.FastenthebrakediscwiththeshortM6x12countersunkscrews,partNo.900.269.047.09.Tighteningtorque10Nm(7.5ftlb.).
4.Forwheelmountingwithoutaspacer,5mmshorterwheelbolts(partNo:996.361.203.02)mustbeused.Tighten-ingtorque130Nm(96ftlb.).
Mountingthespacers
Pleaseobservethechapter”CHANGINGAWHEEL”onpage261.
1.Removewheel
2.Unscrewbothcountersunkscrews(M6x12)onthebreakdisc.
3.FastenthespacerwiththelongM6x16countersunkscrews.Tighteningtorque10Nm(7.5ftlb.).
4.Fitwheel.Todothisusethelongerwheelboltsforfasteningthewheels.Tighteningtorque130Nm(96ftlb.).
Longwheelbolt,X-boltlengthapprox.50mm,Arrows-marks
Wheelboltidentifyingfeatures
ThelongwheelboltsareidentifiedonthefacesurfaceoftheboltheadwithGTorinred,orthemoveablesphericalcapringisgalvanisedinred.Thelongwheelboltsmustonlybeusedtogetherwith5mmspacersfitted.
Theshortwheelboltsarenotmarkedincolor.Theshortwheelboltsmustonlybeusedwithout5mmspacersfitted.
Tighteningtorqueforbothwheelbolts:130Nm(96ftlb.).
264PracticalTips,EmergencyService

ElectricalSystem
Generalinformation
Warning!
Riskofshortcircuitandre,resultinginseriouspersonalinjuryordeath.Replacingfusesorrelayswiththeenginerunningortheignitiononcouldcauseelectricalshock.
Disconnectedthebatteryduringallworkontheelectricalsystem.
Pleaseobservethechapter”BATTERY”onpage268.
Inordertoavoiddamageandfaultsinelectricalorelectronicsystems,electricalaccessoriesshouldbeinstalledatyourauthorizedPorschedealer.
OnlyuseaccessoriesauthorizedbyPorsche.
Relays
Defectiverelaysshouldbechangedonlybyanauthorizedworkshop.
Alarmsystem,centrallocking
Thestatusofthecentrallockingandalarmsystemisnotchangedbydisconnectingthebattery.Whenthebatteryisdisconnected,thealarmsystemceasestofunction.
Overloadprotection
Ifthecentrallockingsystemisoperatedmorethantentimeswithinaminute,furtheroperationisblockedfor30seconds.
Loadswitch-offafter2hoursor7days
Iftheignitionkeyisremoved,loadswhichareswitchedonorareinstandbymode(suchastheluggagecompartmentlight,interiorlightandradio)areautomaticallyswitchedoffafterapprox.2hours.
Ifthevehicleisnotstartedorunlockedwiththeremotecontrolwithin7days,theremotecontrolstandbyfunctionisswitchedoff(tosavethevehiclebattery).
1.Inthiscase,unlockthedriver’sdoorwiththekeyatthedoorlock.Leavethedoorclosedinordertopreventthealarmsystemfrombeingtriggered.
2.Pressbutton1ontheremotecontrol.
Theremotecontrolisnowactivatedagain.
A-Diagnosticsocket
Replacingfuses

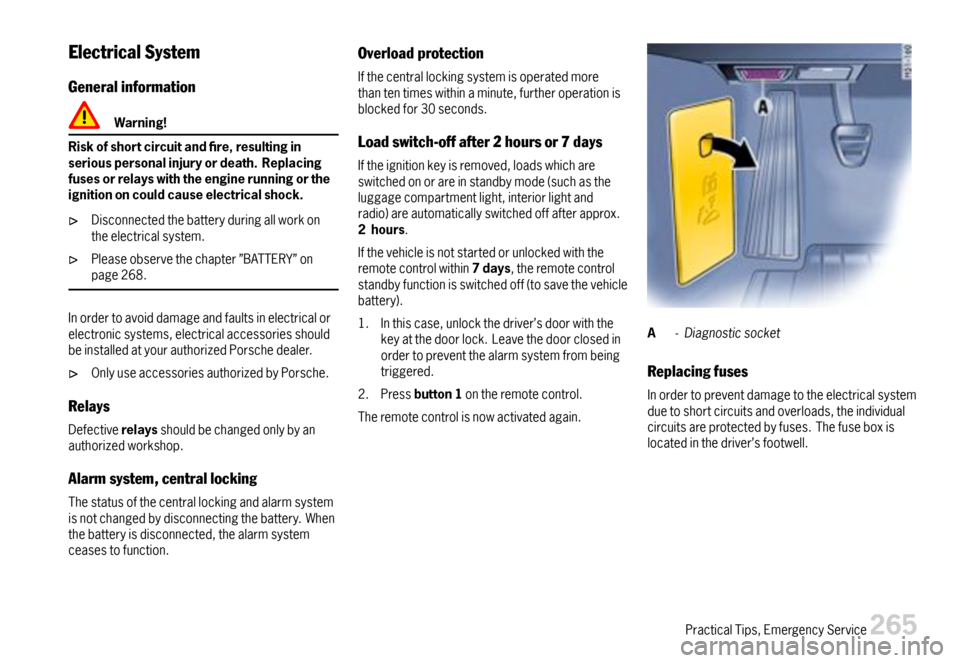

Inordertopreventdamagetotheelectricalsystemduetoshortcircuitsandoverloads,theindividualcircuitsareprotectedbyfuses.Thefuseboxislocatedinthedriver’sfootwell.
PracticalTips,EmergencyService265

A-PlasticgripperB-Sparefuses
1.Switchofftheloadwiththedefectivefuse.
2.Pulloffplasticcoveratthefingerhole(arrow).Thefuseplanandinstructionsforemer-gencyunlockingoftheluggagecompart-mentlidcanbefoundontheinnersideofthecover.
3.RemovethecorrespondingfusefromitsslotusingtheplasticgripperAinordertocheckit.Ablownfusecanbeidentifiedbythemeltedmetalstrip.
4.Replaceonlywithfusesofthesamerating.
Note
Ifafuseblowsrepeatedlyconsultanauthor-izedPorschedealer.
Nevertryto“repair”fuses:youmaycauseseriousdamagetootherpartsoftheelectricalsystem.
Emergencyunlockingofthefrontluggage
compartmentlid
Ifthebatteryisdischarged,thelidcanbeopenedonlywiththeaidofadonorbattery.
Unlockinglid

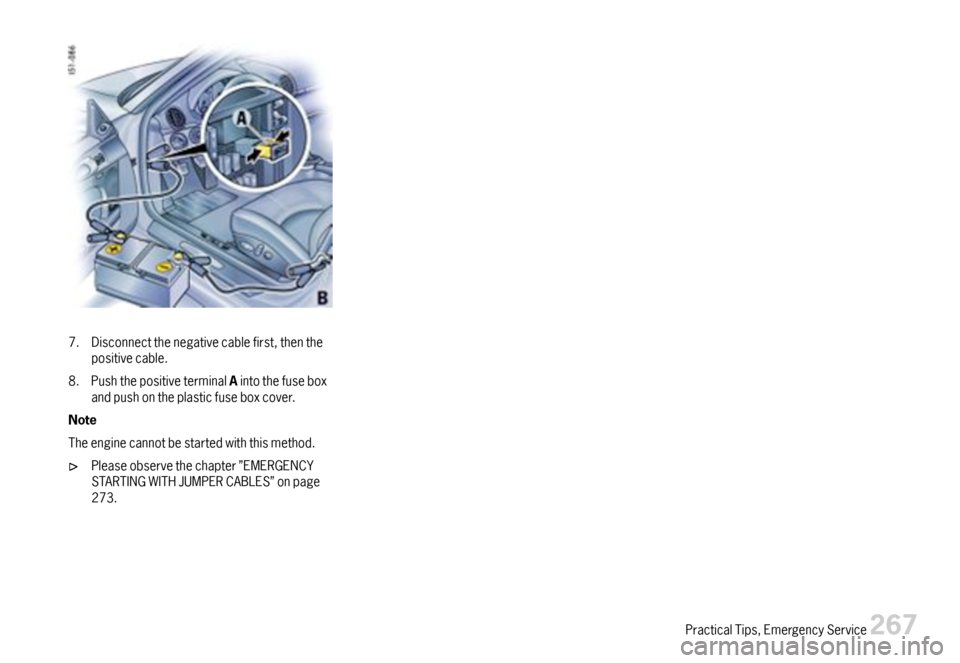

1.Usethekeytounlockthevehicleatthedoorlock.

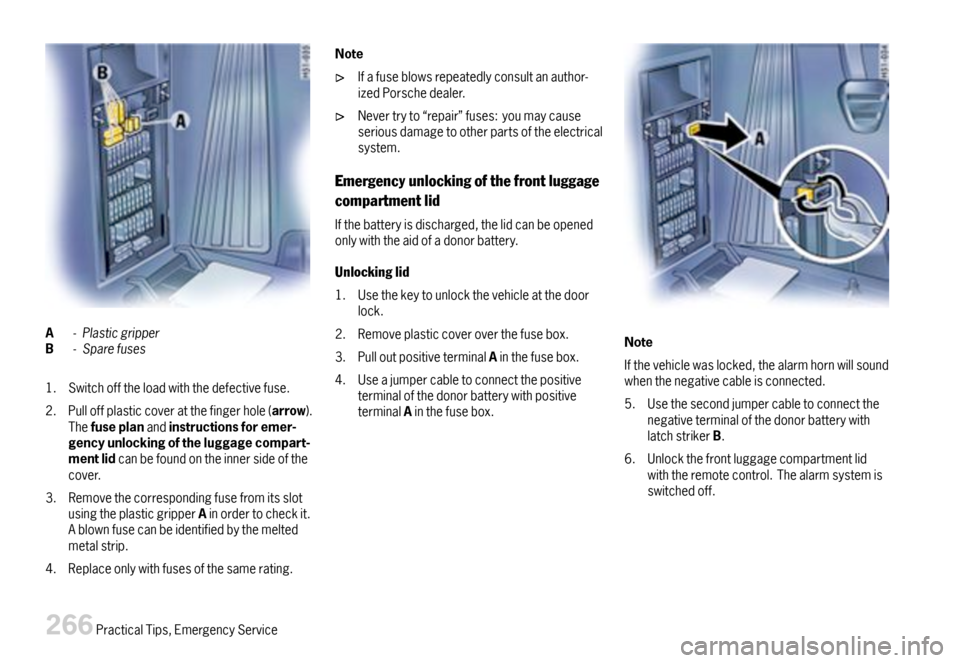

2.Removeplasticcoveroverthefusebox.
3.PulloutpositiveterminalAinthefusebox.
4.UseajumpercabletoconnectthepositiveterminalofthedonorbatterywithpositiveterminalAinthefusebox.
Note
Ifthevehiclewaslocked,thealarmhornwillsoundwhenthenegativecableisconnected.
5.UsethesecondjumpercabletoconnectthenegativeterminalofthedonorbatterywithlatchstrikerB.
6.Unlockthefrontluggagecompartmentlidwiththeremotecontrol.Thealarmsystemisswitchedoff.
266PracticalTips,EmergencyService

7.Disconnectthenegativecablefirst,thenthepositivecable.
8.PushthepositiveterminalAintothefuseboxandpushontheplasticfuseboxcover.
Note
Theenginecannotbestartedwiththismethod.
Pleaseobservethechapter”EMERGENCYSTARTINGWITHJUMPERCABLES”onpage273.
PracticalTips,EmergencyService267

Battery
Warning!
Riskofshortcircuitandre,resultinginseriouspersonalinjuryordeath.
Observeallwarningnotesonthebattery.
Disconnectthebatteryduringallworkontheelectricalsystem.
Donotlaytoolsorothermetalobjectsonthebatteryastheycouldcauseashortcircuitacrossthebatteryterminal.
Warning!
Hydrogengasgeneratedbythebatterycouldcauseanexplosion,resultinginseriouspersonalinjuryordeath.
Donotexposethebatterytoanopenflame,electricalsparkoralitcigarette.
Donotwipebatterywithadrycloth.
Warning!
Riskofseriouspersonalinjuryordeathanddamagetothefabric,metalorpaint.
Weareyeprotection.
Donotallowbatteryacidtocomeincontactwithyourskin,eyes,fabricorpaintedsurfac-es.
Ifyougetelectrolyte,whichisanacid,inyoureyesoronyourskin,immediatelyrinsewithcoldwaterforseveralminutesandcalladoctor.
Spilledelectrolytemustberinsedoffatoncewithasolutionofbakingsodaandwatertoneutralizetheacid.
Warning!
Batteryposts,terminalsandrelatedacces-soriescontainleadandleadcompounds,chemicalsknowntotheStateofCaliforniatocausecancerandreproductiveharm.
Alwaysprotectyourskinbywashingthorough-lywithsoapandwater.
Warning!
Riskofexplosionasaresultofstaticcharge,resultinginseriouspersonalinjuryordeath.
Donotwipethebatterywithadrycloth.
Eliminatepotentialelectrostaticchargebytouchingthevehiclebeforetouchingthebattery.
