PORSCHE BOXSTER 2007 2.G Owners Manual

Bi-Xenonheadlight:Changingbulbforlow
beamandhighbeam
1.Turntheplugcounter-clockwise(bayonetlock)andpullitoff.
2.DisengagebothfixingloopsA.
3.ReplacedefectivebulbB.Whendoingso,ensurebulbisseatedproperly.
4.EngagebothfixingloopsA,pushonplugandturnrightasfarasthestop.
PracticalTips,EmergencyService279

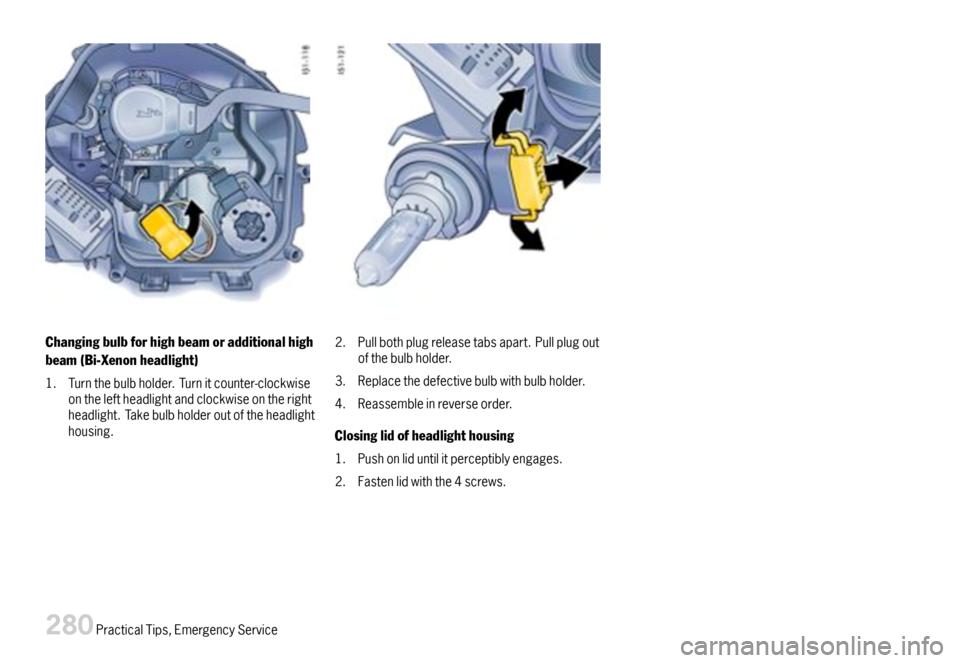

Changingbulbforhighbeamoradditionalhigh
beam(Bi-Xenonheadlight)
1.Turnthebulbholder.Turnitcounter-clockwiseontheleftheadlightandclockwiseontherightheadlight.Takebulbholderoutoftheheadlighthousing.
2.Pullbothplugreleasetabsapart.Pullplugoutofthebulbholder.
3.Replacethedefectivebulbwithbulbholder.
4.Reassembleinreverseorder.
Closinglidofheadlighthousing
1.Pushonliduntilitperceptiblyengages.
2.Fastenlidwiththe4screws.
280PracticalTips,EmergencyService

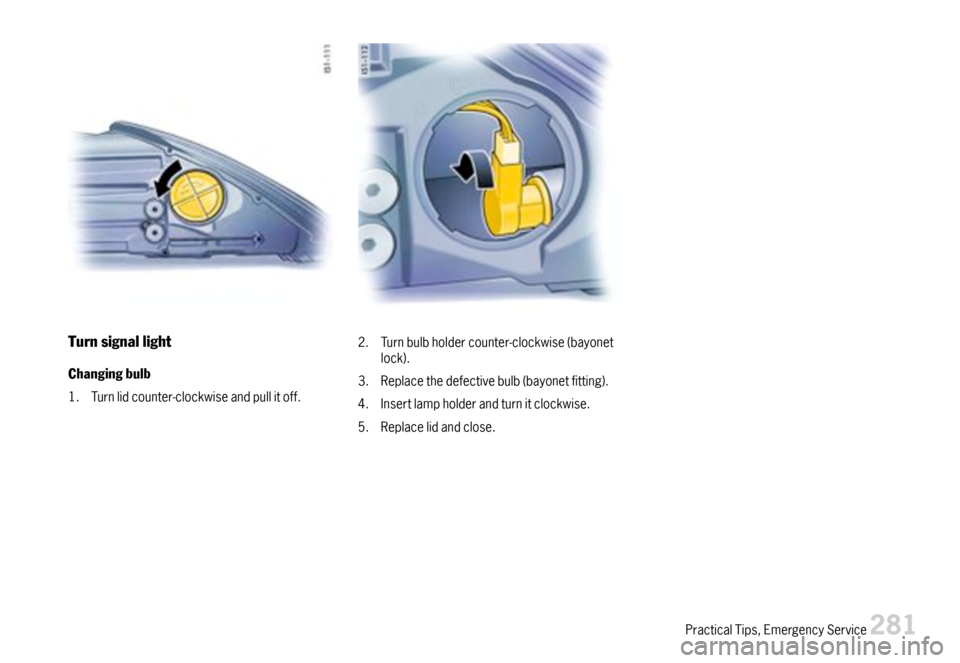

Turnsignallight
Changingbulb
1.Turnlidcounter-clockwiseandpullitoff.
2.Turnbulbholdercounter-clockwise(bayonetlock).
3.Replacethedefectivebulb(bayonetfitting).
4.Insertlampholderandturnitclockwise.
5.Replacelidandclose.
PracticalTips,EmergencyService281

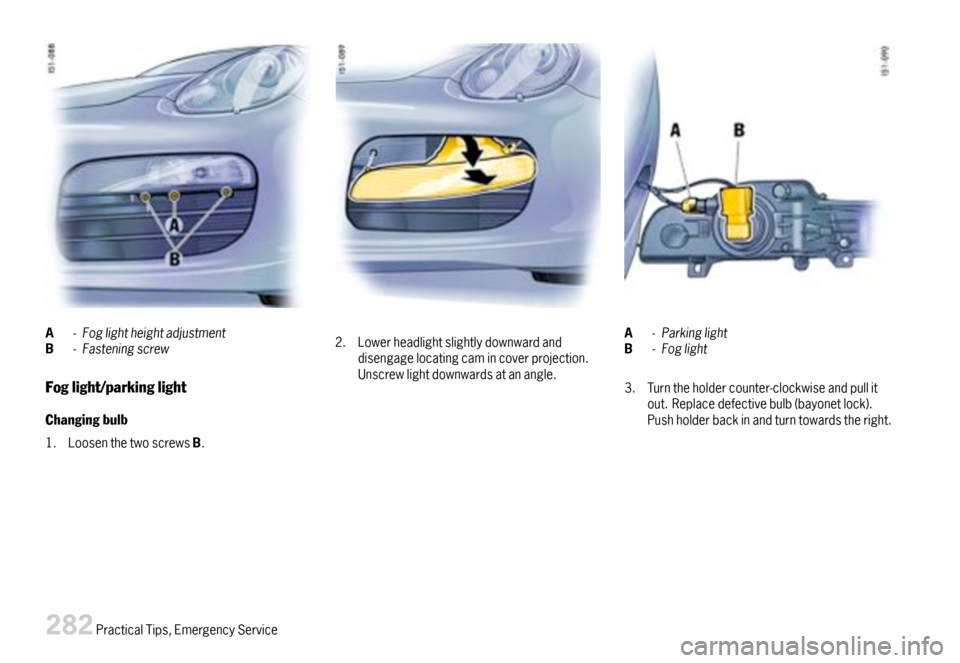

A-FoglightheightadjustmentB-Fasteningscrew
Foglight/parkinglight
Changingbulb
1.LoosenthetwoscrewsB.
2.Lowerheadlightslightlydownwardanddisengagelocatingcamincoverprojection.Unscrewlightdownwardsatanangle.
A-ParkinglightB-Foglight
3.Turntheholdercounter-clockwiseandpullitout.Replacedefectivebulb(bayonetlock).Pushholderbackinandturntowardstheright.
282PracticalTips,EmergencyService

4.Putguidepinofheadlightontheguiderail,engagelocatingcamincoverprojection,pressheadlighttotherearandpushupwarduntilitcanbefelttoengage.
5.Screwinbothscrews.
6.Checkoperationoftheheadlight.

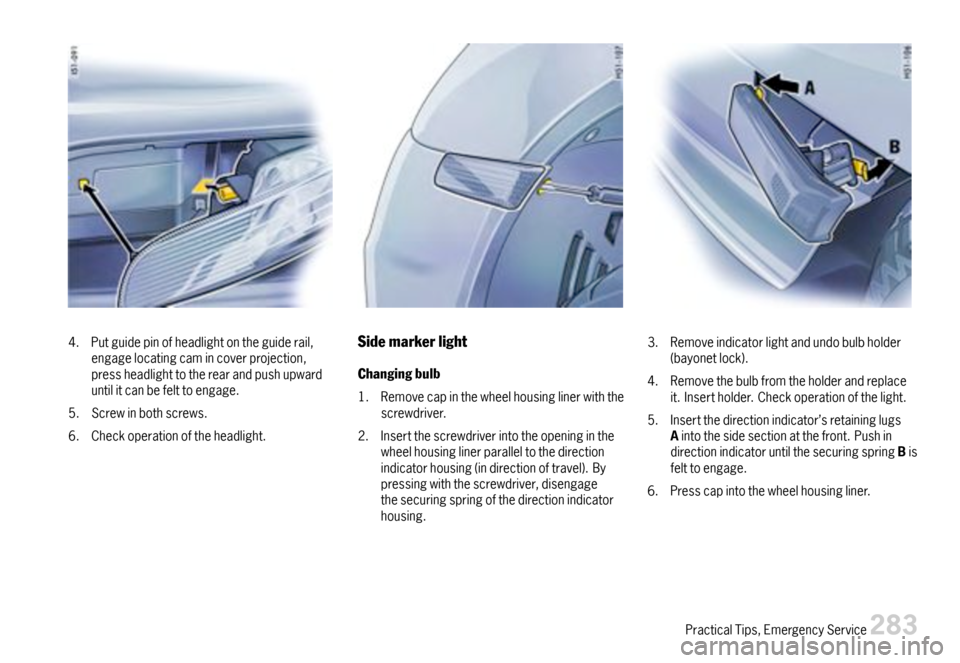

Sidemarkerlight
Changingbulb
1.Removecapinthewheelhousinglinerwiththescrewdriver.
2.Insertthescrewdriverintotheopeninginthewheelhousinglinerparalleltothedirectionindicatorhousing(indirectionoftravel).Bypressingwiththescrewdriver,disengagethesecuringspringofthedirectionindicatorhousing.
3.Removeindicatorlightandundobulbholder(bayonetlock).
4.Removethebulbfromtheholderandreplaceit.Insertholder.Checkoperationofthelight.
5.Insertthedirectionindicator’sretaininglugsAintothesidesectionatthefront.PushindirectionindicatoruntilthesecuringspringBisfelttoengage.
6.Presscapintothewheelhousingliner.
PracticalTips,EmergencyService283

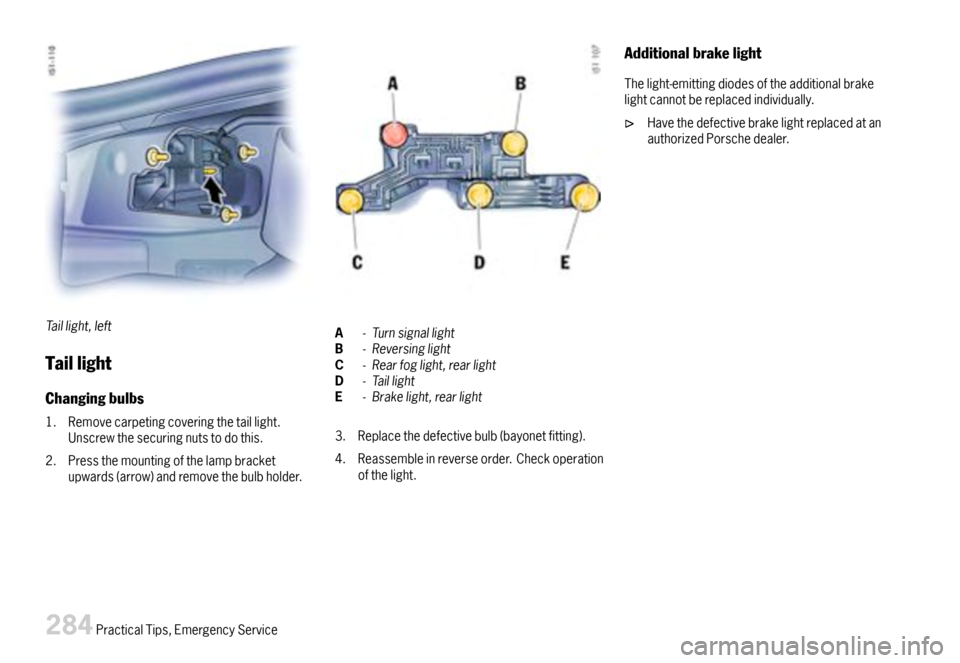

Taillight,left
Taillight
Changingbulbs
1.Removecarpetingcoveringthetaillight.Unscrewthesecuringnutstodothis.
2.Pressthemountingofthelampbracketupwards(arrow)andremovethebulbholder.
A-TurnsignallightB-ReversinglightC-Rearfoglight,rearlightD-TaillightE-Brakelight,rearlight
3.Replacethedefectivebulb(bayonetfitting).
4.Reassembleinreverseorder.Checkoperationofthelight.
Additionalbrakelight
Thelight-emittingdiodesoftheadditionalbrakelightcannotbereplacedindividually.
HavethedefectivebrakelightreplacedatanauthorizedPorschedealer.
284PracticalTips,EmergencyService

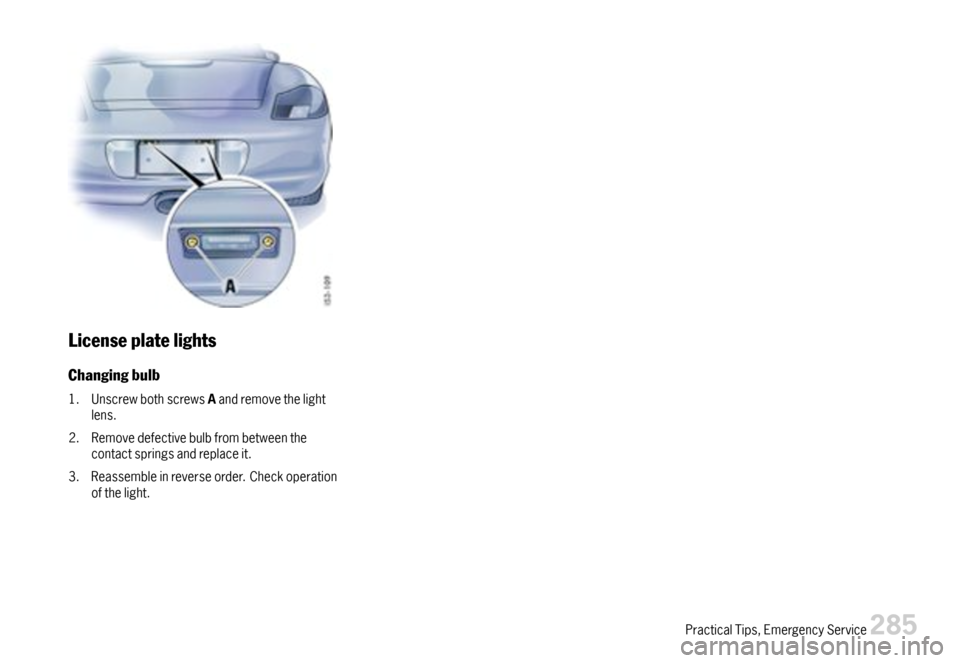

Licenseplatelights
Changingbulb
1.UnscrewbothscrewsAandremovethelightlens.
2.Removedefectivebulbfrombetweenthecontactspringsandreplaceit.
3.Reassembleinreverseorder.Checkoperationofthelight.
PracticalTips,EmergencyService285

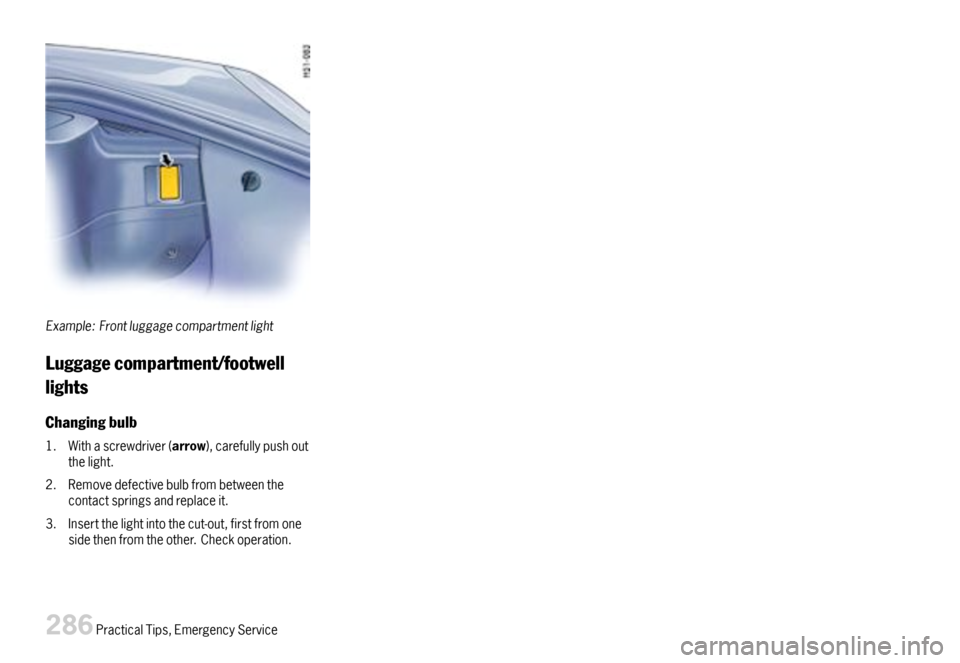

Example:Frontluggagecompartmentlight
Luggagecompartment/footwell
lights
Changingbulb
1.Withascrewdriver(arrow),carefullypushoutthelight.
2.Removedefectivebulbfrombetweenthecontactspringsandreplaceit.
3.Insertthelightintothecut-out,firstfromonesidethenfromtheother.Checkoperation.
286PracticalTips,EmergencyService

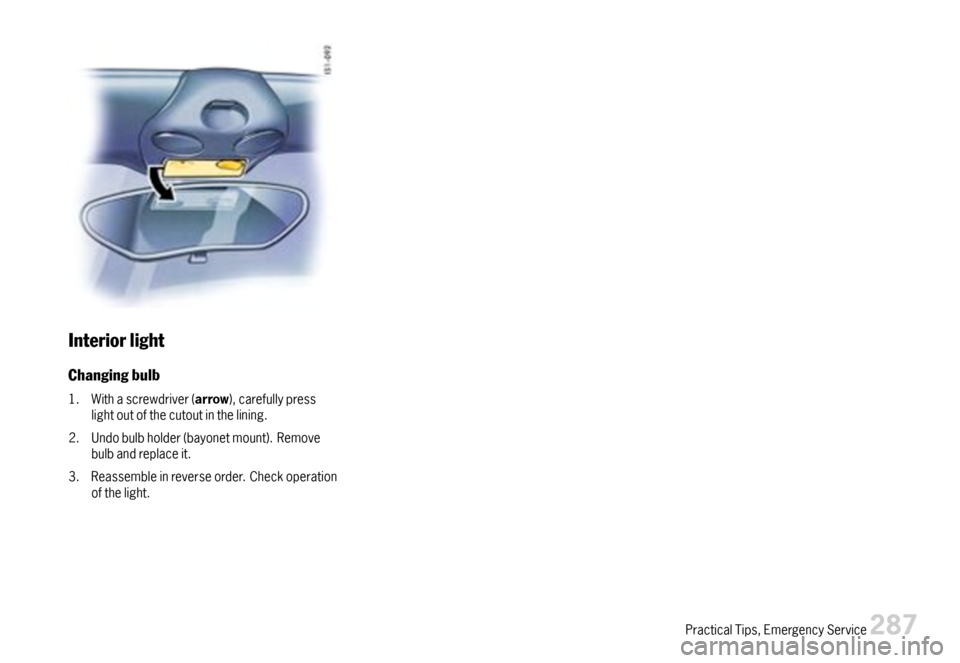

Interiorlight
Changingbulb
1.Withascrewdriver(arrow),carefullypresslightoutofthecutoutinthelining.
2.Undobulbholder(bayonetmount).Removebulbandreplaceit.
3.Reassembleinreverseorder.Checkoperationofthelight.
PracticalTips,EmergencyService287

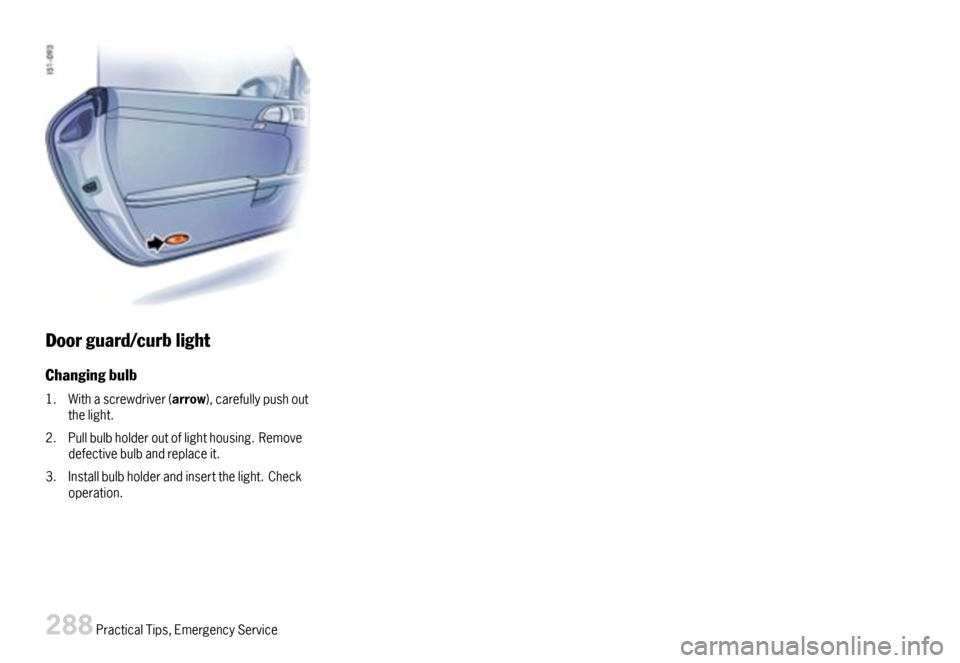

Doorguard/curblight
Changingbulb
1.Withascrewdriver(arrow),carefullypushoutthelight.
2.Pullbulbholderoutoflighthousing.Removedefectivebulbandreplaceit.
3.Installbulbholderandinsertthelight.Checkoperation.
288PracticalTips,EmergencyService
