AdjustingHeadlights
Adjustment
Pleaseobservethechapter”REPLACINGBULBS”onpage275.
Pleaseobservethechapter”TIREPRESSUREFORCOLDTIRES”onpage304.
Theadjustmentismadewiththevehiclereadytodriveandthefueltankcompletelyfilled.
Thedriver’sseatmustbeloadedbyapersonora165lbs.(75kg)weightandthetirepressuresmustmeettheprescribedvalues.Afterbeingloaded,
thecarmustberolledafewmeterssothatthesuspensioncansettle.
Forcheckingtheheadlightadjustment,theverticalpositionofthecutoffofthelowbeam(seefig.)hastobeprojectedonaverticalscreen(wall)indistanceof24.6ft.(7.5m)fromthefrontlensoftheheadlamp.Thecorrectpositionofthecutoffis2.0in.(5cm)at24.6ft.or7.5m(0.4°)belowahorizontalline,xin.fromgroundtothecenteroftheheadlamplens.
PracticalTips,EmergencyService289

Lateraladjustmentoftheheadlightsshouldbecarriedoutataspecialistworkshopwithanopticaladjustmentunit.
Distance
Visualaimshallbeperformedatnotlessthan24.6ft.(7.5m)(thisvalueisaroundeddownconversionfromthe25-footdistancetypicaloffieldaimusingascreen).The24.6ft.(7.5m)distanceismeasuredfromtheheadlamplenstotheviewingscreen.
Floor
Thesurfaceuponwhichthevehiclerestsisflatandapproximatelylevel.
Screen
Thescreenuponwhichheadlampbeamsareprojectedisperpendiculartothefloorandthevehicle’slongitudinalaxis,flat,uniformlylightincolor,unobstructed,andwideandhighenoughtoaccommodatethevehiclebeampatternstobeaimed.
Thescreenshouldbewideenoughtoprovideatleast3.3ft.(1m)ofspaceoutboardofthevehicle’sheadlampspacing.
Adjustmentscrews

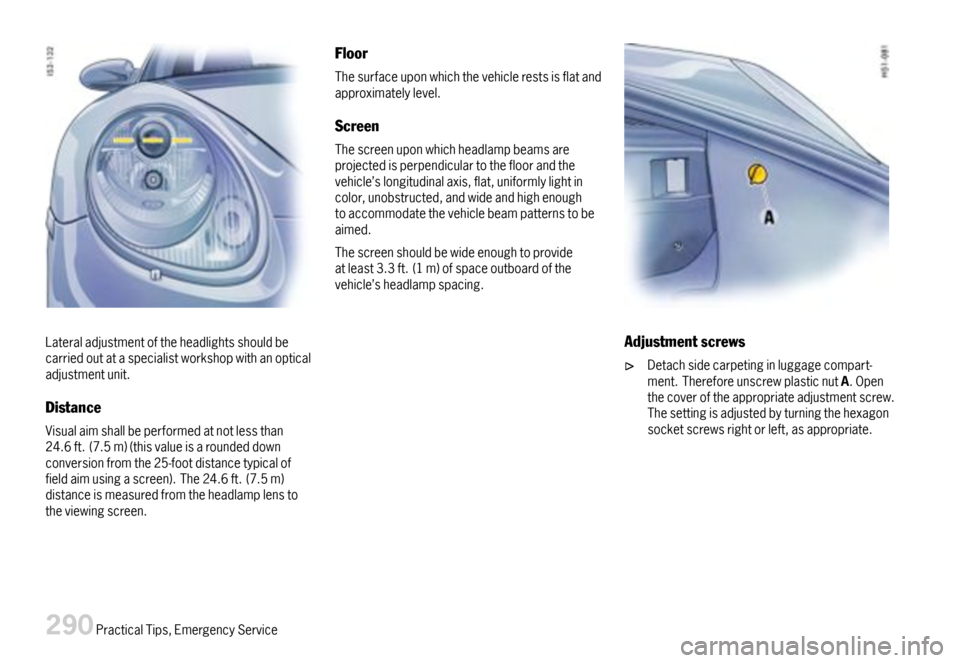

Detachsidecarpetinginluggagecompart-ment.ThereforeunscrewplasticnutA.Openthecoveroftheappropriateadjustmentscrew.Thesettingisadjustedbyturningthehexagonsocketscrewsrightorleft,asappropriate.
290PracticalTips,EmergencyService

B-Headlightverticaladjustment
Verticaladjustment(screwB)
turnclockwise=beammovesdown
turncounter-clockwise=beammovesup
Note
Donotalterthelateraladjustment.
PracticalTips,EmergencyService291

Towing
Certainstatestatutesandlocalordinancesprohibittowingwithachain,ropeorevenatowbar.Inaddition,damagetoyourvehiclemayresultfromimproperprocedures.ConsultyourauthorizedPorschedealerfordetails.
Vehicletowing
FlatbedtowingisthepreferredtypeoftowingtobeusedonPorschevehicles.Undercertaincircumstances,wheelliftsmaybeusedwhenthevehiclewillnotroll.Thevehiclemustbetowedwithallfourwheelsofftheground,otherwisedamagetothevehiclemayresult.
Towinghook
Thetowinghookisstoredinthetoolboxintheluggagecompartment.
Caution!
Riskofdamagetothevehicle.
Usethetowinghookonlyforanemergencytoremovethevehicleofftheroad.Thetowinghookistobeusedonlytopullthevehicleontotheflatbed,tractorortowingapparatusifthevehiclewillrollfreely.Undernocircumstancesisthevehicletobesecuredusingthetowinghook.
Neverusethetowinghooktotowthisoranyothervehicle.
Bearinmindthelimitedgroundclearenceofyourcaronunevensurfaces.
292PracticalTips,EmergencyService

Fittingtowinghook
Whenfittingontherearofthevehicle,thelicenseplatemustberemoved.

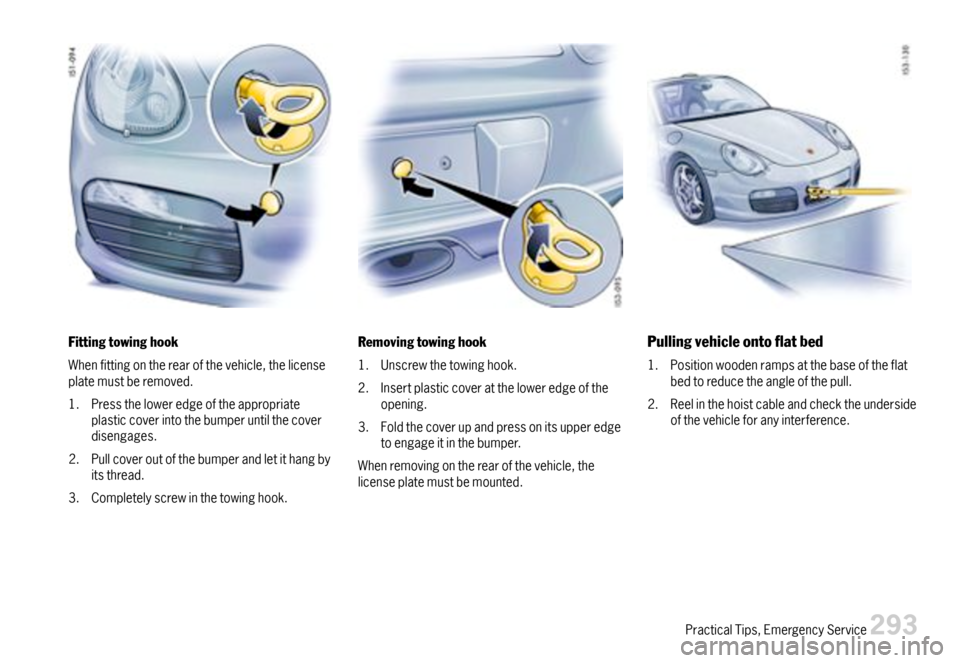

1.Presstheloweredgeoftheappropriateplasticcoverintothebumperuntilthecoverdisengages.
2.Pullcoveroutofthebumperandletithangbyitsthread.
3.Completelyscrewinthetowinghook.
Removingtowinghook
1.Unscrewthetowinghook.
2.Insertplasticcoverattheloweredgeoftheopening.
3.Foldthecoverupandpressonitsupperedgetoengageitinthebumper.
Whenremovingontherearofthevehicle,thelicenseplatemustbemounted.
Pullingvehicleontoatbed
1.Positionwoodenrampsatthebaseoftheflatbedtoreducetheangleofthepull.
2.Reelinthehoistcableandchecktheundersideofthevehicleforanyinterference.
PracticalTips,EmergencyService293

Tyingdownvehicleonatbed

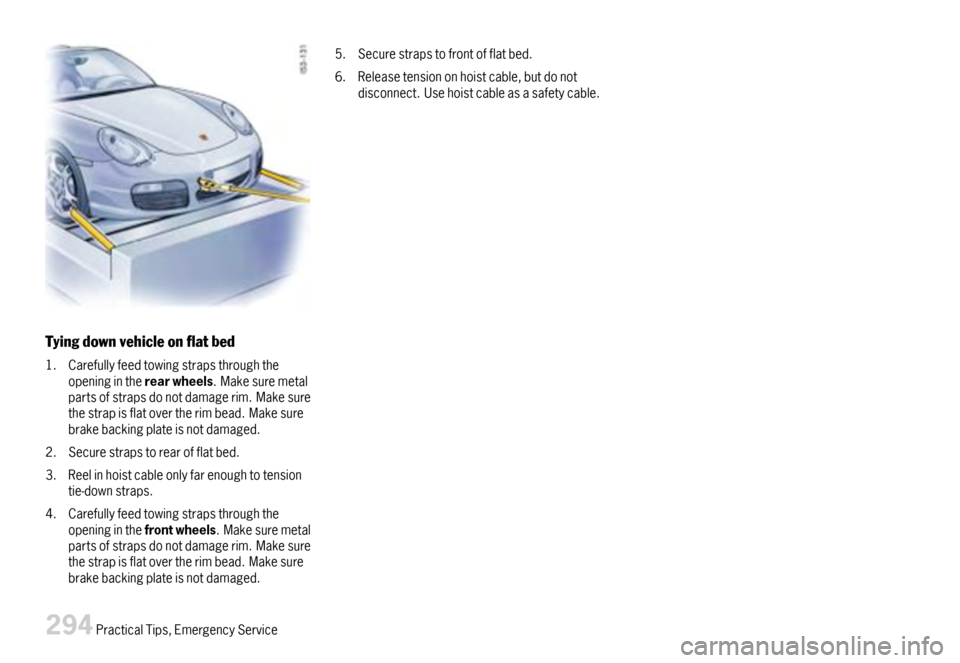

1.Carefullyfeedtowingstrapsthroughtheopeningintherearwheels.Makesuremetalpartsofstrapsdonotdamagerim.Makesurethestrapisflatovertherimbead.Makesurebrakebackingplateisnotdamaged.
2.Securestrapstorearofflatbed.
3.Reelinhoistcableonlyfarenoughtotensiontie-downstraps.
4.Carefullyfeedtowingstrapsthroughtheopeninginthefrontwheels.Makesuremetalpartsofstrapsdonotdamagerim.Makesurethestrapisflatovertherimbead.Makesurebrakebackingplateisnotdamaged.
5.Securestrapstofrontofflatbed.
6.Releasetensiononhoistcable,butdonotdisconnect.Usehoistcableasasafetycable.
294PracticalTips,EmergencyService

VehicleIdentication,TechnicalData
VehicleIdentification....................................296TechnicalData............................................298
VehicleIdentification,TechnicalData295

VehicleIdentication
Orderingspareparts
Whenorderingsparepartsormakinginquiries,pleasealwaysquotethevehicleidentificationnumber.
Vehicledatabank
Thevehicledatabankisattachedtotheinsideofthe”Maintenance“booklet.Itcontainsallimportantdataaboutyourcar.
Note
Thisdatabankcannotbere-orderedifitislostordamaged.
Thislabelcontainsthefollowinginformation:
1.VehicleIdentificationNo.
2.Type/Typedescription
3.Enginecode/Transmissioncode
4.PaintNo./Interior
5.Optionalequipment
Vehicleidenticationnumber
Position

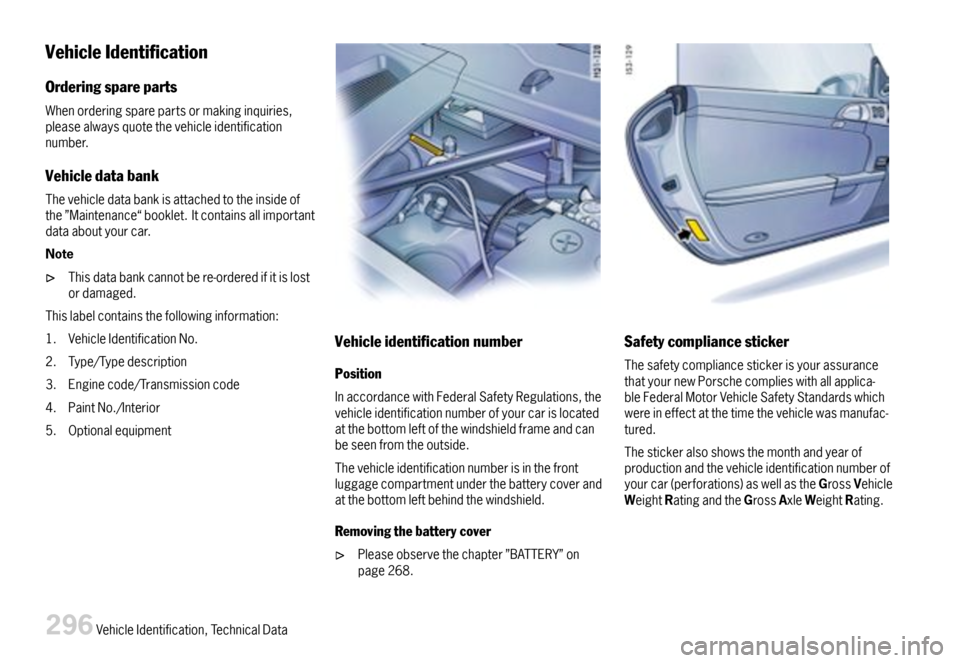

InaccordancewithFederalSafetyRegulations,thevehicleidentificationnumberofyourcarislocatedatthebottomleftofthewindshieldframeandcanbeseenfromtheoutside.
Thevehicleidentificationnumberisinthefrontluggagecompartmentunderthebatterycoverandatthebottomleftbehindthewindshield.
Removingthebatterycover
Pleaseobservethechapter”BATTERY”onpage268.
Safetycompliancesticker
ThesafetycompliancestickerisyourassurancethatyournewPorschecomplieswithallapplica-bleFederalMotorVehicleSafetyStandardswhichwereineffectatthetimethevehiclewasmanufac-tured.
Thestickeralsoshowsthemonthandyearofproductionandthevehicleidentificationnumberofyourcar(perforations)aswellastheGrossVehicleWeightRatingandtheGrossAxleWeightRating.
296VehicleIdentification,TechnicalData

Tirepressureplate

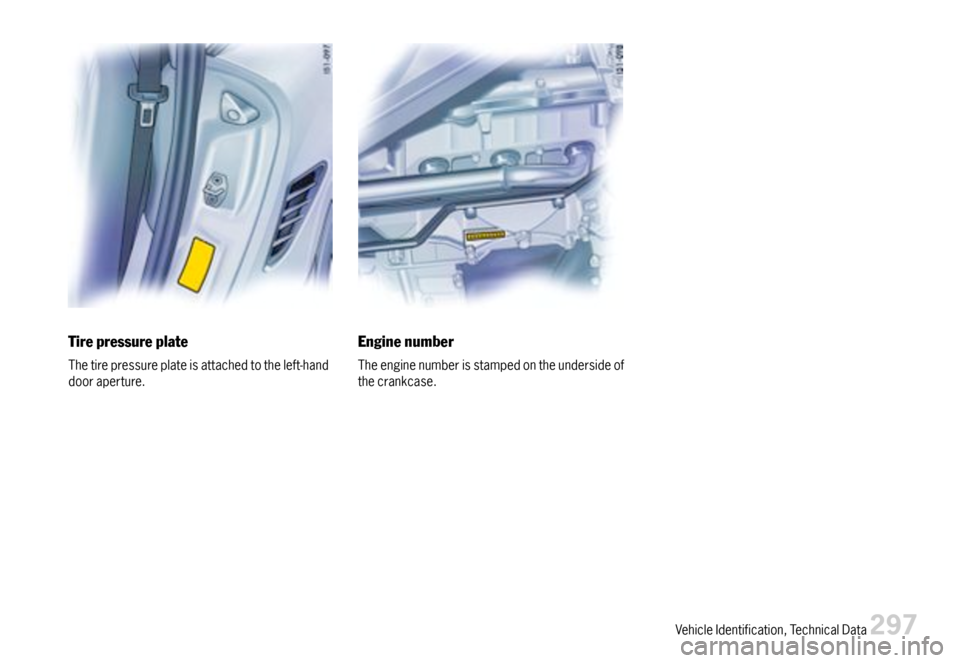

Thetirepressureplateisattachedtotheleft-handdooraperture.
Enginenumber
Theenginenumberisstampedontheundersideofthecrankcase.
VehicleIdentification,TechnicalData297

TechnicalData
Enginedata
BoxsterBoxsterS
TypeM97/20M97/21
Horizontallyopposedengine,liquidcooledHorizontallyopposedengine,liquidcooled
Numberofcylinders66
Bore3.37in./85.5mm3.78in./96mm
Stroke3.07in./78mm3.07in./78mm
Cubiccapacity163.96cu.in./2687cm³206.67cu.in./3387cm³
Net-horsepower,SAEJ1349245hp/180kW295hp/217kW
atcrankshaftspeed6500rpm6250rpm
Nettorque,SAEJ1349201ft.lb./273Nm251ft.lb./340Nm
atcrankshaftspeed4600-6000rpm4400-6000rpm
Engineoilconsumptionupto1.5liters/1000km(1.6quarts/622miles)upto1.5liters/1000km(1.6quarts/622miles)
