Page 81 of 320
Operation,Instruments

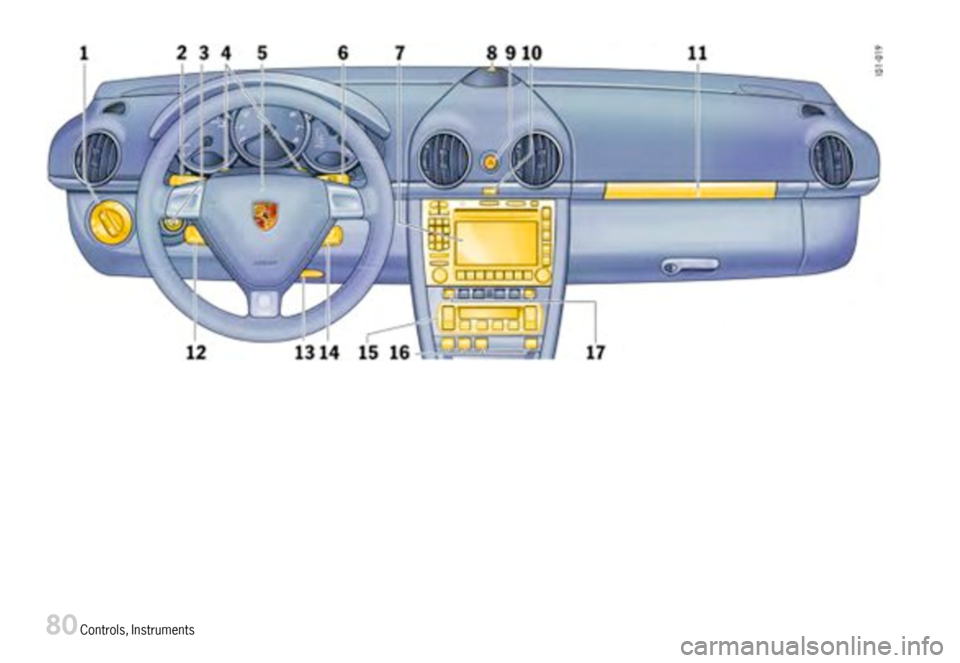

Overviewofthefunctions
1.Lightswitch
2.Turnsignals/headlightdimmer/flasherlever
3.IgnitionLock/lockingthesteeringcolumn
4.Hands-freemicrophonefortelephone
5.Horn
6.Windshieldwiper/washerlever
7.PorscheCommunicationManagement/Radio
8.Interiortemperaturesensor,GPSantenna
9.Emergencyflasherswitch
10.Centrallockingbutton,Readinessdisplayforalarmsystem
11.Cupholder
12.Operatingleverforon-boardcomputer
13.Lockingleverforsteering-wheeladjustment
14.Operatingleverforcruisecontrol
15.Controlpanelforheating,ventilationandairconditioningsystem
16.Buttonsforrearspoiler,PorscheActiveSuspensionManagement(PASM),SportMode,PorscheStabilityManagement(PSM),Sportsexhaustsystem
17.Seatheating,left/right
Controls,Instruments79
Page 82 of 320
80Controls,Instruments
Page 83 of 320

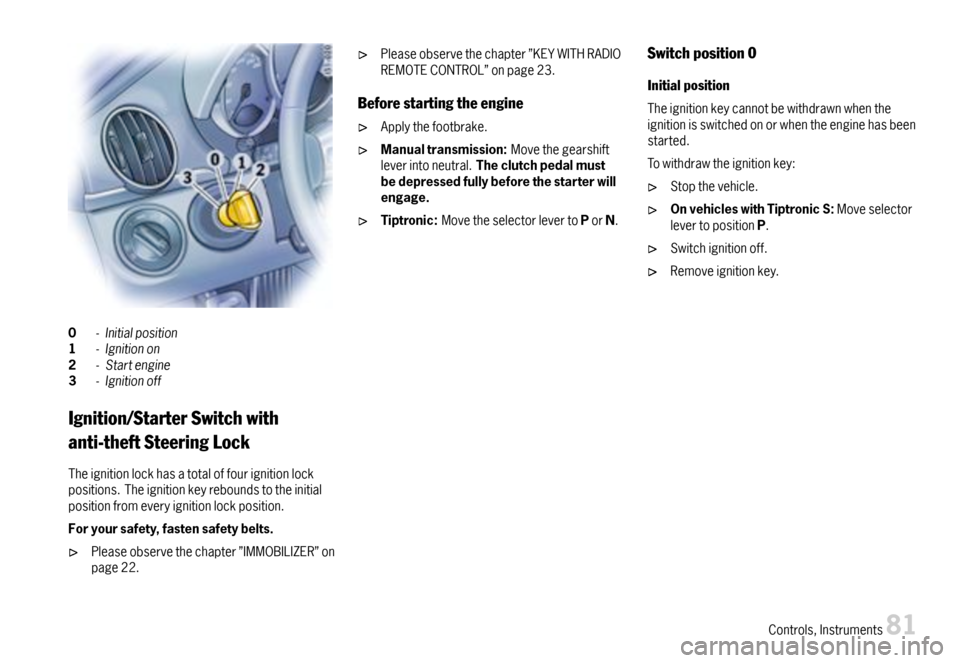

0-Initialposition1-Ignitionon2-Startengine3-Ignitionoff
Ignition/StarterSwitchwith
anti-theftSteeringLock
Theignitionlockhasatotaloffourignitionlockpositions.Theignitionkeyreboundstotheinitialpositionfromeveryignitionlockposition.
Foryoursafety,fastensafetybelts.
Pleaseobservethechapter”IMMOBILIZER”onpage22.
Pleaseobservethechapter”KEYWITHRADIOREMOTECONTROL”onpage23.
Beforestartingtheengine
Applythefootbrake.
Manualtransmission:Movethegearshiftleverintoneutral.Theclutchpedalmustbedepressedfullybeforethestarterwillengage.
Tiptronic:MovetheselectorlevertoPorN.
Switchposition0
Initialposition
Theignitionkeycannotbewithdrawnwhentheignitionisswitchedonorwhentheenginehasbeenstarted.
Towithdrawtheignitionkey:
Stopthevehicle.
OnvehicleswithTiptronicS:MoveselectorlevertopositionP.
Switchignitionoff.
Removeignitionkey.
Controls,Instruments81
Page 84 of 320
Switchposition1
Ignitionon
Turnignitionkeytoposition1.Ignitionisswitchedon.
Noteonoperation
Allelectricalequipmentcanbeswitchedon.
Pleaseobservethechapter”SETBASICSETTINGONON-BOARDCOMPUTER”onpage131.
Switchposition2
Startengine
Turnignitionkeytoignitionlockposition2.
Pleaseobservethechapter”STARTINGANDSTOPPINGENGINE”onpage83.
Switchposition3
Ignitionoff
Turnignitionkeytoignitionlockposition3.
Lockingthesteeringcolumn
Automaticlocking
Thesteeringcolumnisautomaticallylockedwhentheignitionkeyiswithdrawnfromtheignitionlock.
Warning!
Riskofanaccident,resultinginseriouspersonalinjuryordeath.Thesteeringwheelwilllockandwillcauselossofsteering.
Neverremovekeyfromtheignitionlockorturnthekeyoffwhilethevehicleismoving.
Alwayswithdrawtheignitionkeywhenleavingthevehicle.
Automaticunlocking
Thesteeringcolumnisautomaticallyunlockedwhentheignitionkeyisinsertedintotheignitionlock.
Note
Toavoidbatteryrun-down,alwaysremovetheignitionkeyfromtheignitionlock.
Pleaseobservethechapter”LOADSWITCH-OFFAFTER2HOURSOR7DAYS”onpage265.
Gong
Ifyouleavethekeyintheignition/steeringlock,agongwillsoundwhenthedriver’sdoorisopened.Thisisaremindertoremovethekey.
82Controls,Instruments
Page 85 of 320
StartingandStoppingEngine
StartingProcedures
Pleaseobservethechapter”IMMOBILIZER”onpage22.
Pleaseobservethechapter”EMISSIONCONTROLSYSTEM”onpage225.
Warning!
Seriouspersonalinjuryordeathmayresultifyouareinvolvedinacollisionwithouthavingfastenedthesafetybelts.
Fastensafetybeltsbeforedrivingaway.
Beforestartingtheengine
Applythefootbrake.
Manualtransmission:Movethegearshiftleverintoneutral.Theclutchpedalmustbedepressedfullybeforethestarterwillengage.
Tiptronic:MovetheselectorlevertoPorN.
Temperaturesensorsontheengineautomaticallyprovidethecorrectfuel/airmixturerequiredforstarting.Therefore,itisnotnecessarytodepresstheacceleratorpedalwhilestartingacoldorawarmengine.
Startingtheengine
Turnignitionkeytoignitionlockposition2.
Assoonastheenginestarts,releasetheignitionkey.
Thefirstoperationofthestarterisendedautomat-icallywhentheenginestarts.Iftheenginedoesnotstart,subsequentstarteroperationswillnotbeendedautomatically.
Iftheenginefailstostartafter10or15secondsofcranking:
Waitabout10secondsbeforeengagingthestarteragain.
Whenstartingtheengine,bereadytodriveimmediately.Drivevehicleatmoderatespeedsandavoidenginespeedsabove4200rpmduringthefirst5minutes.
Donotlettheengineidletowarmup.
Danger!
Engineexhaustfumeshavemanycompo-nentswhichyoucansmell.Theyalsocontaincarbonmonoxide(CO),whichisacolorlessandodorlessgas.Carbonmonoxidecancauseunconsciousnessandevendeathifinhaled.
Neverstartorlettheengineruninanenclosed,unventilatedarea.Itisnotrec-ommendedtositinyourcarforprolongedperiodswiththeengineonandthecarnotmoving.
Danger!
Anunattendedvehiclewitharunningengineispotentiallyhazardous.Ifwarninglightsshouldcomeontoindicateimproperopera-tion,theywouldgounnoticed.
Neverleavetheengineidlingunattended.
Danger!
Dangerofre.
Donotparkoroperatethevehicleinareaswherethehotexhaustsystemmaycomeincontactwithdrygrass,brush,fuelspillorotherflammablematerial.
Controls,Instruments83
Page 86 of 320
Ifyourcarcatchesonfireforanyreason,callthefiredepartment.Donotendangeryourlifebyattemptingtoputoutthefire.
Stoppingengine
Turnkeybacktoposition3.
Donotstopengineimmediatelyafterhardorextendeddriving.Keepenginerunningatincreasedidleforabouttwominutestopreventexcessiveheatbuild-upbeforeturningoffengine.
Toavoidbatteryrun-down,alwaysremovetheignitionkeyfromtheignitionlock.
Makesurethatwhenyouleavethecar,evenbriefly,youhavewithdrawntheignitionkey.
Engagethesteeringlockbymovingthesteeringwheeltotheleftorright.Turnthesteeringwheeltothelockingpositionbeforeyouswitchofftheenginesothatyoudon’thavetoexertyourselfwhenlockingorunlockingthesteering.
Warning!
Dangerofinjury.Hotenginecompartmentcomponentscanburnskinoncontact.
Beforeworkingonanypartintheenginecompartment,turntheengineoffandletitcooldownsufficiently.
Engine-compartmentblower,radiatorfan
Theradiatorandradiatorfansareinthefrontofthecar.Theengine-compartmentblowerismountedintheenginecompartment.
Warning!
Riskofinjury.Aftertheengineisswitchedoff,theengine-compartmenttemperaturesismonitoredforapprox.30minutes.Duringthisperiod,anddependingontemperature,theengine-compartmentblowermaycontin-uetorunorstarttorun.
Carryoutworkintheseareasonlywiththeengineoffandexerciseextremecaution.
Warning!
Riskofinjury.Theradiatorfansinthefrontendofthecarmaybeoperatingorunex-pectedlystartoperatingwhentheengineisswitchedon.
Carryoutworkintheseareasonlywiththeengineswitchedoff.
Automaticgaragedoor
TheignitionsysteminyourPorschemayinterferewithyourelectronicallyoperatedgaragedoor.
Tocheckthis,driveyourPorscheclosetothegaragedoor.Makesurenottointerferewiththeoperatingrangeofthedoor.
Runtheengineatdifferentspeeds.
Ifthegaragedooropensorcloseswithoutyouoperatingthegaragedoorunitinyourcar,contactthedealerwhoinstalledtheautomaticgaragedoortohavethefrequencyand/orcodingofthegaragedoorsignalchangedormodified.
84Controls,Instruments
Page 87 of 320

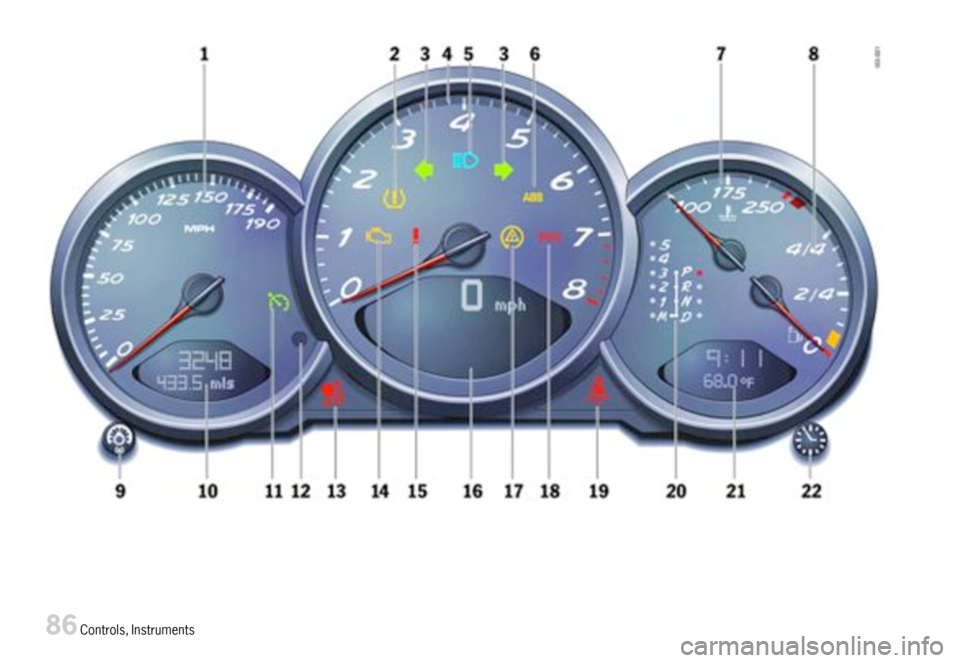

InstrumentPanelUSAModels
Overview
AlsorefertothecorrespondingchapterintheOwner’sManual.
1.Speedometerwithanaloguedisplay
2.Tirepressurewarninglight
3.Turnsignalindicatorlightleft/right
4.Tachometer
5.Highbeamindicatorlight
6.ABSwarninglight
7.CoolingsystemTemperaturegauge,warninglight
8.FuelLevelgauge,warninglight
9.Adjustingbuttonforinstrumentilluminationandtripcounter
10.Odometeranddailytripmileagedisplay
11.Automaticspeedcontrolindicatorlight
12.Lightsensorforinstrumentillumination
13.Airbagwarninglight
14.Emissioncontrolwarninglight(CheckEngine)
15.Centralwarninglight
16.On-boardcomputerdisplay
17.PorscheStabilityManagementMultifunctionalPSMlight
18.Brakewarninglight
19.Safetybeltwarninglight
20.Tiptronicindicator
21.Clockandoutsidetemperaturedisplay
22.Adjustmentbuttonforclock
Whentheignitionisswitchedon,thewarninglightslightupforalampcheck.
Note
WarningsthathavebeengivenarestoredintheappropriatecontrolunitmemoryandcanbereadoutatanauthorizedPorschedealer.
Thisinformationcanhelptowarnyouaboutsituationswhichmaybehazardoustoyouoryourcar.
Controls,Instruments85
Page 88 of 320
86Controls,Instruments
Page 89 of 320

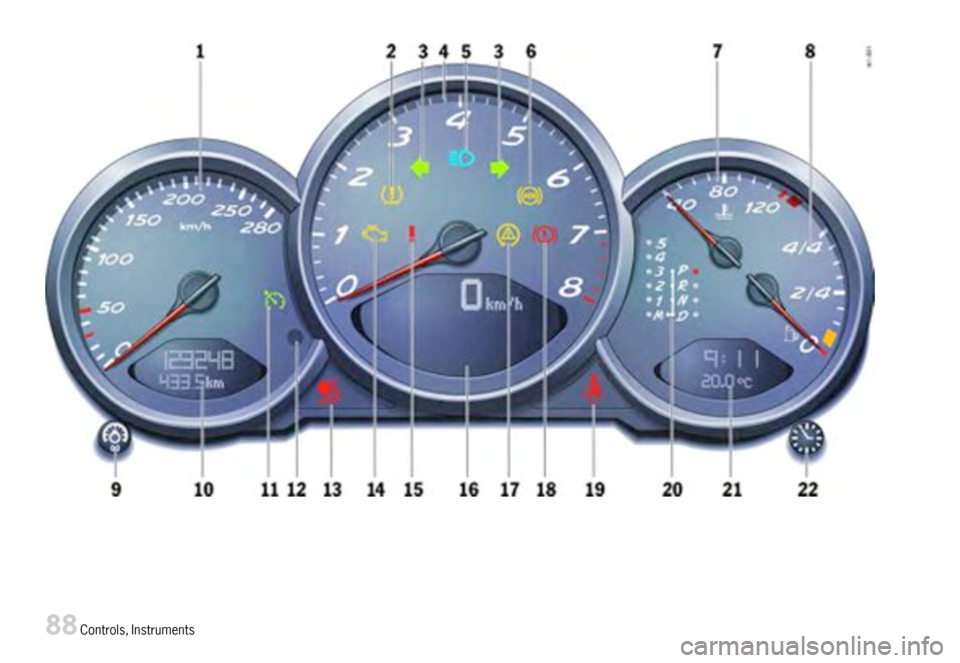

InstrumentPanelCanadaModels
Overview
AlsorefertothecorrespondingchapterintheOwner’sManual.
1.Speedometerwithanaloguedisplay
2.Tirepressurewarninglight
3.Turnsignalindicatorlightleft/right
4.Tachometer
5.Highbeamindicatorlight
6.ABSwarninglight
7.CoolingsystemTemperaturegauge,warninglight
8.FuelLevelgauge,warninglight
9.Adjustingbuttonforinstrumentilluminationandtripcounter
10.Odometeranddailytripmileagedisplay
11.Automaticspeedcontrolindicatorlight
12.Lightsensorforinstrumentillumination
13.Airbagwarninglight
14.Emissioncontrolwarninglight(CheckEngine)
15.Centralwarninglight
16.On-boardcomputerdisplay
17.PorscheStabilityManagementMultifunctionalPSMlight
18.Brakewarninglight
19.Safetybeltwarninglight
20.Tiptronicindicator
21.Clockandoutsidetemperaturedisplay
22.Adjustmentbuttonforclock
Whentheignitionisswitchedon,thewarninglightslightupforalampcheck.
Note
WarningsthathavebeengivenarestoredintheappropriatecontrolunitmemoryandcanbereadoutatanauthorizedPorschedealer.
Thisinformationcanhelptowarnyouaboutsituationswhichmaybehazardoustoyouoryourcar.
Controls,Instruments87
Page 90 of 320
88Controls,Instruments
