PORSCHE CAYMAN 2006 1.G Owners Manual

Vehicle Identification, Technical Data
271
Capacities Use only fluids and fuels authorized by Porsche. Your authorized Porsche dealer will gladly advise you.
Your Porsche has been designed so that it is not necessary to mix any additives with oils or fuels.
EngineOil change quantity without oil filter approx. 1.98 U.S.gallons/7.5liters
Oil change quantity with oil filter approx. 2.05 U.S.gallons/7.75 liters
Please observe the chapter “ENGINE OIL RECOMMENDATION” on Page 180.
CoolantManual transmission: approx. 5.89 U.S. gallons/22.3 liters
Tiptronic S: approx. 6.42 U.S. gallons/24.3 liters
Manual transmission and differentialapprox. 3 quarts/2.8 liters
Tiptronic Sapprox. 2.5 U.S. gallons/9.5 liters
Differential with Tiptronic Sapprox. 0.21 U.S. gallons/0.8 liters
Power steeringapprox. 1.1 quarts/1 liter hydraulic fluid Pentosin CHF 11 S
® or Pentosin CHF 202
®
Brake fluidapprox. 0.4 quarts/0.39 liters; use only Original Porsche brake fluid
Windshield washerapprox. 0.66 U.S. gallons/2.5 liters without headlight washer
approx. 1.58 U.S. gallons/6 liters with headlight washer
Fuel tankRefill volume approx. 16.9 U.S. gallons/64 liters, including approx. 2.6 U.S.gallons/10 liters reserve.
Fuel qualityYour engine is designed to provide optimum performance and fuel economy using unleaded premium fuel with
an octane rating of 98 RON (93 CLC or AKI).
Porsche therefore recommends the use of these fuels in your vehicle.
Porsche also recognizes that these fuels may not always be available. Be assured that your vehicle will operate
properly on unleaded premium fuels with octane numbers of at least 95 RON (90 CLC or AKI), since the engine’s
“Electronic Octane™ knock control” will adapt the ignition timing, if necessary.

272
Vehicle Identification, Technical Data
Weights
Manual transmission Tiptronic S
Empty weight (depending on equipment) 2954 lbs. to 3153 lbs. 3042 lbs. to 3241 lbs.
1340 kg to 1430 kg 1380 kg to 1470 kg
Maximum gross weight 3594 lbs./1630 kg 3682 lbs./1670 kg
Maximum axle load, front* 1709 lbs./775 kg 1709 lbs./775 kg
Maximum axle load, rear* 2072 lbs./940 kg 2072 lbs./940 kg
Maximum useful load, Roof Transport System** 132lbs./60 kg 132lbs./60 kg
*The maximum gross weight must not be exceeded.
Note: If additional accessories are installed, the useful load will be correspondingly less.
**Use only Original Porsche Roof Transport System

Vehicle Identification, Technical Data
273
Dimensions * At maximum gross weight.PAS M
Length 172.1 in./4372 mm
Width 70.9 in./1801 mm
Width
(with door mirrors) 76.3 in./1937 mm
Height 51.4 in./1305 mm 51.0 in./1296 mm
Wheelbase 95.1 in./2415 mm
Ground clearance* 4.1 in./104 mm 3.9 in./100 mm
Turning circle 36.4 ft./11.1 m

274Diagrams Acceleration diagram
Values have been determined at DIN empty
weight and with a 50 % load without
additional equipment.

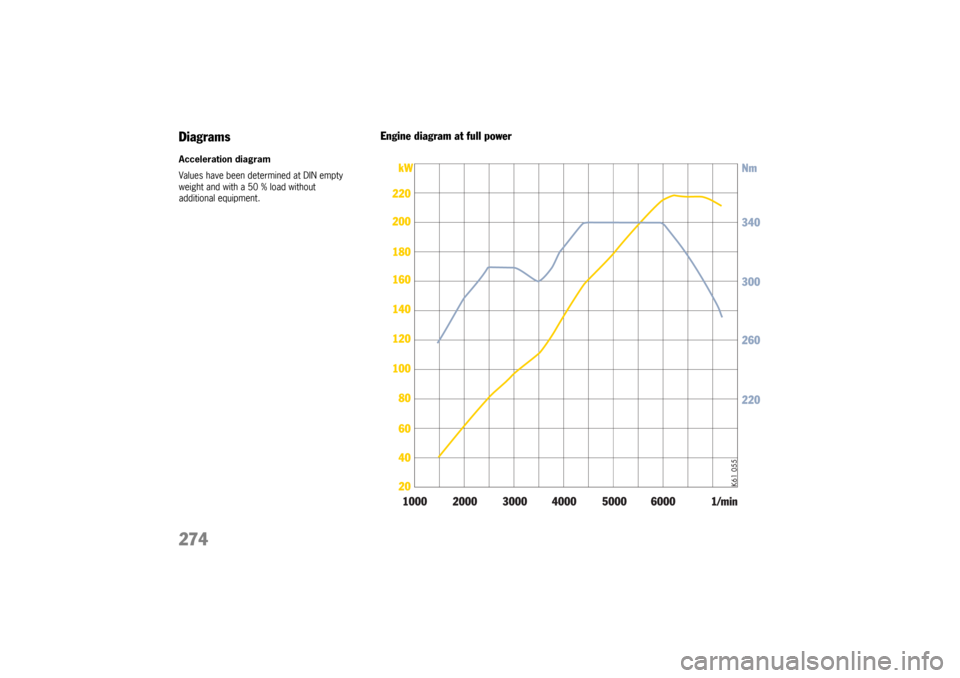

Engine diagram at full power

275

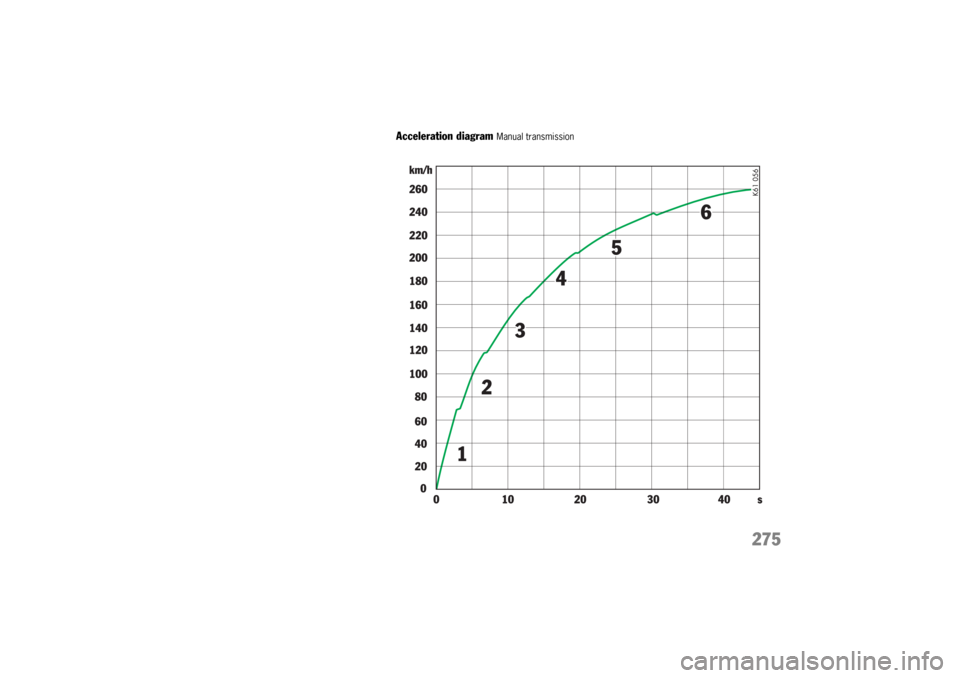

Acceleration diagram
Manual transmission

276
Index
IndexAABS (antilock brake system) .......................... 59
Advanced Airbag........................................... 44
Air conditioning ...................................130
, 133
Air distribution ....................................130, 133
Air filter ...................................................... 194
Airbag .......................................................... 42
Function ............................................... 44
Warning light ........................................ 47
Air-conditioning compressor ................132, 135
Alarm system ............................................. 157
Alcantara ................................................... 202
Antenna .................................... 157
, 158
, 197
Antilock brake system................................... 59
Warning light ........................................ 60
Ashtray ...................................................... 138
Assembly aids for wheel changes................. 228
Assistant ...................................................... 68
Audio operation .......................................... 156
Auto-button air conditioning ......................... 133
Automatic
Anti-glare mirrors .................................. 28
Car washes ........................................ 196
Door locking ......................................... 22
Headlight beam adjustment.................. 123
Speed control ....................................... 82
Automatic air conditioning system ................ 133
Average consumption............................93, 113
Average speed .....................................93, 113
BBackrest
Adjustment ........................................... 32
Release ................................................ 32
Battery....................................................... 235
Care .................................................. 236
Charge state....................................... 236
Putting vehicle into operation ............... 238
Remote control ................................... 241
Removing ........................................... 239
Warning light......................................... 90
Winter driving...................................... 237
Before driving off ....................................12
, 13
Blower adjustment..............................130, 133
Brake light..........................................254, 256
Brakes
Brake pad warning light ......................... 91
Fluid ...........................................182, 271
Fluid warning light.......................108, 182
Pads ..............................................14, 58
Test stand ............................................ 64
Break in hints................................................ 14
Bulbs
Chart ................................................. 245
Replacing ........................................... 245
CCanholder .................................................. 143
Capacities, overview ................................... 271
Car care..................................................... 172Car telephone ............................................. 157
Car washes ................................................ 196
Cargo partition............................................ 152
Catalytic converters ....................................191
Cautions............................................ 172
, 206
Central locking.............................................. 19
Emergency operation ..................... 19, 20
Central vents .............................................. 136
Central warning light..................................... 91
Changing wheels ......................................... 228
Check engine
Warning light......................................... 90
Checking pressure ...................................... 227
Child Restraint Anchorage.............................. 54
Child restraint systems .................................. 49
Chime ........................................................ 122
CHRONO stopwatch ......................................98
Circulating-air button .......................... 130, 133
Clock .................................................. 89, 113
Clutch ........................................................ 164
Clutch pedal ................................................. 55
Combination filter ........................................194
Comfort seat ................................................ 32
Coming Home mode ................................... 123
Compact disc
Holder ................................................ 142
Player ................................................ 157
Storage .............................................. 149
Compressor ............................................... 149
Coolant ....................................... 86
, 176
, 271
Level .................................................. 176
Temperature gauge............................... 86

Index
277
Warning light ........................................ 86
Cooling system .....................................86
, 176
Cruise control ............................................... 82
Cupholder .................................................. 143
DDashboard ................................................... 72
Data bank .................................................. 264
Defrosting windows .............................130
, 133
Diagnostic socket .................................15, 233
Diagrams ................................................... 274
Dimensions ................................................ 273
Dipped beam .............................................. 246
Door ............................................................ 23
Handles................................................ 23
Locks...........................................23, 197
Mirror heating ....................................... 31
Windows ............................... 23
, 26, 199
Doors
Guard lights ........................................ 257
Driving hints ................................................. 12
Driving in winter .......................................... 170
Driving performance ................................... 270
Drop-center rim .......................................... 220
DVD Navigation........................................... 149
EElectrical system ........................................ 232
Emergency flasher ...................................... 137
Emergency operation
Central locking................................19
, 20
Lids ................................................... 234
Tank cap ............................................ 187Emergency program, Tiptronic .....................170
Emergency service......................................206
Emergency starting with jump leads .............242
Emergenzy operation....................................20
Emission control system ........... 7
, 90, 190
, 191
Engine
Checking the oil level ...........................110
Compartment............................. 172, 206
Compartment blower ...................... 77, 86
Exhaust ..................................................8
Number ..............................................265
Oil consumption ....................................14
Oil level indicator.................................110
Oils ....................................................271
Speeds ................................................14
Starting ................................................74
Switching off.........................................74
Environment ...................................................6
FFire extinguisher .........................................145
Flat tire ......................................................224
Floor mats ..................................................202
Fog lights .......................................... 122
, 256
Footwell light ..............................................257
Front lid......................................................147
Trunk entrapment................................146
Front luggage compartment.........................149
Fuel ................................................ 4
, 88, 186
Containers ..............................................8
Economy ............................................184
Evaporation ........................................191
Level gauge ..........................................88
Level warning light................................88Portable Containers ............................ 189
Recommendation ....................... 188
, 189
Tank.......................................... 186, 187
Function keys ............................................... 38
Fuses ........................................................ 233
GGarage door opener................................... 159
Garage lift ................................................. 223
Gearchanging ............................................ 163
Glove compartment .................................... 142
Gong .............................. 75
, 76, 94, 120
, 122
Ground clearance ........................................... 8
HHandbrake ................................................... 55
Hands-free microphone................................. 72
Headlights ......................................... 124
, 246
Adjusting ................................... 258, 259
Cleaning system ................. 125
, 192
, 271
Heated rear window...................................... 31
Heating ............................................. 130, 133
High beam
Indicator light ....................................... 85
Lever......................................... 122, 124
Home mode............................................... 123
HomeLink .................................................. 159
Hoods ....................................... 146
, 148
, 150
Horn ..................................................... 15, 19
IIdentifikation number.................................. 264

278Ignition lock............................. 74
, 76, 77, 165
Immobilizer .................................................. 17
Instrument
Illumination ........................................... 82
Lights ................................................ 122
Panel ................................................... 79
Interior lights .............................................. 257
Interior mirror ............................................... 28
JJump lead starting ...................................... 242KKeylock...................................................... 165
Keys ............................................................ 17
with remote control ............................... 18LLATCH System.............................................. 53
Leather care............................................... 201
License plate light....................................... 122
Lids .......................................... 146
, 148
, 150
Emergency unlocking.......................... 234
Light
Flasher................................ 85
, 122
, 124
Low beam ..................................122, 124
Switch................................................ 124
Light alloy wheels ....................................... 201
Inscription .......................................... 220
Load switch-off ........................................... 232
Loading information .................................... 221
Locking........................................................ 21Luggage compartment ................................ 257
Cover ................................................. 154
Lids ................................................... 147
Net .................................................... 151
MMaintenance ............................................... 172
Make-up mirror ............................................. 39
Maximum permitted engine speeds ....... 14
, 164
Mirrors ......................................................... 29
Anti-glare .............................................. 28
Multi-Functional steering wheel
Function keys........................................ 38
NNavigation .................................................. 155
Notes on
Car care ............................................. 195
Maintenance ....................................... 172
Number plate light ............................. 122
, 254
OOctane rating..................................... 188
, 189
Off delay .................................................... 123
Oil ............................................................. 271
Checking level .................................... 110
Consumption ........................................ 14
Level checks ...................................... 179
Level indicator .................................... 110
On-board computer .................................. 8, 92
Basic settings ..................................... 112
Language versions.............................. 112On-board literature ..........................................2
Outside temperatur indicator..........................89
PPaint
Care...................................................195
Data ...................................................265
ParkAssistant................................................68
Parking
Aids .....................................................68
Assistant ..............................................69
Brake ...................................................55
Light ..................................................122
Particle filter ...............................................194
Plastic parts ...............................................200
Platform lift.................................................223
Porsche Active Suspension Management (PASM) .
65
Porsche Ceramic Composite Brake (PCCB) ..... 8
,
228
Porsche Communication Management ..... 8
, 155
Porsche Stability Management (PSM) ..............62
Information light ....................................64
Power measurements ..................................172
Power steering fluid level .................... 193, 271
Power windows ...................................... 23, 26
Practical tips ..............................................206
RRadiator fans ..............................................177
Radio reception...........................................156
Rain sensor ................................................125
Range on remaining fuel ....................... 93
, 113

Index
279
Rear fog light .....................................122
, 256
Rear lid ...................................................... 150
Rear view mirrors ......................................... 29
Rear window defogger.................................. 31
Rear wiper ................................................. 127
Replacing ........................................... 175
Relays ........................................................ 232
Release button ........................................... 165
Remote control ............................................. 18
Replacement key .......................................... 17
Replacing bulbs .......................................... 245
Replacing wiper blades................................ 173
Retractable rear spoiler ................................. 66
Rims
Diameter ............................................ 220
Rim width ........................................... 220
Roof load ................................................... 162
Roof Transport System........................162, 272
Running in .................................................... 14
SSafety belts ..........................................40
, 202
Warning light ........................................ 41
Safety compliance sticker ........................... 264
Sealing set ................................................. 225
Seals, care of ............................................. 200
Seat ............................................................ 32
Adjustment ........................................... 32
Heating ................................................ 36
Memory ............................................... 34
Selector lever ............................................. 165
Selector lever position indicator .............87, 167
Service flap ................................................ 151
Shifting gear............................................... 164Shiftlock .....................................................165
Side lights ..................................................256
Side marker light ............................... 122
, 253
Side storage compartments ........................144
Side vents ..................................................136
Snow chains .............................. 218
, 268
, 269
Snow tires ......................................... 217, 268
Sockets .....................................................140
Spacers .....................................................230
Spare key .....................................................17
Spare wheel ...............................................269
Speed code letter .......................................219
Speed control .............................. 82
, 129
, 130
Speed limit .......................................... 94, 219
Speedometer................................................84
Spoiler .........................................................66
Sport mode ..................................... 61
, 64, 65
Sports seat ..................................................32
Stability management system (PSM) ...............62
Starting ................................................. 74, 75
Starting and stopping the engine ....................74
Steering wheel
Adjustment ...........................................37
Buttons ................................................38
Lock ................................. 74
, 75, 76, 77
Rocker switches..................................165
Toggle switches ..................................165
Stopwatch ....................................................98
Storage options ..........................................141
Storing your Porsche..................................203
Sun visors ....................................................39
TTachometer ..................................................85Tail light ..................................................... 255
Tank .................................................. 186
, 187
Cap ................................................... 187
Ventilation system.............................. 191
Telephone .................................................. 157
Temperature setting........................... 130, 133
Temperature, outside indicator ...................... 89
Test stand, measurements ............................ 64
Theft protection ........................................... 16
Tie-down rings ........................................... 151
Tiptronic .................................................... 165
Indicator .............................................. 87
Tire filling compressor ................................ 149
Tire pressure monitoring ............................. 103
Tires ........................................... 14
, 207
, 268
Checking pressure............................. 227
Inscription .......................................... 219
Loading information ............................ 221
Pressure................................ 5
, 210
, 269
Pressure plate.................................... 265
Sealant .............................................. 225
Sidewall ............................................. 219
Size .................................................. 219
Tires and tire care ...................................... 207
Tools ......................................................... 149
Towing .............................................. 260, 261
TPC Tire pressure monitoring ...................... 103
Track ........................................................ 268
Transmission ............................. 163
, 164
, 267
Fluid .......................................... 194, 271
Trunk entrapment ....................................... 146
Turn signals ......................................... 85, 124

280UUndercoating ............................. 190
, 199
, 200
VValves ........................................................ 215
Vanity mirror................................................. 39
Vehicle
Care .................................................. 195
Data bank........................................... 264
Identifikation number ........................... 264
Laying up the car................................ 237
Putting into operation .......................... 238
Washing ............................................. 195
Ventilation .................................................. 133
Vents .................................................130
, 133
Viscosity, engine oil.................................... 180
WWarning messages ..................................... 114
Washer fluid .......................................192
, 271
Washer lever .............................................. 125
Washing ..................................................... 195
Weights...................................................... 272
Welcome Home Function............................. 123
Wheel ....................................... 201
, 207
, 268
Bolts ............................................17, 227
Changing............................................ 228
Checking pressure..........................5, 227
Inscription .......................................... 219
Loading information............................ 221
Pressure plate .................................... 265
Sidewall ............................................. 219Size ................................................... 219
Tire pressure ................................. 5
, 210
Tire sealant ........................................ 225
Windows ....................................... 23
, 26, 199
Washer nozzles................................... 125
Washer system .......................... 192, 271
Windshield wipers .............................. 125, 173
Replacing ........................................... 173
Winter driving
Battery ............................................... 236
Jump lead starting.............................. 242
Winter operation
Coolant .............................................. 176
Seals ................................................. 200
Snow chains ....................................... 218
Tires .................................................. 217
Washer fluid........................................ 192
Wiper blades....................................... 173
