PORSCHE CAYNNE 2004 1.G Owners Manual

Minor Repairs
291
Speed code letterThe speed code letter indicates the maximum per-
missible speed for the tire.
This code letter is shown on the tire sidewall.
T = up to 118 mph (190 km/h)
H = up to 131 mph (210 km/h)
V = up to 150 mph (240 km/h)
W = up to 167 mph (270 km/h)
Y = up to 186 mph (300 km/h)
Tip on driving
Tires with a maximum speed rating that is lower
than the specified maximum vehicle speed may be
mounted only if they bear an M+S identification on
the tire sidewall.
fPlease note that in addition to the winter tires,
all-season and all-terrain tires are also subject
to speed limits and bear this identification.

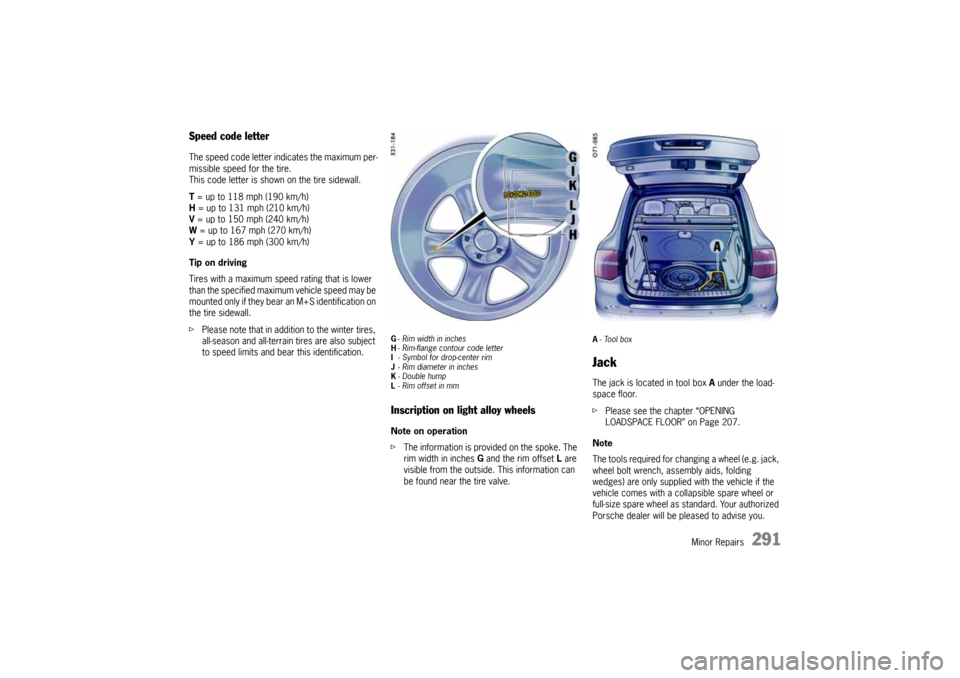

G-Rim width in inches
H- Rim-flange contour code letter
I- Symbol for drop-center rim
J- Rim diameter in inches
K-Double hump
L- Rim offset in mmInscription on light alloy wheelsNote on operation
fThe information is provided on the spoke. The
rim width in inches G and the rim offset L are
visible from the outside. This information can
be found near the tire valve.
A-Tool boxJackThe jack is located in tool box A under the load-
space floor.
fPlease see the chapter “OPENING
LOADSPACE FLOOR” on Page 207.
Note
The tools required for changing a wheel (e.g. jack,
wheel bolt wrench, assembly aids, folding
wedges) are only supplied with the vehicle if the
vehicle comes with a collapsible spare wheel or
full-size spare wheel as standard. Your authorized
Porsche dealer will be pleased to advise you.
10_Cayenne_21_KW17.book Seite 291 Donnerstag, 9. April 2009 3:33 15

292
Minor Repairs
Warning!
The jack must be used only to raise the car
for wheel changing.
The jack must never be used as a support to
work underneath the vehicle. If the jack is
accidentally dislodged, you or bystanders
could suffer severe personal injury.
fNever jack up other vehicle or other loads with
the jack.
fAlways place the car on stable supports if you
have to work under the car.
When working under the vehicle, always use
safety stands specifically designed for this pur-pose.

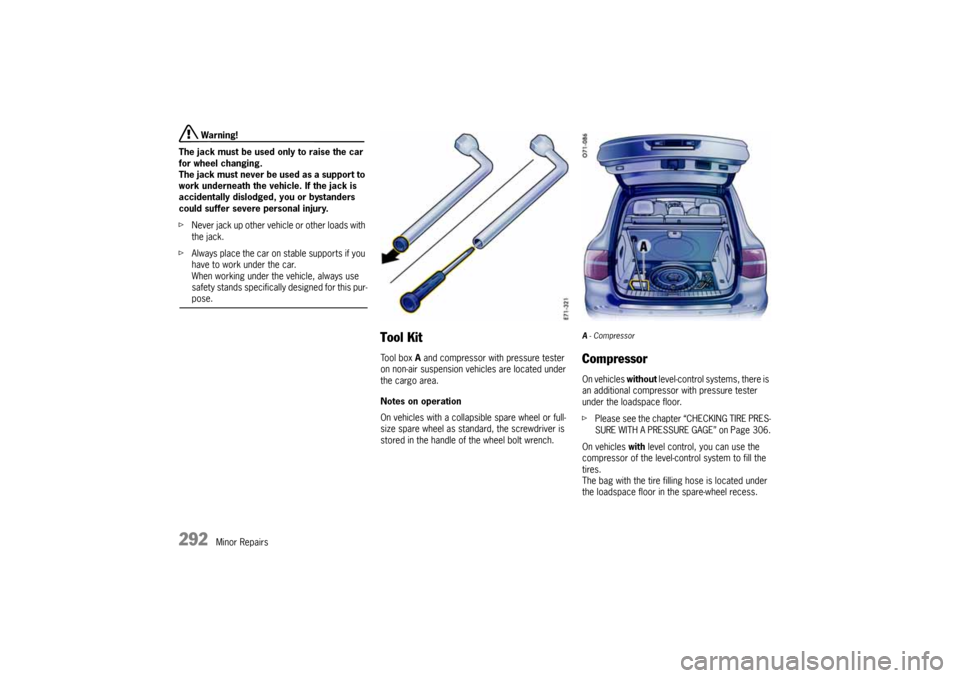

Tool KitTo o l b o x A and compressor with pressure tester
on non-air suspension vehicles are located under
the cargo area.
Notes on operation
On vehicles with a collapsible spare wheel or full-
size spare wheel as standard, the screwdriver is
stored in the handle of the wheel bolt wrench.
A-CompressorCompressorOn vehicles without level-control systems, there is
an additional compressor with pressure tester
under the loadspace floor.
fPlease see the chapter “CHECKING TIRE PRES-
SURE WITH A PRESSURE GAGE” on Page 306.
On vehicles with level control, you can use the
compressor of the level-control system to fill the
tires.
The bag with the tire filling hose is located under
the loadspace floor in the spare-wheel recess.
10_Cayenne_21_KW17.book Seite 292 Donnerstag, 9. April 2009 3:33 15

Minor Repairs
293
SpacersfUse the spacers only together with wheels
approved by Porsche.
Before having spacers fitted, find out about the
current approval status.
fRemove spacers if 18 inch tires, snow chains
or a collapsible spare wheel are mounted.
Danger!
Risk of accident if the spacers are not
removed before mounting 18 inch tires or
collapsible spare wheel.
f17 mm spacers are always to be removed
before mounting 18 inch tires or a collapsible
spare wheel, because the wheel cannot be fit-ted correctly. Caution!
Risk of damage to wheel housings if the
spacers on the rear axle are not removed
before fitting the snow chains.
f17 mm spacers must always be removed from the rear axle when snow chains are to be fitted.Note on operation
fTo remove or mount the spacers:
Please see the chapter “CHANGING A WHEEL
WITH REMOVAL OF 17 MM SPACER” on
Page 303.
Please see the chapter “FITTING THE 17 MM
SPACER” on Page 305.
Wheel BoltsfAlways clean the wheel bolts before installing.
Maintenance Notes
fWheel bolts must not be greased.
fReplace damaged wheel bolts.
Only use the original Porsche wheel bolts
specially designed for this vehicle type.
10_Cayenne_21_KW17.book Seite 293 Donnerstag, 9. April 2009 3:33 15

294
Minor Repairs Tightening torque
Tightening torque of the wheel bolts and wheel
nuts 118 ftlb. (160 Nm).
Security wheel boltsThe adapter (wrench socket) for the security
wheel bolts is located in the tool box.
To loosen or tighten the wheel bolt with anti-theft
protection, the adapter must be used between the
wheel bolt and the wheel bolt wrench.
fWhen positioning the wrench socket, ensure
that it engages fully in the teeth of the wheel
bolt.
Note on operation
fOn vehicles with 17 mm spacers on the rear
axle, the wheels are secured with steel nuts.
There is no anti-theft protection for the wheel
nuts.
fIf the wheels have to be removed at the work-
shop, please do not forget to hand over the
socket for the security wheel bolts along with
the car key.
Changing Wheels
Warning!
Failure to follow these instructions may result
in serious personal injury or death to you or
to bystanders.
Before changing the wheel
fIf you have a flat tire, move a safe distance off
the road. Turn the emergency flasher on and
use other warning devices to alert other
motorists.
fDo not park your vehicle where it may contact
dry grass, brush or other flammable materials.
The hot parts of the exhaust system could set
such materials on fire, thereby causing both
property damage and severe or fatal physical
injury.
fPassengers must not be in the vehicle when it
is jacked up.
fBefore you change a wheel, be sure the ground
is level and firm. If necessary, use a board
under the jack to ensure that the jack does not
sink into the ground.
fSet the parking brake and block the wheels
opposite the flat tire on the other side of the
vehicle.While operating the jack
fThe jack is only to be used for changing a
wheel. Do not use it as a support to work under
the car.
fThe car must be jacked up only at the illustra-
ted jacking points.Lifting at any other place
may damage the vehicle or may result in per-
sonal injury. Never jack the car up by the body
or the bumpers.
fFor safety reasons do not use tire inflating bot-
tles. Do not use commercially available sealant
bottles. Use only the tire inflating bottle
located in the luggage compartment.
10_Cayenne_21_KW17.book Seite 294 Donnerstag, 9. April 2009 3:33 15

Minor Repairs
295
Sequence of operation
Warning!
The jack must be used only to raise the car
for wheel changing.The jack must never be
used as a support to work underneath the
vehicle. If the jack is accidentally dislodged,
you or bystanders could suffer severe
personal injury.
fNever jack up other vehicles or other loads
with the jack.
fAlways place the car on stable supports if you
have to work under it. When working under the
vehicle, always use safety stands specifically designed for this purpose.
fPlease use a suitable knee rest to protect your
clothing against soiling.
Flat TireNote
The tools required for changing a wheel (e.g. jack,
wheel bolt wrench, assembly aids, folding
wedges) are only supplied with the vehicle if the
vehicle comes with a collapsible spare wheel or
full-size spare wheel as standard. Your authorized
Porsche dealer will be pleased to advise you.
1. Stop the vehicle as far away from the driving
lane as possible.
The car must be parked on a firm and flat
surface offering adequate grip.
2. Switch on the emergency flashers.
3. Fully apply the parking brake.
4. Shift into 1st gear or move the Tiptronic
selector lever to position P.
5. Straighten the front wheels.
6. Withdraw the ignition key to lock the steering
and prevent the engine from being started.
7. Have any passengers leave the vehicle.
8. Set up a warning triangle at a suitable
distance.

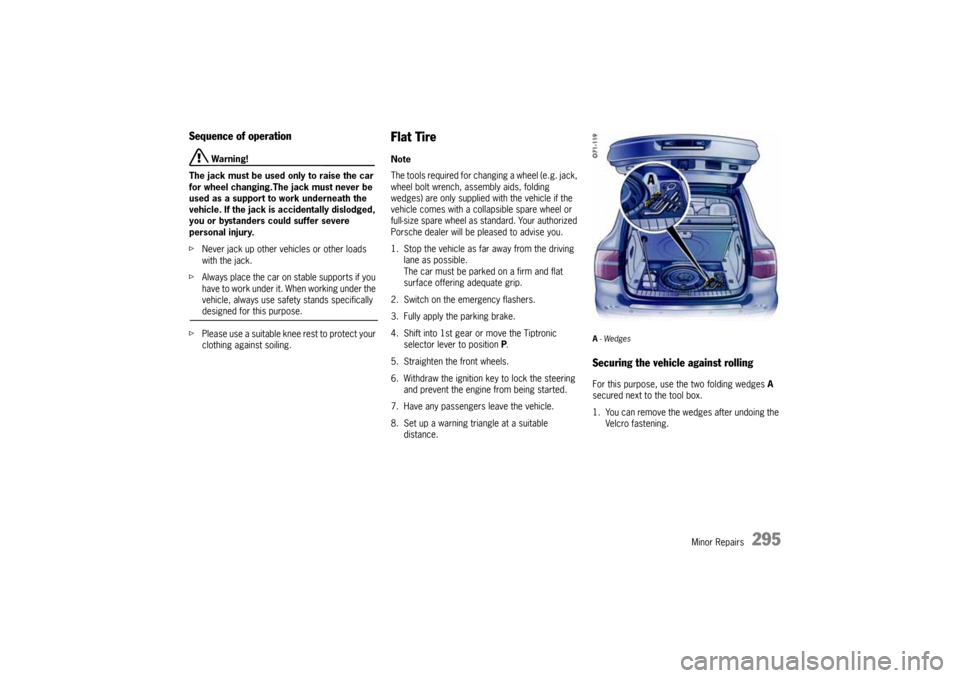

A-WedgesSecuring the vehicle against rollingFor this purpose, use the two folding wedges A
secured next to the tool box.
1. You can remove the wedges after undoing the
Velcro fastening.
10_Cayenne_21_KW17.book Seite 295 Donnerstag, 9. April 2009 3:33 15

296
Minor Repairs

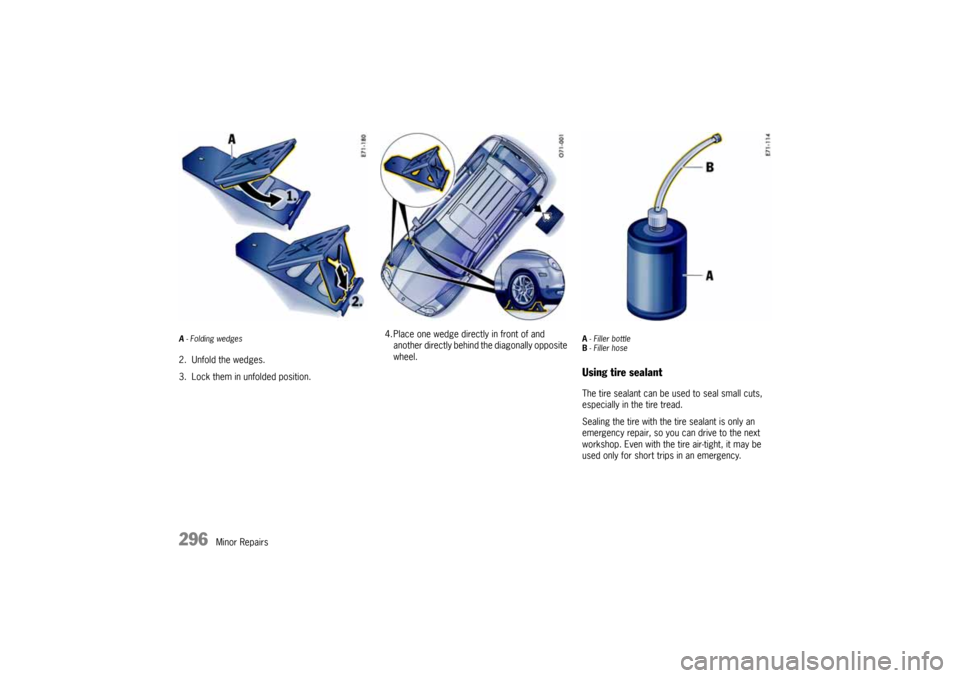

A - Folding wedges2. Unfold the wedges.
3. Lock them in unfolded position.4. Place one wedge directly in front of and
another directly behind the diagonally opposite
wheel.
A- Filler bottle
B- Filler hoseUsing tire sealantThe tire sealant can be used to seal small cuts,
especially in the tire tread.
Sealing the tire with the tire sealant is only an
emergency repair, so you can drive to the next
workshop. Even with the tire air-tight, it may be
used only for short trips in an emergency.
10_Cayenne_21_KW17.book Seite 296 Donnerstag, 9. April 2009 3:33 15

Minor Repairs
297
On vehicles without level control, the tire sealant
and a compressor with pressure tester can be
found under the cargo floor in the luggage com-
partment.
The tire sealant comprises:
– A filler bottle
– A filler hose
– A valve turner
– A spare valve insert
– A set of instructions and
– A sticker with the maximum permissible
speed.
Danger!
Risk of accident, resulting in serious
personal injury or death.
fUse the tire sealant only in the case of cuts or
punctures no larger than 0.15 in. (4 mm).
fNever use the tire sealant if the rim is damaged.
Warning!
The sealant is highly flammable and harmful
to health.
fFire, naked flame and smoking are prohibited
when handling tire sealant.
fAvoid contact with skin, eyes and clothing due
to caustic chemical properties of the tire seal-
ant.
fKeep tire sealant away from children.
fDo not inhale vapours, due to consequent
harm to personal health resulting in serious personal injury or death.
In case of contact with the sealant:
fIf sealant gets on the skin or in the eyes,
thoroughly rinse the affected part of the body
off without delay.
fChange soiled clothing immediately.
fGet medical attention immediately in the event
of an allergic reaction.
fIf sealant was swallowed, thoroughly rinse out
the mouth without delay and drink plenty of
water.
Do not induce vomiting.
Get medical attention immediately.

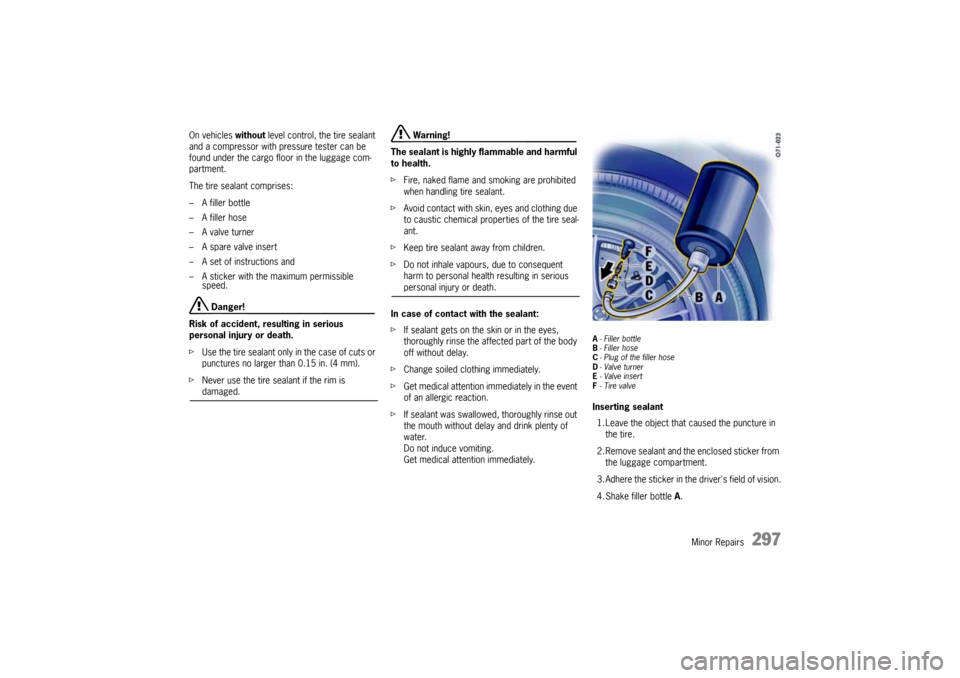

A- Filler bottle
B- Filler hose
C- Plug of the filler hose
D-Valve turner
E-Valve insert
F- Tire valveInserting sealant
1. Leave the object that caused the puncture in
the tire.
2. Remove sealant and the enclosed sticker from
the luggage compartment.
3. Adhere the sticker in the driver's field of vision.
4. Shake filler bottle A.
10_Cayenne_21_KW17.book Seite 297 Donnerstag, 9. April 2009 3:33 15

298
Minor Repairs 5. Screw filler hose B onto the filler bottle.
The filler bottle is now open.
6. Unscrew valve cap from tire valve F.
7. Remove valve insert E from the tire valve with
valve turner D.
Keep the valve insert in a clean and dry place.
8. Remove plug C of the filler hose B.
9. Push filler hose onto the tire valve.
10.Hold filler bottle higher than the level of the tire
valve and press it together forcefully until the
bottle is completely emptied into the tire.
11.Pull filler hose off the tire valve.
12.Twist the valve insert firmly into the tire valve
using the valve turner.
13.Inflate the tire.
Set the prescribed tire pressure.
Please see the chapter “TIRE PRESSURES,
COLD (68 °F/20 °C)” on Page 354.
14.Screw valve cap onto the tire valve.
15.Check the tire pressure after driving for around
10 minutes.
If the tire pressure is less than 22 psi (1.5 bar),
do not continue driving.
If a value of more than 22 psi (1.5 bar) is indi-
cated, correct the pressure to the prescribed
value.
16.Please consult your authorized Porsche
dealer.The settings for Tire Pressure Monitoring must be
update on the multi-purpose display after filling the
tire with sealant.
Please see the chapter “SETTING TIRE SEALANT/
SEALING SET” on Page 140.
Car care instruction
After drying, any sealant that emerges can be
peeled off like a film.
Warning!
Risk of accident, resulting in serious
personal injury or death.
fHave the tire replaced by a specialist work-
shop as soon as possible.
fAvoid hard acceleration and high cornering
speeds.
fDo not exceed maximum speed of 50 mph
(80 km/h).
fPlease always observe the safety and opera-
ting instructions, which can be found in the
separate operating instructions for the sealant and on the compressor.
Lifting the Vehicle with a Lifting
Platform or Garage liftfThe car must be raised only at the illustrated
jacking points.
Please see the chapter “LIFTING THE VEHICLE
WITH A LIFTING PLATFORM OR GARAGE LIFT”
on Page 298.
Please see the chapter “RAISING VEHICLE
WITH THE JACK” on Page 192.
fLifting at any other place may damage the
vehicle or may result in personal injury.
Caution!
Serious personal injury or death and/or
serious damage to the engine or the vehicle
may occur, if you lift the vehicle improperly.
fNever lift the vehicle at any other place than
the jacking points.
fNever lift the vehicle by the engine, transmis-
sion or axles.
fDo not damage any sensitive components in the vicinity of the jacking points.
10_Cayenne_21_KW17.book Seite 298 Donnerstag, 9. April 2009 3:33 15

Minor Repairs
299

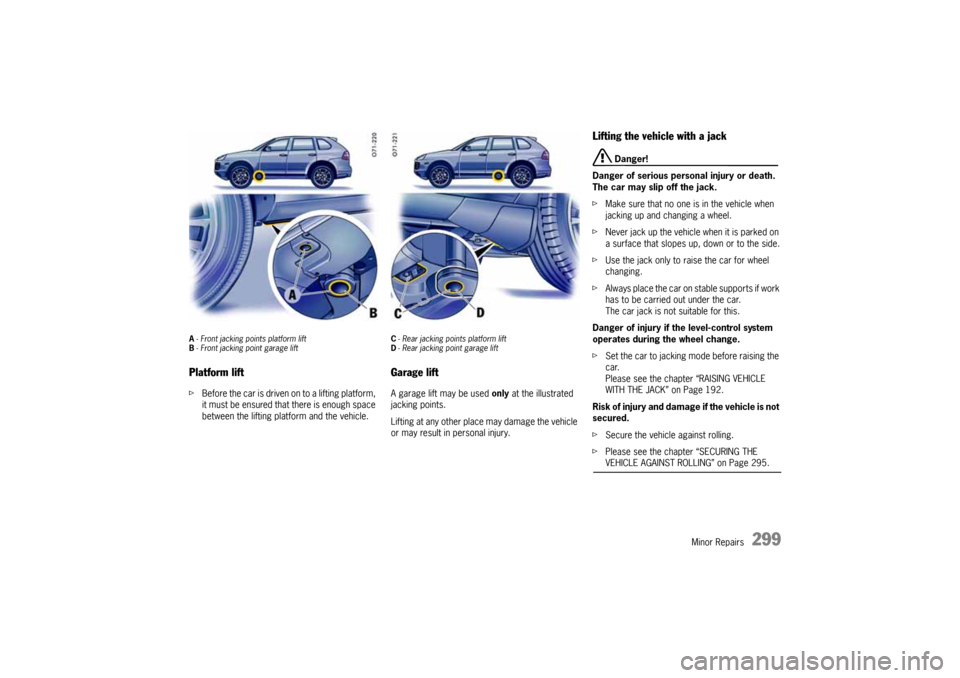

A- Front jacking points platform lift
B- Front jacking point garage liftPlatform liftfBefore the car is driven on to a lifting platform,
it must be ensured that there is enough space
between the lifting platform and the vehicle.
C- Rear jacking points platform lift
D- Rear jacking point garage liftGarage liftA garage lift may be used only at the illustrated
jacking points.
Lifting at any other place may damage the vehicle
or may result in personal injury.
Lifting the vehicle with a jack
Danger!
Danger of serious personal injury or death.
The car may slip off the jack.
fMake sure that no one is in the vehicle when
jacking up and changing a wheel.
fNever jack up the vehicle when it is parked on
a surface that slopes up, down or to the side.
fUse the jack only to raise the car for wheel
changing.
fAlways place the car on stable supports if work
has to be carried out under the car.
The car jack is not suitable for this.
Danger of injury if the level-control system
operates during the wheel change.
fSet the car to jacking mode before raising the
car.
Please see the chapter “RAISING VEHICLE
WITH THE JACK” on Page 192.
Risk of injury and damage if the vehicle is not
secured.
fSecure the vehicle against rolling.
fPlease see the chapter “SECURING THE VEHICLE AGAINST ROLLING” on Page 295.
10_Cayenne_21_KW17.book Seite 299 Donnerstag, 9. April 2009 3:33 15

300
Minor Repairs Maintenance Note
The jacking point on the vehicle must be free of
dirt.
1. Slightly loosen the wheel bolts of the wheel to
be changed.
2. Only set up the jack at the rear jacking point
designed for the purpose. The jack foot must
be in contact over its whole area and must be
positioned directly below the head piece.
Use a suitable support if necessary.
3. Hold jack still and wind it up until its head
enters the jacking point on the vehicle.
Only jack vehicle up until the wheel to be
changed is completely off the ground.
4. After lowering the vehicle, remove the jack.

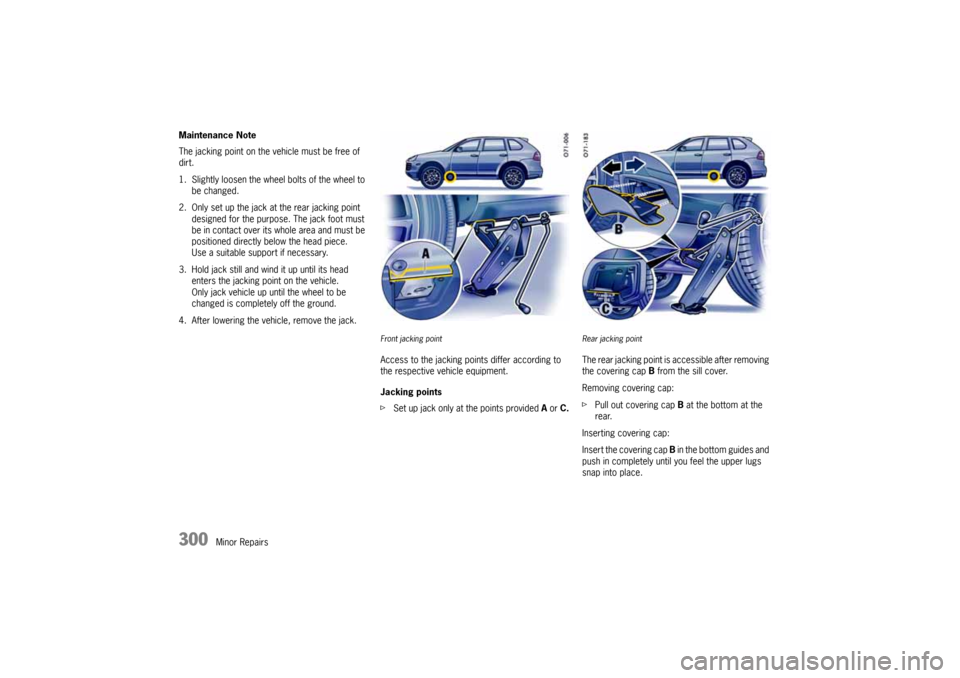

Front jacking pointAccess to the jacking points differ according to
the respective vehicle equipment.
Jacking points
fSet up jack only at the points provided A or C.
Rear jacking pointThe rear jacking point is accessible after removing
the covering cap B from the sill cover.
Removing covering cap:
fPull out covering cap B at the bottom at the
rear.
Inserting covering cap:
Insert the covering cap B in the bottom guides and
push in completely until you feel the upper lugs
snap into place.
10_Cayenne_21_KW17.book Seite 300 Donnerstag, 9. April 2009 3:33 15
