PORSCHE CAYNNE 2011 2.G Tequipment Manual
Manufacturer: PORSCHE, Model Year: 2011, Model line: CAYENNE, Model: PORSCHE CAYENNE 2011 2.GPages: 35, PDF Size: 5.41 MB
Page 11 of 35

· 21 ·
· 20 ·
R: HalleFront/Rear:
8.5 J x 19 ET 5919-inch Cayenne Design II
wheels with all-season
tyres with low rolling
resistanceFront/Rear:
265/50 R 19 110V XL M+Sn 3
Cayenne Turbo
n 3, 4
n n 2, 4Front/Rear:
8.5 J x 19 ET 5919-inch Cayenne Turbo
wheels with summer
tyres Front/Rear:
265/50 R 19 110Y XL
Cayenne
Cayenne Diesel
Cayenne S
Cayenne S Hybrid
n Compatible
– Not compatible
1 Only in conjunction with wheel arch
extensions.
2 Standard on Cayenne Turbo.3 Up to max. 240 km/ h (149 mph).4 Not for vehicles fit ted with Porsche
Ceramic Composite Brake (PCCB).
If your vehicle documents do not containdetails of the correct wheel and t yre combi -
nation, please request a technical approval
cer tificate from your Porsche Centre.
Note: The wheel centres shown are not included, except in the case of the 21-inch
Cayenne SportEdition wheels painted in black
(high -gloss). All t yres fit ted are designed exclusively for Porsche, as indicated by the special Porsche designation (N0, N1 etc.) on the sidewall. Tyres that do not carr y this designation are not recommended for use
on your Porsche.
Wheel/tyre set Wheel dimensions
(offset (ET) in mm)Tyre specifications
Page 12 of 35

· 23 ·
· 22 ·
Note on the use of winter tyres
Summer t yres provide optimum
performance at ambient temperatu -
res
above approximately +7 °C.
Below this point, the t yre com -
pound begins to harden and
braking distances are increased.
We therefore recommend that
you fit winter t yres during the
colder months of the year. Only
then can you enjoy the highest
standards of driving safet y from
your Cayenne. All winter t yres
approved by Porsche are identified
by an ‘N’ designation on the
sidewall.
Front/Rear:
8 J x 18 ET 53
Front/Rear:
8 J x 18 ET 5318-inch Cayenne S III
wheels with winter tyres
18-inch Cayenne
wheels with winter tyresFront/Rear:
255/55 R 18 109V XL M+S
Front/Rear:
255/55 R 18 109V XL M+S
Cayenne Turbo
n 3n 3
n 3n 3
n 3n 3, 4
n 3, 4
n 3, 4
–
–
Front/Rear:
8.5 J x 19 ET 5919-inch Cayenne Turbo
wheels with winter tyresFront/Rear:
265/50 R 19 110V XL M+S
Front/Rear:
9 J x 20 ET 57
20-inch Cayenne
SportDesign II
wheels with winter tyresFront/Rear:
275/45 R 20 110 V XL M+S
Front/Rear:
9 J x 20 ET 57
20-inch RS Spyder Design
wheels with winter tyresFront/Rear:
275/45 R 20 110V XL M+S
Cayenne
Cayenne Diesel
Cayenne S
Cayenne S Hybrid
n Compatible
– Not compatible
1 Only in conjunction with wheel arch
extensions.
2 Standard on Cayenne Turbo.3 Up to max. 240 km/ h (149 mph).4 Not for vehicles fit ted with Porsche
Ceramic Composite Brake (PCCB).
If your vehicle documents do not containdetails of the correct wheel and t yre combi -
nation, please request a technical approval
cer tificate from your Porsche Centre.
Note: The wheel centres shown are not included, except in the case of the 21-inch
Cayenne SportEdition wheels painted in black
(high -gloss). All t yres fit ted are designed exclusively for Porsche, as indicated by the special Porsche designation (N0, N1 etc.) on the sidewall. Tyres that do not carr y this designation are not recommended for use
on your Porsche.
Wheel/tyre set Wheel dimensions
(offset (ET) in mm)Tyre specifications
Page 13 of 35

· 25 ·
· 24 ·
Snow chains
Specially designed for Porsche
models and featuring ultra-fine
links for minimal adhesion of ice
and snow.
Not compatible with wheel
spacers.
Wheel centres
Set of wheel centre caps with a
full-colour Porsche Crest. The
perfect finishing touch for any
Cayenne wheel.
For 21-inch Cayenne SportEdition
wheel in a GT Silver Metallic finish.
For 21-inch Cayenne SportEdition
wheel painted in black (high-gloss). For 21-inch 911 Turbo II wheel in a
titanium-grey paint finish.
For 20 -inch RS Spyder Design
wheel in a decorative silver and
titanium paint finish.
Crested valve caps
Silver-coloured valve caps with
embossed Porsche Crest.
Wheel spacers, 17 mm (rear)
Set of t wo wheel spacers (17 mm)
for the rear axle to create a wider
track for enhanced stability and
presence on the road. When fit ted,
your Cayenne will look even spor
-
tier, as the wheels run virtually
flush with the body of the car.
Not compatible with snow chains.
Not compatible with 21-inch
wheels. Not compatible with
20-inch wheels without wheel
arch extensions.
Anti-theft wheel protection
(not shown)
Set of four wheel bolts with
anti-theft protection. For wheels
without wheel spacers.
Wheel bolts in black including
anti-theft protection (not shown)
Set of 20 black wheel bolts, four
of which are anti-theft wheel bolts.
Not compatible with wheel spacers.
For further product information
and part numbers, please refer to
the Tequipment Cayenne price list.
Wheel centre
Snow chains Crested valve caps for vehicles with TPM
Crested valve caps for vehicles without TPM
Wheel spacers
Page 14 of 35

· 27 ·
· 26 ·
Your Cayenne enables you to fulfil
your dream of driving a Porsche
and also to share it with up to four
passengers, including luggage.
Being a Porsche, this is a powerful
vehicle whose excellent dynamics
promise pure driving pleasure, onroad or offroad. Nevertheless,
there is still scope for further
improvement, but only if this is
in keeping with the car’s overall
conceptual harmony. Here, we
give you the opportunit y to select
from a range of performance- enhancing products, such as the
Cayenne Turbo Powerkit, sports
tailpipes and the Porsche Ceramic
Composite Brake (PCCB). The
following pages will tell you more.
Where some can go no further,
others are just getting started.
Page 15 of 35

· 29 ·
· 28 ·
Cayenne Turbo Powerkit
The only alternative to power?
Even more power. The Cayenne
Turbo Powerkit raises the maxi -
mum power output of your
Cayenne Turbo by 40 hp to
540 hp, while maximum torque
is increased to 750 Nm.
This power upgrade was achieved
through a series of measures,
including a modification to the engi -
ne electronics and turbochargers
with turbine wheels in titanium/
aluminium. Other modifications
include an optimised brake cooling
system and a sophisticated
restyling of the engine compartment.
The throt tle valve cover features
a plaque in carbon and the intake
manifold is titanium-coloured with
inlays in carbon and featuring a
silver-coloured logo.
Cayenne Turbo Powerkit
For you, the combined effect of
these refinements means increa -
sed vehicle performance and even
more driving pleasure. You can
also rest assured that your warran -
ty
covers all these modifications
in full.
Some models may require additio -
nal components (please see fitting
and conversion instructions).
Only available for Cayenne Turbo.
Performance Cayenne Turbo with PowerkitTop Speed 281 km/ h (174 mph)
Acceleration
0 –100 km/ h (0 – 62 mph) 4.6 secs
Flexibility
80 –120 km/ h (50 –75mph) 3.0 secs
Cayenne Turbo with Powerkit
Cayenne Turbo with standard engine
260
240
220
200
180280 300 320 340 360 380 400
1500
200025003000 3500400045005000 5500600065001000
420
Power (kW)
Engine speed (rpm)
360
520 560 600 640 680 720 760 800
400440
480
840
T
orque (Nm)
Cayenne T urbo mit Leistungssteigerung
Cayenne T urbo Serie
7000
Cayenne Turbo Powerkit
Cayenne Turbo with Powerkit:
Fuel consumption in l/100 km (mpg) · urban 15.8 (17.9) · extra urban 8.4 (33.6) · combined 11.5 (24.6);
CO
2 emissions 270 g / km
Page 16 of 35

· 31 ·
· 30 ·
Porsche Ceramic Composite
Brake (PCCB)
PCCB is a high-tech brake system.
Its carbon-fibre-reinforced, inter -
nally vented and cross-drilled
ceramic brake discs have a dia -
meter of 410 mm at the front and
370 mm at the rear. Six-piston
aluminium monobloc brake
calipers at the front and four-
piston units at the rear – all with
a yellow finish – provide extremely
high and consistent levels of
friction.
Available for t yre sizes of 20 -inch
upwards and only for Cayenne
Tu r b o. Sports tailpipes

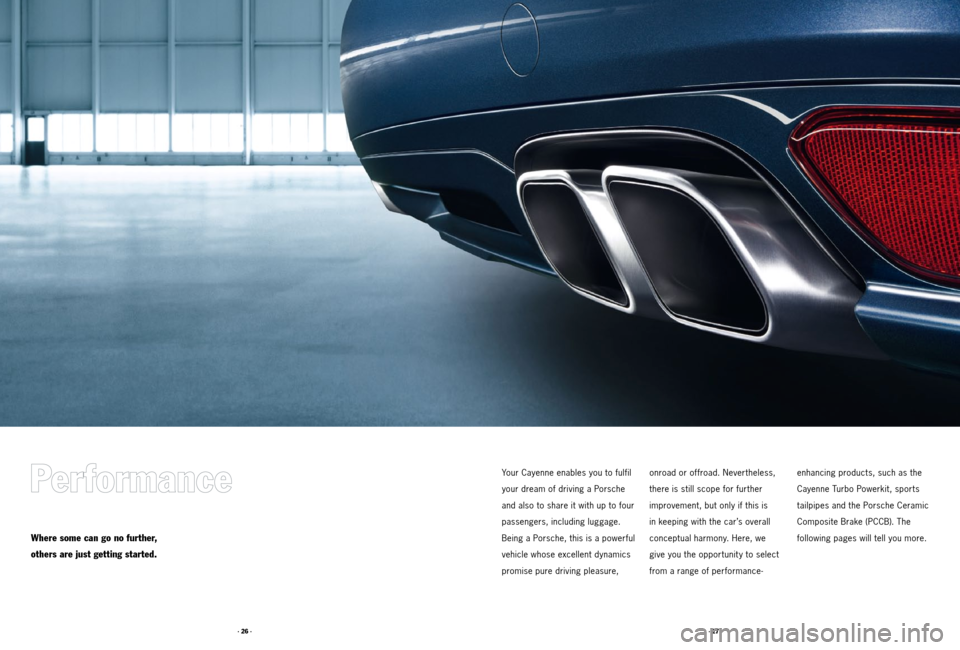

Give the rear of your Cayenne
an even sportier look with these
aluminium twin dual-tube tailpipes
in a distinctive design. Nanocoated
to make them easier to clean and
provide a striking effect.
Not compatible with sports
exhaust system.
Sports exhaust system
Features modified main silencers
and two twin-tube trims with
Cayenne Turbo design in polished,
high-gloss aluminium with a nano -
coat finish. The sport y sound is se -
lected using the existing SPORT
button.
Only for Cayenne and Cayenne S.
Spor ts exhaust system Sports tailpipes
Porsche Ceramic Composite Brake (PCCB)
Page 17 of 35

· 33 ·
· 32 ·

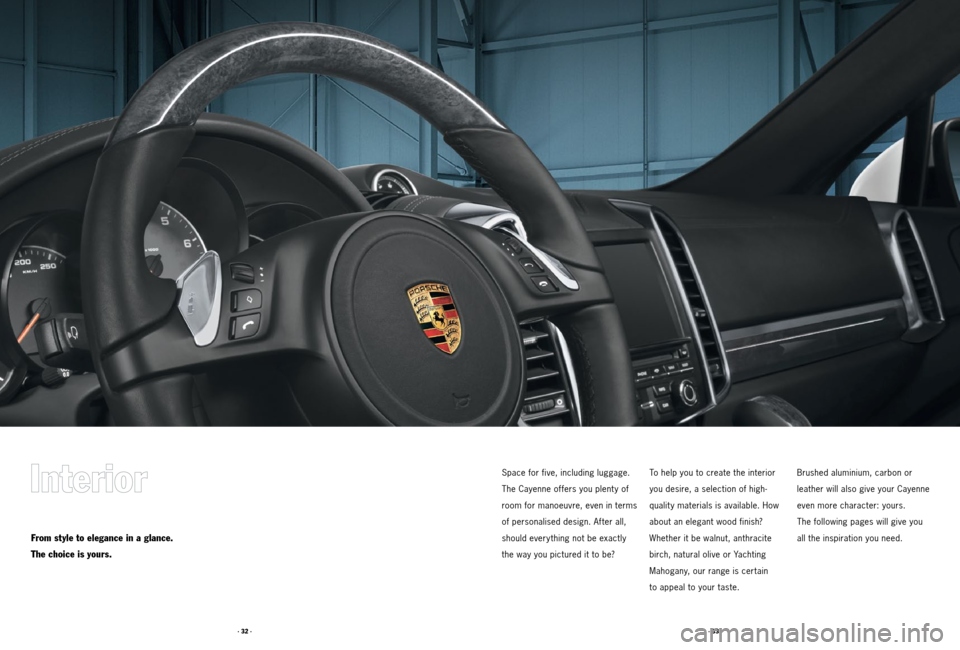

From style to elegance in a glance.
The choice is yours.
Space for five, including luggage.
The Cayenne offers you plent y of
room for manoeuvre, even in terms
of personalised design. After all,
should every thing not be exactly
the way you pictured it to be? To help you to create the interior
you desire, a selection of high-
quality materials is available. How
about an elegant wood finish?
Whether it be walnut, anthracite
birch, natural olive or Yachting
Mahogany, our range is certain
to appeal to your taste. Brushed aluminium, carbon or
leather will also give your Cayenne
even more character: yours.
The following pages will give you
all the inspiration you need.
Page 18 of 35

· 35 ·
· 34 ·
Walnut1
A classic, high-quality dark wood
with a unique and appealing grain.
Anthracite birch1
This anthracite-coloured birchwood
has an at tractive wav y grain, an
impressive dual-tone effect and a
silky sheen.
Natural olive1
A high-qualit y ash wood with an
olive grain and a silky mat t sheen,
giving a combination of elegance,
individuality and luxury.
Yachting Mahogany1
Inspired by the construction of
exclusive yachts, mahogany is
a fine dark wood. Light maple in -
serts provide a st ylish contrast.
Yachting Mahogany provisionally
available from 09/2011.
Brushed aluminium
Brushed aluminium sets clear
accents and gives the interior a
sporty minimalist appearance.
Carbon
Carbon is a light but highly durable
material which has its origins in
motor racing. Its sport y look is
the ideal complement to the car’s
race-bred engineering.
Leather
Leather is a traditional natural
material – a true classic. Items
made of leather are both timeless
and hardwearing.
1 Since wood is a natural product,
there may be variations in colour
and grain.
Carbon
Brushed aluminium interior package
Brushed aluminiumNatural olive
Leather
Walnut
Anthracite birch
Yachting Mahogany
Page 19 of 35

· 37 ·
· 36 ·
Interior package and extended trim package in anthracite birch
Interior package
Would you like to make your
Cayenne even more individual,
even more refined? Our range of
interior packages enables you to
choose the finish you would like
for the decorative trims on the
dashboard and all doors, the
decorative plate on the centre
console lower section and the
front ashtray cover. Packages are
available in walnut, anthracite birch, natural olive, Yachting
Mahogany, brushed aluminium or
carbon.
Extended trim package
The extended trim package crea -
tes an outstanding effect when
combined with one of our interior
packages, but is equally at tractive
on its own. The extended trim
package comprises the Tiptronic S
gear selector and the multifunction steering wheel rim (not including
airbag module). Available in
walnut, anthracite birch, Yachting
Mahogany or carbon.
Door handles and centre console
grab handles
Includes the front and rear door
handles and the centre console
grab handles. Available in walnut,
anthracite birch, natural olive,
Yachting Mahogany or carbon.
Door handles and centre
console grab handles in
padded leather (not shown)
The door handles in the front and
rear and the grab handles on the
centre console are all padded
for an excellent non-slip effect.
Decorative seams complete the
classy appearance.
SportDesign steering wheel
This steering wheel in leather
with gearshift paddles located
behind the right- and left-hand
spokes will appeal to anyone who
wants to make motorsport-st yle
gear changes. The right-hand
paddle shifts up, the left-hand
paddle shifts down, confirming
that comfort and sportiness
needn’t be mutually exclusive.
Vehicle key painted
A special kind of door opener:
an additional key with a painted
finish. Available in selected
exterior colours.
Key pouch in leather
In smooth-finish leather with deco -
rative stitching and embossed
Porsche Crest. Available in
selected leather colours. Includes
a tether for the vehicle key.
SportDesign steering wheel
Door handles and centre console grab handles in carbon
Vehicle key painted, key pouch in leather
Page 20 of 35

· 39 ·
· 38 ·
Rubber floor mats
Four made-to-measure floor
mats in an appealing design
featuring the Cayenne silhouette.
Non-slip and waterproof.
Floor mats with nubuck edging
Precision down to the last detail:
made-to -measure floor mats with
nubuck edging, ‘PORSCHE’ logo
and a waterproof backing. Floor
mat displacement is prevented by
a special securing system.
Reversible loadspace mat with
nubuck edging
This reversible mat with loading
edge protection shields the lugga -
ge compartment from dirt and
protects the vehicle paintwork
from scratches during loading.
One side is trimmed in velour
in the interior colour, the other
side features a hard-wearing,
non-slip rubber surface.
Sun/privacy screen
Protects against direct sunlight
and at the same time provides
additional privacy. At taches to
the rear screen and rear windows
by a system of clips.
Tiptronic S gear selector in
aluminium
Tiptronic S gear selector specially
designed in milled aluminium
and with inlays in smooth-finish
leather in interior colour.
Only for vehicles with Tiptronic S.
For further product information
and part numbers, please refer to
the Tequipment Cayenne price list.
Rubber floor mats Reversible loadspace mat with nubuck edging
Sun/privacy screen
Tiptronic S gear selector in aluminium Floor mats with nubuck edging
