Tequipment Cayenne
Accessories for the Cayenne model range
Page 2 of 35
· 3 ·
SportDesign package design drawing
Spor tDesign package undergoing tests in the wind tunnel
Cayenne Turbo with Spor tDesign package on the Porsche test track in Weissachwind tunnel and adapted to the
overall aerodynamic concept of
the Cayenne. Laboratory analyses
provided confirmation of material
and surface qualit y, and behaviour
under dynamic driving conditions
was subsequently observed on the
racetrack.
Whichever Tequipment products
you ask your Porsche Centre to
fit, one thing remains unchanged:
your original vehicle warranty.
You can find out more about the
Porsche Tequipment range at
www.porsche.com.
Porsche Tequipment is all about
sportscar technology, efficiency,
dynamics and design. And you.
Versatility combined with impressive
performance and extraordinary
handling. These are the characte-
ristics of every Cayenne model.
With each new generation, the
Cayenne models become lighter,
safer, more economical, more
dynamic, and more comfortable.
In other words, they are more effi -
cient – another impressive example
of how we put Porsche Intelligent
Performance into practice.
There is only one thing missing:
a personal touch. Something
that will turn any Porsche into
something unmistakable – your
Porsche. We gave this personal
touch a name: Tequipment.
All the model-specific products in
the Tequipment range have been
developed, tested and formulated
with the complete vehicle in mind.
By the same Porsche engineers
and designers who create the cars.
Each component has to be visually appealing and technically compa
-
tible.
All this takes place primarily at
the Porsche Development Centre
in Weissach, Germany – from
design through to approval. Every
product undergoes exhaustive
testing throughout its development
to ensure optimum performance
and durabilit y. This is because
they have to meet the highest
standards of Porsche qualit y and
functionality.
One of the highlights is the new
SportDesign package. In t ypical
Porsche fashion, we see form
following function, for the best
possible combination of perfor -
mance and everyday practicalit y.
As part of its development, the
SportDesign package was subjec -
ted to continuous loads on specially
designed test rigs. Aerodynamics
and downforces, for example,
were evaluated extensively in the
Page 3 of 35
· 5 ·
· 4 ·
Exterior 6
From the air intake grilles
painted in black (high-gloss) to
optional alloy wheels. Whatever
you choose, your decision will be
a reflection of your sport y st yle.
Performance 26
Want to push the performance
concept to the very limit?
Welcome to the high-performance
club.
Interior 32
Personalise the interior. Classic,
pure or sport y. Let your taste
decide. Audio and communication
included.
Transport and car care 50
Here you will find intelligent
transport solutions, Porsche
child seats and care products
for your car.
Service 64
This page provides a brief
insight into the world of Porsche.
Index 66
Page 4 of 35
· 7 ·
· 6 ·
With important decisions, you
should always leave yourself
plenty of room for manoeuvre.
The Cayenne. With Porsche
Tequipment, you can make it look
even sportier, even more dynamic.
You could select, for example, a
SportDesign package, Bi-Xenon
main headlights in black, smoked LED taillights or choose from a
range of exterior options painted
in black (high-gloss). How about a
decorative side logo? The choice
is yours. Every thing has been
designed to meet your expectations. On the following pages we
will show
you all the personalisation
options
available from Porsche Tequipment.
Page 5 of 35
· 9 ·
· 8 ·
Bi-Xenon main headlights in black including Porsche Dynamic Light System (PDLS)
SportDesign package with sideskirts
Smoked LED taillights
SportDesign package with
sideskirts
Sportswear should be functional
and tailor-made. The new
SportDesign package was develo -
ped specifically for the Cayenne.
It comprises a front apron availab -
le in the exterior colour of your
vehicle with additional air intakes,
a rear apron with side at tach -
ments, sideskirts, wide, imposing
wheel arch extensions and a distinctive roof spoiler with fixed
bi-plane wing profile.
Restricted off-road use.
Provisionally available from
11 / 2 011.
SportDesign package without
sideskirts
This package contains all of the
items in the SportDesign package described above, except for the
sideskirts. It makes an excellent
combination with running boards.
Restricted off-road use.
Provisionally available from
11 / 2 011.
Bi-Xenon main headlights in
black including Porsche
Dynamic Light System (PDLS)
Love at first sight: these Bi-Xenon
projection main headlights have
a black painted finish on the inside
and are equipped with static and
dynamic cornering lights, halogen
auxiliary main-beam headlights, a
headlight cleaning system and
dynamic range control.
Smoked LED taillights
These LED taillights make a las -
ting sporty impression, featuring
a red lens and a black finish on
selected internal parts. Same
function and dimensions as
standard taillights.
Page 6 of 35
· 11 ·
· 10 ·
Air intake grilles painted in
black (high-gloss)
A first impression can be decisive.
Just as it is with your Cayenne.
With the air intake grilles (left,
centre, right) painted in black
(high-gloss), it gives more than just
a striking and lasting sport y im -
pression – it has a winning smile.
Decorative side logo
Decorative side logos on Porsche
cars are legendary. Just like the
cars privileged enough to display them. Why not make your vehicle
part of the legend?
Decorative logo including accent
stripes in selected colours:
‘Cayenne’, ‘Cayenne diesel’,
‘Cayenne S’, ‘Cayenne S hybrid’
and ‘Cayenne turbo’.
Roof spoiler separation edge
painted in black (high-gloss)
The separation edge of the roof
spoiler painted in black (high-gloss) will give your Cayenne an even
more imposing look.
Exterior mirrors painted in
black (high-gloss)
Like you, we pay maximum at tention
to every detail. Details such as the
exterior mirror lower trims, including
the front surround and mirror base,
painted in black (high-gloss).
Air intake grilles painted in black (high-gloss)
Decorative side logo
Exterior mirrors painted in black (high-gloss)
Roof spoiler separation edge painted in black (high -gloss)
Page 7 of 35
· 13 ·
· 12 ·
Running boards
Make your Cayenne even more
individual and give it an even
more powerful and sport y look.
Running boards also enable easier
access to the passenger compart -
ment and roof.
Restricted off-road use.
Stainless steel skid plate (front)
The front skid plate in stainless
steel gives your Cayenne an even
more powerful and dynamic
appearance. Its colour has been
carefully selected to complement
the metallic features of the
Cayenne and installation does
not affect the vehicle‘s approach
angle. Recommended in conjunction with
stainless steel skid plate (rear).
Stainless steel skid plate (rear)
The rear skid plate in stainless
steel gives a sport y look to the
rear of your Cayenne.
Recommended in conjunction with
stainless steel skid plate (front).
Running boards
Wheel arch extensions
Designed to make your Cayenne
look even more imposing, these
distinctive wheel arch extensions
provide protection for the wheel
arch edges and enhance the indi
-
vidual appearance of the vehicle.
Two versions are available.
Wheel arch extensions (21-inch)
Wheel arch extensions in black Stainless steel skid plate (front)
Stainless steel skid plate (rear)
Page 8 of 35
· 15 ·
· 14 ·
Wheels
Wheels provide the direct connec -
tion with the road. Our wheels
have been developed using the
same principle by which we deve-
lop our vehicles: form following
function. We’ve also further im-
proved our t yres, for bet ter driving
performance and handling and
reduced rolling resistance and
weight. In this way, they can
provide the necessary basis for
improved fuel economy and, of
course, increased driving pleasure.
21-inch Cayenne SportEdition
wheels with summer tyres
The 21-inch Cayenne SportEdition
cast-alloy wheel with a multi-spoke
design has a dynamic and power-
ful look. With a width of 10 inches
at the front and rear, the resulting
large contact patch will give your
vehicle a sport y appearance and
optimise dynamic performance.
21-inch Cayenne SportEdition
wheels painted in black
(high-gloss) with summer tyres
These one-piece multi-spoke
alloy wheels for the Cayenne are
as imposing as they are sport y.
The centre spokes have a black
painted finish and wheel centres
in black with a full-colour Porsche
Crest are included.
21-inch 911 Turbo II wheels with
summer tyres
This set of wheels with summer
t yres is both athletic and agile.
The elegant design of the forged
alloy wheels with a t wo -tone finish
is the epitome of individuality on
the road.
20-inch RS Spyder Design
wheels with summer or winter
tyres
This design takes its cues from
the wheels that adorned the
successful Porsche RS Spyder
race car. The multi-spoke design
of these aluminium alloy wheels
is a motorsport hallmark. Wheels
come with a choice of summer or
winter tyres.

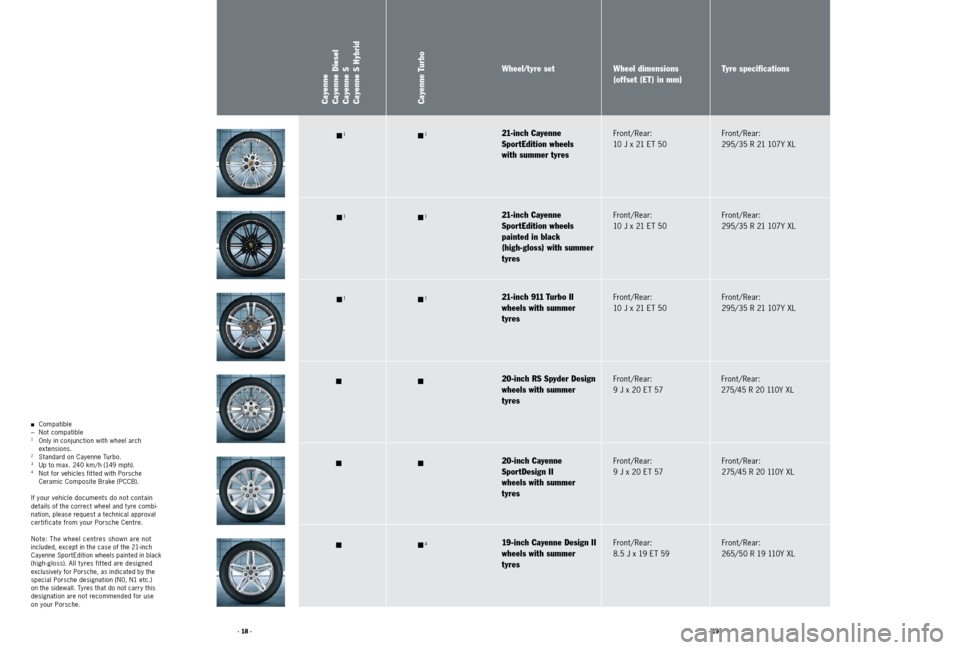

See pages 18 to 23 for wheel and
tyre specifications.
21- inch Cayenne Spor tEdition wheels with summer t yres
21- inch Cayenne Spor tEdition wheels painted in black (high -gloss) with summer t yres
21- inch 911 Turbo II wheels with summer t yres
20 - inch RS Spyder Design wheels with summer or winter t yres
Page 9 of 35
· 17 ·
· 16 ·
20-inch Cayenne SportDesign II
wheels with summer or winter
tyres
These one-piece alloy wheels
with 10 -spoke design look good
at any time of year and, in combi -
nation with winter t yres, they pro -
vide excellent traction even in the
cold season.
19-inch Cayenne Design II
wheels with summer tyres
These lightweight, one-piece alloy
wheels with five dual arm spokes
are as unmistakable as your
Cayenne.
Also available with all-season tyres
with low rolling resistance.
19-inch Cayenne Turbo wheels
with summer or winter tyres
Highlight the sporty appearance
of your Porsche with these one-
piece alloy wheels with double-spoke
design. When fit ted with winter
t yres, not only will they make your
Porsche even more at tractive as
temperatures begin to fall, they
will also make an important
contribution to safet y.
18-inch Cayenne S III wheels
with winter tyres
These one-piece alloy wheels with
five-spoke design are the essence
of st yle. Thanks to their winter
t yres, they offer increased
traction and added safet y in the
colder months.
Not compatible with the
Cayenne Turbo.
18-inch Cayenne wheels with
winter tyres
These one-piece multi-spoke alloy
wheels make an important contri -
bution to safet y in cold weather
and are characterised by their
strong grip and appealing design.
Not compatible with the
Cayenne Turbo.
See pages 18 to 23 for wheel and
tyre specifications.
20 - inch Cayenne Spor tDesign II wheels with summer or winter t yres 19 - inch Cayenne Design II wheels with summer t yres
18 - inch Cayenne S III wheels with winter t yres18 - inch Cayenne wheels with winter t yres
19 - inch Cayenne Turbo wheels with summer or winter t yres
Page 10 of 35
· 19 ·
· 18 ·
Front/Rear:
10 J x 21 ET 5021-inch 911 Turbo II
wheels with summer
tyres Front/Rear:
295/35 R 21 107 Y XL
21-inch Cayenne
SportEdition wheels
painted in black
(high-gloss) with summer
tyres Front/Rear:
10 J x 21 ET 50 Front/Rear:
295/35 R 21 107 Y
XL
n
1n 1
n Compatible
– Not compatible
1 Only in conjunction with wheel arch
extensions.
2 Standard on Cayenne Turbo.3 Up to max. 240 km/ h (149 mph).4 Not for vehicles fit ted with Porsche
Ceramic Composite Brake (PCCB).
If your vehicle documents do not containdetails of the correct wheel and t yre combi -
nation, please request a technical approval
cer tificate from your Porsche Centre.
Note: The wheel centres shown are not included, except in the case of the 21-inch
Cayenne SportEdition wheels painted in black
(high -gloss). All t yres fit ted are designed exclusively for Porsche, as indicated by the special Porsche designation (N0, N1 etc.) on the sidewall. Tyres that do not carr y this designation are not recommended for use
on your Porsche.
Wheel/tyre set Wheel dimensions
(offset (ET) in mm)
Cayenne
Cayenne Diesel
Cayenne S
Cayenne S Hybrid
Tyre specifications
Cayenne Turbo
Front/Rear:
10 J x 21 ET 5021-inch Cayenne
SportEdition wheels
with summer tyresFront/Rear:
295/35 R 21 107Y XL
20-inch RS Spyder Design
wheels with summer
tyres Front/Rear:
9 J x 20 ET 57 Front/Rear:
275/45 R 20 110Y XL
20-inch Cayenne
SportDesign II
wheels with summer
tyres Front/Rear:
9 J x 20 ET 57 Front/Rear:
275/45 R 20 110 Y
XL
19-inch Cayenne Design II
wheels with summer
tyres Front/Rear:
8.5 J x 19 ET 59 Front/Rear:
265/50 R 19 110 Y
XL
n
1n 1
n 1n 1
n
n
n n
n n
4
