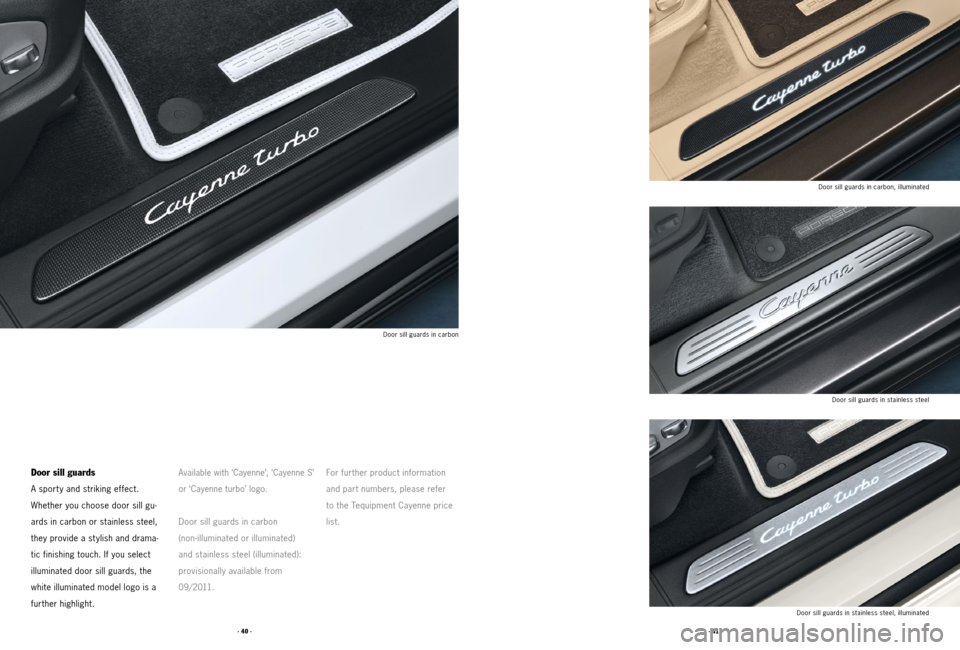

Door sill guards
A sport y and striking effect.
Whether you choose door sill gu -
ards in carbon or stainless steel,
they provide a st ylish and drama -
tic finishing touch. If you select
illuminated door sill guards, the
white illuminated model logo is a
further highlight.
Door sill guards in carbon Door sill guards in carbon, illuminated
Door sill guards in stainless steel
Door sill guards in stainless steel, illuminated
Available with ‘Cayenne’, ‘Cayenne S’
or ‘Cayenne turbo’ logo.
Door sill guards in carbon
(non- illuminated or illuminated)
and stainless steel (illuminated):
provisionally available from
0 9/ 2 011. For further product information
and part numbers, please refer

to the Tequipment Cayenne price
list.

· 43 ·
· 42 ·

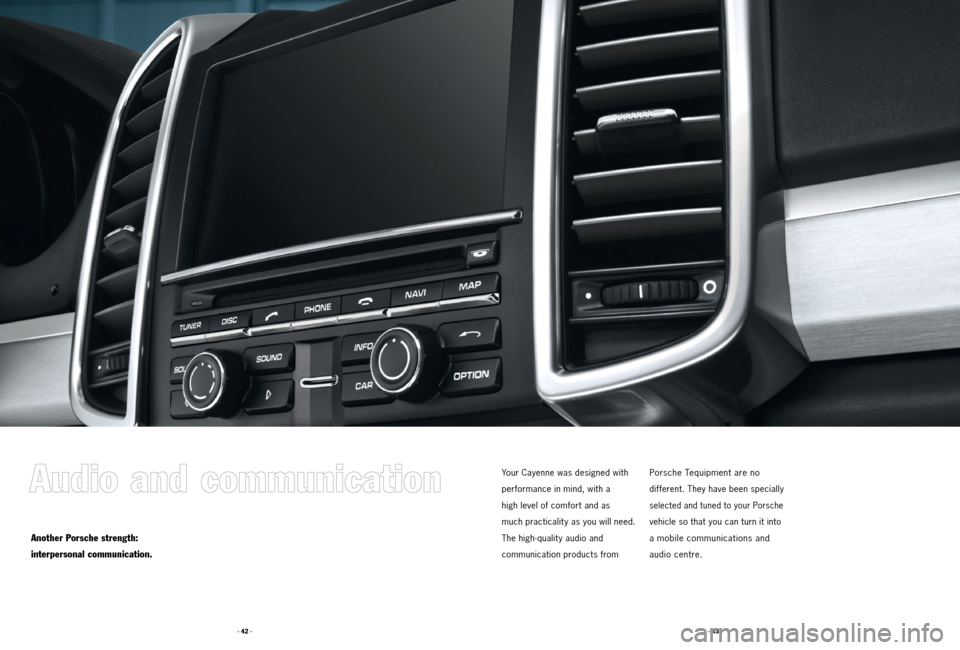

Another Porsche strength:
interpersonal communication.
Your Cayenne was designed with
performance in mind, with a
high level of comfort and as
much practicalit y as you will need.
The high-quality audio and
communication products from Porsche Tequipment are no
different. They have been specially
selected and tuned to your Porsche
vehicle so that you can turn it into
a mobile communications and
audio centre.

· 45 ·
· 44 ·
PCM with navigation module
and CD/DVD autochanger
The central information and
communication system with a 7-inch
W VGA TFT colour touchscreen is
easy to operate. The radio has an
FM dual tuner frequency diversit y
with RDS. The CD/ DVD drive
plays CDs and audio DVDs and is MP3-compatible. Audio playback

of video DVDs is also supported.
The GPS navigation system has
a hard drive containing map data
for most European countries.
Other features include dynamic
route calculation, a 3D map display
and automatic route recording.
Universal audio interface
For vehicles with PCM, the centre
console storage compartment will
contain two connections: an AUX
interface for connecting an external
audio source, and a USB port
enabling you to connect a USB
memory stick containing MP3
tracks, an MP3 player, an iPod®
PCM with navigation module and CD/ DVD autochanger
or an iPhone®. The USB stick, iPod®
or iPhone
® can be operated conve -
niently via PCM, the multifunction
steering wheel or the voice control
system.
For vehicles with the CDR-31 audio
system, the centre console storage
compartment will contain an AUX interface for connecting a com
-
patible audio source. The volume
is adjusted using the controls on
the CDR-31 audio system, other
functions are operated using the
controls on the external audio
source itself.
Cordless handset for telephone
module
Installed in the centre console and
features a display and separate
keypad for making calls privately
in the presence of other passen -
gers.
Universal audio inter face and cordless handset for telephone module

· 47 ·
· 46 ·
Electronic logbook1
The optional electronic logbook
enables automatic recording of
mileage, route distance, date
and time, starting point and desti -
nation as part of every journey.
Once you have downloaded the
logbooks from the PCM via
Bluetooth® or the optional USB
interface, the data can be
evaluated on your home PC using
the software supplied.
Mobile phone preparation1
To enable a Bluetooth® connec-
tion for those mobile phones
that only support the Handsfree
Profile (HFP)2, an optional hands-
free facilit y is available. With HFP,
the PCM acts merely as a hands-
free system and can be used to
control only the basic functions
of the phone. The GSM connec -
tion is established through the
aerial of the mobile phone.
1 Only in conjunction with PCM.
2 Information on compatible
mobile telephones is available
from your Porsche Centre or
visit www.porsche.com.

Telephone module1
The optional quadband GSM tele -
phone module offers convenience
and excellent reception. By inser -
ting a SIM card directly into the
PCM’s integral SIM card reader,
calls can be made using either
the hands-free facilit y or the
optionally available cordless
handset. Alternatively, calls can
be made using the Bluetooth
®
capability of your mobile phone.

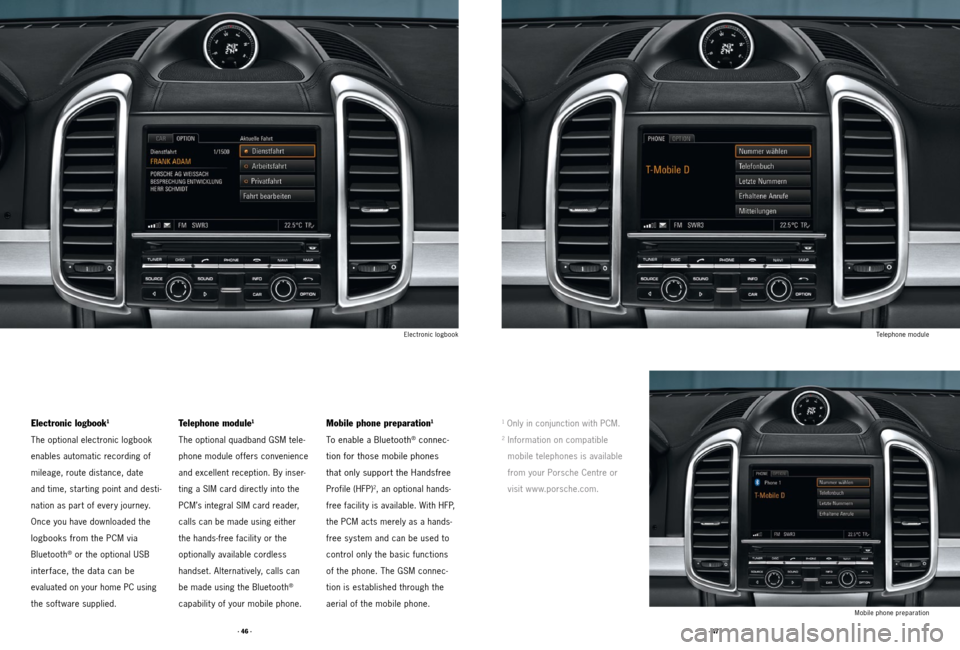

Electronic logbook Telephone module
Mobile phone preparation

· 49 ·
· 48 ·

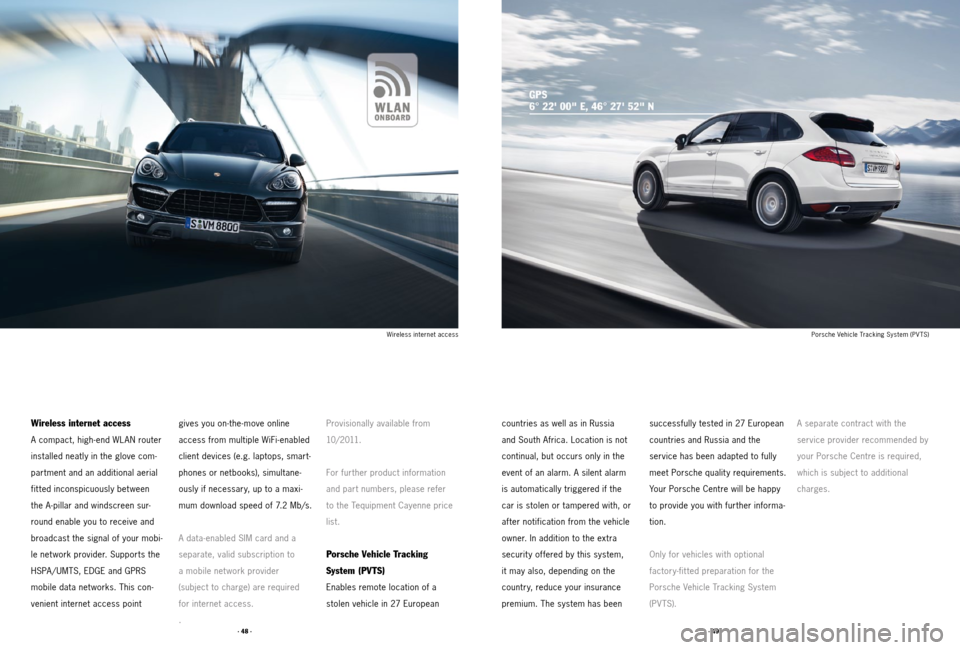

Porsche Vehicle Tracking System (PV TS)
Wireless internet access
A compact, high-end WLAN router
installed neatly in the glove com -
partment and an additional aerial
fitted inconspicuously between
the A-pillar and windscreen sur -
round enable you to receive and
broadcast the signal of your mobi -
le network provider. Supports the
HSPA / UMTS, EDGE and GPRS
mobile data networks. This con-
venient internet access point Provisionally available from
10/ 2 011.
For further product information
and part numbers, please refer

to the Tequipment Cayenne price
list.
Porsche Vehicle Tracking
System (PV TS)
Enables remote location of a
stolen vehicle in 27 European countries as well as in Russia

and South Africa. Location is not
continual, but occurs only in the
event of an alarm. A silent alarm
is automatically triggered if the
car is stolen or tampered with, or
after notification from the vehicle
owner. In addition to the extra
securit y offered by this system,
it may also, depending on the
country, reduce your insurance
premium. The system has been successfully tested in 27 European
countries and Russia and the

service has been adapted to fully
meet Porsche quality requirements.
Your Porsche Centre will be happy
to provide you with further informa -
tion.
Only for vehicles with optional
factory-fitted preparation for the
Porsche Vehicle Tracking System
(PV TS).
gives you on-the-move online

access from multiple WiFi-enabled
client devices (e.g. laptops, smart -
phones or netbooks), simultane-
ously if necessary, up to a maxi -
mum download speed of 7.2 Mb/s.
A data-enabled SIM card and a
separate, valid subscription to
a mobile network provider
(subject to charge) are required
for internet access.
. A separate contract with the

service provider recommended by
your Porsche Centre is required,
which is subject to additional
charges.
Wireless internet access

· 51 ·
· 50 ·
Too many hobbies?
Not any more.
For all its sport y appearance, the
interior of the Cayenne is extremely
spacious and comfortable. A range
of optional Porsche child seats
ensures that children can also travel
in comfort.
The luggage compartment offers
plent y of room for your belongings. Cargo liners are available to protect
it from dirt, and the luggage net
keeps your belongings in one place.
Thanks to the intelligent roof

transport systems from Porsche
Tequipment, your vehicle can carry
bulky items of luggage, as well as skis, snowboards, surfboards
or even boats.
Food and drinks are best kept in

the cool box. Your Cayenne, on the
other hand, is best protected under
a car cover. Of course, we also
have an extensive range of care
products.

· 53 ·
· 52 ·
Child seats ModelGroupWeightAge Cayenne
front Cayenne
rear
Porsche Baby Seat ISOFIX,
G 0 +



Porsche Junior Seat ISOFIX,
G 1

Porsche Junior Plus Seat,
G 2 + G 3
0+
up to
13 k g up to
approx.

18 m o n t hs yes1yes
1 9 to
18 k gapprox.

9 months
to 4 years yes
1yes
2 +
315 to
36 kg approx.

3 ½ to
12 y e a r syes1yes

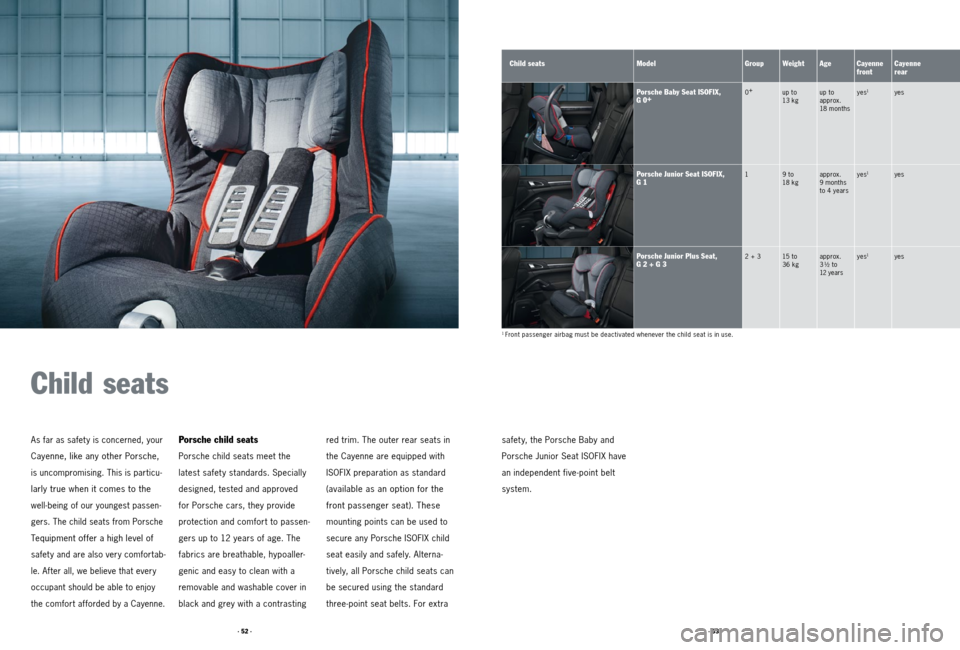

Child seats
As far as safet y is concerned, your
Cayenne, like any other Porsche,
is uncompromising. This is particu -
larly true when it comes to the
well-being of our youngest passen -
gers. The child seats from Porsche
Tequipment offer a high level of
safet y and are also very comfortab -
le. After all, we believe that every
occupant should be able to enjoy
the comfort afforded by a Cayenne.
Porsche child seats
Porsche child seats meet the
latest safety standards. Specially
designed, tested and approved
for Porsche cars, they provide
protection and comfort to passen -
gers up to 12 years of age. The
fabrics are breathable, hypoaller -
genic and easy to clean with a
removable and washable cover in
black and grey with a contrasting red trim. The outer rear seats in
the Cayenne are equipped with
ISOFIX preparation as standard
(available as an option for the

front passenger seat). These
mounting points can be used to
secure any Porsche ISOFIX child
seat easily and safely. Alterna -
tively, all Porsche child seats can
be secured using the standard
three-point seat belts. For extra safet y, the Porsche Baby and
Porsche Junior Seat ISOFIX have
an independent five-point belt

system.
1 Front passenger airbag must be deactivated whenever the child seat is in use.

· 55 ·
· 54 ·

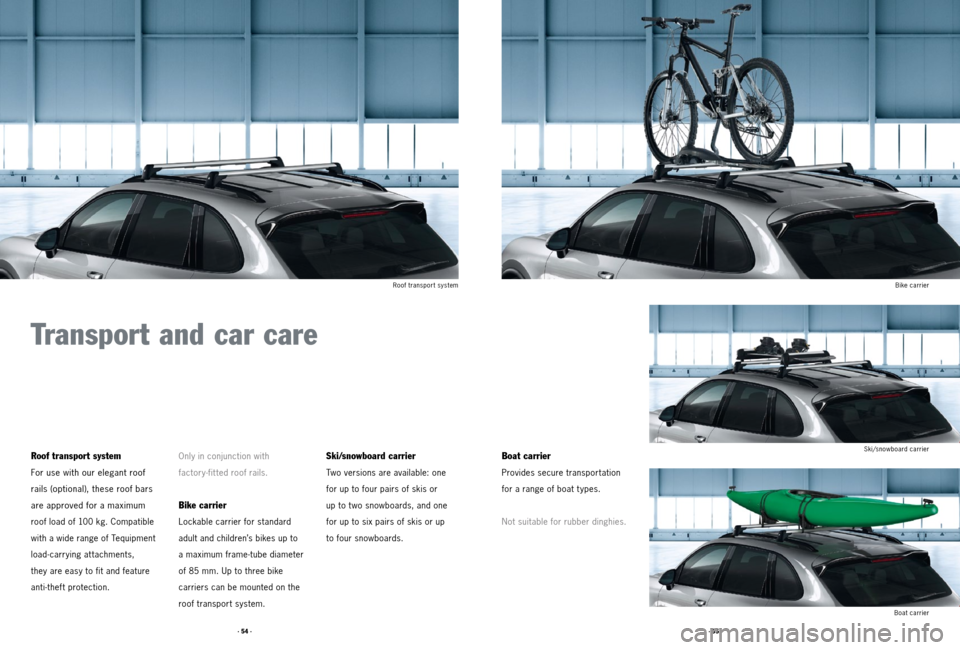

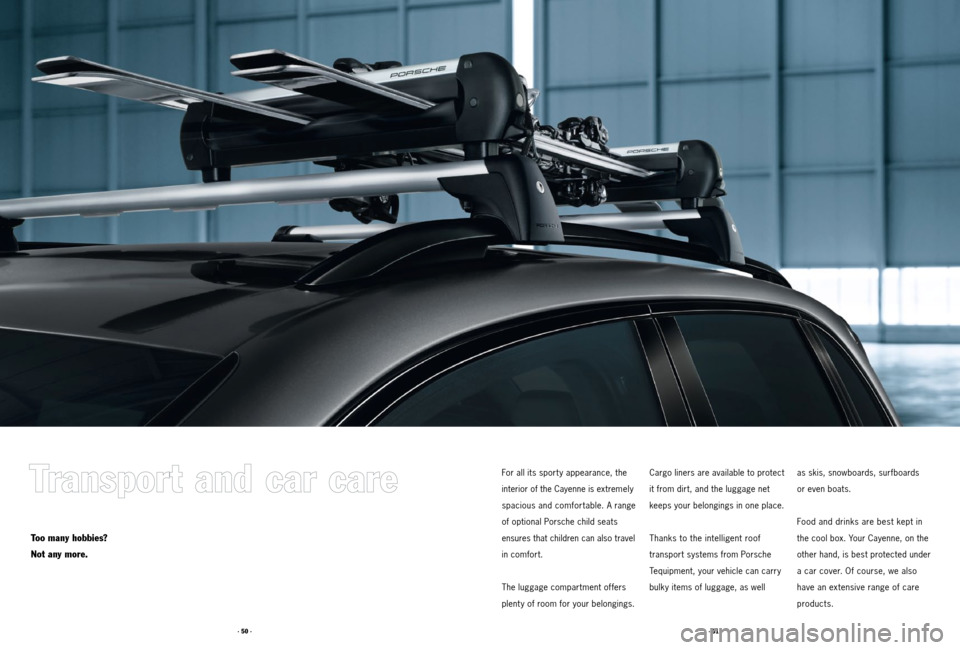

Transport and car care
Roof transport system
For use with our elegant roof
rails (optional), these roof bars
are approved for a maximum

roof load of 100 kg. Compatible
with a wide range of Tequipment
load-carrying attachments,
they are easy to fit and feature
anti-theft protection. Only in conjunction with
factory-fitted roof rails.Bike carrier
Lockable carrier for standard
adult and children’s bikes up to
a maximum frame-tube diameter
of 85 mm. Up to three bike
carriers can be mounted on the
roof transport system.
Ski/snowboard carrier
Two versions are available: one
for up to four pairs of skis or
up to t wo snowboards, and one
for up to six pairs of skis or up
to four snowboards.
Roof transport system
Boat carrierBike carrier
Ski/snowboard carrier
Boat carrier
Provides secure transportation
for a range of boat t ypes.

Not suitable for rubber dinghies.

· 57 ·
· 56 ·

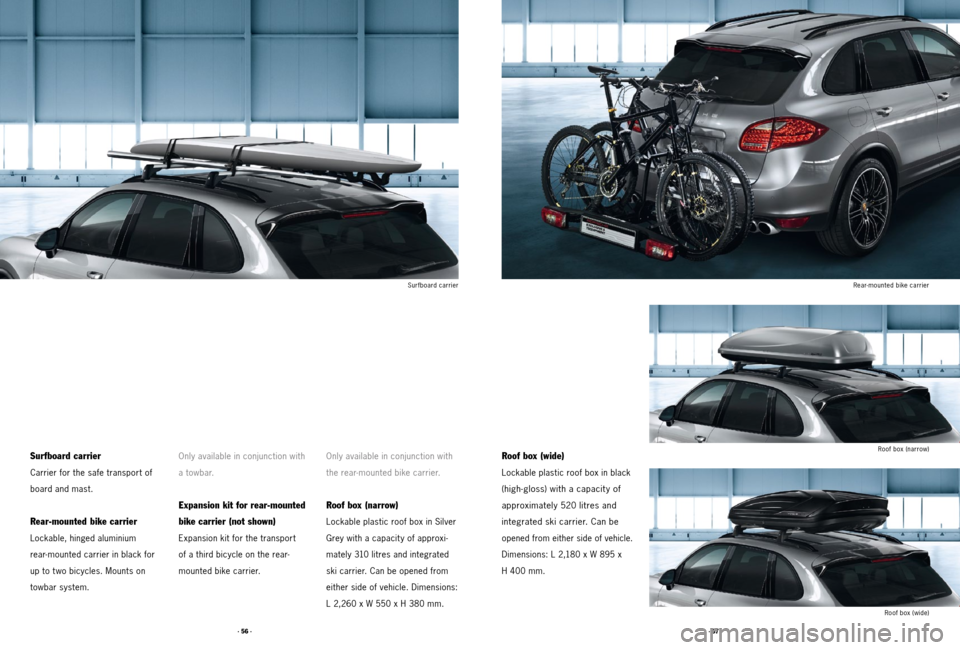

Surfboard carrier
Roof box (narrow)
Rear-mounted bike carrier
Roof box (wide)
Surfboard carrier
Carrier for the safe transport of
board and mast.
Rear-mounted bike carrier
Lockable, hinged aluminium
rear-mounted carrier in black for
up to t wo bicycles. Mounts on
towbar system. Only available in conjunction with
a towbar.
Expansion kit for rear-mounted
bike carrier (not shown)
Expansion kit for the transport

of a third bicycle on the rear-
mounted bike carrier. Only available in conjunction with
the rear-mounted bike carrier.
Roof box (narrow)
Lockable plastic roof box in Silver
Grey with a capacit y of approxi
-
mately 310 litres and integrated
ski carrier. Can be opened from
either side of vehicle. Dimensions:
L 2,260 x W 550 x H 380 mm.
Roof box (wide)
Lockable plastic roof box in black
(high-gloss) with a capacit y of
approximately 520 litres and
integrated ski carrier. Can be

opened from either side of vehicle.
Dimensions: L 2,180 x W 895 x
H 400 mm.

· 59 ·
· 58 ·

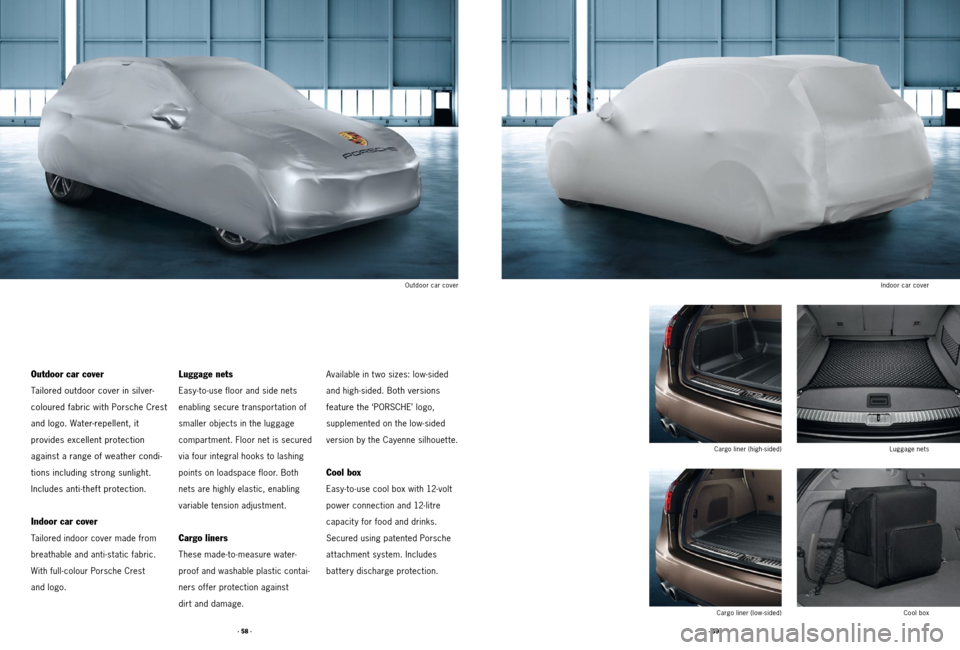

Cool box
Cargo liner (low-sided)
Cargo liner (high-sided)
Luggage nets
Indoor car cover
Outdoor car cover
Outdoor car cover
Tailored outdoor cover in silver-
coloured fabric with Porsche Crest
and logo. Water-repellent, it
provides excellent protection
against a range of weather condi -
tions including strong sunlight.
Includes anti-theft protection.
Indoor car cover
Tailored indoor cover made from
breathable and anti-static fabric.
With full-colour Porsche Crest
and logo.
Luggage nets
Easy-to -use floor and side nets
enabling secure transportation of
smaller objects in the luggage
compartment. Floor net is secured
via four integral hooks to lashing
points on loadspace floor. Both
nets are highly elastic, enabling
variable tension adjustment.
Cargo liners
These made-to-measure water -
proof and washable plastic contai -
ners offer protection against
dirt and damage. Available in two sizes: low-sided
and high-sided.
Both versions

feature the
‘PORSCHE’ logo,
supplemented on the low- sided
version by the Cayenne silhouette.
Cool box
Easy-to -use cool box with 12-volt
power connection and 12-litre
capacit y for food and drinks.
Secured using patented Porsche
attachment system. Includes
battery discharge protection.
