Controls, Safety, Instruments
141
Using engine residual heat
The residual heat of the engine can be used to
heat the interior up to 20 minutes after the ignition
has been switched off.
fPress AUTO/REST button C on the front
control panel.
The air-conditioning settings cannot be
changed in REST mode.
Ending the function
fPress AUTO/REST button C.
Note on operation
If the battery positive voltage is too low, REST
mode is automatically ended.
fPlease observe the chapter “WARNING LIGHTS
AND WARNING MESSAGES” on Page 108.fPress button M.
The Symbol appears on the display.
The rear air-conditioned areas can be con-
trolled from the front control panel.
Ending the function
fPress button M again.
Note on operation
The function is ended automatically 10 seconds
after the last settings are made.
REST mode
Controlling rear air-conditioned
areas with the front control panel

142
Controls, Safety, Instruments
A-“
–” button
B- TIMER button
C-ON/OFF button
D-“+” button
Parking HeaterThe parking heater features two functions: parking
heating and parking ventilation.
The parking heater is ready for use regardless of
the ignition key position.
The parking heater is also used as an auxiliary
heater. Operation of the parking heater is clearly
audible when outside temperatures are low, even
if the parking heater has been manually switched
off.
Danger!
Risk of poisoning due to carbon monoxide
(CO). The parking heater consumes fuel and
emits exhaust fumes. Exposure to such
fumes can cause unconsciousness, serious
personal injury or death.
fSwitch off the parking heater before refuelling.
fDo not operate the parking heater in enclosed spaces (e.g. a garage).
The parking heater is operated using the following
buttons on the front air-conditioning control panel:
Switch parking heater on and off
Activate program
Start programming
Call memories
Set ON times
Activate heating function
Set ON times
Activate ventilating function

Controls, Safety, Instruments
143
Notes on operation
The parking heater runs on fuel, and it therefore
cannot be switched on after the reserve warning
lights up.
fPlease observe the chapter “FUEL RESERVE
WARNING” on Page 76.
The parking heater must be operated at least
once per month, with the engine cold and the
blower at its lowest setting.
Ignition off: When the parking heater is running,
the remaining running time is shown on the display
panel.
Operation of the parking heater is clearly audible
when outside temperatures are low and the engine
is cold.Switching on
fPress ON/OFF button C.
The programed parking heating or parking ven-
tilation function is switched on.
Switching off
fPress ON/OFF button C again.
Note on operation
fAfter switching off the parking heater using
ON/OFF button C wait for at least 2 minutes
before you press the button again.
The combusion chamber is cleaned.
Switching parking heater on and
off

144
Controls, Safety, Instruments
E- Parking ventilation symbol
F-Memory symbol
G- ON time symbol
H- Parking heating symbol
I-ON timeProgramming the parking heaterThe parking heater has three independent memo-
ries for programming the ON times. The ON time,
together with the associated parking heating or
parking ventilation function, can be programed in
each memory.Complete programming of the parking heater re-
quires definition of the
–Function and
–ON time.
Programming function
1. Switch ignition off.
2. Press TIMER button B on the front air-condi-
tioning control panel.
The symbols for the parking heating or parking
ventilation function flash on the display.
3. Select function.
Press “+” button D for parking heating
or “–” button A for parking ventilation.
If no other entry is made within 10 seconds, the
display returns to its initial status.
However, the selected function is retained and is
activated when the parking heater is next turned
on.
fPlease observe the chapter “SWITCHING
PARKING HEATER ON AND OFF” on Page 143.

Controls, Safety, Instruments
145
Programming ON times
1. Switch ignition off.
2. Press TIMER button.
3. Select function (parking heating or parking
ventilation).
4. Select the memory using TIMER button B.
The desired memory can be selected by
pressing button B several times.
5. Set ON time using the “+” and “–” buttons A
andD.
Pressing the buttons adjusts the time on a
minute-by-minute basis. If the button is kept
depressed, the time is adjusted faster.
ON times are only valid for 24 hours.
6. Press ON/OFF button C.
Displays F and G flash for approx. 10 seconds.
ButtonC can be pressed again to switch off
the displays before this time has elapsed.
ON time I, clock symbol F and memory G are
displayed for 2 minutes after ON/OFF button C
has been pressed.
The display then goes out.
The parking heater has now been programed
and the selected memory is active (symbol G
is lit).
Note on operation
Onlyone memory can be active at any one time.Activating the memory
The parking heater runs for 30 minutes. It then
switches itself off automatically.
The program must be reactivated for every subse-
quent run.
To do this:
1. Switch ignition off.
2. Press TIMER button.
3. Select function (parking heating or parking
ventilation).
4. Select the memory using TIMER button B. The
ON time that was last saved is displayed.
5. Press ON/OFF button C.
The program is reactivated.
Displays F and G flash for approx. 10 seconds.
ButtonC can be pressed again to switch off
the displays before this time has elapsed.
ON time I, clock symbol F and memory G are
displayed for 2 minutes after ON/OFF button C
has been pressed.
The display then goes out.
The parking heater has now been programed
and the selected memory is active (symbol G
is lit).
Note on operation
Only one memory can be active at any one time.Example:
The parking heater is to activate the parking
heating function at 9:48 a.m.
To do this:
1. Switch ignition off.
2. Press TIMER button B on the front air-condi-
tioning control panel.
The symbols for the parking heating or parking
ventilation function flash on the display.
3. Press “+” button D.
This selects the parking heating function.
4. Select the memory using TIMER button B.
5. Set ON time to 9:48 a.m. using the “+” and
“–” buttons (AandD).
6. Press ON/OFF button C.
The parking heater has now been programed
and the selected memory is active.
Note on operation
If the parking heater is switched on manually prior
to program start of an active memory, this will
delete the programming.
The memory must be reactivated if it is needed.
If the memory is not reactivated, the parking
heater will not switch on.

146
Controls, Safety, Instruments
Parking heater faultsIn the event of faults in the parking heater, no
function symbol appears on the display – only the
remaining running time is shown. The display
flashes on briefly and then goes completely dark.
fHave the parking heater checked at an
authorized Porsche dealer.
In the event of a serious accident, the parking
heater switches off automatically for safety
reasons.
The parking heater is not ready for operation.
fPlease consult an authorized Porsche dealer.
If the temperature rises, the overheating protec-
tion switches the parking heater off automatically.
The parking heater is not ready for operation.
fPlease consult an authorized Porsche dealer.
The parking heater is switched off automatically if
the voltage is too low. The parking heater is
temporarily unavailable.

Controls, Safety, Instruments
147
Sun Visors
Warning!
Risk of injury.
fKeep the sliding cover closed while driving.
fSwing sun visor A down to prevent dazzle from
the front.
You can cover the gap above the interior mirror
using the small sun visor C.
fIf you are dazzled from the side, unclip sun
visorA from the inner bracket and swivel it
round so that it is in front of the door window.
You can also swivel sun visor B downwards.Note on operation
Please note that sun visor B must be swivelled
upwards before swivelling back sun visor A.
Otherwise, sun visor B can no longer be swivelled
upwards.
Make-up mirrorThe make-up mirror on the rear of the sun visor is
closed with a sliding cover.
fThe make-up mirror illumination is switched on
automatically when the sliding cover is opened
(arrow).

148
Controls, Safety, Instruments
Sun Blinds, Rear Side WindowsThe sun blinds in the rear door trim panels can be
pulled out.
Caution!
Risk of damage.
fPull out sun blinds during the journey only when door windows are closed.
Pulling out sun blindsfPull out sun blind (arrow) and engage in
holdersA.Retracting sun blindsfDisengage the sun blind from holders A and
carefully guide it back into the retractor roller.

Controls, Safety, Instruments
149

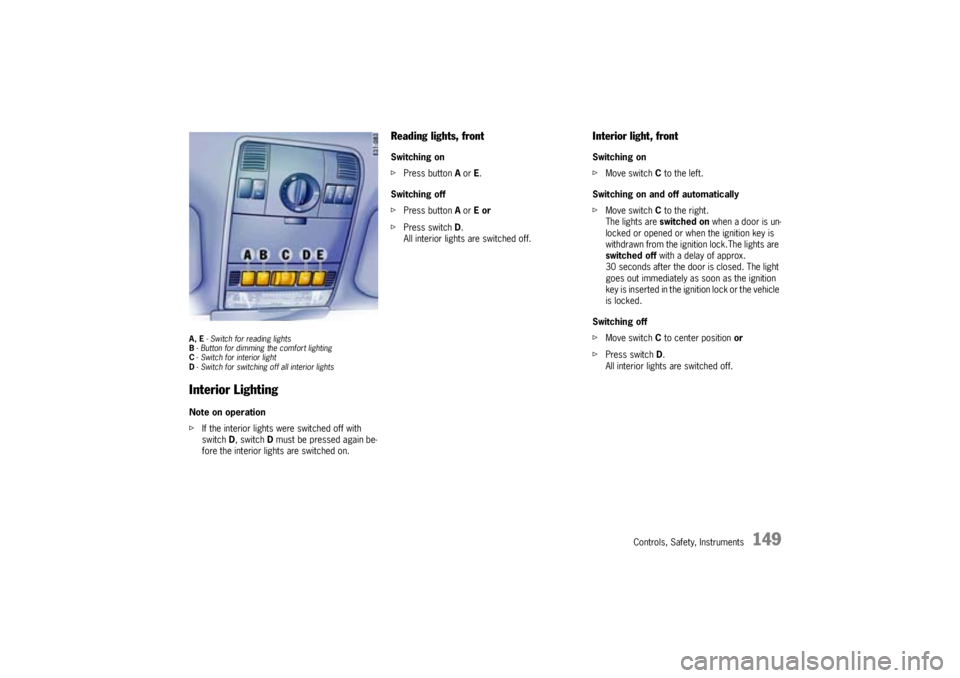

A, E - Switch for reading lights
B- Button for dimming the comfort lighting
C- Switch for interior light
D- Switch for switching off all interior lightsInterior LightingNote on operation
fIf the interior lights were switched off with
switchD, switch D must be pressed again be-
fore the interior lights are switched on.
Reading lights, frontSwitching on
fPress button A or E.
Switching off
fPress button A or Eor
fPress switch D.
All interior lights are switched off.
Interior light, frontSwitching on
fMove switch C to the left.
Switching on and off automatically
fMove switch C to the right.
The lights are switched on when a door is un-
locked or opened or when the ignition key is
withdrawn from the ignition lock.The lights are
switched off with a delay of approx.
30 seconds after the door is closed. The light
goes out immediately as soon as the ignition
key is inserted in the ignition lock or the vehicle
is locked.
Switching off
fMove switch C to center position or
fPress switch D.
All interior lights are switched off.

150
Controls, Safety, Instruments
Reading lights, rear rightRear reading lightsfMove toggle switch forward.fMove toggle switch to center position.
The lights are switched on when a door is un-
locked or opened or when the ignition key is
withdrawn from the ignition lock.The lights are
switched off with a delay of approx.
30 seconds after the door is closed. The light
goes out immediately as soon as the ignition is
switched on or the vehicle is locked.
fMove toggle switch back.
fOperate switch D for switching off all interior
lights.
All interior lights are switched off.
Switching on
Switching on and off automatically
Switching off
