Page 181 of 369

Controls, Safety, Instruments
181
1. Pull release lever (arrow).
Hood is unlocked.2. Unlatch safety catch A.
3. Open the lid completely.
When the lid is open, the engine compartment
is lit by an under hood light.
Closing
Danger!
Risk of loss of control or an accident, result-
ing in serious personal injury or death.
fShould you notice at any time while driving that
one of the lids is not secured properly, please
stop immediately in a suitable place and close
it.The front lid may fly up impairing vision.
fLower lid and let it fall into the lock.
If necessary, push the lid with the palm of your
hand in the area of the lock.
fCheck that the lid has correctly engaged in the
lock.
If the lid is not closed properly, a message will
be displayed on the multi-purpose display of
the instrument panel while the vehicle is being
driven.
Page 182 of 369

182
Controls, Safety, Instruments
LoadspaceThe maximum permissible load on the loadspace
floor is 880 lbs. or 400 kg. The weight must be
distributed evenly over the entire loadspace.
fPlease observe the chapter “LOADING INFOR-
MATION” on Page 191.Opening loadspace floor1. Pull handle A and lift the loadspace floor.2. Unclip prop B and insert it into receiver C in the
loadspace floor.
Closing loadspace floor1. Lift the loadspace floor slightly and clip prop B
into its holder in the vehicle floor.
2. Close the loadspace floor.
Tie-down ringsYou can secure the load in the luggage compart-
ment against slipping. Tie-down straps or the
luggage net can be fastened to tie-down rings D.
fMake sure that all rings are equally loaded
when securing a load.
Note on operation
The tie-down rings are not designed to restrain a
heavy load in an accident.
Page 183 of 369

Controls, Safety, Instruments
183
Luggage Compartment CoverThe luggage can be protected against prying eyes
with the luggage compartment cover.
fAlways pull out the luggage compartment cov-
er when transporting objects in the luggage
compartment.
The luggage compartment cover is not de-
signed to carry objects.
fDo not hang bags or objects on the support
bracketsA. The support brackets could break
off.
fPlease observe the chapter “LOADING INFOR-
MATION” on Page 191.
Warning!
Danger of injury. During braking, direction
changes or in an accident, objects can slide
into the passenger compartment and endan-
ger the occupants.
fDo not place objects on top of the luggage compartment cover.
Pulling out luggage compartment coverfPull out the cover by the handle and insert it
into the guides on the left and right side walls
of the luggage compartment.Retracting luggage compartment coverfDisengage the luggage compartment cover
from the guides on the side walls and carefully
guide it back into the retractor roller.
Remove luggage compartment coverfPull the release Bback.
fLift the cover at the right and remove.
Page 184 of 369

184
Controls, Safety, Instruments

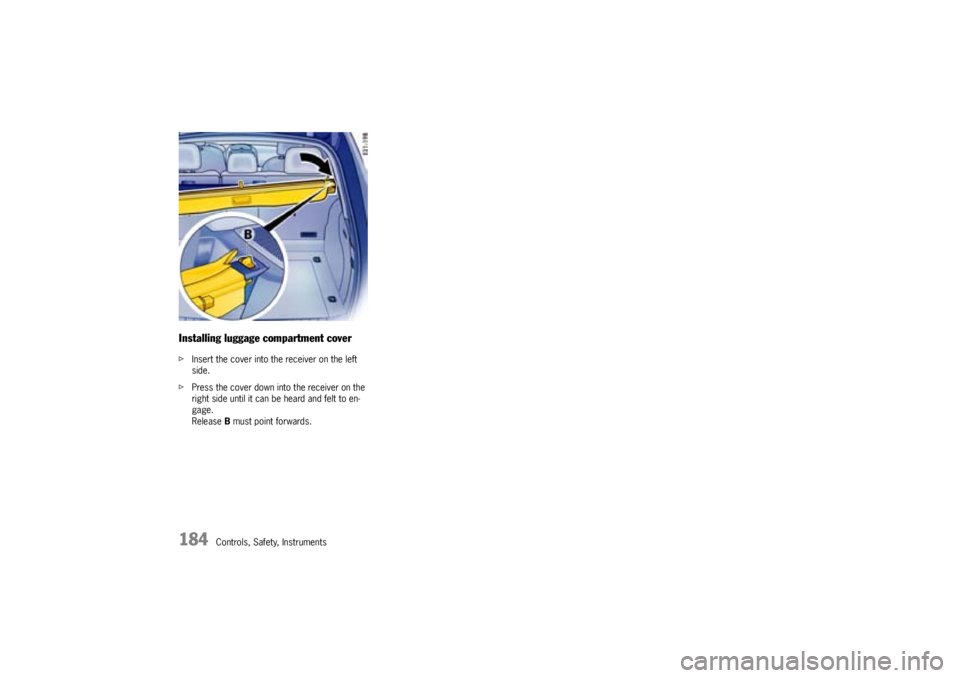

Installing luggage compartment coverfInsert the cover into the receiver on the left
side.
fPress the cover down into the receiver on the
right side until it can be heard and felt to en-
gage.
ReleaseB must point forwards.
Page 185 of 369

Controls, Safety, Instruments
185

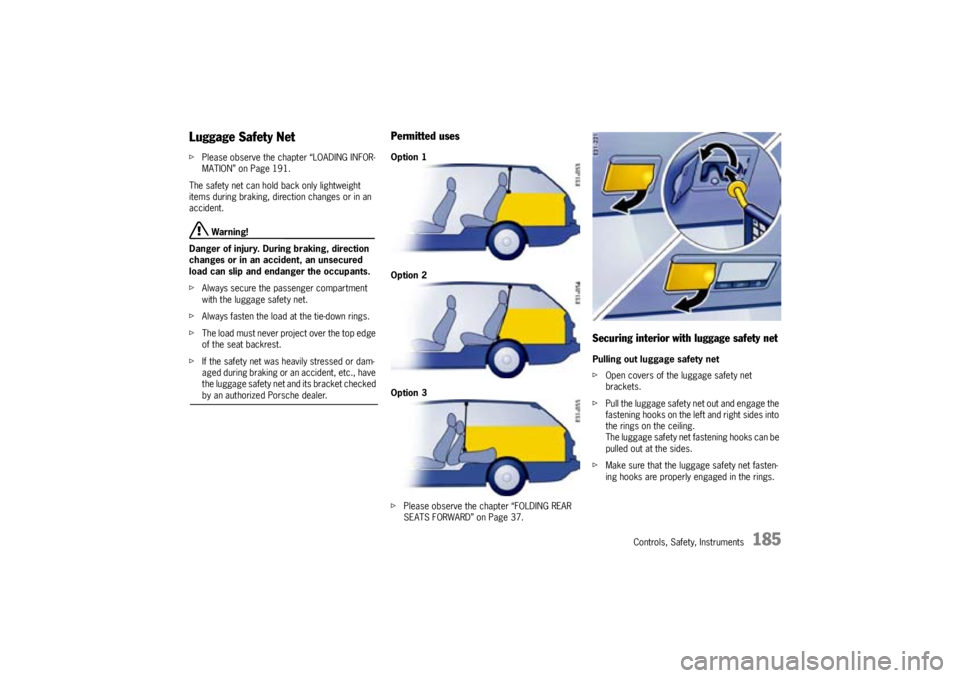

Luggage Safety NetfPlease observe the chapter “LOADING INFOR-
MATION” on Page 191.
The safety net can hold back only lightweight
items during braking, direction changes or in an
accident.
Warning!
Danger of injury. During braking, direction
changes or in an accident, an unsecured
load can slip and endanger the occupants.
fAlways secure the passenger compartment
with the luggage safety net.
fAlways fasten the load at the tie-down rings.
fThe load must never project over the top edge
of the seat backrest.
fIf the safety net was heavily stressed or dam-
aged during braking or an accident, etc., have
the luggage safety net and its bracket checked by an authorized Porsche dealer.
Permitted usesOption 1
Option 2
Option 3
fPlease observe the chapter “FOLDING REAR
SEATS FORWARD” on Page 37.
Securing interior with luggage safety netPulling out luggage safety net
fOpen covers of the luggage safety net
brackets.
fPull the luggage safety net out and engage the
fastening hooks on the left and right sides into
the rings on the ceiling.
The luggage safety net fastening hooks can be
pulled out at the sides.
fMake sure that the luggage safety net fasten-
ing hooks are properly engaged in the rings.
Page 186 of 369

186
Controls, Safety, Instruments

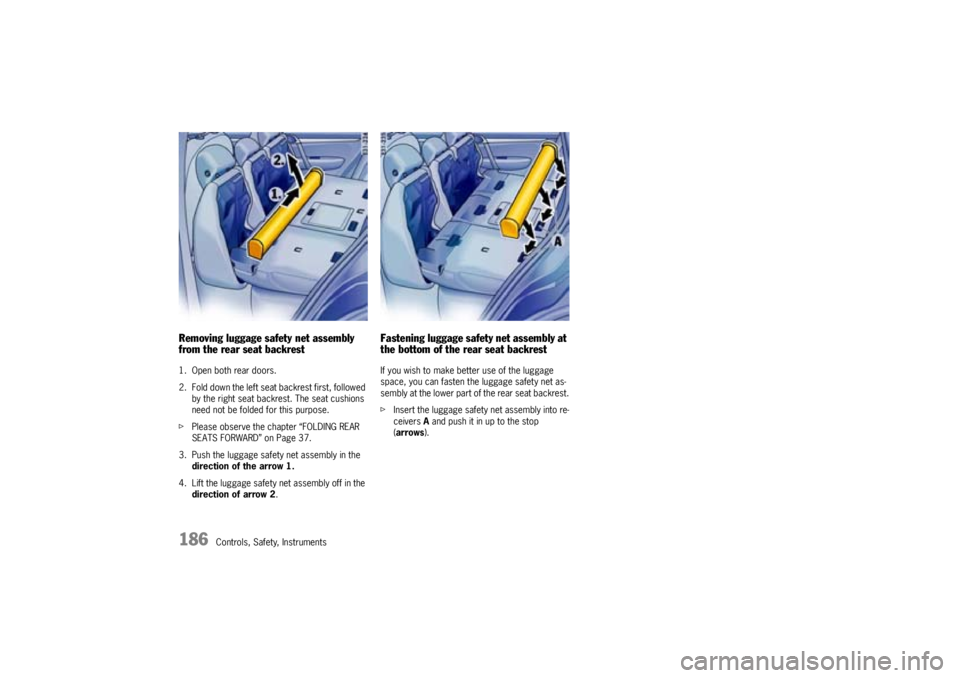

Removing luggage safety net assembly
from the rear seat backrest1. Open both rear doors.
2. Fold down the left seat backrest first, followed
by the right seat backrest. The seat cushions
need not be folded for this purpose.
fPlease observe the chapter “FOLDING REAR
SEATS FORWARD” on Page 37.
3. Push the luggage safety net assembly in the
direction of the arrow 1.
4. Lift the luggage safety net assembly off in the
direction of arrow 2.
Fastening luggage safety net assembly at
the bottom of the rear seat backrestIf you wish to make better use of the luggage
space, you can fasten the luggage safety net as-
sembly at the lower part of the rear seat backrest.
fInsert the luggage safety net assembly into re-
ceiversA and push it in up to the stop
(arrows).
Page 187 of 369

Controls, Safety, Instruments
187

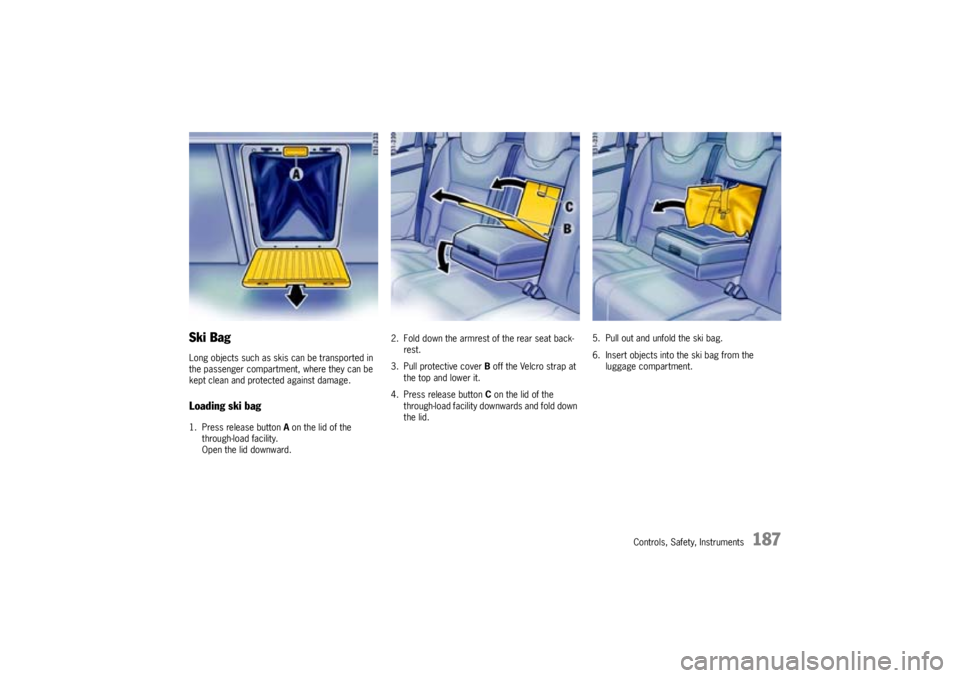

Ski BagLong objects such as skis can be transported in
the passenger compartment, where they can be
kept clean and protected against damage.Loading ski bag1. Press release button A on the lid of the
through-load facility.
Open the lid downward.2. Fold down the armrest of the rear seat back-
rest.
3. Pull protective cover B off the Velcro strap at
the top and lower it.
4. Press release button C on the lid of the
through-load facility downwards and fold down
the lid.5. Pull out and unfold the ski bag.
6. Insert objects into the ski bag from the
luggage compartment.
Page 188 of 369

188
Controls, Safety, Instruments

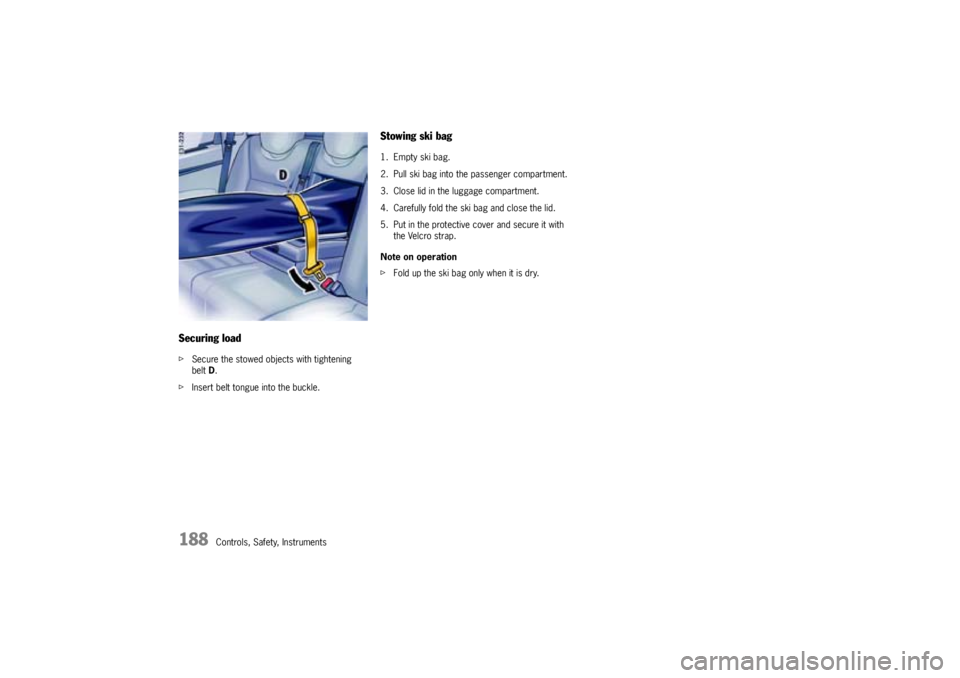

Securing loadfSecure the stowed objects with tightening
beltD.
fInsert belt tongue into the buckle.
Stowing ski bag1. Empty ski bag.
2. Pull ski bag into the passenger compartment.
3. Close lid in the luggage compartment.
4. Carefully fold the ski bag and close the lid.
5. Put in the protective cover and secure it with
the Velcro strap.
Note on operation
fFold up the ski bag only when it is dry.
Page 189 of 369

Controls, Safety, Instruments
189
Roof Transport SystemfPlease follow the separate instructions for
fitting the Roof Transport System.
fPlease observe the chapter “LOADING INFOR-
MATION” on Page 191.
Fitting normal commercially available luggage
racks is not possible.
ThePorsche Roof Transport System allows the
transport of various sports and hobby equipment.
Your authorized Porsche dealer will be pleased to
tell you about the manifold uses of the Roof Trans-
port System.
Warning!
Risk of an accident, loss of control and dam-
age to the vehicle.
fCompletely remove the Roof Transport System
before using an automatic car wash – risk of
damage to the vehicle.
fDo not exceed the permissible roof load, the
permissible gross weight and the permissible
axle loads.
Please observe the chapter “WEIGHTS” on
Page 352.
fDistribute load evenly, with heavy items as low
as possible. Items of luggage must not project
beyond the side of the load area.
fFix and secure every item to the basic carrier
with a rope or lashing strap (do not use elastic
rubber tensioners).
fBefore every journey, and at regular intervals
during long trips, check that Roof Transport
System and load are secure. Re-tighten if
necessary and secure additionally by locking.When the Roof Transport System is loaded, the
maximum speed depends on the nature, size and
weight of the load being carried.
fBut never drive faster than 90 mph
(140 km/h).
fWith the basic carrier fitted and no load, do not
exceed a maximum speed of 110 mph
(180 km/h).
Adapt your driving style and speed to the changed
conditions.
Nevertheless, Porsche recommends that you do
not exceed the posted speed limit.
Driving, braking and steering behavior change due
to the higher center of gravity and the greater
wind-resistant area. You should adapt your driving
style appropriately.
fSince fuel consumption and noise are in-
creased with the Roof Transport System fitted,
it should not remain on the car if not in use.
Page 190 of 369

190
Controls, Safety, Instruments
Trailer Coupling
Warning!
Risk of accident.
fFollow the operating instructions for the trailer
recommended by the trailer manufacturer.
fDo not modify or repair the trailer coupling.
fBefore having new ADAPTER fitted, find out
from your authorized Porsche dealer about the
current authorization status.fUse only ADAPTER makes tested and appro-
ved by Porsche.
fEnsure that all trailer equipment conforms to
the appropriate classification for total gross
trailer weight and tongue weight.
fPlease observe the chapter “WEIGHTS” on
Page 352.
fPlease observe the chapter “LOADING INFOR-
MATION” on Page 191.
RetrofittingHave a trailer coupling retrofitted only by an autho-
rized Porsche dealer. The dealer is familiar with
the manufacturer's specifications and any neces-
sary conversion measures.Electrical connectionYour Porsche is equipped with a 7-pin connector A
for the electrical connection to the trailer.
Warning!
Risk of accident. Failure to keep an electrical
adapter clean may result in corrosion and af-
fect operation of electrical lines, resulting in
possible trailer brake system failure.
fPeriodically inspect and clean adapter as needed.
Hitching trailerfAlways turn off the alarm system before you at-
tach a trailer. The inclination sensor could trig-
ger the alarm unintentionally.
fFollow the operating instructions for the trailer
recommended by the trailer manufacturer.
fPlease observe the chapter “WEIGHTS” on
Page 352.Unhitching trailerfIf the trailer is equipped with an overrun brake,
do not unhitch the trailer when its brake is still
applied.
