PORSCHE CAYNNE TURBO 2005 1.G Owner's Guide

Controls, Safety, Instruments
31
Note on operation
If a door window is blocked during closing, it will
stop and open again by several inches.
However, this is not the case if:
– The rocker switch is pressed again within
10 seconds of the window being blocked and
– The windows are closed using the car key in
the door lock (comfort function).
The windows close with their full closing force.
Warning!
Danger of injury. If the rocker switch is
pressed again within 10 seconds of the
window being blocked, the window will close
with its full closing force.
fTake care to ensure that nobody can be injured when the windows close.
One-touch operation is disabled for 10 seconds
after blockage of the door window.
Storing final position of the door windowsThe end positions of the door windows are lost
when the battery is disconnected and reconnect-
ed. The one-touch operation of the windows is dis-
abled.
Perform these procedures for all windows:
1. Close window completely onceby pulling rock-
er switch.
2. Pull rocker switch again.
The upper end position of the window is
stored.
3. Open window completely onceby pressing
rocker switch.
4. Press rocker switch again.
The lower end position of the window is stored.The power windows and the central locking but-
tons for the rear doors can be disabled using safe-
ty button C in the armrest of the driver's door.
fPress the safety button C.
The power windows and central locking
buttons on the rear doors are disabled.
The symbol in the switch lights up.
5. Press the safety C button again.
The power windows and central locking
buttons on the rear doors are operational.
Safety Button

32
Controls, Safety, Instruments
Front seats
Danger!
The seat may move unexpectedly if you at-
tempt to adjust while driving. This could
cause sudden loss of control or personal in-
jury.
fDo not adjust seats while the vehicle is in mo-
tion.The backrest locks must be engaged at all
times while the vehicle is in motion.
Safety belts only offer protection when the
backrest is upright and the belts are properly
positioned on the body. Improperly posi-
tioned safety belts can cause serious person-
al injury or death in an accident.
fDo not operate the car with the driver or pas-
senger backrests excessively reclined.
fPorsche recommends the use of L.A.T.C.H.
(Lower A
nchorage and T
ether for Ch
ildren)
equipped Porsche child seat
Seat positionA correct sitting position is important for safe and
fatigue-free driving. We recommend the following
procedure for adjusting the driver’s seat to suit
individual requirements:
1. Adjust the seat height to give yourself enough
headroom and a good overview of the vehicle.
2. Adjust the seat until, with the accelerator pedal
fully depressed, your leg is straight but your
entire foot still rests on the accelerator pedal.
3. Grip the top half of the steering wheel. Set the
backrest angle and steering wheel position so
that your arms are almost outstretched.
However, your shoulders must still rest on the
backrest.
4. If necessary, correct the seat fore-and-aft
adjustment.
5. Adjust the height of the headrest so that the
upper edge is at eye level or higher.
Adjusting the seatA Front seat height adjustment.
B Rear seat height adjustment.
C Fore and aft adjustment.
D Backrest angle adjustment.
E Lumbar support adjustment.
To permit a relaxed sitting posture, the back-
rest curvature is infinitely adjustable in vertical
and horizontal directions for individual pelvis
and spinal column support.
fPress the switch in the direction indicated by
the arrows until the desired setting is reached.

Controls, Safety, Instruments
33
Front seat with memoryPersonal seat, door mirror, steering wheel and
safety belt height adjustments can be stored on
the person buttons A and car keys and recalled
with these.
fPlease observe the chapter “EASY ENTRY
FUNCTION” on Page 35.
Warning!
Risk of crushing due to uncontrolled recall of
settings.
fCancel automatic adjustment by pressing any
of the seat adjustment buttons.
fDo not leave children in the car unattended.Memory options–Seat adjustment
– Door mirror adjustmentComfort memory options–Seat adjustment
– Door mirror adjustment
– Steering wheel and safety belt height adjust-
ment
Recalling the settings using the
vehicle key or in vehicles that have
Porsche Entry & DrivefOpen the driver’s door.
The stored settings of the driver's seat are re-
called automatically.
Cancelling setting
Automatic settings can be cancelled immediately
by pressing any driver’s seat setting button.Recalling the settings with person buttons
1 - 3 (driver’s and passenger’s seat)1. Unlock vehicle and open the driver’s door.
2. Press the relevant person button until the
stored positions have been reached
or
Briefly touch the person button if the ignition
key is inserted or if the ignition is switched on
(in vehicles that have Porsche Entry & Drive).
The stored positions for each seat are recalled
automatically.
Cancelling setting
Automatic settings can be cancelled immediately
by pressing any seat adjustment button.

34
Controls, Safety, Instruments
Storing driver’s seat settingsStoring settings on a person button and a car
key
1. Apply the parking brake.
2. Switch ignition on.
3. Close doors.
4. Make the required adjustments to the seat,
mirror, steering wheel and safety belt.
5. Briefly press the SET memory button and,
within 10 seconds, hold down one of the per-
son buttons (1, 2 or 3) until an acknowledge
tone is obtained.
The settings are now stored on the desired
person button.
6. Withdraw car key or switch ignition off in vehi-
cles that have Porsche Entry & Drive.
7. Press the SET memory button within
10 seconds and keep the button depressed
until an acknowledge tone is obtained.
The settings are now assigned to the car key.
A- Mirror adjustmentStoring passenger mirror setting as a
parking aidIf the passenger’s mirror is supposed to swivel
downwards when reversing, this can also be
stored in the driver’s seat setting.
1. Apply the parking brake.
2. Switch ignition on.
3. Press the relevant person button.
4. Engage reverse gear.5. Set the control switch Afor the mirror setting
to the passenger’s side.
The passenger’s mirror swivels downwards.
6. Adjust the passenger’s mirror to the required
setting.
7. Briefly press the SET memory button and,
within 10 seconds, hold down the person but-
ton on which the setting is to be stored until an
acknowledge tone is obtained.
Storing passenger seat settings1. Apply the parking brake.
2. Switch ignition on.
3. Adjust seat position and belt height.
4. Briefly press the SET memory button and,
within 10 seconds, hold down one of the per-
son buttons (1, 2 or 3) until an acknowledge
tone is obtained.Automatic storage – driver’s seatIf settings were changed after the driver’s door
was opened, these new settings are automatically
stored when the vehicle is locked. This storage is
deleted if the vehicle is unlocked with a programed
key and the driver’s door is opened.

Controls, Safety, Instruments
35
Easy Entry Function The Easy Entry function makes it easier for you to
get in and out of the car.
Warning!
Risk of crushing if persons are behind the
driver's seat when settings are recalled.
Risk of damage if the rear seat bench is folded for-
ward when settings are recalled.
fSwitch off the Easy Entry function if there are
persons behind the driver's seat or if the rear seat bench is folded forward.
Switching Easy Entry function on and offfPress switch A.
Entering the vehicle
When the driver’s door is opened, the driver’s seat
moves to the rear.
Once the driver’s door is closed and the ignition
key is inserted or, in the case of vehicles that have
Porsche Entry & Drive, the ignition is switched on,
the seat and steering wheel move into the stored
position.
Exiting the vehicle
The steering wheel moves into the frontmost, top
position.
– After the ignition key is removed or
– After the ignition is switched off and the driv-
er's door is opened on vehicles equipped with
Porsche Entry & Drive or
– When the steering column is locked.
When the driver’s door is opened, the driver’s seat
moves to the rear.

36
Controls, Safety, Instruments
HeadrestsRemovingFront seats
fPress button A and, at the same time, com-
pletely remove headrest.Rear seats
fPress button B and push the headrest all the
way down.
fPress button A and, at the same time, pull the
headrest completely out.
InstallingNote
The middle headrest of the rear seat bench must
only be fitted to the middle seat of the rear seat
backrest.
1. Insert the headrests into the guides.
2. Press button B and, at the same time, push the
headrest downwards until the desired position
is reached.
Install the middle headrest of the rear seat
bench only on the middle seat and push it down
fully.
AdjustingThe heights of the headrests for the front seats
and the outer headrests for the rear seats can be
adjusted.
Danger!
Improperly positioned headrests can cause
serious personal injury or death in an acci-
dent.
fAdjust the headrest so that the upper edge of
the headrest is at last at eye level or higher.
fDo not drive the vehicle without the headrest in place and properly adjusted.
Raising
fPush headrest upwards until the desired
position is reached.
Additionally press button B on the rear seat
headrests.
Lowering
fPress button B and, at the same time, push the
headrest downwards until the desired position
is reached.

Controls, Safety, Instruments
37
Rear SeatsThe rear seats are divided and can be folded
forward individually to make the loadspace bigger.
Caution!
Risk of damage to seat cushions and
backrest if both are not folded forward.
fAlways fold seat cushions and backrest forward.
Folding rear seats forwardIf the luggage safety net is installed, first set up
the left seat cushion in a vertical position and fold
the left rear seat backrest forward.On vehicles with automatically controlled
four-zone air conditioning:
fPress the safety button in the driver's door
armrest before folding the rear seats forward.
The rear control panel for the air conditioning
ceases to function.
This prevents unintentional adjustment of the
air conditioning.
The symbol in the switch lights up.
1. Remove the headrests of the backrest to be
folded forward.
Please observe the chapter “HEADRESTS” on
Page 36.
2. Move front seats forward.
3. Pull seat cushion up at loop A.
4. Pull seat cushion forward (arrow B).
f f f
Safety button

38

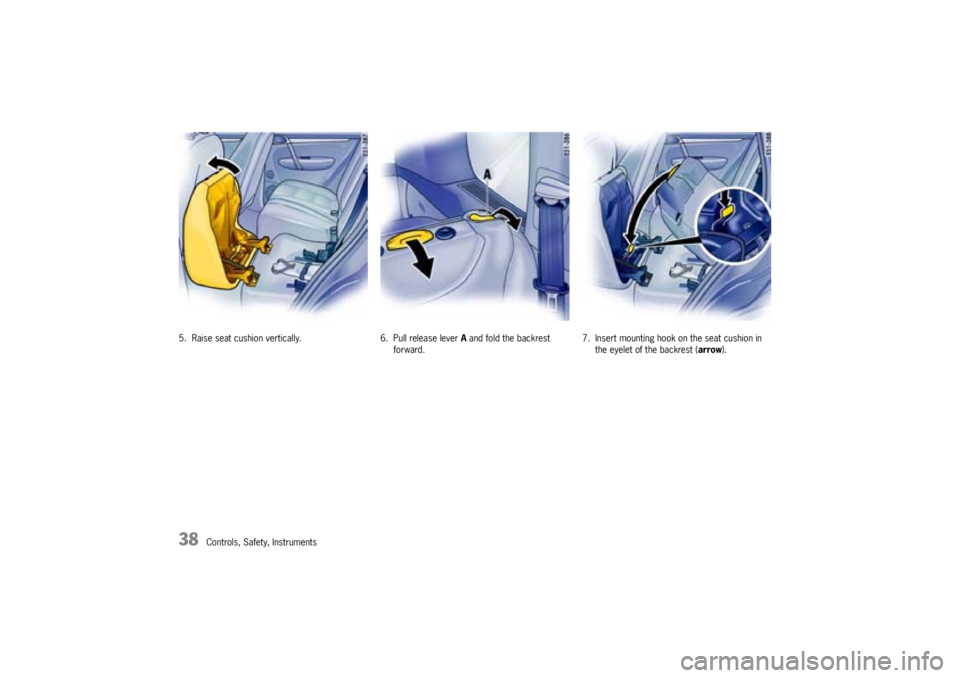

Controls, Safety, Instruments 5. Raise seat cushion vertically. 6. Pull release lever A and fold the backrest
forward. 7. Insert mounting hook on the seat cushion in
the eyelet of the backrest (arrow).

Controls, Safety, Instruments
39

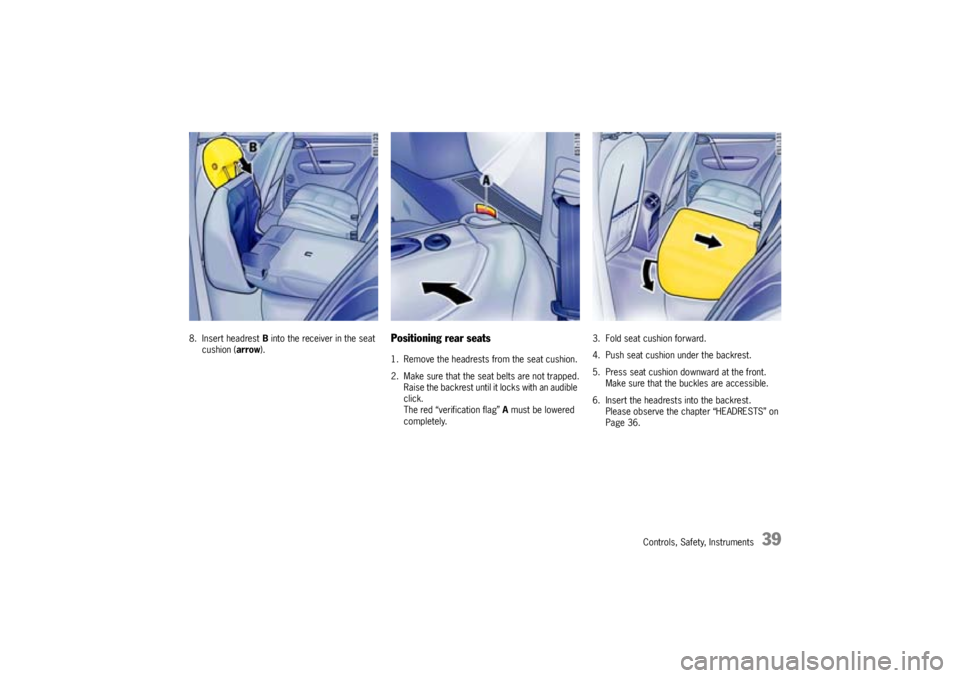

8. Insert headrest B into the receiver in the seat
cushion (arrow).
Positioning rear seats1. Remove the headrests from the seat cushion.
2. Make sure that the seat belts are not trapped.
Raise the backrest until it locks with an audible
click.
The red “verification flag” A must be lowered
completely.3. Fold seat cushion forward.
4. Push seat cushion under the backrest.
5. Press seat cushion downward at the front.
Make sure that the buckles are accessible.
6. Insert the headrests into the backrest.
Please observe the chapter “HEADRESTS” on
Page 36.

40
Controls, Safety, Instruments

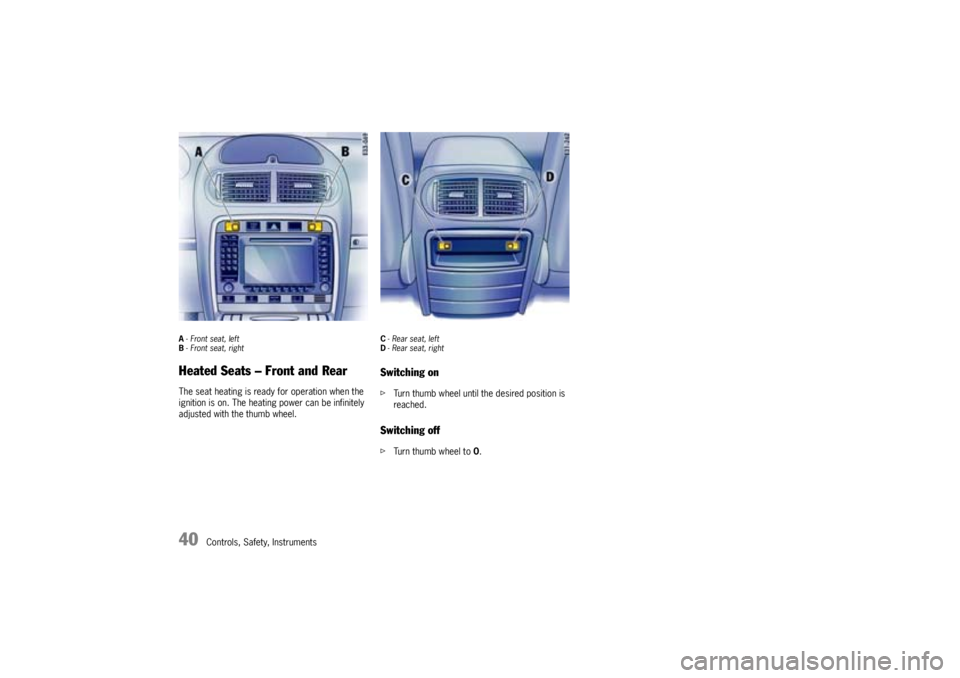

A- Front seat, left
B- Front seat, rightHeated Seats – Front and RearThe seat heating is ready for operation when the
ignition is on. The heating power can be infinitely
adjusted with the thumb wheel.
C-Rear seat, left
D- Rear seat, rightSwitching onfTurn thumb wheel until the desired position is
reached.Switching offfTurn thumb wheel to 0.
