PORSCHE CAYNNE TURBO 2006 1.G Owners Manual

Maintenance, Car Care
261
Air CleanerRegular replacement of the filter element is part of
servicing.
fIn dusty conditions, clean the filter element
more frequently and replace if necessary.
Further important information concerning “mainte-
nance” can be found in a separate chapter.
fPlease observe the chapter “EXERCISE
EXTREME CAUTION WHEN WORKING ON YOUR
VEHICLE” on Page 250.
Particle FilterThe fresh air passing through the particle filter into
the passenger compartment is virtually free of
dust and pollen.
fIf the outside air is polluted by exhaust fumes,
press the circulating-air button.
A dirty filter can be the cause of reduced air
throughput.
fHave filter replaced by your authorized
Porsche dealer.
Regular replacement of the filter is part of servic-
ing.
Automatic Transmission Fluid The torque converter and the transmission are lu-
bricated with Automatic Transmission Fluid (ATF).
fPlease observe the chapter “CAPACITIES” on
Page 371.
Do not tow the car or run the engine without ATF
in the transmission. The automatic transmission
may be damaged by even a tiny speck of dirt, only
a clean funnel or spout must be used when adding
AT F.
The ATF and transmission oil has to be checked
and changed at the intervals listed in your Mainte-
nance Schedule.
We recommend that you have the ATF and trans-
mission oil changed at your Porsche dealer, who
has the required lubricants and the necessary fill-
ing equipment.
If you suspect an oil leak in the transmission, have
your authorized Porsche dealer check it out imme-
diately.

262
Maintenance, Car Care
Wiper BladesfWhen wiper performance deteriorates, replace
the wiper blades in good time.
fPlease observe the chapter “CAR CARE IN-
STRUCTIONS” on Page 273.
Caution!
Risk of damage if wiper arm accidentally
falls back onto the windshield.
fAlways hold the wiper arm securely when re-
placing the wiper blade.
Risk of damage if wiper blades that are
frozen in place are loosened improperly.
fThaw the wiper blades before loosening them.
Maintenance note
If the wiper blades rub or squeak, this can be as a
result of the following:
– If the vehicle is washed in an automatic car
wash, residues may adhere to the windshield.
These residues can only be removed using a
special cleaning solution.
Please contact your authorized Porsche dealer
for further information.
– The wiper blades may be damaged or worn.
fReplace wiper blades as soon as possible.
Replacing windshield wiper blades
Caution!
Risk of damage.
If the wiper blades are not changed properly,
they can come loose when the car is moving.
fCheck whether the wiper blades are seated se-
curely.
The wiper blade must be pushed onto the wip-er arm up to the stop.
1. Apply the parking brake.
2. Switch the windshield wipers off (position 0).
3. Switch ignition off.
4. Fold windshield wiper arm away from the wind-
shield.
5. Lift up wiper blade completely (arrow).

Maintenance, Car Care
263

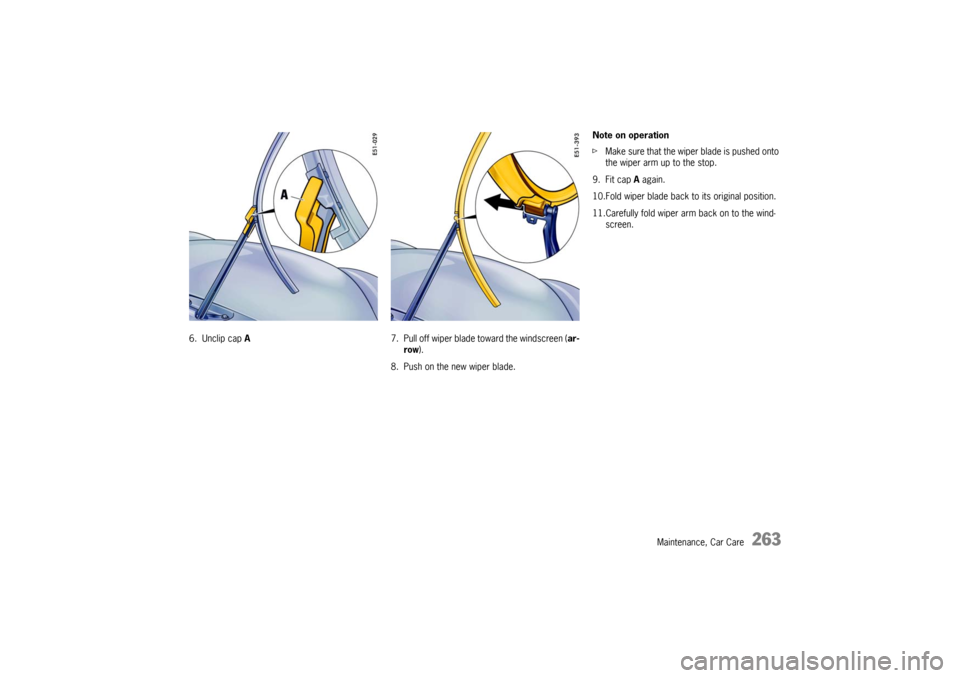

6. Unclip cap A7. Pull off wiper blade toward the windscreen (ar-
row).
8. Push on the new wiper blade.Note on operation
fMake sure that the wiper blade is pushed onto
the wiper arm up to the stop.
9. Fit cap A again.
10.Fold wiper blade back to its original position.
11.Carefully fold wiper arm back on to the wind-
screen.

264
Maintenance, Car Care

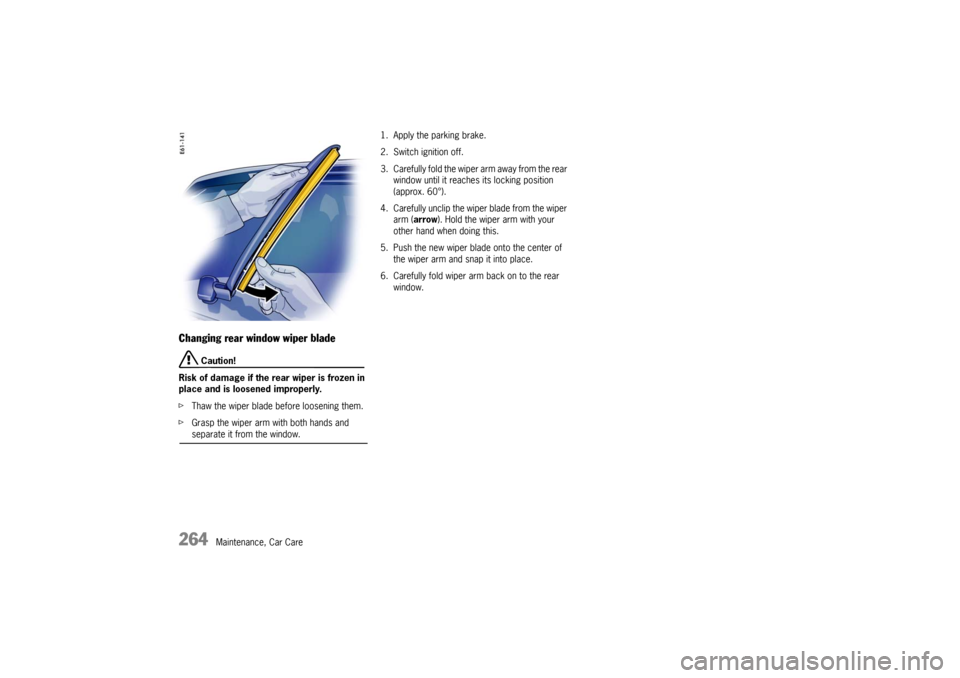

Changing rear window wiper blade
Caution!
Risk of damage if the rear wiper is frozen in
place and is loosened improperly.
fThaw the wiper blade before loosening them.
fGrasp the wiper arm with both hands and separate it from the window.1. Apply the parking brake.
2. Switch ignition off.
3. Carefully fold the wiper arm away from the rear
window until it reaches its locking position
(approx. 60°).
4. Carefully unclip the wiper blade from the wiper
arm (arrow). Hold the wiper arm with your
other hand when doing this.
5. Push the new wiper blade onto the center of
the wiper arm and snap it into place.
6. Carefully fold wiper arm back on to the rear
window.

Maintenance, Car Care
265
Fuel EconomyFuel economy will vary depending on where,
when and how you drive, optional equipment
installed, and the general condition of your
car.
A car tuned to specifications and correctly
maintained, will help you to achieve optimal
fuel economy.
fHave your vehicle tuned to specifications. Air
cleaner should be dirt free to allow proper en-
gine “breathing“.
Battery should be fully charged.
Wheels should be properly aligned.
Tires should be inflated at correct pressure.
fAlways monitor your fuel consumption.
fDrive smoothly, avoid abrupt changes in speed
as much as possible.
fAvoid jack rabbit starts and sudden stops.
fDo not drive longer than necessary in the lower
gears. Shifting into a higher gear early without
lugging the engine will help save fuel.
fProlonged “warm up“ idling wastes gas. Start
the vehicle just before you are ready to drive.
Accelerate slowly and smoothly.fSwitch off the engine if stationary for longer
periods.
fAny additional weight carried in the vehicle re-
duces fuel economy. Always keep cargo to a
minimum and remove all unnecessary items.
fOrganize your trips to take in several errands
in one trip.
fAll electrical accessories contribute to in-
creased fuel consumption.
fOnly switch on the air conditioning when neces-
sary.
fDo not drive with the Roof Transport System
mounted unless you need it.
The EPA estimated m.p.g. is to be used for
comparison purposes, actual mileage may
be different from the estimated m.p.g., de-
pending on your driving speed, weather con-
ditions and trip length. Your actual highway
mileage will probably be less than the esti-
mated m.p.g.
fPlease observe all local and national speed lim-
its.
Operating Your Porsche in other
CountriesGovernment regulations in the United States and
Canada require that automobiles meet specific
emission regulations and safety standards. There-
fore, cars built for the U.S. and Canada differ from
vehicles sold in other countries.
If you plan to take your Porsche outside the conti-
nental limits of the United States or Canada, there
is the possibility that
– unleaded fuel may not be available;
– unleaded fuel may have a considerably lower
octane rating. Excessive engine knock and se-
rious damage to both engine and catalytic con-
verters could result;
– service may be inadequate due to lack of prop-
er service facilities, tools or diagnostic equip-
ment;
– replacement parts may not be available or very
difficult to get.
Porsche cannot be responsible for the me-
chanical damage that could result because
of inadequate fuel, service or parts availabil-
ity.
If you purchased your Porsche abroad and want to
bring it back home, be sure to find out about ship-
ping and forwarding requirements, as well as cur-
rent import and customs regulations.

266
Maintenance, Car Care
Fuel
Warning!
Fuel is highly flammable and harmful to
health.
fFire, open flame and smoking are prohibited
when handling fuel.
fAvoid contact with skin or clothing.
fDo not inhale fuel vapours.
To prevent damage to the emission control
system and engine:
fNever drive the tank completely out of fuel.
fAvoid high cornering speeds after the warning lights have come on.To avoid permanent damage to the functionality of
the catalytic converters and oxygen sensors, use
only unleaded fuel.
The engine is designed to provide optimum
performance and fuel consumption if unleaded
premium fuel with 98 RON/88 MON is used.
If unleaded premium fuels with octane numbers of
at least 95 RON/85 MON are used, the en-
gine's knock control automatically adapts the igni-
tion timing.
The emission control system can be damaged in
various ways (e.g. fuelling incorrectly, shortage of
fuel, tow-starting).
fPlease observe the chapter “HOW EMISSION
CONTROL WORKS” on Page 272.
fPlease observe the chapter “LEVEL GAUGE”
on Page 86.

Maintenance, Car Care
267

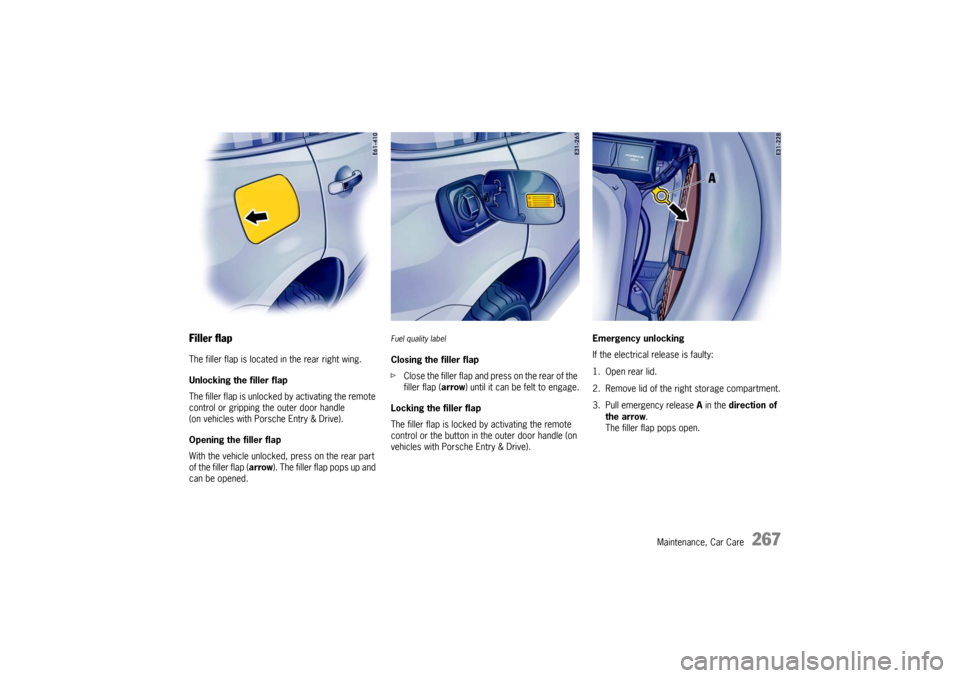

Filler flapThe filler flap is located in the rear right wing.
Unlocking the filler flap
The filler flap is unlocked by activating the remote
control or gripping the outer door handle
(on vehicles with Porsche Entry & Drive).
Opening the filler flap
With the vehicle unlocked, press on the rear part
of the filler flap (arrow). The filler flap pops up and
can be opened.
Fuel quality labelClosing the filler flap
fClose the filler flap and press on the rear of the
filler flap (arrow) until it can be felt to engage.
Locking the filler flap
The filler flap is locked by activating the remote
control or the button in the outer door handle (on
vehicles with Porsche Entry & Drive).Emergency unlocking
If the electrical release is faulty:
1. Open rear lid.
2. Remove lid of the right storage compartment.
3. Pull emergency release A in the direction of
the arrow.
The filler flap pops open.

268
Maintenance, Car Care
Refuelling
Danger!
The RF energy from a cellphone can cause a
sparking on bare metal, much like aluminium
foil in a microwave oven. The spark could ig-
nite gasoline fumes present while refuling.
Static discharge from your body can ignite
gasoline fumes present when you get back
out of the vehicle and touch the fuel nozzle.
In either case, resulting fire can cause seri-
ous damage to the vehicle, serious injury or
death to persons in immediate vicinity.
fDo not use a cellphone while pumping gas.
fDo not re-enter the vehicle while pumping gas.Total capacity approx. 26.4 gallons
(100 liters), including approx. 3 gallons
(12 liters) reserve
1. Stop the engine and switch off the ignition.
2. Slowly unscw the tank cap.
Hang the tank cap on plastic strap A of the fill-
er flap.
3. Insert pump nozzle fully into the filler neck with
the handle of the pump nozzle facing down.
4. Do not add further fuel once the correctly op-
erated automatic pump nozzle has switched
off.
Fuel could spray or could run over when heat-
ed.
5. Replace the tank cap immediately after refuel-
ling and turn it until you hear it and feel it en-
gage.
Maintenance note
fIf you lose the tank filler cap, you must replace
it only with an original part.

Maintenance, Car Care
269
Fuel RecommendationsYour Porsche is equipped with catalytic convert-
ers and must use UNLEADED FUEL ONLY.
Your engine is designed to provide optimum per-
formance and fuel economy using unleaded premi-
um fuel with an octane rating of 98 RON
(93 CLC or AKI). Porsche therefore recom-
mends the use of these fuels in your vehicle.
Porsche also recognizes that these fuels may not
always be available. Be assured that your vehicle
will operate properly on unleaded premium fuels
with octane numbers of at least 95 RON
(90 CLC or AKI), since the engine's “Electronic
Oktane™ knock control“ will adapt the ignition tim-
ing, if necessary.
The use of UNLEADED FUEL ONLY is critically
important to the life of the catalytic convert-
ers. Deposits from leaded fuels will ruin the
converters and make it ineffective as an
emission control device.
Cars with catalytic converters have a smaller fuel
tank opening, and gas station pumps have smaller
nozzles. This will prevent accidental pumping of
leaded fuel into cars with catalytic converters.
Unleaded fuels may not be available outside the
continental U.S. and Canada. Therefore, we rec-
ommend you do not take your car to areas or
countries where unleaded fuel may not be availa-
ble.
Octane ratingsOctane rating indicates a fuel's ability to resist det-
onation. Therefore, buying the correct octane gas
is important to prevent engine “damage“.
The RON octane rating is based on the research
method. The CLC (U.S. Cost of Living Council oc-
tane rating) or AKI (antiknock index) octane rating
usually displayed on U.S. fuel pumps is calculated
as research octane number plus motor octane
number, divided by 2, that is written as:
The CLC or AKI octane rating is usually lower than
the RON rating:
For example: 95 RON equals 90 CLC or ”AKI“
Fuels containing alcohol and etherSome areas of the U.S. require oxygenated fuels
during certain portions of the year. Oxygenated fu-
els are fuels which contain alcohols (such as meth-
anol or ethanol) or ether (such as MTBE).
Under normal conditions, the amount of these
compounds in the fuel will not affect driveability.
You may use oxygenated fuels in your Porsche,
provided the octane requirements for your vehicle
are met. We recommend, however, to change to a
different fuel or station if any of the following prob-
lems occur with your vehicle:
– Deterioration of driveability and performance.
– Substantially reduced fuel economy.
– Vapor lock and non-start problems, especially
at high altitude or at high temperature.
– Engine malfunction or stalling.
RON MON+
2 ----------------------------------
orRM+
2 ---------------

270
Maintenance, Car Care
Fuels containing MMTSome North American fuels contain an octane en-
hancing additive called methylcyclopentadienyl
manganese tricarbonyl (MMT).
If such fuels are used, your emission control sys-
tem performance may be negatively affected.
The check engine warning light on your instrument
panel may turn on.
If this occurs, Porsche recommends you stop us-
ing fuels containing MMT.
Portable Fuel Containers
Danger!
Portable fuel containers, full or partially
empty, may leak causing an explosion, or re-
sult in fire in case of an accident.
fNever carry additional fuel in portable contain-ers in your vehicle.
Fuel Evaporation ControlFuel tank ventingThe evaporation chamber and the carbon canister
prevent fuel from escaping to the atmosphere at
extreme high outside temperatures, when driving
abruptly around curves and when the car is parked
at an incline or in any other nonlevel position.Vapor control system and storageWhen the fuel tank is filled, vapors are collected in
the evaporation chamber by a vent line leading the
vapors to the carbon canister where they are
stored as long as the engine does not run.Purge systemWhen the engine is running, the fuel vapors from
the canister will be mixed with fresh air from the
ambient air of the canister. This mixture will be di-
rected to the intake air housing by the tank vent
line, mixed with the intake air and burned during
normal combustion.
