Seats, Mirrors and Steering Wheel
49
Function of the air bag systemAir bags are a supplemental safety system. Your
primary protection comes from your safety belts.
The front air bags are triggered during a frontal
collision of sufficient force and direction.
In the event of a side impact of corresponding
force, the side air bag on the impact side is
triggered.
The inflation process generates the amount of gas
required to fill the air bags at the necessary
pressure in fractions of a second.
Air bags help to protect the head and body, while
simultaneously damping the motion of the driver
and passenger in the impact direction in the event
of a frontal impact or side impact.
In order to help provide protection in severe
collisions which can cause death and serious
injury, air bags must inflate extremely rapidly.
Such high speed inflation has a negative but
unavoidable side effect, which is that it can and
does cause injuries, including facial and arm
abrasions, bruising and broken bones. You can
help minimize such injuries by always wearing your
safety belts.
There are many types of accidents in which air
bags are not expected to deploy. These include
accidents where the air bags would provide no
benefit, such as a rear impact against your
vehicle. Other accidents where the air bags are
designed not to deploy are those where the risk of
injury from the air bag deployment could exceed any protective benefits, such as in low speed
accidents or higher speed accidents where the
vehicle decelerates over a longer time. Since air
bag deployment does not occur in all accidents,
this further emphasizes the need for you and your
passengers to always wear safety belts.
Your vehicle is equipped with a crash sensing and
diagnostic module. This module will record the
use of the seat belt restraint system by the driver
and front passenger when the air bags and/or belt
tentioner are triggered.
Precondition for activating the restraint systems:
f
Ignition is switched on.
Advanced air bagYour vehicle is equipped with occupant sensing for
the passenger's seat in accordance with
U.S. Federal Motor Vehicle Safety Standard 208.
Depending on the weight, body positioning and
shape acting on the passenger's seat, the
passenger's air bag will automatically be switched
on and off.
Depending on the angle and force of impact, the
passenger's air bag which is switched-on will be
triggered during a collision.
Precondition for switching the passenger's air bag
on and off, depending on weight, body positioning
and shape:
fIgnition is switched on.
Danger!
Risk of serious personal injury or death due
to the passenger air bag not triggering.
Improper handling of occupant sensing can
unintentionally impair switching the
passenger's air bag off and on.
If the weight on the passenger's seat is
reduced significantly, e.g., by supporting
weight on the armrest, the passenger's air
bag can be switched off.
f Select an upright seat position, and do not
support weight on the armrests or lean out of
the window.
Always keep feet in the footwell while driving.
Do not put feet on the dashboard or the seat
area. Do not lean against the inside of the door
or outside the window while the vehicle is
moving.
f If a child restraint system is installed on the passenger’s seat, do not adjust the seat.
Page 52 of 343
50
Seats, Mirrors and Steering Wheel
Seat adjustment for the passenger’s seat
Danger!
Safety belts only offer protection when the
backrest is positioned at a comfortable
upright seating angle and the belts are
properly positioned on the body. Improperly
positioned safety belts can cause serious
personal injury or death in an accident.
f Do not operate the car with the driver or passenger backrests excessively reclined.
Vehicle modifications to accommodate
persons with disabilitiesBecause modifications to your vehicle could
compromise your advanced air bag system,
please call 1-800-PORSCHE prior to having your
vehicle modified.
Automatic deactivation of the passenger
air bagsBefore transporting a child on the passenger seat:
fPlease see the chapter “CHILD RESTRAINT
SYSTEMS” on page 52.
– When an up to one-year old child is seated
in the child restraint system, the front air bag
is automatically deactivated on the passenger
side.
– When an adult is seated in the passenger’s seat the front air bag is automatically
activated.
Danger!
The use of a child restraint system in the
front passenger seat can result in serious
personal injury or death to the child from an
air bag deployment.
To reduce risk of injury from an inflating air
bag in an accident, Porsche strongly
recommends:
f Under all normal circumstances, the child seat
must be placed in the rear.
Do not use a child restra int system in the front passenger seat.
PASSENGER AIR BAG OFF indicator lampNote on operation
Depending on the weight acting on the
passenger's seat, it can occur in the case of
heavier children that the passenger air bags are
active or, in the case of very light adults or young
persons, that the passenger air bags are
deactivated.
The condition of the passenger air bag system is

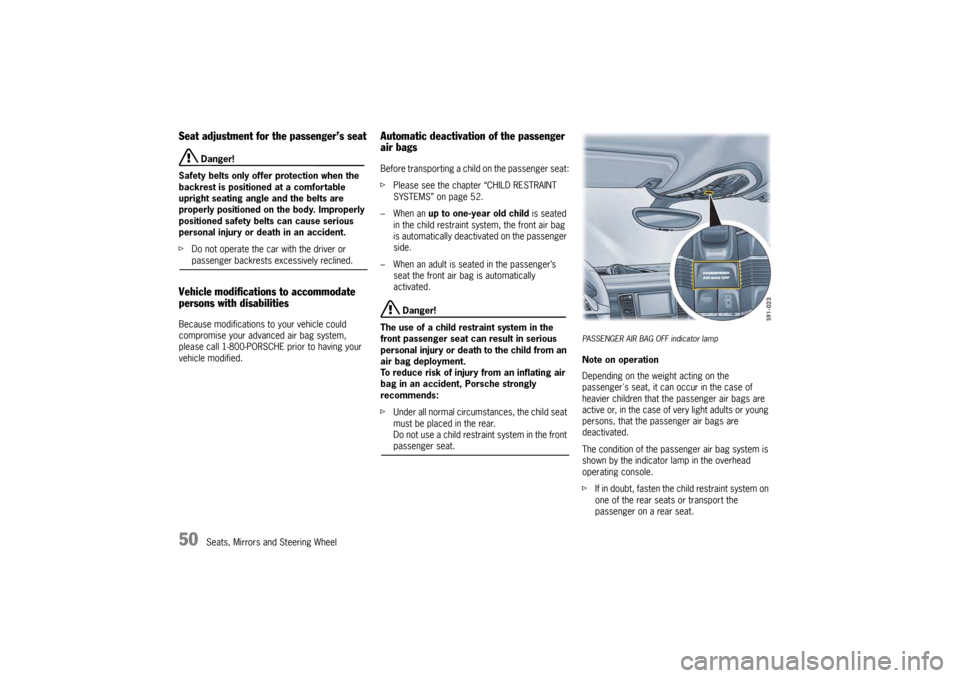

shown by the indicator lamp in the overhead
operating console.
f If in doubt, fasten the child restraint system on
one of the rear seats or transport the
passenger on a rear seat.
Page 53 of 343
Seats, Mirrors and Steering Wheel
51
Note
fAfter switching on the ignition, the
PASSENGER AIR BAG OFF warning light lights
up for a few seconds as a check.
PASSENGER AIR BAG OFF indicator lamp
lights up
The passenger’s air bags are switched off.
PASSENGER AIR BAG OFF indicator lamp
does not light up
The passenger’s air bags are active and ready for
operation.
Danger!
Risk of serious personal injury or death due
to the passenger air bag triggering
unintentionally.
When the ignition is on and the up to one-
year old child is seated in the child restraint
system on the passenger seat the indicator
lamp “PASSENGER AIR BAG OFF“ must be
on.
If the “PASSENGER AIR BAG OFF” indicator
lamp does not light up, it could indicate a
fault in the system, and the air bag could
inflate in a collision, placing the child at risk
of death or severe injury from the inflating air
bag.
In this case:
f Fasten the child restraint system on one of the
rear seats immediately.
f Have the fault remedied at your nearest authorized Porsche dealer. Faults are indicated by a warning light in the
instrument panel.
The air bag warning light illuminates when the
electronic monitoring of the air bag system
detects a malfunction of the
sensors, safety belt
system, occupant detection system, PASSENGER
AIR BAG OFF indicator lamp, related wiring, air bag
modules and control units.
f In the following cases you should
immediately consult an authorized
Porsche dealer in order to assure the air
bag system is functioning properly:
– If the warning light does not light up when the ignition is switched on or
– If the warning light does not go out once the engine is running or
– If the warning light appears while driving.
Warning light
Page 54 of 343
52
Seats, Mirrors and Steering Wheel
Important informationIf you sell your Porsche, notify the purchaser that
the vehicle is equipped with air bags, and refer
them to the chapter „Air bag systems“ in the
owner’s manual (safety and disposal rules).
Further information on the air bag system can be
found on stickers attached to the sun visors, as
well as on all air bag components.
For special recommendations on the use of child
restraints:
f Please see the chapter “CHILD RESTRAINT
SYSTEMS” on page 52.
Child Restraint SystemsPorsche recommends that all infants and children
be restrained in child restraint systems at all times
while the vehicle is in motion in accordance with
applicable laws.
When possible, use only child restraint systems
recommended by Porsche. These systems have
been tested and adjusted to the interior of your
Porsche and the appropriate child age groups.
These child restraint systems are also designed to
be secured in vehicle seats by the lap belt portion
of the lap-shoulder-belt.
Other systems have not been tested and could
entail an increased risk of injury. The use of infant or child restraints is required by
law in all 50 US states and the Canadian
provinces. The child restraint system should be
one that complies with
U.S. Federal/Canadian
Motor Vehicle Safety Standards and should be
secured by a lap belt portio n of a lap-shoulder belt
or for child seats equipped with the LATCH sytem
( L ower A nchorage and Tether for Children, also
known as ISOFIX) to the LATCH anchorages.
You can obtain child seats that are LATCH
compatible at your authorized Porsche dealer.
f Always observe the separate installation
instructions for your child seat.
A statement by the seat manufacturer of
compliance with this federal standard can be
found on the instruction label on the restraint and
in the instruction manua l provided with the
restraint.
Page 55 of 343
Seats, Mirrors and Steering Wheel
53
Danger!
Risk of serious personal injury or death to the
child.
f Follow all child restraint instructions and warnings in this manual.
– When using an infant or child restraint system, be sure to follow all manufacturer's
instructions on installation and use.
– Infants and small children should neither be held on the lap, nor should they share a safety
belt with another occupant while the vehicle is
in motion.
– Children too big for child restraint systems must use regular safety belts. A shoulder belt
can be used providing it does not cross the
face or the neck of the child.
– Choose a child restraint system according to the age and size of the child.
– Child restraint systems that are damaged or have been heavily stressed in an accident must
be replaced immediately.
– Children could be endangered in a crash if their child restraints are not properly secured in
vehicle.
– Do not affix objects to child restraint systems or cover them with other materials.
f For maximum safety and protection, do not
use a child restraint system in the front
passenger seat.
Direction of installation for child restraint
systemsAccording to accident statistics, children are safer
when properly restrained in the rear seating
positions than in the front seating positions.
Under all normal circumstances, the child seat
must be placed in the rear.
fDo not use a child restraint system in the front
passenger seat.
Group 0 and 0+: Children up to 29 lbs
(13 kg)
Children of this weight must be transported in a
restraint system which is fitted facing
backwards .
Group I: Children in between 20 lbs (9 kg)
and 40 lbs (18 kg)
Children of this weight are transported in child
restraint systems facing forward.
Group II: Children in between 33 lbs (15 kg)
and 55 lbs (25 kg)
Children of this weight are transported in child
restraint systems facing forward.
Group III: Children in between 49 lbs (22 kg)
and 80 lbs (36 kg)
Children of this weight are transported in child
restraint systems facing forward.
Using child restraint systems in the front
passenger seat
Danger!
The use of a child restraint system in the
front passenger seat can result in serious
personal injury or death to the child from an
air bag deployment.
To reduce risk of injury from an inflating air
bag in an accident, Porsche strongly
recommends:
f Under all normal circumstances, the child seat
must be placed in the rear.
Do not use a child restrai nt system in the front passenger seat.
However, there may be se rious situations where it
might be necessary to pl ace a child in the front
seat so that he/she can be kept under direct
observation to prevent an immediate risk to the
child (for example, while driving to the doctor or
hospital). The following in structions are provided
to you solely for that purpose.
f Seek appropriate advice from your authorized
Porsche dealer about the possible installation
of a Porsche child restraint system.
f If a child restraint system must be fastened to
the passenger's seat, adjust the passenger's
seat as far away from the air bag as possible.
Page 56 of 343
54
Seats, Mirrors and Steering Wheel
f
If emergency or other serious conditions
require a child to be pl aced in the front seat,
exercise extreme caution and defensive
driving of your vehicle.
Child restraint system for up to one-year old
children
If the child restraint syst em must be fastened to
the passenger’s seat in exceptional cases:
– When an up to one-year old child is seated
in the child restraint system, the front air bag
is automatically deacti vated on the passenger
side.
f Make sure that the “PASSENGER AIR BAG OFF”
indicator lamp lights up.
f Adjust the passenger’s seat as far away from
the air bag as possible.
Danger!
Risk of serious personal injury or death due
to the passenger air bag triggering uninten-
tionally.
When the ignition is on and the up to one-
year old child is seated in the child restraint
system on the passenger seat the indicator
lamp “PASSENGER AIR BAG OFF” must be
on.
If the “PASSENGER AIR BAG OFF” indicator
lamp does not light up, it could indicate a
fault in the system.
In this case:
f Fasten the child restraint system on one of the
rear seats immediately.
f Have the fault remedied at your nearest authorized Porsche dealer.
Child restraint system for children older than
one year
Your vehicle is equipped with occupant sensing for
the passenger's seat in accordance with
U.S. Federal Motor Vehicle Safety Standard 208.
Depending on the weight acting on the
passenger's seat, the passenger's air bag will
automatically be switched on or off.
f In case of doubt, fasten the child restraint
system on one of the rear seats. Small adult passengers
f
Make sure that the PASSENGER AIR BAG OFF
indicator lamp does not light up.
Danger!
Risk of serious or mortal injury due to the
passenger air bag not triggering.
When the ignition is on and the small adult
passenger is seated on the passenger seat,
the indicator lamp “PASSENGER AIR BAG
OFF” must be off.
If the “PASSENGER AIR BAG OFF” indicator
lamp lights up, it could indicate a fault in the
system.
In this case:
f Fasten the child restraint system on one of the
rear seats immediately.
f Have the fault remedied at your nearest authorized Porsche dealer.
Page 57 of 343
Seats, Mirrors and Steering Wheel
55
Automatic locking retractorThe safety belts for the front passenger and the
rear seats are equipped with an automatic locking
retractor for securing the child restraint system.
When activated, this retractor allows you to
securely fasten the child restraint system in place
so that inadvertent movements will not occur.
Danger!
The use of a child restraint system on the
front passenger seat can result in serious
personal injury or death to the child from an
air bag deployment.
To reduce risk of injury from an inflating air
bag in an accident, Porsche strongly
recommends:
f Under all normal circumstances, the child seat
must be placed in the rear.
Do not use a child restraint system on the front passenger seat.
If there are emergency reasons for transporting a
child in the front pa ssenger seat, use the
automatic locking retracto r function and follow the
other safety instructions on the previous pages in
this section.
PASSENGER AIR BAG OFF indicator lamp
Danger!
Risk of serious personal injury or death to the
child, when excessive force is acting on the
passenger's seat due to the seat belt and the
passenger's air bag is switched on uninten-
tionally.
f After fastening the child restraint system,
do not adjust the seat in any direction.
Moving the seat could adjust the safety belt
against the child restraint and cause the
“PASSENGER AIR BAG OFF” indicator lamp to
go off and activate the air bag system.
f Check the condition of the passenger air
bag system shown by the indicator lamp in the overhead operating console.
Page 58 of 343
56
Seats, Mirrors and Steering Wheel
Activating the automa
tic locking retractor
1. If a child restraint syst em must be fastened to
the passenger's seat, adjust the passenger's
seat as far away from the air bag as possible.
2. Position child seat according to the child seat’s manufacturer instructions.
3. Pull the safety belt retr actor completely out. At
this point the locking mechanism is activated.
4. Insert the safety belt tongue into the buckle and make certain that it is properly latched.
Make no more adjustments to the seat.
5. Allow the safety belt to retract until it is tight on the child restraint system. You may further
tighten the belt by pulling o n i t t o a l l o w m o re o f
it to retract.
Make sure that excessive seat belt forces do
not occur by moving the seat with the child
seat installed.
Releasing the safety belt
f Unbuckle the safety belt latch.
Then make certain that the belt has fully retracted.
At this point the automati c locking feature will be
disengaged.
Seek appropriate advice from your authorized
Porsche dealer about the possible installation of a
Porsche child restraint system. LATCH child seats are the best option for
mounting a child seat in your Porsche. Such
LATCH child seats can be
installed only using the
LATCH system in the rear seats.
Use only child restraint systems with the LATCH
system ( Lower A nchorage and Tether for
Ch ildren) recommended by Porsche.
These systems have been tested and adjusted to
the interior of your Po rsche and the appropriate
child age groups. Other systems have not been
tested and could entail an increased risk of injury.
You can obtain child seats that are LATCH-
compatible at your authorized Porsche dealer.
Always observe the separate installation
instructions for your child seat.
Using a LATCH child seat systemBoth of the rear seats are equipped with the
LATCH system (lower anchorage and anchor
points for tether straps on the back of the
backrests).
Markings on the right and left for the LATCH child
seat anchorage can be found on the seat cushions
of the rear seats.

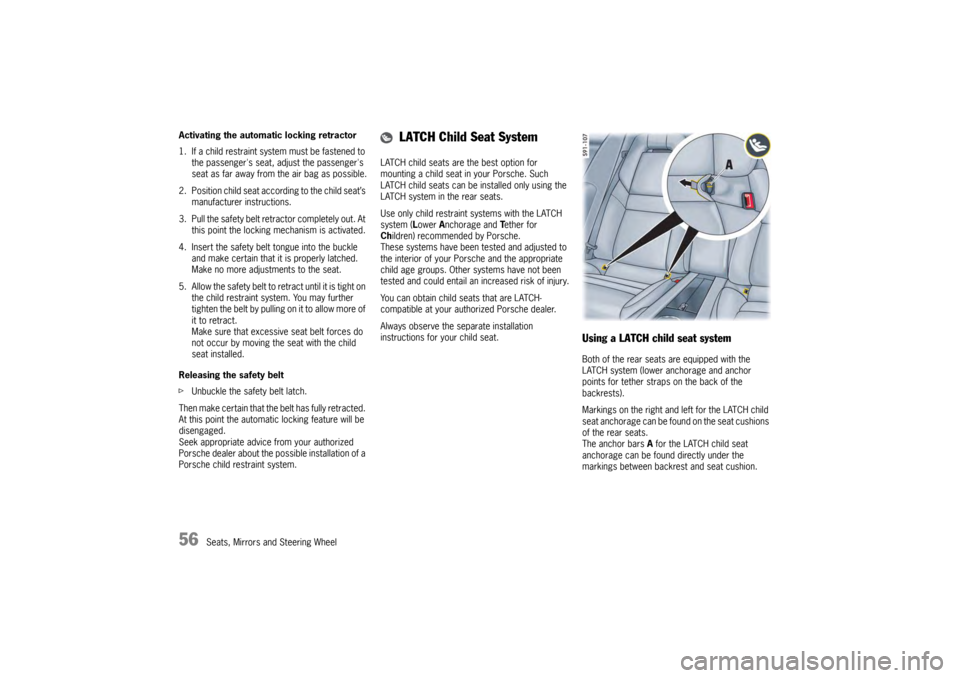

The anchor bars A for the LATCH child seat
anchorage can be found directly under the
markings between backrest and seat cushion.
LATCH Child Seat System
Page 59 of 343
Seats, Mirrors and Steering Wheel
57
Child Restraint AnchoragesfPlease see the chapter “AUTOMATIC LOCKING
RETRACTOR” on page 55.
If your child restraint seat or seats require the use
of a tether strap, you will want to use the anchor
points provided behind each rear seat’s backrest.
To ensure proper installation, see your authorized
Porsche dealer.
Installing a LATCH child seat systemf Always observe the separate installation
instructions for your child seat.

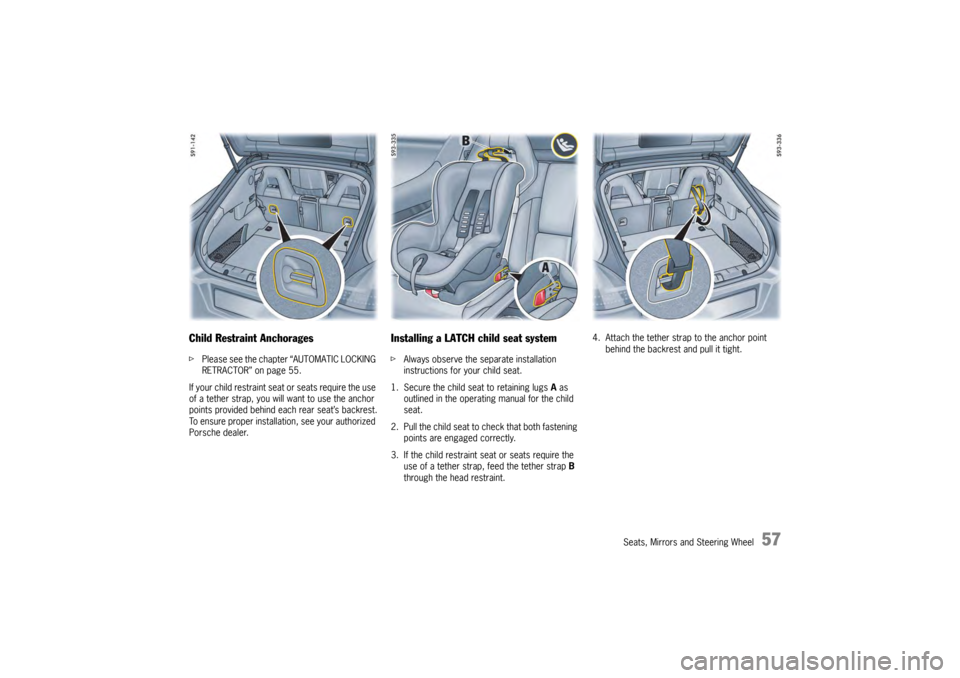

1. Secure the child seat to retaining lugs A as
outlined in the operating manual for the child
seat.
2. Pull the child seat to check that both fastening points are engaged correctly.
3. If the child restraint seat or seats require the use of a tether strap, feed the tether strap B
through the head restraint. 4. Attach the tether strap to the anchor point
behind the backrest and pull it tight.
Page 60 of 343
58
Seats, Mirrors and Steering Wheel

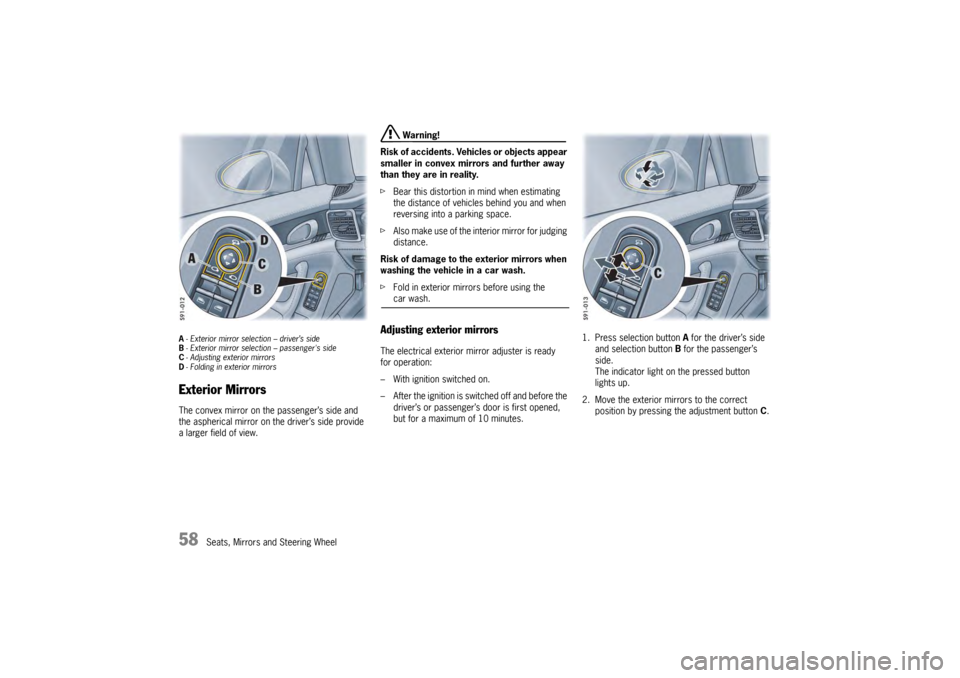

A- Exterior mirror selection – driver’s side
B - Exterior mirror selection – passenger's side
C - Adjusting exterior mirrors
D - Folding in exterior mirrorsExterior MirrorsThe convex mirror on the passenger’s side and
the aspherical mirror on the driver’s side provide
a larger field of view.
Warning!
Risk of accidents. Vehi cles or objects appear
smaller in convex mirrors and further away
than they are in reality.
f Bear this distortion in mind when estimating
the distance of vehicles behind you and when
reversing into a parking space.
f Also make use of the interior mirror for judging
distance.
Risk of damage to the exterior mirrors when
washing the vehicle in a car wash.
f Fold in exterior mirrors before using the car wash.
Adjusting exterior mirrors The electrical exterior mirror adjuster is ready
for operation:
– With ignition switched on.
– After the ignition is switched off and before the
driver’s or passenger’s door is first opened,
but for a maximum of 10 minutes. 1. Press selection button
A for the driver’s side
and selection button B for the passenger’s
side.
The indicator light on the pressed button
lights up.
2. Move the exterior mirrors to the correct position by pressing the adjustment button C.
