Seats, Mirrors and Steering Wheel
39
Adjusting Front SeatsAdjusting the seat
Warning!
Risk of accidents. The seat may move further
than desired if you atte mpt to adjust it when
driving. You may lose control of the vehicle.
f Do not adjust the seat when driving.
Danger of injury if persons or animals are in
the movement range of the seat during seat
adjustment.
f Adjust the seat so that no-one is put at risk.

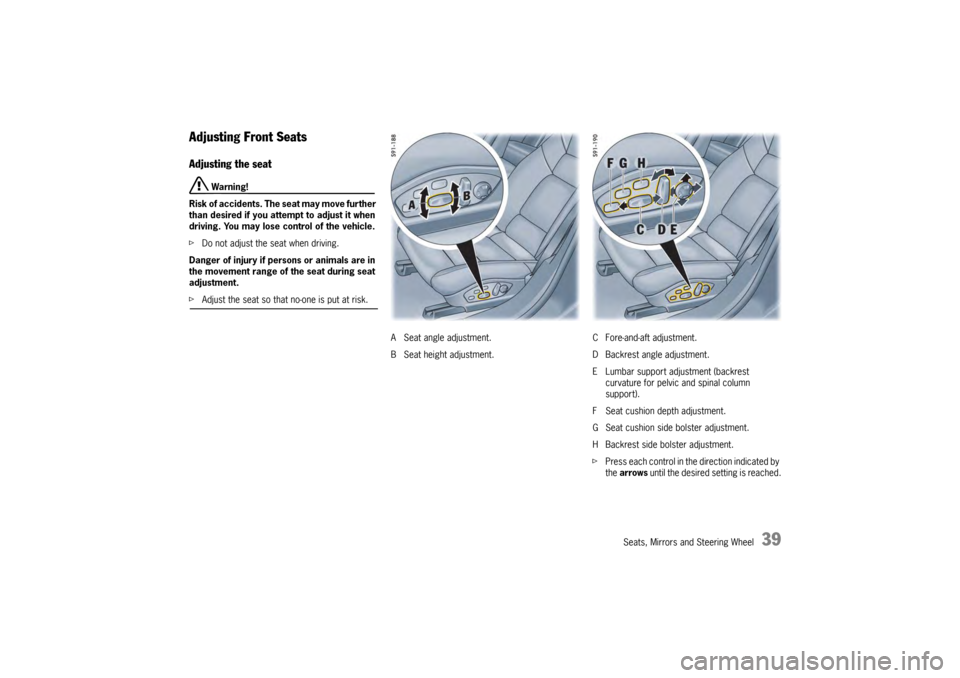

A Seat angle adjustment.
B Seat height adjustment. C Fore-and-aft adjustment.
D Backrest angle adjustment.
E Lumbar support adjustment (backrest
curvature for pelvic and spinal column
support).
F Seat cushion depth adjustment.
G Seat cushion side bolster adjustment.
H Backrest side bolster adjustment.
f Press each control in the direction indicated by
the arrows until the desired setting is reached.
Page 42 of 343
40
Seats, Mirrors and Steering Wheel

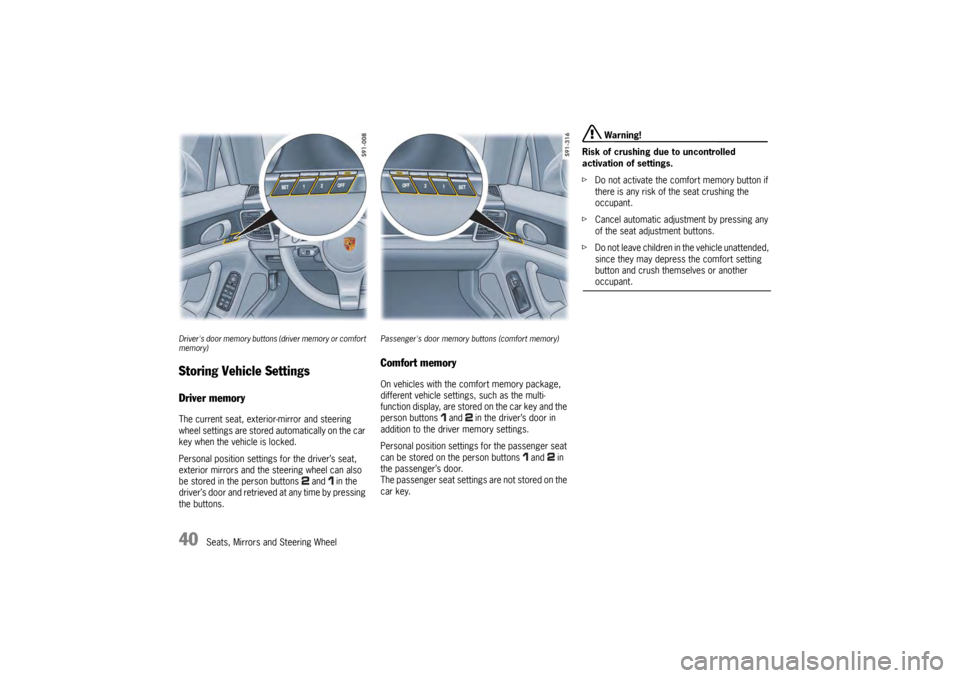

Driver's door memory buttons (driver memory or comfort
memory)Storing Vehicle SettingsDriver memoryThe current seat, exterior-mirror and steering
wheel settings are stored automatically on the car
key when the vehicle is locked.
Personal position settings for the driver’s seat,
exterior mirrors and the steering wheel can also
be stored in the person buttons and in the
driver’s door and retrieved at any time by pressing
the buttons.
Passenger's door memory buttons (comfort memory)Comfort memoryOn vehicles with the comfort memory package,
different vehicle settings, such as the multi-
function display, are stored on the car key and the
person buttons and in the driver’s door in
addition to the driver memory settings.
Personal position settings for the passenger seat
can be stored on the person buttons and in
the passenger’s door.
The passenger seat settings are not stored on the
car key.
Warning!
Risk of crushing due to uncontrolled
activation of settings.
f Do not activate the comfort memory button if
there is any risk of the seat crushing the
occupant.
f Cancel automatic adjustment by pressing any
of the seat adjustment buttons.
f Do not leave children in the vehicle unattended,
since they may depress the comfort setting
button and crush themselves or another occupant.
Page 43 of 343
Seats, Mirrors and Steering Wheel
41
Preventing automatic storage of settings
on car keyDeactivating automatic storage
fPress the button before leaving the
vehicle.
The indicator light on the button lights up.
The current settings are stored on the
vehicle key.
All settings that are modified when the
function is active are not stored on the
vehicle key.
Activating automatic storage
f Press button briefly.
or
Press and hold the button until the
settings last stored on the car key are
retrieved.
The indicator light on the button goes out.
Automatic storage is activated.
Storing settings on person buttons 1
and 2Storing seat, steering wheel and mirror settings
while driving is not possible.
Storing settings
1. Make the required adjustments to the mirror,
steering wheel (person buttons on the driver’s
side only) and seat settings.
2. Press memory button . The indicator light on the button lights up.
3. Press one of the person buttons or within
10 seconds.
The indicator light on the memory button
goes out and an acknowledgement signal
sounds.
The settings are now stored on the desired
person button.Retrieving settings using the car key or on
vehicles with Porsche Entry & Drivef Open the driver’s door.
The seat positions that were last set are
restored automatically.
Cancelling settings
Automatic settings can be cancelled by
pressing the button or the button
on the car key.
Retrieving settings with person buttons 1
and 2Driver’s side
1. Open the door.
2. Press person button or . or
once the door is closed or the ignition key
is inserted and the ignition is switched on
(on vehicles with Porsche Entry & Drive),
press and hold the person button or until
the stored positions have been reached.
Passenger's side
f Press and hold the person button or on the
passenger’s side until the stored positions
have been reached.
Cancelling settings
Automatic settings can be cancelled by pressing
the button .
Page 44 of 343
42
Seats, Mirrors and Steering Wheel
Easy Entry FunctionThe Easy Entry function makes it easier for you to
get in and out of the vehicle.
Warning!
Risk of crushing if persons are behind the
driver’s seat when settings are retrieved.
Risk of damage if the rear seat bench is
folded forward when settings are retrieved.
f Switch off the Easy Entry function if there are
persons behind the driver’s seat or if the rear seat bench is folded forward.
Prerequisite
– Function must be activated on the multi- function display.
For information on swit ching the Easy Entry
function on and off:
f Please see the chapter “SWITCHING
COMFORT ENTRY ON AND OFF” on page 145. Entering the vehicle
When the driver’s door is opened, the steering
wheel and passenger seat
move upwards or to the
rear depending on the position of the seat and
steering wheel when the driver left the vehicle.
Once the driver’s door is closed and the ignition
key is inserted or, in the case of vehicles with
Porsche Entry & Drive, the ignition is switched on,
the seat and steering wheel move to the stored
position.
Exiting the vehicle
The steering wheel moves upwards:
– After the ignition key is removed or
– After the ignition is switched off and the
driver’s door is opened on vehicles with
Porsche Entry & Drive.
The driver’s seat moves to the rear:
– After the driver’s door is opened.

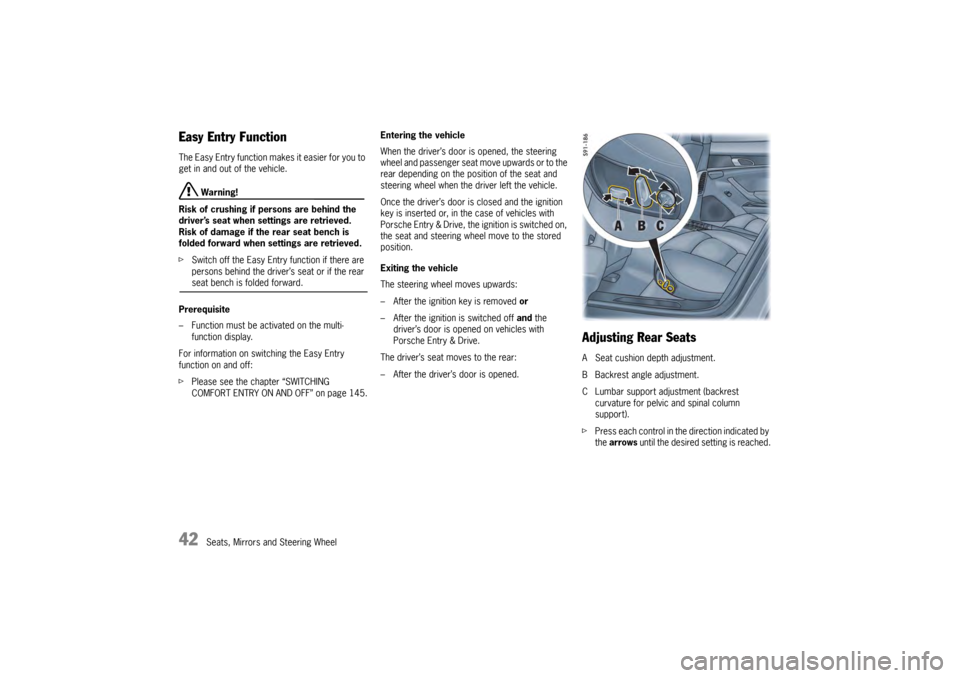

Adjusting Rear SeatsA Seat cushion depth adjustment.
B Backrest angle adjustment.
C Lumbar support adjustment (backrest curvature for pelvic and spinal column
support).
f Press each control in the direction indicated by
the arrows until the desired setting is reached.
Page 45 of 343
Seats, Mirrors and Steering Wheel
43

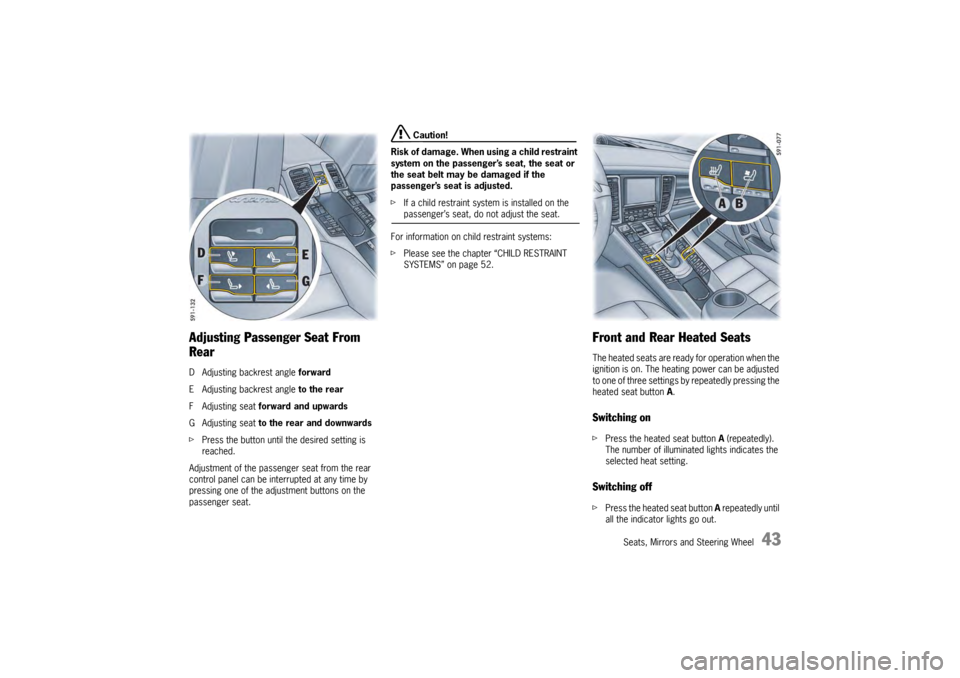

Adjusting Passenger Seat From
RearD Adjusting backrest angle forward
E Adjusting backrest angle to the rear
F Adjusting seat forward and upwards
G Adjusting seat to the rear and downwards
f Press the button until the desired setting is
reached.
Adjustment of the passenger seat from the rear
control panel can be interrupted at any time by
pressing one of the ad justment buttons on the
passenger seat.
Caution!
Risk of damage. When using a child restraint
system on the passenger’s seat, the seat or
the seat belt may be damaged if the
passenger’s seat is adjusted.
f If a child restraint syst em is installed on the passenger’s seat, do not adjust the seat.
For information on child restraint systems:
f Please see the chapter “CHILD RESTRAINT
SYSTEMS” on page 52.

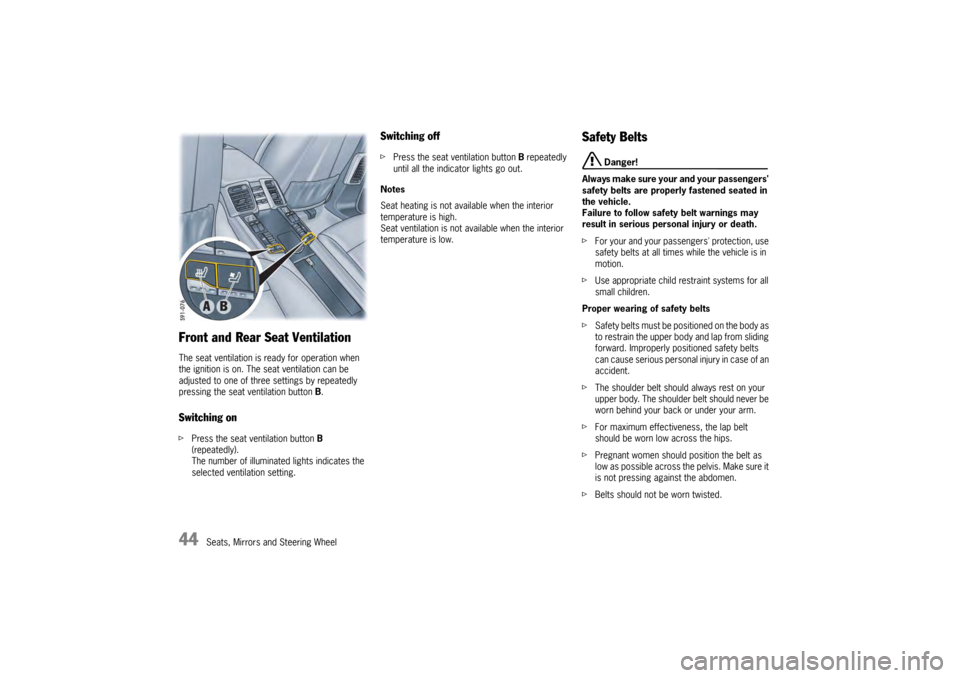

Front and Rear Heated SeatsThe heated seats are ready for operation when the
ignition is on. The heatin g power can be adjusted
to one of three settings by repeatedly pressing the
heated seat button A.Switching onf Press the heated seat button A (repeatedly).
The number of illuminated lights indicates the
selected heat setting.Switching offf Press the heated seat button A repeatedly until
all the indicator lights go out.
Page 46 of 343
44
Seats, Mirrors and Steering Wheel
Front and Rear Seat VentilationThe seat ventilation is ready for operation when
the ignition is on. The seat ventilation can be
adjusted to one of three settings by repeatedly
pressing the seat ventilation button B.Switching onfPress the seat ventilation button B
(repeatedly).
The number of illuminated lights indicates the
selected ventilation setting.
Switching offf Press the seat ventilation button B repeatedly
until all the indicator lights go out.
Notes
Seat heating is not available when the interior
temperature is high.
Seat ventilation is not available when the interior
temperature is low.
Safety Belts
Danger!
Always make sure your and your passengers'
safety belts are properly fastened seated in
the vehicle.
Failure to follow safety belt warnings may
result in serious personal injury or death.
f For your and your passe ngers' protection, use
safety belts at all times while the vehicle is in
motion.
f Use appropriate child restraint systems for all
small children.
Proper wearing of safety belts
f S a f e t y b e l t s m u s t b e p o s i t i o n e d o n t h e b o d y a s
to restrain the upper bo dy and lap from sliding
forward. Improperly positioned safety belts
can cause serious personal injury in case of an
accident.
f The shoulder belt should always rest on your
upper body. The shoulder belt should never be
worn behind your back or under your arm.
f For maximum effectiveness, the lap belt
should be worn low across the hips.
f Pregnant women should position the belt as
low as possible across the pelvis. Make sure it
is not pressing against the abdomen.
f Belts should not be worn twisted.
Page 47 of 343
Seats, Mirrors and Steering Wheel
45
fDo not wear belts over rigid or breakable
objects in or on your clothing, such as eye
glasses, pens, keys, etc. as these may cause
injury.
f Several layers of heavy clothing may interfere
with proper positioning of belts.
f Belts must not rub against sharp objects or
damage may occur to the belt.
f Two occupants should never share the same
belt at the same time.
Care and maintenance
f Keep belt buckles free of any obstruction that
may prevent a secure locking.
f Belts that have been subjected to excessive
stretch forces in an accident must be
inspected or replaced to ensure their
continued effectiveness in restraining you.
The same applies to belt tensioner systems
which have been triggered. In addition, the
anchor points of the belts should be checked.
f If safety belts do not work properly, see your
authorized Porsche dealer immediately.
f If the belts show damage to webbing, bindings,
buckles or retractors, they should be replaced
to ensure safe operation.
f Do not modify or disassemble the safety belts
in your vehicle. f
The belts must be kept clean or the retractors
may not work properly.
Please see the chapter “CAR CARE
INSTRUCTIONS” on page 269.
f Never bleach or dye safety belts.
f Do not allow safety belts to retract until they
are completely dry after cleaning or this may
cause damage to the belt.
Belt tensionerDepending on the force of a collision, fastened
seat belts are automatically tightened in an
accident.
The belt tensioners are triggered in:
– Front and rear impacts of sufficient severity
– Side impacts
– In cases of vehicle rollover
Maintenance notes
The belt tensioner system can be triggered only
once; the system must be replaced afterwards.
If there is a fault in the belt tensioner system, the
air bag warning light lights up.
Work may be performed on the belt tensioner
system only by an authorized Porsche dealer.
Smoke is released when the belt tensioners are
triggered.
This does not indicate a fire in the vehicle. An audio-visual warning
system is
interconnected with the driver’s safety belt.
Every time the ignition is turned on, the gong will
sound for about 6 seconds to remind driver and
passenger to buckle up.
In addition, the gong will sound for approximately
90 seconds if vehicle speed exceeds 15 mph
(24 km/h).
The safety belt warning lights in the instrument
panel and multi-function display will go off as soon
as the driver has buckled up.
Safety Belt Warning System
Page 48 of 343
46
Seats, Mirrors and Steering Wheel

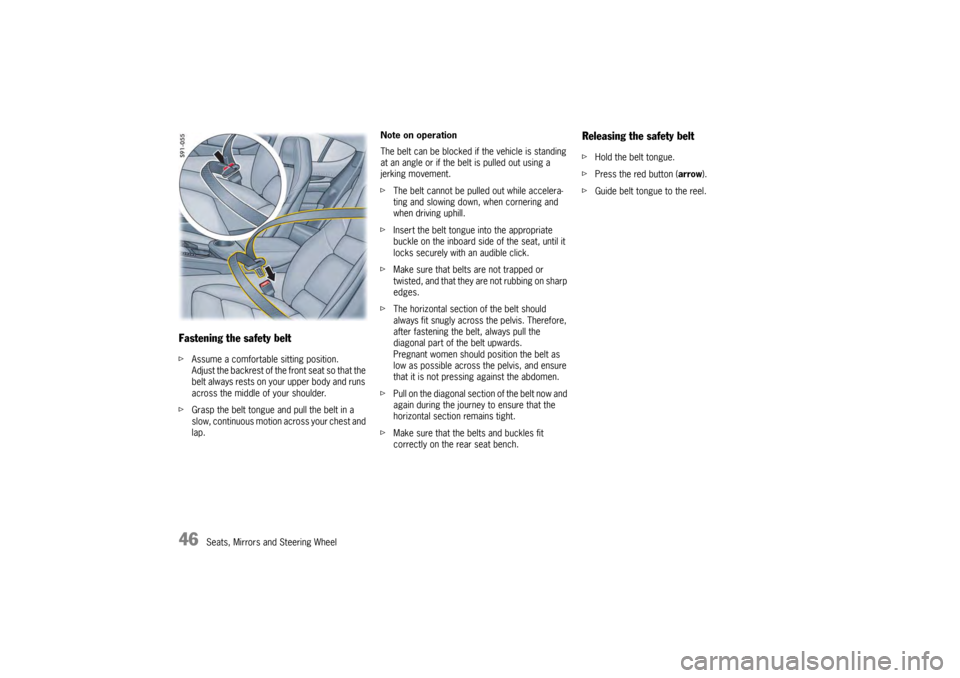

Fastening the safety beltfAssume a comfortable sitting position.
Adjust the backrest of th e front seat so that the
belt always rests on your upper body and runs
across the middle of your shoulder.
f Grasp the belt tongue and pull the belt in a
slow, continuous motion across your chest and
lap. Note on operation
The belt can be blocked if the vehicle is standing
at an angle or if the belt is pulled out using a
jerking movement.
f
The belt cannot be pull ed out while accelera-
ting and slowing down, when cornering and
when driving uphill.
f Insert the belt tongue into the appropriate
buckle on the inboard side of the seat, until it
locks securely with an audible click.
f Make sure that belts are not trapped or
twisted, and that they ar e not rubbing on sharp
edges.
f The horizontal section of the belt should
always fit snugly across the pelvis. Therefore,
after fastening the belt, always pull the
diagonal part of the belt upwards.
Pregnant women should position the belt as
low as possible across the pelvis, and ensure
that it is not pressing against the abdomen.
f Pull on the diagonal sect ion of the belt now and
again during the journey to ensure that the
horizontal section remains tight.
f Make sure that the belts and buckles fit
correctly on the rear seat bench.
Releasing the safety beltfHold the belt tongue.
f Press the red button ( arrow).
f Guide belt tongue to the reel.
Page 49 of 343
Seats, Mirrors and Steering Wheel
47
Safety belt height adjustmentThe heights of the belt deflectors for the driver’s
seat, passenger’s seat and the rear seats can be
adjusted.
Adjust the height of the safe ty belt so that it runs
across the middle of the shoulder, not against the
neck.

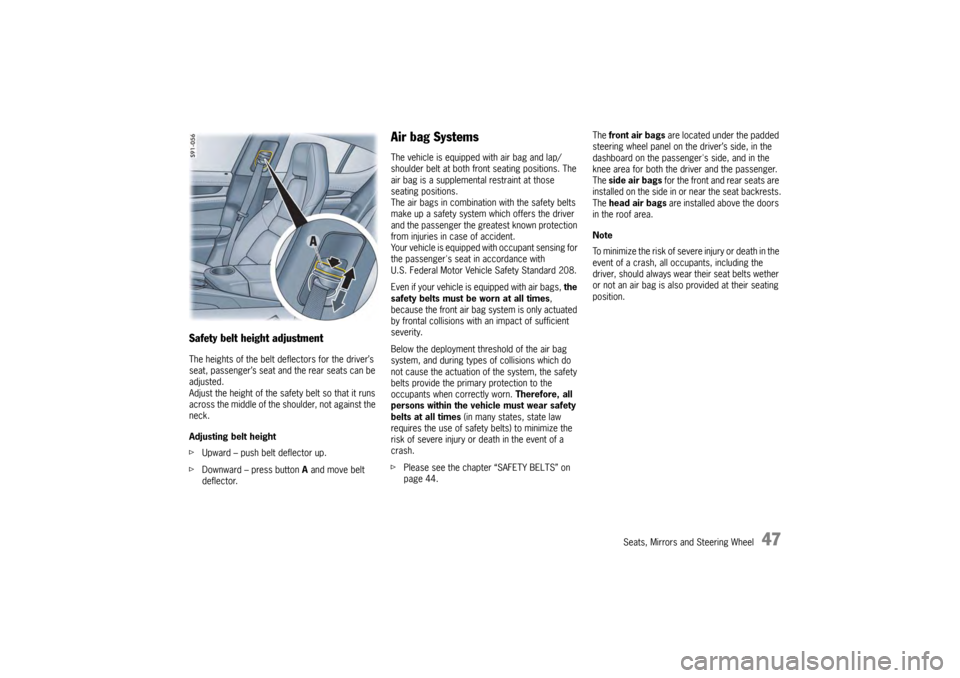

Adjusting belt height
f Upward – push belt deflector up.
f Downward – press button A and move belt
deflector.
Air bag SystemsThe vehicle is equipped with air bag and lap/
shoulder belt at both front seating positions. The
air bag is a supplemental restraint at those
seating positions.
The air bags in combinatio n with the safety belts
make up a safety system which offers the driver
and the passenger the greatest known protection
from injuries in case of accident.
Your vehicle is equipped with occupant sensing for
the passenger's seat in accordance with
U.S. Federal Motor Vehicle Safety Standard 208.
Even if your vehicle is equipped with air bags, the
safety belts must be worn at all times ,
because the front air bag system is only actuated
by frontal collisions with an impact of sufficient
severity.
Below the deployment threshold of the air bag
system, and during types of collisions which do
not cause the actuation of the system, the safety
belts provide the primary protection to the
occupants when correctly worn. Therefore, all
persons within the vehicle must wear safety
belts at all times (in many states, state law
requires the use of safety belts) to minimize the
risk of severe injury or death in the event of a
crash.
f Please see the chapter “SAFETY BELTS” on
page 44. The
front air bags are located under the padded
steering wheel panel on the driver’s side, in the
dashboard on the passenger's side, and in the
knee area for both the driver and the passenger.
The side air bags for the front and rear seats are
installed on the side in or near the seat backrests.
The head air bags are installed above the doors
in the roof area.
Note
To minimize the risk of seve re injury or death in the
event of a crash, all occupants, including the
driver, should always wear their seat belts wether
or not an air bag is also provided at their seating
position.
Page 50 of 343
48
Seats, Mirrors and Steering Wheel Danger!
To provide optimal occupant protection, air
bags must inflate at very high speed. If you
are not wearing your safety belt or are too
close to the air bag when it is deployed,
inflating air bags can result in serious
personal injury or death.
f Make sure there are no people, animals or
objects between the driver or passenger and
the area into which the air bags inflate.
f Sit back as far from the dashboard or steering
wheel as is practical, while still maintaining full
vehicle control.
f Always hold the steering wheel by the outer
rim. Never rest your hands on the air bag
panel.
f Always fasten seat belts because triggering
of the air bag system depends on the force
and angle of impact.
f Do not transport heavy objects on or in front of
the passenger seat. These could impair the
function of the air bags, the seat belts, and
occupant sensing.
f Do not hang objects (e. g., jackets, coats,
coat hangers) over the backrest. f
Always keep the lid of the door storage
compartment closed. Objects must not
protrude out of the door storage
compartment.
f Do not add any additional coverings or stickers
to the steering wheel or in the area of the
passenger air bag, side air bags, knee air
bags, and head air bags. Doing so may
adversely affect the functioning of the air bag
system or cause harm to the occupants if the
air bag system should deploy.
f No objects should be placed over or near the
air bag on the instrument panel, because any
such objects could cause harm if the vehicle is
in a crash severe enough to cause the air bag
to inflate.
f Do not modify the seat coverings, since such
changes can block the seat-mounted side air
bag. Do not attach additional cushions,
protective coverings, or pillows to the
passenger's seat. Do not affix things to the
passenger's seat or cover it with other
materials. Do not cover the back of the
backrest. Do not make changes to the
passenger's seat, the cushion or foam, the
occupant sensor, and to the seat base frame.
f No changes must be made to the wiring or
components of the air bag system.
f Do not install any wiring for electrical
accessory equipment in the vicinity of the air
bag wiring harnesses. Doing so may disable the air bag system or cause inadvertent
inflation.
f If the warning light comes on, the air bag
system should be repaired immediately by
your authorized Porsche dealer.
f Always keep feet in the footwell while driving.
Do not put feet on the dashboard or the seat
area. Do not lean against the inside of the door
or outside the window while the vehicle is
moving.
f Using accessories not approved by Porsche
can cause the occupant sensing to be
impaired.
f Do not squeeze objects, such as the fire
extinguisher, or first aid kit under the seat.
f Only have seats removed and installed by an
authorized Porsche dealer so that occupant
sensing components will not be damaged.
f Give your passenger all of the information in
this chapter.
Note
Air bag components (e.g. steering wheel, seats)
may be disassembled only by an authorized
Porsche dealer.
f When disposing of a used air bag unit, our
safety instructions must be followed. These
instructions can be obtained at any authorized
Porsche dealer.
