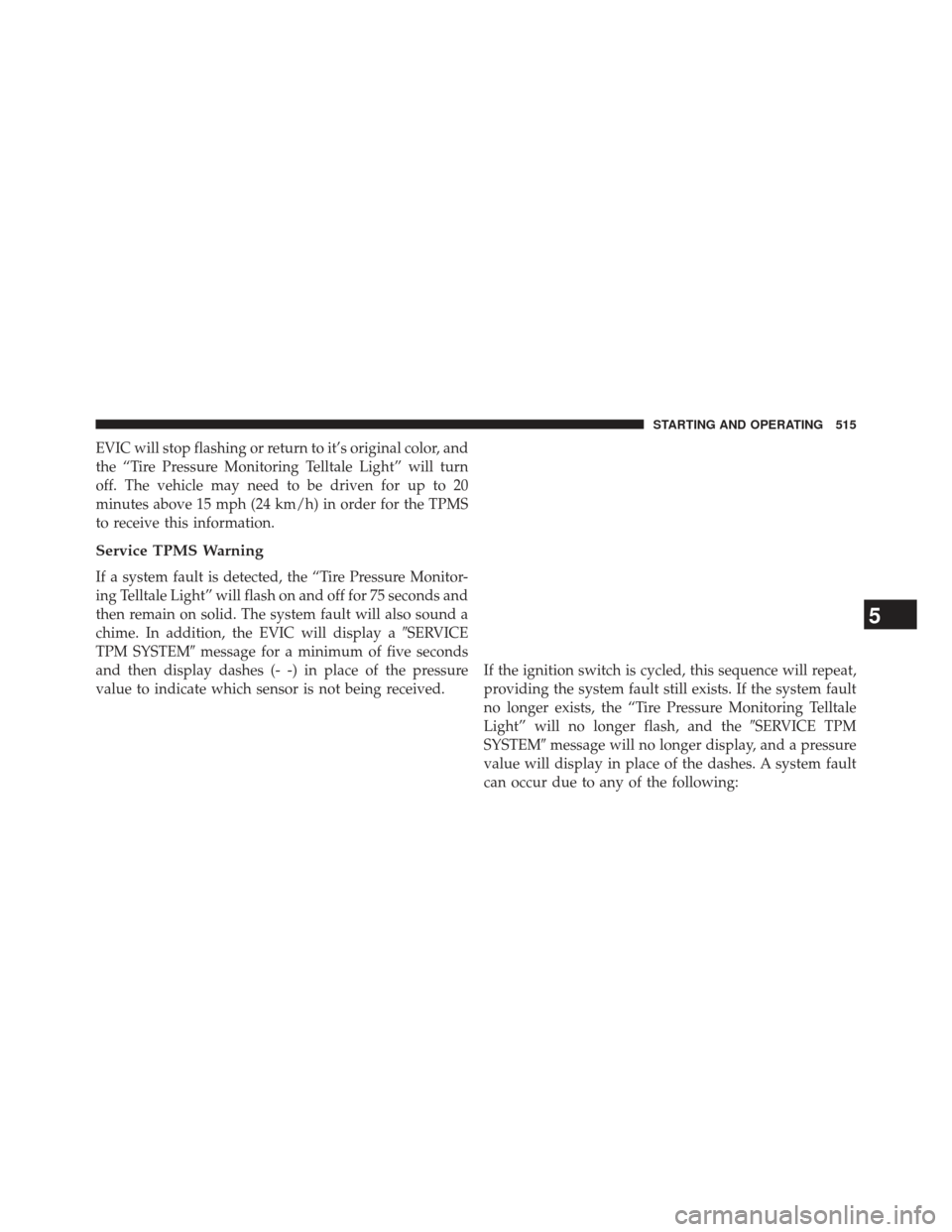

EVIC will stop flashing or return to it’s original color, and
the “Tire Pressure Monitoring Telltale Light” will turn
off. The vehicle may need to be driven for up to 20
minutes above 15 mph (24 km/h) in order for the TPMS
to receive this information.
Service TPMS Warning
If a system fault is detected, the “Tire Pressure Monitor-
ing Telltale Light” will flash on and off for 75 seconds and
then remain on solid. The system fault will also sound a
chime. In addition, the EVIC will display aSERVICE
TPM SYSTEM message for a minimum of five seconds
and then display dashes (- -) in place of the pressure
value to indicate which sensor is not being received. If the ignition switch is cycled, this sequence will repeat,
providing the system fault still exists. If the system fault
no longer exists, the “Tire Pressure Monitoring Telltale
Light” will no longer flash, and the
SERVICE TPM
SYSTEM message will no longer display, and a pressure
value will display in place of the dashes. A system fault
can occur due to any of the following:
5
STARTING AND OPERATING 515

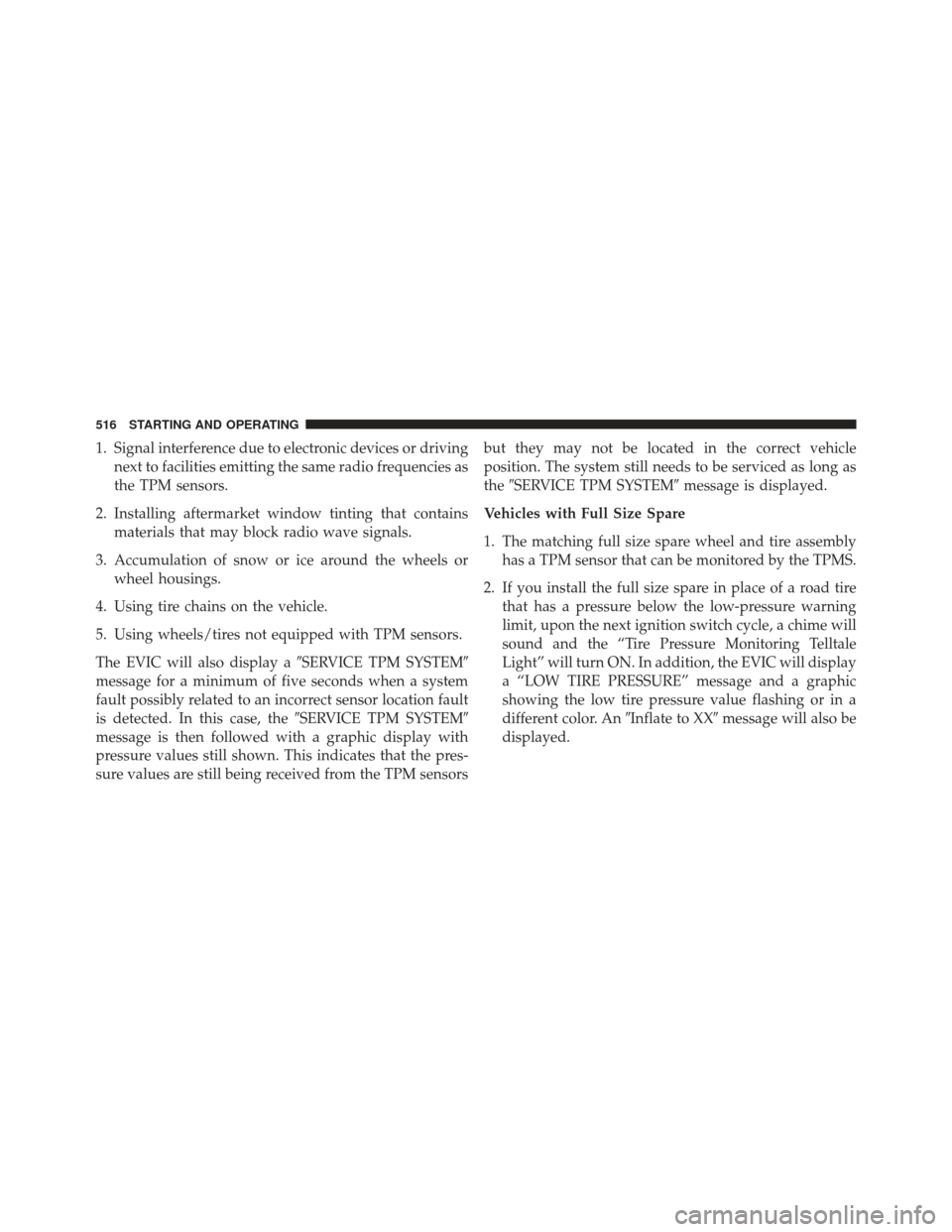

1. Signal interference due to electronic devices or drivingnext to facilities emitting the same radio frequencies as
the TPM sensors.
2. Installing aftermarket window tinting that contains materials that may block radio wave signals.
3. Accumulation of snow or ice around the wheels or wheel housings.
4. Using tire chains on the vehicle.
5. Using wheels/tires not equipped with TPM sensors.
The EVIC will also display a SERVICE TPM SYSTEM
message for a minimum of five seconds when a system
fault possibly related to an incorrect sensor location fault
is detected. In this case, the SERVICE TPM SYSTEM
message is then followed with a graphic display with
pressure values still shown. This indicates that the pres-
sure values are still being received from the TPM sensors but they may not be located in the correct vehicle
position. The system still needs to be serviced as long as
the
SERVICE TPM SYSTEM message is displayed.
Vehicles with Full Size Spare
1. The matching full size spare wheel and tire assembly has a TPM sensor that can be monitored by the TPMS.
2. If you install the full size spare in place of a road tire that has a pressure below the low-pressure warning
limit, upon the next ignition switch cycle, a chime will
sound and the “Tire Pressure Monitoring Telltale
Light” will turn ON. In addition, the EVIC will display
a “LOW TIRE PRESSURE” message and a graphic
showing the low tire pressure value flashing or in a
different color. An Inflate to XXmessage will also be
displayed.
516 STARTING AND OPERATING

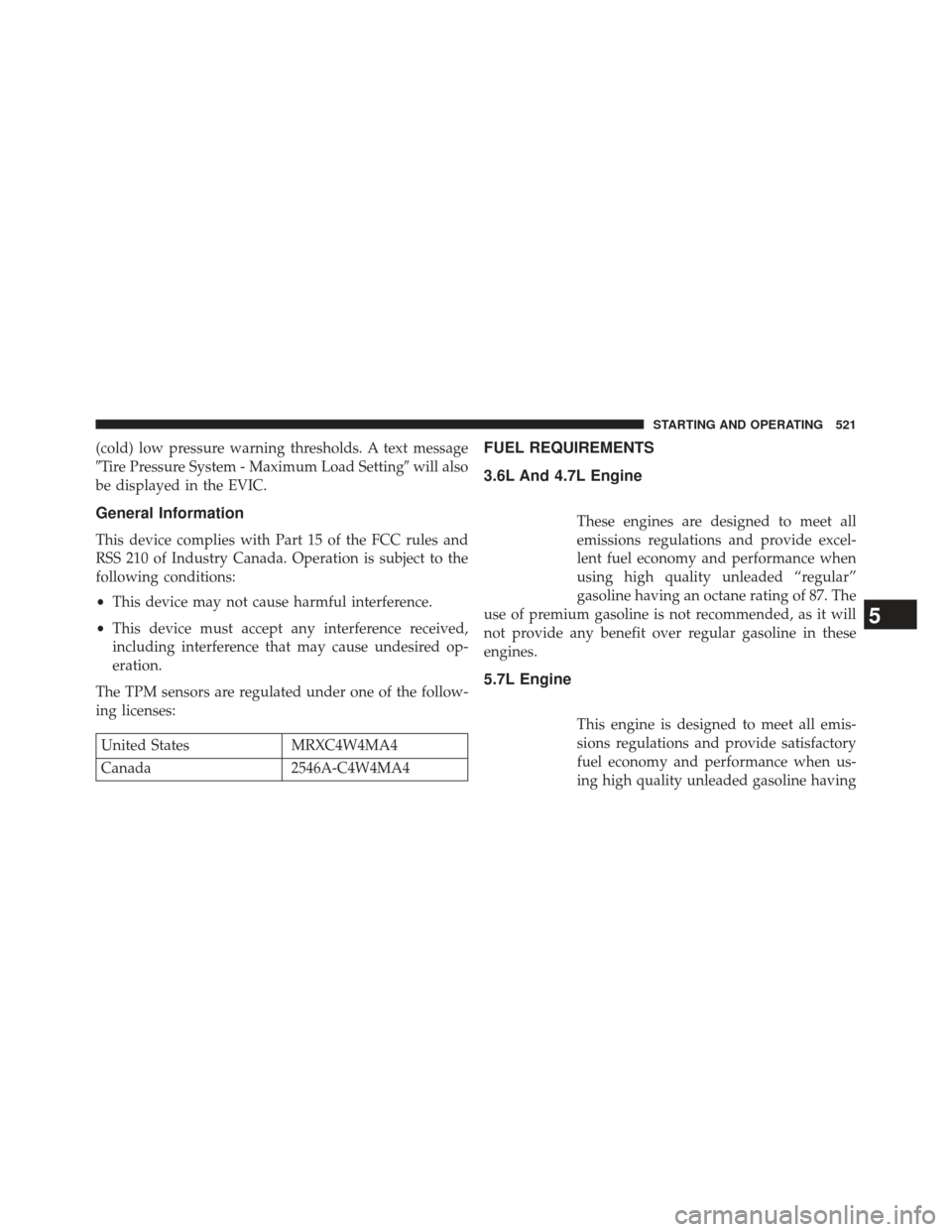

(cold) low pressure warning thresholds. A text message
Tire Pressure System - Maximum Load Settingwill also
be displayed in the EVIC.
General Information
This device complies with Part 15 of the FCC rules and
RSS 210 of Industry Canada. Operation is subject to the
following conditions:
• This device may not cause harmful interference.
• This device must accept any interference received,
including interference that may cause undesired op-
eration.
The TPM sensors are regulated under one of the follow-
ing licenses:
United States MRXC4W4MA4
Canada 2546A-C4W4MA4
FUEL REQUIREMENTS
3.6L And 4.7L Engine
These engines are designed to meet all
emissions regulations and provide excel-
lent fuel economy and performance when
using high quality unleaded “regular”
gasoline having an octane rating of 87. The
use of premium gasoline is not recommended, as it will
not provide any benefit over regular gasoline in these
engines.
5.7L Engine
This engine is designed to meet all emis-
sions regulations and provide satisfactory
fuel economy and performance when us-
ing high quality unleaded gasoline having
5
STARTING AND OPERATING 521

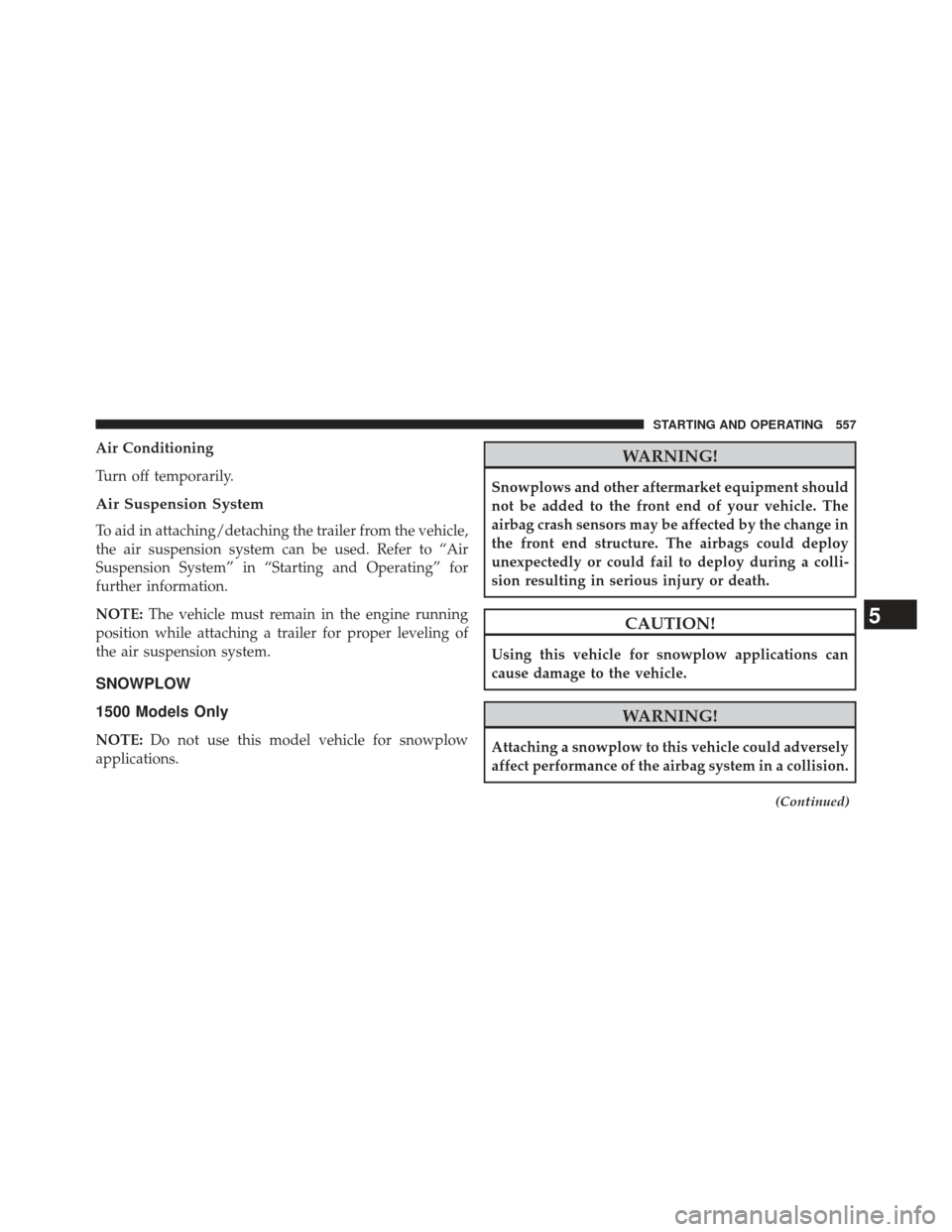

Air Conditioning
Turn off temporarily.
Air Suspension System
To aid in attaching/detaching the trailer from the vehicle,
the air suspension system can be used. Refer to “Air
Suspension System” in “Starting and Operating” for
further information.
NOTE:The vehicle must remain in the engine running
position while attaching a trailer for proper leveling of
the air suspension system.
SNOWPLOW
1500 Models Only
NOTE: Do not use this model vehicle for snowplow
applications.
WARNING!
Snowplows and other aftermarket equipment should
not be added to the front end of your vehicle. The
airbag crash sensors may be affected by the change in
the front end structure. The airbags could deploy
unexpectedly or could fail to deploy during a colli-
sion resulting in serious injury or death.
CAUTION!
Using this vehicle for snowplow applications can
cause damage to the vehicle.
WARNING!
Attaching a snowplow to this vehicle could adversely
affect performance of the airbag system in a collision.
(Continued)
5
STARTING AND OPERATING 557

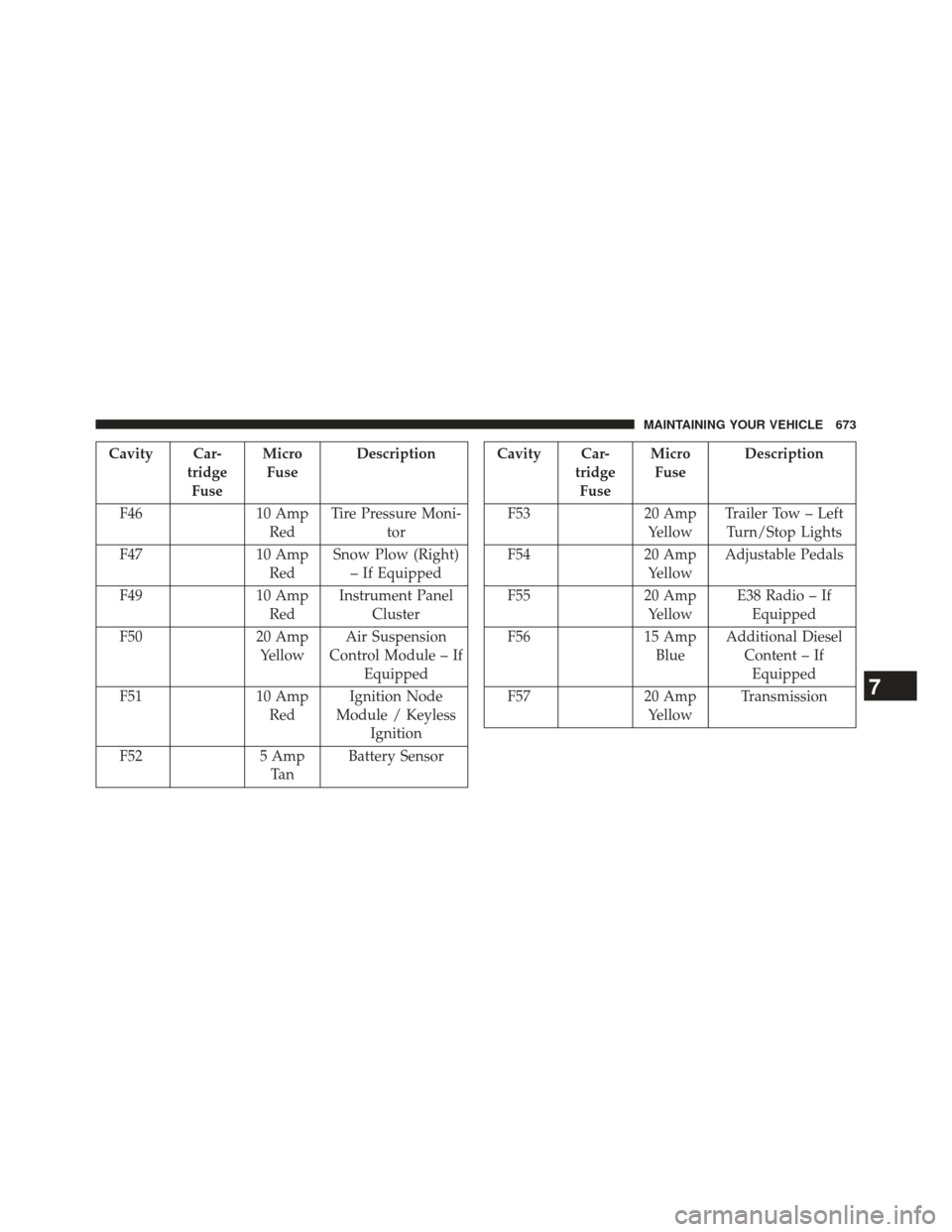

Cavity Car-tridgeFuse Micro
Fuse Description
F46 10 Amp
Red Tire Pressure Moni-
tor
F47 10 Amp
Red Snow Plow (Right)
– If Equipped
F49 10 Amp
Red Instrument Panel
Cluster
F50 20 Amp
Yellow Air Suspension
Control Module – If Equipped
F51 10 Amp
Red Ignition Node
Module / Keyless Ignition
F52 5 Amp
Ta n Battery SensorCavity Car-
tridgeFuse Micro
Fuse Description
F53 20 Amp
Yellow Trailer Tow – Left
Turn/Stop Lights
F54 20 Amp
Yellow Adjustable Pedals
F55 20 Amp
Yellow E38 Radio – If
Equipped
F56 15 Amp
Blue Additional Diesel
Content – IfEquipped
F57 20 Amp
Yellow Transmission
7
MAINTAINING YOUR VEHICLE 673

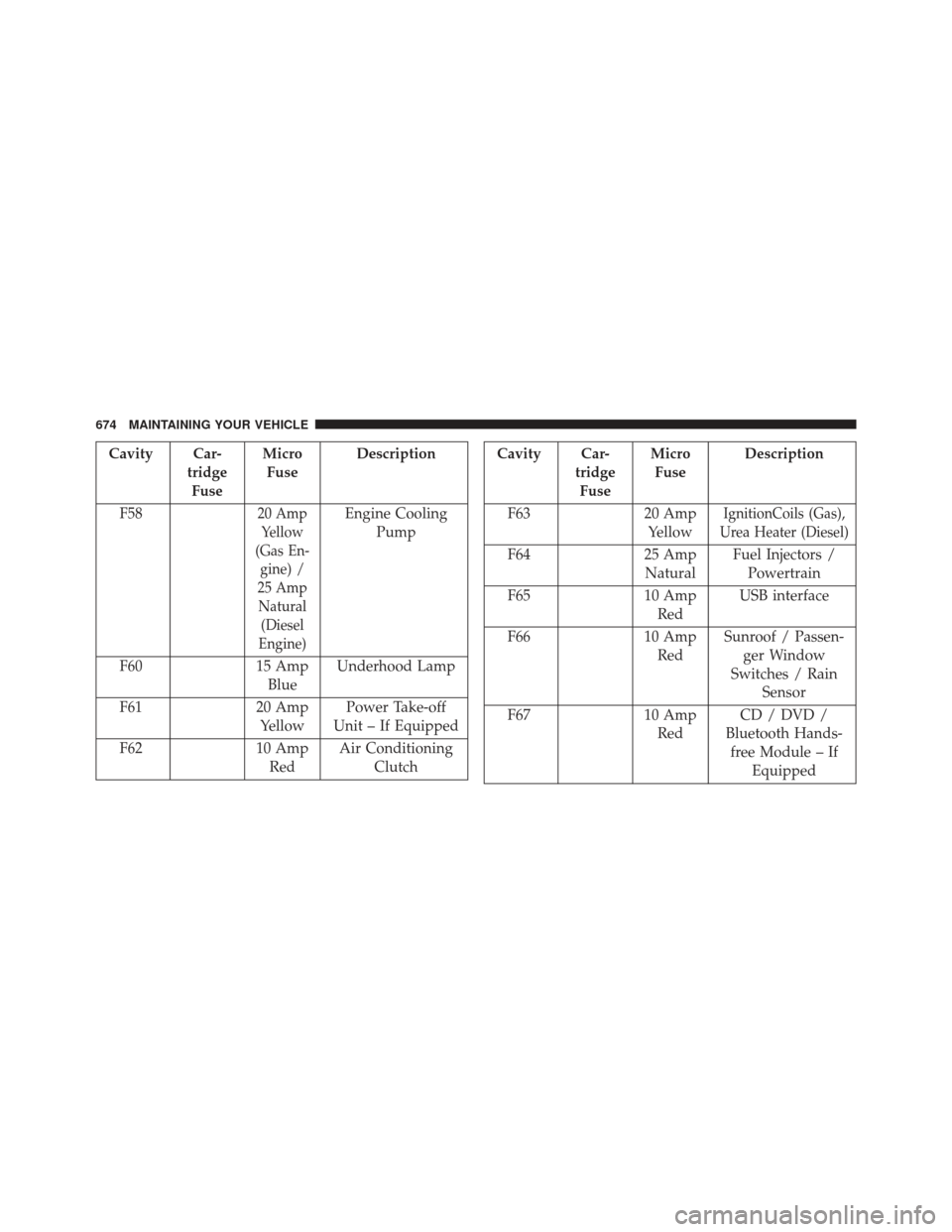

Cavity Car-tridgeFuse Micro
Fuse Description
F58
20 Amp Yellow
(Gas En- gine) /
25 Amp Natural (Diesel
Engine)Engine Cooling Pump
F60 15 Amp
Blue Underhood Lamp
F61 20 Amp
Yellow Power Take-off
Unit – If Equipped
F62 10 Amp
Red Air Conditioning
Clutch
Cavity Car- tridgeFuse Micro
Fuse Description
F63 20 Amp
Yellow
IgnitionCoils (Gas),
Urea Heater (Diesel)
F64 25 Amp
Natural Fuel Injectors /
Powertrain
F65 10 Amp
Red USB interface
F66 10 Amp
Red Sunroof / Passen-
ger Window
Switches / Rain Sensor
F67 10 Amp
Red CD / DVD /
Bluetooth Hands- free Module – If Equipped
