pressure values in each corner of the ICON with the
pressure value of the low tire displayed in a different
color than the other tire pressure value.
If the Tire Pressure system requires service, “Service Tire
Pressure System” is displayed.
Tire PSI is an information only function and cannot be
reset. Press and release the LEFT arrow button to return
to the main menu.
Refer to “Tire Pressure Monitoring System (TPMS)”
under “Starting and Operating” for further information.
Trip A
Press and release the UP or DOWN arrow
button until the Trip A icon is highlighted in
the EVIC (Toggle left or right to select Trip A or
Trip B). (Toggle left or right to select Trip A or
Trip B) The Trip A information will display the following: •
Distance
• Average Fuel Economy
• Average Speed
• Elapsed Time
Hold the SELECT/RIGHT arrow button to reset all the
information.
Trip B
Press and release the Left or Right arrow but-
ton until the Trip B icon is highlighted in the
EVIC (Toggle left or right to select Trip A or
Trip B). The Trip B information will display the
following:
• Distance
• Average Fuel Economy
4
UNDERSTANDING YOUR INSTRUMENT PANEL 283

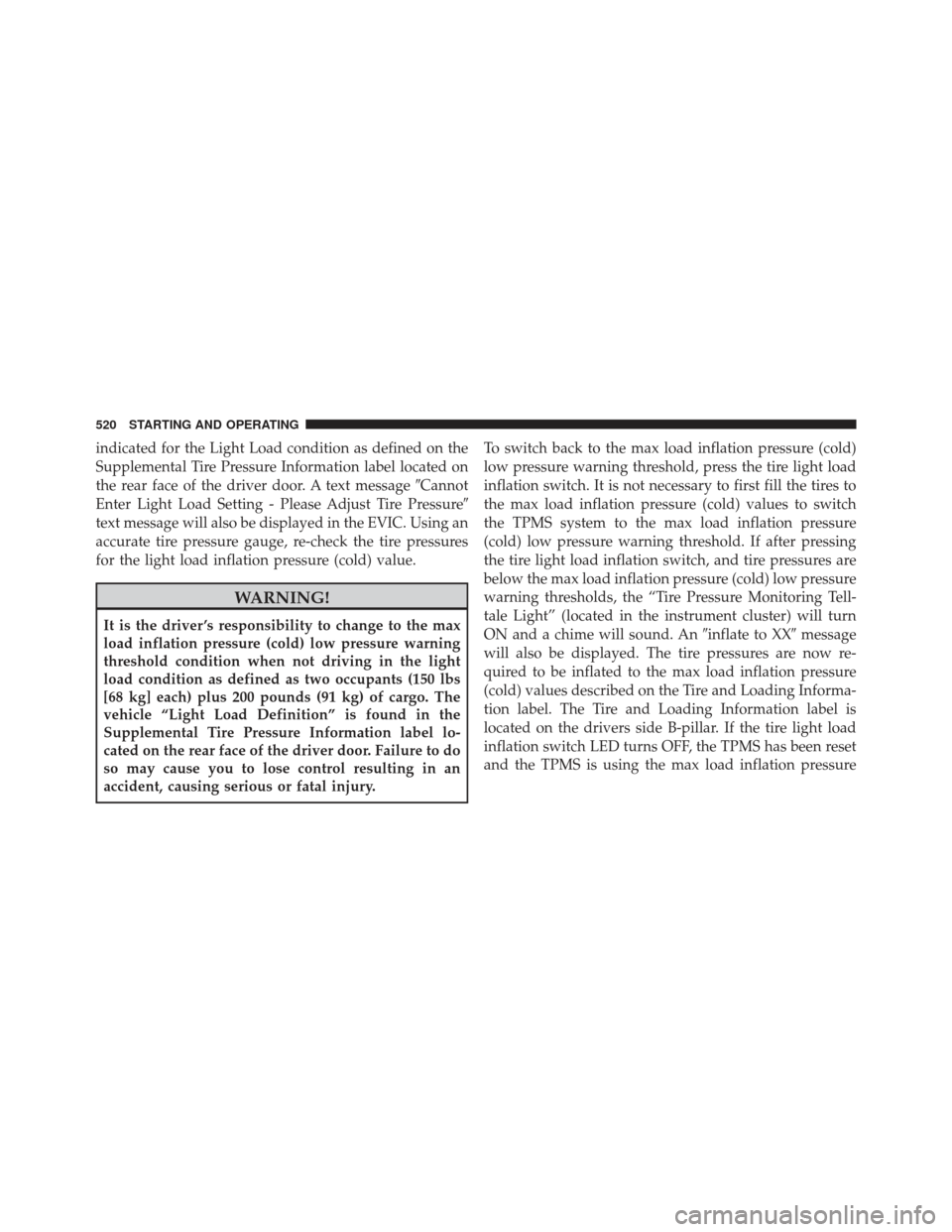

indicated for the Light Load condition as defined on the
Supplemental Tire Pressure Information label located on
the rear face of the driver door. A text messageCannot
Enter Light Load Setting - Please Adjust Tire Pressure
text message will also be displayed in the EVIC. Using an
accurate tire pressure gauge, re-check the tire pressures
for the light load inflation pressure (cold) value.
WARNING!
It is the driver ’s responsibility to change to the max
load inflation pressure (cold) low pressure warning
threshold condition when not driving in the light
load condition as defined as two occupants (150 lbs
[68 kg] each) plus 200 pounds (91 kg) of cargo. The
vehicle “Light Load Definition” is found in the
Supplemental Tire Pressure Information label lo-
cated on the rear face of the driver door. Failure to do
so may cause you to lose control resulting in an
accident, causing serious or fatal injury. To switch back to the max load inflation pressure (cold)
low pressure warning threshold, press the tire light load
inflation switch. It is not necessary to first fill the tires to
the max load inflation pressure (cold) values to switch
the TPMS system to the max load inflation pressure
(cold) low pressure warning threshold. If after pressing
the tire light load inflation switch, and tire pressures are
below the max load inflation pressure (cold) low pressure
warning thresholds, the “Tire Pressure Monitoring Tell-
tale Light” (located in the instrument cluster) will turn
ON and a chime will sound. An
inflate to XXmessage
will also be displayed. The tire pressures are now re-
quired to be inflated to the max load inflation pressure
(cold) values described on the Tire and Loading Informa-
tion label. The Tire and Loading Information label is
located on the drivers side B-pillar. If the tire light load
inflation switch LED turns OFF, the TPMS has been reset
and the TPMS is using the max load inflation pressure
