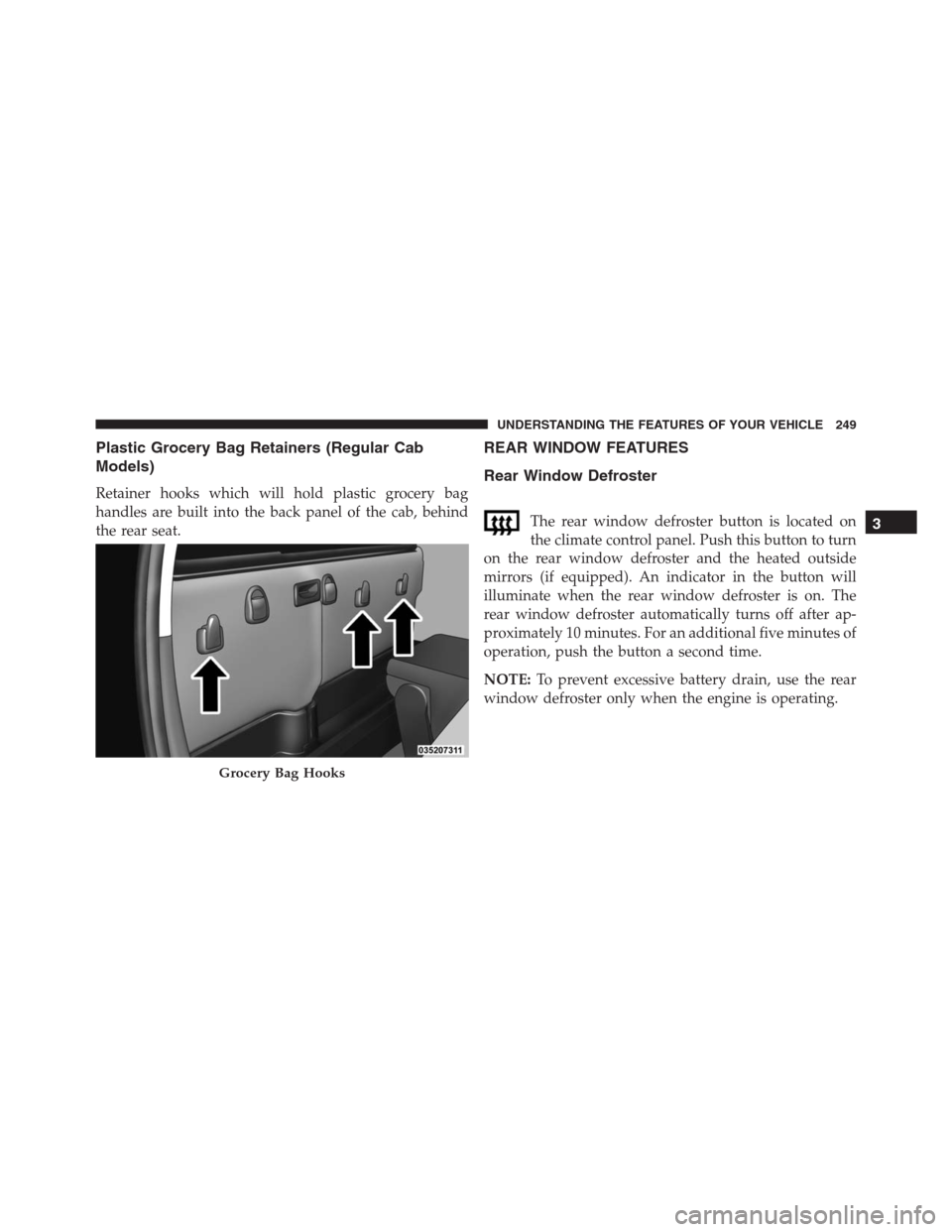

Plastic Grocery Bag Retainers (Regular Cab
Models)
Retainer hooks which will hold plastic grocery bag
handles are built into the back panel of the cab, behind
the rear seat.
REAR WINDOW FEATURES
Rear Window Defroster
The rear window defroster button is located on
the climate control panel. Push this button to turn
on the rear window defroster and the heated outside
mirrors (if equipped). An indicator in the button will
illuminate when the rear window defroster is on. The
rear window defroster automatically turns off after ap-
proximately 10 minutes. For an additional five minutes of
operation, push the button a second time.
NOTE:To prevent excessive battery drain, use the rear
window defroster only when the engine is operating.
Grocery Bag Hooks
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 249

CAUTION!
Failure to follow these cautions can cause damage to
the heating elements:
•Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft cloth
and a mild washing solution, wiping parallel to the
heating elements. Labels can be peeled off after
soaking with warm water.
•Do not use scrapers, sharp instruments, or abrasive
window cleaners on the interior surface of the
window.
•Keep all objects a safe distance from the window.

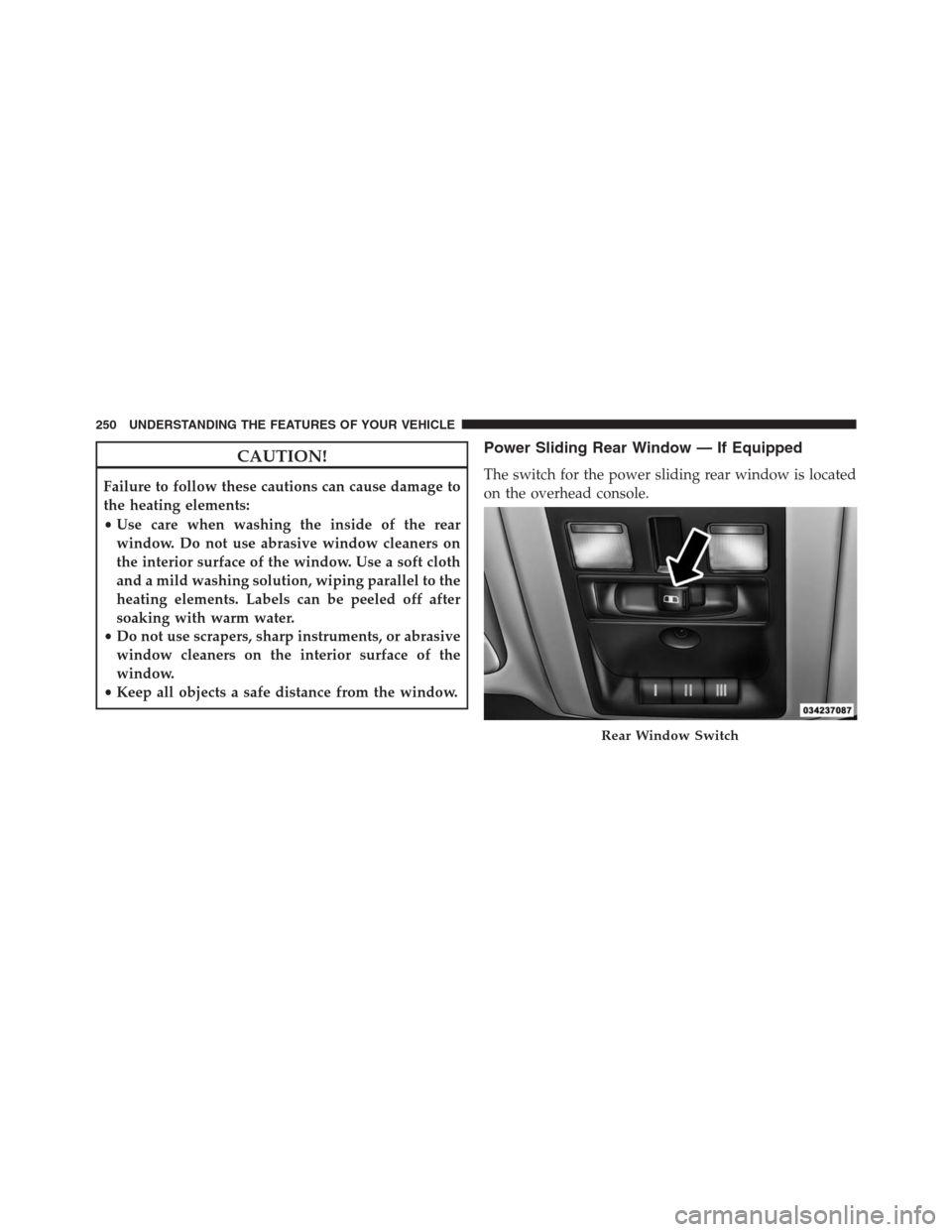

Power Sliding Rear Window — If Equipped
The switch for the power sliding rear window is located
on the overhead console.
Rear Window Switch
250 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Push the switch to the right to open the glass. Pull the
switch to the left to close the glass.
Manual Sliding Rear Window — If Equipped
A locking device in the center of the window helps to
prevent entry from the rear of the vehicle. Squeeze the
lock to release the window.
FOLD FLAT LOAD FLOOR — IF EQUIPPED
Quad Cab and Crew Cab models with a 60/40 rear seat
may be equipped with a folding load floor.
WARNING!
Do not operate the vehicle with loose items stored on
the load floor. While driving or in an accident you
may experience abrupt stopping, rapid acceleration,
or sharp turns. Loose objects stored on the load floor
may move around with force and strike occupants,

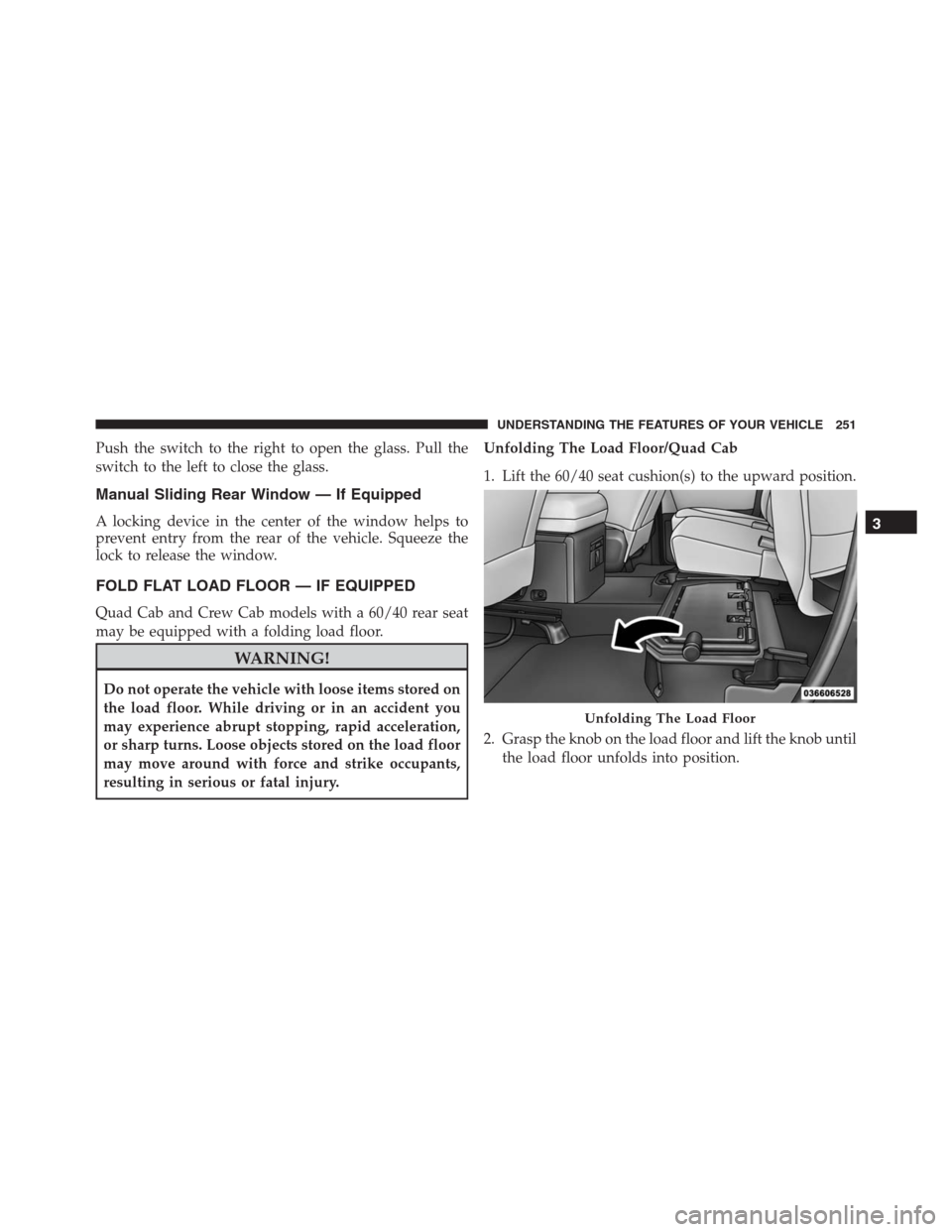

resulting in serious or fatal injury.Unfolding The Load Floor/Quad Cab
1. Lift the 60/40 seat cushion(s) to the upward position.
2. Grasp the knob on the load floor and lift the knob until
the load floor unfolds into position.
Unfolding The Load Floor
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 251

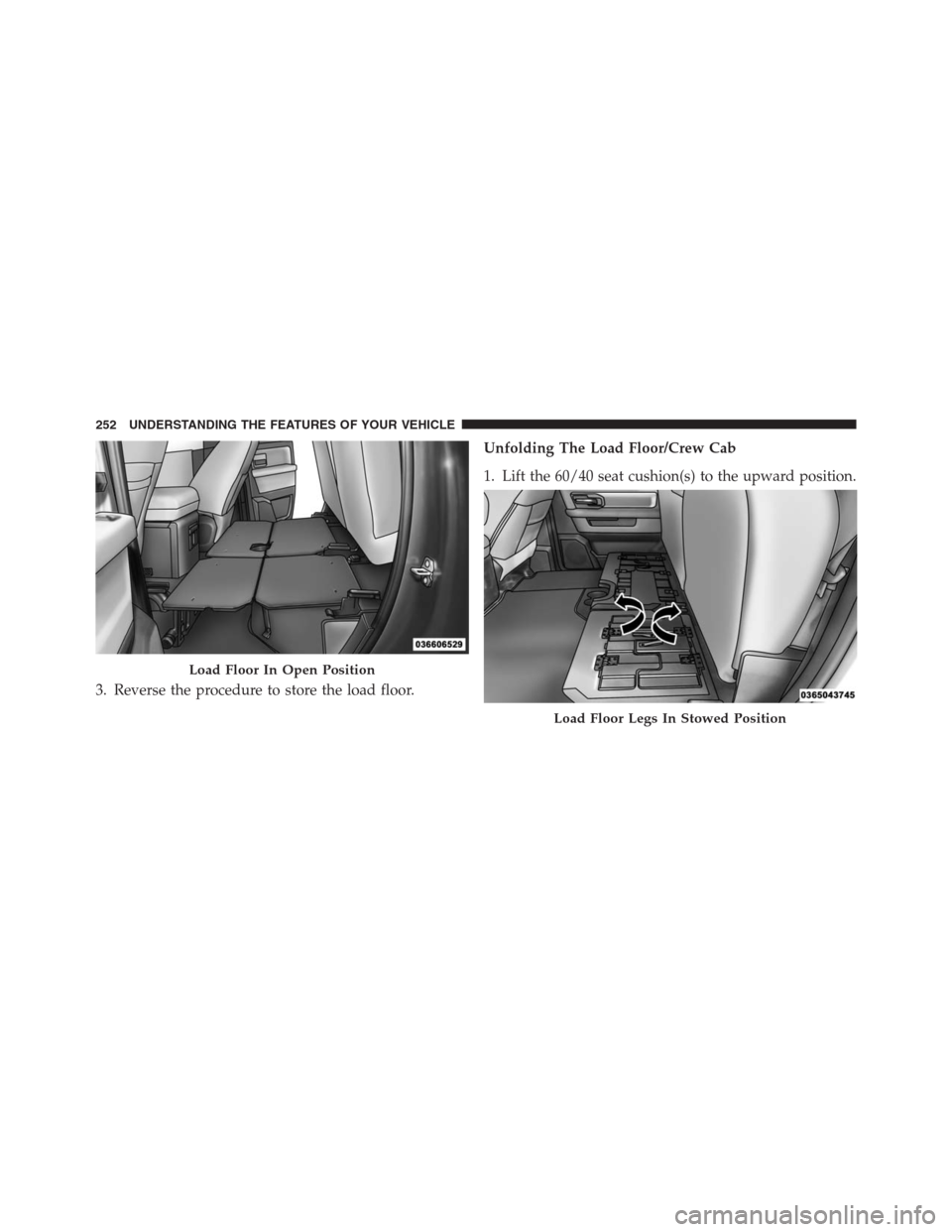

3. Reverse the procedure to store the load floor.Unfolding The Load Floor/Crew Cab
1. Lift the 60/40 seat cushion(s) to the upward position.
Load Floor In Open Position
Load Floor Legs In Stowed Position
252 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

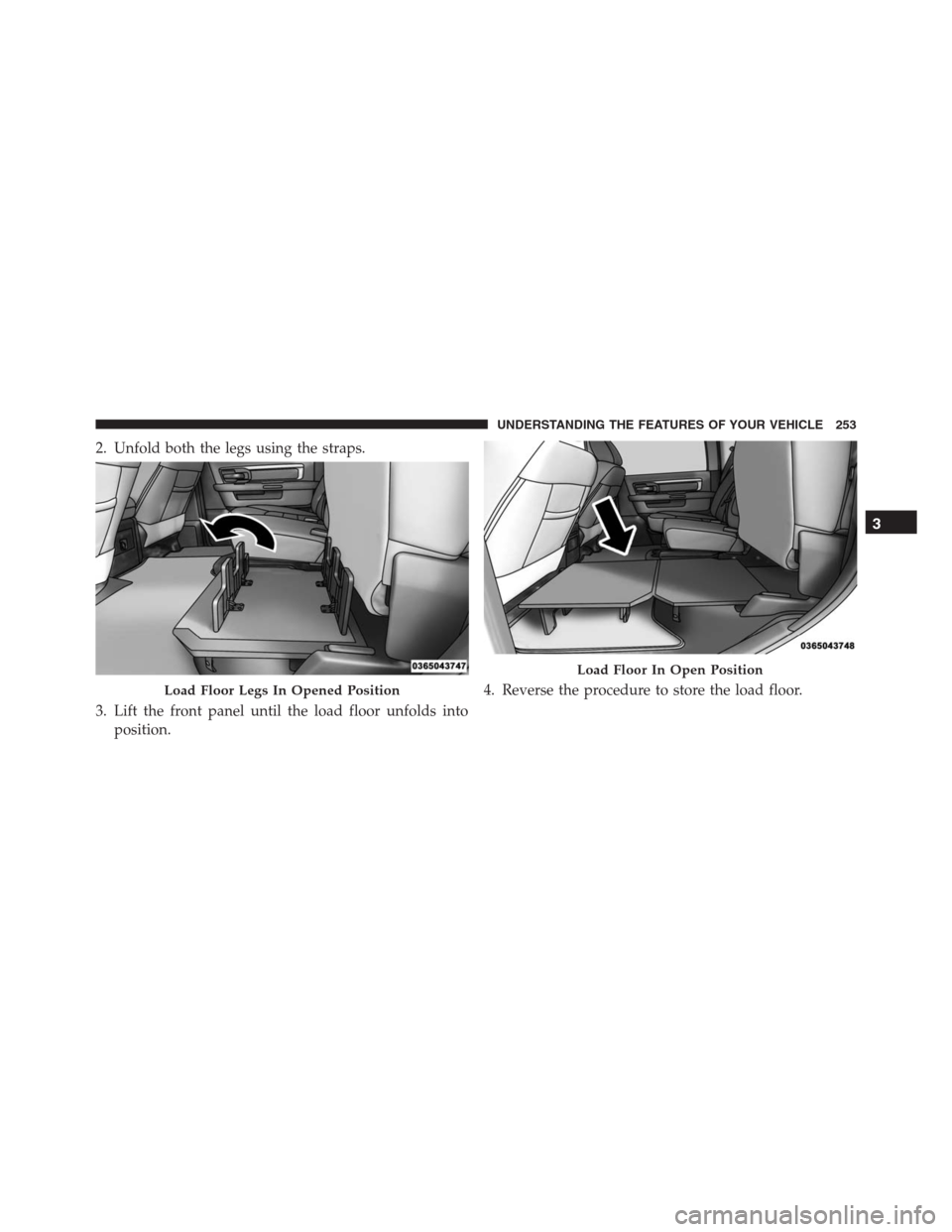

2. Unfold both the legs using the straps.
3. Lift the front panel until the load floor unfolds into
position.4. Reverse the procedure to store the load floor.
Load Floor Legs In Opened Position
Load Floor In Open Position
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 253

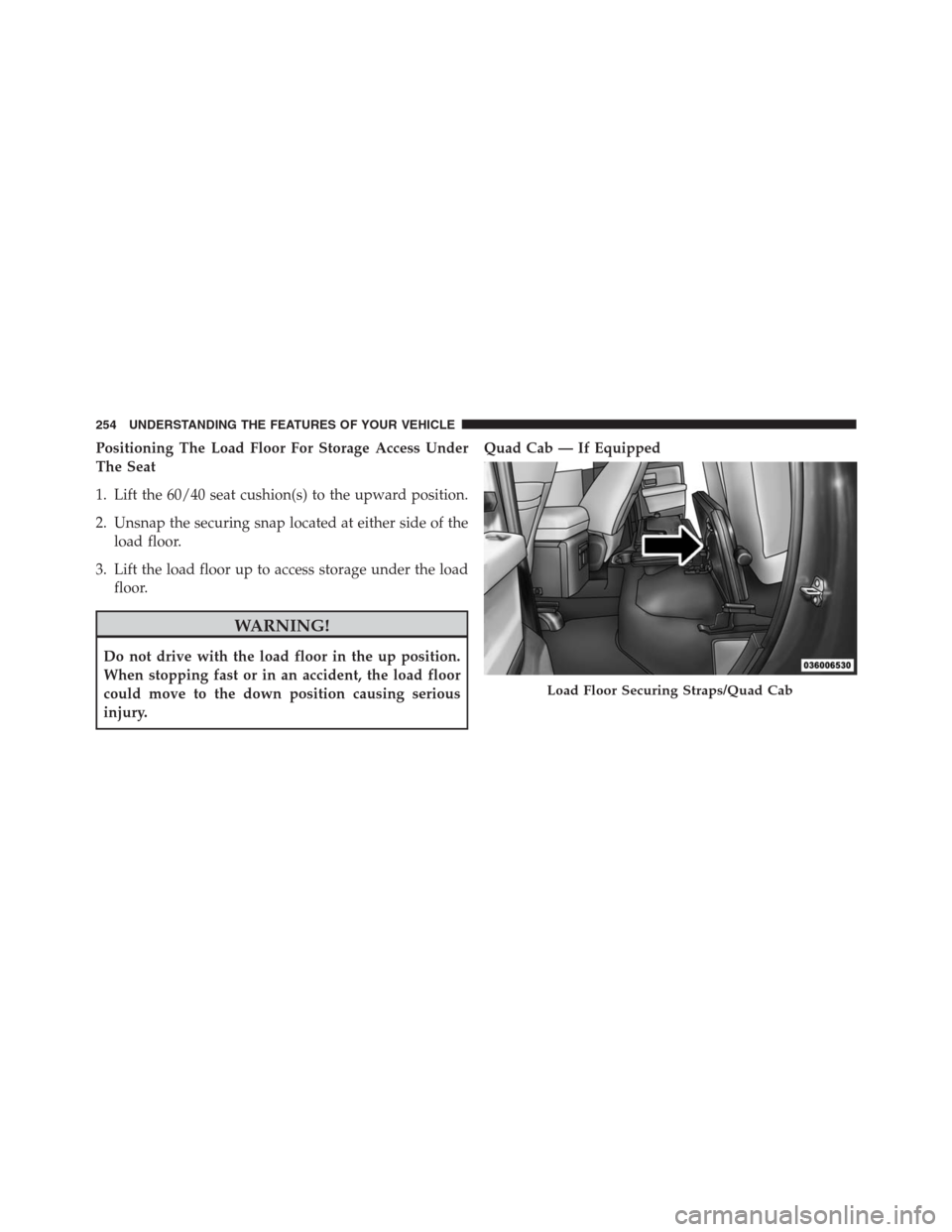

Positioning The Load Floor For Storage Access Under
The Seat
1. Lift the 60/40 seat cushion(s) to the upward position.
2. Unsnap the securing snap located at either side of the
load floor.
3. Lift the load floor up to access storage under the load
floor.
WARNING!
Do not drive with the load floor in the up position.
When stopping fast or in an accident, the load floor
could move to the down position causing serious
injury.Quad Cab — If Equipped
Load Floor Securing Straps/Quad Cab
254 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Crew Cab — If Equipped
4. Reverse the procedure to put the load floor back in the

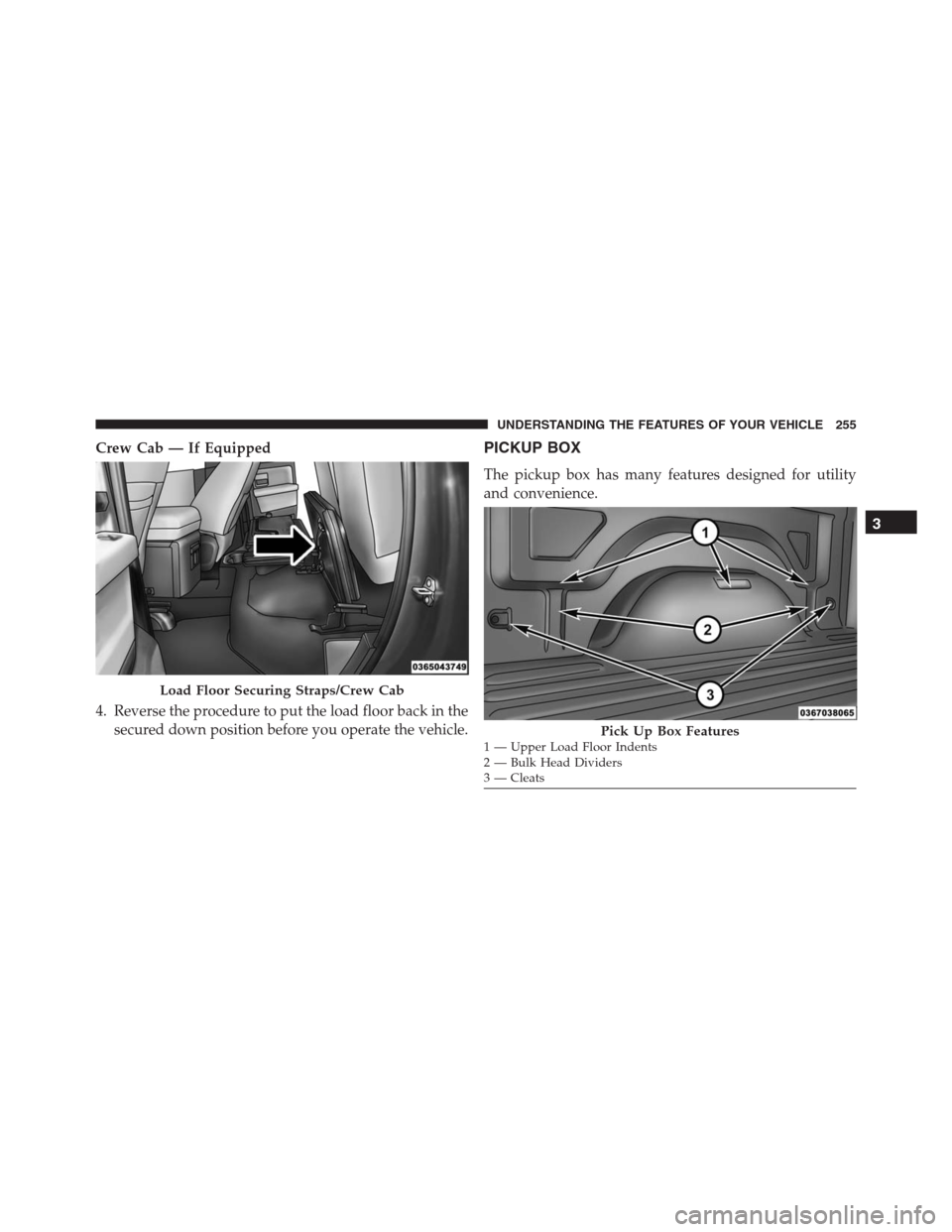

secured down position before you operate the vehicle.PICKUP BOX
The pickup box has many features designed for utility
and convenience.
Load Floor Securing Straps/Crew Cab
Pick Up Box Features1 — Upper Load Floor Indents
2 — Bulk Head Dividers
3 — Cleats
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 255

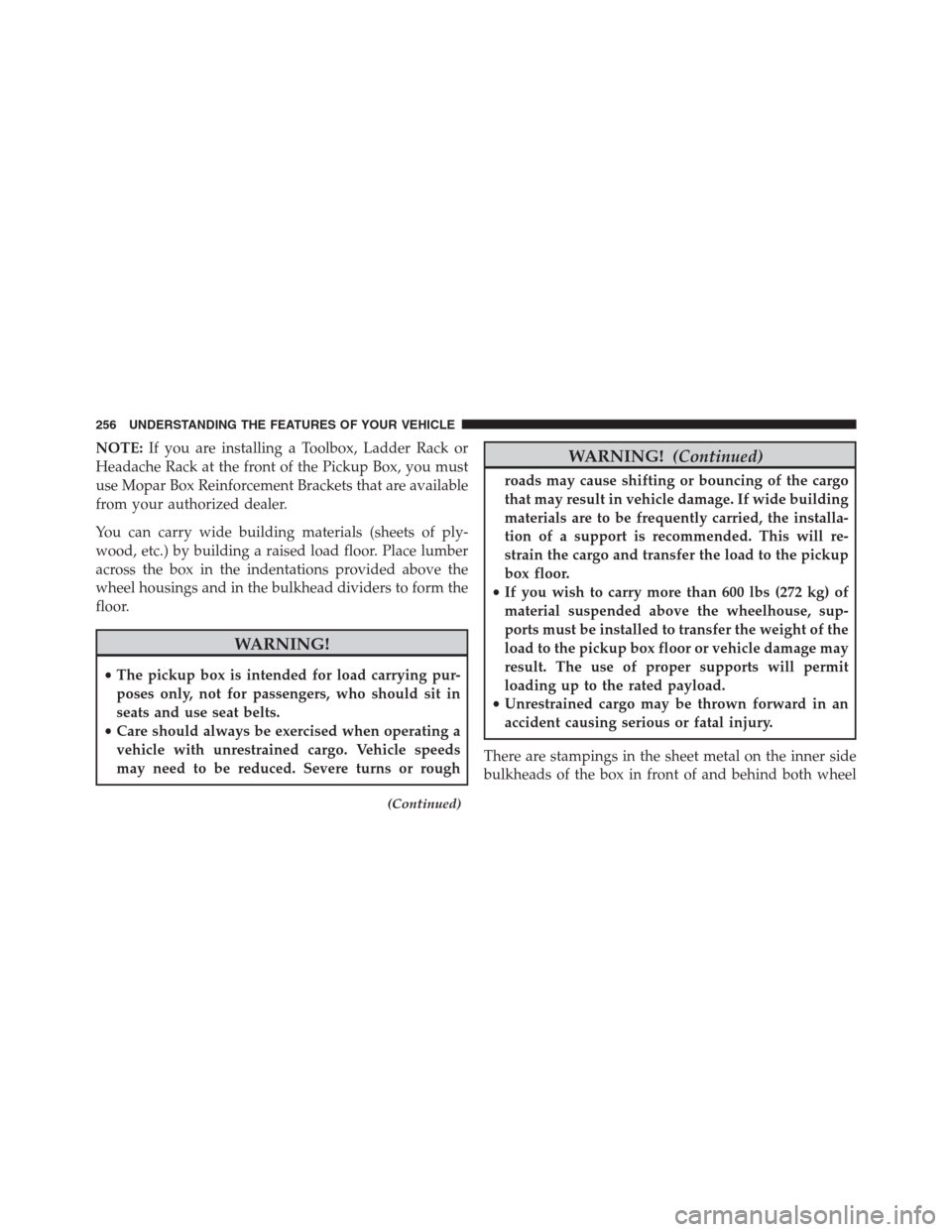

NOTE:If you are installing a Toolbox, Ladder Rack or
Headache Rack at the front of the Pickup Box, you must
use Mopar Box Reinforcement Brackets that are available
from your authorized dealer.
You can carry wide building materials (sheets of ply-
wood, etc.) by building a raised load floor. Place lumber
across the box in the indentations provided above the
wheel housings and in the bulkhead dividers to form the
floor.
WARNING!
•The pickup box is intended for load carrying pur-
poses only, not for passengers, who should sit in
seats and use seat belts.
•Care should always be exercised when operating a
vehicle with unrestrained cargo. Vehicle speeds
may need to be reduced. Severe turns or rough
(Continued)
WARNING!(Continued)
roads may cause shifting or bouncing of the cargo
that may result in vehicle damage. If wide building
materials are to be frequently carried, the installa-
tion of a support is recommended. This will re-
strain the cargo and transfer the load to the pickup
box floor.
•If you wish to carry more than 600 lbs (272 kg) of
material suspended above the wheelhouse, sup-
ports must be installed to transfer the weight of the
load to the pickup box floor or vehicle damage may
result. The use of proper supports will permit
loading up to the rated payload.
•Unrestrained cargo may be thrown forward in an
accident causing serious or fatal injury.
There are stampings in the sheet metal on the inner side
bulkheads of the box in front of and behind both wheel
256 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

housings. Place wooden boards across the box from side
to side to create separate load compartments in the
pickup box.
There are four tie-down cleats bolted to the lower sides of
the pickup box that can sustain loads up to 1000 lbs
(450 kg) total.
Cargo Camera — If Equipped
Your vehicle may be equipped with the Cargo Camera
that allows you to see an image of the inside of the
pickup box. The image will be displayed in the Uconnect
screen.
A display timer is initiated when the cargo camera image
is displayed. The image will continue to be displayed
until the display timer exceeds 10 seconds and the vehicle
speed is above 8 mph (13 km/h) or the touchscreen
buttonXto disable display of the Cargo Camera image
is pressed.NOTE:If the vehicle speed remains below 8 mph
(13 km/h), the cargo camera image will be displayed
continuously until the touchscreen buttonXto disable
display of the Cargo Camera image is pressed.
The Cargo Camera is located in the bottom center area of
the center high-mounted stoplamp (CHMSL).
A touchscreen button
to indicate the current active
Camera image being displayed is made available
whenever the Cargo camera image is displayed.
A touchscreen buttonto switch the display to Rear
View camera image is made available whenever the
Cargo camera image is displayed.
A touchscreen buttonXto disable display of the camera
image is made available when the vehicle is not in
REVERSE gear.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 257

NOTE:If snow, ice, mud, or any foreign substance builds
up on the camera lens, clean the lens, rinse with water,
and dry with a soft cloth. Do not cover the lens.
Turning Cargo Camera On Or Off — With
Uconnect 8.4A/8.4AN
1. Press the “Controls” button located on the bottom of
the Uconnect display.
2. Press the “Cargo Camera” button
to turn the
Cargo Camera system ON.
NOTE:Once initiated by theCargo Camerabutton, the
Cargo Camera image may be deactivated by pressing the
Xsoft button. On deactivation, the previous selected
screen will appear.
RAMBOX — IF EQUIPPED
The RamBox system is an integrated pickup box storage
and cargo management system consisting of three fea-
tures:
•Integrated box side storage bins
•Cargo extender/divider
•Bed rail tie-down system
RamBox Integrated Box Side Storage Bins
Cargo storage bins are located on both sides of the pickup
box. The cargo storage bins provide watertight, lockable,
illuminated storage for up to 150 lbs (68 kg) for 1500
series vehicles or 300 lbs (136 kg) for 2500 and 3500 series
vehicles of evenly distributed cargo.
