AUXILIARY SWITCHES — IF EQUIPPED
There can be up to five auxiliary switches located in the
lower switch bank of the instrument panel which can be
used to power various electronic devices and PTO
(Power Take Off) – If Equipped. If Power Take Off is
equipped, it will take the place of the fifth Auxiliary
switch. Connections to the switches are found under the
hood in the connectors attached to the auxiliary Power
Distribution Center.
You have the ability to configure the functionality of the
auxiliary switches via the Electronic Vehicle Information
Center (EVIC) or Driver Information Display (DID). All
switches can now be configured for setting the switch
type operation to latching or momentary, power source of
either battery or ignition, and ability to hold last state
across key cycles.NOTE:Holding last state conditions are met when
switch type is set to latching and power source is set to
ignition.
For further information on using the auxiliary switches,
please refer to the Ram Body Builders Guide by accessing
www.rambodybuilder.com and choosing the appropriate
links.
CUPHOLDERS
Front Seat Cupholders (40–20–40 Seats)
The cupholders are located on the backside of the center
portion of the front seat (20). Fold down the center
section of the front seat to gain access to the cupholders.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 239

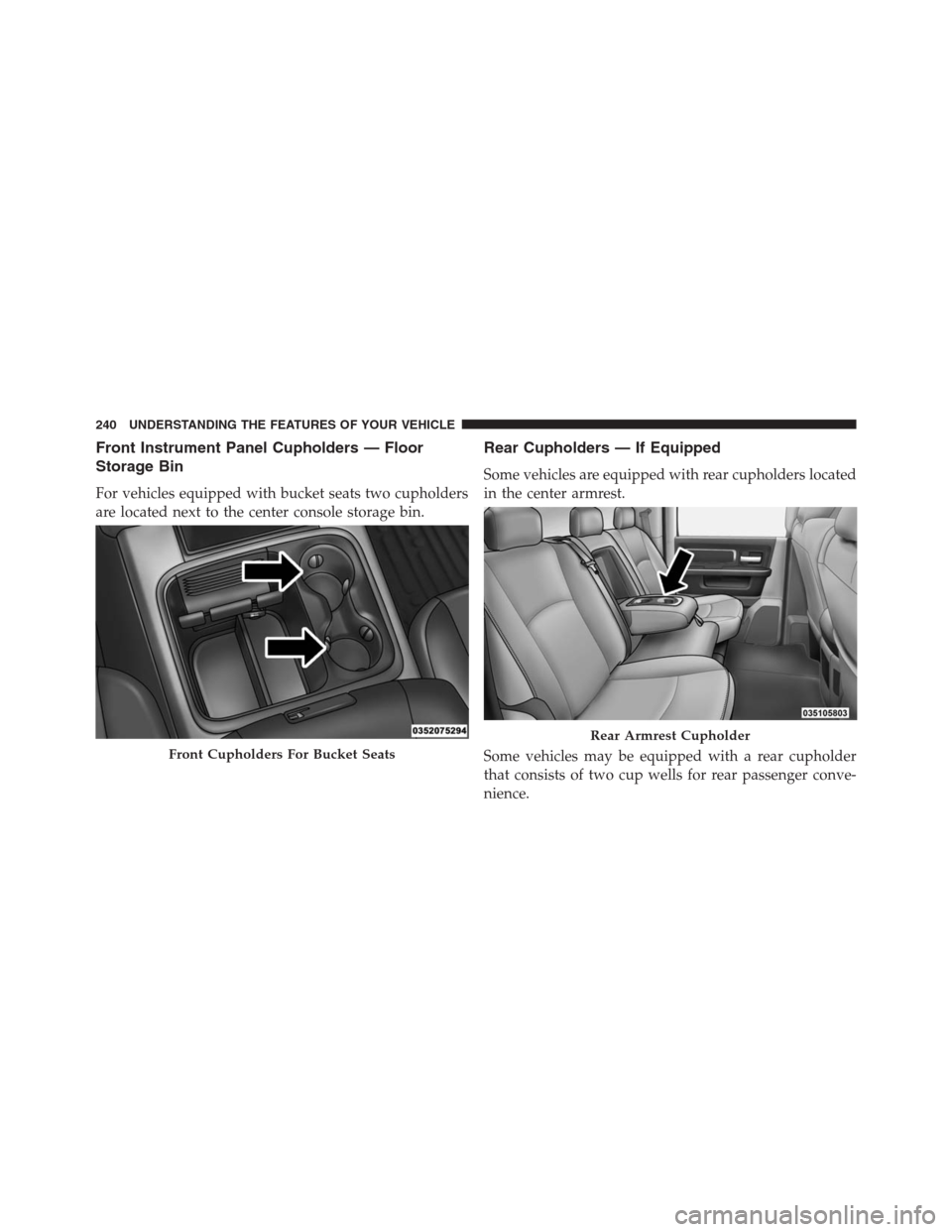

Front Instrument Panel Cupholders — Floor
Storage Bin
For vehicles equipped with bucket seats two cupholders
are located next to the center console storage bin.
Rear Cupholders — If Equipped
Some vehicles are equipped with rear cupholders located
in the center armrest.
Some vehicles may be equipped with a rear cupholder
that consists of two cup wells for rear passenger conve-
nience.
Front Cupholders For Bucket Seats
Rear Armrest Cupholder
240 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

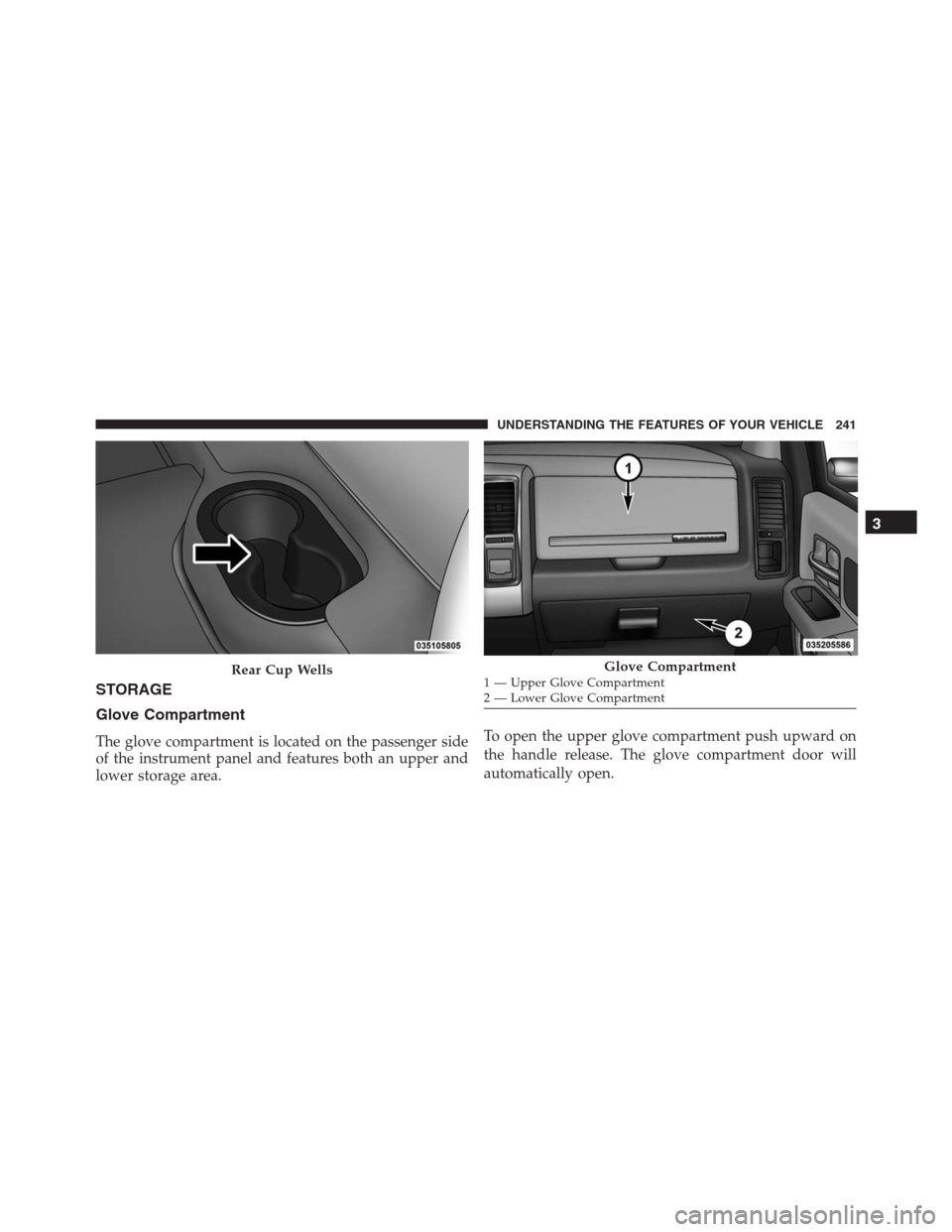

STORAGE
Glove Compartment
The glove compartment is located on the passenger side
of the instrument panel and features both an upper and
lower storage area.To open the upper glove compartment push upward on
the handle release. The glove compartment door will
automatically open.
Rear Cup WellsGlove Compartment1 — Upper Glove Compartment
2 — Lower Glove Compartment
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 241

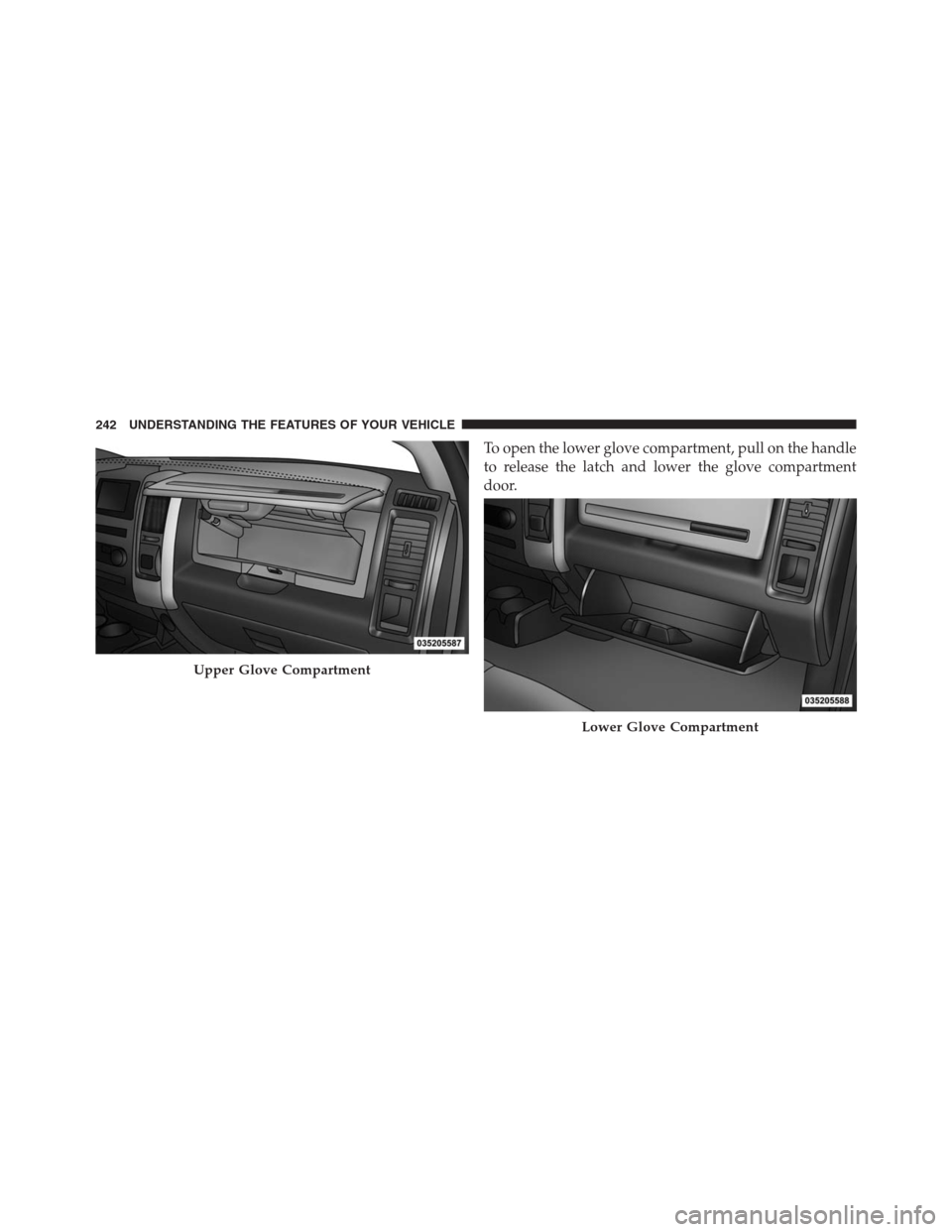

To open the lower glove compartment, pull on the handle
to release the latch and lower the glove compartment
door.
Upper Glove Compartment
Lower Glove Compartment
242 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

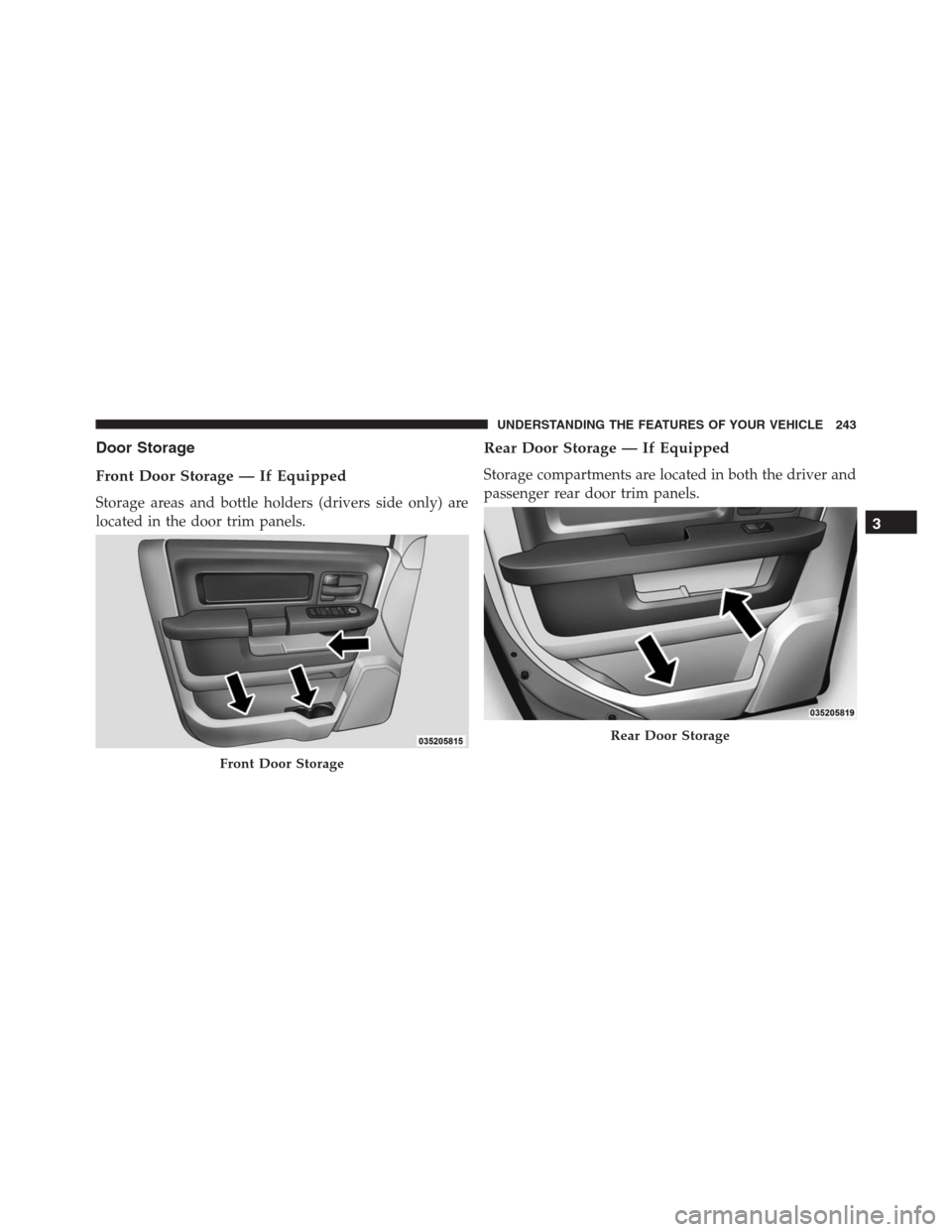

Door Storage
Front Door Storage — If Equipped
Storage areas and bottle holders (drivers side only) are
located in the door trim panels.
Rear Door Storage — If Equipped
Storage compartments are located in both the driver and
passenger rear door trim panels.
Front Door Storage
Rear Door Storage
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 243

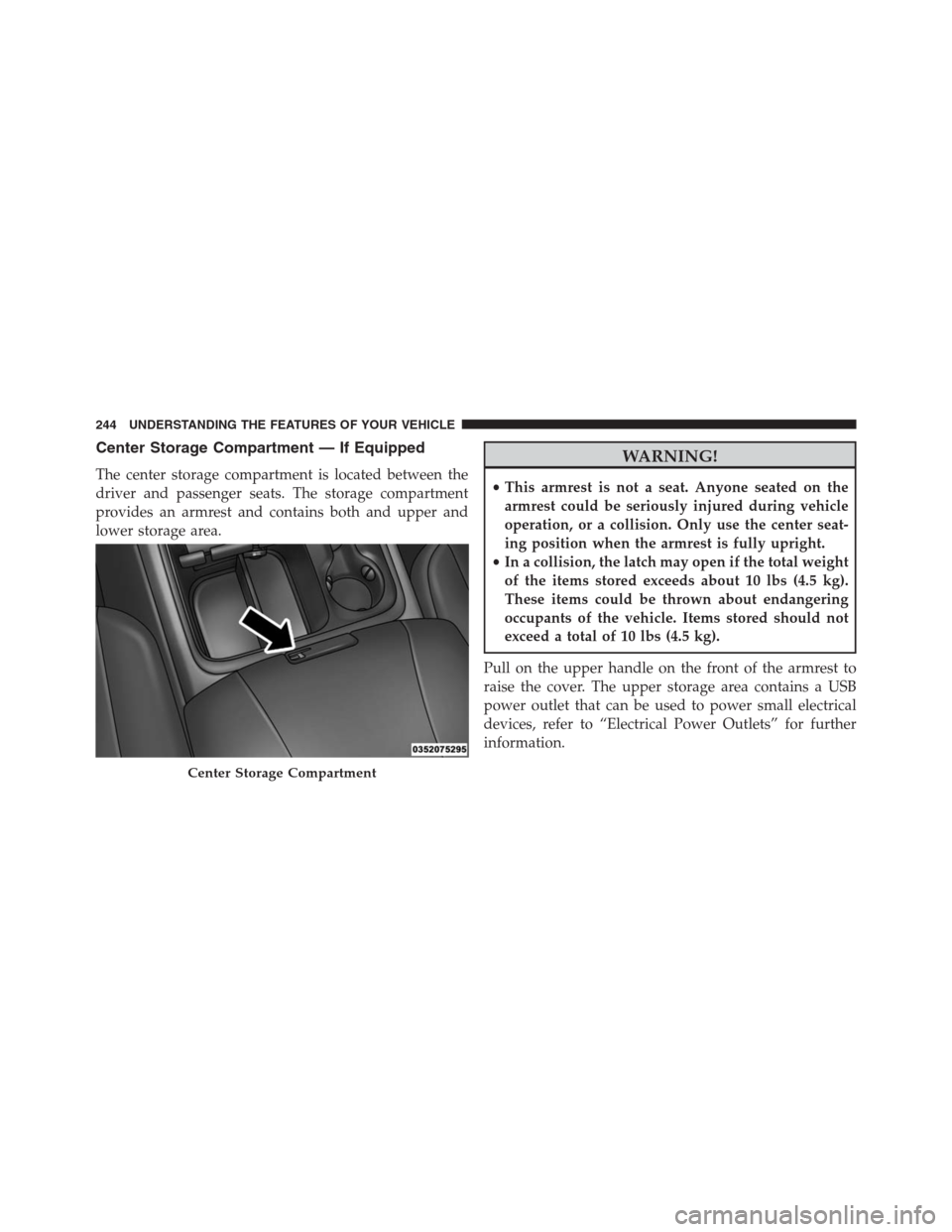

Center Storage Compartment — If Equipped
The center storage compartment is located between the
driver and passenger seats. The storage compartment
provides an armrest and contains both and upper and
lower storage area.
WARNING!
•This armrest is not a seat. Anyone seated on the
armrest could be seriously injured during vehicle
operation, or a collision. Only use the center seat-
ing position when the armrest is fully upright.
•In a collision, the latch may open if the total weight
of the items stored exceeds about 10 lbs (4.5 kg).
These items could be thrown about endangering
occupants of the vehicle. Items stored should not
exceed a total of 10 lbs (4.5 kg).
Pull on the upper handle on the front of the armrest to
raise the cover. The upper storage area contains a USB
power outlet that can be used to power small electrical
devices, refer to “Electrical Power Outlets” for further
information.
Center Storage Compartment
244 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

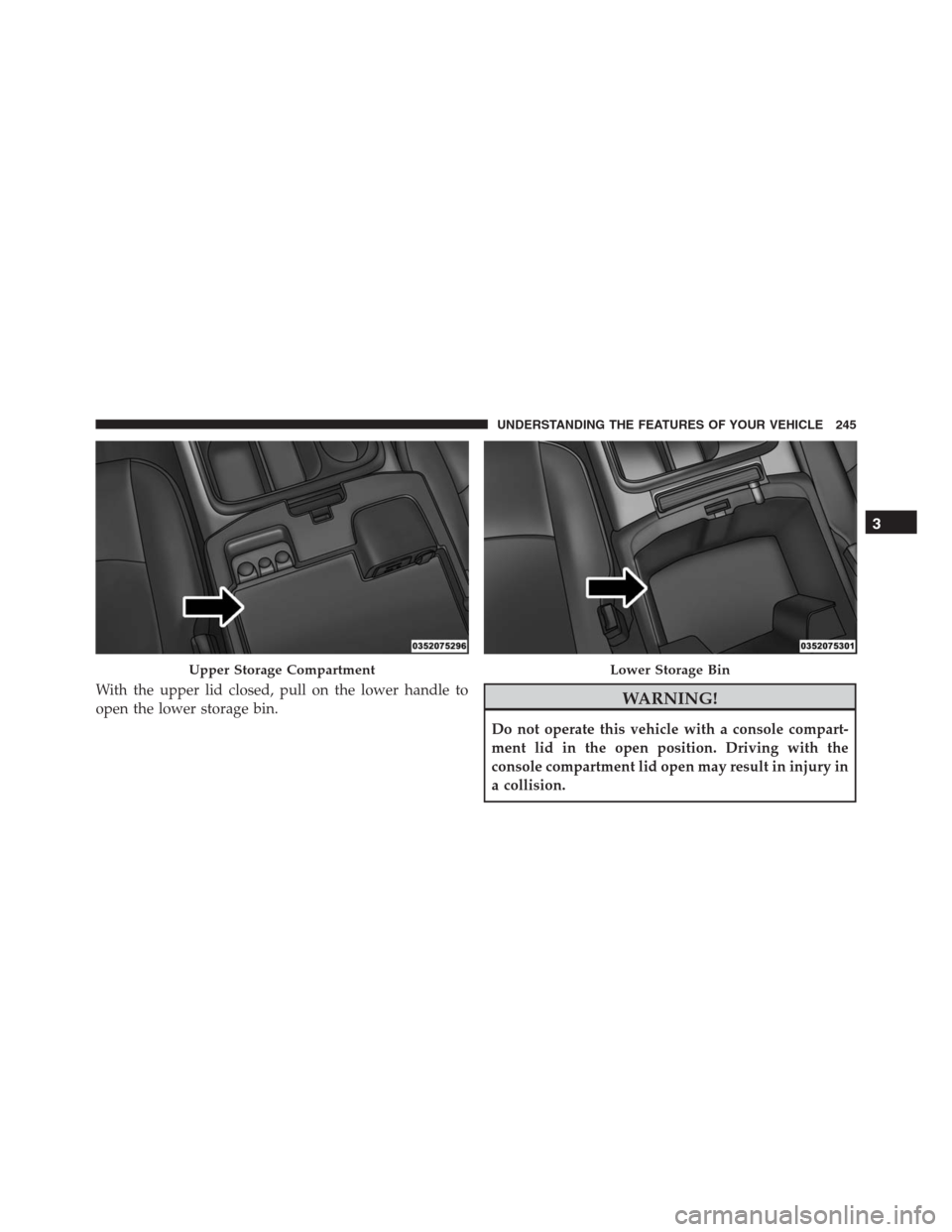

With the upper lid closed, pull on the lower handle to
open the lower storage bin.WARNING!
Do not operate this vehicle with a console compart-
ment lid in the open position. Driving with the
console compartment lid open may result in injury in
a collision.
Upper Storage CompartmentLower Storage Bin
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 245

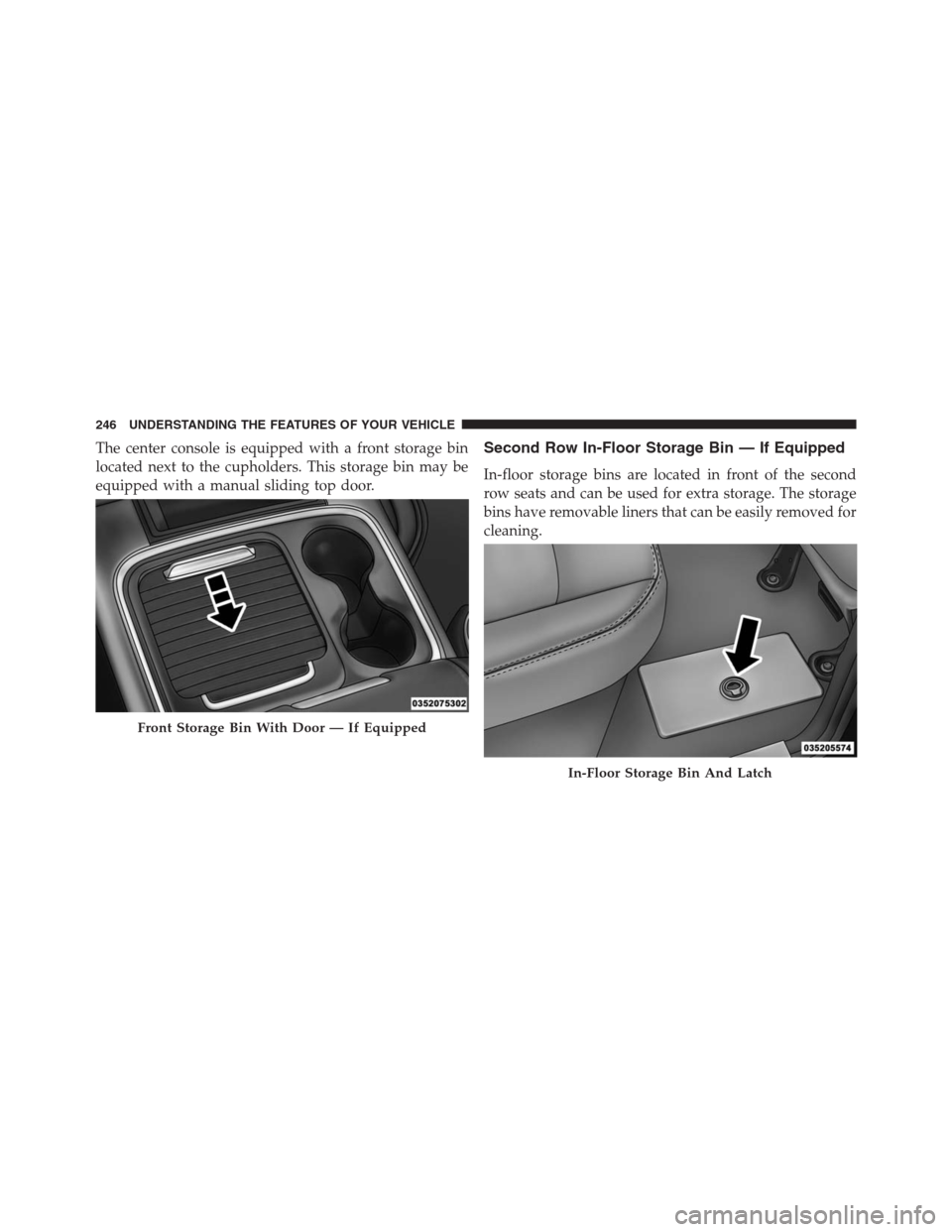

The center console is equipped with a front storage bin
located next to the cupholders. This storage bin may be
equipped with a manual sliding top door.Second Row In-Floor Storage Bin — If Equipped
In-floor storage bins are located in front of the second
row seats and can be used for extra storage. The storage
bins have removable liners that can be easily removed for
cleaning.
Front Storage Bin With Door — If Equipped
In-Floor Storage Bin And Latch
246 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

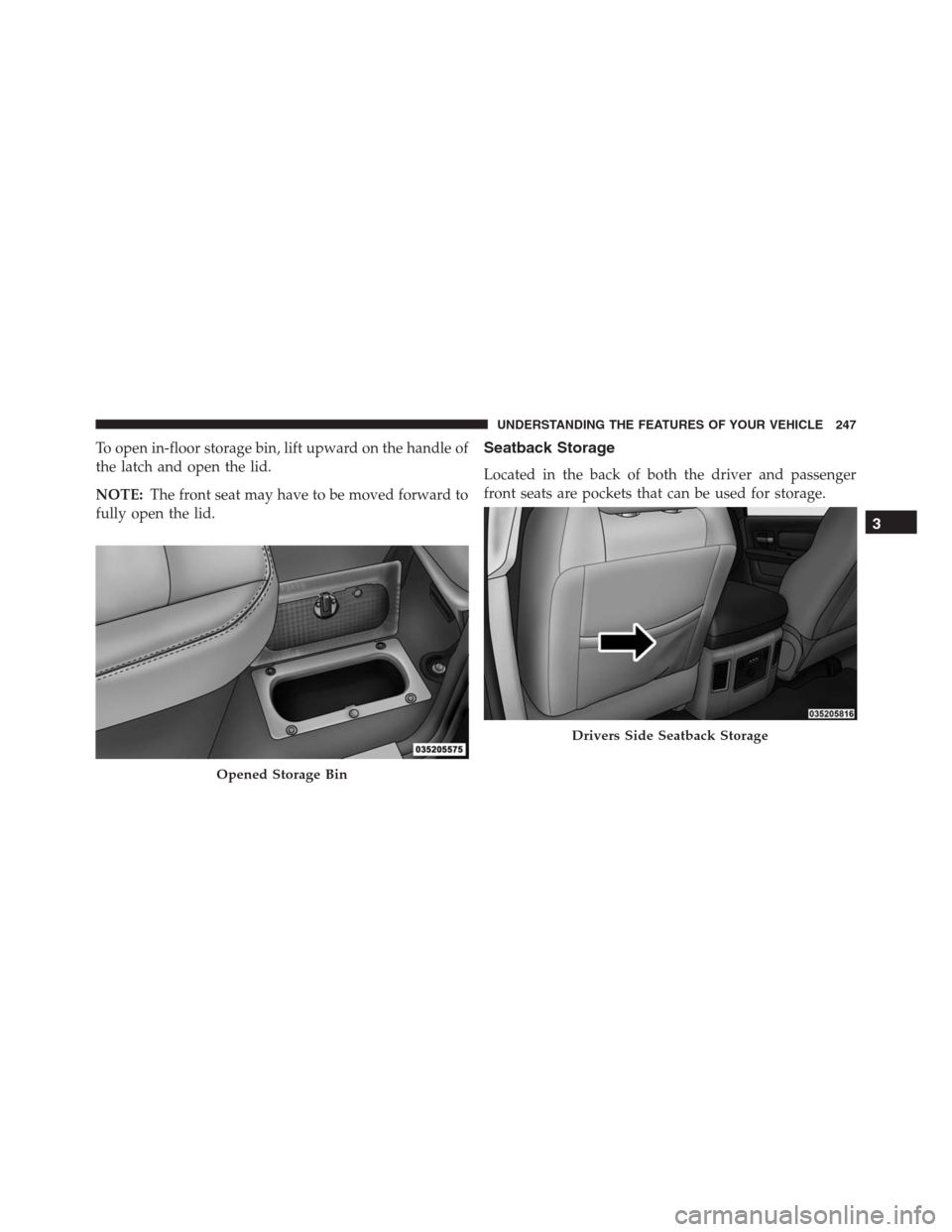

To open in-floor storage bin, lift upward on the handle of
the latch and open the lid.
NOTE:The front seat may have to be moved forward to
fully open the lid.Seatback Storage
Located in the back of both the driver and passenger
front seats are pockets that can be used for storage.
Opened Storage Bin
Drivers Side Seatback Storage
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 247

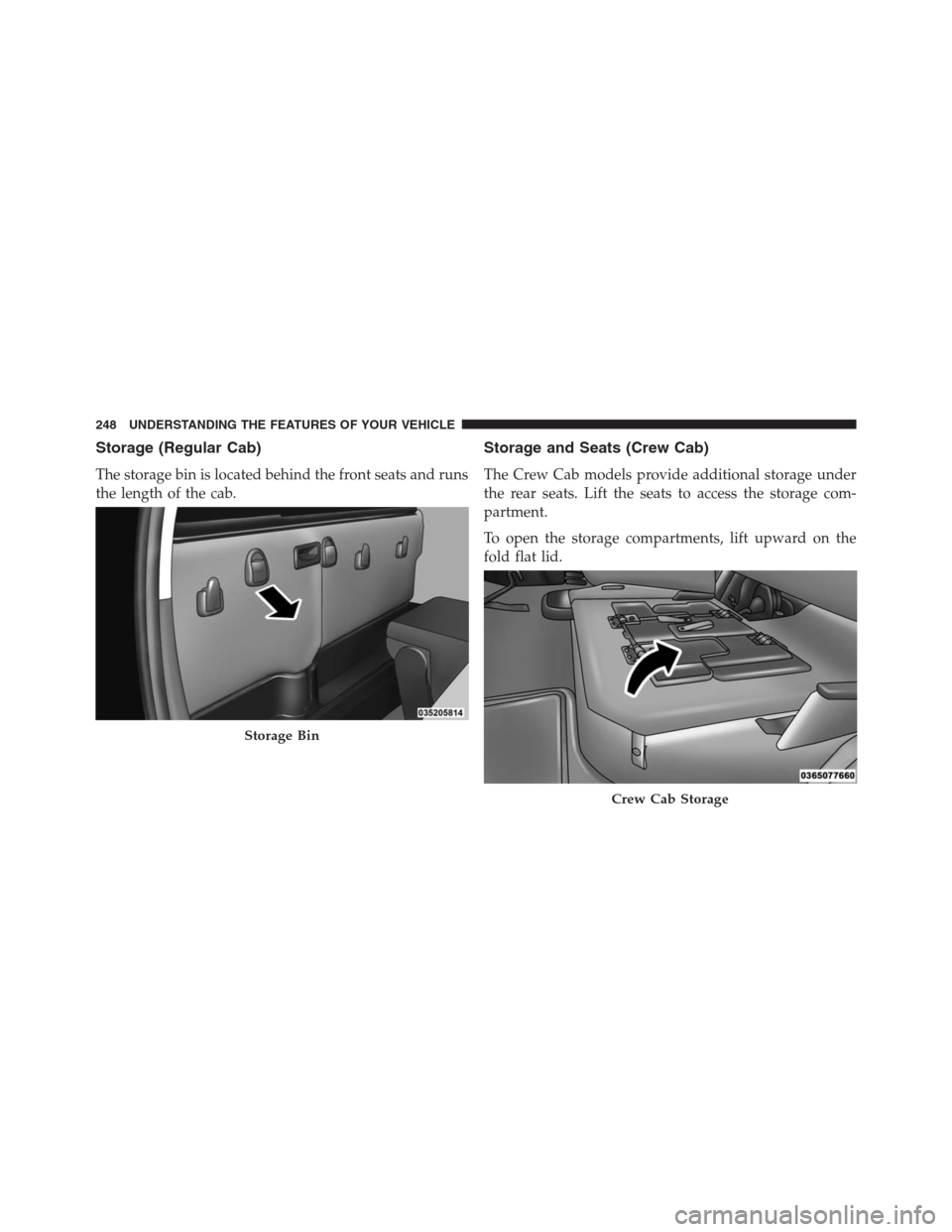

Storage (Regular Cab)
The storage bin is located behind the front seats and runs
the length of the cab.
Storage and Seats (Crew Cab)
The Crew Cab models provide additional storage under
the rear seats. Lift the seats to access the storage com-
partment.
To open the storage compartments, lift upward on the
fold flat lid.
Storage Bin
Crew Cab Storage
248 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
