Ram 1500 2016 Owner's Manual

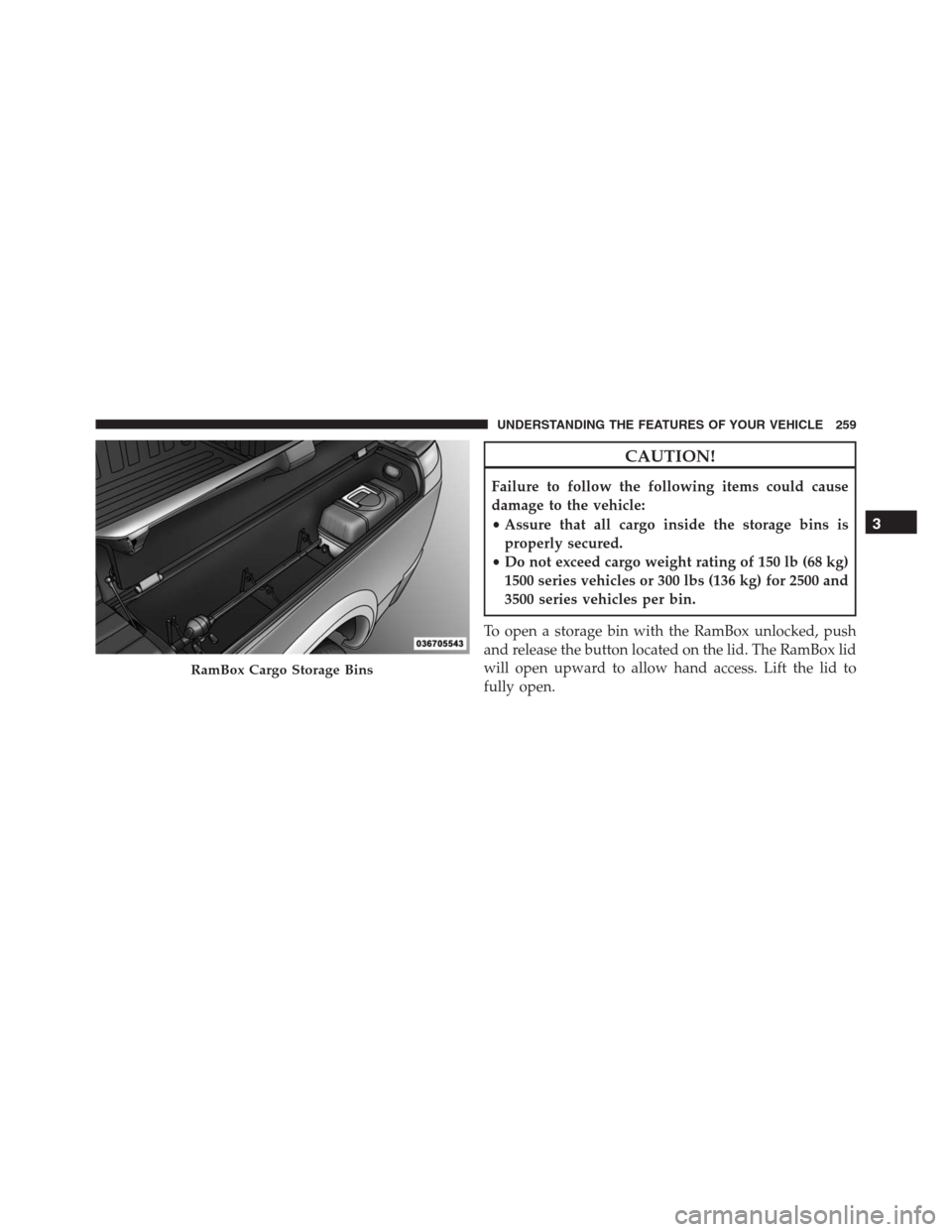

CAUTION!
Failure to follow the following items could cause
damage to the vehicle:
•Assure that all cargo inside the storage bins is
properly secured.
•Do not exceed cargo weight rating of 150 lb (68 kg)
1500 series vehicles or 300 lbs (136 kg) for 2500 and
3500 series vehicles per bin.
To open a storage bin with the RamBox unlocked, push
and release the button located on the lid. The RamBox lid
will open upward to allow hand access. Lift the lid to
fully open.
RamBox Cargo Storage Bins
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 259

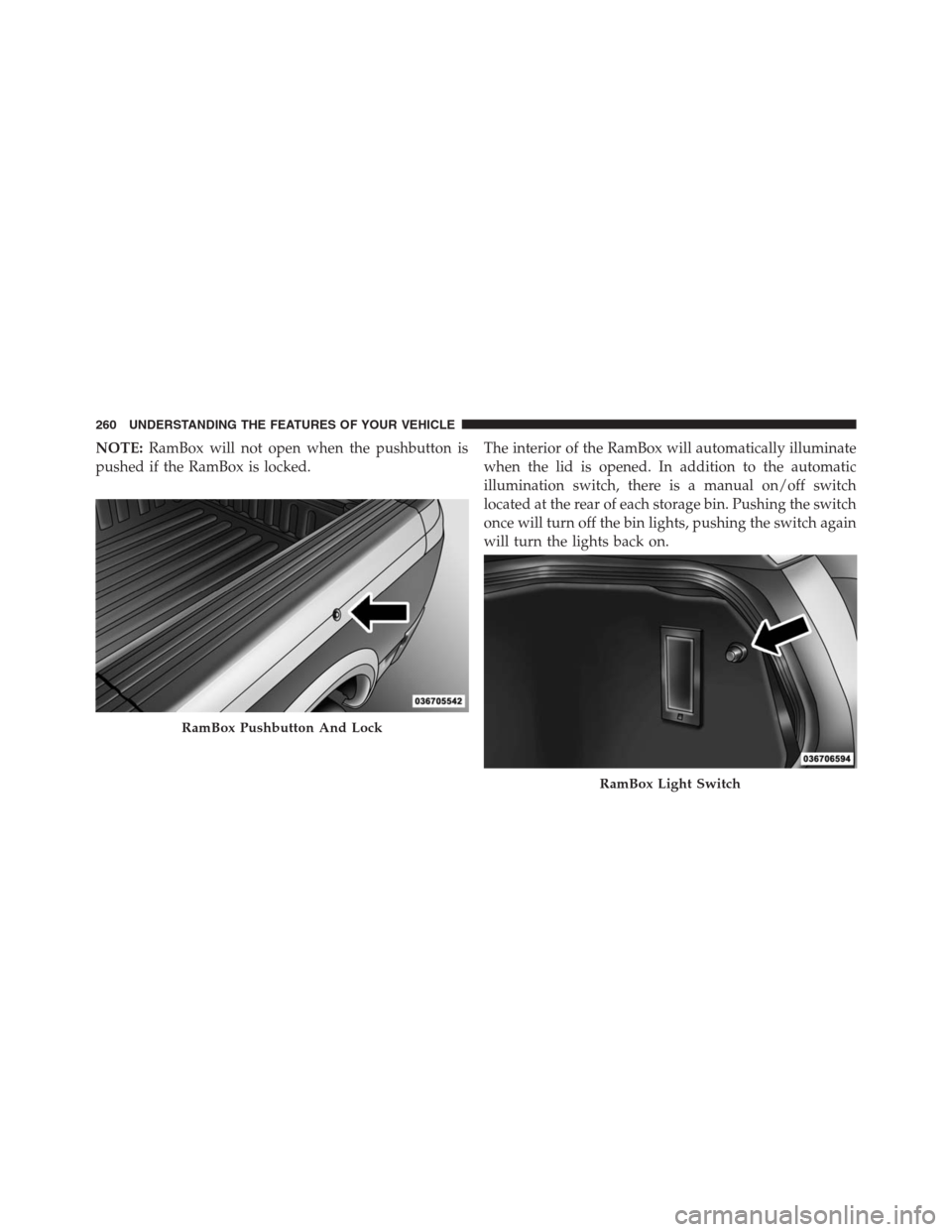

NOTE:RamBox will not open when the pushbutton is
pushed if the RamBox is locked.The interior of the RamBox will automatically illuminate
when the lid is opened. In addition to the automatic
illumination switch, there is a manual on/off switch
located at the rear of each storage bin. Pushing the switch
once will turn off the bin lights, pushing the switch again
will turn the lights back on.
RamBox Pushbutton And Lock
RamBox Light Switch
260 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

CAUTION!
Leaving the lid open for extended periods of time
could cause the vehicle battery to discharge. If the lid
is required to stay open for extended periods of time,
it is recommended that the bin lights be turned off
manually using the on/off switch.
Cargo bins feature two removable drain plugs (to allow
water to drain from bins). To remove plug, pull up on the
edge. To install push plug downward into drain hole.
NOTE:Provisions are provided in the bins for cargo
dividers and shelf supports. These accessories (in addi-
tion to other RamBox accessories) are available from
MOPAR.
Locking And Unlocking RamBox
Push and release the LOCK or UNLOCK button on the
RKE transmitter to lock and unlock all doors, the tailgateand the RamBox (if equipped). Refer to “Remote Keyless
Entry” for further details. The RamBox storage bins can
be locked using the vehicle key. To lock and unlock the
storage bin, insert the key into the keyhole on the
pushbutton and turn clockwise to lock or counterclock-
wise to unlock. Always return the key to the upright
(vertical) position before removing the key from the
pushbutton.
CAUTION!
•Ensure cargo bin lids are closed and latched before
moving or driving vehicle.
•Loads applied to the top of the bin lid should be
minimized to prevent damage to the lid and
latching/hinging mechanisms.
•Damage to the RamBox bin may occur due to
heavy/sharp objects placed in bin that shift due to
(Continued)
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 261

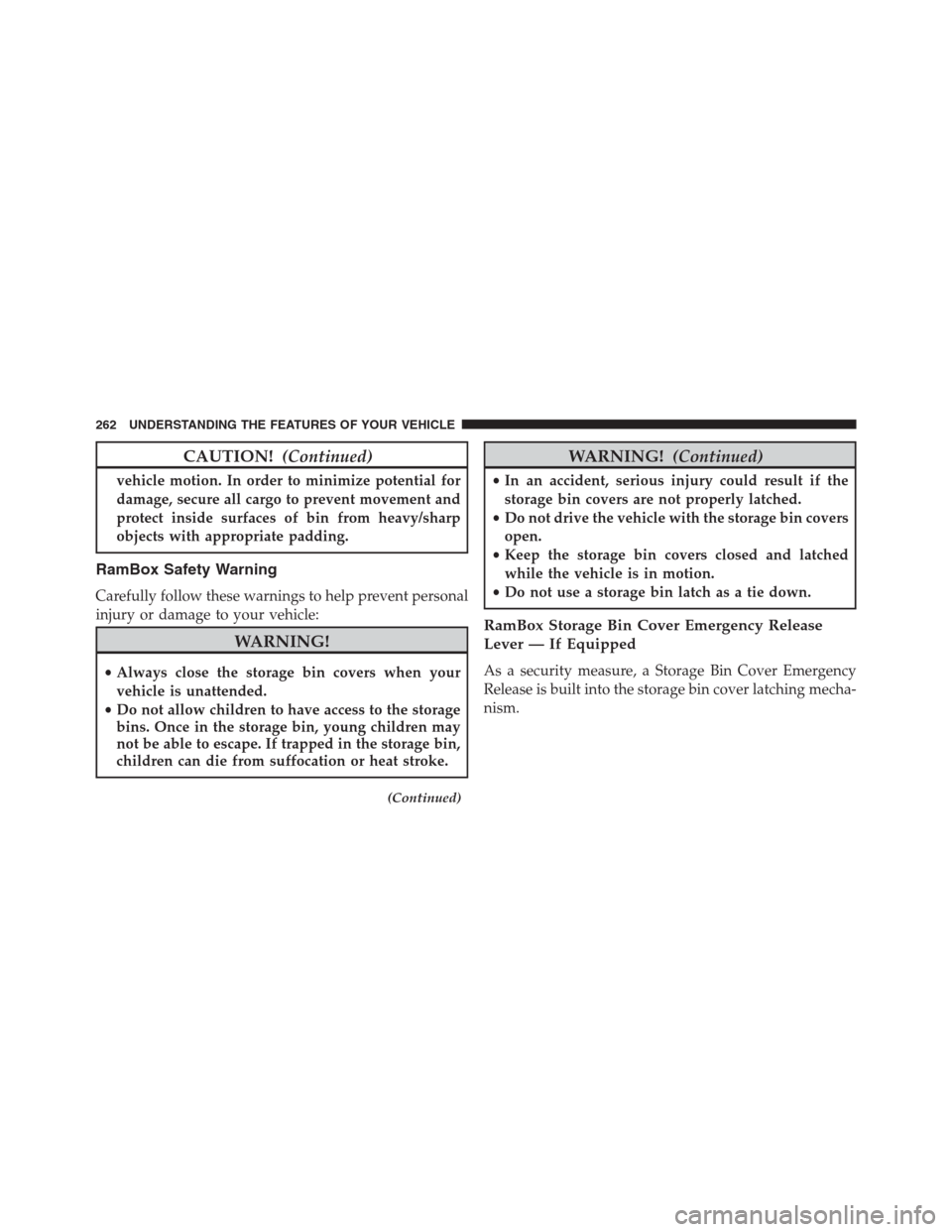

CAUTION!(Continued)
vehicle motion. In order to minimize potential for
damage, secure all cargo to prevent movement and
protect inside surfaces of bin from heavy/sharp
objects with appropriate padding.
RamBox Safety Warning
Carefully follow these warnings to help prevent personal
injury or damage to your vehicle:
WARNING!
•Always close the storage bin covers when your
vehicle is unattended.
•Do not allow children to have access to the storage
bins. Once in the storage bin, young children may
not be able to escape. If trapped in the storage bin,
children can die from suffocation or heat stroke.
(Continued)
WARNING!(Continued)
•In an accident, serious injury could result if the
storage bin covers are not properly latched.
•Do not drive the vehicle with the storage bin covers
open.
•Keep the storage bin covers closed and latched
while the vehicle is in motion.
•Do not use a storage bin latch as a tie down.
RamBox Storage Bin Cover Emergency Release
Lever — If Equipped
As a security measure, a Storage Bin Cover Emergency
Release is built into the storage bin cover latching mecha-
nism.
262 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

NOTE:In the event of an individual being locked inside
the storage bin, the storage bin cover can be opened from
inside of the bin by pulling on the glow-in-the-dark lever
attached to the storage bin cover latching mechanism.
Bed Extender — If Equipped
The bed extender has three functional positions:
•Storage Position
•Divider Position
•Extender Position
Storage Position
The storage position for the bed extender is at the front of
the truck bed which maximizes the bed cargo area when
not in use.
Storage Bin Cover Emergency Release Lever
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 263

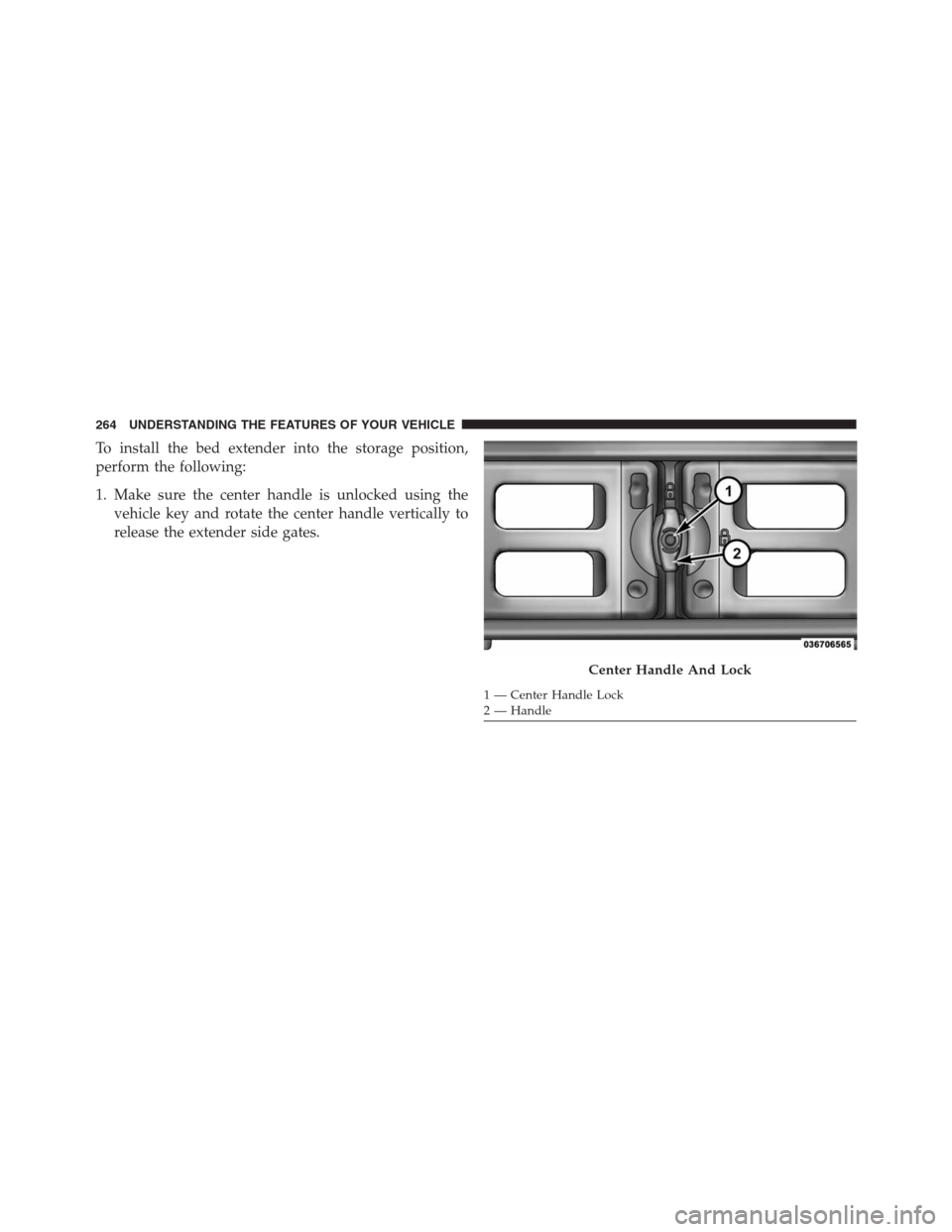

To install the bed extender into the storage position,
perform the following:
1. Make sure the center handle is unlocked using the
vehicle key and rotate the center handle vertically to
release the extender side gates.
Center Handle And Lock
1 — Center Handle Lock
2 — Handle 264 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

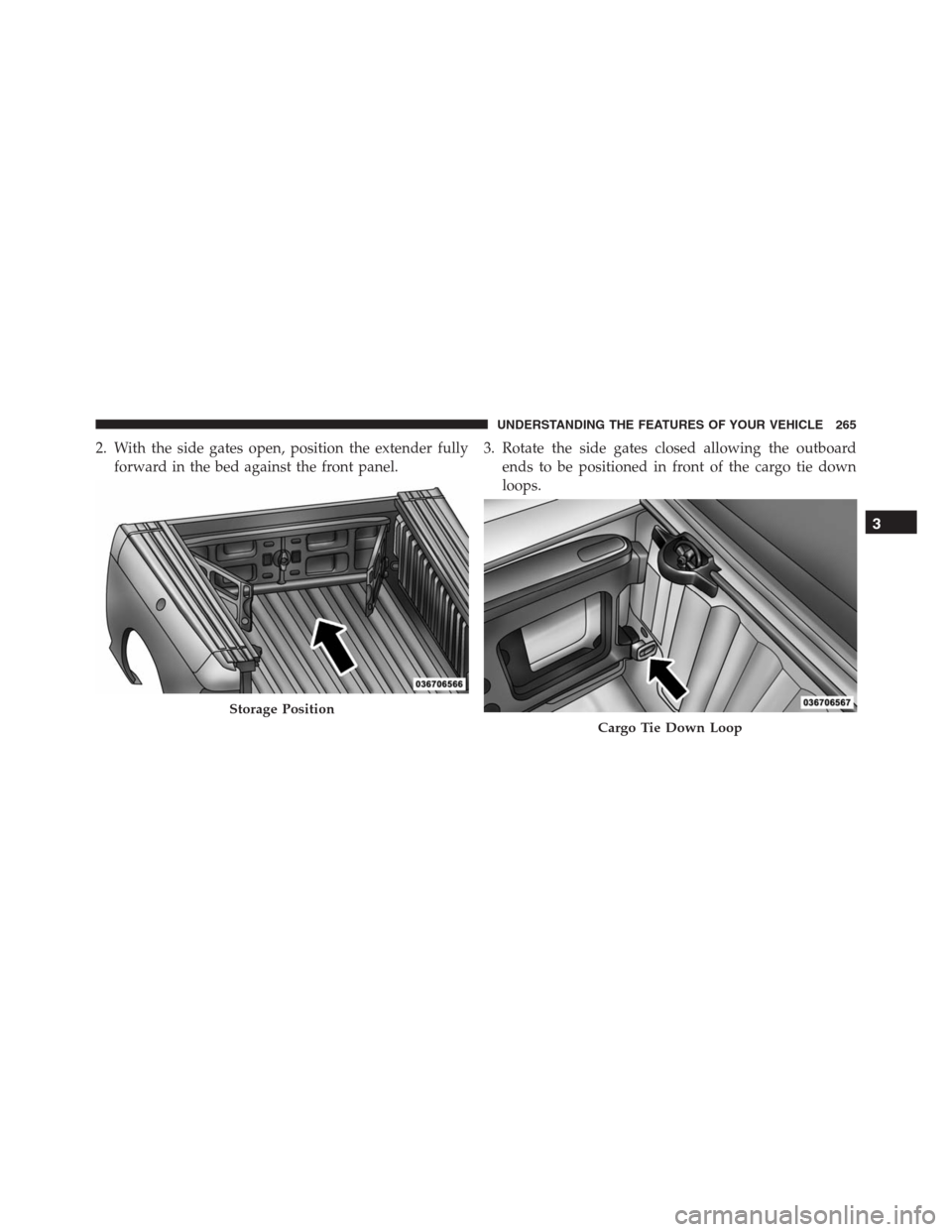

2. With the side gates open, position the extender fully
forward in the bed against the front panel.3. Rotate the side gates closed allowing the outboard
ends to be positioned in front of the cargo tie down
loops.
Storage Position
Cargo Tie Down Loop
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 265

4. Rotate the center handle horizontally to secure the side
gates in the closed position.
5. Lock the center handle using the vehicle key to secure
the panel into place.Divider Position
The divider position is intended for managing your cargo
and assisting in keeping cargo from moving around the
bed. There are 11 divider slots along the bed inner panels
which allow for various positions to assist in managing
your cargo.
To install the bed extender into a divider position per-
form the following:
1. Make sure the center handle is unlocked using the
vehicle key and rotate the center handle vertically to
release the extender side gates.
Side Gates Closed
266 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

2. With the side gates open, position the extender so the
outboard ends align with the intended slots in the
sides of the bed.3. Rotate the side gates closed so that the outboard ends
are secured into the intended slots of the bed.
4. Rotate the center handle horizontally to secure the side
gates in the closed position.
Center Handle And Lock
1 — Center Handle Lock
2 — Handle
Aligning Gate To Slots
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 267

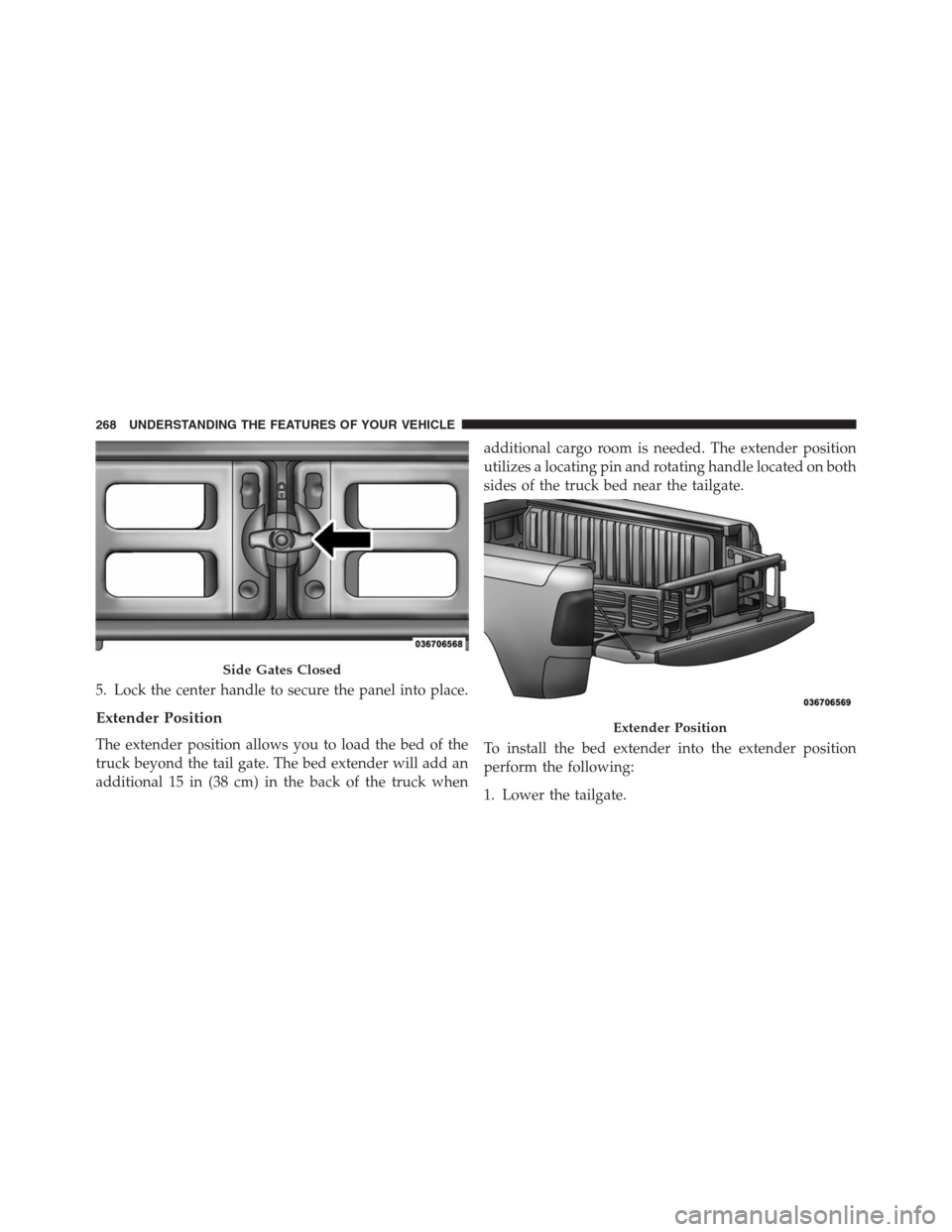

5. Lock the center handle to secure the panel into place.
Extender Position
The extender position allows you to load the bed of the
truck beyond the tail gate. The bed extender will add an
additional 15 in (38 cm) in the back of the truck whenadditional cargo room is needed. The extender position
utilizes a locating pin and rotating handle located on both
sides of the truck bed near the tailgate.
To install the bed extender into the extender position
perform the following:
1. Lower the tailgate.
Side Gates Closed
Extender Position
268 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
