WARNING!(Continued)
you may experience abrupt stopping, rapid accelera-
tion or sharp turns. A loose jack, tools, bracket or
other objects in the vehicle may move around with
force, resulting in serious injury.
Jacking And Tire Changing 2500 And 3500 Series
Trucks
WARNING!
•Do not attempt to change a tire on the side of the
vehicle close to moving traffic. Pull far enough off
the road to avoid the danger of being hit when
operating the jack or changing the wheel.
•Being under a jacked-up vehicle is dangerous. The
vehicle could slip off the jack and fall on you. You
(Continued)
WARNING!(Continued)
could be crushed. Never put any part of your body
under a vehicle that is on a jack. If you need to get
under a raised vehicle, take it to a service center
where it can be raised on a lift.
•Never start or run the engine while the vehicle is
on a jack.
•The jack is designed to be used as a tool for
changing tires only. The jack should not be used to
lift the vehicle for service purposes. The vehicle
should be jacked on a firm level surface only.
Avoid ice or slippery areas.
Jack Location
The jack and jack tools are stored under the front
passenger seat.
6
WHAT TO DO IN EMERGENCIES 749

Removal Of Jack And Tools (2500, 3500 Series)
To access the jack and jack tools you must remove the
plastic access cover, located on the side of the front
passengers seat. To remove the cover, pull the front part
of the cover (closest to the front of the seat) toward you
to release a locking tab. Once the front of the cover is
loose, slide the cover toward the front of the seat until it
is free from the seat frame.

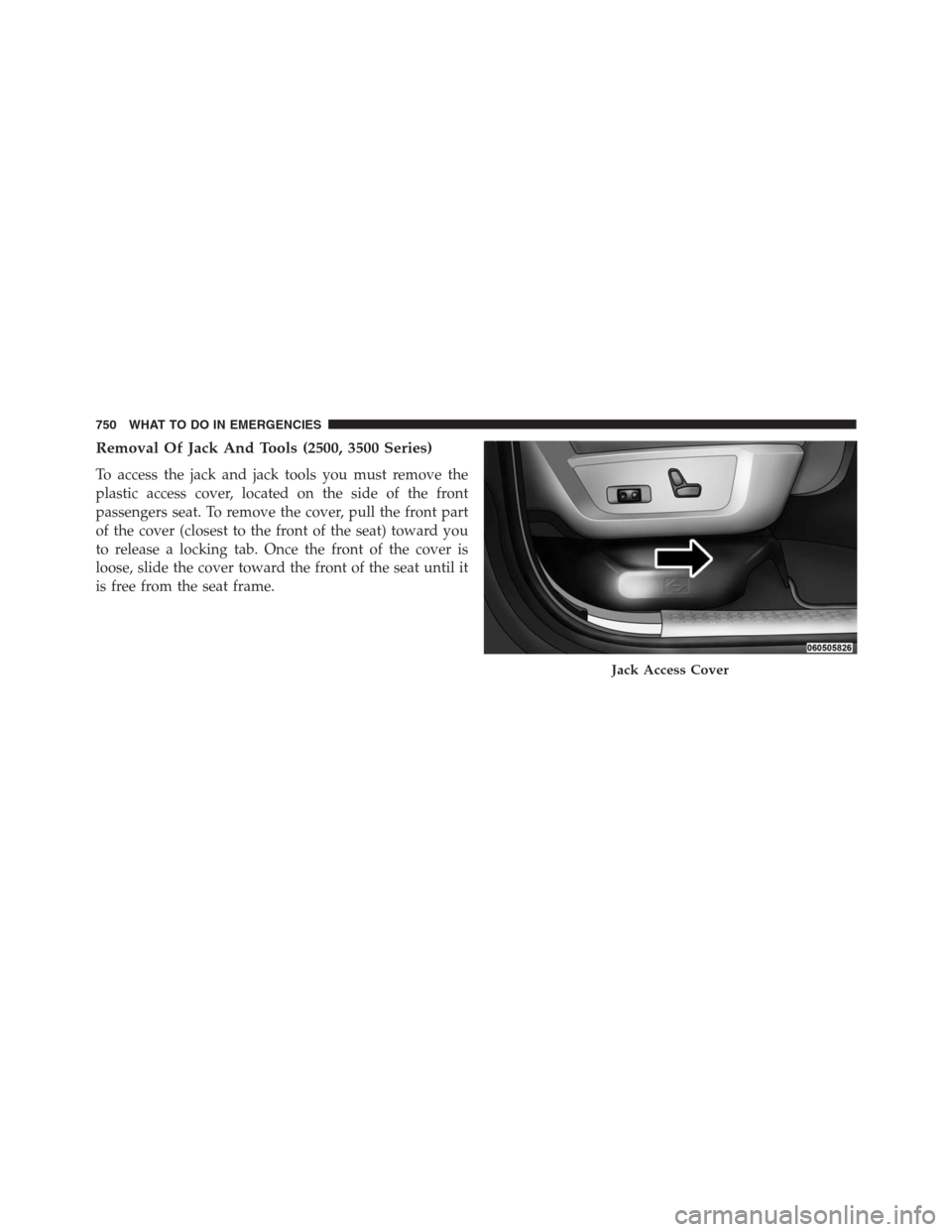

Jack Access Cover
750 WHAT TO DO IN EMERGENCIES

Remove the jack and tools by turning the wing bolt
counterclockwise, remove the wing bolt and then slide
the assembly out from under the seat.Remove the jack and tools from the bracket assembly.
Turn the jack-turn-screw counterclockwise to release jack
from bracket assembly.

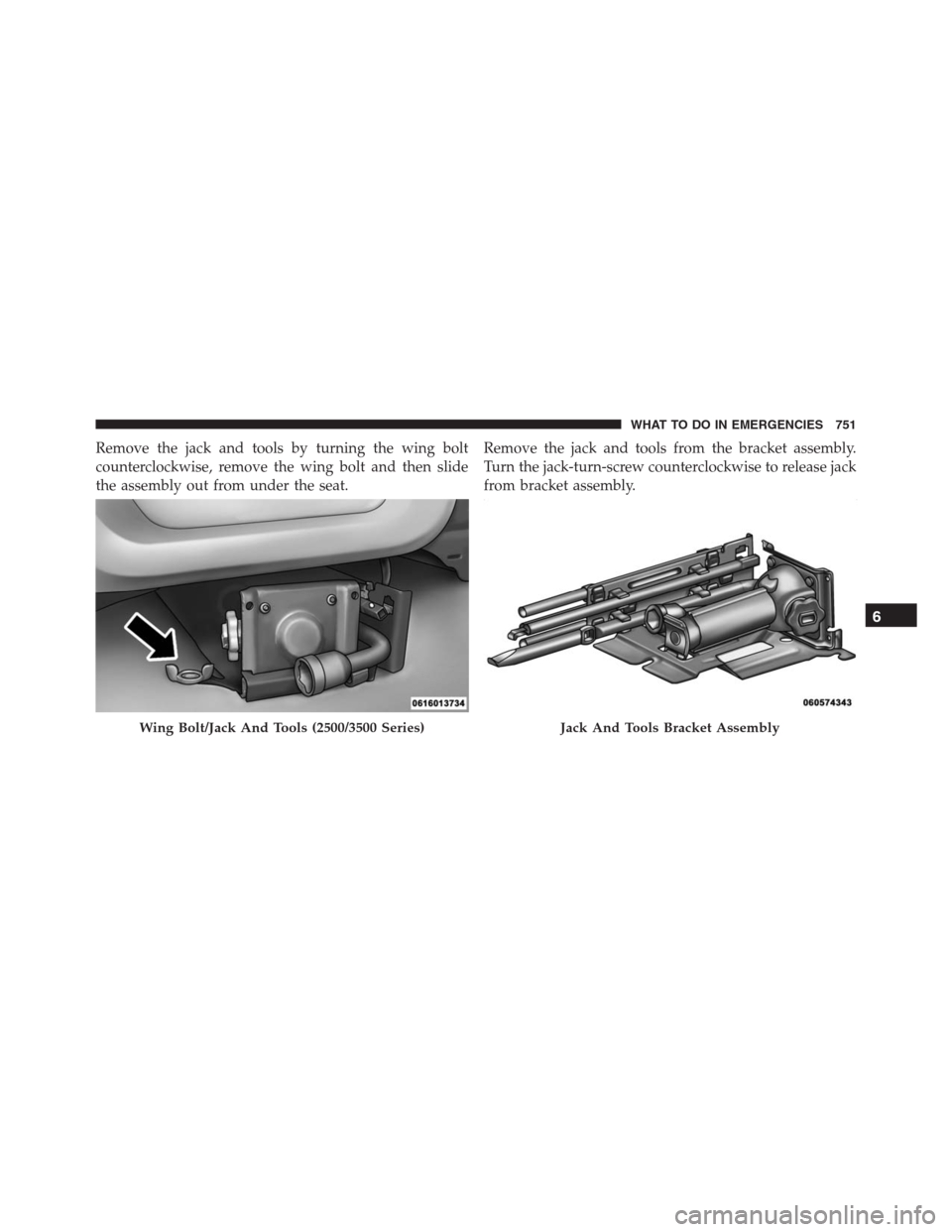

Wing Bolt/Jack And Tools (2500/3500 Series)Jack And Tools Bracket Assembly
6
WHAT TO DO IN EMERGENCIES 751

There are 2 ways to assemble the tools:
Assembled For Spare Tire Lowering/RaisingCAUTION!
•The wheel wrench can only be attached to exten-
sion 3.
•When attaching the tool to the winch mechanism
be sure the large flared end opening on extension 1
is positioned correctly over the winch mechanism
adjusting nut.
•Damage to the wheel wrench, extensions and
winch mechanism may occur from improper tool
assembly.
Assembled For Spare Tire Lowering/Raising
1 — Extension 1 3 — Extension 3
2 — Extension 2 4 — Wheel Wrench 752 WHAT TO DO IN EMERGENCIES

Assembled For Jack OperationWARNING!
After using the jack and tools, always reinstall them
in the original carrier and location. While driving
you may experience abrupt stopping, rapid accelera-
tion or sharp turns. A loose jack, tools, bracket or
other objects in the vehicle may move around with
force, resulting in serious injury.
Removing The Spare Tire
1. Remove the spare tire before attempting to jack up the
truck. Attach the wheel wrench to the jack extension
tube with the curved angle facing away from the
vehicle. Insert the tube through the access hole be-
tween the lower tailgate and the top of the bumper
and into the winch mechanism tube.
Assembled For Jack Operation
1 — Extension With Jack Hook 4 — Extension 4
2 — Extension 2 5 — Wheel Wrench
3 — Extension 3
6
WHAT TO DO IN EMERGENCIES 753

2. Rotate the wheel wrench handle counterclockwise
until the spare tire is on the ground with enough cable
slack to allow you to pull it out from under the vehicle.

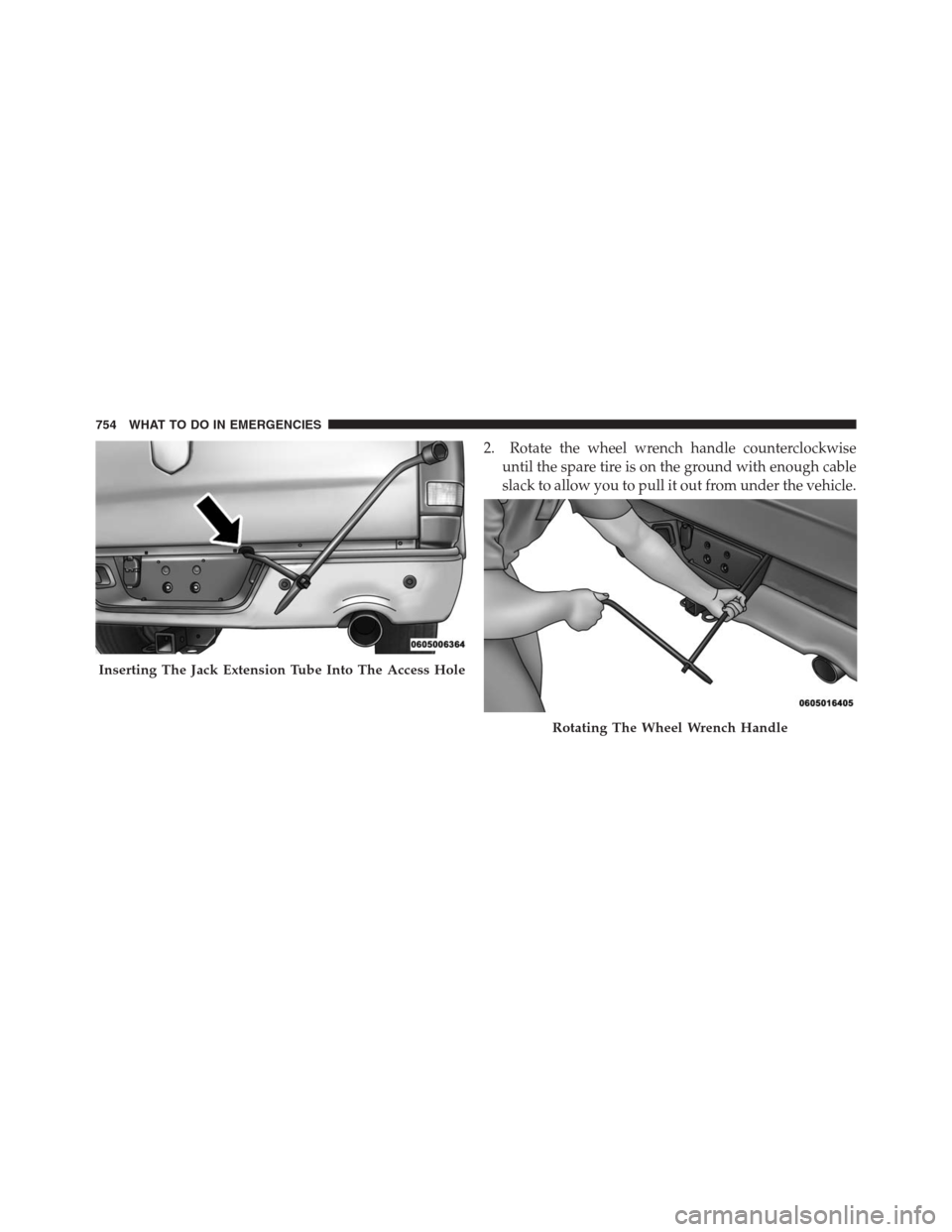

Inserting The Jack Extension Tube Into The Access Hole
Rotating The Wheel Wrench Handle
754 WHAT TO DO IN EMERGENCIES

3. Pull the spare tire out from under the vehicle to gain
access to the spare tire retainer.4. Lift the spare tire with one hand to give clearance to
tilt the retainer at the end of the cable.
5. Pull the retainer through the center of the wheel.
Pulling The Spare Tire OutGaining Access To The Retainer
6
WHAT TO DO IN EMERGENCIES 755

NOTE:The winch mechanism is designed for use with
the jack extension tube only. Use of an air wrench or other
power tools is not recommended and can damage the
winch.
Preparations
1. Park the vehicle on a firm, level surface. Avoid ice or
slippery areas.
WARNING!
Do not attempt to change a tire on the side of the
vehicle close to moving traffic, pull far enough off
the road to avoid the danger of being hit when
operating the jack or changing the wheel.
2. Turn on the Hazard Warning flasher.
3. Set the parking brake.
4. Place the shift lever into PARK. On four-wheel drive
vehicles, shift the transfer case to the 4L position.
5. Turn the ignition OFF.
Pulling The Retainer Through The Center Of The Wheel
756 WHAT TO DO IN EMERGENCIES

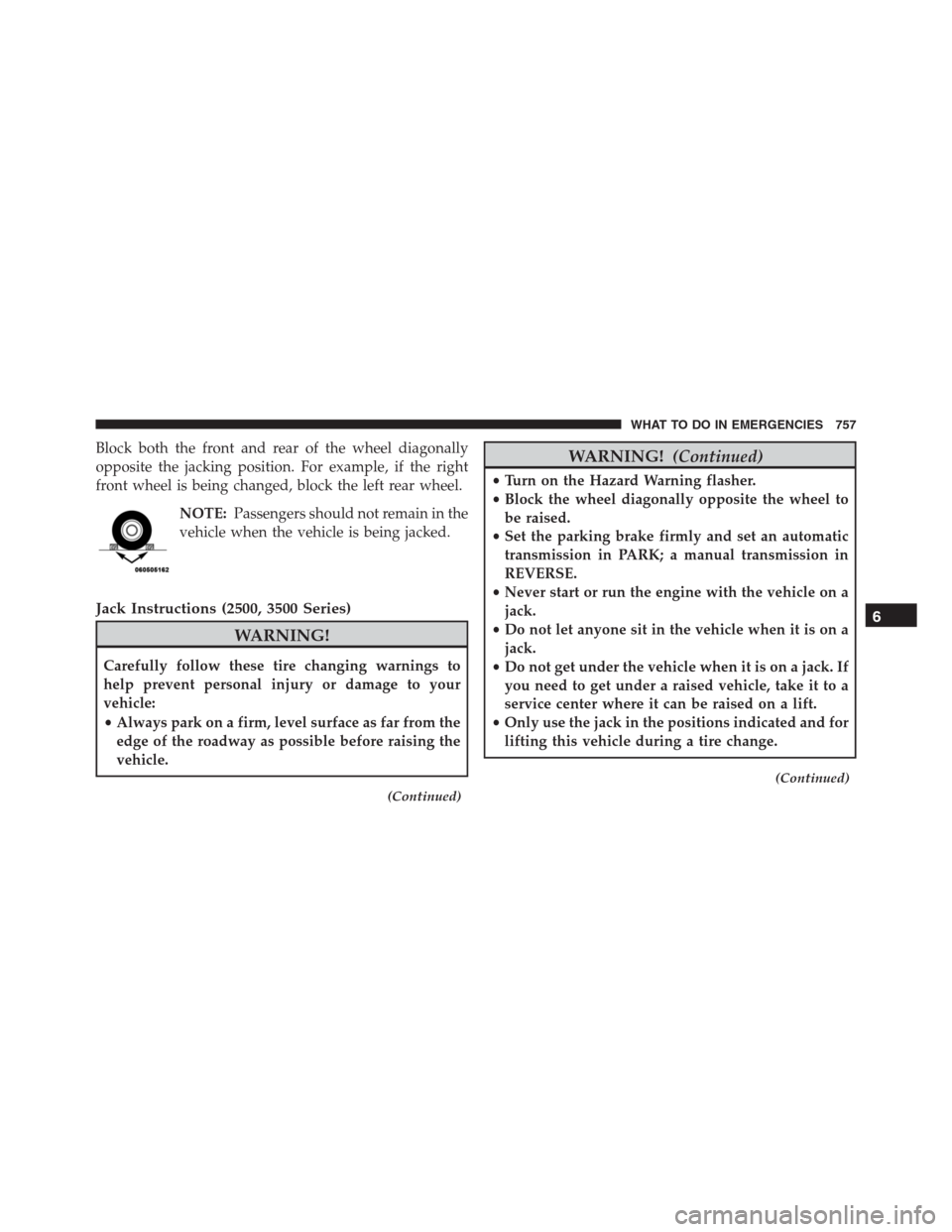

Block both the front and rear of the wheel diagonally
opposite the jacking position. For example, if the right
front wheel is being changed, block the left rear wheel.
NOTE:Passengers should not remain in the
vehicle when the vehicle is being jacked.
Jack Instructions (2500, 3500 Series)
WARNING!
Carefully follow these tire changing warnings to
help prevent personal injury or damage to your
vehicle:
•Always park on a firm, level surface as far from the
edge of the roadway as possible before raising the
vehicle.
(Continued)
WARNING!(Continued)
•Turn on the Hazard Warning flasher.
•Block the wheel diagonally opposite the wheel to
be raised.
•Set the parking brake firmly and set an automatic
transmission in PARK; a manual transmission in
REVERSE.
•Never start or run the engine with the vehicle on a
jack.
•Do not let anyone sit in the vehicle when it is on a
jack.
•Do not get under the vehicle when it is on a jack. If
you need to get under a raised vehicle, take it to a
service center where it can be raised on a lift.
•Only use the jack in the positions indicated and for
lifting this vehicle during a tire change.
(Continued)
6
WHAT TO DO IN EMERGENCIES 757

WARNING!(Continued)
•If working on or near a roadway, be extremely
careful of motor traffic.
•To assure that spare tires, flat or inflated, are
securely stowed, spares must be stowed with the
valve stem facing the ground.

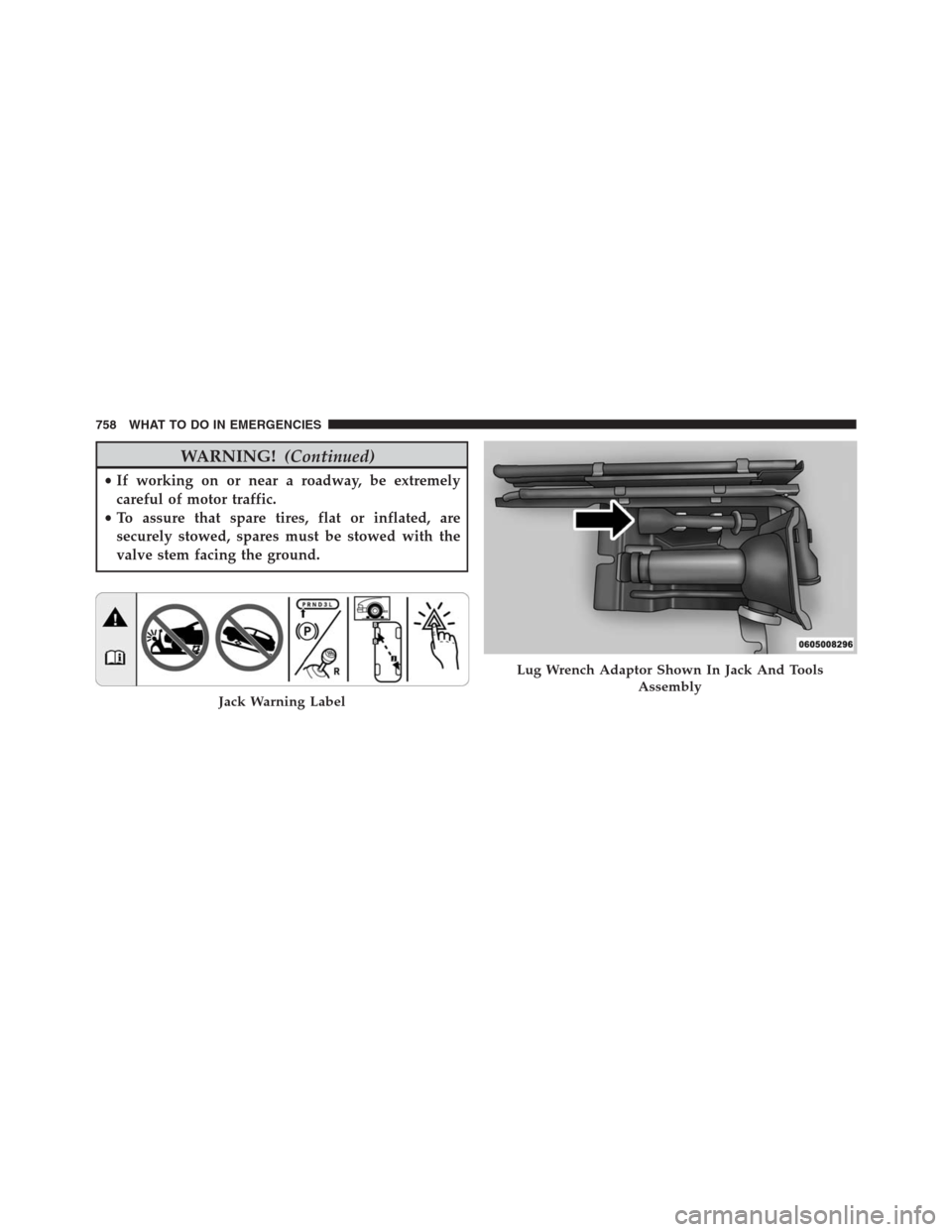

Jack Warning Label
Lug Wrench Adaptor Shown In Jack And Tools
Assembly
