6. Move the shift lever to the NEUTRAL position.
7. The vehicle may then be started in NEUTRAL.
8. Reinstall the shift lever override access cover.
MANUAL PARK RELEASE — 8 SPEED
TRANSMISSION
WARNING!
Always secure your vehicle by fully applying the
parking brake, before activating the Manual Park
Release. Activating the Manual Park Release will
allow your vehicle to roll away if it is not secured by
the parking brake or by proper connection to a tow
vehicle. Activating the Manual Park Release on an
unsecured vehicle could lead to serious injury or
death for those in or around the vehicle.
In order to push or tow the vehicle in cases where the
transmission will not shift out of PARK (such as a dead
battery), a Manual Park Release is available.
Shift Lever Override Access Cover
6
WHAT TO DO IN EMERGENCIES 779

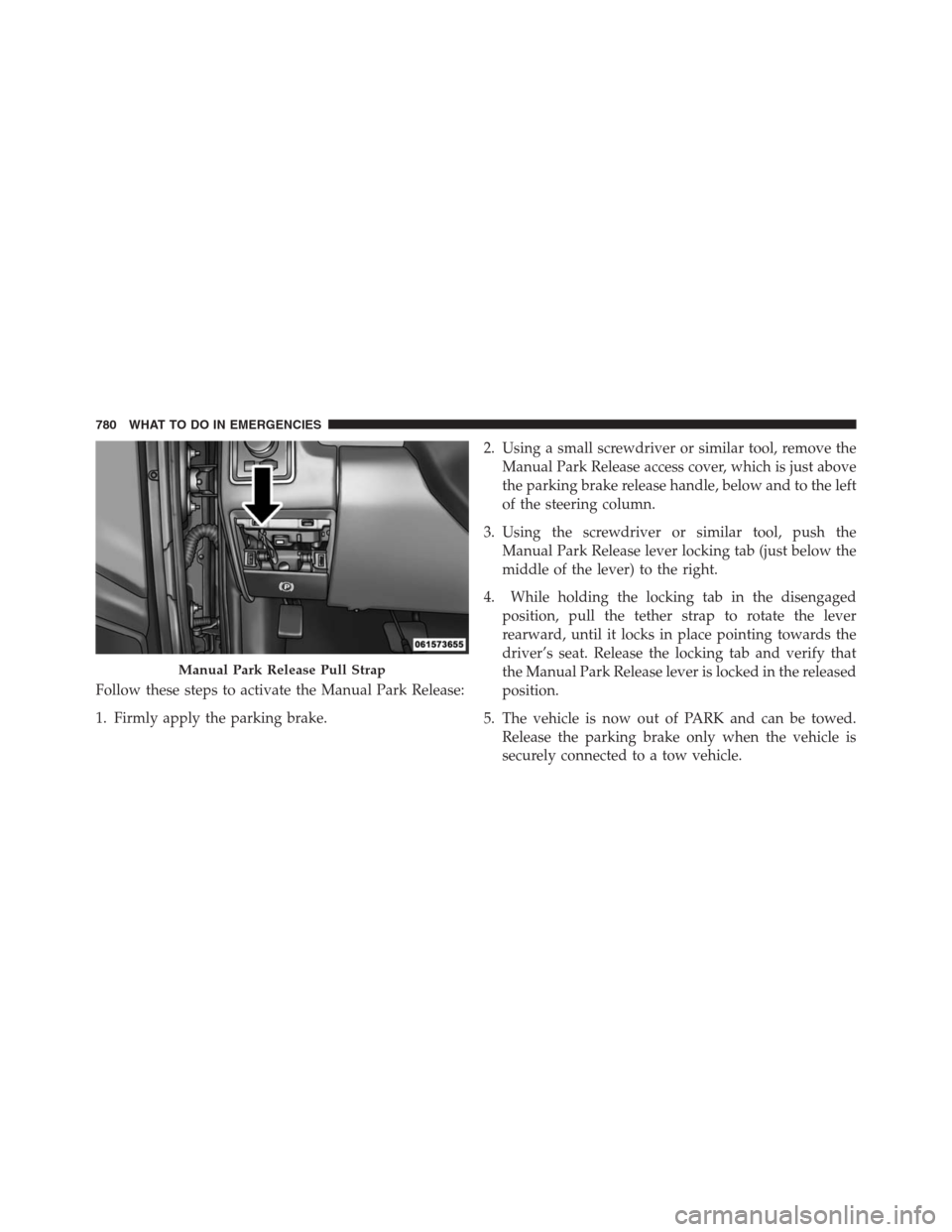

Follow these steps to activate the Manual Park Release:
1. Firmly apply the parking brake.2. Using a small screwdriver or similar tool, remove the
Manual Park Release access cover, which is just above
the parking brake release handle, below and to the left
of the steering column.
3. Using the screwdriver or similar tool, push the
Manual Park Release lever locking tab (just below the
middle of the lever) to the right.
4. While holding the locking tab in the disengaged
position, pull the tether strap to rotate the lever
rearward, until it locks in place pointing towards the
driver’s seat. Release the locking tab and verify that
the Manual Park Release lever is locked in the released
position.
5. The vehicle is now out of PARK and can be towed.
Release the parking brake only when the vehicle is
securely connected to a tow vehicle.
Manual Park Release Pull Strap
780 WHAT TO DO IN EMERGENCIES

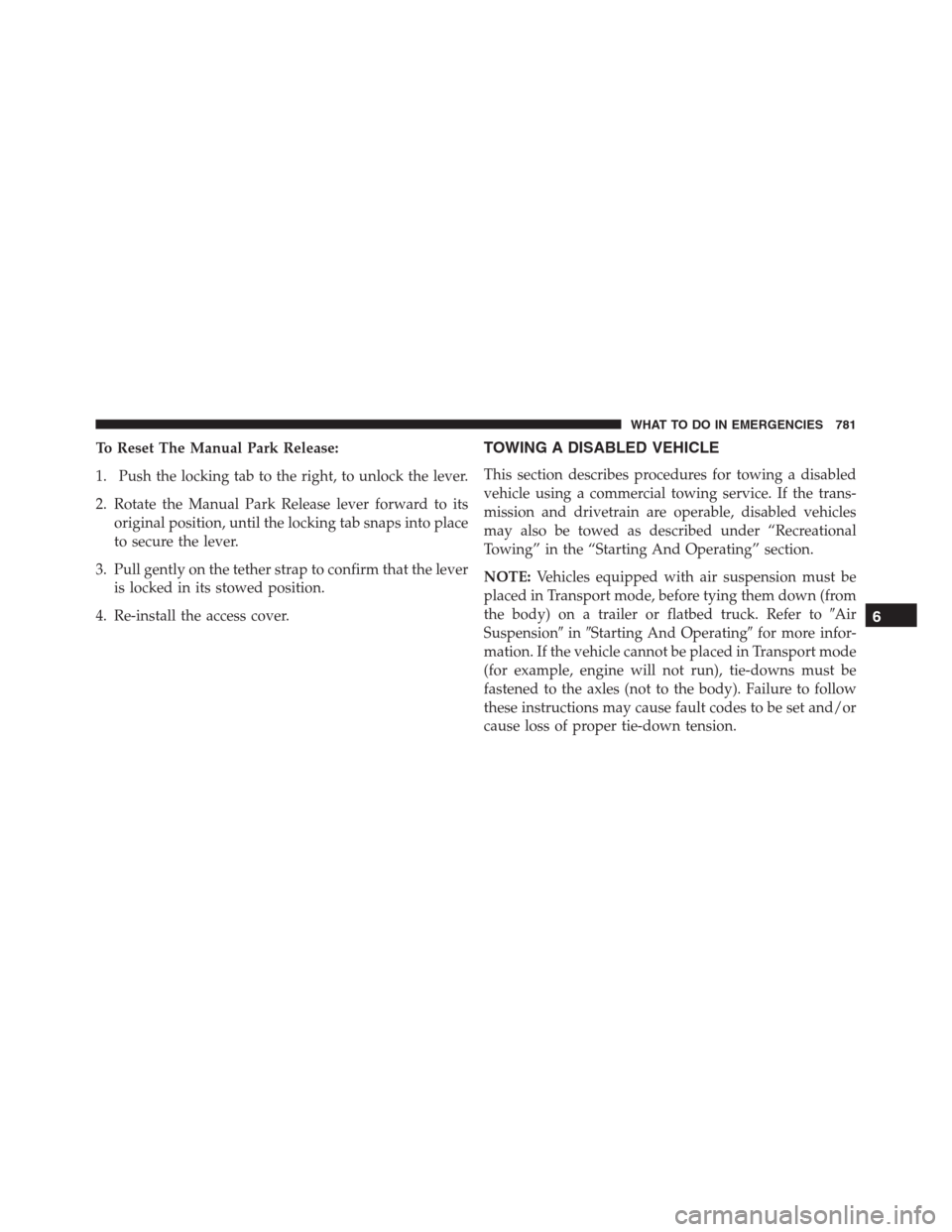

To Reset The Manual Park Release:
1. Push the locking tab to the right, to unlock the lever.
2. Rotate the Manual Park Release lever forward to its
original position, until the locking tab snaps into place
to secure the lever.
3. Pull gently on the tether strap to confirm that the lever
is locked in its stowed position.
4. Re-install the access cover.TOWING A DISABLED VEHICLE
This section describes procedures for towing a disabled
vehicle using a commercial towing service. If the trans-
mission and drivetrain are operable, disabled vehicles
may also be towed as described under “Recreational
Towing” in the “Starting And Operating” section.
NOTE:Vehicles equipped with air suspension must be
placed in Transport mode, before tying them down (from
the body) on a trailer or flatbed truck. Refer toAir
SuspensioninStarting And Operatingfor more infor-
mation. If the vehicle cannot be placed in Transport mode
(for example, engine will not run), tie-downs must be
fastened to the axles (not to the body). Failure to follow
these instructions may cause fault codes to be set and/or
cause loss of proper tie-down tension.
6
WHAT TO DO IN EMERGENCIES 781

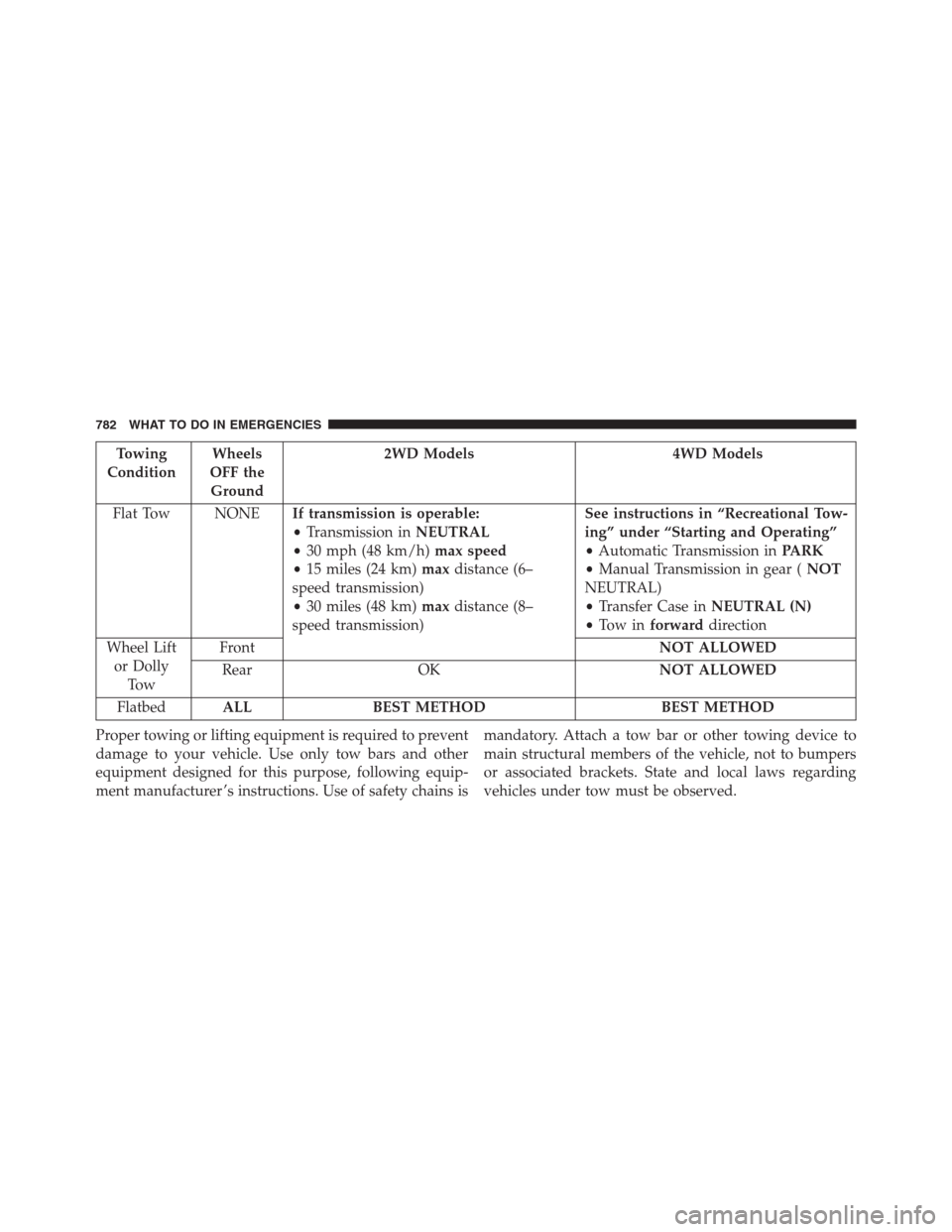

Towing
ConditionWheels
OFF the
Ground2WD Models 4WD Models
Flat Tow NONEIf transmission is operable:
•Transmission inNEUTRAL
•30 mph (48 km/h)max speed
•15 miles (24 km)maxdistance (6–
speed transmission)
•30 miles (48 km)maxdistance (8–
speed transmission)See instructions in “Recreational Tow-
ing” under “Starting and Operating”
•Automatic Transmission inPARK
•Manual Transmission in gear (NOT
NEUTRAL)
•Transfer Case inNEUTRAL (N)
•To w i nforwarddirection
Wheel Lift
or Dolly
To wFrontNOT ALLOWED
Rear OKNOT ALLOWED
FlatbedALL BEST METHOD BEST METHOD
Proper towing or lifting equipment is required to prevent
damage to your vehicle. Use only tow bars and other
equipment designed for this purpose, following equip-
ment manufacturer ’s instructions. Use of safety chains ismandatory. Attach a tow bar or other towing device to
main structural members of the vehicle, not to bumpers
or associated brackets. State and local laws regarding
vehicles under tow must be observed.
782 WHAT TO DO IN EMERGENCIES

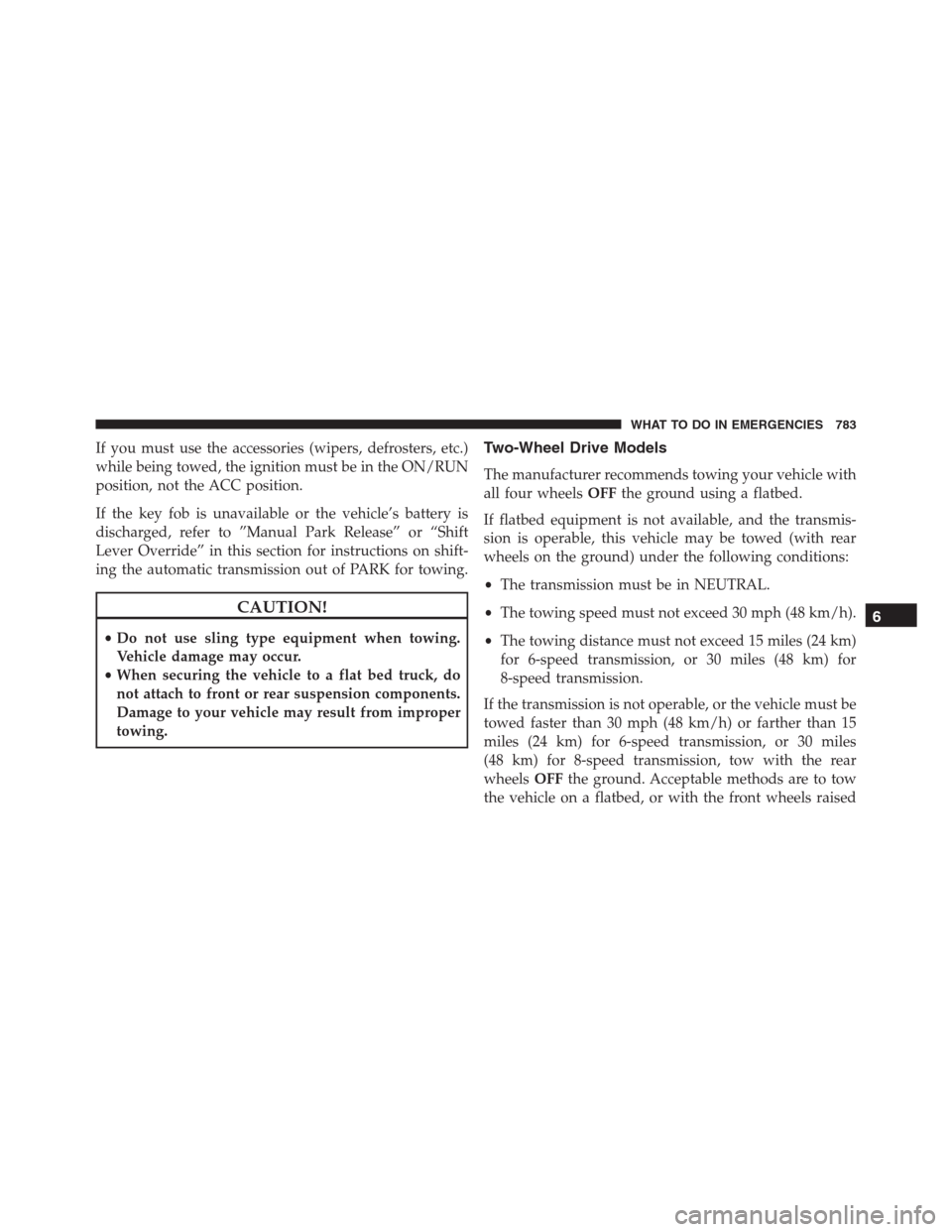

If you must use the accessories (wipers, defrosters, etc.)
while being towed, the ignition must be in the ON/RUN
position, not the ACC position.
If the key fob is unavailable or the vehicle’s battery is
discharged, refer to ”Manual Park Release” or “Shift
Lever Override” in this section for instructions on shift-
ing the automatic transmission out of PARK for towing.
CAUTION!
•Do not use sling type equipment when towing.
Vehicle damage may occur.
•When securing the vehicle to a flat bed truck, do
not attach to front or rear suspension components.
Damage to your vehicle may result from improper
towing.
Two-Wheel Drive Models
The manufacturer recommends towing your vehicle with
all four wheelsOFFthe ground using a flatbed.
If flatbed equipment is not available, and the transmis-
sion is operable, this vehicle may be towed (with rear
wheels on the ground) under the following conditions:
•The transmission must be in NEUTRAL.
•The towing speed must not exceed 30 mph (48 km/h).
•The towing distance must not exceed 15 miles (24 km)
for 6-speed transmission, or 30 miles (48 km) for
8-speed transmission.
If the transmission is not operable, or the vehicle must be
towed faster than 30 mph (48 km/h) or farther than 15
miles (24 km) for 6-speed transmission, or 30 miles
(48 km) for 8-speed transmission, tow with the rear
wheelsOFFthe ground. Acceptable methods are to tow
the vehicle on a flatbed, or with the front wheels raised
6
WHAT TO DO IN EMERGENCIES 783

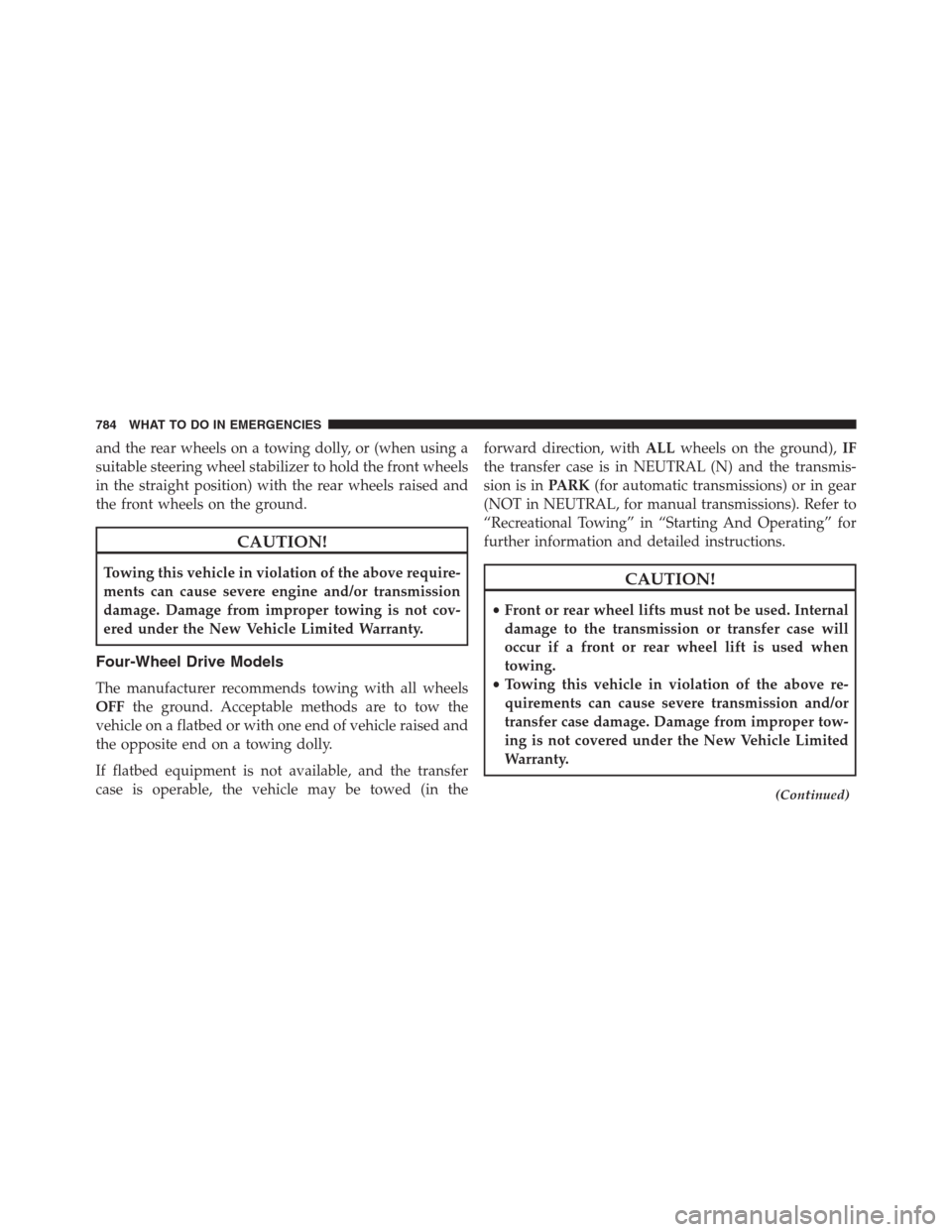

and the rear wheels on a towing dolly, or (when using a
suitable steering wheel stabilizer to hold the front wheels
in the straight position) with the rear wheels raised and
the front wheels on the ground.
CAUTION!
Towing this vehicle in violation of the above require-
ments can cause severe engine and/or transmission
damage. Damage from improper towing is not cov-
ered under the New Vehicle Limited Warranty.
Four-Wheel Drive Models
The manufacturer recommends towing with all wheels
OFFthe ground. Acceptable methods are to tow the
vehicle on a flatbed or with one end of vehicle raised and
the opposite end on a towing dolly.
If flatbed equipment is not available, and the transfer
case is operable, the vehicle may be towed (in theforward direction, withALLwheels on the ground),IF
the transfer case is in NEUTRAL (N) and the transmis-
sion is inPARK(for automatic transmissions) or in gear
(NOT in NEUTRAL, for manual transmissions). Refer to
“Recreational Towing” in “Starting And Operating” for
further information and detailed instructions.
CAUTION!
•Front or rear wheel lifts must not be used. Internal
damage to the transmission or transfer case will
occur if a front or rear wheel lift is used when
towing.
•Towing this vehicle in violation of the above re-
quirements can cause severe transmission and/or
transfer case damage. Damage from improper tow-
ing is not covered under the New Vehicle Limited
Warranty.
(Continued)
784 WHAT TO DO IN EMERGENCIES

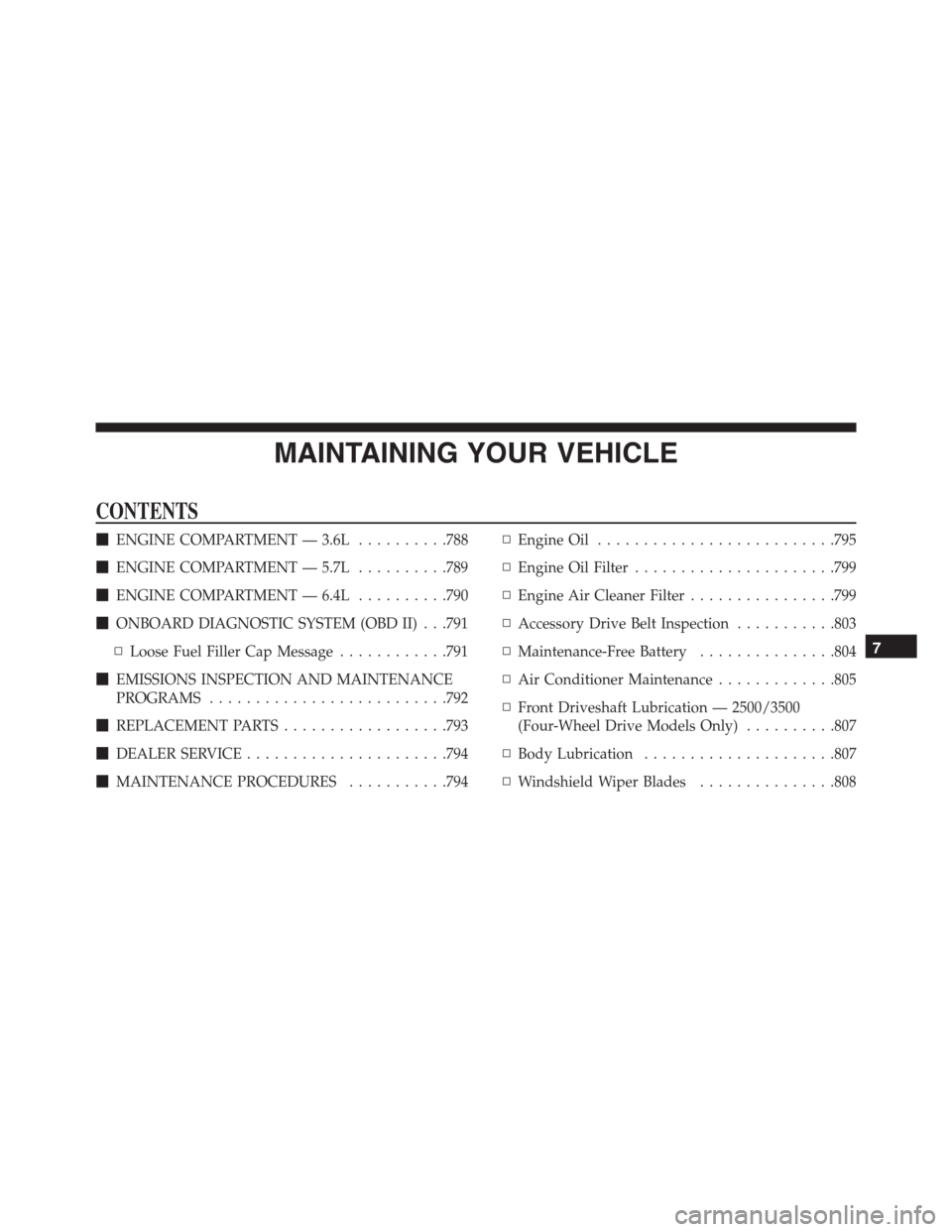

MAINTAINING YOUR VEHICLE
CONTENTS
ENGINE COMPARTMENT — 3.6L..........788
ENGINE COMPARTMENT — 5.7L..........789
ENGINE COMPARTMENT — 6.4L..........790
ONBOARD DIAGNOSTIC SYSTEM (OBD II) . . .791
▫Loose Fuel Filler Cap Message............791
EMISSIONS INSPECTION AND MAINTENANCE
PROGRAMS..........................792
REPLACEMENT PARTS..................793
DEALER SERVICE......................794
MAINTENANCE PROCEDURES...........794▫Engine Oil..........................795
▫Engine Oil Filter......................799
▫Engine Air Cleaner Filter................799
▫Accessory Drive Belt Inspection...........803
▫Maintenance-Free Battery...............804
▫Air Conditioner Maintenance.............805
▫Front Driveshaft Lubrication — 2500/3500
(Four-Wheel Drive Models Only)..........807
▫Body Lubrication.....................807
▫Windshield Wiper Blades...............808
7

▫Adding Washer Fluid..................811
▫Exhaust System......................812
▫Cooling System......................815
▫Brake System........................823
▫Rear Axle And 4x4 Front Driving Axle Fluid
Level..............................825
▫Transfer Case........................826
▫Automatic Transmission................826
▫Appearance Care And Protection From
Corrosion...........................830
FUSES..............................838
▫Power Distribution Center...............839
VEHICLE STORAGE....................848REPLACEMENT BULBS.................849
BULB REPLACEMENT..................850
▫Base Quad / Premium Bi-Halogen: Low Beam
Headlamp, High Beam Headlamp, Front Park
And Turn — If Equipped...............851
▫Fog Lamps — If Equipped..............853
▫Rear Tail/Stop, Turn Signal And Backup Lamps
..................................853
▫Center High-Mounted Stoplamp (CHMSL) With
Cargo Lamp.........................855
▫Cab Top Clearance Lamps — If Equipped. . . .857
▫Rear Lamp Bar ID Marker (Dual Rear Wheels) —
If Equipped..........................859
▫Side Marker Lamps (Dual Rear Wheels) — If
Equipped...........................860
786 MAINTAINING YOUR VEHICLE

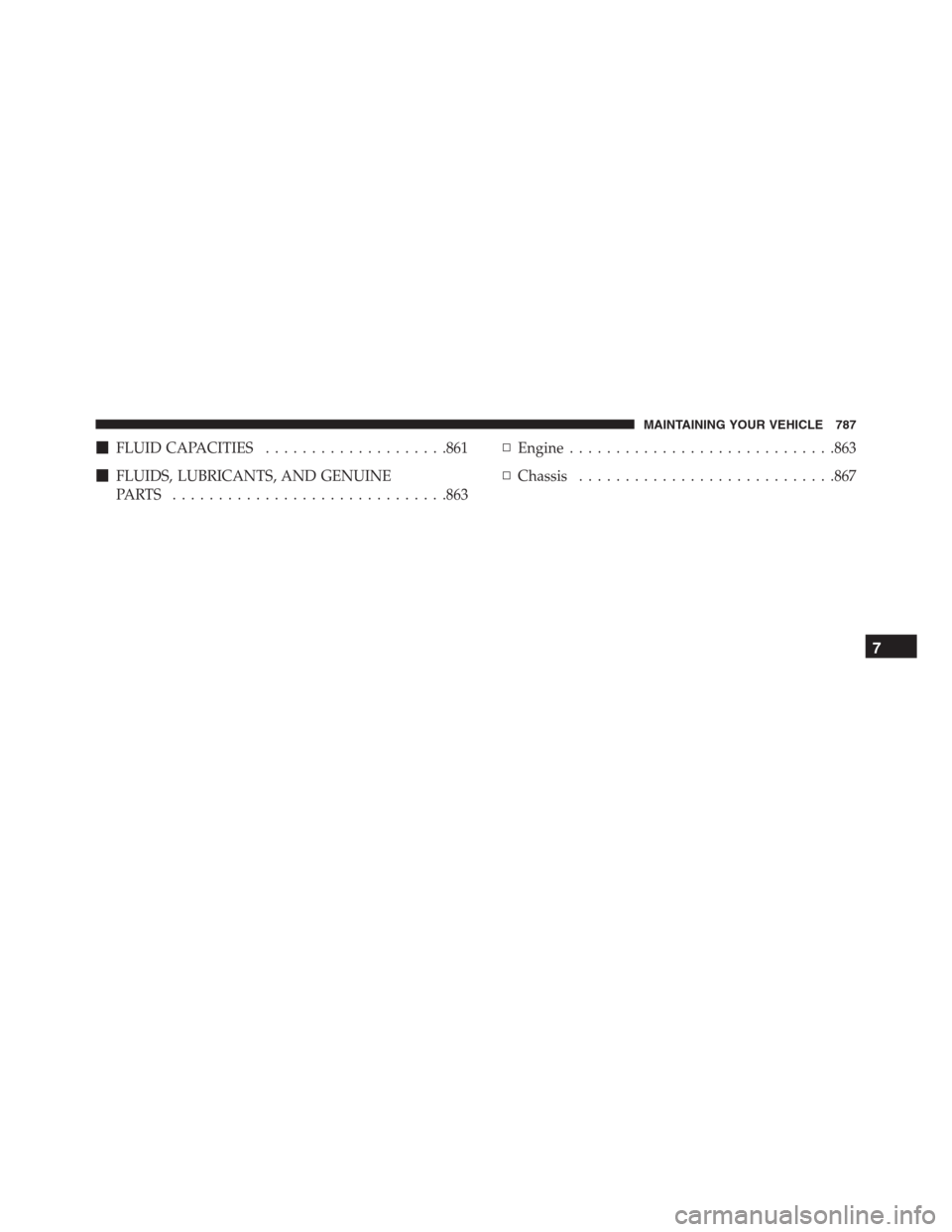

FLUID CAPACITIES....................861
FLUIDS, LUBRICANTS, AND GENUINE
PARTS ..............................863▫Engine.............................863
▫Chassis............................867
7
MAINTAINING YOUR VEHICLE 787

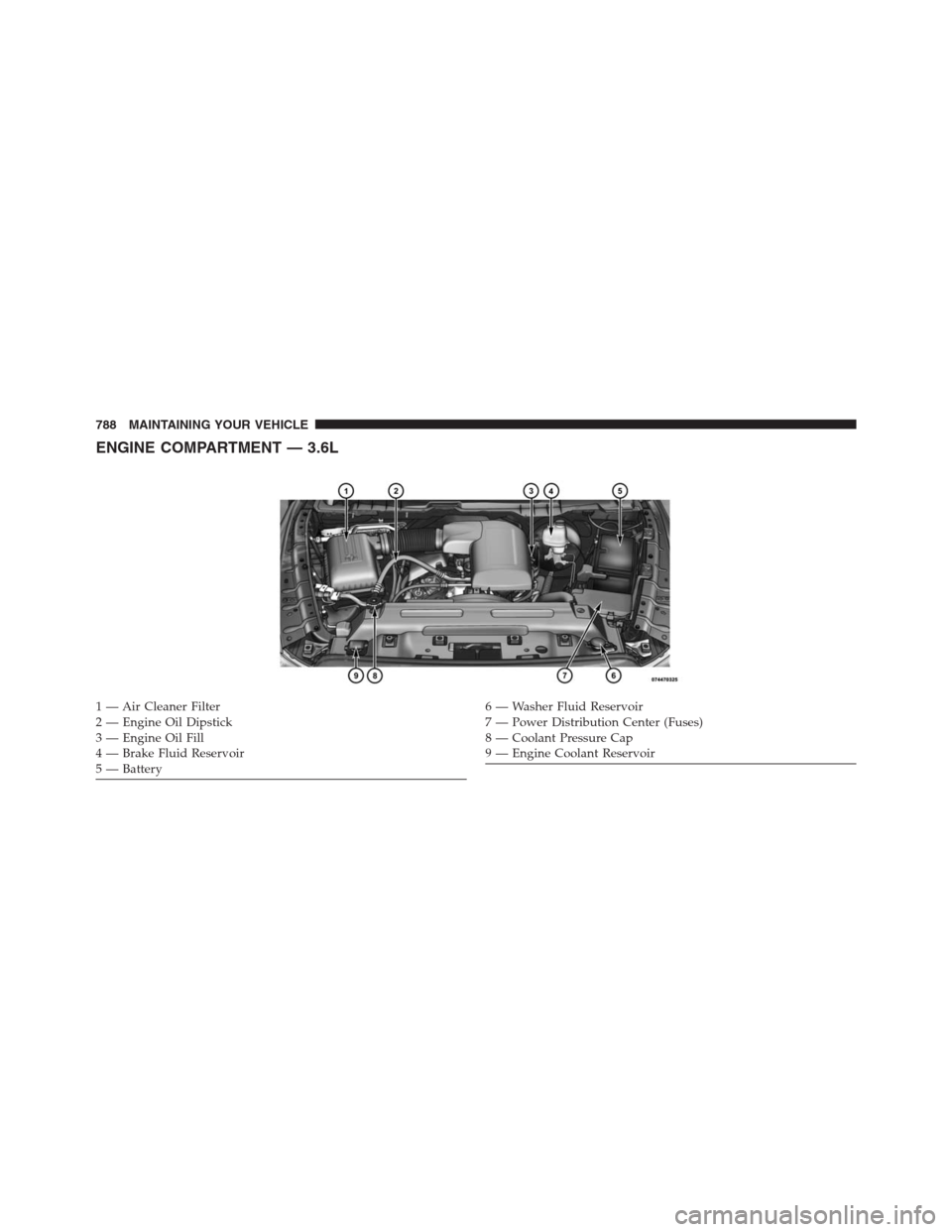

ENGINE COMPARTMENT — 3.6L
1 — Air Cleaner Filter
2 — Engine Oil Dipstick
3 — Engine Oil Fill
4 — Brake Fluid Reservoir
5 — Battery6 — Washer Fluid Reservoir
7 — Power Distribution Center (Fuses)
8 — Coolant Pressure Cap
9 — Engine Coolant Reservoir 788 MAINTAINING YOUR VEHICLE
