CAUTION!

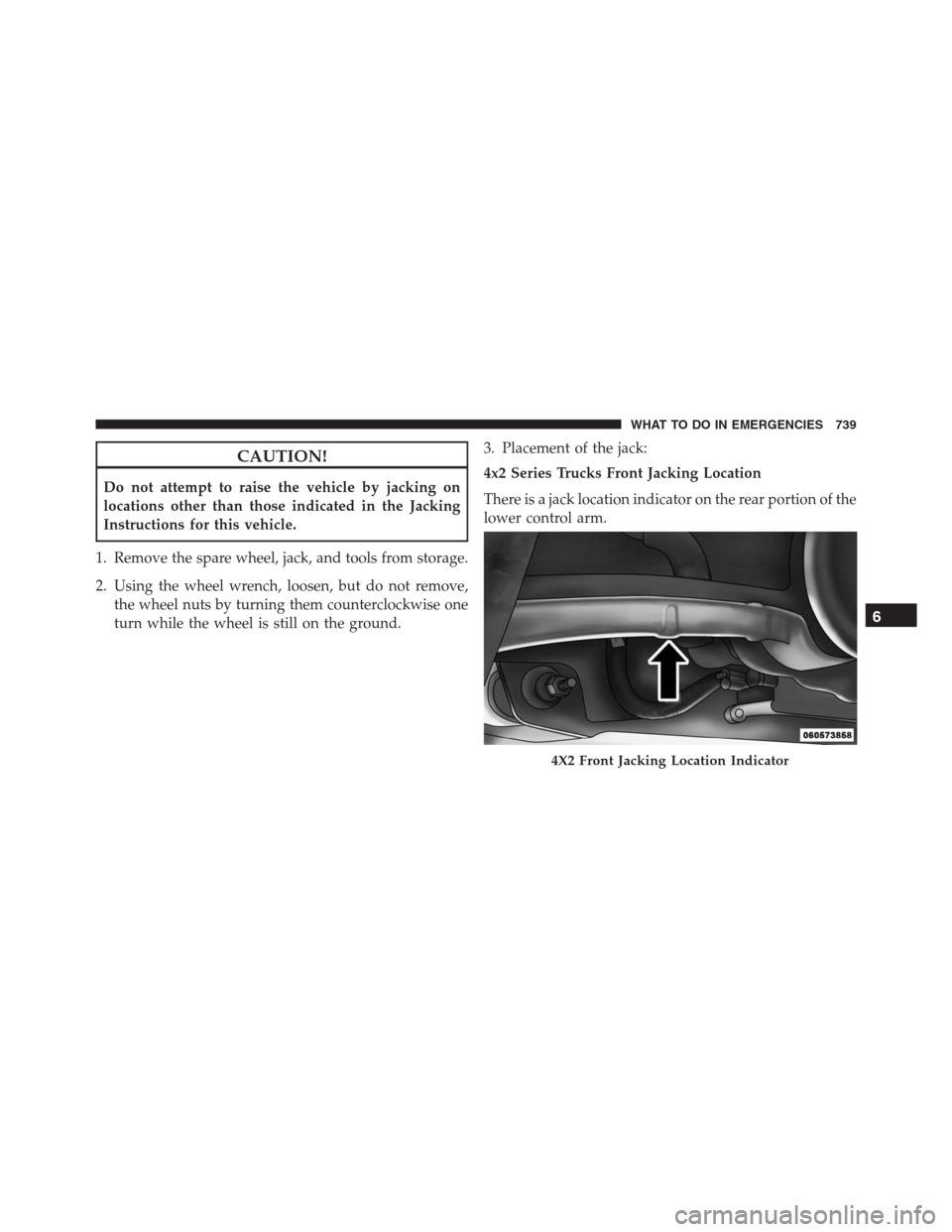

Do not attempt to raise the vehicle by jacking on
locations other than those indicated in the Jacking
Instructions for this vehicle.
1. Remove the spare wheel, jack, and tools from storage.
2. Using the wheel wrench, loosen, but do not remove,
the wheel nuts by turning them counterclockwise one
turn while the wheel is still on the ground.3. Placement of the jack:
4x2 Series Trucks Front Jacking Location
There is a jack location indicator on the rear portion of the
lower control arm.
4X2 Front Jacking Location Indicator
6
WHAT TO DO IN EMERGENCIES 739

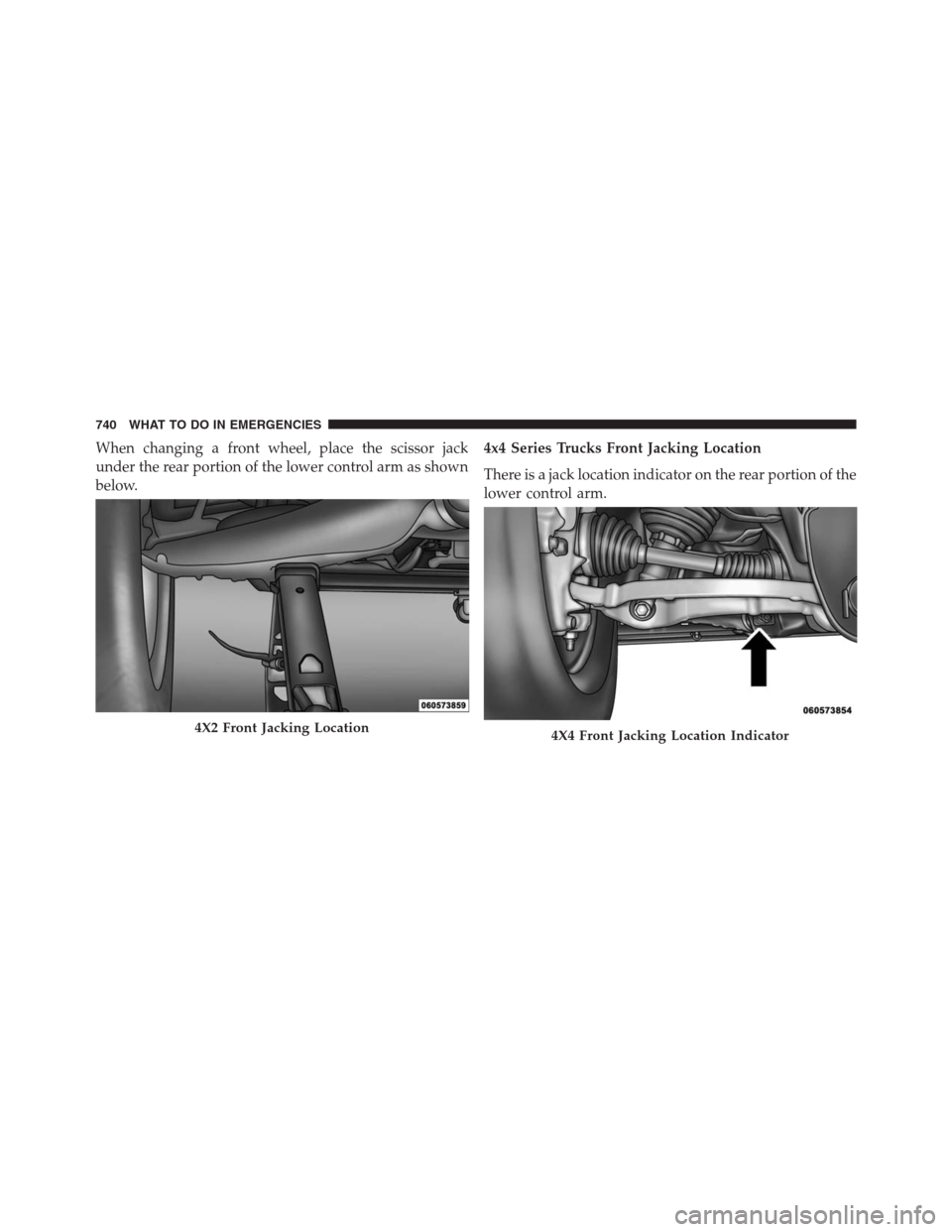

When changing a front wheel, place the scissor jack
under the rear portion of the lower control arm as shown
below.4x4 Series Trucks Front Jacking Location
There is a jack location indicator on the rear portion of the
lower control arm.
4X2 Front Jacking Location4X4 Front Jacking Location Indicator
740 WHAT TO DO IN EMERGENCIES

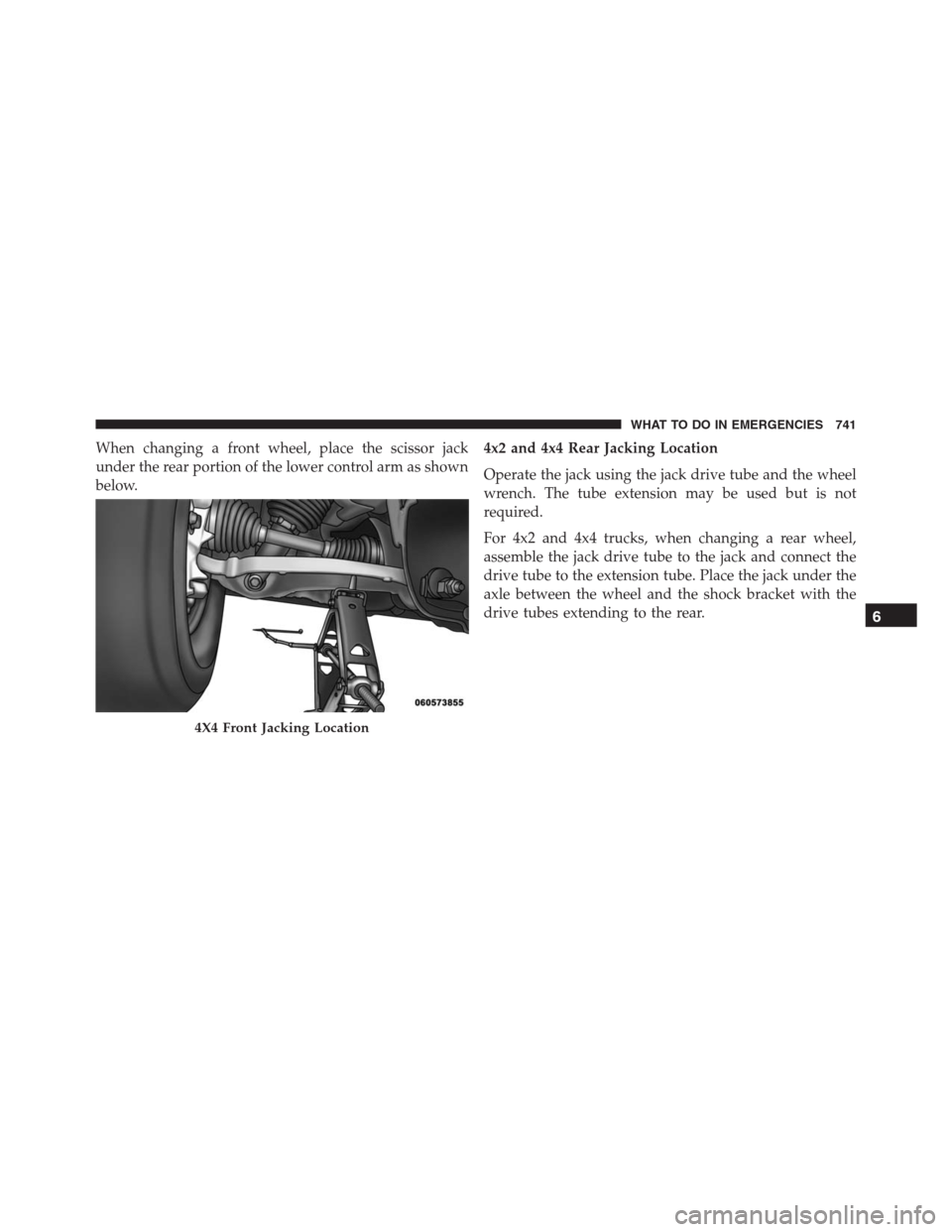

When changing a front wheel, place the scissor jack
under the rear portion of the lower control arm as shown
below.4x2 and 4x4 Rear Jacking Location
Operate the jack using the jack drive tube and the wheel
wrench. The tube extension may be used but is not
required.
For 4x2 and 4x4 trucks, when changing a rear wheel,
assemble the jack drive tube to the jack and connect the
drive tube to the extension tube. Place the jack under the
axle between the wheel and the shock bracket with the
drive tubes extending to the rear.
4X4 Front Jacking Location
6
WHAT TO DO IN EMERGENCIES 741

Connect the jack tube extension and wheel wrench.
CAUTION!
Before raising the wheel off the ground, make sure
that the jack will not damage surrounding truck parts
and adjust the jack position as required.4. By rotating the lug wrench clockwise, raise the vehicle
until the wheel just clears the surface.
WARNING!
Raising the vehicle higher than necessary can make
the vehicle unstable and cause a collision. It could
slip off the jack and hurt someone near it. Raise the
vehicle only enough to remove the tire.
5. Remove the wheel nuts and pull the wheel off. Install
the spare wheel and wheel nuts with the cone shaped
end of the wheel nuts toward the wheel. To avoid the
risk of forcing the vehicle off the jack, do not fully
tighten the wheel nuts until the vehicle has been
lowered.

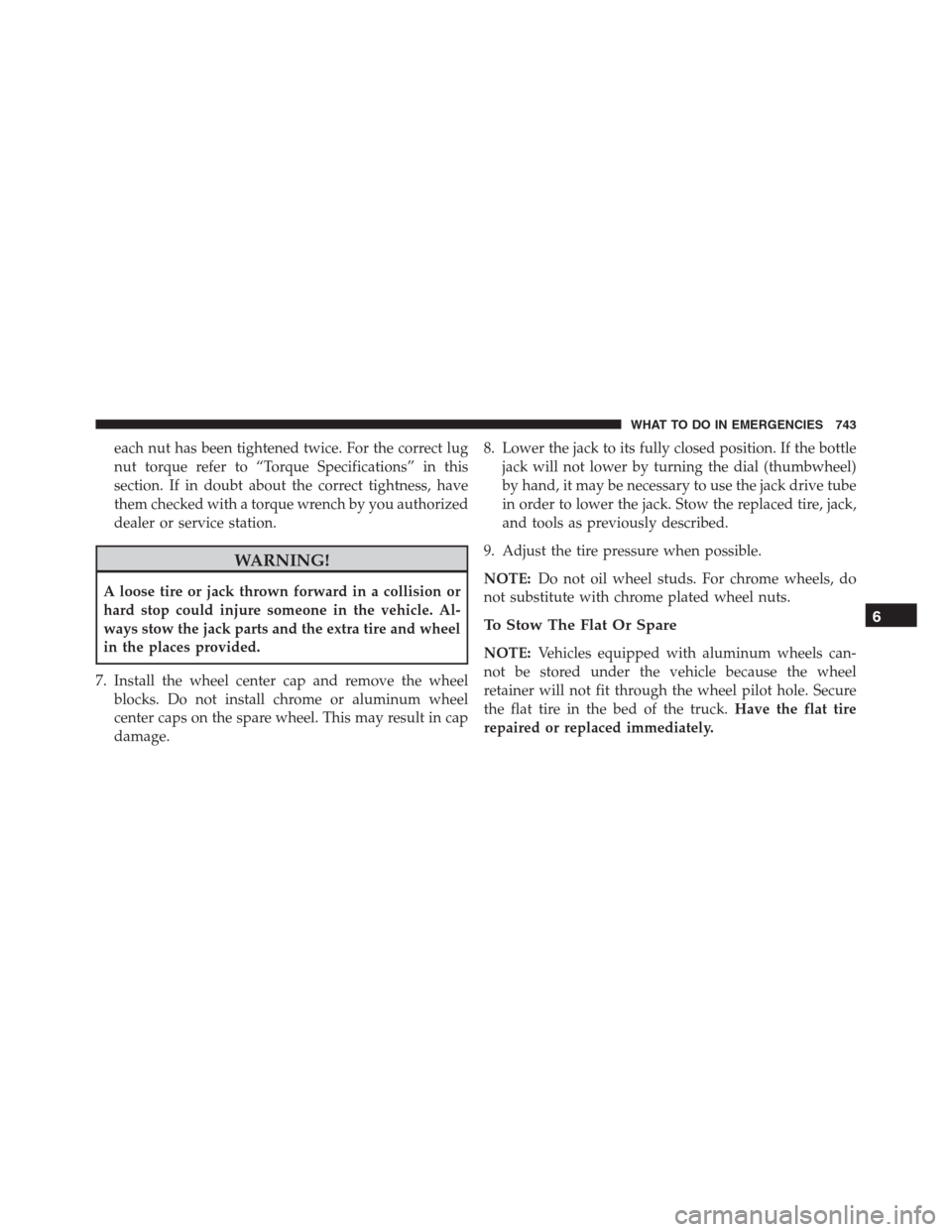

6. Finish tightening the lug nuts. Push down on the
wrench while at the end of the handle for increased
leverage. Tighten the lug nuts in a star pattern until
Rear Jacking Location
742 WHAT TO DO IN EMERGENCIES

each nut has been tightened twice. For the correct lug
nut torque refer to “Torque Specifications” in this
section. If in doubt about the correct tightness, have
them checked with a torque wrench by you authorized
dealer or service station.
WARNING!
A loose tire or jack thrown forward in a collision or
hard stop could injure someone in the vehicle. Al-
ways stow the jack parts and the extra tire and wheel
in the places provided.
7. Install the wheel center cap and remove the wheel
blocks. Do not install chrome or aluminum wheel
center caps on the spare wheel. This may result in cap
damage.8. Lower the jack to its fully closed position. If the bottle
jack will not lower by turning the dial (thumbwheel)
by hand, it may be necessary to use the jack drive tube
in order to lower the jack. Stow the replaced tire, jack,
and tools as previously described.
9. Adjust the tire pressure when possible.
NOTE:Do not oil wheel studs. For chrome wheels, do
not substitute with chrome plated wheel nuts.
To Stow The Flat Or Spare
NOTE:Vehicles equipped with aluminum wheels can-
not be stored under the vehicle because the wheel
retainer will not fit through the wheel pilot hole. Secure
the flat tire in the bed of the truck.Have the flat tire
repaired or replaced immediately.
6
WHAT TO DO IN EMERGENCIES 743

WARNING!
A loose tire thrown forward in a collision or hard
stop could injure the occupants in the vehicle. Have
the deflated (flat) tire repaired or replaced immedi-
ately.

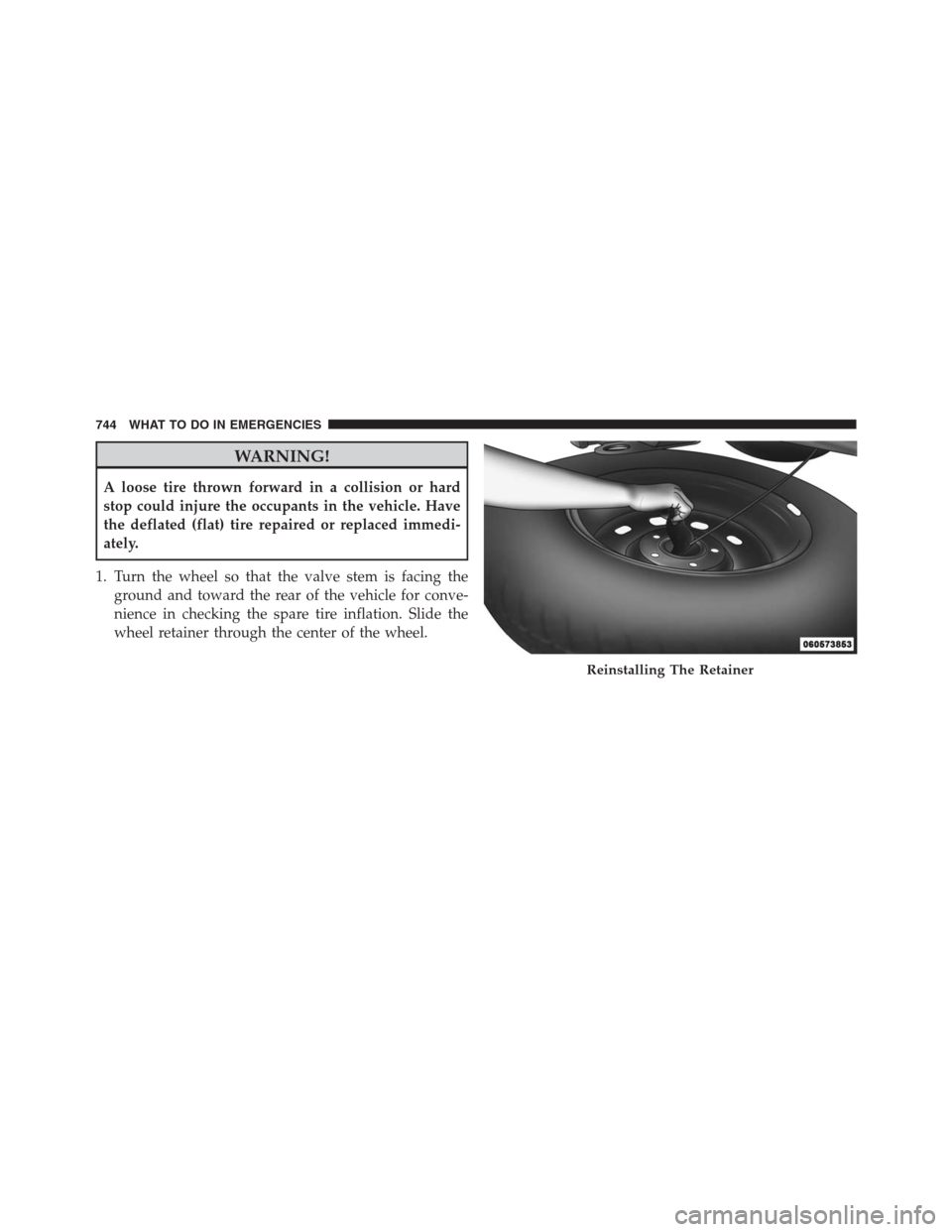

1. Turn the wheel so that the valve stem is facing the
ground and toward the rear of the vehicle for conve-
nience in checking the spare tire inflation. Slide the
wheel retainer through the center of the wheel.
Reinstalling The Retainer
744 WHAT TO DO IN EMERGENCIES

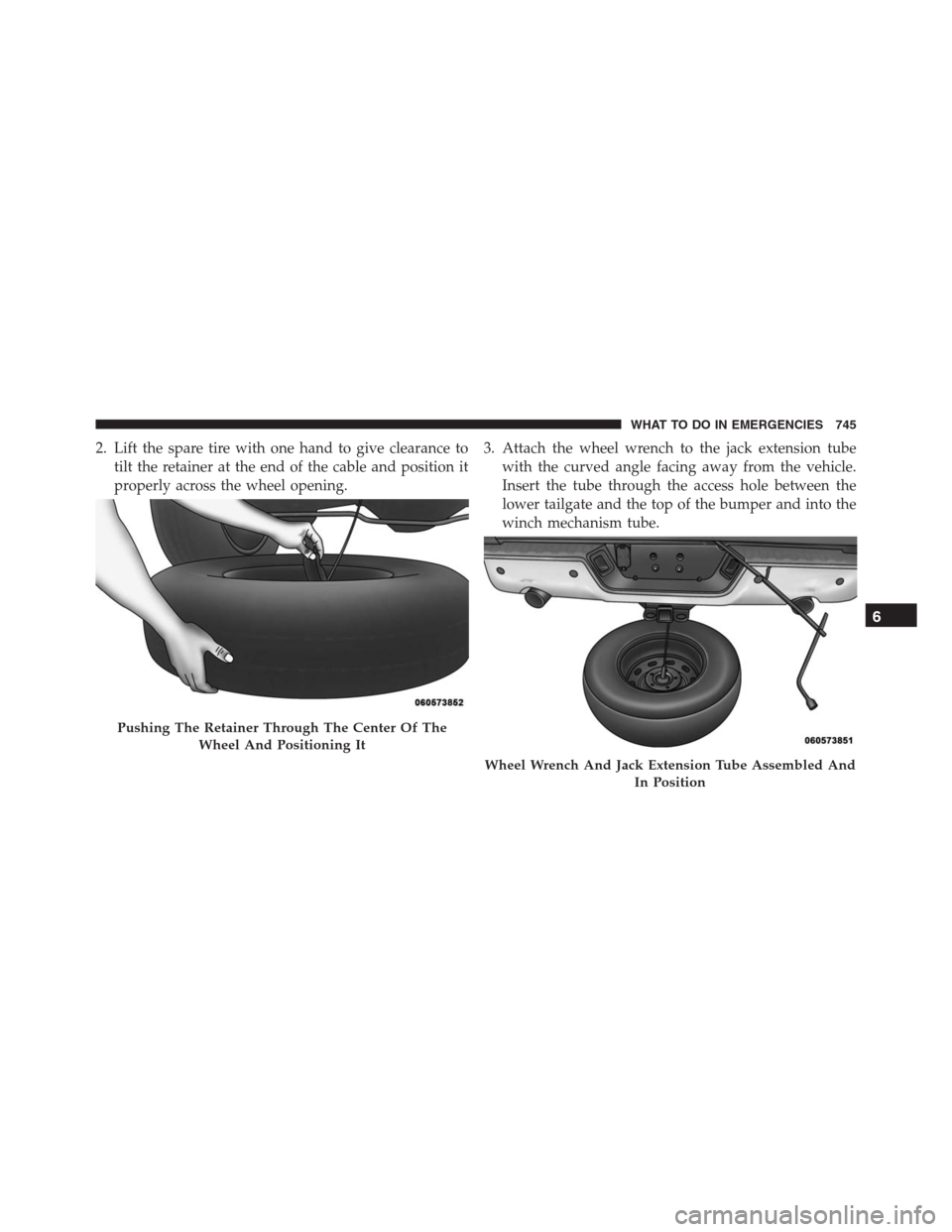

2. Lift the spare tire with one hand to give clearance to
tilt the retainer at the end of the cable and position it
properly across the wheel opening.3. Attach the wheel wrench to the jack extension tube
with the curved angle facing away from the vehicle.
Insert the tube through the access hole between the
lower tailgate and the top of the bumper and into the
winch mechanism tube.
Pushing The Retainer Through The Center Of The
Wheel And Positioning It
Wheel Wrench And Jack Extension Tube Assembled And
In Position
6
WHAT TO DO IN EMERGENCIES 745

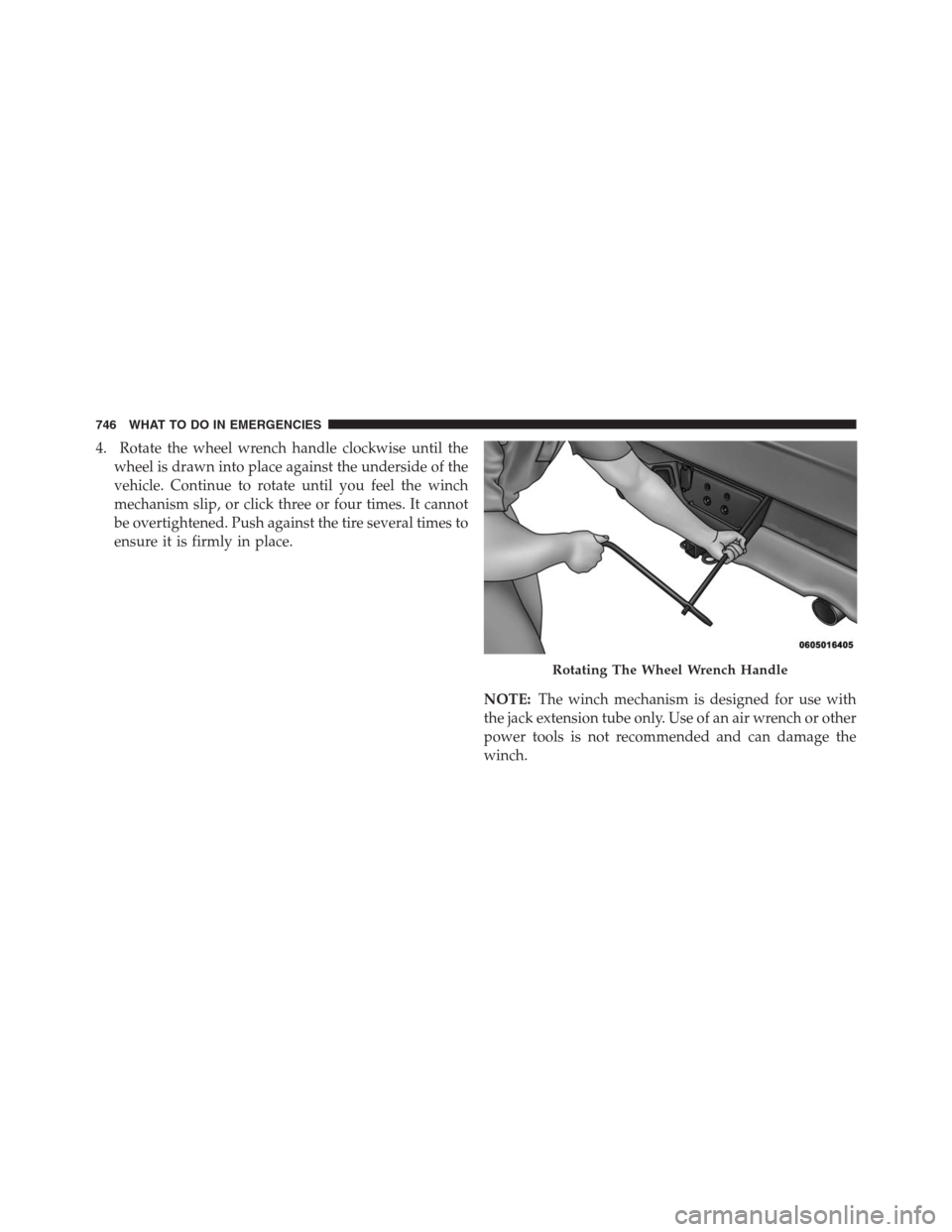

4. Rotate the wheel wrench handle clockwise until the
wheel is drawn into place against the underside of the
vehicle. Continue to rotate until you feel the winch
mechanism slip, or click three or four times. It cannot
be overtightened. Push against the tire several times to
ensure it is firmly in place.
NOTE:The winch mechanism is designed for use with
the jack extension tube only. Use of an air wrench or other
power tools is not recommended and can damage the
winch.
Rotating The Wheel Wrench Handle
746 WHAT TO DO IN EMERGENCIES

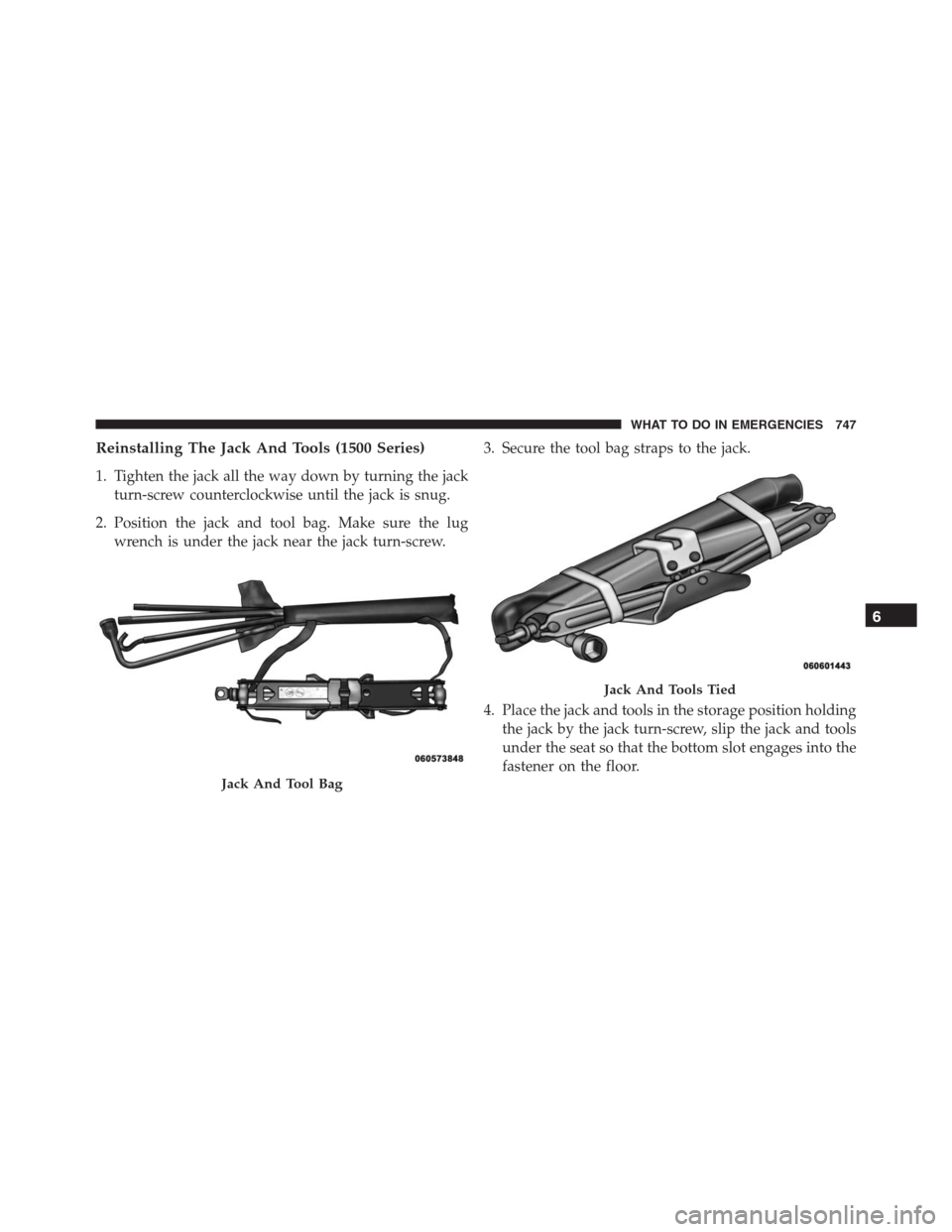

Reinstalling The Jack And Tools (1500 Series)
1. Tighten the jack all the way down by turning the jack
turn-screw counterclockwise until the jack is snug.
2. Position the jack and tool bag. Make sure the lug
wrench is under the jack near the jack turn-screw.3. Secure the tool bag straps to the jack.
4. Place the jack and tools in the storage position holding
the jack by the jack turn-screw, slip the jack and tools
under the seat so that the bottom slot engages into the
fastener on the floor.
Jack And Tool Bag
Jack And Tools Tied
6
WHAT TO DO IN EMERGENCIES 747

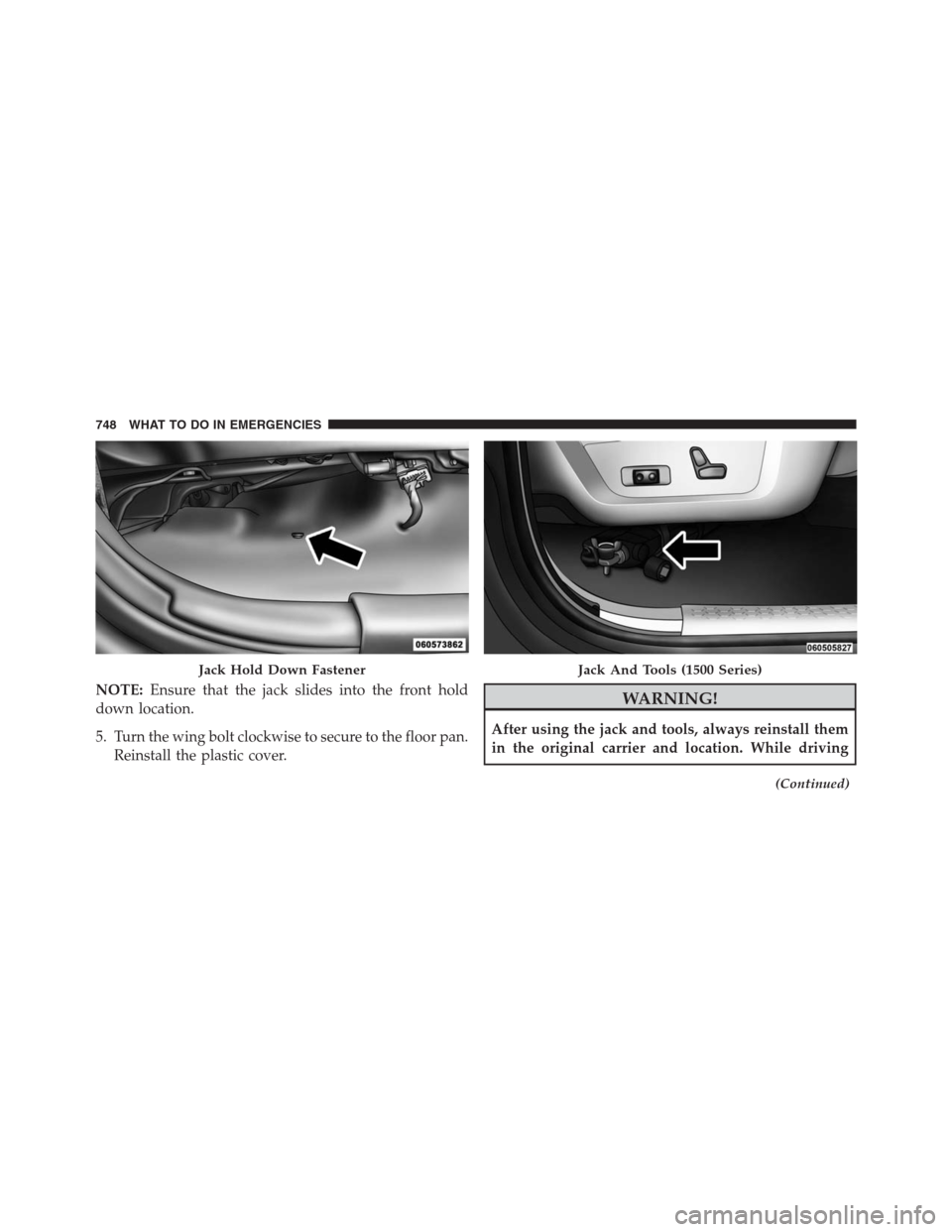

NOTE:Ensure that the jack slides into the front hold
down location.
5. Turn the wing bolt clockwise to secure to the floor pan.
Reinstall the plastic cover.WARNING!
After using the jack and tools, always reinstall them
in the original carrier and location. While driving
(Continued)
Jack Hold Down FastenerJack And Tools (1500 Series)
