Ram 1500 2019 Owner's Guide

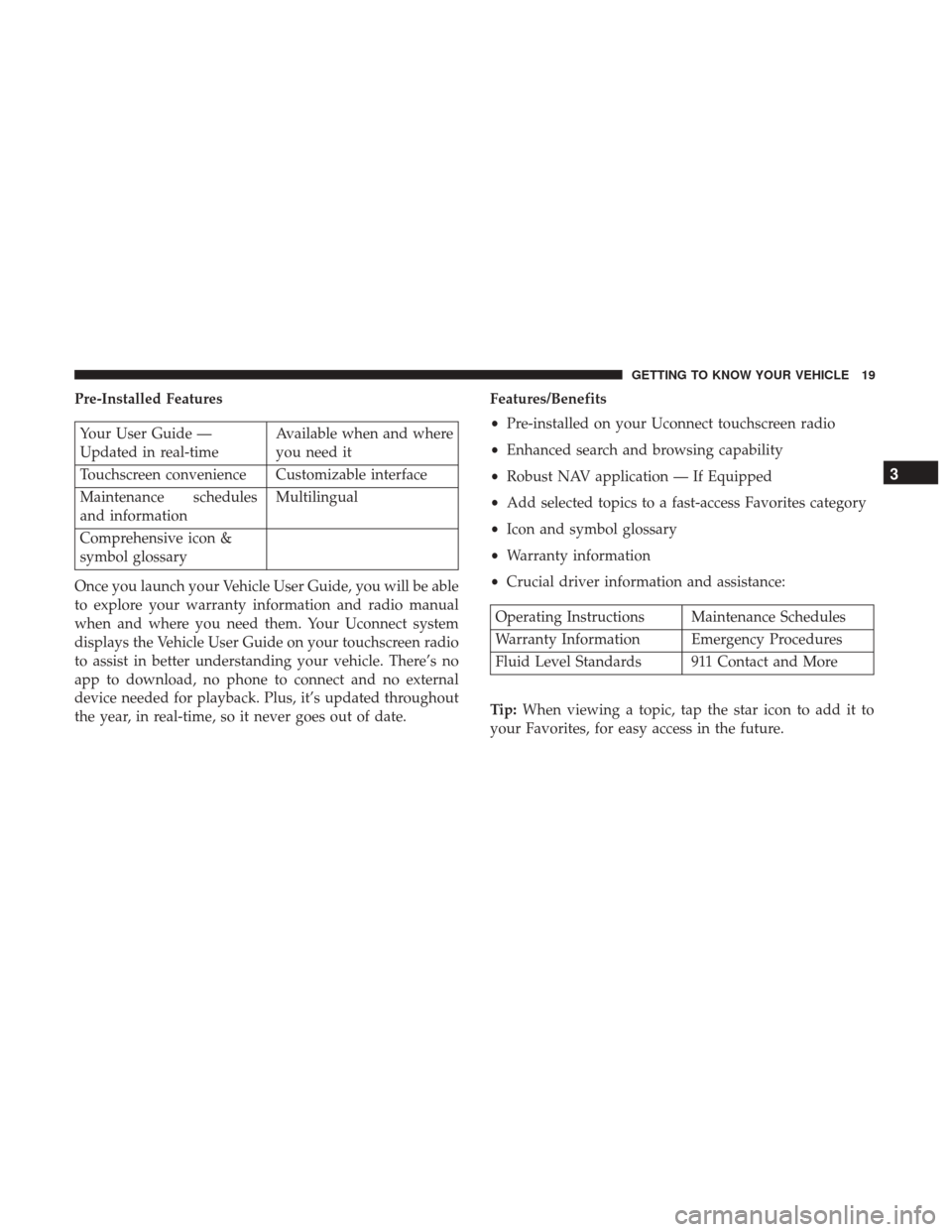

Pre-Installed Features
Your User Guide —
Updated in real-timeAvailable when and where
you need it
Touchscreen convenience Customizable interface
Maintenance schedules
and information Multilingual
Comprehensive icon &
symbol glossary
Once you launch your Vehicle User Guide, you will be able
to explore your warranty information and radio manual
when and where you need them. Your Uconnect system
displays the Vehicle User Guide on your touchscreen radio
to assist in better understanding your vehicle. There’s no
app to download, no phone to connect and no external
device needed for playback. Plus, it’s updated throughout
the year, in real-time, so it never goes out of date. Features/Benefits
•
Pre-installed on your Uconnect touchscreen radio
• Enhanced search and browsing capability
• Robust NAV application — If Equipped
• Add selected topics to a fast-access Favorites category
• Icon and symbol glossary
• Warranty information
• Crucial driver information and assistance:
Operating Instructions Maintenance Schedules
Warranty Information Emergency Procedures
Fluid Level Standards 911 Contact and More
Tip: When viewing a topic, tap the star icon to add it to
your Favorites, for easy access in the future.
3
GETTING TO KNOW YOUR VEHICLE 19

KEYS
Key Fob
Your vehicle uses a keyless ignition system. The ignition
system consists of a key fob with Remote Keyless Entry
(RKE) and a START/STOP push button ignition system.
The Remote Keyless Entry system consists of a key fob and
Keyless Enter-N-Go feature.
NOTE:The key fob may not be found if it is located next to
a mobile phone, laptop or other electronic device; these
devices may block the key fob’s wireless signal.
The key fob allows you to lock or unlock all doors, tailgate,
and the RamBox (if equipped) as well as activate the Panic
Alarm from distances up to approximately 66 ft (20 m)
using a handheld key fob. The key fob does not need to be
pointed at the vehicle to activate the system.
NOTE:
• In the ON/RUN position, all key fob buttons will work
until the vehicle reaches 3 mph (5 km/h).
• The key fob should not be placed next to the wireless
charging pad (if equipped). In case the ignition switch does not change with the push
of a button, the key fob may have a low or fully depleted
battery. In this instance, the instrument cluster will display
directions to follow.
Key Fob
1 — Emergency Key
2 — PANIC
3 — Lock
4 — Unlock
5 — LED Light
20 GETTING TO KNOW YOUR VEHICLE

NOTE:A low key fob battery condition may be indicated
by a message in the instrument cluster display, or by the
LED light on the key fob. If the LED key fob light no longer
illuminates from key fob button pushes, then the key fob
battery requires replacement.
In a situation where the battery is low or fully depleted, a
back up method can be used to operate the ignition switch.
Put the nose side of the key fob (side opposite of the
Emergency Key) against the ENGINE START/STOP button
and push to operate the ignition switch.
To Unlock The Doors And Tailgate
Push and release the unlock button on the key fob once to
unlock the driver ’s door. Push the unlock button twice
within five seconds to unlock all doors, the tailgate and the
RamBox (if equipped). The turn signal lights will flash to
acknowledge the unlock signal. The illuminated entry
system will also turn on.
NOTE: The instrument cluster display or Uconnect Set-
tings are setup for driver door first, otherwise this will
unlock all doors.
To Lock The Doors And Tailgate
Push and release the lock button on the key fob to lock all
doors, the tailgate, and the RamBox (if equipped). The turn
signal lights will flash and the horn will chirp to acknowl-
edge the signal.
Sound Horn With Remote Key Lock
This feature will cause the horn to chirp when the doors are
locked with the key fob. This feature can be turned on or
turned off.
NOTE: Pushing the lock button on the key fob while you
are in the vehicle will activate the vehicle security alarm
system. Opening a door with the vehicle security alarm
system activated will cause the alarm to sound. Push the
unlock button to deactivate the vehicle security alarm
system.
Refer to “Instrument Cluster Display” in “Getting To Know
Your Instrument Panel” for further information.
Using The Panic Alarm
To turn the Panic Alarm feature on or off, push the Panic
button on the key fob. When the Panic Alarm is activated,
the turn signals will flash, the horn will pulse on and off,
and the interior lights will turn on.
3
GETTING TO KNOW YOUR VEHICLE 21

The Panic Alarm will stay on for three minutes unless you
turn it off by either pushing the Panic button a second time
or drive the vehicle at a speed of 15 mph (24 km/h) or
greater.
NOTE:
•The interior lights will turn off if you place the ignition
in the ACC or ON/RUN position while the Panic Alarm
is activated. However, the exterior lights and horn will
remain on.
• You may need to be less than 35 ft (11 m) from the
vehicle when using the key fob to turn off the Panic
Alarm due to the radio frequency noises emitted by the
system.
Air Suspension (Remote Lowering Of The Vehicle) —
If Equipped
For easy entry and loading, your vehicle can be
lowered by pushing the key fob air suspension
lowering button two times. When key fob low-
ering is requested, the vehicle will send a series
of chirps and flashes to alert the customer that the opera-
tion has begun and will continue these alerts until it
successfully lowers. The following conditions must be met for the vehicle to
lower remotely:
•
The vehicle must not already be in Entry/Exit (Park)
ride height.
• The vehicle battery must be fully charged.
• All doors must be closed.
• The key fob must be out of the vehicle.
Canceling Remote Lowering
Vehicle lowering can be cancelled at anytime. When vehicle
lowering is cancelled, the vehicle will raise up to the next
defined level and lock out the remote lowering feature
until the ignition has been cycled ON/OFF.
To cancel vehicle lowering, push the key fob air suspension
lowering button one time during the lowering process.
When vehicle lowering is cancelled, the horn will chirp two
times and the turn signal lamps will flash four times. Once
raising is completed, the horn will chirp one time.
NOTE: Refer to “Active-Level Four Corner Air Suspension
System” in “Starting And Operating” for further informa-
tion.
22 GETTING TO KNOW YOUR VEHICLE

Replacing The Battery In The Key Fob With Remote
Control
The replacement battery model is one CR2450 battery.
NOTE:
•Perchlorate Material — special handling may apply. See
www.dtsc.ca.gov/hazardouswaste/perchlorate for fur-
ther information.
• Do not touch the battery terminals that are on the back
housing or the printed circuit board.
• Do not replace the coin battery if the LED on the keyfob
above the top row buttons blinks against a button press.
The coin battery should last minimum 3 years of normal
vehicle usage. 1. Remove the emergency key by pushing and holding the
release button located on the right side of the key fob.
while pulling the emergency key out with your other
hand.
Emergency Key Removal
1 — Emergency Key
2 — Emergency Key Release Button
3
GETTING TO KNOW YOUR VEHICLE 23

2. Completely remove the emergency key from the keyfob. 3. Hold the key fob with the button side facing down, and
locate the small rectangular gap on the left side between
the housing and the back cover of the key fob. Use a
small screw driver to pry open the left side of the fob
cover, applying pressure until the cover snaps open.
Emergency Key
Key Fob Back Cover Removal — Left Side
24 GETTING TO KNOW YOUR VEHICLE

4. Next, locate the gap on the right side of the key fob,which is positioned further to the edge than the left side
gap. Pry open the right side, and remove the back cover.
5. Remove the battery by using your thumb to slide the battery downward and back toward the key ring. NOTE:
When replacing the battery, ensure the + sign on
the battery is facing upward. Avoid touching the new
battery with your fingers. Skin oils may cause battery
deterioration. If you touch a battery, clean it with rubbing
alcohol.
Key Fob Back Cover Removal — Right Side
Key Fob Battery Location
3
GETTING TO KNOW YOUR VEHICLE 25

6. Replace the battery by using your thumb to push downand slide the battery under the small lip on the top edge
of the opening.
7. To assemble the key fob case, line up the top edge of the back cover with the top of the fob, and press the edges
into the interlocking hinges until all edges snap together
with no large visual gaps.
8. Reinsert the emergency key until it locks into place.
NOTE: The key fob battery should only be replaced by
qualified technicians. If the battery requires replacement,
see an authorized dealer.Programming Additional Key Fobs
Programming the key fob may be performed by an autho-
rized dealer.
NOTE: Once a key fob is programmed to a vehicle, it
cannot be repurposed and reprogrammed to another ve-
hicle.
General Information
The following regulatory statement applies to all radio
frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and
with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, in- cluding interference that may cause undesired opera-
tion.
NOTE: Changes or modifications not expressly approved
by the party responsible for compliance could void the
user ’s authority to operate the equipment.
Key Fob Battery Replacement
26 GETTING TO KNOW YOUR VEHICLE

IGNITION SWITCH
Keyless Push Button Ignition
This feature allows the driver to operate the ignition switch
with the push of a button as long as the Remote Keyless
Entry key fob is in the passenger compartment.
The Keyless Push Button Ignition has four operating
positions; three of which are labeled and will illuminate
when in position. The three positions are OFF, ACC, and
ON/RUN. The fourth position is START, during start RUN
will illuminate.
NOTE:In case the ignition switch does not change with
the push of a button, the key fob may have a low or dead
battery. In this situation, a back up method can be used to
operate the ignition switch. Put the nose side (side opposite
of the emergency key) of the key fob against the ENGINE
START/STOP button, with your foot applied on the brake
pedal, and push to operate the ignition switch. The push button ignition can be placed in the following
modes:
OFF
•
The engine is stopped.
• Some electrical devices (e.g. Central locking, alarm, etc.)
are still available.
Keyless Push Button Ignition
1—OFF
2 — ACC (Accessory)
3 — ON/RUN
3
GETTING TO KNOW YOUR VEHICLE 27

ACC
•Engine is not started.
• Some electrical devices are available.
RUN
• Driving position.
• All the electrical devices are available.
START
• The engine will start.
WARNING!
•When exiting the vehicle, always remove the key fob
from the vehicle and lock your vehicle.
• Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
• Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or others
could be seriously or fatally injured. Children
should be warned not to touch the parking brake,
brake pedal or the gear selector.
(Continued)
WARNING! (Continued)
•Do not leave the key fob in or near the vehicle, or in
a location accessible to children, and do not leave the
ignition of a vehicle equipped with Keyless Enter-
N-Go in the ON/RUN mode. A child could operate
power windows, other controls, or move the vehicle.
• Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
CAUTION!
An unlocked vehicle is an invitation for thieves. Al-
ways remove key fob from the vehicle and lock all
doors when leaving the vehicle unattended.
The engine only runs in the ON/RUN ignition position or
from a remote start request.
28 GETTING TO KNOW YOUR VEHICLE
