RAM 1500 2022 User Guide

9
TECHNICAL SPECIFICATIONS
VEHICLE IDENTIFICATION NUMBER (VIN)......... 466
BRAKE SYSTEM .................................................. 466
WHEEL AND TIRE TORQUE
SPECIFICATIONS .................................................. 466Torque Specifications ................................. 466
FUEL REQUIREMENTS — GASOLINE
ENGINE .................................................................. 467
3.6L Engine.................................................... 467
5.7L Engine.................................................... 467
Reformulated Gasoline ................................. 468Materials Added To Fuel ............................... 468
Gasoline/Oxygenate Blends ......................... 468Do Not Use E-85 In Non-Flex Fuel
Vehicles .......................................................... 468
CNG And LP Fuel System Modifications ...... 468
Methylcyclopentadienyl Manganese
Tricarbonyl (MMT) In Gasoline...................... 469Fuel System Cautions ................................... 469 FUEL REQUIREMENTS – DIESEL ENGINE ........ 469
Diesel Fuel Specifications ............................ 470
Biodiesel Fuel Requirements ....................... 470
FLUID CAPACITIES .............................................. 472
ENGINE FLUIDS AND LUBRICANTS................... 473
CHASSIS FLUIDS AND LUBRICANTS ................ 476
CUSTOMER ASSISTANCE
SUGGESTIONS FOR OBTAINING SERVICE
FOR YOUR VEHICLE ........................................... 477
Prepare For The Appointment ...................... 477Prepare A List ................................................ 477Be Reasonable With Requests..................... 477
IF YOU NEED ASSISTANCE ................................ 477
FCA US LLC Customer Center....................... 477
FCA Canada Inc. Customer Center............... 477
Mexico ............................................................ 478
Puerto Rico And US Virgin Islands................ 478
Customer Assistance For The Hearing
Or Speech Impaired (TDD/TTY) .................... 478
Service Contract ........................................... 478 WARRANTY INFORMATION ................................ 479
MOPAR® PARTS ................................................. 479
REPORTING SAFETY DEFECTS .......................... 479
In The 50 United States And
Washington, D.C............................................ 479
In Canada ...................................................... 479
PUBLICATION ORDER FORMS .......................... 480
GENERAL INFORMATION.................................... 480

22_DT_OM_EN_USC_t.book Page 9

10
INTRODUCTION
Dear Customer,
Congratulations on the purchase of your new Ram vehicle. Be assured that it represents precision workmanship, distinctive styling, and high quality.
This is a specialized utility vehicle. It can go places and perform tasks that are not intended for conventional passenger vehicles. It handles and maneuvers
differently from many passenger vehicles both on-road and off-road, so take time to become familiar with your vehicle. If equipped, the two-wheel drive version
of this vehicle was designed for on-road use only. It is not intended for off-road driving or use in other severe conditions suited for a four-wheel drive vehicle.
Before you start to drive this vehicle, read the Owner’s Manual. Be sure you are familiar with all vehicle controls, particularly those used for braking, steering,
transmission, and transfer case shifting. Learn how your vehicle handles on different road surfaces. Your driving skills will improve with experience. When driving
off-road, or working the vehicle, don’t overload the vehicle or expect the vehicle to overcome the natural laws of physics. Always observe federal, state, provincial
and local laws wherever you drive. As with other vehicles of this type, failure to operate this vehicle correctly may result in loss of control or a collision Úpage 230.
This Owner's Manual has been prepared with the assistance of service and engineering specialists to acquaint you with the operation and maintenance of your
vehicle. It is supplemented by customer-oriented documents. Within this information, you will find a description of the services that FCA US LLC offers to its
customers as well as the details of the terms and conditions for maintaining its validity. Please take the time to read all of these publications carefully before
driving your vehicle for the first time. Following the instructions, recommendations, tips, and important warnings in this manual will help ensure safe and
enjoyable operation of your vehicle.
This Owner's Manual describes all versions of this vehicle. Options and equipment dedicated to specific markets or versions are not expressly indicated in the
text. Therefore, you should only consider the information that is related to the trim level, engine, and version that you have purchased. Any content introduced
throughout the Owner's Information, which may or may not be applicable to your vehicle, will be identified with the wording “If Equipped”. All data contained in
this publication are intended to help you use your vehicle in the best possible way. FCA US LLC aims at a constant improvement of the vehicles produced. For
this reason, it reserves the right to make changes to the model described for technical and/or commercial reasons. For further information, contact an authorized
dealer.
When it comes to service, remember that authorized dealers know your Ram vehicle best, have factory-trained technicians, genuine Mopar® parts, and care
about your satisfaction.

22_DT_OM_EN_USC_t.book Page 10

11
SYMBOLS KEY
If you do not read this entire Owner’s Manual, you may miss important
information. Observe all Cautions and Warnings.
VAN CONVERSIONS/CAMPERS
The New Vehicle Limited Warranty does not apply to body modifications or
special equipment installed by van conversion/camper manufacturers/body
builders. US residents refer to the Warranty Information, Section 2.1.C.
Canadian residents refer to the “What Is Not Covered” section of the Warranty
Information. Such equipment includes video monitors, DVD/Blu-Ray™,
heaters, stoves, refrigerators, etc. For warranty coverage and service on these
items, contact the applicable manufacturer.
CONSUMER INFORMATION — TRUCK-CAMPER LOADING
This information is provided in fulfillment of the requirement by the United
States Government, Department of Transportation, National Highway Traffic
Safety Administration, that “every manufacturer of trucks that are capable of
accommodating slide-in campers, manufactured on or after April 1, 1973 shall
provide... at the time of original purchase to the first person who purchases the
truck”... information on Truck Camper Loading.
A slide-in camper document is provided in your vehicle’s glove compartment
that contains your Vehicle Identification Number, truck model, cargo weight
rating, and the forward/rearward limit of a camper. To obtain additional
dimensional and technical specifications for your vehicle, please visit
https://www.ramtrucks.com.

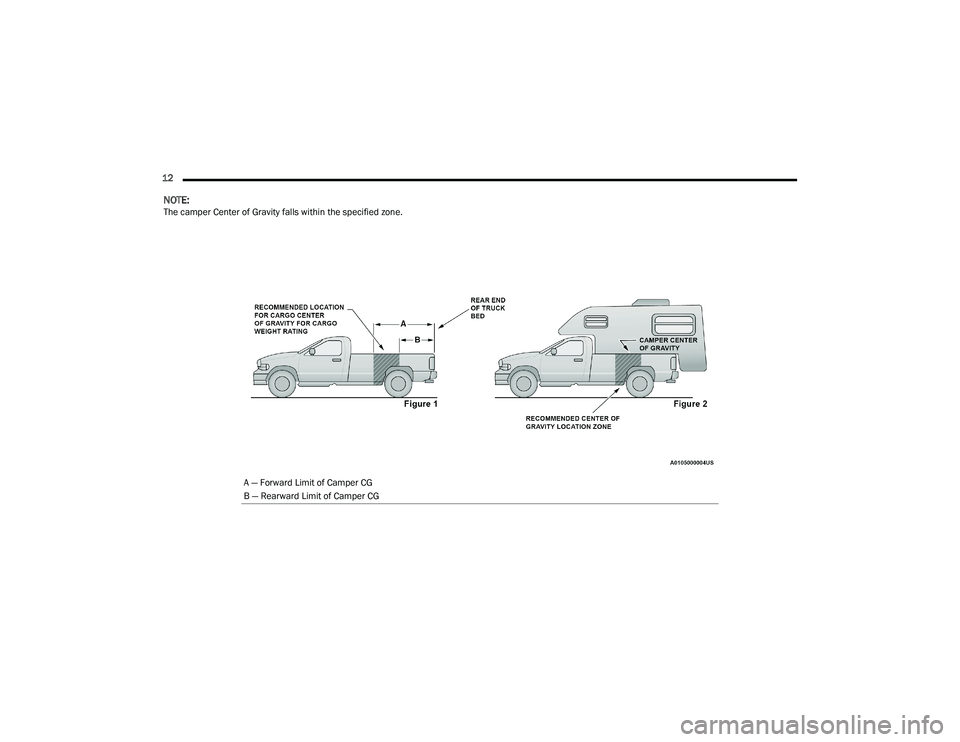

Figure 1 illustrates the dimensions describing the forward and rearward limits
of the zone in which the Center of Gravity (CG) of a slide-in camper must be
located, to provide satisfactory vehicle handling and to prevent overload of the
front and rear axles.
Figure 2 illustrates a proper match between truck and camper.
WARNING!
These statements are against operating
procedures that could result in a collision, bodily
injury and/or death.
CAUTION! These statements are against procedures that
could result in damage to your vehicle.
NOTE: A suggestion which will improve installation,
operation, and reliability. If not followed, may
result in damage.
TIP: General ideas/solutions/suggestions on easier
use of the product or functionality.
PAGE REFERENCE
ARROW Follow this reference for additional information on
a particular feature.
FOOTNOTE Supplementary and relevant information
pertaining to the topic.
1

22_DT_OM_EN_USC_t.book Page 11

12
NOTE:The camper Center of Gravity falls within the specified zone.A — Forward Limit of Camper CG
B — Rearward Limit of Camper CG

22_DT_OM_EN_USC_t.book Page 12

13

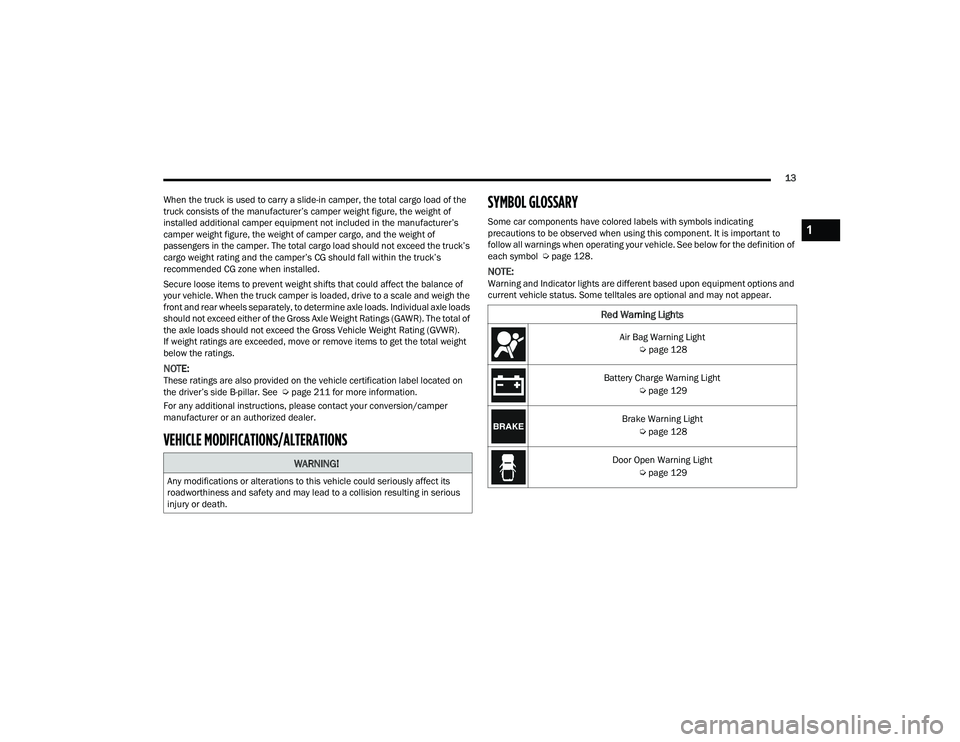

When the truck is used to carry a slide-in camper, the total cargo load of the
truck consists of the manufacturer’s camper weight figure, the weight of
installed additional camper equipment not included in the manufacturer’s
camper weight figure, the weight of camper cargo, and the weight of
passengers in the camper. The total cargo load should not exceed the truck’s
cargo weight rating and the camper’s CG should fall within the truck’s
recommended CG zone when installed.
Secure loose items to prevent weight shifts that could affect the balance of
your vehicle. When the truck camper is loaded, drive to a scale and weigh the
front and rear wheels separately, to determine axle loads. Individual axle loads
should not exceed either of the Gross Axle Weight Ratings (GAWR). The total of
the axle loads should not exceed the Gross Vehicle Weight Rating (GVWR).
If weight ratings are exceeded, move or remove items to get the total weight
below the ratings.
NOTE:These ratings are also provided on the vehicle certification label located on
the driver’s side B-pillar. See Ú page 211 for more information.
For any additional instructions, please contact your conversion/camper
manufacturer or an authorized dealer.
VEHICLE MODIFICATIONS/ALTERATIONS SYMBOL GLOSSARY
Some car components have colored labels with symbols indicating
precautions to be observed when using this component. It is important to
follow all warnings when operating your vehicle. See below for the definition of
each symbol Ú
page 128.
NOTE:Warning and Indicator lights are different based upon equipment options and
current vehicle status. Some telltales are optional and may not appear.
WARNING!
Any modifications or alterations to this vehicle could seriously affect its
roadworthiness and safety and may lead to a collision resulting in serious
injury or death.
Red Warning Lights
Air Bag Warning Light
Úpage 128
Battery Charge Warning Light Úpage 129
Brake Warning Light Úpage 128
Door Open Warning Light Úpage 129
1

22_DT_OM_EN_USC_t.book Page 13

14 Electronic Throttle Control (ETC) Warning Light Úpage 129
Electric Power Steering (EPS) Fault Warning Light Úpage 130
Engine Coolant Temperature Warning Light Úpage 130
Hood Open Warning Light Úpage 130
Oil Pressure Warning Light Úpage 130
Oil Temperature Warning Light Úpage 130
Seat Belt Reminder Warning Light Úpage 130
Tailgate Open Warning Light Úpage 130
Red Warning Lights
Trailer Brake Disconnected Warning Light
Úpage 131
Transmission Temperature Warning Light Úpage 131
Vehicle Security Warning Light Úpage 131
Yellow Warning Lights
Adaptive Cruise Control (ACC) Fault Warning Light
Úpage 131
Air Suspension Fault Warning Light Úpage 131
Anti-Lock Brake System (ABS) Warning Light Úpage 131
Cruise Control Fault Warning Light Úpage 133
Red Warning Lights

22_DT_OM_EN_USC_t.book Page 14

15
Electronic Park Brake Warning Light Úpage 131
Electronic Stability Control (ESC) Active Warning Light Úpage 131
Electronic Stability Control (ESC) OFF Warning Light Úpage 132
Engine Check/Malfunction Indicator Warning Light (MIL) Úpage 132
Low Washer Fluid Warning Light Úpage 132
Low Fuel Warning Light Úpage 132
Rear Axle Locker Fault Indicator Light Úpage 133
Service Forward Collision Warning (FCW) Light Úpage 133
Yellow Warning Lights
Service Stop/Start System Warning Light
Úpage 133
Service 4WD Warning Light Úpage 133
Service LaneSense Warning Light Úpage 132
Tire Pressure Monitoring System (TPMS) Warning Light Úpage 133
Yellow Indicator Lights
Air Suspension Payload Protection Indicator Light
Úpage 134
Air Suspension Off-Road 1 Indicator Light Úpage 134
Air Suspension Off-Road 2 Indicator Light Úpage 134
Yellow Warning Lights
1

22_DT_OM_EN_USC_t.book Page 15

16 Air Suspension Normal Height Indicator Light Úpage 134
Air Suspension Aerodynamic Height Indicator Light Úpage 134
Air Suspension Ride Height Raising Indicator Light Úpage 134
Air Suspension Ride Height Lowering Indicator Light Úpage 135
Cargo Light
Ú page 135
Entry/Exit Indicator Light Úpage 135
Forward Collision Warning Off Indicator Light Úpage 135
Yellow Indicator Lights
Low Diesel Exhaust Fluid (DEF) Indicator Light
Úpage 135
NEUTRAL Indicator Light Úpage 135
Trailer Merge Assist Indicator Light Úpage 135
TOW/HAUL Indicator Light Úpage 135
Rear Axle Lock Indicator Light Úpage 135
4WD Indicator Light Úpage 135
4WD Low Indicator Light Úpage 135
Yellow Indicator Lights

22_DT_OM_EN_USC_t.book Page 16

17
4WD High Indicator Light Úpage 135
Wait To Start Light Indicator Light Úpage 135
Water In Fuel Indicator Light Úpage 136
Green Indicator Lights
Adaptive Cruise Control (ACC) Set With Target Light
Úpage 136
Adaptive Cruise Control (ACC) Set With No Target Detected Indicator Light
Ú page 136
Cruise Control SET Indicator Light With A Premium Instrument Cluster Display
Ú page 136
Yellow Indicator Lights
ECO Mode Indicator Light
Úpage 136
Front Fog Indicator Light Úpage 136
LaneSense Indicator Light Úpage 136
Parking/Headlights On Indicator Light Úpage 136
Stop/Start Active Indicator Light Úpage 136
Turn Signal Indicator Lights Úpage 137
4WD AUTO Indicator Light Úpage 137
Green Indicator Lights
1

22_DT_OM_EN_USC_t.book Page 17

18
White Indicator Lights
Adaptive Cruise Control (ACC) Ready Light Úpage 137
Cruise Control Ready Indicator Úpage 137
Cruise Control SET Indicator Light With Base/Midline Instrument Cluster Display
Ú page 137Hill Descent Control (HDC) Indicator Light
Úpage 137
LaneSense Indicator Light Úpage 137
Blue Indicator Lights
High Beam Indicator Light
Úpage 137
White Indicator Lights

22_DT_OM_EN_USC_t.book Page 18
