engine RAM 1500 2023 Owners Manual

TECHNICAL SPECIFICATIONS393
After 25 miles (40 km), check the lug nut/bolt torque to be
sure that all the lug nuts/bolts are properly seated against
the wheel.

Four, Five, And Six Lug Nuts/Bolts Torque Patterns

FUEL REQUIREMENTS
While operating on gasoline with the required octane
number, hearing a light knocking sound from the engine is
not a cause for concern. However, if the engine is heard
making a heavy knocking sound, see a dealer
immediately. Use of gasoline with a lower than
recommended octane number can cause engine failure
and may void or not be covered by the New Vehicle
Limited Warranty. Poor quality gasoline can cause problems such as hard
starting, stalling, and hesitations. If you experience these
symptoms, try another brand of gasoline before
considering service for the vehicle.
3.6L ENGINE
Do not use E-85 flex fuel or ethanol blends greater than
15% in this engine.
This engine is designed to meet all emissions
regulations and provide optimum fuel economy
and performance when using high quality
unleaded regular gasoline having a posted
octane number of 87 as specified by the (R+M)/2 method.
The use of higher octane premium gasoline is not
required, as it will not provide any benefit over regular
gasoline in these engines.
5.7L ENGINE
Do not use E-85 flex fuel or ethanol blends greater than
15% in this engine.
This engine is designed to meet all emissions
regulations and provide satisfactory fuel
economy and performance when using
high-quality unleaded gasoline having an
octane range of 87 to 89 as specified by the (R+M)/
2 method. The use of 89 octane plus gasoline is
recommended for optimum performance and fuel
economy.
REFORMULATED GASOLINE
Many areas of the country require the use of
cleaner-burning gasoline referred to as “reformulated
gasoline”. Reformulated gasoline contains oxygenates
and are specifically blended to reduce vehicle emissions
and improve air quality.
The use of reformulated gasoline is recommended.
Properly blended reformulated gasoline will provide
improved performance and durability of engine and fuel
system components.
MATERIALS ADDED TO FUEL
Besides using unleaded gasoline with the proper octane
rating, gasolines that contain detergents, corrosion and
stability additives are recommended. Using gasolines that
have these additives will help improve fuel economy,
reduce emissions, and maintain vehicle performance.
Designated TOP TIER Detergent Gasoline
contains a higher level of detergents to further
aide in minimizing engine and fuel system
deposits. When available, the usage of TOP
TIER Detergent Gasoline is recommended. Visit
www.toptiergas.com for a list of TOP TIER Detergent
Gasoline retailers.
Indiscriminate use of fuel system cleaning agents should
be avoided. Many of these materials intended for gum and
varnish removal may contain active solvents or similar
ingredients. These can harm fuel system gasket and
diaphragm materials.
WARNING!
To avoid the risk of forcing the vehicle off the jack, do
not tighten the lug nuts/bolts fully until the vehicle has
been lowered. Failure to follow this warning may result
in personal injury.
9

23_DT_OM_EN_USC_t.book Page 393

394TECHNICAL SPECIFICATIONS
GASOLINE/OXYGENATE BLENDS
Some fuel suppliers blend unleaded gasoline with
oxygenates such as ethanol.
Problems that result from using gasoline containing more
than 15% ethanol (E-15) or gasoline containing methanol
are not the responsibility of the manufacturer and may
void the New Vehicle Limited Warranty.
DO NOT USE E-85 IN NON-FLEX FUEL
V
EHICLES
Non-Flex Fuel Vehicles (FFV) are compatible with gasoline
containing up to 15% ethanol (E-15). Use of gasoline with
higher ethanol content may void the New Vehicle Limited
Warranty. If a Non-FFV vehicle is inadvertently fueled with E-85 fuel,
the engine will have some or all of these symptoms:

Operate in a lean mode.
 OBD II Malfunction Indicator Light on.
 Poor engine performance.
 Poor cold start and cold drivability.
 Increased risk for fuel system component corrosion.
CNG AND LP FUEL SYSTEM
M
ODIFICATIONS
Modifications that allow the engine to run on Compressed
Natural Gas (CNG) or Liquid Propane (LP) may result in
damage to the engine, emissions, and fuel system
components. Problems that result from running CNG or LP
are not the responsibility of the manufacturer and may
void the New Vehicle Limited Warranty.
METHYLCYCLOPENTADIENYL
M
ANGANESE TRICARBONYL (MMT) IN
G
ASOLINE
MMT is a manganese-containing metallic additive that is
blended into some gasolines to increase octane. Gasoline
blended with MMT provides no performance advantage
beyond gasoline of the same octane number without
MMT. Gasoline blended with MMT reduces spark plug life
and reduces emissions system performance in some
vehicles. The manufacturer recommends that gasoline
without MMT be used in your vehicle. The MMT content of gasoline may not be indicated on the
gasoline pump; therefore, you should ask the gasoline
retailer whether the gasoline contains MMT. MMT is
prohibited in Federal and California reformulated
gasoline.
FUEL SYSTEM CAUTIONS
NOTE:Intentional tampering with the emissions control system
can result in civil penalties being assessed against you.
CAUTION!
DO NOT use E-85, gasoline containing methanol, or
gasoline containing more than 15% ethanol (E-15).
Use of these blends may result in starting and
drivability problems, damage critical fuel system
components, cause emissions to exceed the applicable
standard, and/or cause the Malfunction Indicator Light
to illuminate. Please observe pump labels as they
should clearly communicate if a fuel contains greater
than 15% ethanol (E-15).
CAUTION!
Follow these guidelines to maintain your vehicle’s
performance:

The use of leaded gasoline is prohibited by Federal
law. Using leaded gasoline can impair engine perfor -
mance and damage the emissions control system.
 An out-of-tune engine or certain fuel or ignition
malfunctions can cause the catalytic converter to
overheat. If you notice a pungent burning odor or
some light smoke, your engine may be out of tune or
malfunctioning and may require immediate service.
Contact an authorized dealer for service assistance.
 The use of fuel additives, which are now being sold
as octane enhancers, is not recommended. Most of
these products contain high concentrations of meth -
anol. Fuel system damage or vehicle performance
problems resulting from the use of such fuels or addi -
tives is not the responsibility of the manufacturer
and may void or not be covered under the New
Vehicle Limited Warranty.

23_DT_OM_EN_USC_t.book Page 394

TECHNICAL SPECIFICATIONS395
FLUID CAPACITIES
USMetric
Fuel (Approximate)
1500 Regular Cab Shortbed/Crew Quad Cab Models 23 gal87 L
1500 Regular Cab Shortbed/Crew Quad Cab Models 26 gal98 L
1500 Regular Cab Longbed/Crew Quad Cab Models (Optional) 33 gal121 L
Engine Oil With Filter
3.6L Engine 5 qt4.7 L
5.7L Engine 7 qt6.6 L
Cooling System
3.6L Engine 12.8 qt12.1 L
3.6L Motor Generator Unit 1.8 qt1.7 L
5.7L Engine 17.5 qt16.6 L
9

23_DT_OM_EN_USC_t.book Page 395

396TECHNICAL SPECIFICATIONS
ENGINE FLUIDS AND LUBRICANTS
Component Fluid, Lubricant, or Genuine Part
Engine Coolant We recommend using Mopar® Antifreeze/Coolant 10 Year/150,000 Mile (240,000 km)
Formula OAT (Organic Additive Technology).
Motor Generator Unit – 3.6L Engine (If Equipped) We recommend using Mopar® Antifreeze/Coolant 10 Year/150,000 Mile (240,000 km)
Formula OAT (Organic Additive Technology).
Engine Oil – 3.6L & 5.7L Engine We recommend using Mopar® SAE 0W-20 Full Synthetic Engine Oil which meets the
requirements of the manufacturer Material Standard MS-6395. Equivalent full synthetic
SAE 0W-20 engine oil can be used but must have the API Starburst trademark
Úpage 341.
Fuel Selection – 3.6L Engine 87 Octane (R+M)/2 Method, 0-15% ethanol (Do not use E-85).
Fuel Selection – 5.7L Engine 89 Octane Recommended - 87 Octane Acceptable (R+M)/2 Method, 0-15% ethanol (Do
not use E-85).
CAUTION!

Mixing of engine coolant (antifreeze) other than specified Organic Additive Technology (OAT) engine coolant (antifreeze), may result in engine damage and may decrease corrosion
protection. Organic Additive Technology (OAT) engine coolant is different and should not be mixed with Hybrid Organic Additive Technology (HOAT) engine coolant (antifreeze) or
any “globally compatible” coolant (antifreeze). If a non-OAT engine coolant (antifreeze) is introduced into the cooling system in an emergency, the cooling system will need to be
drained, flushed, and refilled with fresh OAT coolant (conforming to MS.90032), by an authorized dealer as soon as possible.
 Do not use water alone or alcohol-based engine coolant (antifreeze) products. Do not use additional rust inhibitors or antirust products, as they may not be compatible with the
radiator engine coolant and may plug the radiator.
 This vehicle has not been designed for use with propylene glycol-based engine coolant (antifreeze). Use of propylene glycol-based engine coolant (antifreeze) is not recommended.

23_DT_OM_EN_USC_t.book Page 396

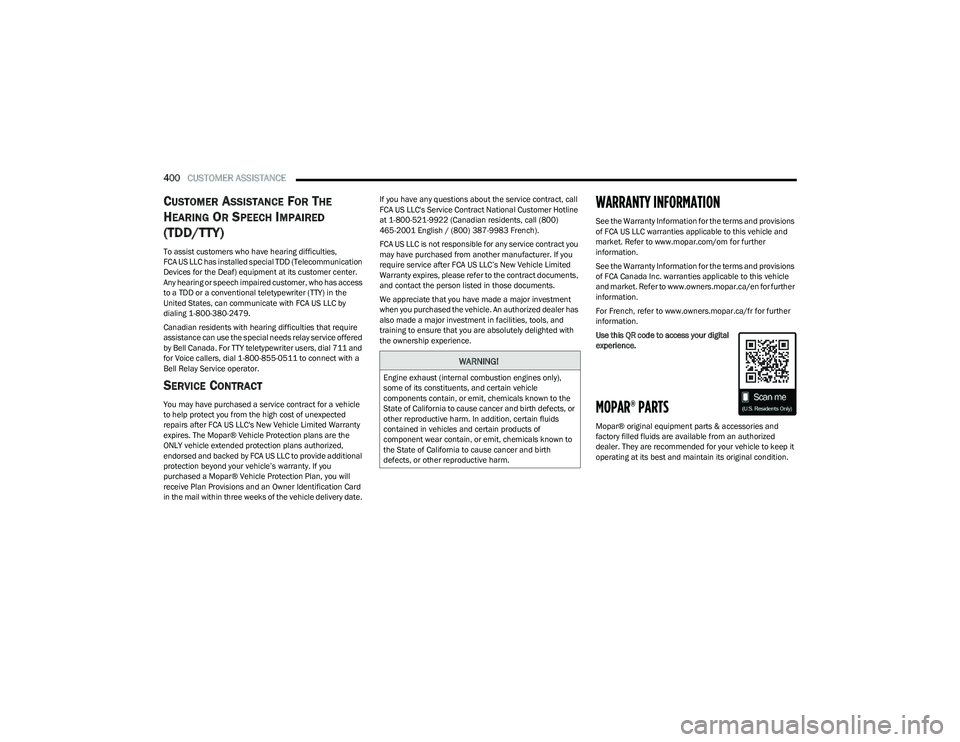

400CUSTOMER ASSISTANCE
CUSTOMER ASSISTANCE FOR THE
H
EARING OR SPEECH IMPAIRED
(TDD/TTY)
To assist customers who have hearing difficulties,
FCA US LLC has installed special TDD (Telecommunication
Devices for the Deaf) equipment at its customer center.
Any hearing or speech impaired customer, who has access
to a TDD or a conventional teletypewriter (TTY) in the
United States, can communicate with FCA US LLC by
dialing 1-800-380-2479.
Canadian residents with hearing difficulties that require
assistance can use the special needs relay service offered
by Bell Canada. For TTY teletypewriter users, dial 711 and
for Voice callers, dial 1-800-855-0511 to connect with a
Bell Relay Service operator.
SERVICE CONTRACT
You may have purchased a service contract for a vehicle
to help protect you from the high cost of unexpected
repairs after FCA US LLC's New Vehicle Limited Warranty
expires. The Mopar® Vehicle Protection plans are the
ONLY vehicle extended protection plans authorized,
endorsed and backed by FCA US LLC to provide additional
protection beyond your vehicle’s warranty. If you
purchased a Mopar® Vehicle Protection Plan, you will
receive Plan Provisions and an Owner Identification Card
in the mail within three weeks of the vehicle delivery date. If you have any questions about the service contract, call
FCA US LLC's Service Contract National Customer Hotline
at 1-800-521-9922 (Canadian residents, call (800)
465-2001 English / (800) 387-9983 French).
FCA US LLC is not responsible for any service contract you
may have purchased from another manufacturer. If you
require service after FCA US LLC’s New Vehicle Limited
Warranty expires, please refer to the contract documents,
and contact the person listed in those documents.
We appreciate that you have made a major investment
when you purchased the vehicle. An authorized dealer has
also made a major investment in facilities, tools, and
training to ensure that you are absolutely delighted with
the ownership experience.
WARRANTY INFORMATION
See the Warranty Information for the terms and provisions
of FCA US LLC warranties applicable to this vehicle and
market. Refer to www.mopar.com/om for further
information.
See the Warranty Information for the terms and provisions
of FCA Canada Inc. warranties applicable to this vehicle
and market. Refer to www.owners.mopar.ca/en for further
information.
For French, refer to www.owners.mopar.ca/fr for further
information.
Use this QR code to access your digital
experience.
MOPAR® PARTS
Mopar® original equipment parts & accessories and
factory filled fluids are available from an authorized
dealer. They are recommended for your vehicle to keep it
operating at its best and maintain its original condition.
WARNING!
Engine exhaust (internal combustion engines only),
some of its constituents, and certain vehicle
components contain, or emit, chemicals known to the
State of California to cause cancer and birth defects, or
other reproductive harm. In addition, certain fluids
contained in vehicles and certain products of
component wear contain, or emit, chemicals known to
the State of California to cause cancer and birth
defects, or other reproductive harm.

23_DT_OM_EN_USC_t.book Page 400

402CUSTOMER ASSISTANCE
Owner's Manuals
These Owner's Manuals have been prepared with the
assistance of service and engineering specialists to
acquaint you with specific FCA vehicles.
To access your Owner's Information online, visit
www.mopar.com/om (US) or www.owners.mopar.ca
(Canada).
Or
Call Tech Authority toll free at:
1-800-890-4038 (US)
Owner's Manuals, Radio Manuals and Warranty
Information Books can be ordered through Archway at:
 1-800-387-1143 (Canada)
CHANGE OF OWNERSHIP OR ADDRESS
*If you have purchased this vehicle used or have changed
your address, please provide the following information
and mail to:
FCA US LLC
P.O. Box 21–8008
Auburn Hills, MI 48321–8004 Make sure to include the following:

Date of Sale (mm/dd/yy)
 Vehicle Identification Number (17 Character ID located
on top left of the instrument panel)
 Exact Odometer Reading
 First and Last Name
 Phone Number
 Street Address, City, State and Zip Code
 Email Address
*Applies to US residents only.
GENERAL INFORMATION
The following regulatory statement applies to all Radio
Frequency (RF) devices equipped in this vehicle:
This device complies with Part 15 of the FCC Rules and
with Innovation, Science and Economic Development
Canada license-exempt RSS standard(s). Operation is
subject to the following two conditions:

1. This device may not cause harmful interference, and

2. This device must accept any interference received, including interference that may cause undesired
operation. Le présent appareil est conforme aux CNR d`Innovation,
Science and Economic Development applicables aux
appareils radio exempts de licence. L'exploitation est
autorisée aux deux conditions suivantes:

1. l'appareil ne doit pas produire de brouillage, et

2. l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est
susceptible d'en compromettre le fonctionnement.
La operación de este equipo está sujeta a las siguientes
dos condiciones:

1. es posible que este equipo o dispositivo no cause interferencia perjudicial y

2. este equipo o dispositivo debe aceptar cualquier interferencia, incluyendo la que pueda causar su
operación no deseada.
NOTE:Changes or modifications not expressly approved by the
party responsible for compliance could void the user’s
authority to operate the equipment.

23_DT_OM_EN_USC_t.book Page 402

403
INDEX
AAccessory Drive Belt Inspection .................................. 346
Adaptive Cruise Control (ACC)
(Cruise Control) ................................................... 143
, 145
Adding Engine Coolant (Antifreeze) ............................ 350
Adding Fuel................................................................... 171
Additives, Fuel .............................................................. 393
Adjust Down...........................................................................32
Forward ...................................................................... 32
Rearward ....................................................................32
Up................................................................................ 32
Adjustable Pedals ...........................................................38
Advance Phone Connectivity ....................................... 235
Air Bag Air Bag Operation.................................................... 290
Air Bag Warning Light .................................... 288
, 291
Enhanced Accident Response ...................... 297, 332
Event Data Recorder (EDR).................................... 332 Front Air Bag ........................................................... 291
If Deployment Occurs ............................................. 297
Knee Impact Bolsters ............................................. 294
Maintaining Your Air Bag System .......................... 298
Maintenance ........................................................... 298
Redundant Air Bag Warning Light ......................... 289
Transporting Pets.................................................... 311
Air Bag Light ...............................................108
, 288, 311
Air Cleaner, Engine (Engine Air Cleaner Filter) ........... 342
Air Conditioner Maintenance ...................................... 344
Air Conditioner Refrigerant .......................................... 344
Air Conditioner System ................................................ 344 Air Conditioning........................................................ 54
, 56
Air Conditioning Filter ............................................59, 344
Air Conditioning System ................................................. 59
Air Conditioning, Operating Tips .................................... 59
Air Filter ............................................................... 342
, 344
Air Pressure Tires.......................................................................... 377
Air Suspension .................................................... 134
, 137
Alarm Panic........................................................................... 17
Security Alarm...................................................23
, 110
Alterations/Modifications Vehicle........................................................................ 11
Antifreeze (Engine Coolant) ............................... 350
, 395
Disposal ...................................................................351
Anti-Lock Brake System (ABS) ..................................... 262
Anti-Lock Warning Light................................................ 110
Assist, Hill Start ............................................................. 266
Audio Settings ............................................................... 224
Audio Systems (Radio) ................................................. 191
Auto Down Power Windows............................................ 70
Automatic Door Locks .................................................... 27 Automatic Headlights ..................................................... 48Automatic High Beams ................................................... 47
Automatic Tailgate Release ........................................... 75
Automatic Temperature Control (ATC) .......................... 59
Automatic Transmission ..................................... 125
, 353
Adding Fluid ............................................................. 353
Fluid And Filter Change ...........................................353
Fluid Change ............................................................353 Fluid Level Check ....................................................353 Fluid Type .......................................................353
, 397
Special Additives ..................................................... 353
Automatic Transmission Limp Home Mode ............... 128
AutoPark ....................................................................... 119
AUX Camera .................................................................. 168
Auxiliary Driving Systems ............................................. 269
Axle Fluid.............................................................. 353
, 397
Axle Locker System ...................................................... 140
Axle Lubrication ............................................................ 353
BBack-Up Camera........................................................... 163
Battery..................................................................108, 340
Charging System Light ............................................ 108
Keyless Key Fob Replacement................................. 17
Battery Saver Feature .................................................... 50
Bed Divider ..................................................................... 84 Bed Extender .................................................................. 84
Bed Step ......................................................................... 78
Bedliner......................................................................... 389
Belts, Seat..................................................................... 311
Blind Spot Monitoring .................................................. 269
Bluetooth Connecting To A Particular Mobile Phone Or Audio Device After Pairing ................................. 231
Body Builders Guide..........................................................9
Body Mechanism Lubrication ...................................... 347
Bodywork ...................................................................... 388
B-Pillar Location ........................................................... 374
Brake Assist System..................................................... 263
Brake Control System .................................................. 263
11

23_DT_OM_EN_USC_t.book Page 403

404
Brake Fluid .......................................................... 352, 397
Brake System ...................................................... 352, 392
Fluid Check.............................................................. 352
Master Cylinder ....................................................... 352
Parking .................................................................... 122
Warning Light .......................................................... 108
Brake/Transmission Interlock..................................... 125
Bulb Replacement ....................................................... 365
Bulbs, Light.......................................................... 313
, 365
CCamera ......................................................................... 163
Camera, AUX................................................................. 168
Camera, Rear ............................................................... 163
Camera, Surround View ............................................... 165
Camera, Trailer 360..................................................... 168
Capacities, Fuel............................................................ 395
Caps, Filler Oil (Engine) .............................................................. 337
Radiator (Coolant Pressure)................................... 350
Car Washes .................................................................. 388
Carbon Monoxide Warning .......................................... 313
Care And Maintenance ................................................ 388
Cargo Light ...................................................................... 49
CD.................................................................................. 226
Cellular Phone .............................................................. 252
Center High Mounted Stop Light................................. 369
Center Seat Storage Compartment ...............................60
Chart, Tire Sizing .......................................................... 371
Check Engine Light (Malfunction Indicator Light) ...... 117
Checking Your Vehicle For Safety ............................... 311
Checks, Safety.............................................................. 311
Child Restraint.............................................................. 298 Child Restraints
Booster Seats .......................................................... 301
Child Seat Installation ................................... 306
, 308
How To Stow An unused ALR Seat Belt .................305 Infant And Child Restraints ..................................... 300
Locating The LATCH Anchorages............................ 304
Lower Anchors And Tethers For Children............... 302
Older Children And Child Restraints....................... 300
Seating Positions ..................................................... 301
Clean Air Gasoline ........................................................ 393
Cleaning Wheels .....................................................................383
Climate Control ............................................................... 54 Automatic ................................................................... 54
Manual ....................................................................... 56
Compact Spare Tire ...................................................... 381
Connected Services ................ 236
, 237, 238, 239, 248
Contract, Service .......................................................... 400
Controls ......................................................................... 218
Cooling Pressure Cap (Radiator Cap) ..........................350
Cooling System ............................................................. 349 Adding Coolant (Antifreeze) ....................................350
Coolant Level ................................................. 349
, 351
Cooling Capacity ...................................................... 395
Disposal Of Used Coolant ....................................... 351 Drain, Flush, And Refill............................................349
Inspection ................................................................ 351
Points To Remember............................................... 352
Pressure Cap ...........................................................350
Radiator Cap ............................................................350Selection Of Coolant (Antifreeze) ........ 350
, 395, 396
Corrosion Protection ..................................................... 388
Cruise Control Accel/Decel.............................................................. 144 Cancel ...................................................................... 145
Resume.................................................................... 144
Cruise Control (Speed Control) ........................... 143
, 145
Cruise Light ..........................................................115, 116
Customer Assistance ................................................... 398
Cybersecurity ................................................................ 191
DDaytime Running Lights ................................................. 47 Dealer Service .............................................................. 341
Defroster, Windshield .................................... 54
, 56, 311
Deleting A Phone .......................................................... 231
Diagnostic System, Onboard ....................................... 116
Differential, Limited Slip .............................................. 140
Dimmer Control Switch .................................................. 51
Disable Vehicle Towing ................................................ 330
Disc Drive ...................................................................... 226
Disconnecting ............................................................... 231
Disposal Antifreeze (Engine Coolant) .................................... 351
Disturb........................................................................... 234
Door Ajar .............................................................. 108
, 110
Door Ajar Light ..................................................... 108, 110
Door Locks Automatic .................................................................. 27
Doors ............................................................................... 24
Driver Memory Presets ................................................ 224
Driver’s Seat Back Tilt .................................................... 30
Driving Through Flowing, Rising, Or Shallow Standing Water .................................................. 189
Driving Tips ................................................................... 189
Dual Rear Wheels......................................................... 392

23_DT_OM_EN_USC_t.book Page 404

405
E
Electric Brake Control System..................................... 263 Anti-Lock Brake System ......................................... 262
Electronic Roll Mitigation .............................. 264
, 268
Electric Parking Brake ................................................. 122
Electric Power Steering................................................ 141
Electrical Power Outlets..................................................66 Electronic Range Select (ERS) .................................... 128
Electronic Stability Control (ESC) ................................ 264
Electronic Throttle Control Warning Light................... 109
Electronically Shifted Transfer Case .................. 130
, 132
Emergency Braking ...................................................... 276
Emergency Gas Can Refueling .................................... 326
Emergency, In Case Of Freeing Vehicle When Stuck .................................. 329
Hazard Warning Flasher ......................................... 314
Jump Starting .......................................................... 325
Emission Control System Maintenance...................... 117
Engine ........................................................................... 337 Air Cleaner ............................................................... 342Block Heater ........................................................... 121
Break-In Recommendations .................................. 122
Compartment ........................................337
, 338, 339
Compartment Identification .................337, 338, 339
Coolant (Antifreeze) ................................................ 396
Exhaust Gas Caution .............................................. 313
Fails To Start ........................................................... 121
Flooded, Starting .................................................... 121
Fuel Requirements ........................................ 393
, 395
Jump Starting .......................................................... 325
Oil ...........................................................341
, 395, 396
Oil Filler Cap ............................................................ 337 Oil Filter ....................................................................342
Oil Selection ................................................... 341
, 395
Oil Synthetic ............................................................. 342
Overheating ............................................................. 327
Starting.....................................................................118
Enhanced Accident Response Feature ............. 297
, 332
Entry System, Illuminated .............................................. 52 Ethanol .......................................................................... 394
Exhaust Gas Cautions ..................................................313
Exhaust System .................................................. 313
, 348
Exterior Lights ........................................................46, 313
FFamily Alerts .................................................................. 248
FAQ ................................................................................ 248
Features ........................................................................ 239
Filters Air Cleaner ............................................................... 342
Air Conditioning ................................................59
, 344
Engine Oil ................................................................. 342
Engine Oil Disposal..................................................342
Flashers Turn Signals ................................................... 115
, 313
Flash-To-Pass .................................................................. 48
Flat Tire Stowage .......................................................... 323
Fluid Capacities ............................................................395
Fluid Leaks ....................................................................313
Fluid Level Checks Brake ........................................................................ 352
Fluid, Brake ...................................................................397
Fog Lights ...............................................................48
, 368
Fold-Flat Seats ................................................................ 30 Forward Collision Warning ........................................... 274
Four Wheel Drive .......................................................... 130
Four-Way Hazard Flasher ............................................. 314
Freeing A Stuck Vehicle ............................................... 329
Front Axle (Differential) ................................................ 353
Fuel................................................................................ 393
Adding ...................................................................... 171Additives .................................................................. 393
Clean Air .................................................................. 393
Ethanol..................................................................... 394Gasoline ................................................................... 393
Light ......................................................................... 111
Materials Added ...................................................... 393
Methanol ................................................................. 394
Octane Rating.................................................393
, 396
Requirements .................................................393, 395
Tank Capacity .......................................................... 395
Fuel Saver Technology ................................................. 141
Fuses ............................................................................. 354
GGarage Door Opener (HomeLink) .................................. 42 Gasoline, Clean Air ....................................................... 393
Gasoline, Reformulated ............................................... 393
Getting Started ............................................................. 238
Glass Cleaning .............................................................. 391
Grocery Bag Retainer ..................................................... 34
Gross Axle Weight Rating ............................................. 173
Gross Combination Weight Rating .............................. 173
Gross Trailer Weight ..................................................... 173
Gross Vehicle Weight Rating ....................................... 173
Guide Body Builders ...............................................................9
GVWR ............................................................................ 172
11

23_DT_OM_EN_USC_t.book Page 405

406 H
Hazard Driving Through Flowing, Rising, OrShallow Standing Water .................................... 189
Hazard Warning Flashers ............................................ 314
Head Restraints .............................................................. 34
Head Rests ...................................................................... 34
Head Up Display (HUD) — If Equipped

b
................. 105
Headlights .................................................................... 366 Cleaning................................................................... 388
Delay ...........................................................................48
High Beam..................................................................47
High Beam/Low Beam Select Switch .......................47
Lights On Reminder ...................................................48
On With Wipers ..........................................................48
Passing ....................................................................... 48
Switch .........................................................................46
Heads Up Display (HUD) ..................................... 104
, 105
Heated Mirrors ................................................................42 Heated Seats...................................................................33
Heated Steering Wheel...................................................28Heater, Engine Block ................................................... 121
High Beam/Low Beam Select (Dimmer) Switch ...........47
Hill Start Assist ............................................................. 266
Hitches Trailer Towing .......................................................... 176
HomeLink (Garage Door Opener) ..................................42
Hood Release ..................................................................74
HUD ...................................................................... 104
, 105
IIgnition............................................................................. 20 Switch......................................................................... 20
Ignition Park Interlock ..................................................125
Illuminated Entry............................................................. 52
Inside Rearview Mirror ..........................................38
, 314
Instrument Cluster ............................................ 93, 95, 98
Descriptions ........................................................ 94, 96
Display........................................................................ 98
Engine Oil Reset ...................................................... 101
Location And Controls ............................................... 98
Menu Items .............................................................. 101
Instrument Cluster Display Audio ........................................................................ 103
Driver Assist ............................................................. 101
Fuel Economy .......................................................... 102
Off-Road ...................................................................102Speedometer ...........................................................101StopStart .................................................................. 103
Stored Messages..................................................... 103Trailer Tow................................................................ 103
Trip............................................................................103
Vehicle Info .............................................................. 102
Instrument Panel Lens Cleaning ................................. 391
Integrated Trailer Brake Control ..................................180
Interior Appearance Care ............................................. 390
Interior Lights .................................................................. 50
Introduction...................................................................237
Inverter Outlet (115V) .................................................... 67
JJack Location ................................................................ 317
Jacking And Tire Changing
b
.................................... 317
Jump Starting ............................................................... 325
KKey Fob ........................................................................... 16 Panic Alarm ............................................................... 17
Programming Additional Key Fobs ........................... 19
Key Fob Battery Replacement ....................................... 17
Key Fob Programming (Remote Keyless Entry)............ 19 Keyless Enter ‘n Go ............................................... 25
, 118
Passive Entry ............................................................. 25
Keys ................................................................................. 16
LLane Change Assist ........................................................ 49 LaneSense .................................................................... 161
Lap/Shoulder Belts ...................................................... 283
Latches ......................................................................... 313 Hood........................................................................... 74
Lead Free Gasoline ...................................................... 393
Leaks, Fluid................................................................... 313
Life Of Tires ................................................................... 379
Light Air Suspension ........................................................ 113
Light Bulbs ...........................................................313
, 365

23_DT_OM_EN_USC_t.book Page 406
