Ram 2500 2011 Owner's Manual

Mega CabRear Seat Features
Reclining Rear Seats — If Equipped
The recliner handle is located on the outside of the seat
cushion. To adjust the seatback, lift upward on the
handle, lean back on the seatback and when you reach
the desired position, release the handle.
WARNING!
Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your chest.
In a collision you could slide under the seat belt,
which could result in serious injury or death.
Folding Rear Seat (Table Mode) — If Equipped
Both the left and right rear seatbacks can be folded down
and used as a table.
To fold down either rear seatback:
1. Lift the handle, located next to the head restraint.
Rear Seat Recliner Handle
110 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

2. Fold the seatback forward. 3. Lift the seatback, to return the seat to the upright
position. Be sure the seatback is locked in place.
Folding Rear Seat — If Equipped
Both the outboard rear seats will drop and move forward
when the seatback is folded flat.

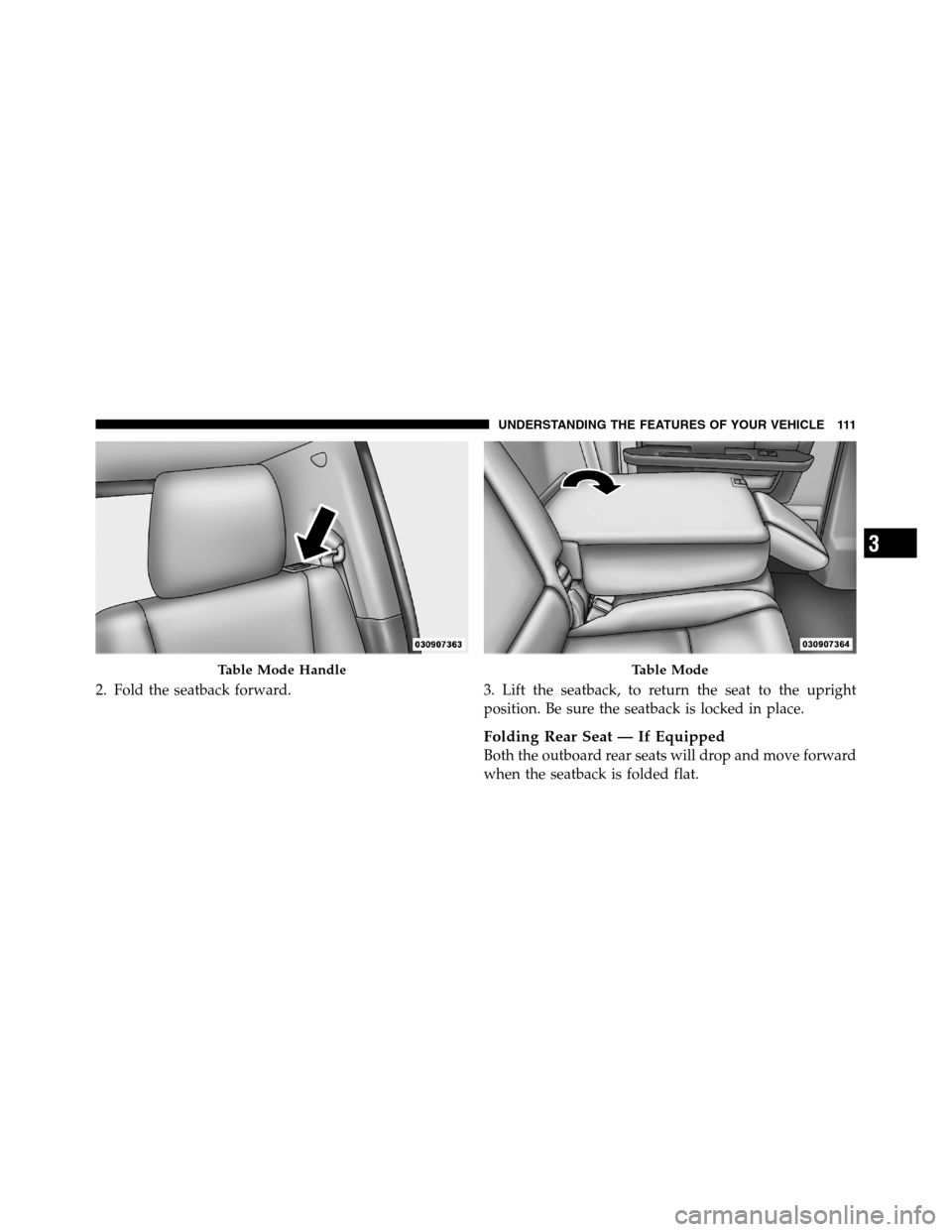

Table Mode HandleTable Mode
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 111

WARNING!
•It is dangerous to ride in a cargo area, inside or
outside of a vehicle. In a collision, people riding in
these areas are more likely to be seriously injured
or killed.
•Do not allow people to ride in any area of your
vehicle that is not equipped with seats and seat
belts.
•Be sure everyone in your vehicle is in a seat and
using a seat belt properly.
•Cargo must be securely tied down before driving
your vehicle. Improperly secured cargo can fly
around in a sudden stop or collision and strike
someone in the vehicle, causing serious injury or
death.To fold either rear seat flat:
1. Lift the handle, located on the outboard side of either
of the rear seats.
Handle
112 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

2. Fold the seatback down and push the seat forward.
3. Lift the seatback, to return the seat to the upright
position. Be sure the seat is locked in place.WARNING!
An improperly latched seat could cause serious in-
jury or death. Make sure that the seatback is securely
locked into position. If the seatback in not securely
locked into position the seat will not provide the
proper stability for child seats and/or passengers.
Head Restraints
Head restraints are designed to reduce the risk of injury
by restricting head movement in the event of a rear
impact. Head restraints should be adjusted so that the top
of the head restraint is located above the top of your ear.
Rear Passenger Fold Flat Seats
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 113

WARNING!
The head restraints for all occupants must be prop-
erly adjusted prior to operating the vehicle or occu-
pying a seat. Head restraints should never be ad-
justed while the vehicle is in motion. Driving a
vehicle with the head restraints improperly adjusted
or removed could cause serious injury or death in the
event of a collision.
Front Head Restraints
To raise the head restraint, pull upward on the head
restraint. To lower the head restraint, press the adjust-
ment button, located on the base of the head restraint,
and push downward on the head restraint.
Adjustment Button
114 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Rear Head Restraints
The two outboard seat are equipped with adjustable head
restraints. To raise the head restraint, pull upward on the
head restraint. To lower the head restraint, press the
adjustment button, located on the base of the head
restraint, and push downward on the head restraint.NOTE:•The rear center head restraint (Crew Cab only) has
only one adjustment position that is used to aid in the
routing of a tether. Refer to “Occupant Restraints” in
“Things to Know Before Starting Your Vehicle” for
further information.
•The head restraints should only be removed by quali-
fied technicians, for service purposes only. If either of
the head restraints require removal, see your autho-
rized dealer.
Adjustment Button
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 115

DRIVER MEMORY SEAT — IF EQUIPPED
Driver memory seats allow the driver to recall settings
for the adjustable pedals, mirrors, seats and the radio
presets using the key fob.
The memory seat buttons are located on the outboard
side of the drivers seat cushion.The memory buttons 1 and 2 can be programmed to
recall the driver’s seat position, driver’s outside mirror
position, adjustable brake, accelerator pedals position,
Automatic Temperature Control (ATC) temperature set-
ting and radio station preset settings. Your Remote
Keyless Entry (RKE) transmitters can also be pro-
grammed to recall the same positions when the UN-
LOCK button is pressed.
NOTE:The power lumbar option is not programmable
with driver memory seats.
Your vehicle was delivered with two RKE transmitters.
One or both RKE transmitters can be linked to either
memory position. The memory system can accommodate
up to two RKE transmitters, each RKE transmitter linked
to either of the two memory positions.
Memory Seat Buttons
116 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Setting Memory Positions and Linking RKE
Transmitter to Memory
NOTE:Each time the S (SET) button and a numbered
button (1 or 2) are pressed, you erase the memory settings
for that button and store new settings.
1. Turn the vehicle key to the ON/RUN position.
2. Adjust the driver’s seat, recliner, and both sideview
mirrors to the desired positions.
NOTE:Not all motors may be moved at one time. Refer
to “Seats/Eight-Way Power Seat” in this section for
further information.
3. Adjust the brake and accelerator pedals to the desired
positions.
4. Turn on the radio and set the radio station presets (up
to 10 AM and 10 FM stations can be set).5. Adjust the Automatic Temperature Control (ATC)
while the ATC is in Auto mode.
6. Press and release the SET button located on the
driver’s seat.
7. Within five seconds, press and release MEMORY
button 1 or 2 on the driver’s seat. The next steps must be
performed within 10 seconds if you desire to also use a
RKE transmitter to recall memory positions.
8. Turn the ignition OFF and remove the key.
9. Press and release the LOCK button on one of the RKE
transmitters.
10. Repeat the above steps to set the next memory
position using the other numbered memory button or to
link another RKE transmitter to memory.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 117

Memory Position Recall
NOTE:
•The vehicle must be in PARK to recall the memory
positions.
•Not all motors may be moved at one time. Refer to the
“Seats/Eight-Way Power Seat” in this section for fur-
ther information.
To recall the memory settings for driver one, press
MEMORY button number 1 on the driver’s seat or the
UNLOCK button on the RKE transmitter linked to
memory position 1.
To recall the memory setting for driver two, press
MEMORY button number 2 on the driver’s seat or the
UNLOCK button on the RKE transmitter linked to
memory position 2.
A recall can be cancelled by pressing any of the
MEMORY buttons on the driver’s seat during a recall (S,1, or 2), or pressing any one of the power seat buttons,
pressing the adjustable pedals button, or pressing either
the LOCK or UNLOCK button on the RKE transmitter
when not in the ignition switch. When a recall is can-
celled, the driver’s seat and the pedals stop moving. A
delay of one second will occur before another recall can
be selected.
NOTE:A chime sound may be heard if setting memory
was inhibited for any reason.
To Disable a RKE Transmitter Linked to Memory
1. Turn the ignition switch to the OFF position and
remove the key.
2. Press and release the memory SET button located on
the driver’s seat.
3. Within 10 seconds, press and release the UNLOCK
button on the RKE transmitter.
118 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

To disable another RKE transmitter linked to either
memory position, repeat Steps 1-3 for each RKE trans-
mitter.
NOTE:The capability to link RKE transmitters to
memory is enabled when delivered from the factory. The
capability to link RKE transmitters to memory can be
disabled (or later re-enabled) by an authorized dealer. For
vehicles equipped with the Electronic vehicle Informa-
tion Center (EVIC), refer to “Electronic Vehicle Informa-
tion Center (EVIC)/Customer-Programmable Features”
in “Understanding Your Instrument Panel” for further
information.
Self-Limiting Control
The memory system includes a self-limiting control for
full travel positioning of power seat and adjustable pedal
movement (all directions). This self-limiting control may,
however, develop an unintended movement limitation if
an obstruction is encountered sometime during usage.One example of such an occurrence may include a box or
package obstructing the full rearward movement of the
driver’s seat. Once the obstruction is removed, the self-
limiting control may store a new maximum position. the
self-limiting control may be reset by reaching the new
stored position, then press and release MEMORY button
1 or 2. Continued seat travel beyond the new stored
position will indicate the self-limiting control has been
reset.
Driver Easy Exit and Easy Entry Control
This additional feature provides automatic driver’s seat
positioning which will enhance driver mobility into and
out of the vehicle. The seat cushion will move rearward
approximately 2.5 in (60 mm) when the key is removed
from the ignition switch. The seat will move forward
approximately 2.5 in (60 mm) when the key is placed into
the ignition and turned out of the LOCK position. Each
stored memory setting will have an associated Easy Exit
and Easy Entry position. The Easy Exit and Easy Entry
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 119
