Ram 2500 2011 Owner's Manual

Two-Wheel Drive Models
The manufacturer recommends towing your vehicle with
all four wheelsOFFthe ground using a flatbed.
If flatbed equipment is not available, and the transmis-
sion is operable, the vehicle may be towed (with rear
wheels on the ground) with the transmission inNEU-
TRAL. Speed must not exceed 30 mph (48 km/h) and the
distance must not exceed 15 miles (24 km).
CAUTION!
Towing faster than 30 mph (48 km/h) or farther than
15 miles (24 km) with rear wheels on the ground can
cause severe damage to the transmission. Such dam-
age is not covered by the New Vehicle Limited
Warranty.
If the transmission is not operable, or the vehicle must be
towed faster than 30 mph (48 km/h) or farther than15 miles (24 km), tow with the rear wheelsOFFthe
ground. Acceptable methods are to tow the vehicle on a
flatbed, or with the rear wheels raised using a wheel lift
or towing dolly.
Four-Wheel Drive Vehicles
The manufacturer recommends towing with all wheels
OFFthe ground. Acceptable methods are to tow the
vehicle on a flatbed or with one end of vehicle raised and
the opposite end on a towing dolly.
If flatbed equipment is not available, and the transfer
case is operable, the vehicle may be towed (in the
forward direction, withALLwheels on the ground),IF
the transfer case is in NEUTRAL and the transmission is
inPARK(for automatic transmissions) or in gear (NOT
in Neutral, for manual transmissions). Refer to “Recre-
ational Towing” in “Starting and Operating” for further
information.
510 WHAT TO DO IN EMERGENCIES

CAUTION!
•Front or rear wheel lifts should not be used.
Internal damage to the transmission or transfer
case will occur if a front or rear wheel lift is used
when towing.
•Failure to follow these towing methods could
result in damage to the transmission and/or trans-
fer case. Such damage is not covered by the New
Vehicle Limited Warranty.
6
WHAT TO DO IN EMERGENCIES 511

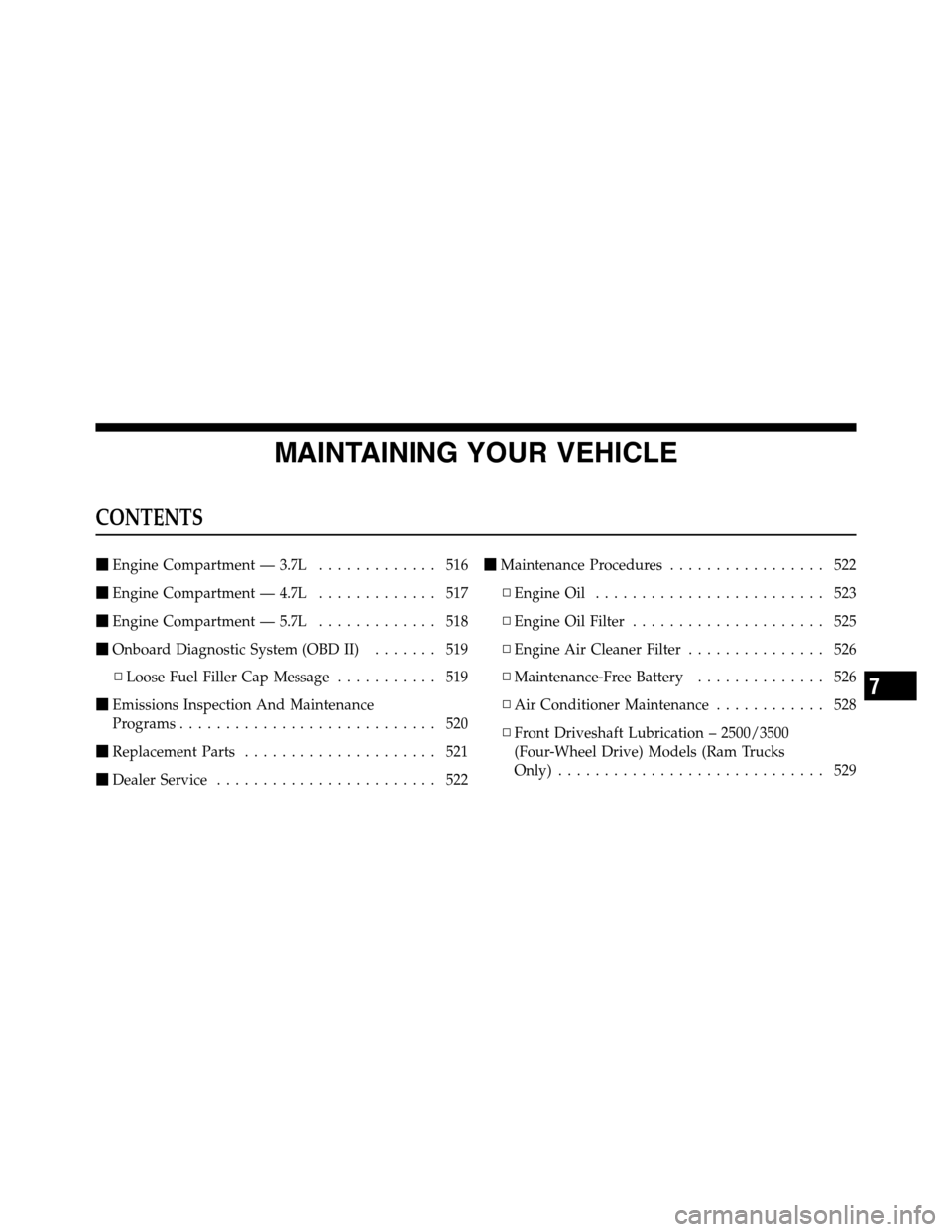

MAINTAINING YOUR VEHICLE
CONTENTS
Engine Compartment — 3.7L............. 516
Engine Compartment — 4.7L............. 517
Engine Compartment — 5.7L............. 518
Onboard Diagnostic System (OBD II)....... 519
▫Loose Fuel Filler Cap Message........... 519
Emissions Inspection And Maintenance
Programs............................ 520
Replacement Parts..................... 521
Dealer Service........................ 522Maintenance Procedures................. 522
▫Engine Oil......................... 523
▫Engine Oil Filter..................... 525
▫Engine Air Cleaner Filter............... 526
▫Maintenance-Free Battery.............. 526
▫Air Conditioner Maintenance............ 528
▫Front Driveshaft Lubrication – 2500/3500
(Four-Wheel Drive) Models (Ram Trucks
Only)............................. 529
7

▫Body Lubrication.................... 529
▫Windshield Wiper Blades............... 530
▫Adding Washer Fluid................. 530
▫Exhaust System..................... 531
▫Cooling System..................... 534
▫Brake System....................... 539
▫Rear Axle And 4X4 Front Driving Axle Fluid
Level............................. 541
▫Transfer Case....................... 542
▫Automatic Transmission............... 543
▫Appearance Care And Protection From
Corrosion.......................... 546
Fuses.............................. 552
▫Totally Integrated Power Module......... 552Vehicle Storage....................... 558
Replacement Bulbs.................... 559
Bulb Replacement..................... 559
▫Dual Or Quad Headlamp/Front Park And
Turn Signal — If Equipped............. 559
▫Fog Lamps......................... 562
▫Rear Tail/Stop, Turn Signal And Backup
Lamps............................ 562
▫Center High-Mounted Stoplamp (CHMSL)
With Cargo Lamp.................... 564
▫Cab Top Clearance Lamps — If Equipped . . . 565
▫Rear Lamp Bar ID Marker (Dual Rear
Wheels) — If Equipped................ 567
▫Side Marker Lamps (Dual Rear Wheels) — If
Equipped.......................... 568
514 MAINTAINING YOUR VEHICLE

Fluid Capacities...................... 569
Fluids, Lubricants And Genuine Parts....... 571▫Engine............................ 571
▫Chassis........................... 572
7
MAINTAINING YOUR VEHICLE 515

ENGINE COMPARTMENT — 3.7L
1 — Air Cleaner Filter 7 — Washer Fluid Reservoir
2 — Automatic Transmission Dipstick (If Equipped) 8 — Power Steering Fluid Reservoir
3 — Engine Oil Dipstick 9 — Engine Oil Fill
4 — Brake Fluid Reservoir 10 — Coolant Pressure Cap
5 — Battery 11 — Engine Coolant Reservoir
6 — Integrated Power Module 516 MAINTAINING YOUR VEHICLE

ENGINE COMPARTMENT — 4.7L
1 — Air Cleaner Filter 7 — Washer Fluid Reservoir
2 — Automatic Transmission Dipstick 8 — Power Steering Fluid Reservoir
3 — Engine Oil Dipstick 9 — Engine Oil Fill
4 — Brake Fluid Reservoir 10 — Coolant Pressure Cap
5 — Battery 11 — Engine Coolant Reservoir
6 — Integrated Power Module
7
MAINTAINING YOUR VEHICLE 517

ENGINE COMPARTMENT — 5.7L
1 — Air Cleaner Filter 7 — Washer Fluid Reservoir
2 — Automatic Transmission Dipstick 8 — Integrated Power Module
3 — Engine Oil Fill 9 — Power Steering Fluid Reservoir
4 — Engine Oil Dipstick 10 — Coolant Pressure Cap
5 — Brake Fluid Reservoir 11 — Engine Coolant Reservoir
6 — Battery 518 MAINTAINING YOUR VEHICLE

ONBOARD DIAGNOSTIC SYSTEM (OBD II)
Your vehicle is equipped with a sophisticated onboard
diagnostic system called OBD II. This system monitors
the performance of the emissions, engine, and automatic
transmission control systems. When these systems are
operating properly, your vehicle will provide excellent
performance and fuel economy, as well as engine emis-
sions well within current government regulations.
If any of these systems require service, the OBD II system
will turn on the “Malfunction Indicator Light (MIL).” It
will also store diagnostic codes and other information to
assist your service technician in making repairs. Al-
though your vehicle will usually be drivable and not
need towing, see your authorized dealer for service as
soon as possible.CAUTION!
•Prolonged driving with the MIL on could cause
further damage to the emission control system. It
could also affect fuel economy and drivability. The
vehicle must be serviced before any emissions
tests can be performed.
•If the MIL is flashing, while the engine is running,
severe catalytic converter damage and power loss
will soon occur. Immediate service is required.
Loose Fuel Filler Cap Message
If the vehicle diagnostic system determines
that the fuel filler cap is loose, improperly
installed, or damaged, a loose gascap indicator
will display in the EVIC telltale display area.
Refer to “Electronic Vehicle Information Center (EVIC) in
“Understanding Your Instrument Panel” for further in-
formation. Tighten the fuel filler cap properly and press
7
MAINTAINING YOUR VEHICLE 519
