Auto Lock Doors Programming
The Auto Lock Doors feature can be enabled or disabled
as follows:
•For vehicles equipped with the EVIC, refer to “Elec-
tronic Vehicle Information Center (EVIC)/Personal
Settings (System Setup)” in “Understanding Your In-
strument Panel” for further information.
•For vehicles not equipped with the EVIC, perform the
following procedure:
1. Enter your vehicle and close all doors.
2. Fasten your seat belt. (Fastening the seat belt will
cancel any chiming that may confuse you during this
programming procedure.)
3. Place the Key Fob into the ignition.4. Within 15 seconds cycle the Key Fob from the OFF
position to the ON/RUN position a minimum of four
times, ending in the OFF position.(Do not start the
engine).
5. Within 30 seconds, press the driver’s door LOCK
switch.
6. A single chime will be heard to indicate the feature has
been disabled.
7. To reactivate this feature, repeat the above steps.
8. If a chime is not heard, program mode was canceled
before the feature could be disabled. If necessary, repeat
the above procedure.
Auto Unlock Doors — If Equipped
This feature unlocks all of the doors of the vehicle when
either front door is opened. This will occur only after the
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31
Page 68 of 622
Airbag Warning Light
You will want to have the airbags ready to
inflate for your protection in a collision. The
Airbag Warning Light monitors the internal
circuits and interconnecting wiring associated
with airbag system electrical components. While the
airbag system is designed to be maintenance free, if any
of the following occurs, have an authorized dealer ser-
vice the airbag system immediately.
•The Airbag Warning Light does not come on during
the four to eight seconds when the ignition switch is
first turned to the ON/RUN position.
•The Airbag Warning Light remains on after the four to
eight-second interval.
•The Airbag Warning Light comes on intermittently or
remains on while driving.
NOTE:If the speedometer, tachometer, or any engine
related gauges are not working, the Occupant Restraint
Controller (ORC) may also be disabled. The airbags may
not be ready to inflate for your protection. Promptly
check the fuse block for blown fuses. Refer to the label
located on the inside of the fuse block cover for the
proper airbag fuses. See your authorized dealer if the
fuse is good.
Event Data Recorder (EDR)
This vehicle is equipped with an event data recorder
(EDR). The main purpose of an EDR is to record, in
certain crash or near crash-like situations, such as an air
bag deployment or hitting a road obstacle, data that will
assist in understanding how a vehicle’s systems per-
formed. The EDR is designed to record data related to
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 67
Page 161 of 622
open or partially open positions. This is a normal occur-
rence and can be minimized. If the buffeting occurs with
the rear windows open, open the front and rear windows
together to minimize the buffeting. If the buffeting occurs
with the sunroof open, adjust the sunroof opening to
minimize the buffeting or open any window.
Sunroof Maintenance
Use only a non-abrasive cleaner and a soft cloth to clean
the glass panel.
Sunroof Fully Closed
Press the switch forward and release to ensure that the
sunroof is fully closed.
ELECTRICAL POWER OUTLETS
The auxiliary 12 Volt (13 Amp) power outlets can provide
power for in-cab accessories designed for use with the
standard “cigar lighter” plug. The 12 Volt power outlets
have a cap attached to the outlet indicating “12V DC”,
together with either a key symbol or a battery symbol.A key symbol indicates that the key must be in the
ON/RUN or ACC positions for the outlet to provide
power. The battery symbol indicates that the outlet is
connected to the battery, and can provide power at all
times.
NOTE:
•To ensure proper operation a MOPARknob and
element must be used.
•Do not exceed the maximum power of 160 Watts (13
Amps) at 12 Volts. If the 160 Watt (13 Amp) power
rating is exceeded the fuse protecting the system will
need to be replaced.
The auxiliary power outlets can be found in the following
locations:
•Lower left and lower right of the center stack —
without floor mounted shifter.
160 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
Page 212 of 622
16. Odometer Display / Electronic Vehicle Information
Center (EVIC) Display Area — If Equipped
Odometer Display
The odometer shows the total distance the vehicle has
been driven. U.S. Federal regulations require that upon
transfer of vehicle ownership, the seller certify to the
purchaser the correct mileage that the vehicle has been
driven. If your odometer needs to be repaired or serviced,
the repair technician should leave the odometer reading
the same as it was before the repair or service. If s/he
cannot do so, then the odometer must be set at zero, and
a sticker must be placed in the door jamb stating what the
mileage was before the repair or service. It is a good idea
for you to make a record of the odometer reading before
the repair/service, so that you can be sure that it is
properly reset, or that the door jamb sticker is accurate if
the odometer must be reset at zero.The two trip odometers show individual trip mileage. To
switch from odometer to trip odometers, press and
release the TRIP ODOMETER button.
To reset a trip odometer, display the desired trip odom-
eter to be reset then push and hold the button for
approximately two seconds until the display resets.
Vehicle Odometer Messages
When the appropriate conditions exist, the following
messages will display in the odometer:
ECO...................Fuel Saver Indicator Off
ECO-ON................Fuel Saver Indicator On
Lo tirE...................... LowTirePressure
noFUSE..........................Fuse Fault
CHAngE OIL............... OilChange Required
LoWASH.................... LowWasher Fluid
4
UNDERSTANDING YOUR INSTRUMENT PANEL 211
Page 214 of 622
Lo tirE
When the appropriate condition exists, the odometer
display will toggle between Lo and tirE for three cycles.
noFUSE
If the vehicle diagnostic system determines that the
Ignition Off Draw (IOD) fuse is improperly installed, or
damaged, a “noFUSE” message will display in the odom-
eter display area. For further information on fuses and
fuse locations refer to “Fuses” in “Maintaining Your
Vehicle”.
CHAngE OIL
Your vehicle is equipped with an engine oil change
indicator system. TheCHAngE OILmessage will flash in
the instrument cluster odometer for approximately
12 seconds after a single chime has sounded to indicate
the next scheduled oil change interval. The engine oil
change indicator system is duty cycle-based, whichmeans the engine oil change interval may fluctuate
dependent upon your personal driving style.
Unless reset, this message will continue to display each
time you turn the ignition switch to the ON/RUN
position. To turn off the message temporarily, press and
release the Trip Odometer button on the instrument
cluster. To reset the oil change indicator system (after
performing the scheduled maintenance), refer to the
following procedure:
1. Turn the ignition switch to the ON/RUN position
(Do not start the engine).
2. Fully depress the accelerator pedal slowly three
times within 10 seconds.
3. Turn the ignition switch to the OFF/LOCK position.
NOTE:If the indicator message illuminates when you
start the vehicle, the oil change indicator system did not
reset. If necessary repeat this procedure.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 213
Page 515 of 622
▫Body Lubrication.................... 529
▫Windshield Wiper Blades............... 530
▫Adding Washer Fluid................. 530
▫Exhaust System..................... 531
▫Cooling System..................... 534
▫Brake System....................... 539
▫Rear Axle And 4X4 Front Driving Axle Fluid
Level............................. 541
▫Transfer Case....................... 542
▫Automatic Transmission............... 543
▫Appearance Care And Protection From
Corrosion.......................... 546
Fuses.............................. 552
▫Totally Integrated Power Module......... 552Vehicle Storage....................... 558
Replacement Bulbs.................... 559
Bulb Replacement..................... 559
▫Dual Or Quad Headlamp/Front Park And
Turn Signal — If Equipped............. 559
▫Fog Lamps......................... 562
▫Rear Tail/Stop, Turn Signal And Backup
Lamps............................ 562
▫Center High-Mounted Stoplamp (CHMSL)
With Cargo Lamp.................... 564
▫Cab Top Clearance Lamps — If Equipped . . . 565
▫Rear Lamp Bar ID Marker (Dual Rear
Wheels) — If Equipped................ 567
▫Side Marker Lamps (Dual Rear Wheels) — If
Equipped.......................... 568
514 MAINTAINING YOUR VEHICLE
Page 553 of 622
2. Mix a mild soap or detergent with water with a soft
cloth or brush.
3. Rinse bedliner with water.
4. Once dry, apply a small amount of MOPAR
Spray-On Bedliner Conditioner to a moist towel or
sponge and wipe over the entire surface of the truck
bedliner.
WARNING!
Do not use silicon-based protection products to clean
your bedliner. Silicon-based products can become
slippery and may result in personal injury.
Spray-On Bedliners are chemically-resistant to many
different types of chemicals (including gasoline, oil,
hydraulic fluids) for short periods of time. If a spill
occurs on your Spray-On Bedliner, rinse the truck out as
soon as possible to avoid permanent damage.Repairing the Spray-On Bedliner
While extremely tough, it is possible to damage a
Spray-On Bedliner. One common condition is when
loading a heavy pallet and dragging that pallet across the
floor of the bed. If a nail or sharp point is exposed under
the weight of the pallet a scratch or tear is possible. While
not covered by your new vehicle warranty, a cosmetic fix
to cover the metal exposed by the scratch is required. To
repair a tear or gouge, follow the directions provided in
the MOPARQuick Repair Kit.FUSES
Totally Integrated Power Module
The totally integrated power module (TIPM) is located in
the engine compartment near the battery. This center
contains cartridge fuses and mini fuses. A description of
each fuse and component may be stamped on the inside
552 MAINTAINING YOUR VEHICLE
Page 554 of 622
cover, otherwise the cavity number of each fuse is
stamped on the inside cover that corresponds to the

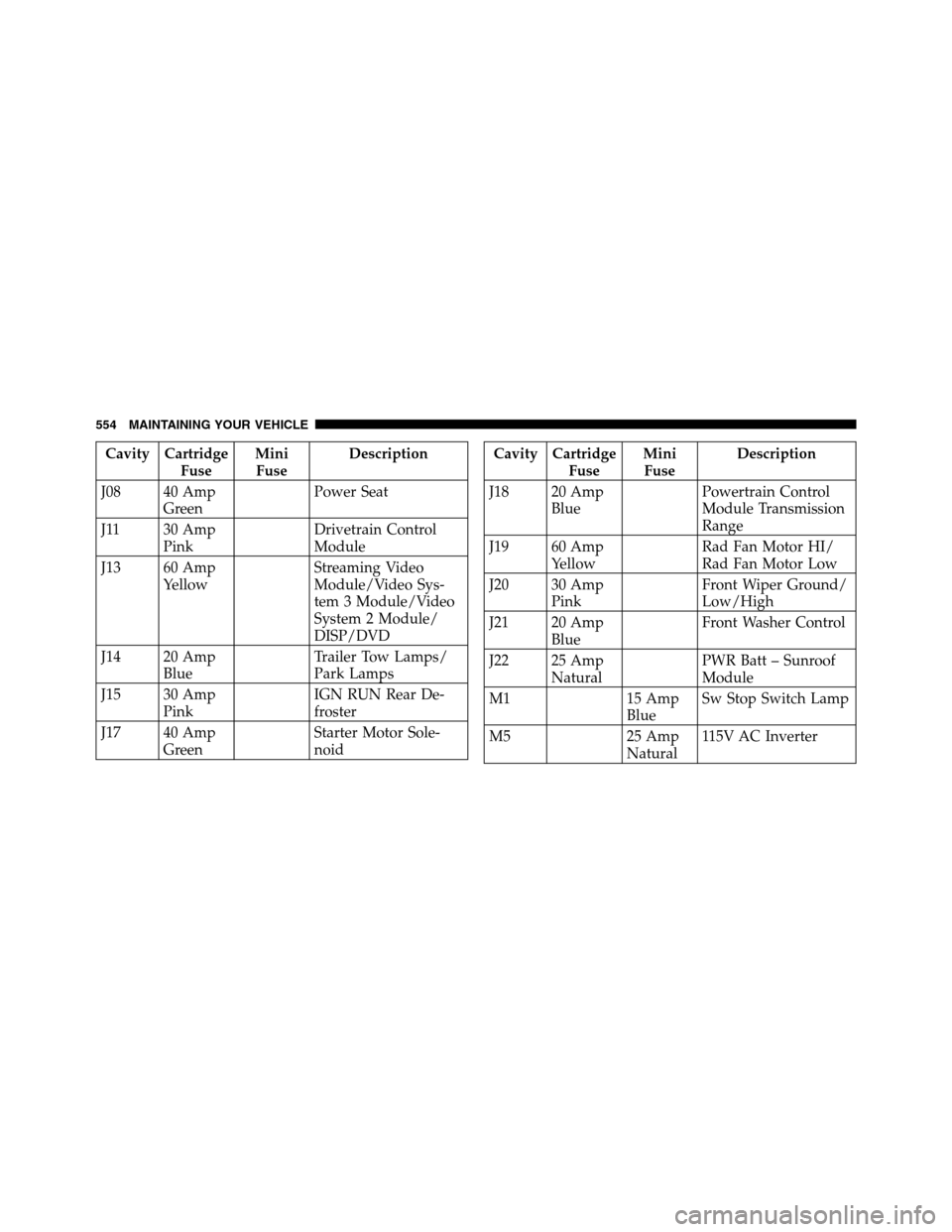

following chart.Cavity Cartridge
FuseMini
FuseDescription
J01 40 Amp
GreenTrailer Tow
J02 30 Amp
PinkElectric Brake
J03 30 Amp
PinkDiesel Powertrain
Control Module – If
Equipped
J04 25 Amp
NaturalDriver Door Node
J05 25 Amp
NaturalPassenger Door Node
J06 40 Amp
GreenAntilock Brakes
Pump/Stability Con-
trol System
J07 30 Amp
PinkAntilock Brakes
Valve/Stability Con-
trol System
Totally Integrated Power Module (TIPM)
7
MAINTAINING YOUR VEHICLE 553
Page 555 of 622

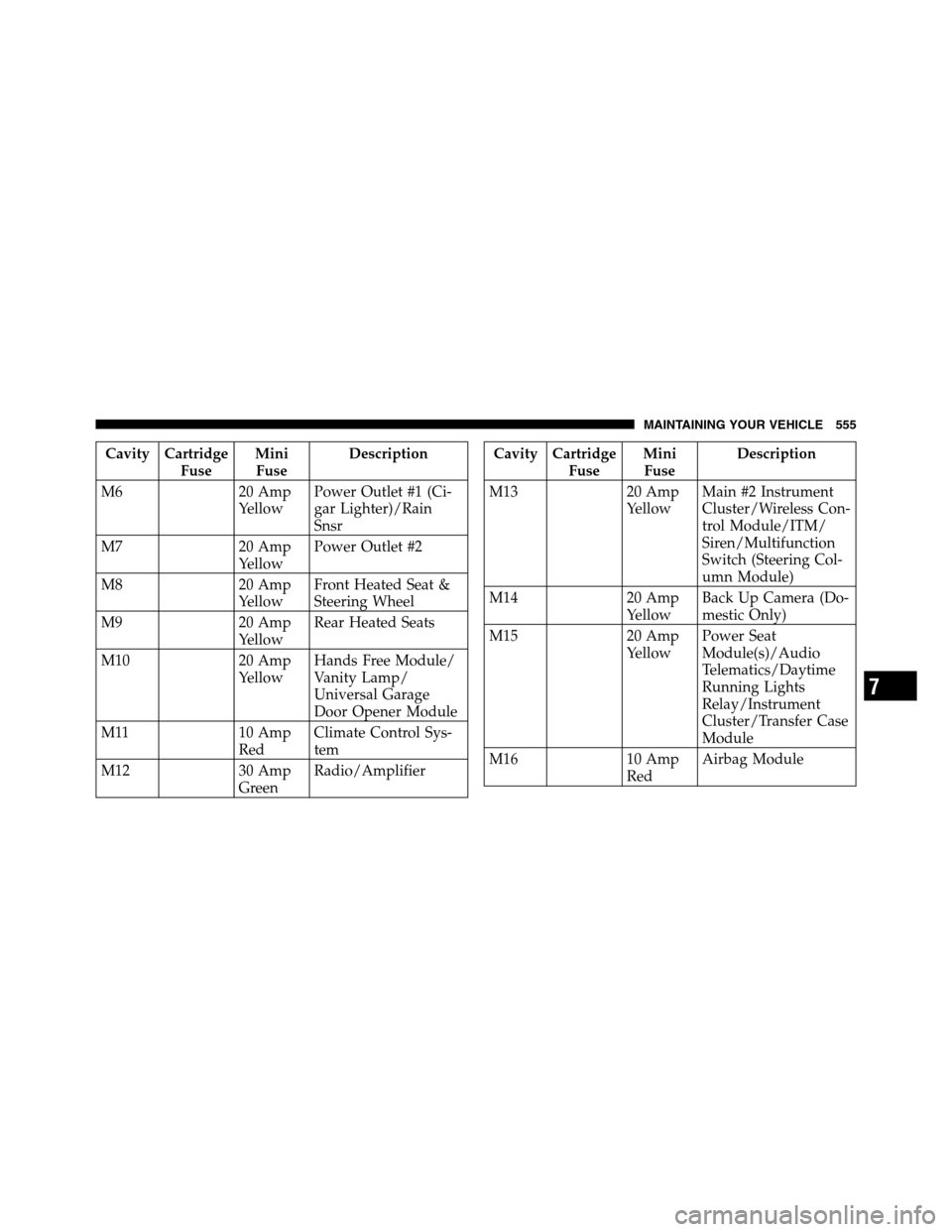

Cavity Cartridge
FuseMini
FuseDescription
J08 40 Amp
GreenPower Seat
J11 30 Amp
PinkDrivetrain Control
Module
J13 60 Amp
YellowStreaming Video
Module/Video Sys-
tem 3 Module/Video
System 2 Module/
DISP/DVD
J14 20 Amp
BlueTrailer Tow Lamps/
Park Lamps
J15 30 Amp
PinkIGN RUN Rear De-
froster
J17 40 Amp
GreenStarter Motor Sole-
noidCavity Cartridge
FuseMini
FuseDescription
J18 20 Amp
BluePowertrain Control
Module Transmission
Range
J19 60 Amp
YellowRad Fan Motor HI/
Rad Fan Motor Low
J20 30 Amp
PinkFront Wiper Ground/
Low/High
J21 20 Amp
BlueFront Washer Control
J22 25 Amp
NaturalPWR Batt – Sunroof
Module
M1 15 Amp
BlueSw Stop Switch Lamp
M5 25 Amp
Natural115V AC Inverter
554 MAINTAINING YOUR VEHICLE
Page 556 of 622
Cavity Cartridge
FuseMini
FuseDescription
M6 20 Amp
YellowPower Outlet #1 (Ci-
gar Lighter)/Rain
Snsr
M7 20 Amp
YellowPower Outlet #2
M8 20 Amp
YellowFront Heated Seat &
Steering Wheel
M9 20 Amp
YellowRear Heated Seats
M10 20 Amp
YellowHands Free Module/
Vanity Lamp/
Universal Garage
Door Opener Module
M11 10 Amp
RedClimate Control Sys-
tem
M12 30 Amp
GreenRadio/AmplifierCavity Cartridge
FuseMini
FuseDescription
M13 20 Amp
YellowMain #2 Instrument
Cluster/Wireless Con-
trol Module/ITM/
Siren/Multifunction
Switch (Steering Col-
umn Module)
M14 20 Amp
YellowBack Up Camera (Do-
mestic Only)
M15 20 Amp
YellowPower Seat
Module(s)/Audio
Telematics/Daytime
Running Lights
Relay/Instrument
Cluster/Transfer Case
Module
M16 10 Amp
RedAirbag Module
7
MAINTAINING YOUR VEHICLE 555
