Ram 3500 2016 Diesel Supplement

corrected and a dealer service is not performed, exten-
sive exhaust after-treatment damage can occur. To
correct this condition it will be necessary to have your
vehicle serviced by your local authorized dealer.
CAUTION!
See your authorized dealer, as damage to the exhaust
system could occur soon with continued operation.
Diesel Exhaust Fluid (DEF) Warning Messages
Your vehicle will begin displaying warning messages
when the DEF level reaches a driving range of approxi-
mately 500 miles (800 km). If the following warning
message sequence is ignored, your vehicle may not
restart unless DEF is added with in the displayed mileage
shown in the Cluster message.•
Engine Will Not Restart in XXXX mi DEF Low Refill
Soon — This message will display when DEF driving
range is less than 500 miles, DEF fluid top off is
required with in the displayed mileage. The message
will be displayed in the cluster during vehicle start up
with the current allowed mileage and accompanied by
a single chime. The remaining mileage can be pulled
up anytime by way of the “Messages” list within the
DID
• Engine Will Not Restart in XXXX mi Refill DEF —
This message will display when DEF driving range is
less than 200 miles. It is also displayed at 150 miles and
100 miles. DEF fluid top off is required with in the
displayed mileage. The message will be displayed in
the DID during vehicle start up with an updated
distance mileage, and it will be accompanied by a
single chime. Starting at 100 miles, remaining range
will be continuously displayed while operating the
vehicle. Chimes will also accompany the 75, 50 and 25
4
UNDERSTANDING YOUR INSTRUMENT PANEL 179

mile remaining distances. The DEF Low telltale will be
on continuously until DEF fluid is topped off.
• Engine Will Not Restart Refill DEF — This message
will display when the DEF driving range is less than 1
mile, DEF fluid top off is required or the engine will
not restart. The message will be displayed in the DID
during vehicle start up, and it will be accompanied by
a single chime. The DEF Low telltale will be illumi-
nated continuously until DEF fluid tank is filled with a
minimum of two gallons of DEF.
• Speed Limited to 5 MPH in XXX mi Refill DEF —
This message will continuously display if the “DEF
Low Refill Soon” message is ignored, and the fre-
quency of occurance of the chime will increase unless
up to 2 gallons (7.5 Liters) of DEF is added to the tank. •
5 MPH Max Speed on Restart, Long Idle or Refuel
Refill DEF — This message will continuously display
when the counter reaches zero, and will be accompa-
nied by a periodic chime.
• The vehicle will only be capable of a maximum speed
of 5 MPH upon the first of the following conditions to
occur:
• If the vehicle is shutoff and restarted.
• If the vehicle is idled for an extended period of time,
approximately one hour or greater
• If the system detects that the level of fuel in the tank
has increased.
• Add a minimum of 2 gallons (9.5 Liters) of DEF to the
tank in order to avoid vehicle operation at a maximum
speed of 5 MPH (8 km/H).
180 UNDERSTANDING YOUR INSTRUMENT PANEL

NOTE:A minimum of 2 gallons (9.5 Liters) may be
required to restore normal vehicle operation. Although
the vehicle will start normally and can be placed in gear
after this message has been initially displayed, extreme
caution should be utilized since the vehicle will only be
capable of maneuvering at a maximum speed of 5 MPH
(8 km/H).
Diesel Exhaust Fluid (DEF) Fault Warning
Messages
There are four different messages which are displayed if
the vehicle detects that the DEF system has been filled
with a fluid other than DEF, has experienced component
failures, or when tampering has been detected. The
vehicle may be limited to a maximum speed of 5 MPH
(8 km/H) if the DEF system is not serviced within less
than 200 miles (322 km) of the fault being detected. When the DEF system needs to be serviced the following
warnings will display:
•
Service DEF System See Dealer — This message will
display when the fault is initially detected, each time
the vehicle is started, and periodically during driving.
The message will be accompanied by a single chime.
We recommend you drive to your nearest authorized
dealer and have your vehicle serviced as soon as
possible.
• 5 MPH Max Speed in 150 mi Service DEF System See
Dealer — This message will display if the DEF system
has not been serviced after the “Service DEF System –
See Dealer” message is displayed. This message will
continuously display until the mileage counter reaches
zero, and will be accompanied by a periodic chime.
The message will continue to countdown until it
4
UNDERSTANDING YOUR INSTRUMENT PANEL 181

reaches zero unless the vehicle is serviced. We recom-
mend you drive to your nearest authorized dealer and
have your vehicle serviced immediately.
NOTE: Under some circumstances this mileage counter
may start with a value of less than 150 miles (241 km). For
example, if recurring faults are detected in a time interval
of less than 40 hours, the counter may restart at the value
where it stopped when a previous fault was temporarily
remedied, or at a minimum of 50 miles (80 km).
• 5 MPH Max Speed on Restart, Long Idle or Refuel
Service DEF See Dealer — This message will continu-
ously display when the mileage counter reaches zero,
and will be accompanied by a periodic chime.
• The vehicle will only be capable of a maximum speed
of 5 MPH upon the first of the following conditions to
occur:
• If the vehicle is shutoff and restarted. •
If the vehicle is idled for an extended period of time,
approximately one hour or greater.
• If the system detects that the level of fuel in the tank
has increased.
• 5 MPH Max Speed Service DEF System See Dealer —
This message will continuously display, and will be
accompanied by a periodic chime. Although the ve-
hicle can be started and placed in gear, the vehicle will
only operate at a maximum speed of 5 MPH. Your
vehicle will require towing, see your authorized dealer
for service.
• Engine Will Not Restart Service DEF System See
Dealer — This message will display if DEF system
issue detected is not serviced during the allowed
period. Your engine will not restart unless your vehicle
is serviced by your authorized dealer. This message
will be displayed when under 1 mile until engine will
not start and each time the vehicle is started, and will
182 UNDERSTANDING YOUR INSTRUMENT PANEL

be continuously displayed. The message will be ac-
companied by a single chime. Your Malfunction Indi-
cator Light will be continuously illumined. We highly
recommend you drive to your nearest authorized
dealer if the message appears while engine is running.
NOTE: When this message is displayed, the engine can
still be started. However, the vehicle will only operate at
a maximum speed of 5 MPH.
RAM Active Air System
Your vehicle is equipped with an advanced Ram Active
Air system that provides enhanced performance, espe-
cially when towing under demanding hot or high alti-
tude conditions. If the DID displays the message “Active
Airbox Service Required See Dealer”, vehicle perfor-
mance may be reduced until service is performed by an
authorized RAM dealer.
Fuel Filter Life Reset
The cluster will display the “Service Fuel Filter” message
when the fuel filter maintenance life is less than 5%. To
check the remaining fuel filter life, go to the “Fuel Filter
Life” screen in the “Vehicle Info” menu. When this
message appears, dealers should replace both frame
mounted and engine mounted fuel filters.
NOTE: Use the steering wheel EVIC controls for the
following procedure(s)
Vehicles Equipped With Passive Entry
1. Without pressing the brake pedal, press the ENGINE START/STOP button and place the ignition in the
ON/RUN position (do not start the engine.)
2. Press and release the DOWN
arrow button to scroll
downward through the main menu to “Vehicle Info”.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 183

3. Press and release theRIGHTarrow button to
access the ”Fuel Filter Life” screen.
4. Press and hold the RIGHT
arrow button for one
second to access the Reset Confirmation screen.
5. Press and release the UP
orDOWNarrow
button to select “Yes” or “No” then press and hold the
RIGHT
arrow button to reset the Fuel Filter Life.
6. Press and release the UP
arrow button to exit the
EVIC screen once the Fuel Filter Life is 100%
Vehicles Not Equipped With Passive Entry
1. Without pressing the brake pedal, cycle the ignition to the ON/RUN position (do not start the engine.)
2. Press and release the DOWN
arrow button to scroll
downward through the main menu to “Vehicle Info”.
3. Press and release the RIGHT
arrow button to
access the ”Fuel Filter Life” screen. 4. Press and hold the
RIGHT
arrow button for one
second to access the ”Fuel Filter Life Reset” screen.
5. Press and hold the RIGHT
arrow button for one
second to access the Reset Confirmation screen.
6. Press and release the UP
orDOWNarrow
button to select “Yes” or “No” then press and hold the
RIGHT
arrow button to reset the Fuel Filter Life.
7. Press and release the UP
arrow button to exit the
EVIC screen once the Fuel Filter Life is 100%
NOTE: If the indicator message illuminates when you
start the vehicle, the oil change indicator system did not
reset. If necessary, repeat this procedure.
184 UNDERSTANDING YOUR INSTRUMENT PANEL

Screen Setup
Push and release theUPorDOWNar-
row button until the Screen Setup display icon
is highlighted in the DID. Push and release the RIGHT
arrow button to enter the Screen Setup sub-
menu. The Screen Setup feature allows you to change
what information is displayed in the instrument cluster
as well as the location that information is displayed.
Settings Options
1 Upper Left
•None
• Compass
• Outside Temp.
• Time
• Range to Empty
• Average MPG (not available for CNG models)
• Current MPG (not available for CNG models)
• Trip A
• Trip B
• Trailer Trip
• Trailer Brake Gain4
UNDERSTANDING YOUR INSTRUMENT PANEL 185

SettingsOptions
2 Upper Right
•None
• Compass
• Outside Temp. (Default)
• Time
• Range to Empty
• Average MPG (not available for CNG models)
• Current MPG (not available for CNG models)
• Trip A
• Trip B
• Trailer Trip
• Trailer Brake Gain
186 UNDERSTANDING YOUR INSTRUMENT PANEL

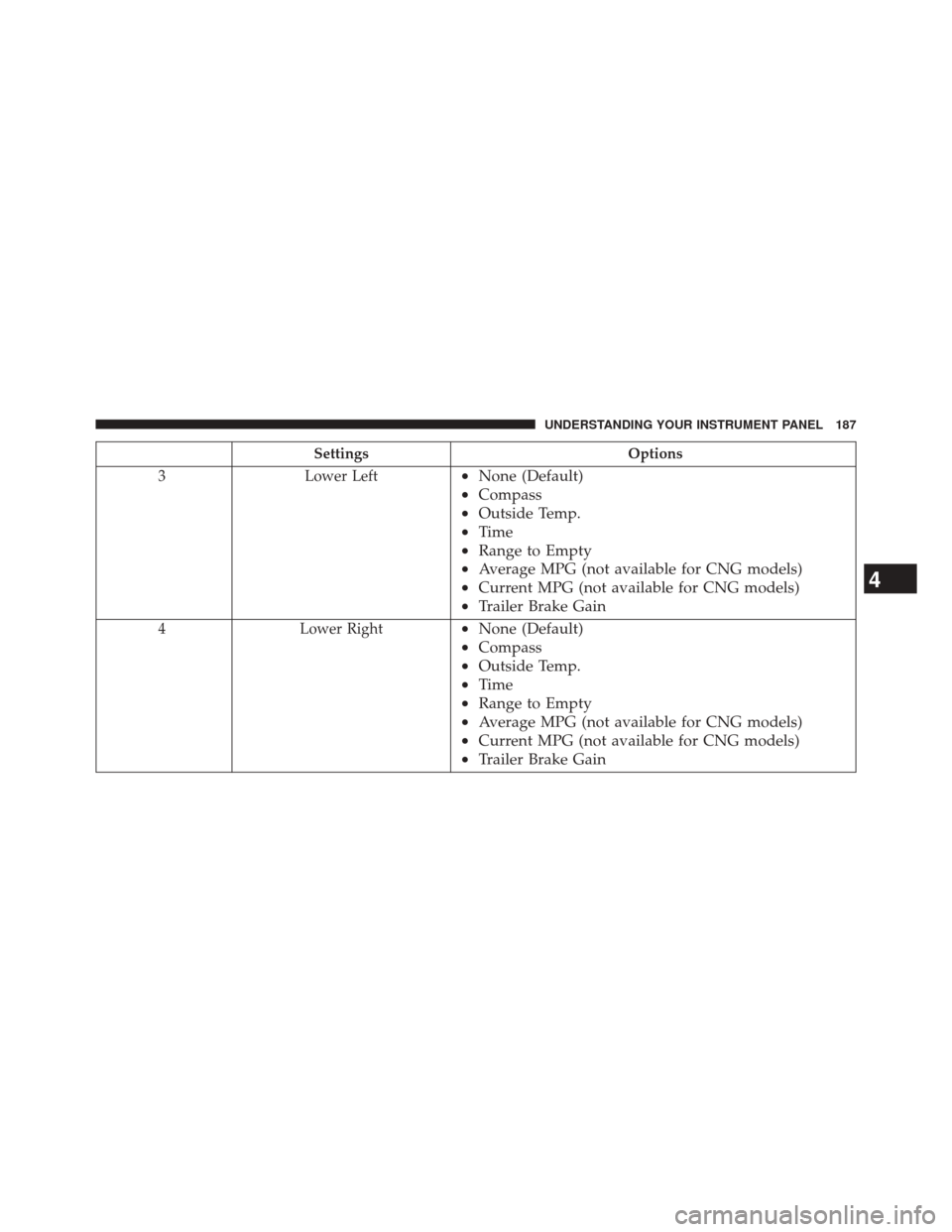

SettingsOptions
3 Lower Left
•None (Default)
• Compass
• Outside Temp.
• Time
• Range to Empty
• Average MPG (not available for CNG models)
• Current MPG (not available for CNG models)
• Trailer Brake Gain
4 Lower Right•None (Default)
• Compass
• Outside Temp.
• Time
• Range to Empty
• Average MPG (not available for CNG models)
• Current MPG (not available for CNG models)
• Trailer Brake Gain
4
UNDERSTANDING YOUR INSTRUMENT PANEL 187

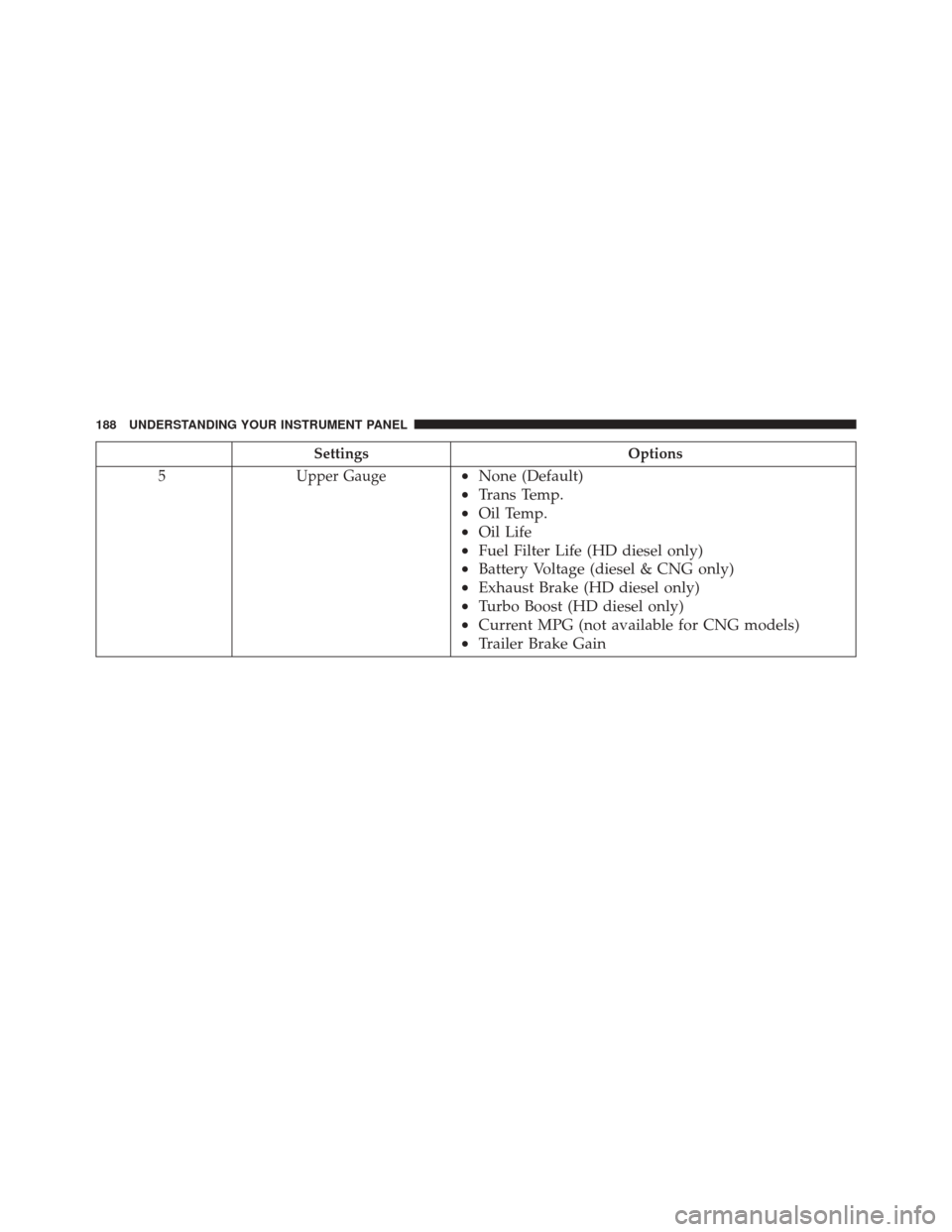

SettingsOptions
5 Upper Gauge
•None (Default)
• Trans Temp.
• Oil Temp.
• Oil Life
• Fuel Filter Life (HD diesel only)
• Battery Voltage (diesel & CNG only)
• Exhaust Brake (HD diesel only)
• Turbo Boost (HD diesel only)
• Current MPG (not available for CNG models)
• Trailer Brake Gain
