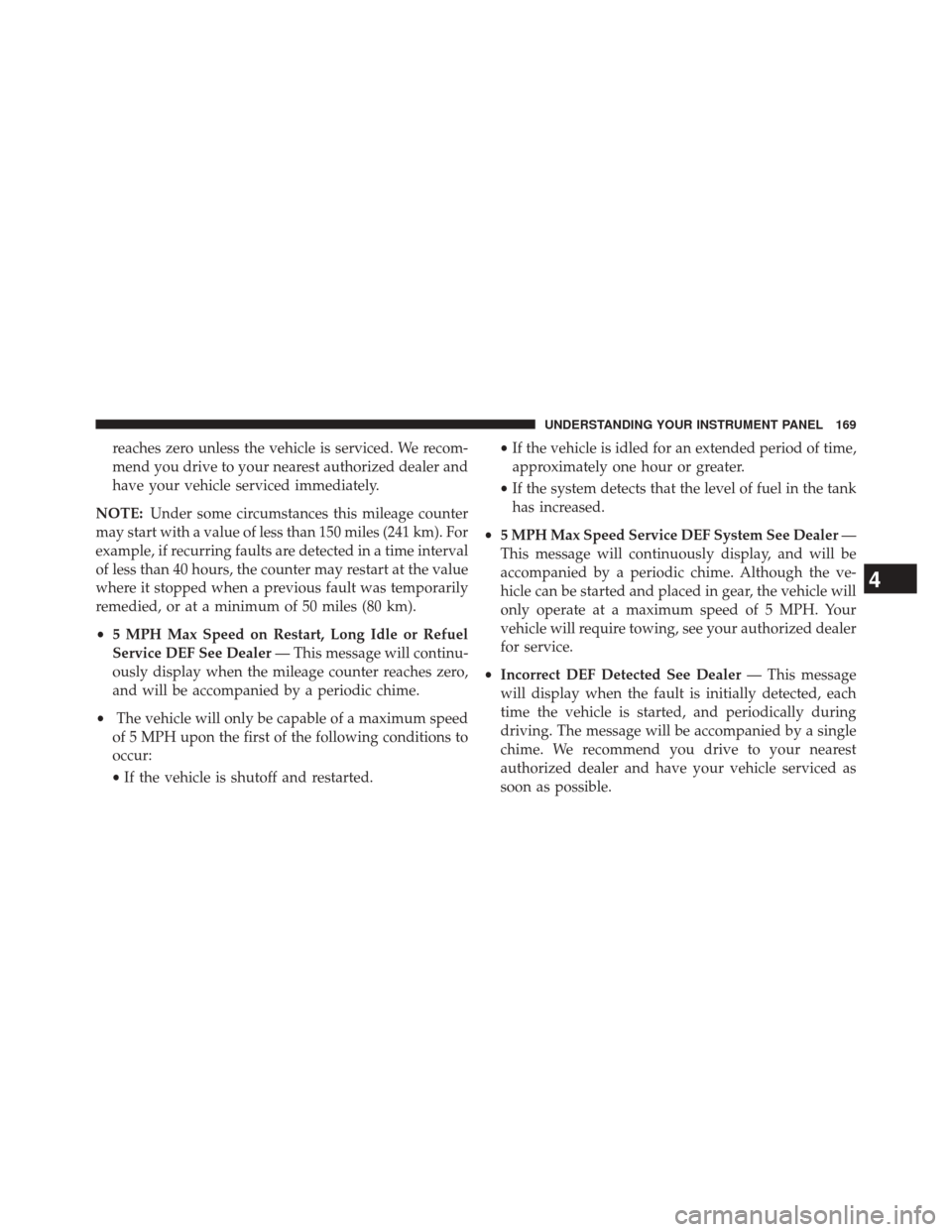

Ram 3500 2016 Diesel Supplement

reaches zero unless the vehicle is serviced. We recom-
mend you drive to your nearest authorized dealer and
have your vehicle serviced immediately.
NOTE: Under some circumstances this mileage counter
may start with a value of less than 150 miles (241 km). For
example, if recurring faults are detected in a time interval
of less than 40 hours, the counter may restart at the value
where it stopped when a previous fault was temporarily
remedied, or at a minimum of 50 miles (80 km).
• 5 MPH Max Speed on Restart, Long Idle or Refuel
Service DEF See Dealer — This message will continu-
ously display when the mileage counter reaches zero,
and will be accompanied by a periodic chime.
• The vehicle will only be capable of a maximum speed
of 5 MPH upon the first of the following conditions to
occur:
• If the vehicle is shutoff and restarted. •
If the vehicle is idled for an extended period of time,
approximately one hour or greater.
• If the system detects that the level of fuel in the tank
has increased.
• 5 MPH Max Speed Service DEF System See Dealer —
This message will continuously display, and will be
accompanied by a periodic chime. Although the ve-
hicle can be started and placed in gear, the vehicle will
only operate at a maximum speed of 5 MPH. Your
vehicle will require towing, see your authorized dealer
for service.
• Incorrect DEF Detected See Dealer — This message
will display when the fault is initially detected, each
time the vehicle is started, and periodically during
driving. The message will be accompanied by a single
chime. We recommend you drive to your nearest
authorized dealer and have your vehicle serviced as
soon as possible.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 169

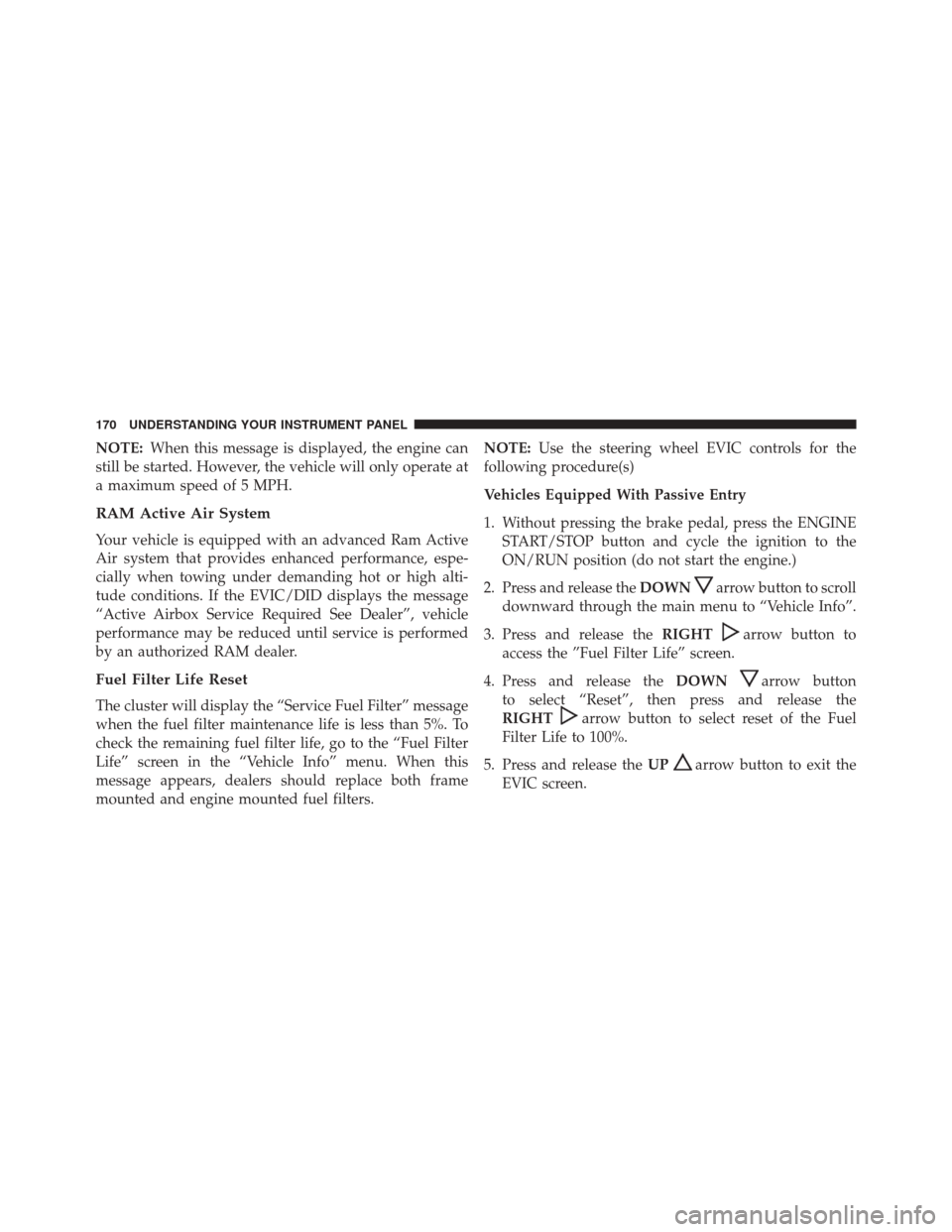

NOTE:When this message is displayed, the engine can
still be started. However, the vehicle will only operate at
a maximum speed of 5 MPH.
RAM Active Air System
Your vehicle is equipped with an advanced Ram Active
Air system that provides enhanced performance, espe-
cially when towing under demanding hot or high alti-
tude conditions. If the EVIC/DID displays the message
“Active Airbox Service Required See Dealer”, vehicle
performance may be reduced until service is performed
by an authorized RAM dealer.
Fuel Filter Life Reset
The cluster will display the “Service Fuel Filter” message
when the fuel filter maintenance life is less than 5%. To
check the remaining fuel filter life, go to the “Fuel Filter
Life” screen in the “Vehicle Info” menu. When this
message appears, dealers should replace both frame
mounted and engine mounted fuel filters. NOTE:
Use the steering wheel EVIC controls for the
following procedure(s)
Vehicles Equipped With Passive Entry
1. Without pressing the brake pedal, press the ENGINE START/STOP button and cycle the ignition to the
ON/RUN position (do not start the engine.)
2. Press and release the DOWN
arrow button to scroll
downward through the main menu to “Vehicle Info”.
3. Press and release the RIGHT
arrow button to
access the ”Fuel Filter Life” screen.
4. Press and release the DOWN
arrow button
to select “Reset”, then press and release the
RIGHT
arrow button to select reset of the Fuel
Filter Life to 100%.
5. Press and release the UP
arrow button to exit the
EVIC screen.
170 UNDERSTANDING YOUR INSTRUMENT PANEL

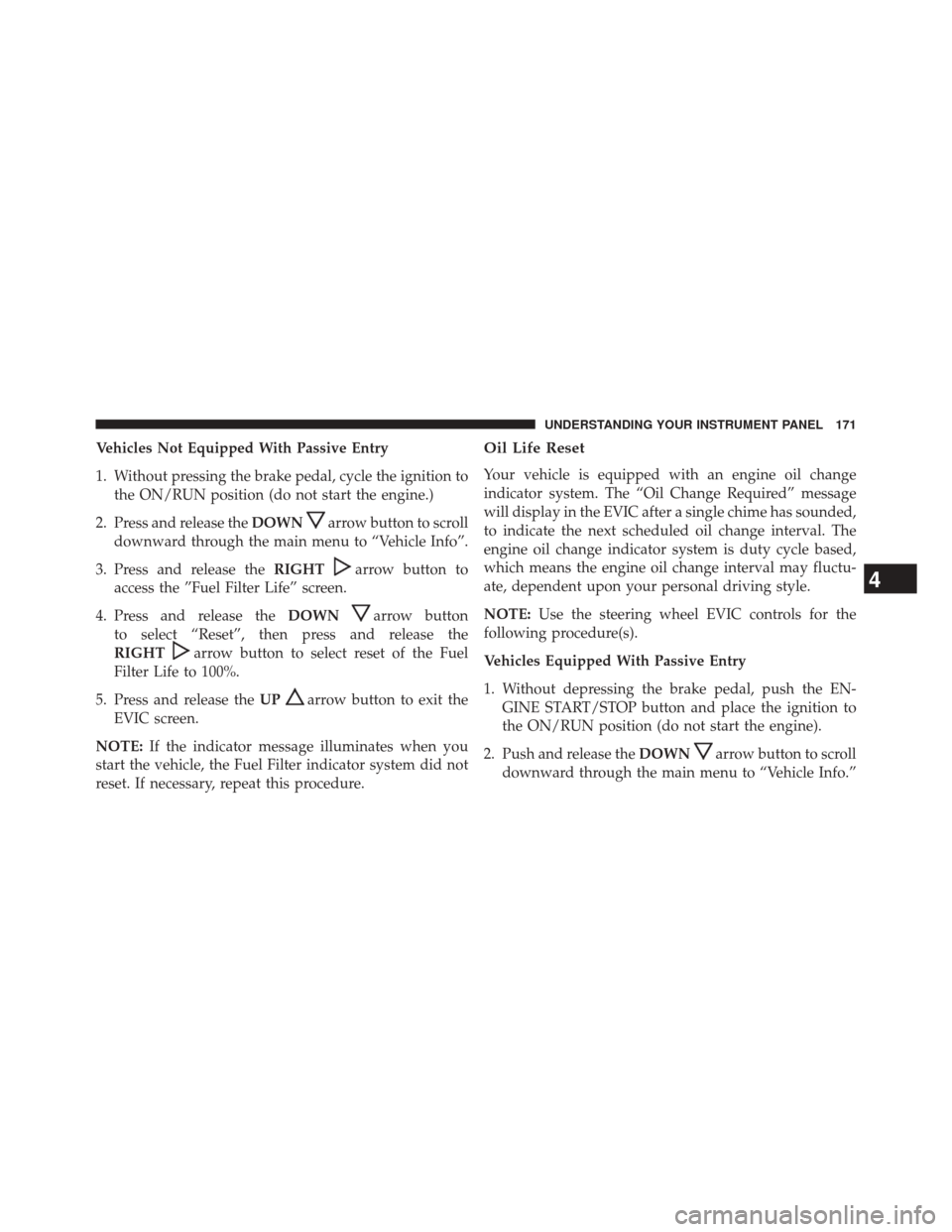

Vehicles Not Equipped With Passive Entry
1. Without pressing the brake pedal, cycle the ignition tothe ON/RUN position (do not start the engine.)
2. Press and release the DOWN
arrow button to scroll
downward through the main menu to “Vehicle Info”.
3. Press and release the RIGHT
arrow button to
access the ”Fuel Filter Life” screen.
4. Press and release the DOWN
arrow button
to select “Reset”, then press and release the
RIGHT
arrow button to select reset of the Fuel
Filter Life to 100%.
5. Press and release the UP
arrow button to exit the
EVIC screen.
NOTE: If the indicator message illuminates when you
start the vehicle, the Fuel Filter indicator system did not
reset. If necessary, repeat this procedure.
Oil Life Reset
Your vehicle is equipped with an engine oil change
indicator system. The “Oil Change Required” message
will display in the EVIC after a single chime has sounded,
to indicate the next scheduled oil change interval. The
engine oil change indicator system is duty cycle based,
which means the engine oil change interval may fluctu-
ate, dependent upon your personal driving style.
NOTE: Use the steering wheel EVIC controls for the
following procedure(s).
Vehicles Equipped With Passive Entry
1. Without depressing the brake pedal, push the EN- GINE START/STOP button and place the ignition to
the ON/RUN position (do not start the engine).
2. Push and release the DOWN
arrow button to scroll
downward through the main menu to “Vehicle Info.”
4
UNDERSTANDING YOUR INSTRUMENT PANEL 171

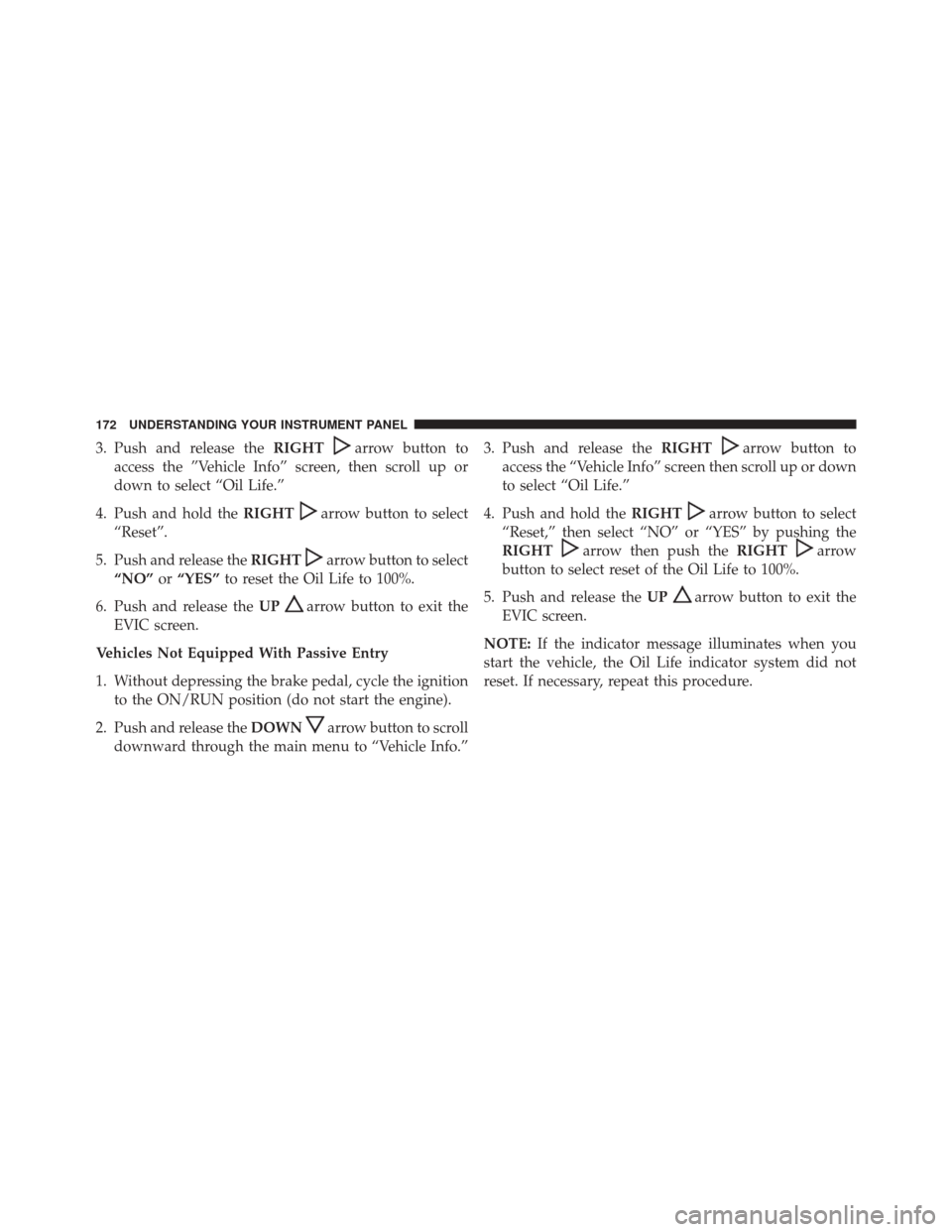

3. Push and release theRIGHTarrow button to
access the ”Vehicle Info” screen, then scroll up or
down to select “Oil Life.”
4. Push and hold the RIGHT
arrow button to select
“Reset”.
5. Push and release the RIGHT
arrow button to select
“NO” or“YES” to reset the Oil Life to 100%.
6. Push and release the UP
arrow button to exit the
EVIC screen.
Vehicles Not Equipped With Passive Entry
1. Without depressing the brake pedal, cycle the ignition to the ON/RUN position (do not start the engine).
2. Push and release the DOWN
arrow button to scroll
downward through the main menu to “Vehicle Info.” 3. Push and release the
RIGHT
arrow button to
access the “Vehicle Info” screen then scroll up or down
to select “Oil Life.”
4. Push and hold the RIGHT
arrow button to select
“Reset,” then select “NO” or “YES” by pushing the
RIGHT
arrow then push the RIGHTarrow
button to select reset of the Oil Life to 100%.
5. Push and release the UP
arrow button to exit the
EVIC screen.
NOTE: If the indicator message illuminates when you
start the vehicle, the Oil Life indicator system did not
reset. If necessary, repeat this procedure.
172 UNDERSTANDING YOUR INSTRUMENT PANEL

Driver Information Display (DID) — 7” Display
The Driver Information Display (DID) display is located
in the center portion of the cluster and consists of eight
sections:1. Main Screen — The inner ring of the display will
illuminate in grey under normal conditions, yellow for
non critical warnings, red for critical warnings and
white for on demand information.
2. Audio Information and Submenu Information — Whenever there are submenus available, the position
within the submenus is shown here.
3. Selectable Information (Compass, Temp, Range to Empty, Trip A, Trip B, Average MPG, Trailer Trip
(distance only), Trailer Brake Gain).
4. Air Suspension Status – If Equipped
5. Transmission Gear Position Indicator (PRND)
6. Status Menu Icons
7. Telltales/Indicators
8. 4WD Status
4
UNDERSTANDING YOUR INSTRUMENT PANEL 173

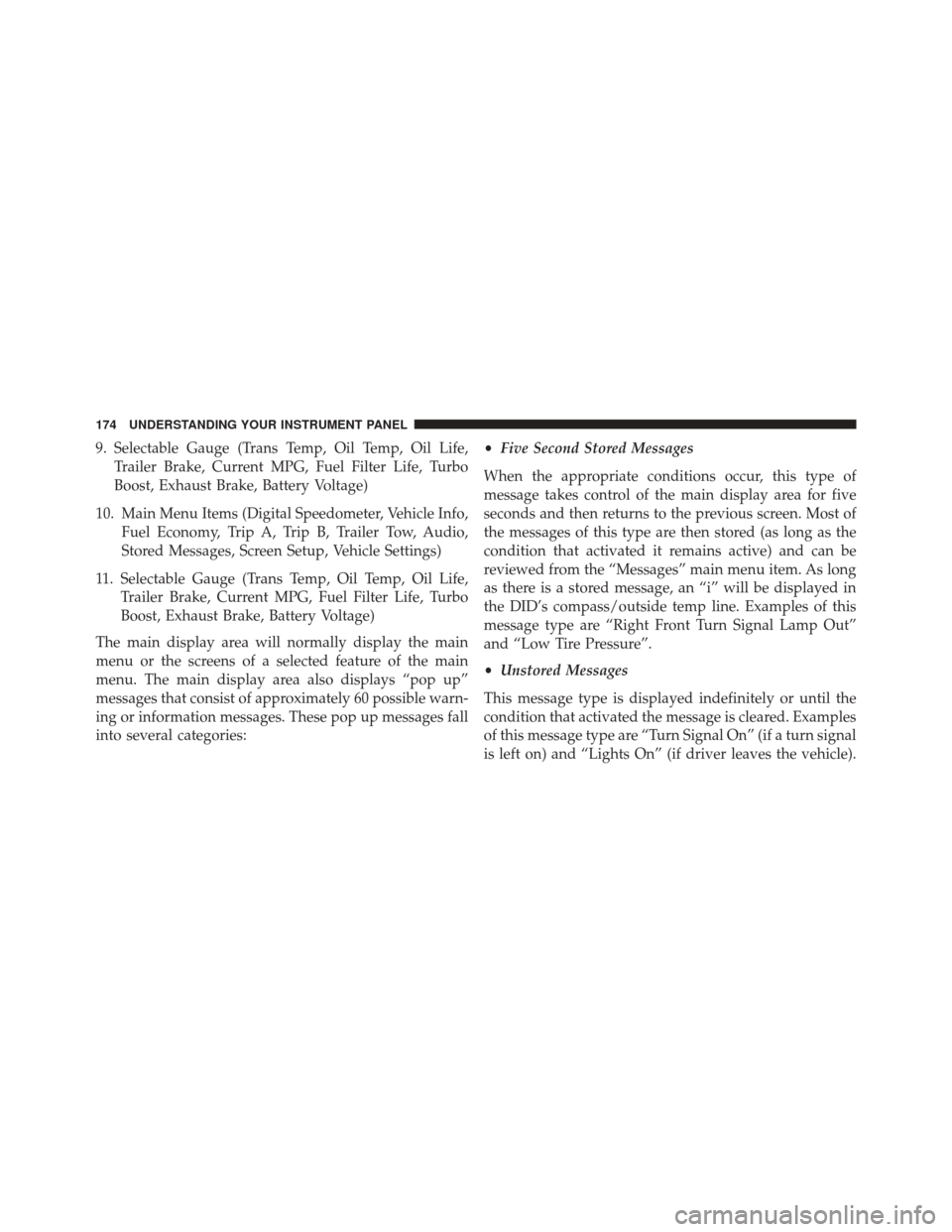

9. Selectable Gauge (Trans Temp, Oil Temp, Oil Life,Trailer Brake, Current MPG, Fuel Filter Life, Turbo
Boost, Exhaust Brake, Battery Voltage)
10. Main Menu Items (Digital Speedometer, Vehicle Info, Fuel Economy, Trip A, Trip B, Trailer Tow, Audio,
Stored Messages, Screen Setup, Vehicle Settings)
11. Selectable Gauge (Trans Temp, Oil Temp, Oil Life, Trailer Brake, Current MPG, Fuel Filter Life, Turbo
Boost, Exhaust Brake, Battery Voltage)
The main display area will normally display the main
menu or the screens of a selected feature of the main
menu. The main display area also displays “pop up”
messages that consist of approximately 60 possible warn-
ing or information messages. These pop up messages fall
into several categories: •
Five Second Stored Messages
When the appropriate conditions occur, this type of
message takes control of the main display area for five
seconds and then returns to the previous screen. Most of
the messages of this type are then stored (as long as the
condition that activated it remains active) and can be
reviewed from the “Messages” main menu item. As long
as there is a stored message, an “i” will be displayed in
the DID’s compass/outside temp line. Examples of this
message type are “Right Front Turn Signal Lamp Out”
and “Low Tire Pressure”.
• Unstored Messages
This message type is displayed indefinitely or until the
condition that activated the message is cleared. Examples
of this message type are “Turn Signal On” (if a turn signal
is left on) and “Lights On” (if driver leaves the vehicle).
174 UNDERSTANDING YOUR INSTRUMENT PANEL

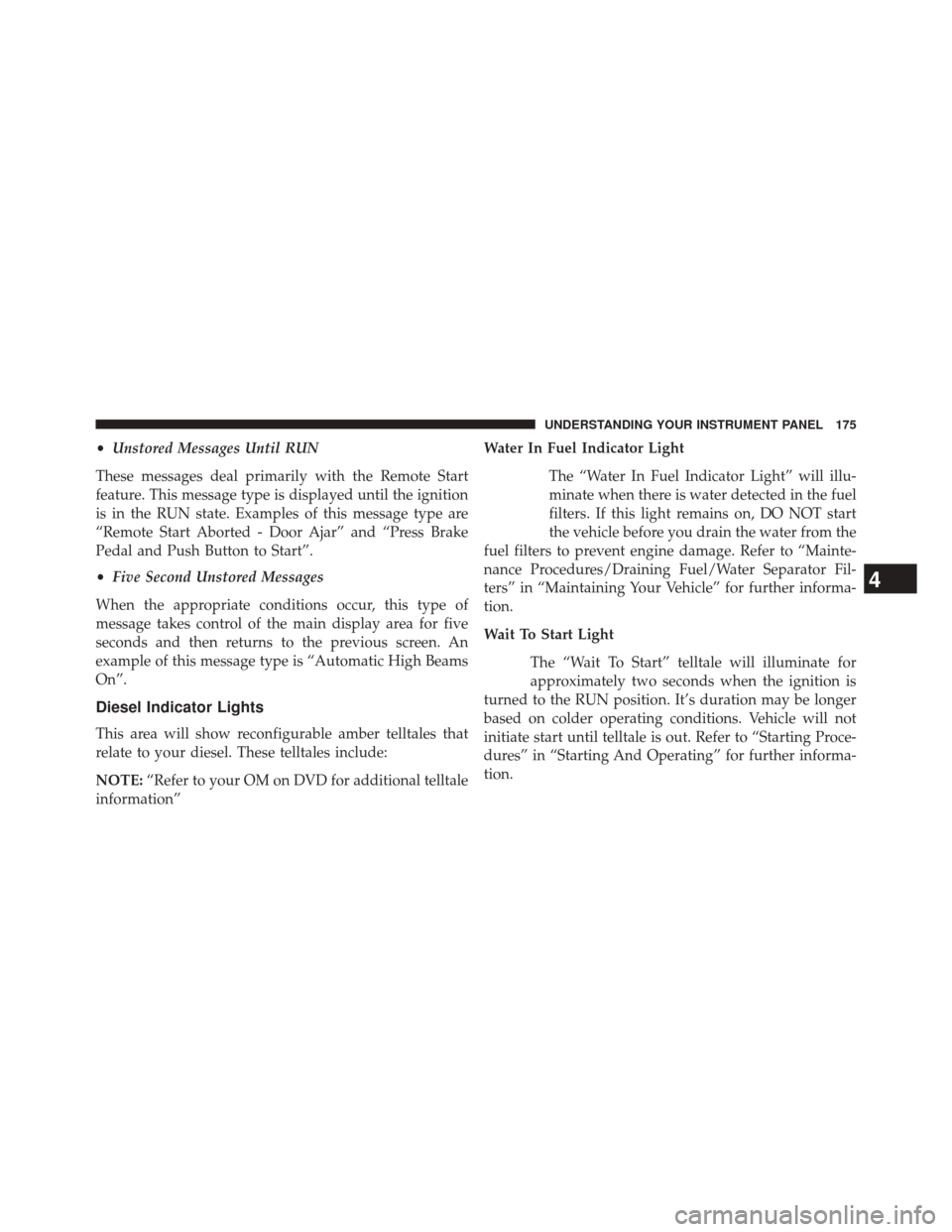

•Unstored Messages Until RUN
These messages deal primarily with the Remote Start
feature. This message type is displayed until the ignition
is in the RUN state. Examples of this message type are
“Remote Start Aborted - Door Ajar” and “Press Brake
Pedal and Push Button to Start”.
• Five Second Unstored Messages
When the appropriate conditions occur, this type of
message takes control of the main display area for five
seconds and then returns to the previous screen. An
example of this message type is “Automatic High Beams
On”.
Diesel Indicator Lights
This area will show reconfigurable amber telltales that
relate to your diesel. These telltales include:
NOTE: “Refer to your OM on DVD for additional telltale
information” Water In Fuel Indicator Light
The “Water In Fuel Indicator Light” will illu-
minate when there is water detected in the fuel
filters. If this light remains on, DO NOT start
the vehicle before you drain the water from the
fuel filters to prevent engine damage. Refer to “Mainte-
nance Procedures/Draining Fuel/Water Separator Fil-
ters” in “Maintaining Your Vehicle” for further informa-
tion.
Wait To Start Light
The “Wait To Start” telltale will illuminate for
approximately two seconds when the ignition is
turned to the RUN position. It’s duration may be longer
based on colder operating conditions. Vehicle will not
initiate start until telltale is out. Refer to “Starting Proce-
dures” in “Starting And Operating” for further informa-
tion.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 175

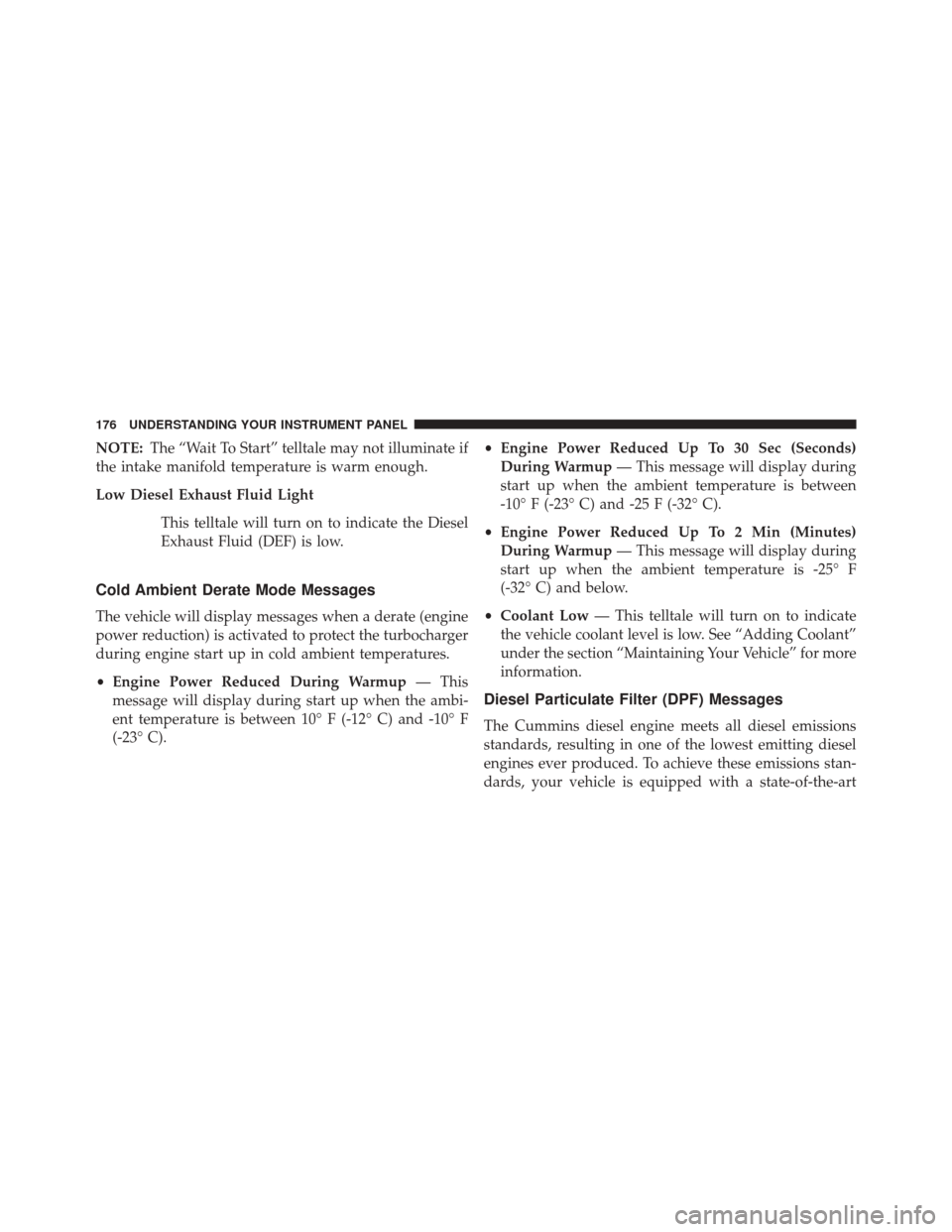

NOTE:The “Wait To Start” telltale may not illuminate if
the intake manifold temperature is warm enough.
Low Diesel Exhaust Fluid Light
This telltale will turn on to indicate the Diesel
Exhaust Fluid (DEF) is low.
Cold Ambient Derate Mode Messages
The vehicle will display messages when a derate (engine
power reduction) is activated to protect the turbocharger
during engine start up in cold ambient temperatures.
•Engine Power Reduced During Warmup — This
message will display during start up when the ambi-
ent temperature is between 10° F (-12° C) and -10° F
(-23° C). •
Engine Power Reduced Up To 30 Sec (Seconds)
During Warmup — This message will display during
start up when the ambient temperature is between
-10° F (-23° C) and -25 F (-32° C).
• Engine Power Reduced Up To 2 Min (Minutes)
During Warmup — This message will display during
start up when the ambient temperature is -25° F
(-32° C) and below.
• Coolant Low — This telltale will turn on to indicate
the vehicle coolant level is low. See “Adding Coolant”
under the section “Maintaining Your Vehicle” for more
information.
Diesel Particulate Filter (DPF) Messages
The Cummins diesel engine meets all diesel emissions
standards, resulting in one of the lowest emitting diesel
engines ever produced. To achieve these emissions stan-
dards, your vehicle is equipped with a state-of-the-art
176 UNDERSTANDING YOUR INSTRUMENT PANEL

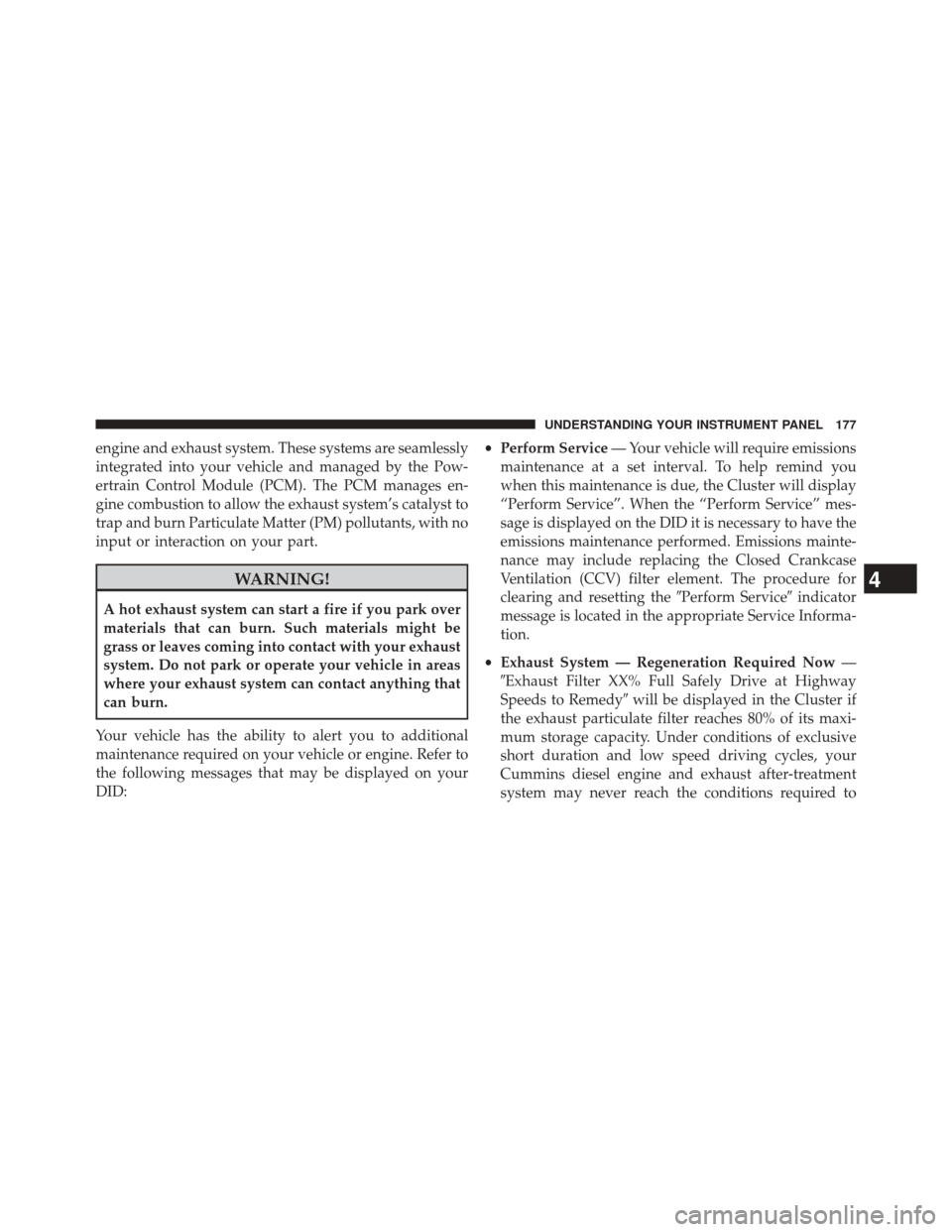

engine and exhaust system. These systems are seamlessly
integrated into your vehicle and managed by the Pow-
ertrain Control Module (PCM). The PCM manages en-
gine combustion to allow the exhaust system’s catalyst to
trap and burn Particulate Matter (PM) pollutants, with no
input or interaction on your part.
WARNING!
A hot exhaust system can start a fire if you park over
materials that can burn. Such materials might be
grass or leaves coming into contact with your exhaust
system. Do not park or operate your vehicle in areas
where your exhaust system can contact anything that
can burn.
Your vehicle has the ability to alert you to additional
maintenance required on your vehicle or engine. Refer to
the following messages that may be displayed on your
DID: •
Perform Service — Your vehicle will require emissions
maintenance at a set interval. To help remind you
when this maintenance is due, the Cluster will display
“Perform Service”. When the “Perform Service” mes-
sage is displayed on the DID it is necessary to have the
emissions maintenance performed. Emissions mainte-
nance may include replacing the Closed Crankcase
Ventilation (CCV) filter element. The procedure for
clearing and resetting the Perform Serviceindicator
message is located in the appropriate Service Informa-
tion.
• Exhaust System — Regeneration Required Now —
Exhaust Filter XX% Full Safely Drive at Highway
Speeds to Remedy will be displayed in the Cluster if
the exhaust particulate filter reaches 80% of its maxi-
mum storage capacity. Under conditions of exclusive
short duration and low speed driving cycles, your
Cummins diesel engine and exhaust after-treatment
system may never reach the conditions required to
4
UNDERSTANDING YOUR INSTRUMENT PANEL 177

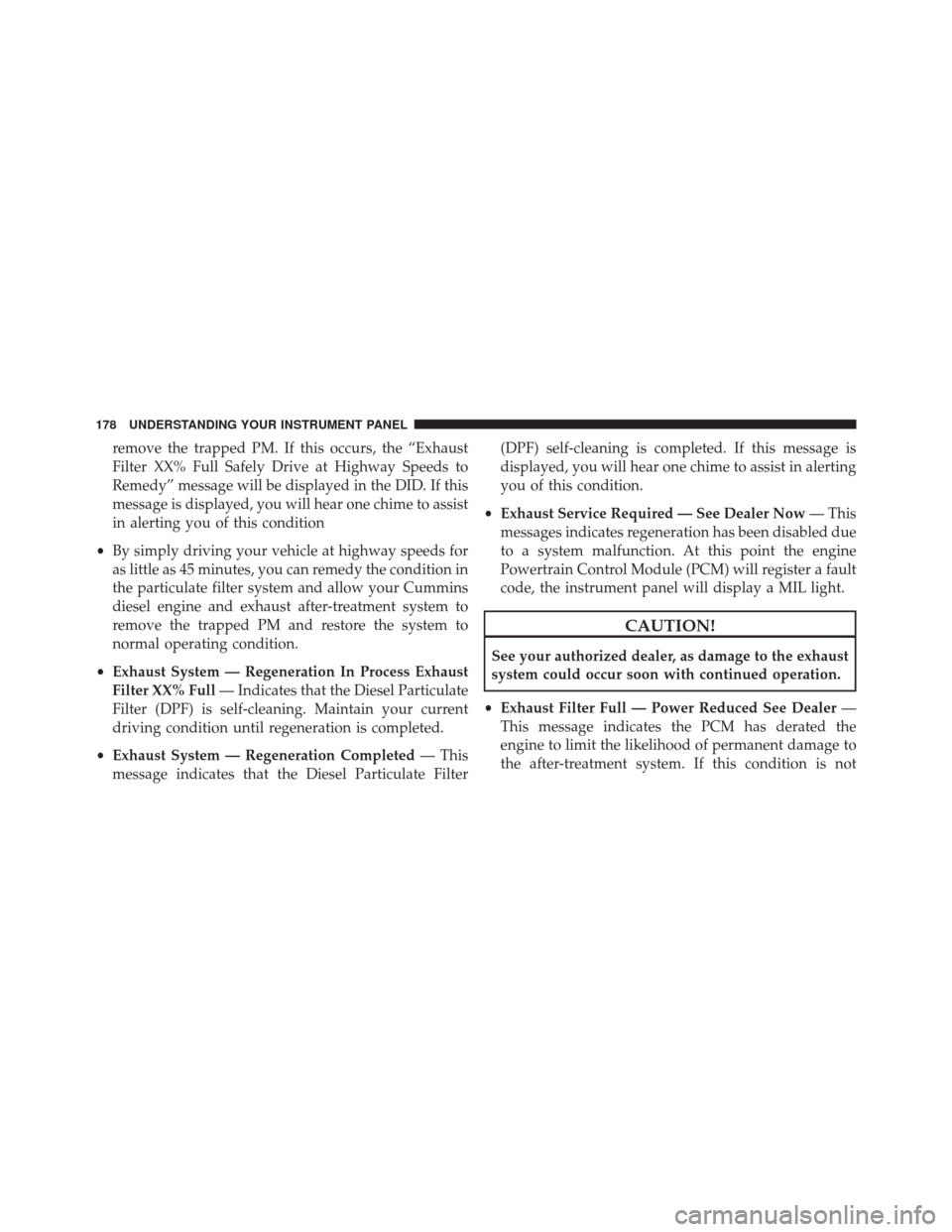

remove the trapped PM. If this occurs, the “Exhaust
Filter XX% Full Safely Drive at Highway Speeds to
Remedy” message will be displayed in the DID. If this
message is displayed, you will hear one chime to assist
in alerting you of this condition
• By simply driving your vehicle at highway speeds for
as little as 45 minutes, you can remedy the condition in
the particulate filter system and allow your Cummins
diesel engine and exhaust after-treatment system to
remove the trapped PM and restore the system to
normal operating condition.
• Exhaust System — Regeneration In Process Exhaust
Filter XX% Full — Indicates that the Diesel Particulate
Filter (DPF) is self-cleaning. Maintain your current
driving condition until regeneration is completed.
• Exhaust System — Regeneration Completed — This
message indicates that the Diesel Particulate Filter (DPF) self-cleaning is completed. If this message is
displayed, you will hear one chime to assist in alerting
you of this condition.
• Exhaust Service Required — See Dealer Now — This
messages indicates regeneration has been disabled due
to a system malfunction. At this point the engine
Powertrain Control Module (PCM) will register a fault
code, the instrument panel will display a MIL light.
CAUTION!
See your authorized dealer, as damage to the exhaust
system could occur soon with continued operation.
• Exhaust Filter Full — Power Reduced See Dealer —
This message indicates the PCM has derated the
engine to limit the likelihood of permanent damage to
the after-treatment system. If this condition is not
178 UNDERSTANDING YOUR INSTRUMENT PANEL
